G17 Adapters
Adapters for universal testing machines — female, male, rotating, flange, cardan, chain
Overview
Products
TH187
Adapter female – male
A = male, pin thread with counter-nut. B = female hole.
THS220
Adapter male – female
Male adapter with female thread.
THS317
Rotation adapter with ball bearings
Rotating connection via ball bearings — compensates specimen twist.
THS327
Cardan joint adapter
A = male adapter, B = female adapter. Compensates angular offset.
THS438
Adapter female – male
A = male, pin thread with counter-nut. B = female hole.
THS464
Male adapter
Male adapter with two counter-nuts, male thread.
THS486
Female adapter
Female pin hole with inner thread.
THS531
Adapter female – female
Female – female adapter.
THS626
Adapter male – male
Male – male adapter.
THS628
Flange adapter male
Adapter with flange and male connection.
THS636-16-Km5-VA4
Stainless steel adapter
Stainless steel adapter Af16 mm, M5 inner thread.
THS637
Female adapter with hole
Female adapter with a hole to fix a cap screw.
THS646
Flange adapter female
Adapter with flange and female connection.
THS658
Adapter male thread – female thread
Adapter male thread to female thread.
THS814
Adapter male thread – male thread
Adapter with two male threads.
THS892
Adapter female – male
A = female pin hole with counter-nut. B = male thread.

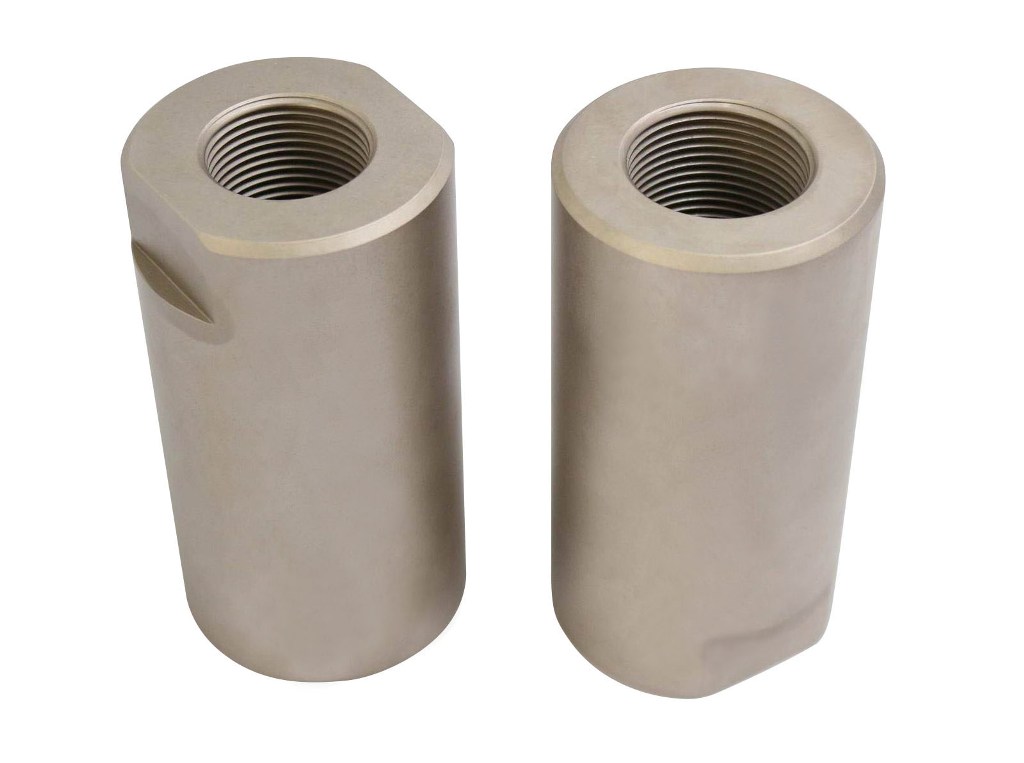

THS950-M33x2-M30x2
Adapter with 2 female threads
Adapter with two female threads (M33×2 / M30×2 HRC).
THS988
Adapter male with pin hole
Male adapter with pin hole — fixed in jaws.
THS572
Adapter with adjustable angle
Versions ±45°, +60°, +90°.
TH239
Locking pins
Locking pins to secure adapters.
THS978-M60x1.5-12x16.4TK84
Male thread flange
Pull rod adapters for temperature chambers.
THS665
Chain adapters
Chain adapters for tensile tests with large travel.
— kein Bild —
Sonderausführungen
Special adapters
Customer-specific adapters — geometry, thread and material on request.
