THS1042-10_DIN-EN-50342-5_1.45 kg_pulling_device _30.7kg_plate

THS1402-10

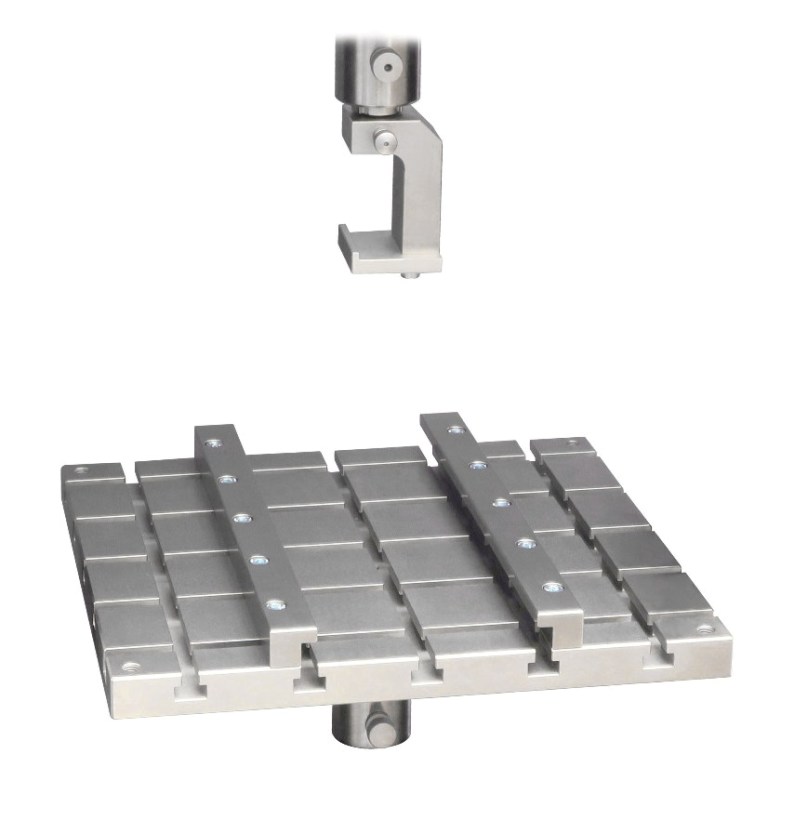

Fixture to test strength of the handles of the lead-acid starter batteries

according to DIN EN50342-5 (4.4.4)
Incl. upper pulling device and lower holding plate  Steel, nickel-plated

Max. load 5 kN

THS1402-20-battery-terminal-tensile-test

THS1402-20-Af159

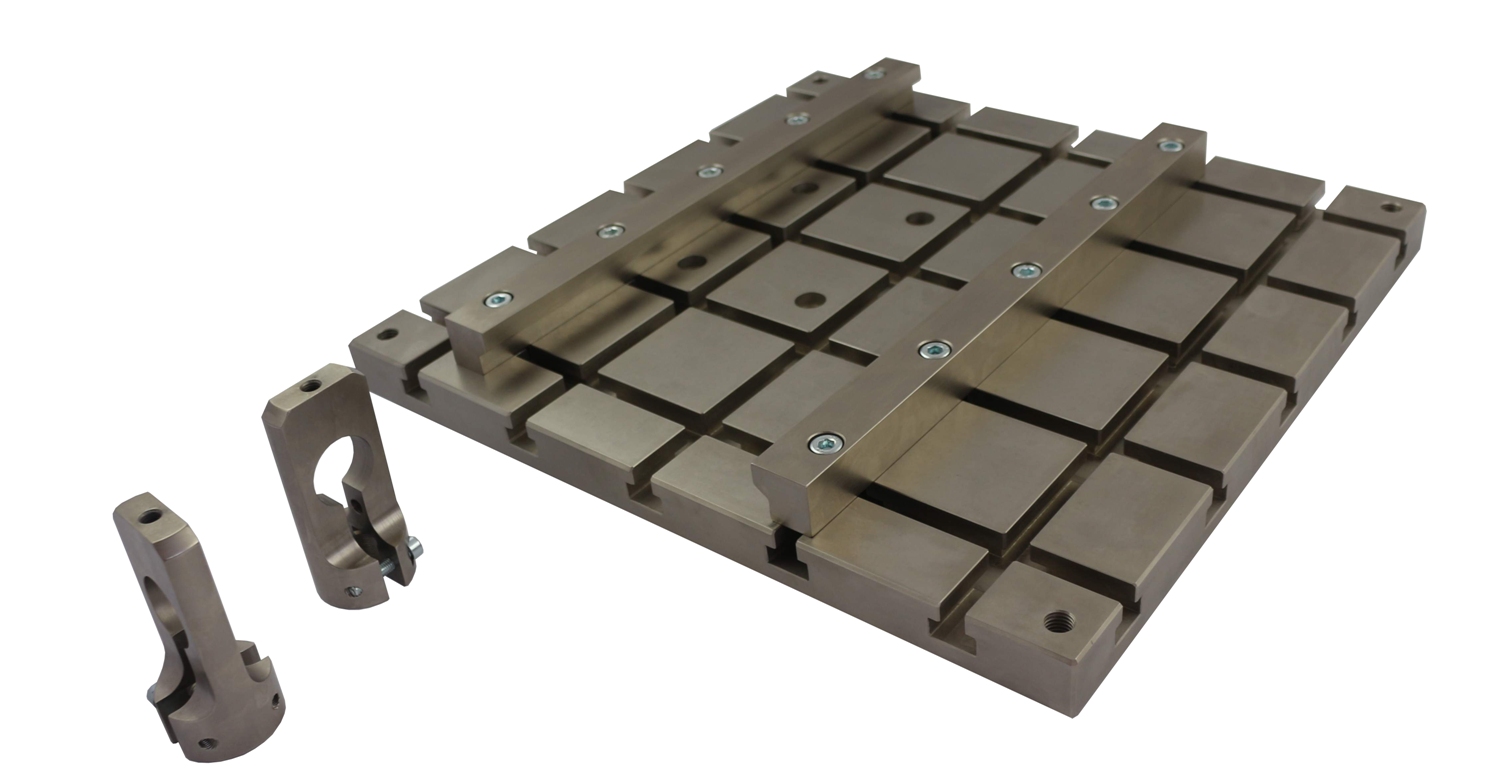

Special tensile test fixture to measure the pull-off force of battery terminals

Max. load 6 kN

T-groove platen 380x400 mm

Opening of upper grip: 17.6 mm Ø
and 19.2 mm Ø

Steel, nickel-plated

THS1402-30

THS1402-30-Af40

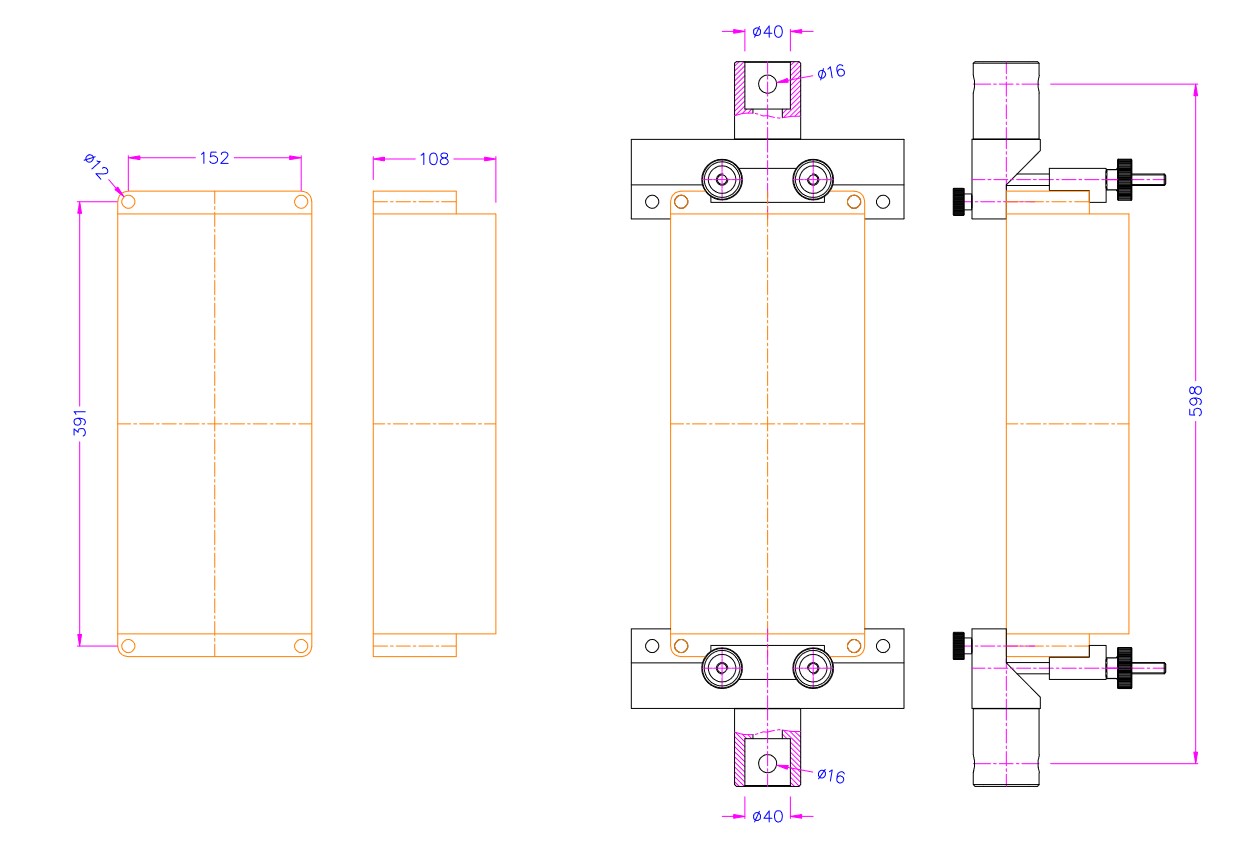

Special grips for tensile test on electric vehicle batteries

Max. load 100 kN

Jaw width 240 mm, opening 35-110 mm

Coupling Af40

Steel, nickel-plated
