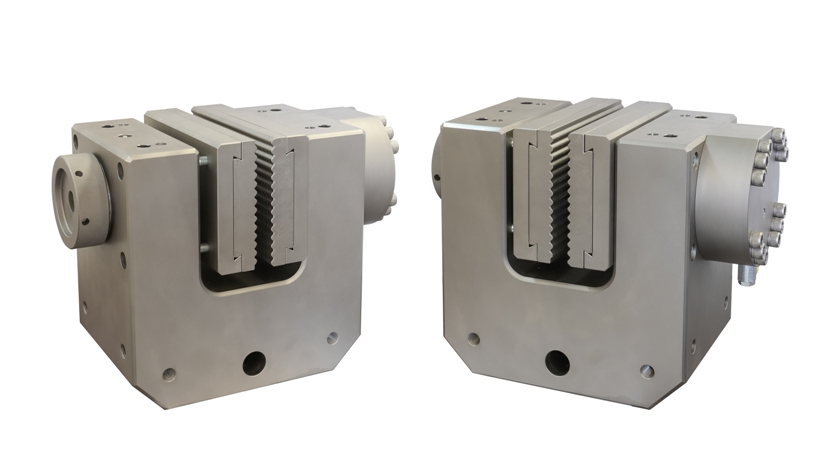

	THS804-V22+EBW220x150 Special hydraulic grip with 1 piston Perfect for testing geotextiles According to ASTM-D6637 Max. tensile load: 250 kN Max. clamping force: 500 kN at 450 bar Wave insert jaws with clamping surface 220x150 mm (L x H) Jaw opening 0-30 mm Steel, nickel-coated Coupling Af60 THS804 Datasheet.pdf THS804 Datenblatt.pdf Air hydraulic pump see TH135-Pu

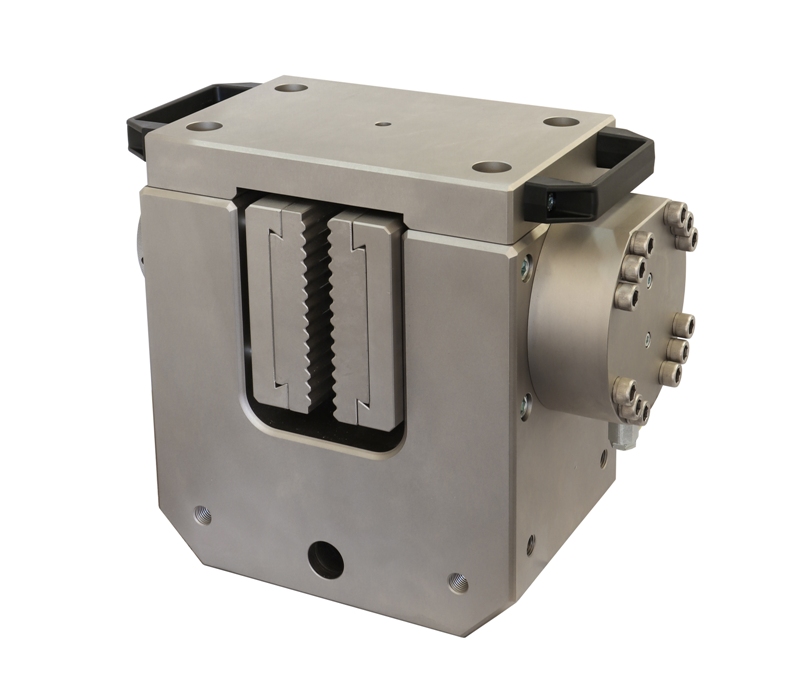

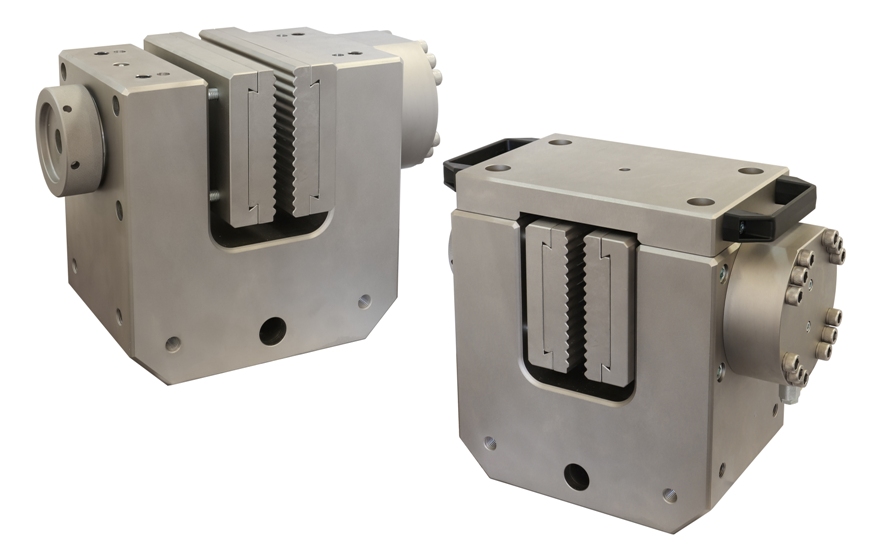

	THS804-V22+EBW220x150 + V22-10-AfM12x75 Special adapter platen to attach THS814 adapter Connection: threaded hole M12x1.75
	THS804-V22+EBW220x150 + V22-10-AfM12x75

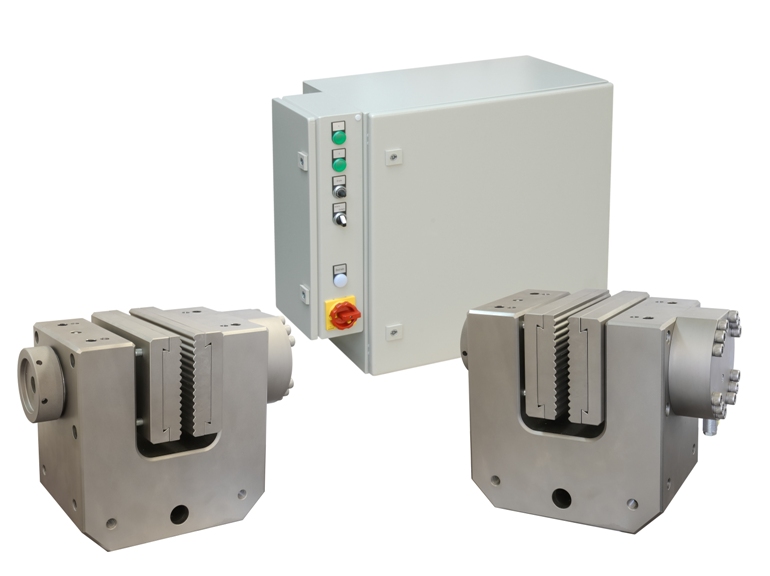

	THS804-V22+EBW220x150 + TH135-Pu With air hydraulic pump see TH135-Pu

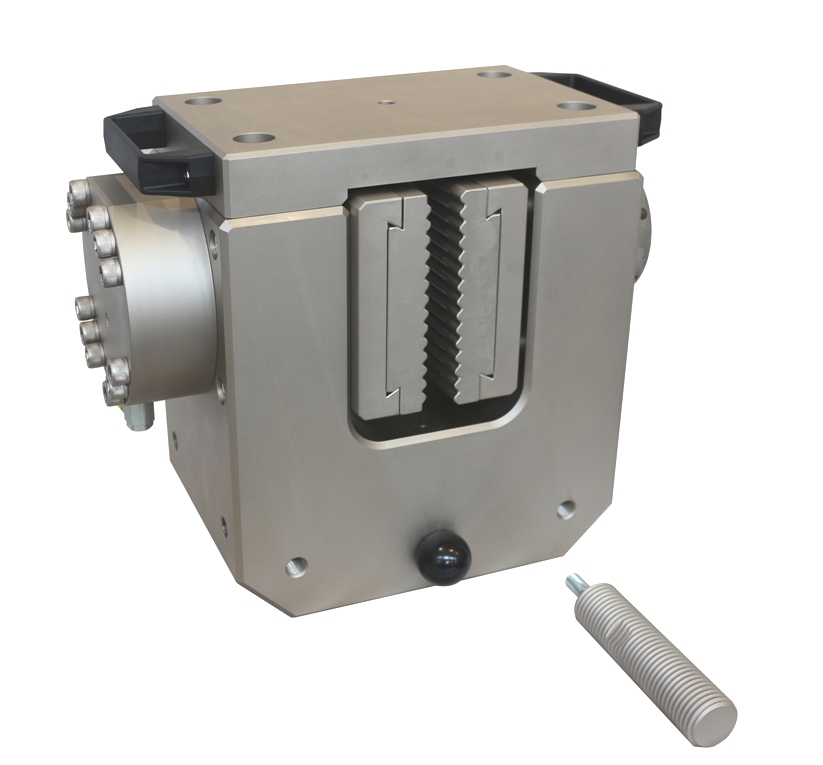

	THS804-V22+EBW220x150 + V22-10-AfM12x75 + THS814-M36x4-M12x1.75 THS804-V22 hydraulic grip + adapter plate to connect adapter THS814-M36x4-M12x1.75

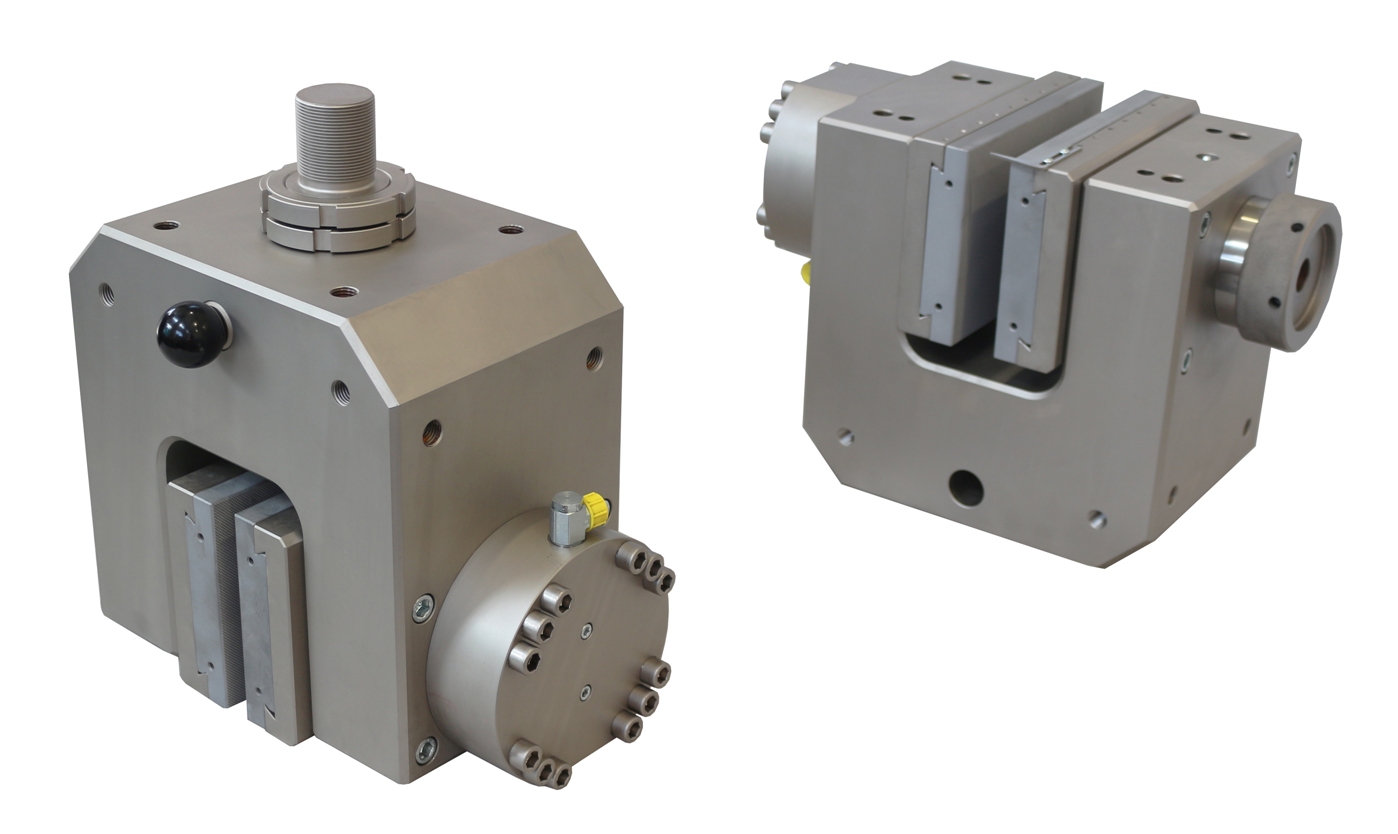

	THS804-V22-Af603035+EBP Special hydraulic grips for a conveyor belt Max. tensile load: 250 kN Max. clamping force: 500 kN at 450 bar Pyramid insert jaws 150x220 mm (H x W) Steel, nickel-coated Coupling Af60
	THS1220-10-GDE We recommend using safety pliers with guide Adjustable distance between pliers (max. 375 mm) See THS1220
