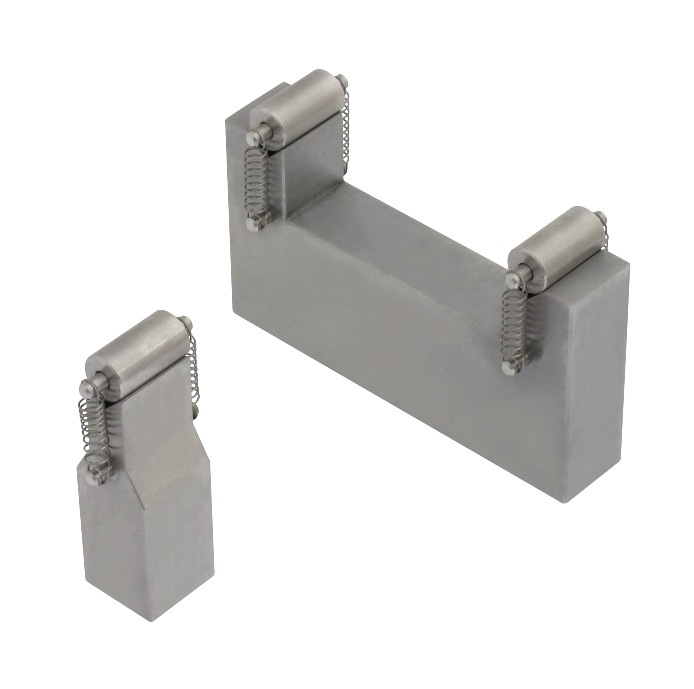

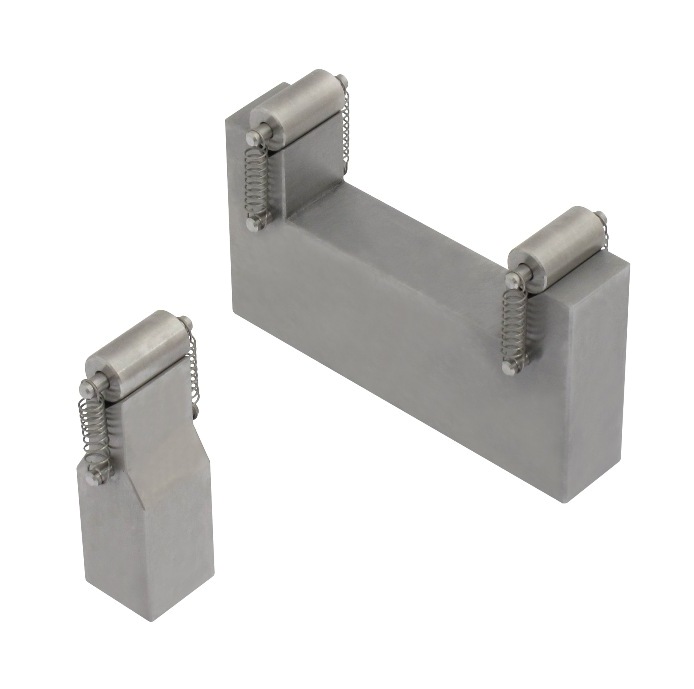

TH41


Bending fixture with fixed distance



Biegevorrichtung mit fester Finnenbreite



more

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: GrößenänderungTHS318-250kN

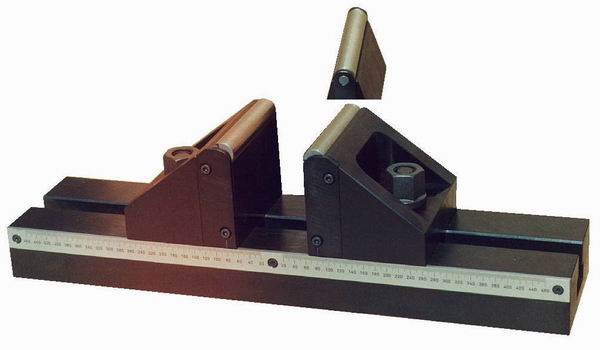

THS318

Heavy bending fixture


Biegevorrichtung schwere Ausführung



more

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: THS709-20-4-AWYX

THS709



Bending fixtures movable rollable

for ceramic samples

Biegevorrichtung mit Rollern und Wippen



more

THS713-4P-4F-4x77-Af159 JEDEC JESD22B113 7,25kg Platine Circuit 4-point fatigue bend test 01

THS713



4-point fatigue bend test fixture to test performance of printed circuit boards in an accelerated test environment, like shipment according to JEDEC JESD22B113



more

THS1063-20.3-WDF_DIN_EN14509_metal_faced_insulating_panels_shear_strength_01

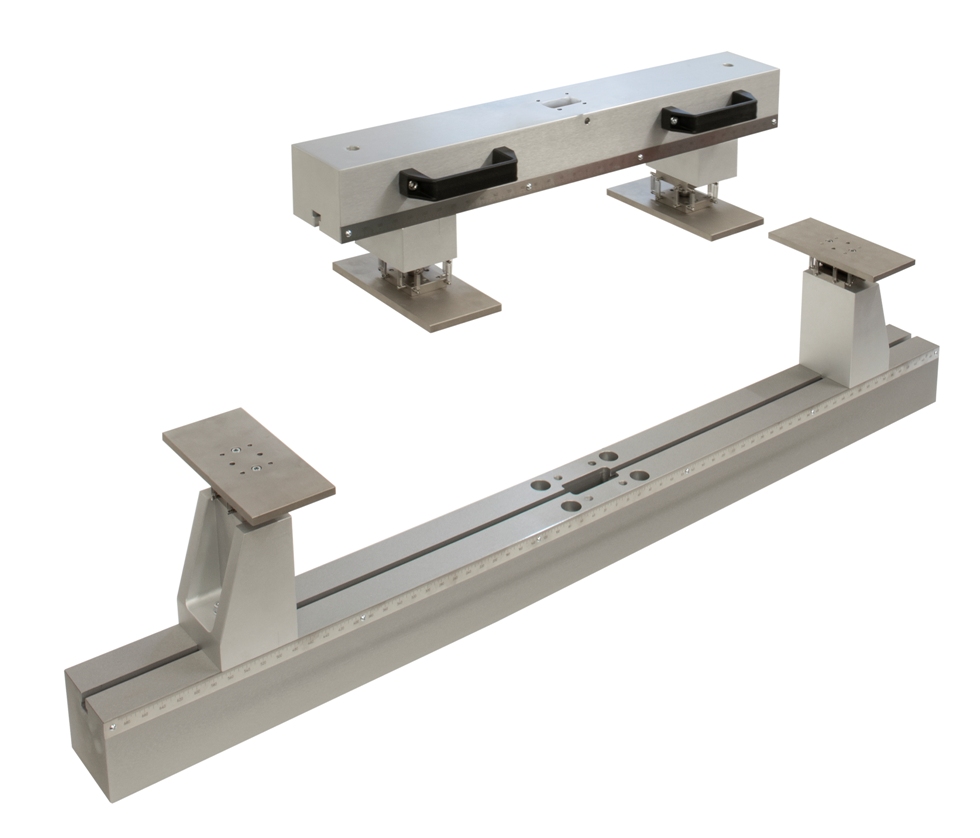

THS1063-20.3-WDF-DIN-EN14509



Special bend test fixture to determine shear strength of metal faced insulating panels according to DIN-EN14509



more

THS535-2P-1300-CX40+dtu1-Ad1-Ad2  lower bar with supports and roller 40mm diameter 1300m04.03.2020 (2)

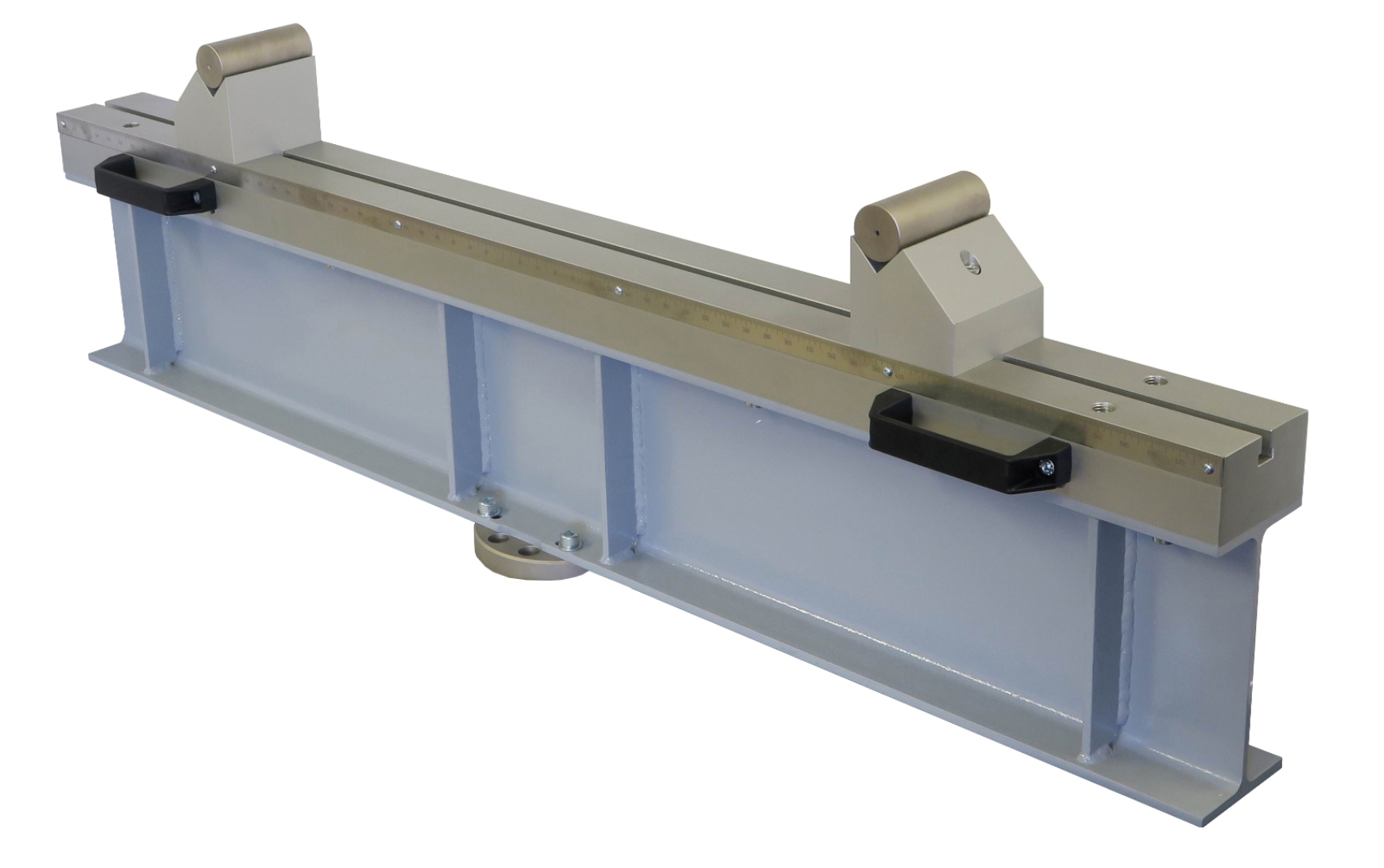

THS535



Bending bar with supports

more

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: THS828-.jpg

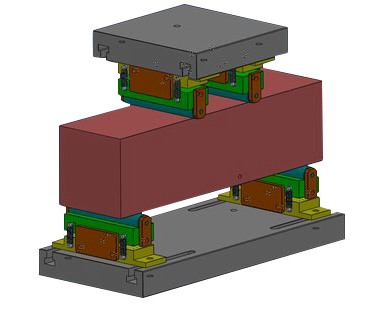

THS828

Universal bend test fixture

more

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: THS826_ASTM-C168_bendfixture with cradels-2.jpg

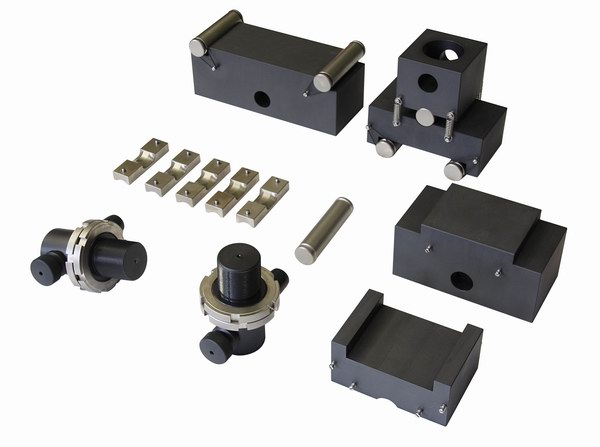

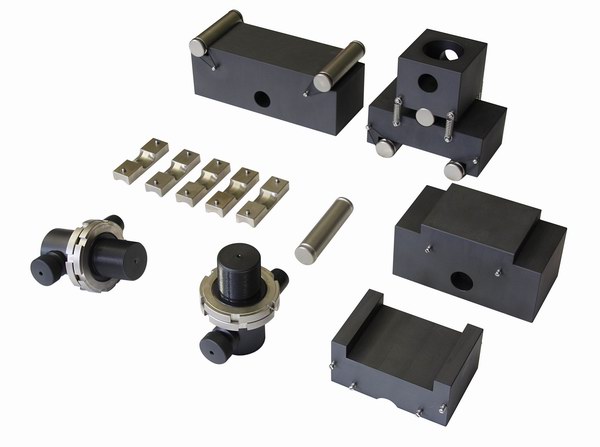

THS826

Bend fixture with
cradles-2
according to ASTM-C1684

more

Description: Description: Description: tn_THS139-90-3P-3060-CX30x300+600-Am317 grosser Biegebalken-15.04.2020 mit Profil-2

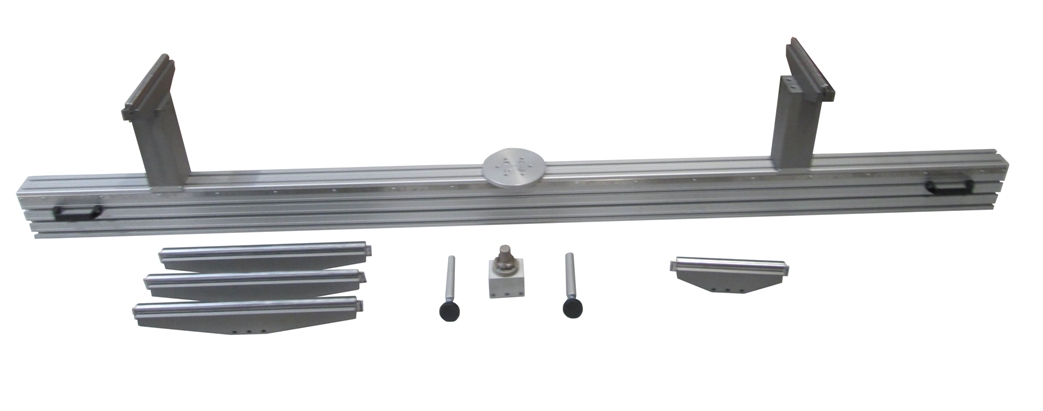

THS139


5-point bending bench for large distance profiles

more

Description: Description: Description: tn_THS1498-8P-200-CR2-Am16 3.25kg Metal sheet bend test- -

Biaxial bend test fixtures

Biaxiale Biegevorrichtungen

more

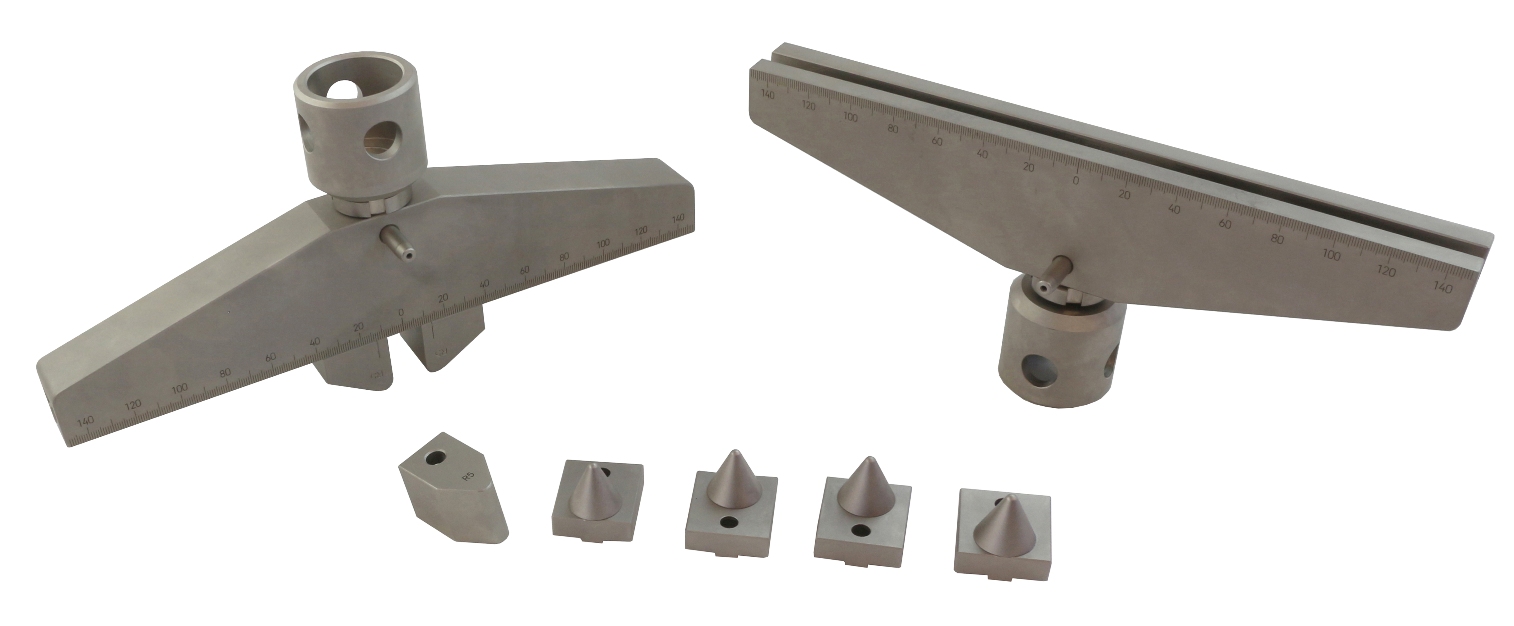

THS1498-5P-300-R2+R5-Af159_Fibre-reinforced-plastic_composites_ISO15310_ISO14125_ISO14130_7.05kg_2024-08-10_03

THS1498-5P-300-R2+R5-Af159


Special 5-point bend test fixture to determine flexural properties of fibre-reinforced plastic composites according to ISO15310, ISO14125, ISO14130
Max. load 10 kN
Upper and lower beam length 300 mm
Special supports with radius R2 and R5 mm
Steel, nickel-plated
Coupling Af159

tn_THS1119-800+ith1-Af20-DIN53121-G02-02

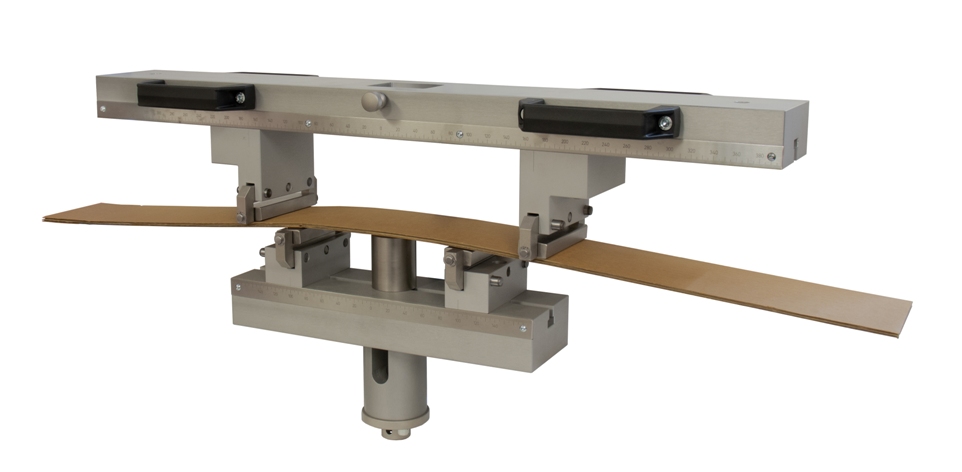

THS1119-800+ith1-Af20



Special bend test fixture to determine bending stiffness of paper and board by the beam method
according to DIN53121 and ISO5628

more

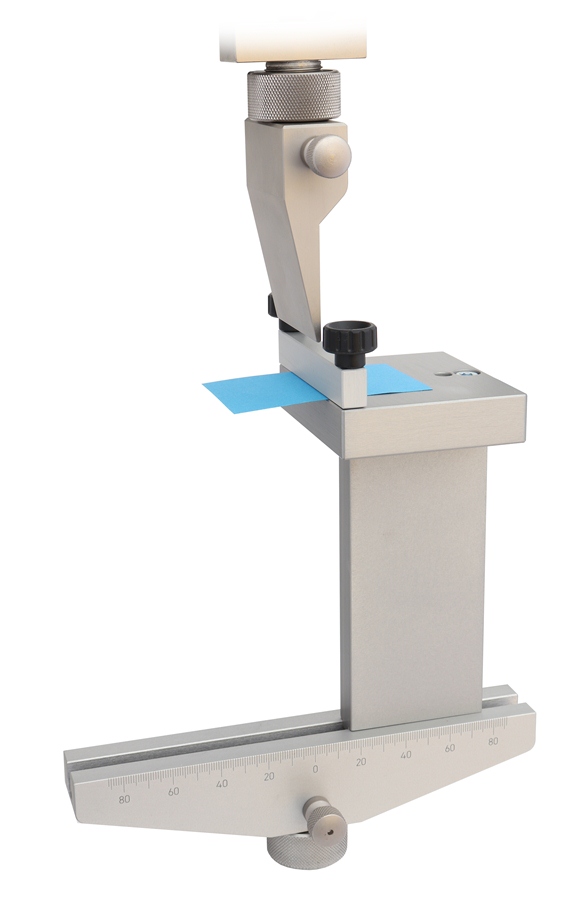

THS1478-2P-OR1-Af15,9_1,5kg_2019-03-06

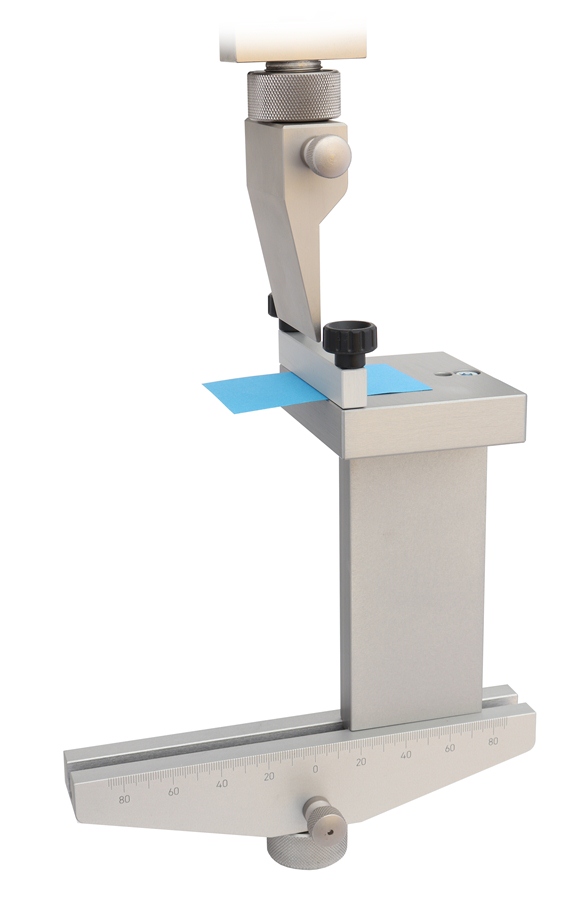

THS1478

Bend test fixture to determine bending stiffness of paper and board by the beam method

according to DIN53121 and ISO5628


more

THS1711-ERx-AfD60x15-ISO7438_metal_bend_test_03

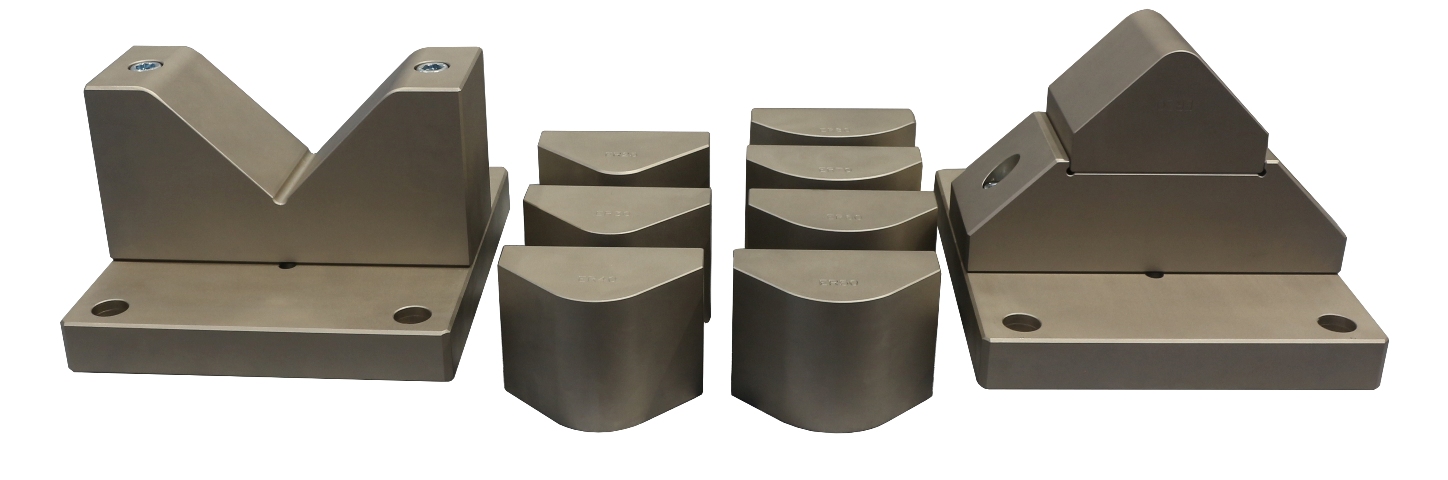

THS1711-ERx-AfD60x15-ISO7438



Special 90° bend test fixture
according to ISO7438



more

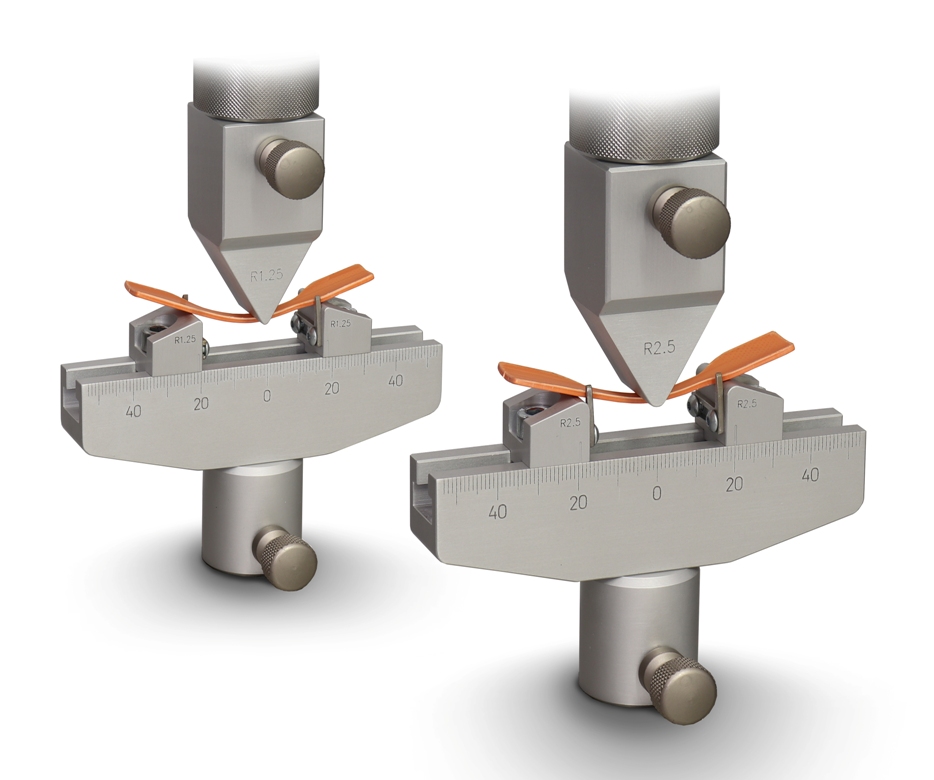

THS530-190-5P-R1.5+R2.5_0,7kg_Extra_small_bending_grip_2023-11-17_02

THS530



Special bend test fixtures

more

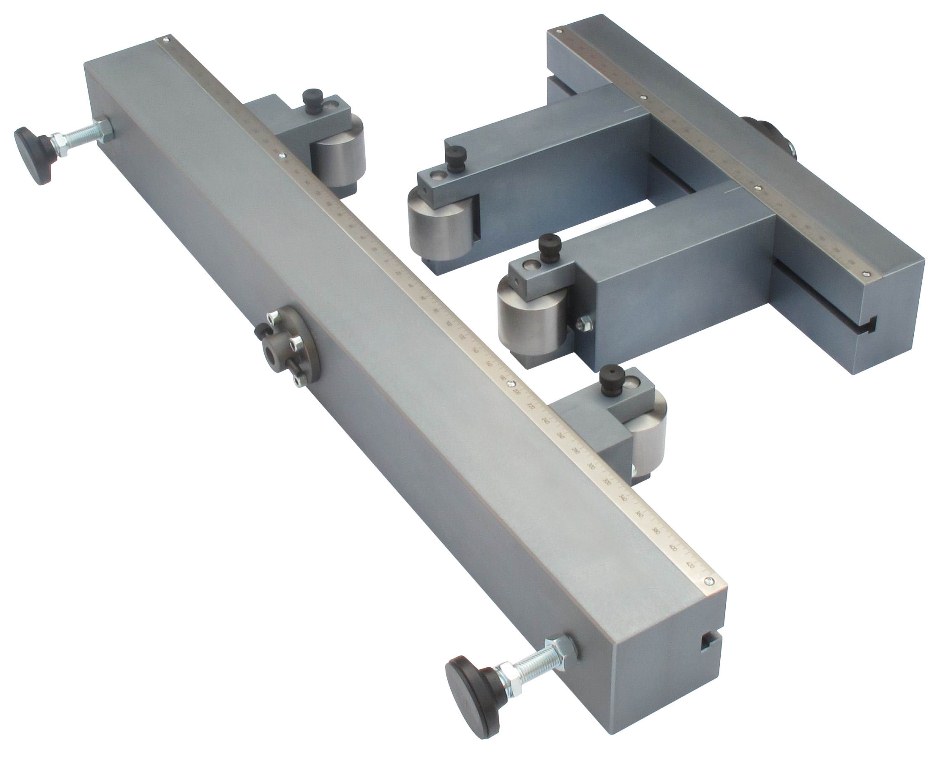

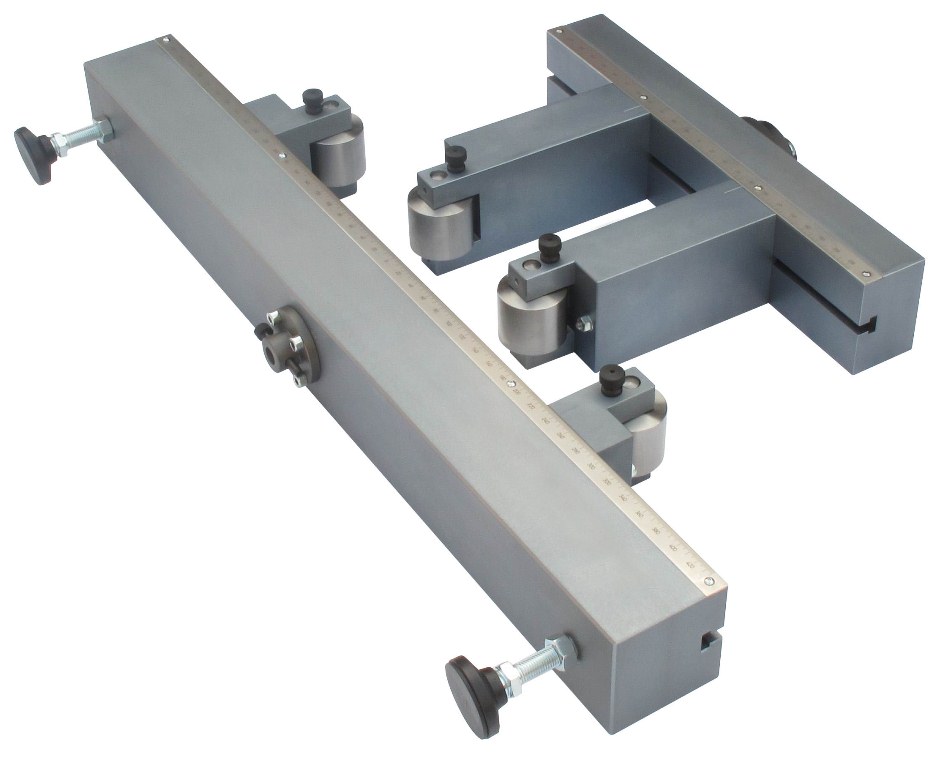

THS651

Special 4-point bending fixture

Articulating coupling at the top

More

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: THS664-1.jpg

THS664-1

3-point bending fixture, 3 ceramic supports

more

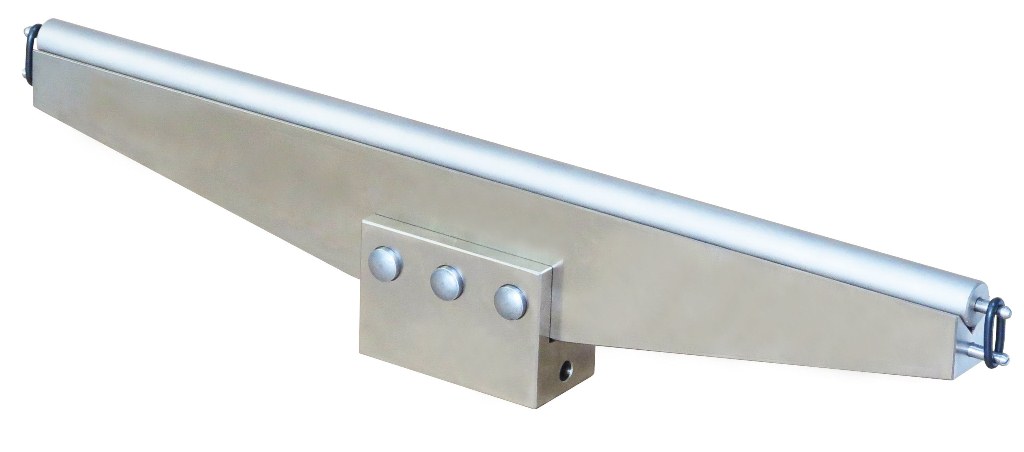

THS930-10

Special bend test fixture to test gypsum blocks according to DIN EN12859


more

THS1576



Special fixture to determine strength and stiffness of furniture connectors according to DIN68501 Fig.5-2



Sondervorrichtung zur Bestimmung der Festigkeit und Steifigkeit von Korpuseckverbindern gemäß DIN68501 Fig.5-2



more

tn_THS689-20+R16-ASTM-C133  19,5kg  G02  Brick  Stein  2020-06-15  04

THS689-20-ASTM-C133

Bend test fixture to test refractories according to ASTM-C133 or ISO10059
Brick testing


Biegevorrichtung zum Testen von feuerfesten Werkstoffen gemäß ASTM-C133 oder
ISO10059
Biegeversuch an Ziegelsteinen



more

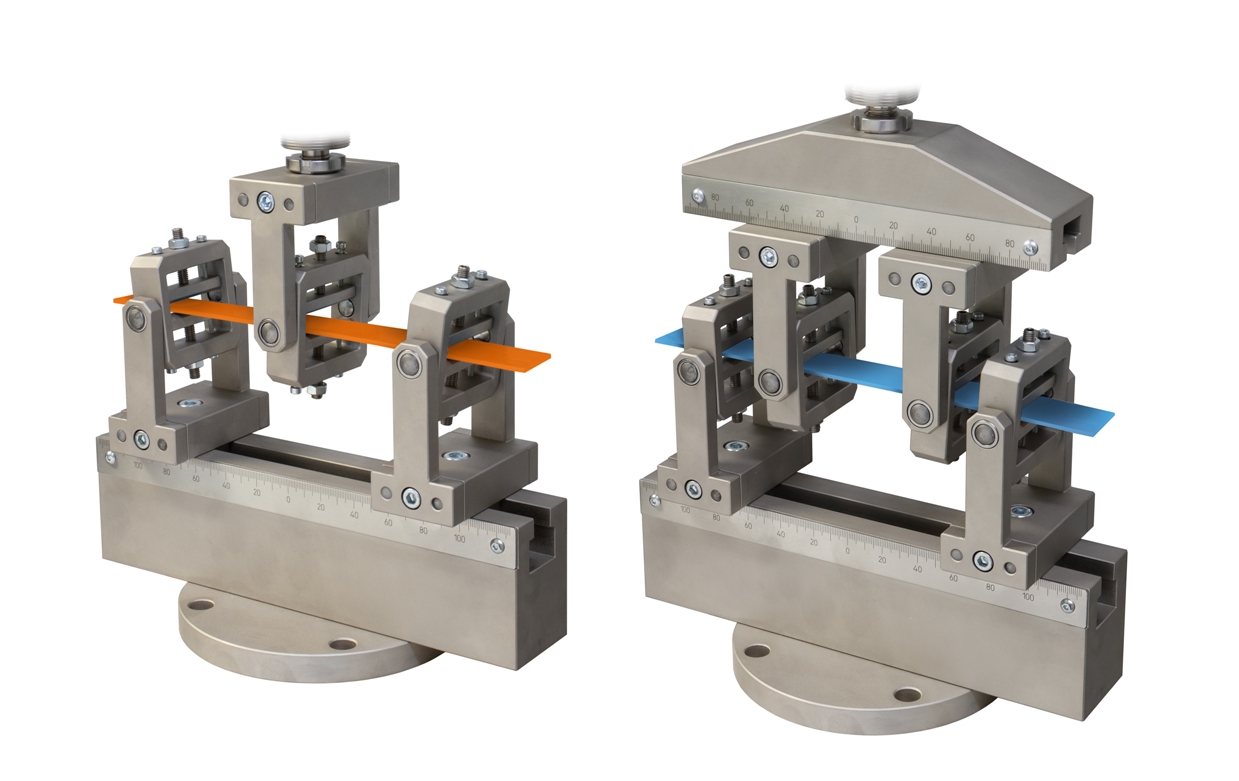

THS771-35-5P-260-Am16x2_16,3kg_fatugue_bend_test_06

THS771



Special bend test fixtures



more

THS1654-5P-40-20-D4.5_ASTM-C1211-B_4-Point_Flexure_Ceramics_1200°C

THS1654-5P-40-20-D4.5-ASTM-C1211-B

Flexure test fixture for testing advanced ceramics at elevated temperature (+1200°C) according to ASTM-C1211 configuration B

4-point and 3-point fixture configurations possible

Max. load 2.5 kN


more


THS1445-V4-Af20



Bend test to determine the flexural properties of materials like leather, plastic sheeting, and textiles used in motor vehicles according to VDA230-209

Max. load 10 N



more

THS633-840_pulley_12.45kg

THS633-840

Special pulley for pull-off test

incl. 5 m of steel rope with screwed clips

Upper connection
Pin 40 x 110 x 15 mm  (W x T x H)

Max. load 10 kN

THS564-V3_Schwere_Faltvorrichtung_2022-08-16

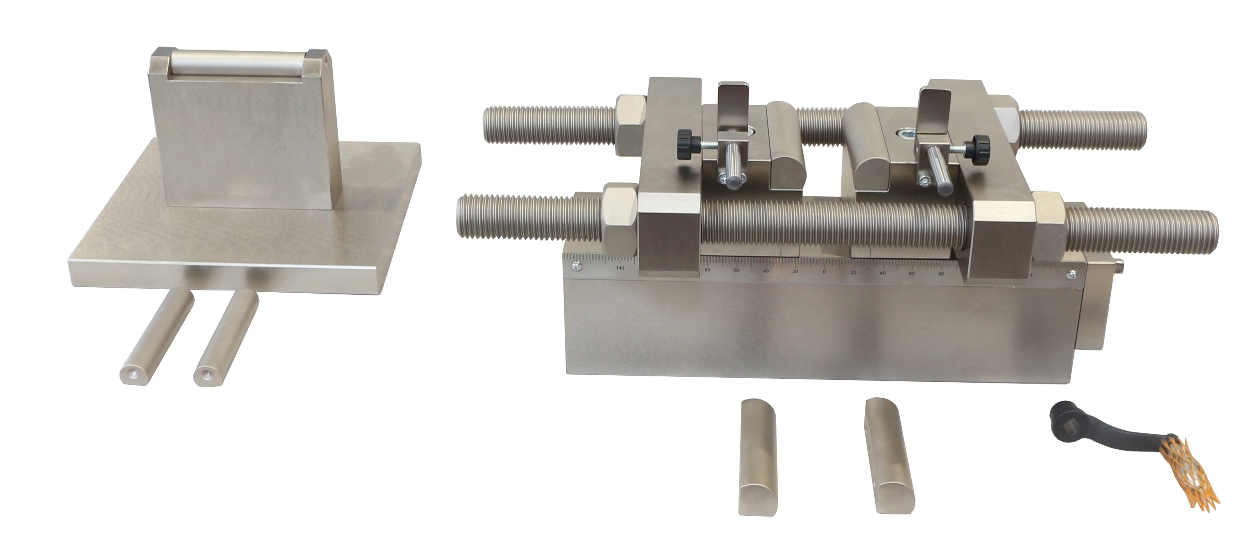

THS564-V3

3-point bend test fixture

Max. load 600 kN

Lower beam 360 mm long with a crank, 2 adjustable anvils, rollers 100x30 Ø mm

3 upper rollers 100 x 20 Ø mm

Steel, nickel-plated. Rollers hardened

Schwere Faltvorrichtung

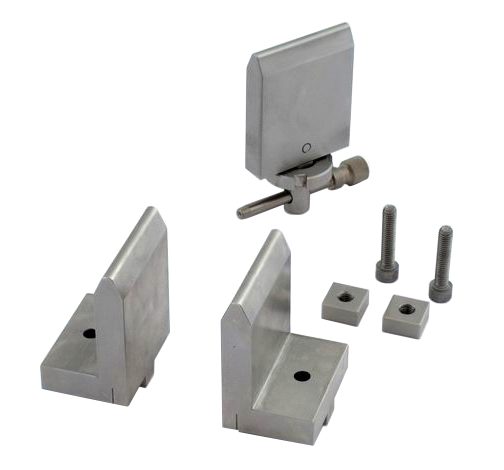

THS812-01+02+03-V2A

THS812-01+02+03-V2A

3-point bending grip fixture

THS953-10-ASTM-A720 manual bending-2-Handbiegevorrichtung

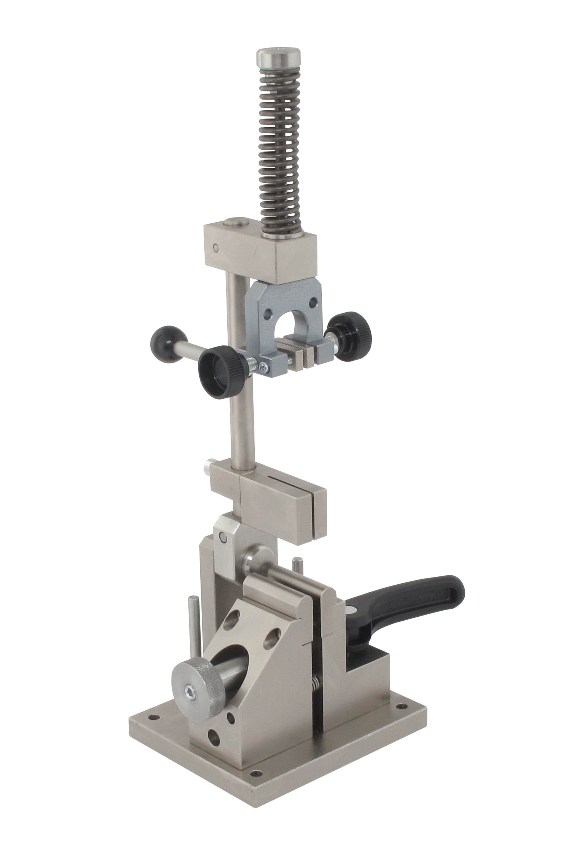

THS953-10-ASTM-A720



Manual bending device
according to  ASTM-A720


Manuelle Biegevorrichtung
nach ASTM-A720

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: THS794-.jpg

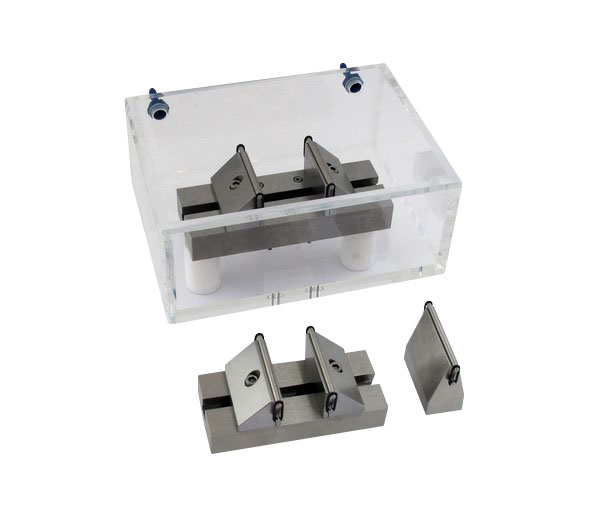

THS794

3 point bending device

according to EN1109
Max. load: 5 kN
Aluminum + steel

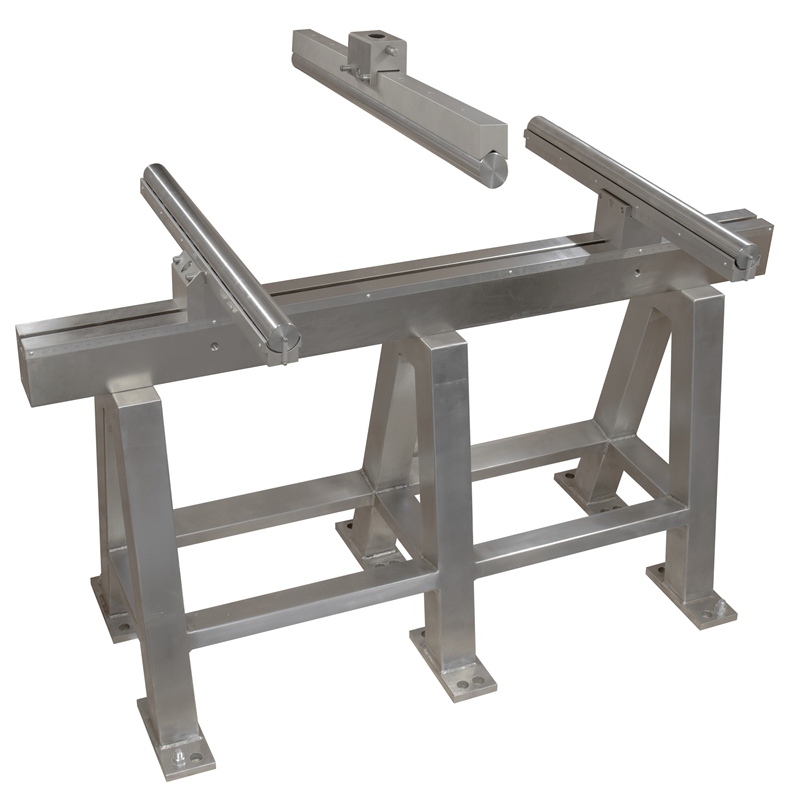

TH1437-5P-s1500-750-ST



Special 5-point bending grip

Max. load 100 kN
Steel, nickel-coated

lower bar 1580 mm long
Upper bar 830 mm long

Incl. rollers 10, 20, 50 mm Ø  750 mm



Description: Description: Description: Description: Description: THS717-30-Biegevorrichtung für Zug EX 6-2011-edited

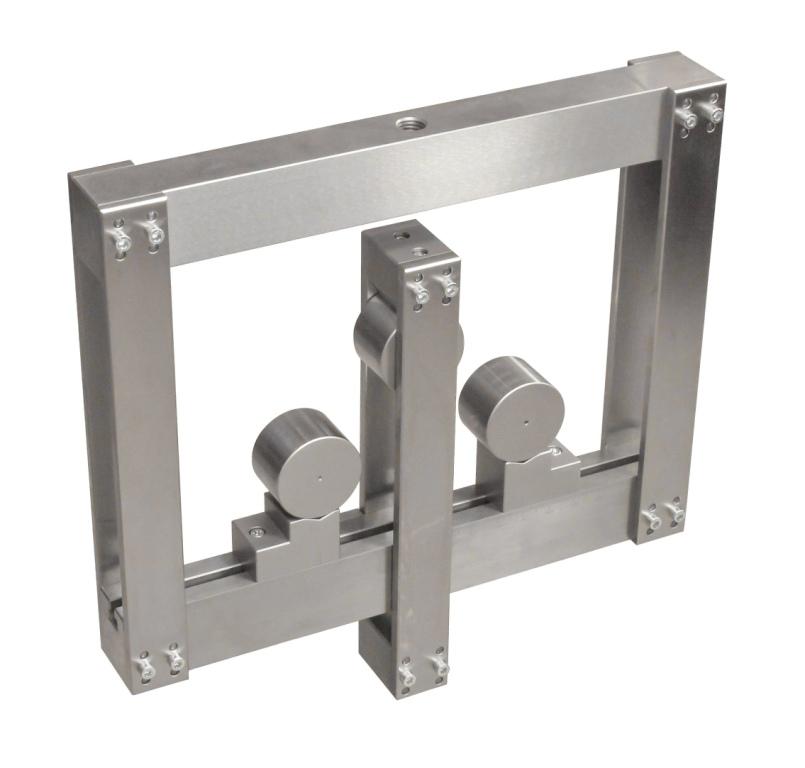

THS717-30



Special 3-point bend fixture with guides for tensile tests

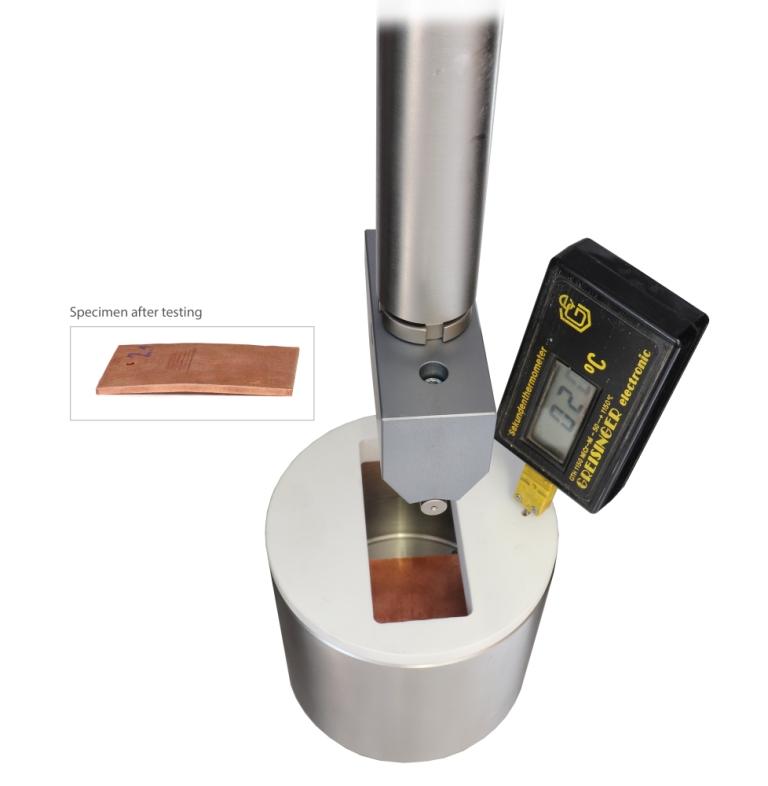

THS1485-10



Bend test fixture for use in cryogenic conditions





Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: TH162-20N-.jpg

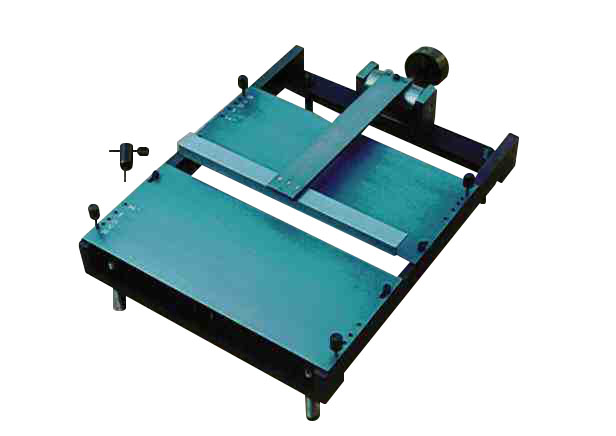

TH162



Bending device for tissue paper


Biegevorrichtung für Papiertaschentücher (Handle-O-Meter)

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: GrößenänderungTHS332-b420

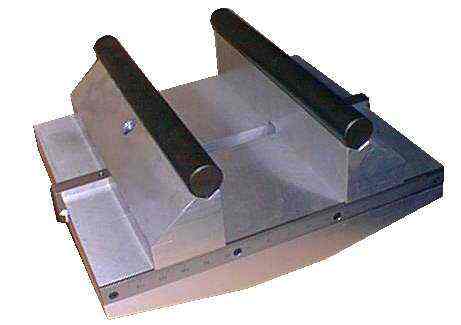

THS332-b420



Special bending fixture



Spezielle Biegevorrichtung breite Ausführung

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: THS669-high-temperature-bending-fixture-.jpg

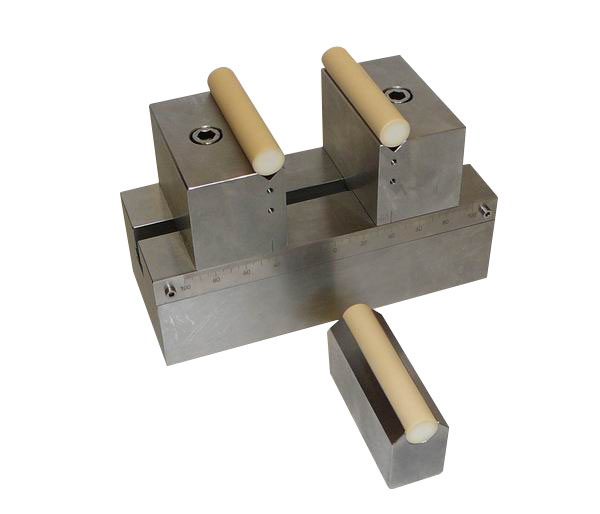

THS669

High temperature bending fixture

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: THS630-R1-Ad159.jpg

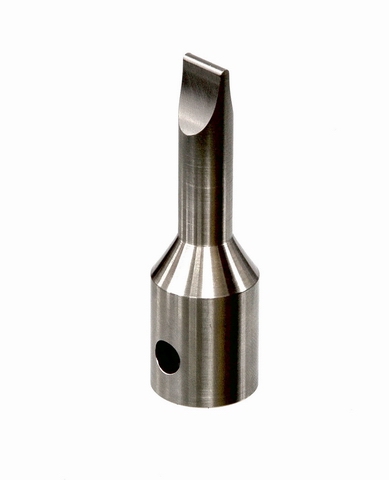

THS630-R1-Ad159
