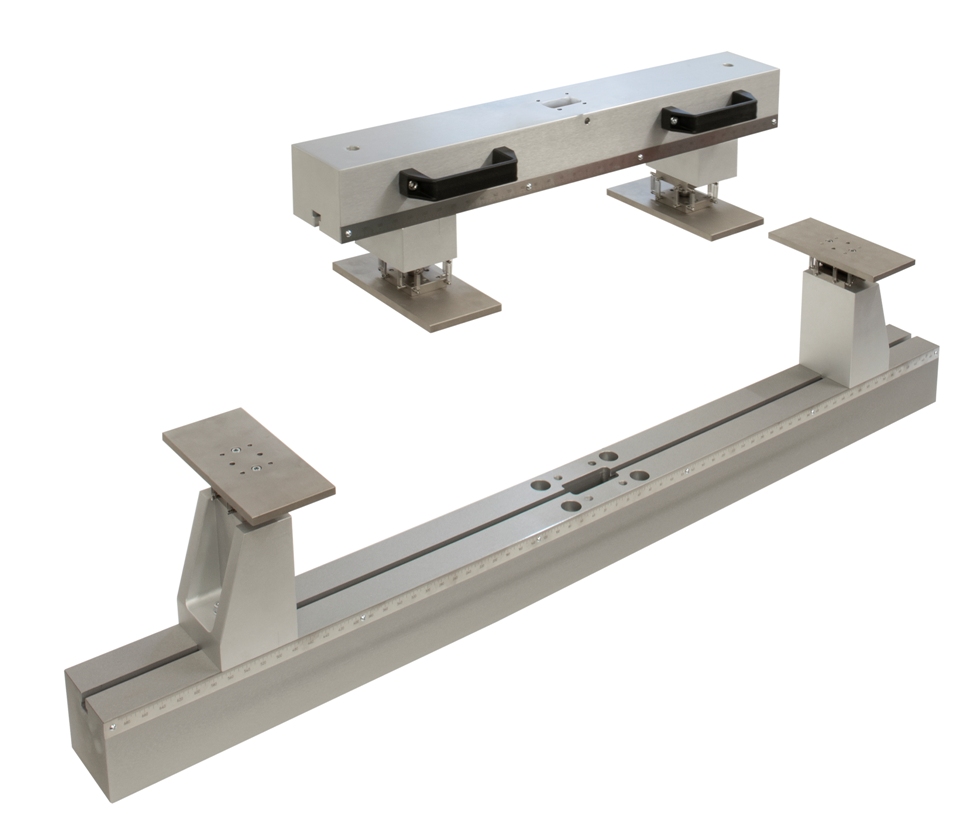

THS1063-20.3-WDF_DIN_EN14509_metal_faced_insulating_panels_shear_strength_01

THS1063-20.3-WDF-DIN-EN14509



Special bend test fixture to determine shear strength of metal faced insulating panels according to DIN-EN14509

Max. load 10 kN

Lower beam length 1400 mm, top beam length 700 mm, aluminium

Supports 100x200 mm, steel

Feet height 50 110 mm

Coupling Af20

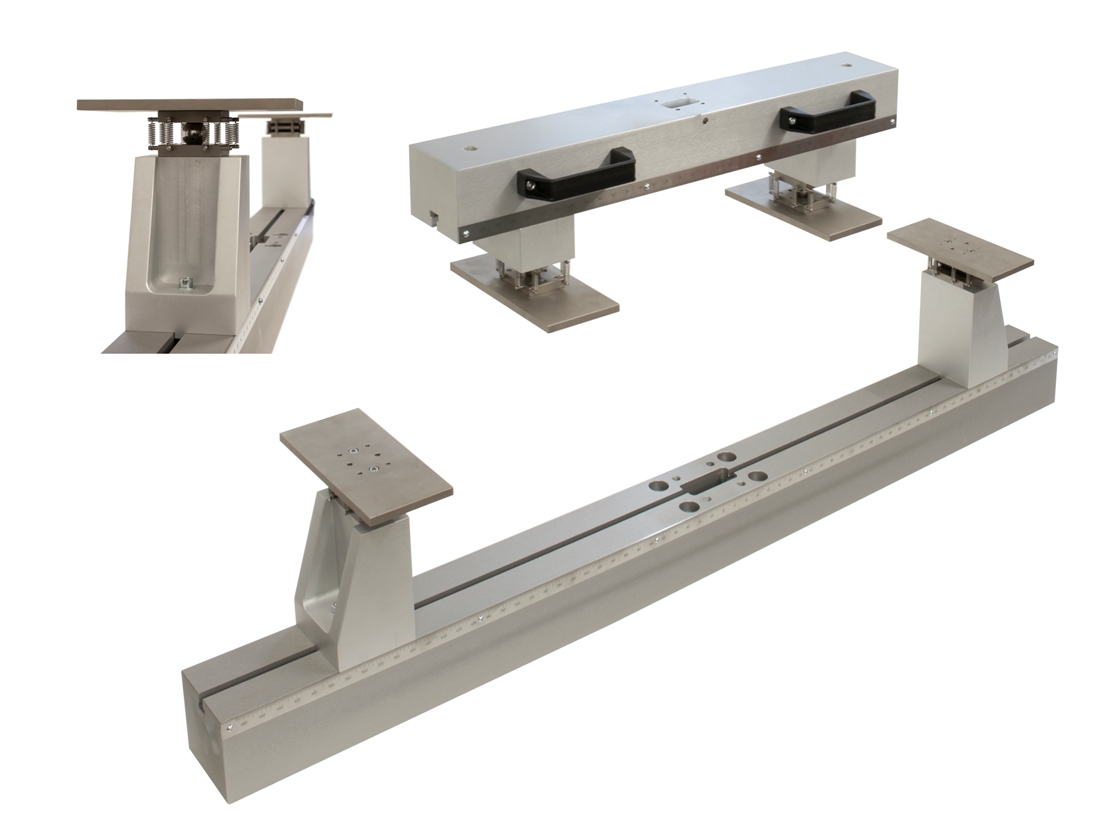

THS1063-20.3-WDF_DIN_EN14509_metal_faced_insulating_panels_shear_strength_02

THS1063-20.3-WDF-DIN-EN14509

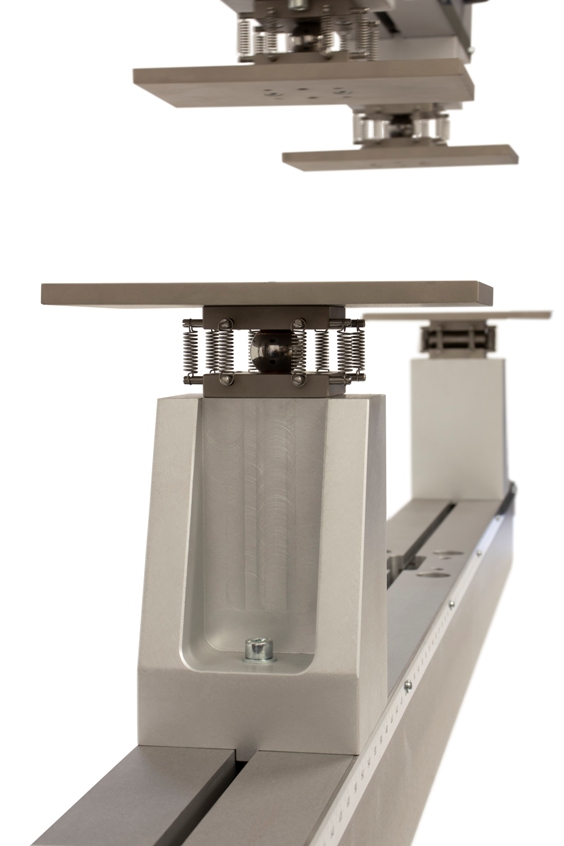

THS1063-20.3-WDF_DIN_EN14509_metal_faced_insulating_panels_shear_strength_03

THS1063-20.3-WDF-DIN-EN14509

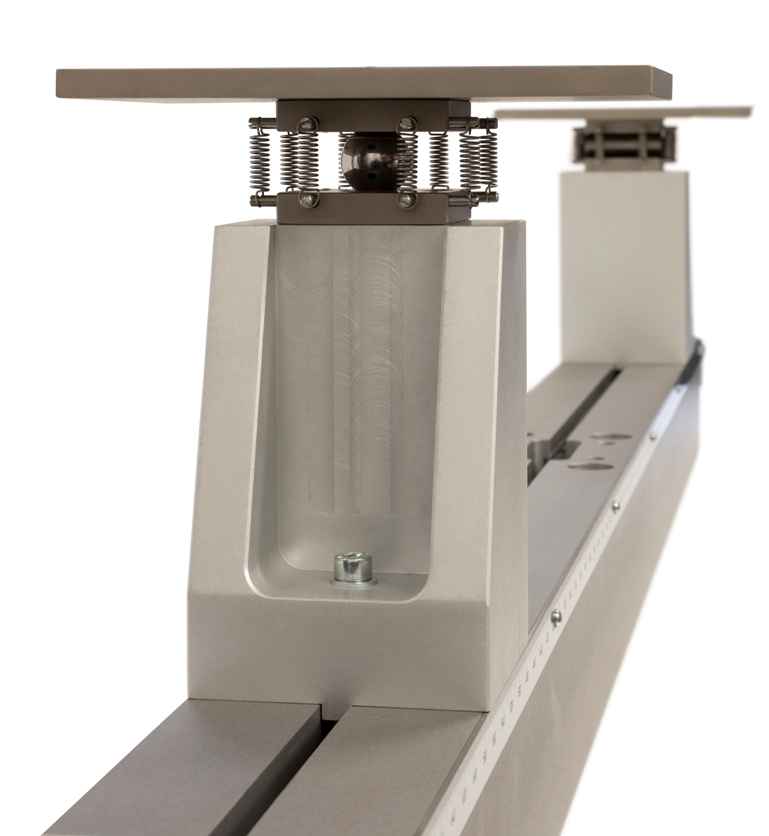

THS1063-20.3-WDF_DIN_EN14509_metal_faced_insulating_panels_shear_strength_04

THS1063-20.3-WDF-DIN-EN14509
