TH23-56-Ni+THS223k-56-Ni

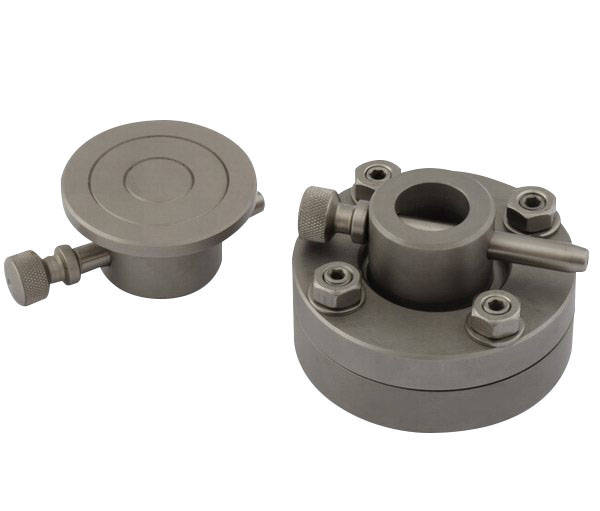

TH23-56-Ni + THS223k-56-Ni

Compression platens, Ø 56 mm
Self-aligning and fixable, angle ±1.5°

TH36-300 THS223k-300x300-Af159  self alignment adapter

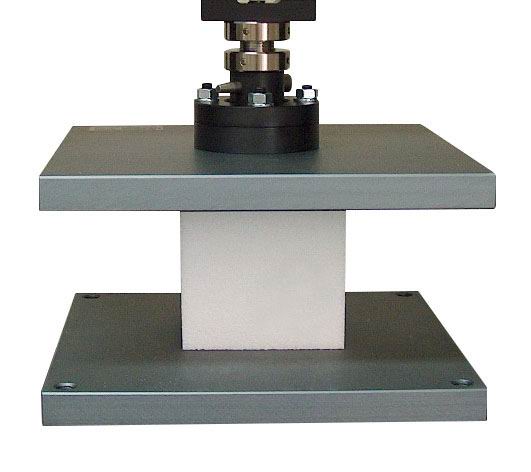

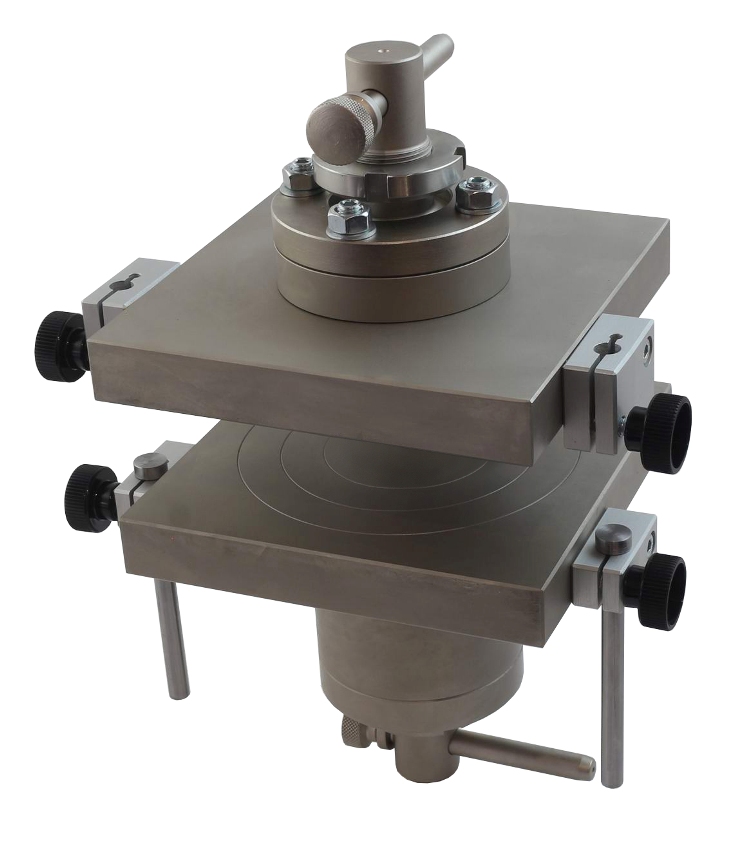

THS223k-Af159 + TH36

Rigid square platen with self-aligning intermediate platen with adapter.
The intermediate platen is mounted on the aluminium platen.

THS223g-40x40-Af5024+TH23-40x40-Af502425-St-x 06.03.2020

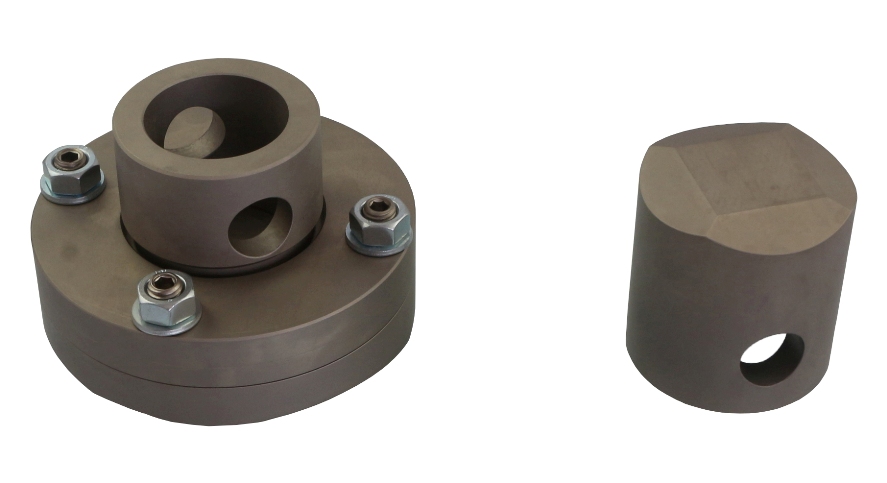

THS223g-40x40-Af5024
+

TH23-40x40-Af502425-St


Spherically seated adapter

Self-aligning and fixable

Bottom part square-shaped 40x40 mm
Steel, hardened, nickel coated

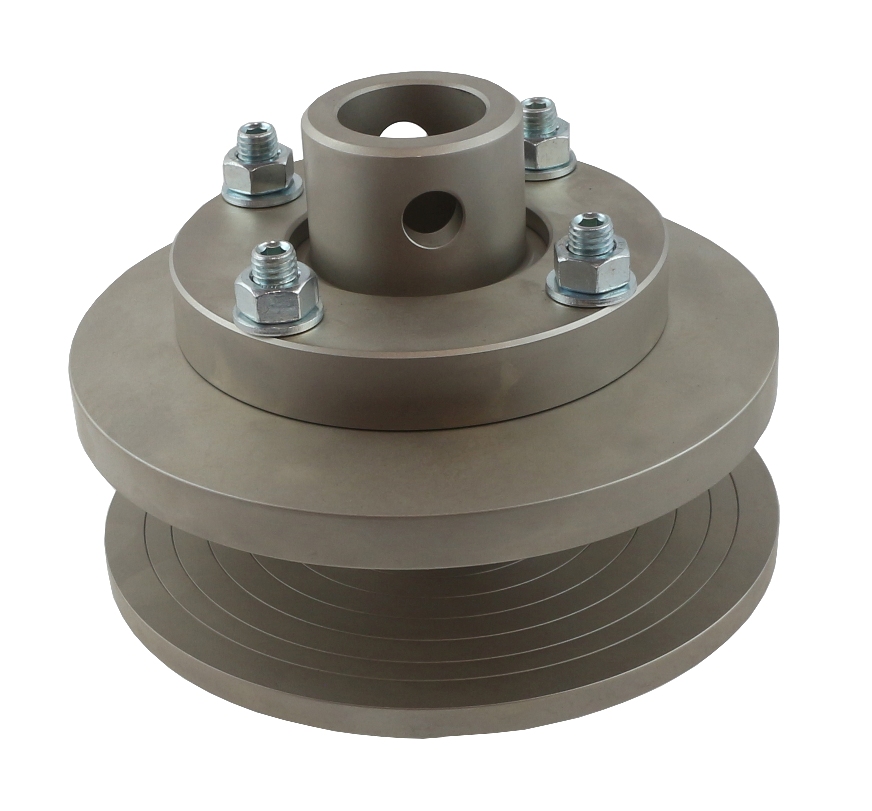

THS223g + TH23-200-Af40-ST

Special compression platen Ø 200 mm
Self-aligning and fixable, angle ±1.5°
Max. load 100 kN
Steel, hardened, nickel-plated
Coupling Af40

For the bottom plate, see TH23

TH36-196+4xD9-8xM4+THS223g-P138-TH36-Af30_11.1kg_01

TH36-196+4xD9-8xM4
+
THS223g-P138-TH36-Af30



Special steel compression platen

Dimensions: 196x196 mm

Swiveling upper part ±1.5°

Max. load 50 kN

Coupling Af30

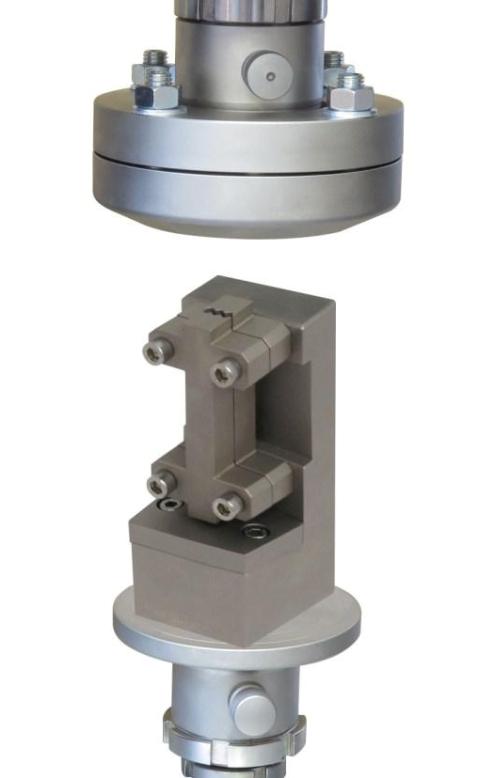

THS223g-96_THS793_TH23-116

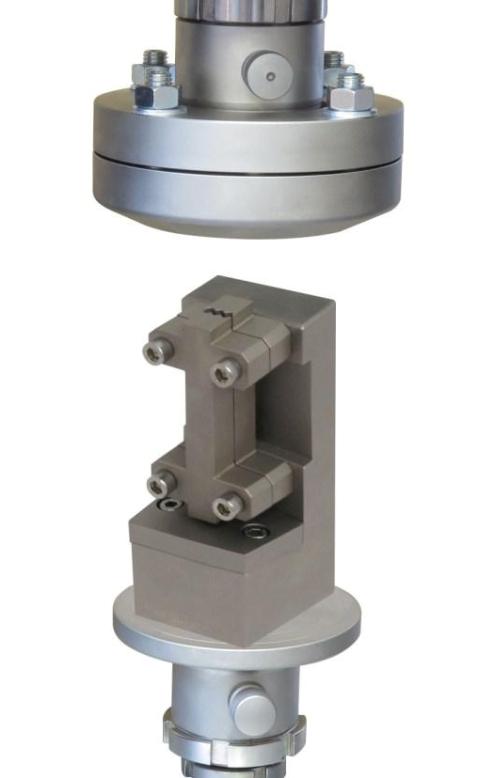

THS793 + TH23-116 + THS223g-96



Self-aligning upper compression platen
THS223g-96

Rigid lower compression platen TH23-116

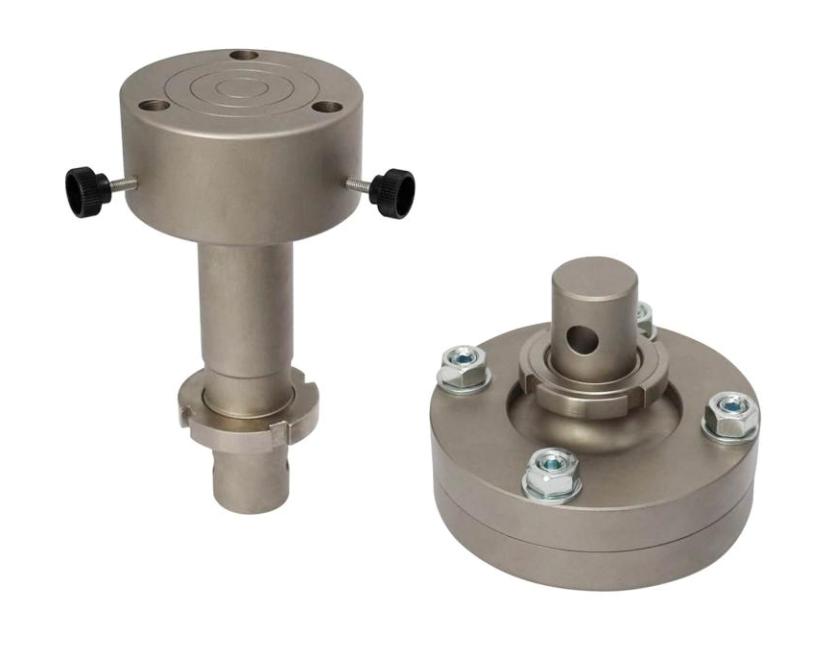

TH23-96-Am35-H120-itH6 13h   THS223g-156-Am35

TH23-96-Am35-L120
+
THS223g-156-Am35



Left:  compression platen with possibility for 3 LVDT gauging sensor with extra long adapter

Right: moveable compression Platen, ball rotation

Links : Druckplatte mit einer Einbaumöglichkeit für 3 induktive
Taster mit Federrückstellung
Rechts: bewegliche Druckplatte, Kugelpfanne

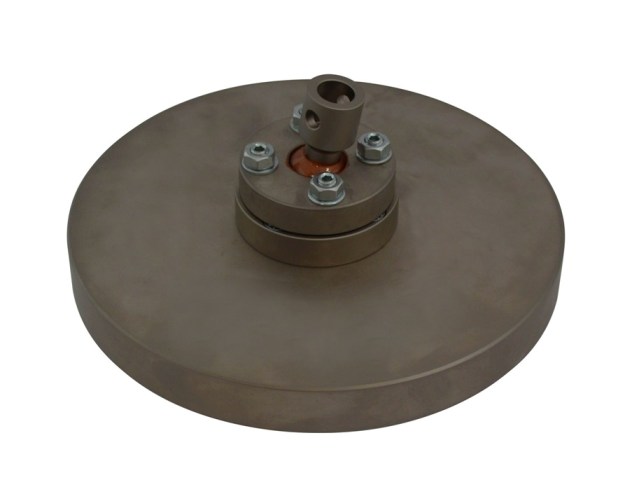

THS223b-TH36-D200-R1-Af159  DIN EN ISO2439 indentation hardness of cellular materials

TH36-D200-R1 + THS223b-Af159

Compression platen with ball joint
to measure the indentation hardness
of flexible cellular materials
according to DIN EN ISO2439
Diameter 200 mm, radius 1 mm
For bottom platen, see TH36L

TH36-D344-R1-4xKm8x40-AL+THS223b_ASTM-F1566-Fig1_ 4,65kg_2022-10-14 04

TH36-D344 + THS223b-Af159

Special round compression platen According to ASTM-F1566-Fig1
U
pper platen spherical seated with ±15° flexibility
Diameter 344 mm, coupling Af159
Aluminum, anodized
For bottom platen, see TH36

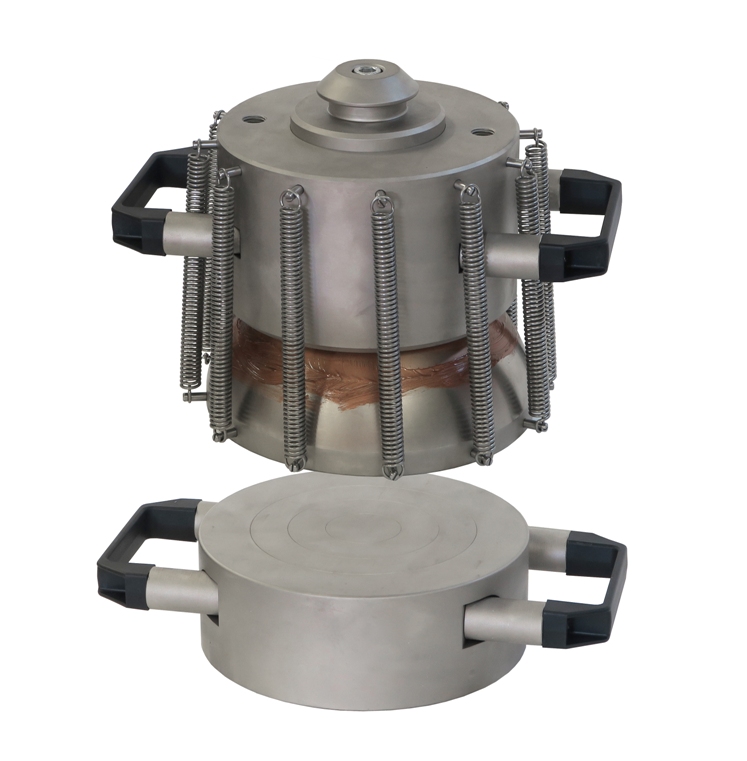

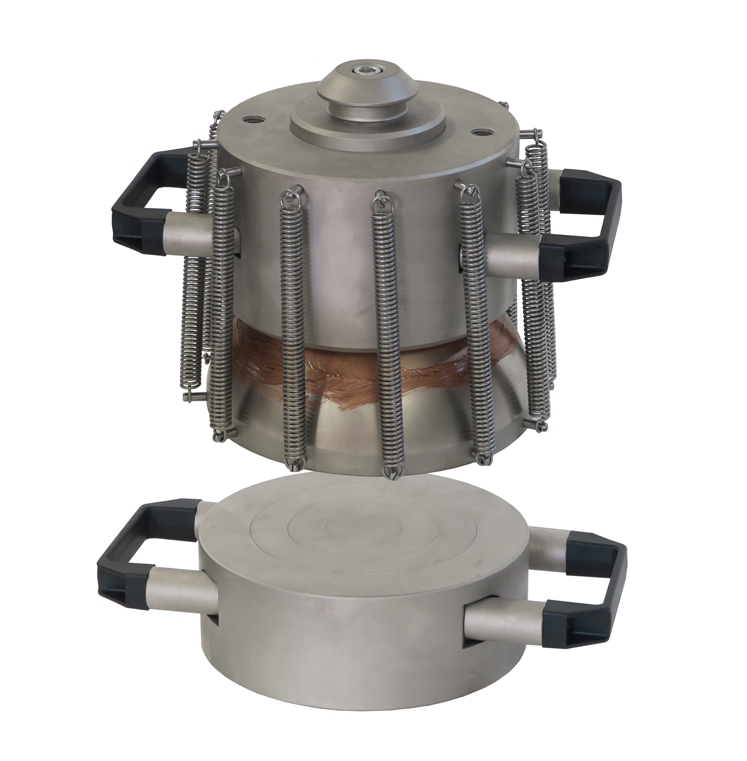

THS223b-220-Am66+100-hdl +TH23-220+hdl 49.2+24.25kg 7 wire strand sompression 02

THS223b-220-Am66+100-hdl
+

TH36-D220x80-Am25+hdl

Special compression test fixture to test 7 wire steel strand for
reinforcement and prestressing of concrete
220 mm diameter

THS1624-D100-GDE-V1  +TH23-156+TH23-096 + THS233-116  ST   G01  13.65kg  2020-07-22

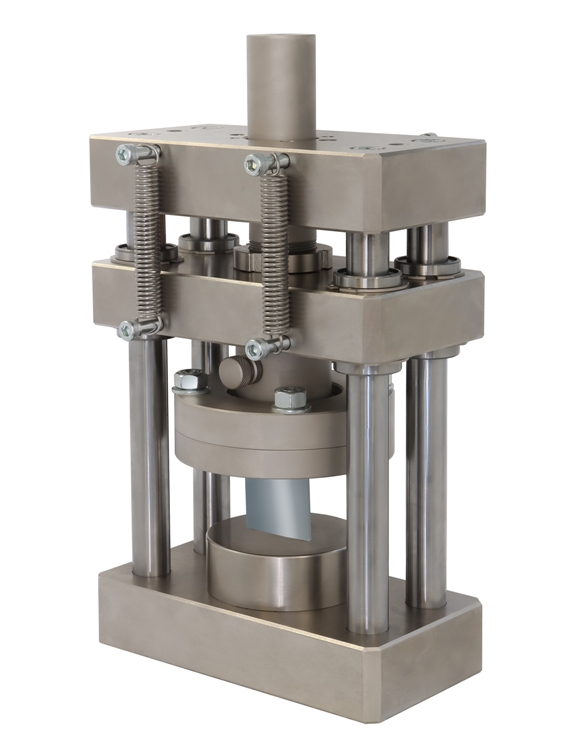

THS1624-D100-GDE-V1 + TH23-156 + TH23-096 + THS233-116-St

Special compression test fixture, 100 kN

Compression Platens: 138 mm Ø (upper) and 100 mm Ø (lower)

Steel, nickel-plated

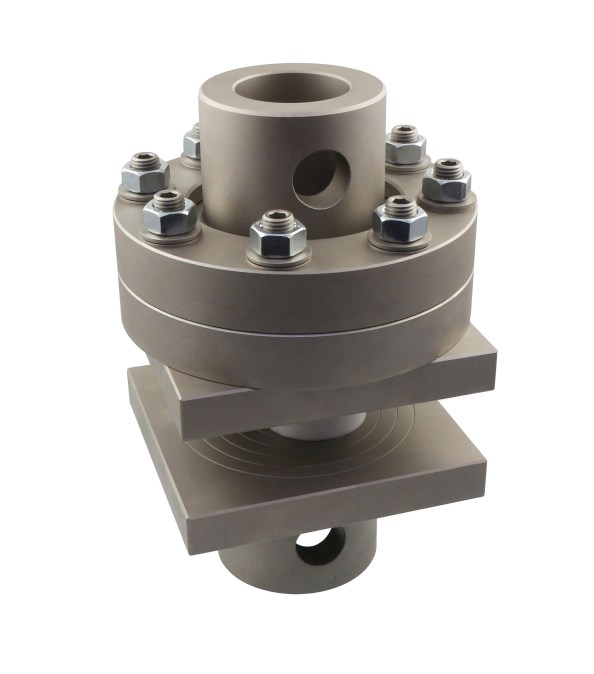

THS223w-170x170-Af603035-St TH36-170-Af603035-St-xd 2020-12-19- 21.9+9kg

THS223w-170x170+St
+
TH36-170-Af603035-St



Special platens

Dimensions: 170x170 mm and 170 mm diameter

Steel, nickel-plated

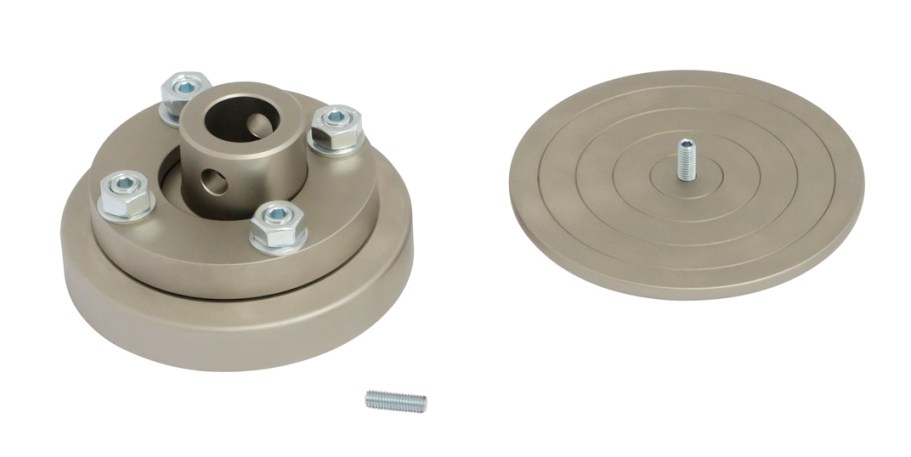

THS223k-096-Af20-M5 +TH23-96-Af20-ST-M5-

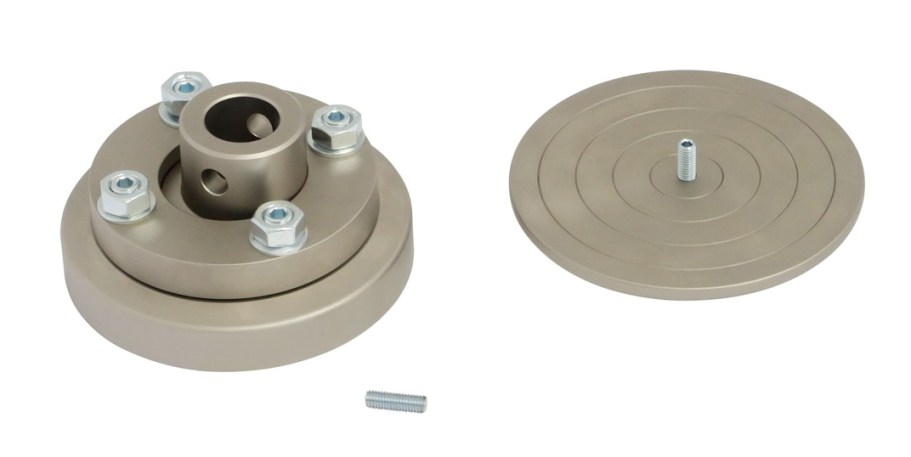

THS223k-096-Af20-M5
+

TH23-96-Af20-ST-M5



Special compression Platens with additional thread M5 to mount grips
