G01 Compression platens

Back

THS223g-056-Af318 2018-12-07

THS223g-056-Af318

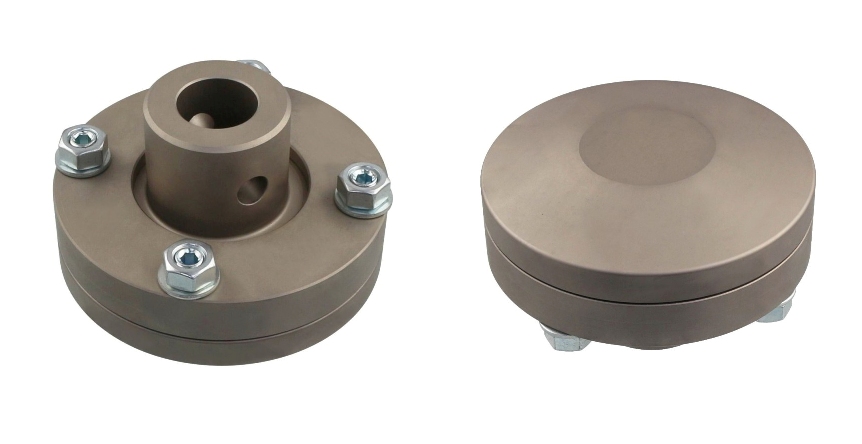

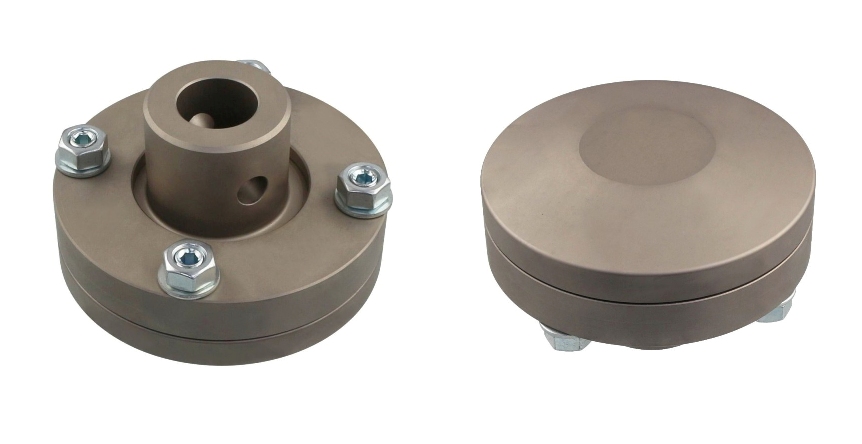

Compression platens, 56 mm

Self-aligning and fixable, angle 1.5
Steel, hardened, nickel-plated

Coupling Af31.8/12.8 mm

Description: tn_THS223g-40x40-Af5024+TH23-40x40-Af502425-St-x 06.03.2020

THS223g-40x40-Af5024

+

TH23-40x40-Af502425-St-x

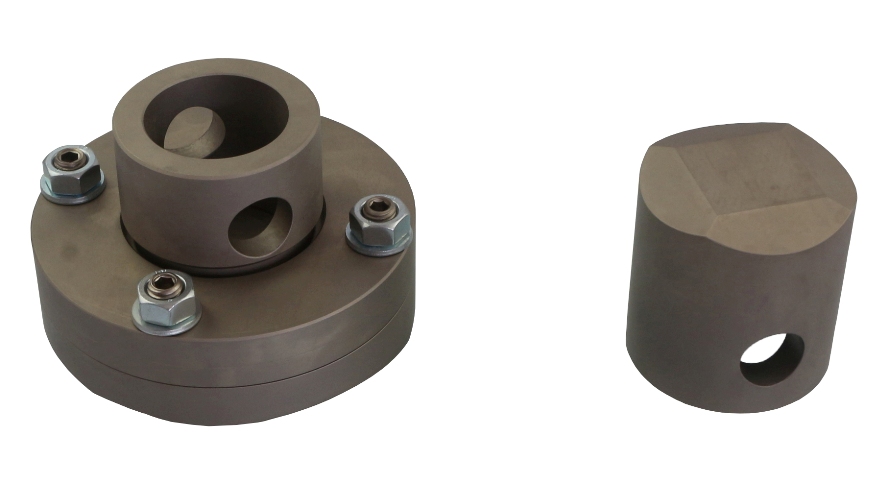

Spherically seated adapter

Self-aligning and fixable

Bottom part square-shaped 40x40 mm
Steel, hardened, nickel coated

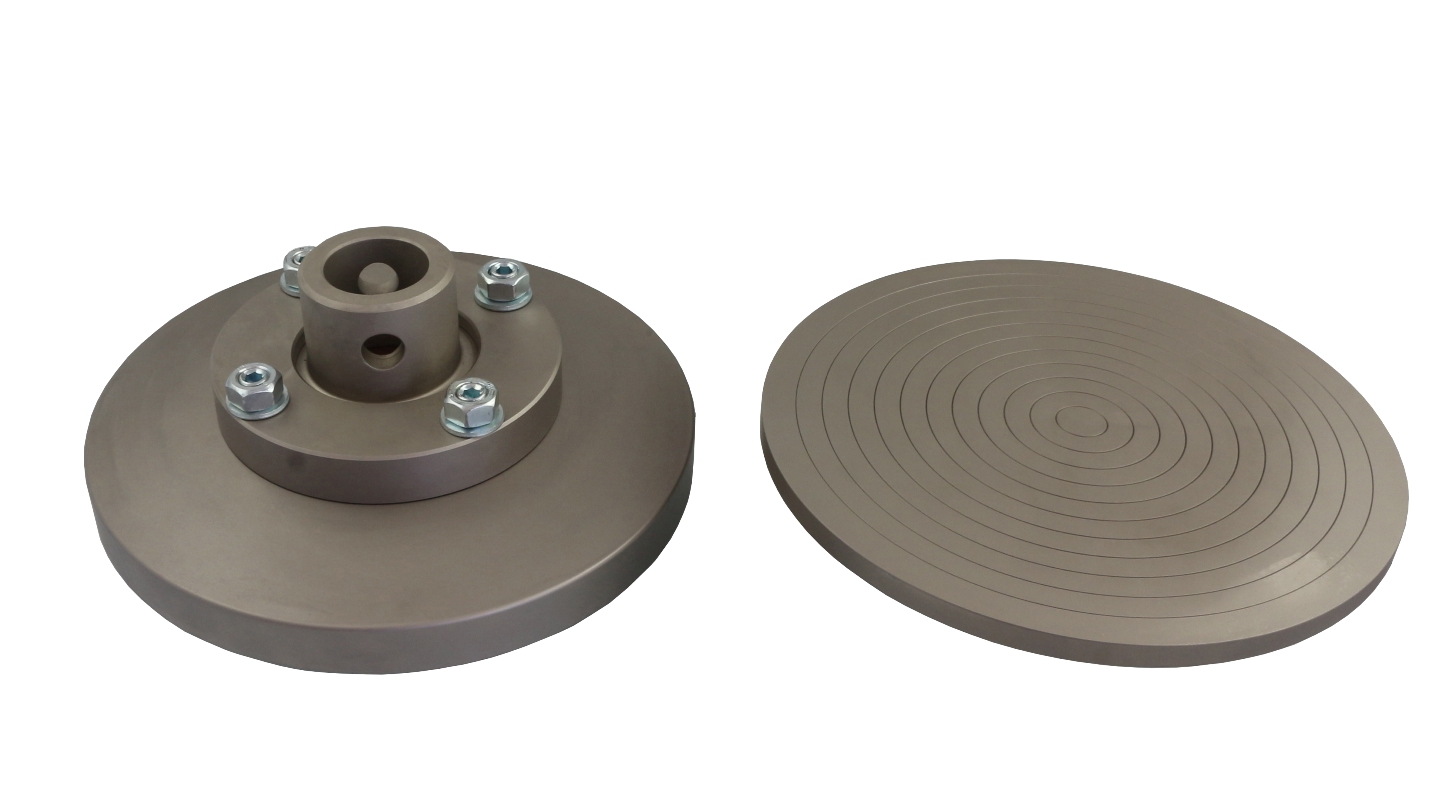

THS223g + TH23-246-Af40-St

Upper Round compression platens

spherically seated

96mm

Steel, hardened, nickel coated

Coupling Af40/16


For the lower platen, see TH23

Description: Description: Description: Description: Description: Description: Description: Description: tn_THS223g-156-Af318-

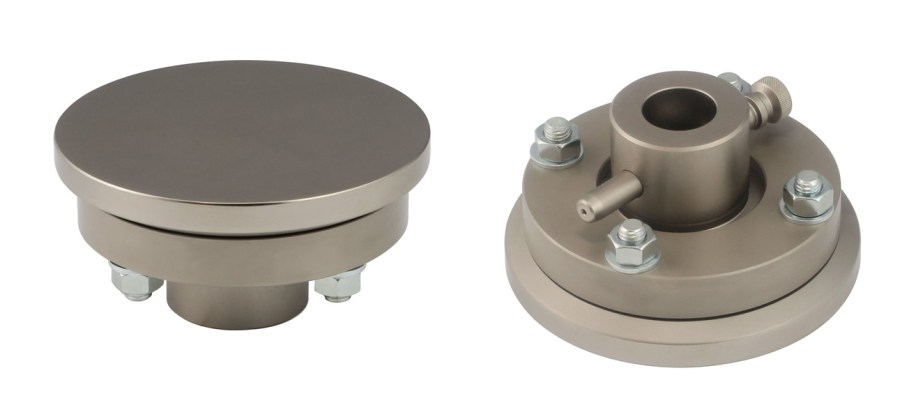

THS223g-156-Af318

Compression platens, 156 mm
Self-aligning and fixable, angle 1.5
Steel, hardened, nickel-plated
Coupling Af31.8/12/8 mm

THS223g-246-Af40 2022-06-04

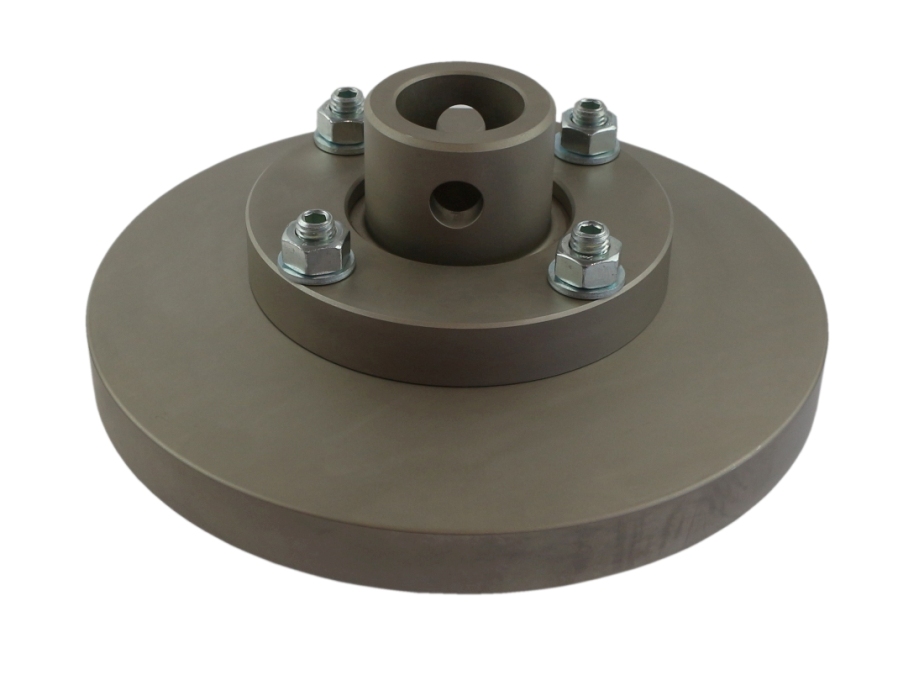

THS223g-246-Af40

Pressure platen, 246 mm
Steel, hardened, nickel-plated
Coupling Af40/16 mm

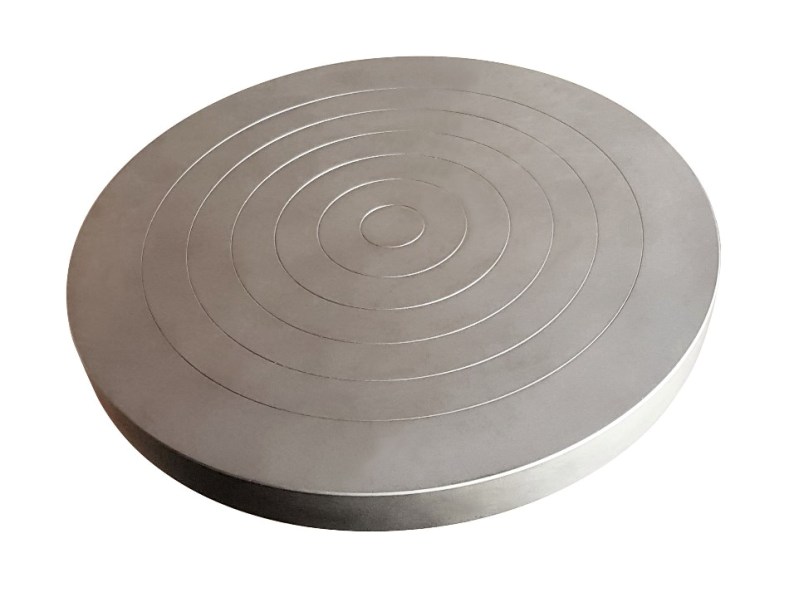

Description: Description: Description: Description: Description: Description: Description: Description: tn_THS223g-296E-Af40_topview.jpg

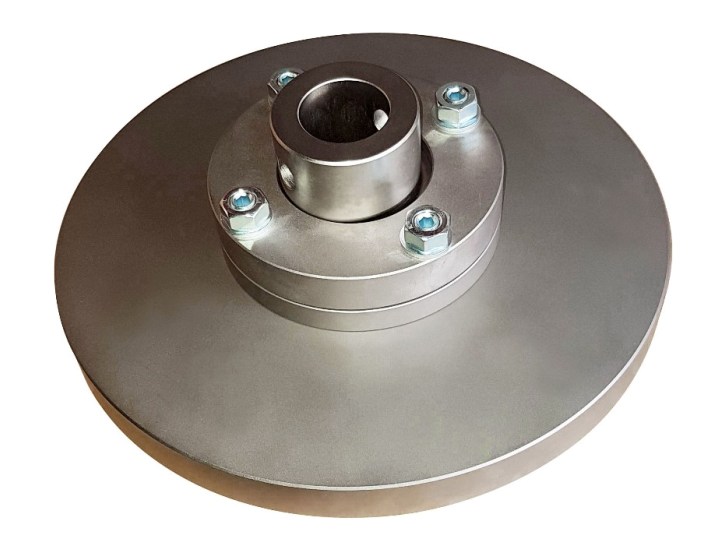

THS223g-296E-Af40

Compression platen 296 mm
spherical seated  1.7
Steel, hardened, nickel-plated
Coupling Af40/16 mm

Description: Description: Description: Description: Description: Description: Description: Description: tn_THS223g-296E-Af40.jpg

THS223g-296E-Af40

TH36-196+4xD9-8xM4+THS223g-P138-TH36-Af30_11.1kg_01

TH36-196+4xD9-8xM4 + THS223g-P138-TH36-Af30

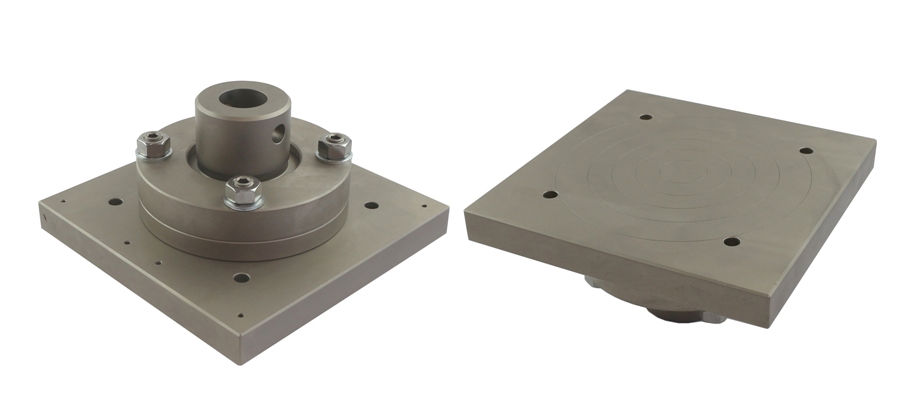

Special steel compression platen

196x196 mm

Swiveling upper part 1.5

Max. load 50 kN

Coupling Af30

Description: Description: Description: Description: Description: Description: Description: Description: tn_THS223g-50x50-Af3616-5.7kg

THS223g-50x50-Af3616

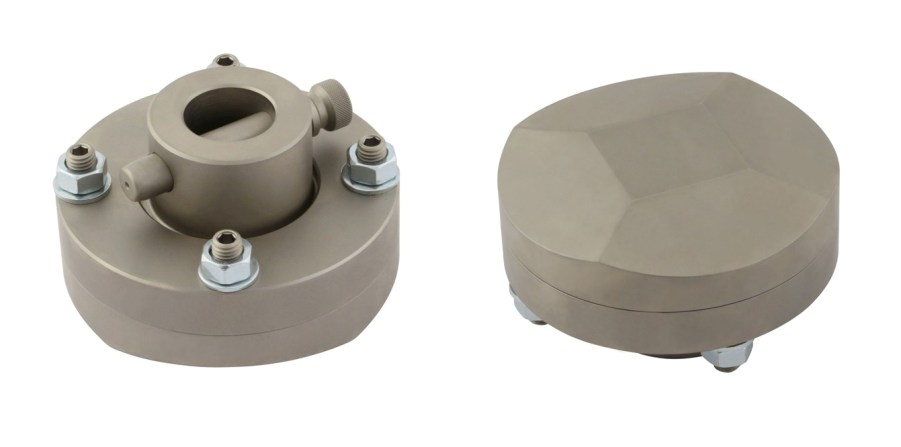

Special compression platens with compression surface 50x50 mm
Couplimg Af36/16 mm

Description: Description: Description: Description: Description: Description: Description: Description: tn_THS223g-096-Af318-1.2343 006-007_

THS223g-96-Af318

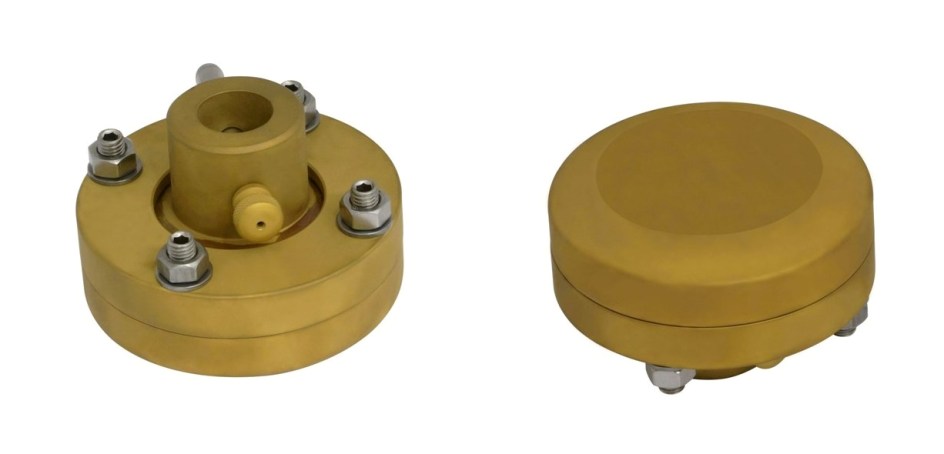

Titanium nitride coating extremely hard surface, wear-resistant 96 mm
Temperature resistant up to 550C
Coupling Af31.8/12.8 mm

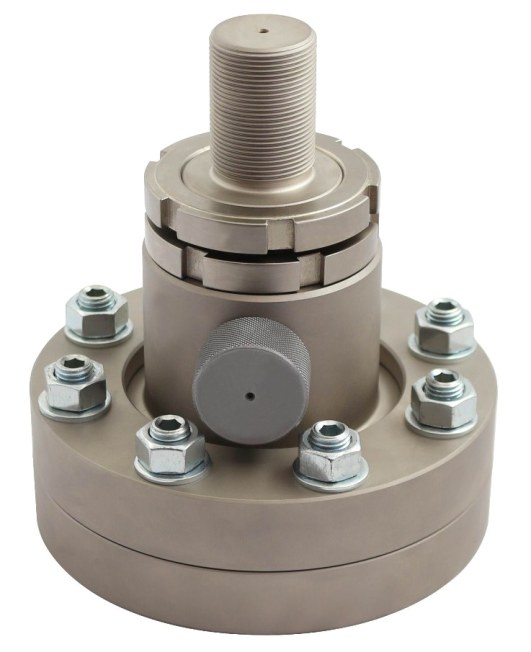

THS223g-Af40+THS464-M30x2

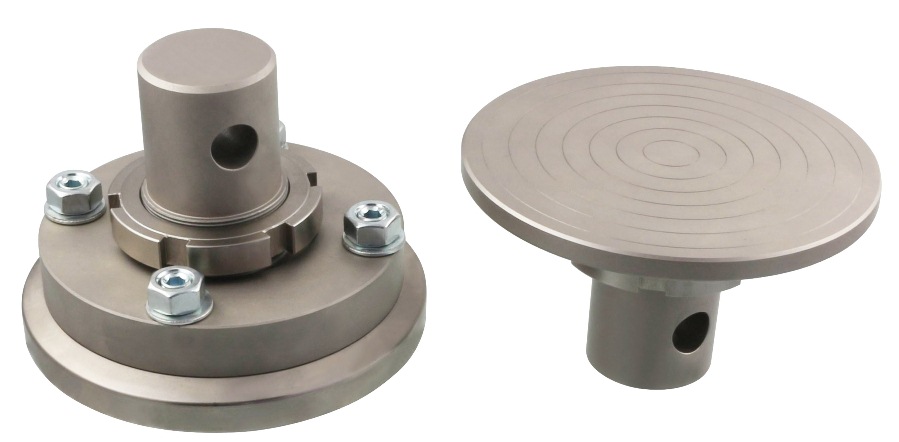

THS223g+TH23-156-Am50175
