	THS1397-ASTM-D7084 + TH23-056-ST + TH23-096-ST Catalysts bulk crush strength test fixture According to ASTM-D7084 more

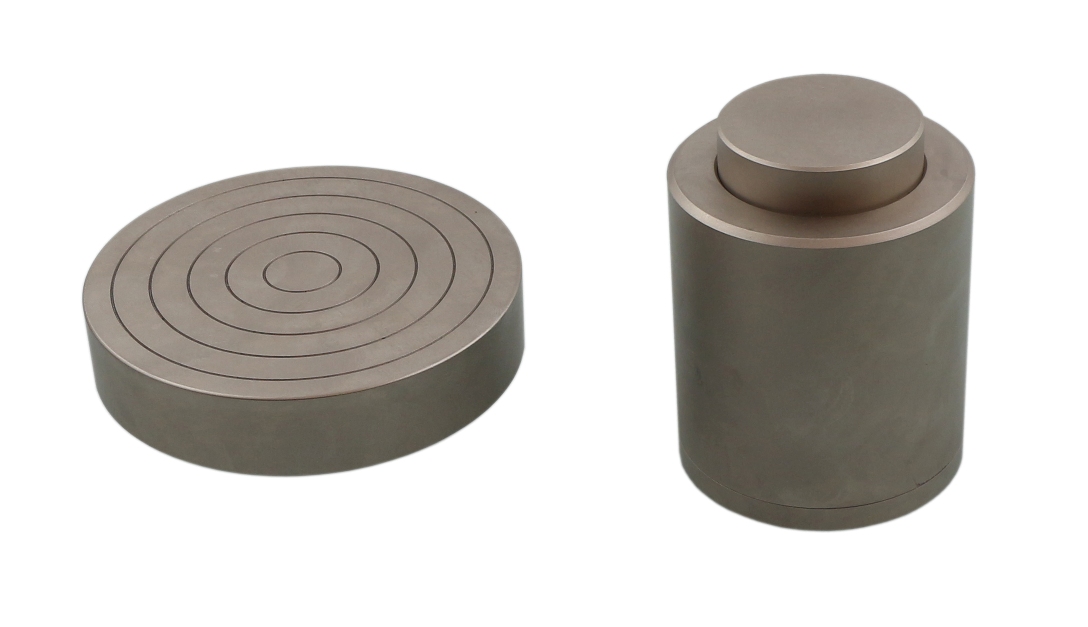

	THS947-D12.7-F300-lSO13503-2 + TH23-116-Am20-St-60HRC Crush cell to test crush resistance of proppants according to ISO13503-2, Fig.7 Wall thickness 12.7 mm Max. load 300 kN Temperature range -70 + 180°C 60HRC hardened steel With a lower compression plate more

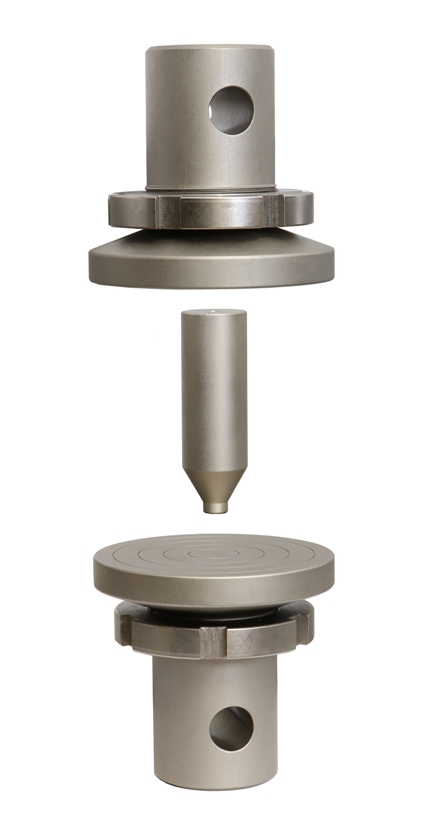

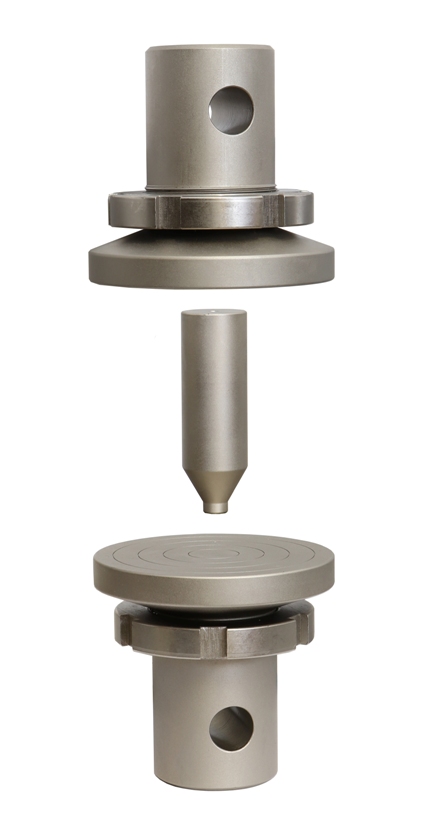

	TH23-96 + THS791-50x50x155 + THS791-60-D26+D31+D36 Barrel expansion test fixture Max. load 100 kN more

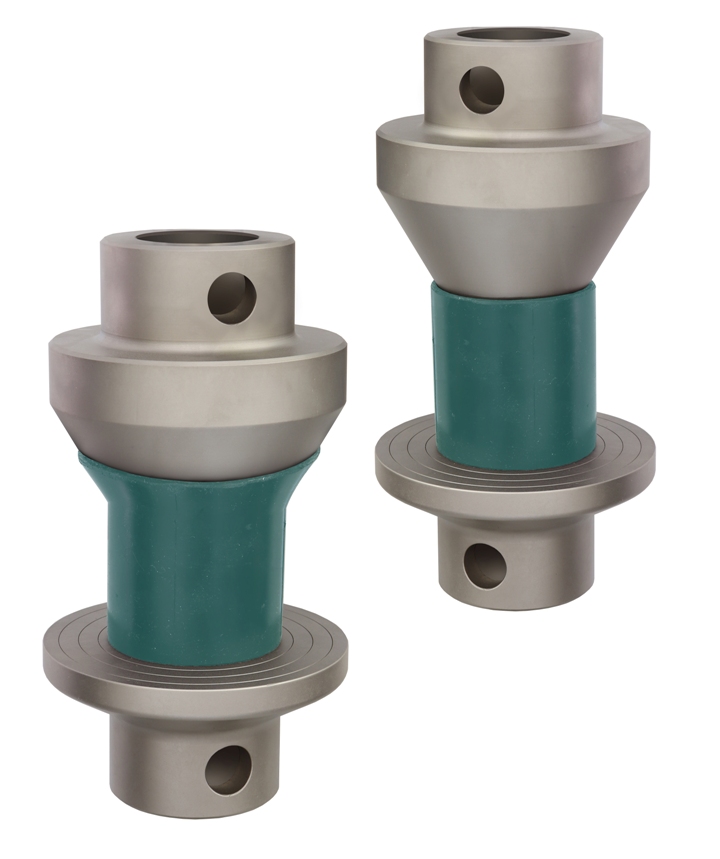

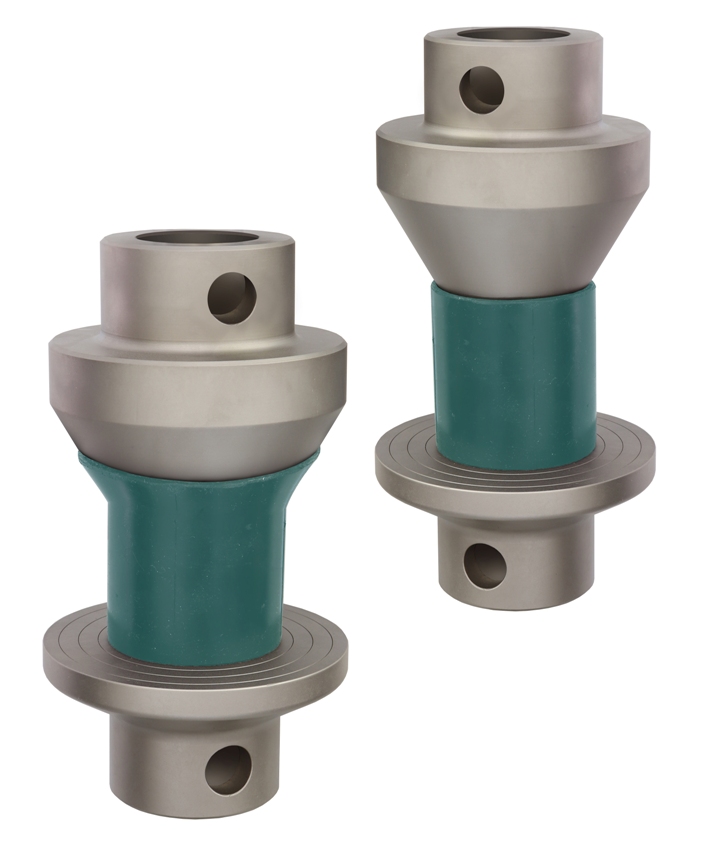

	THS791 + TH23-156-ST Fixtures for flaring test, pressure test on metal tubes, expansion test, according to ASTM-A370, ISO8494, ISO8493, DIN50139 Vorrichtungen für den Aufweitversuch, Druckversuch an Metallrohren, Dehnungsversuc Nach ASTM-A370, ISO8494, ISO8493, DIN50139 more
	THS793 + TH23-96 Compression test fixture to determine compressive strength and compressive modulus of plastic or composite specimens according to ASTM D695-Fig.4, ASTM D3846, EN 2850, ISO 14126, GOST 9550-81, SACMA-SRM1 Animation

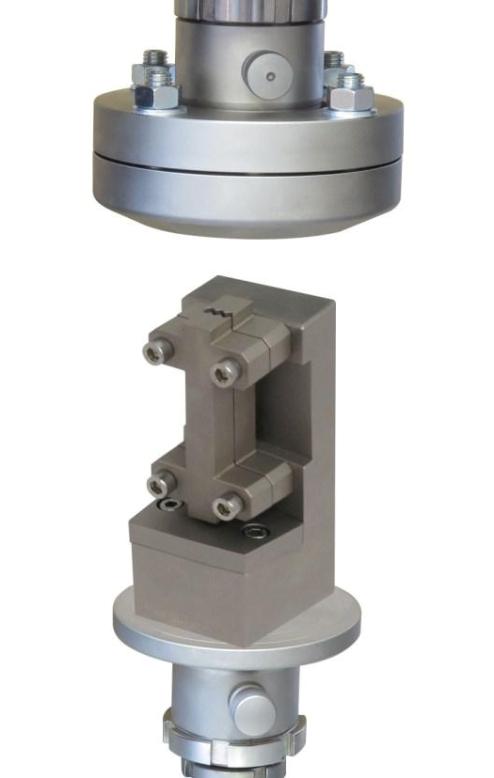

	THS793 + TH23-116 + THS223g-96 Self-aligning upper compression platen THS223g-96 Rigid lower compression platen TH23-116

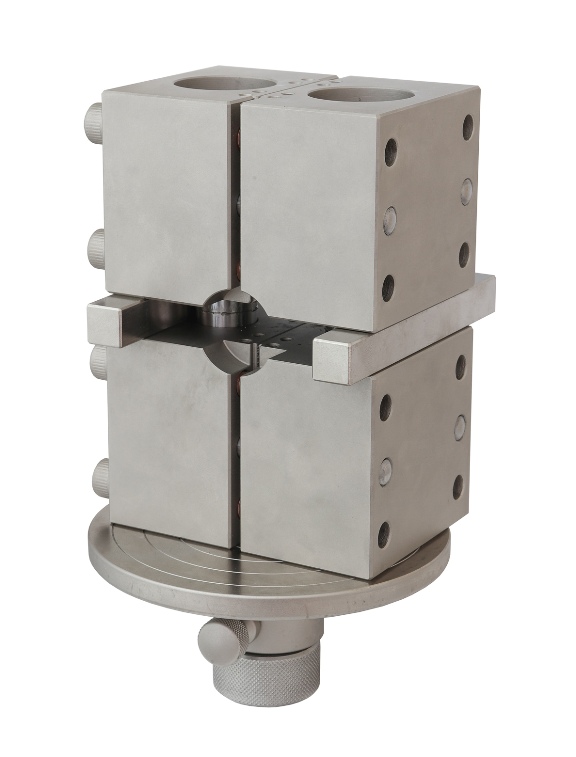

	THS705-2G + TH23-116-Af318-ST Combined loading compression test fixture According to ASTM-D6641

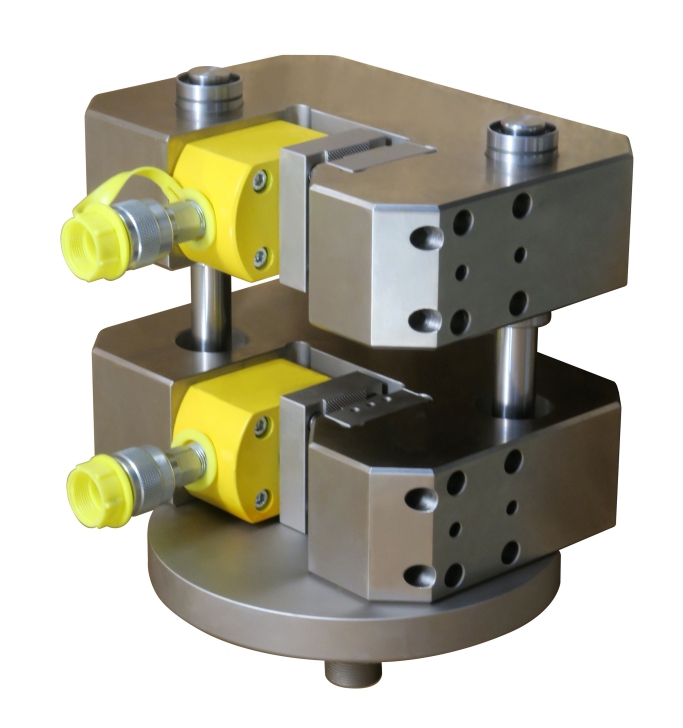

	THS705+Ko-ISO14126 + TH23-196-ST Hydraulic combined loading compression test fixture  According to ISO14126 Method 2 Max. load 100 kN

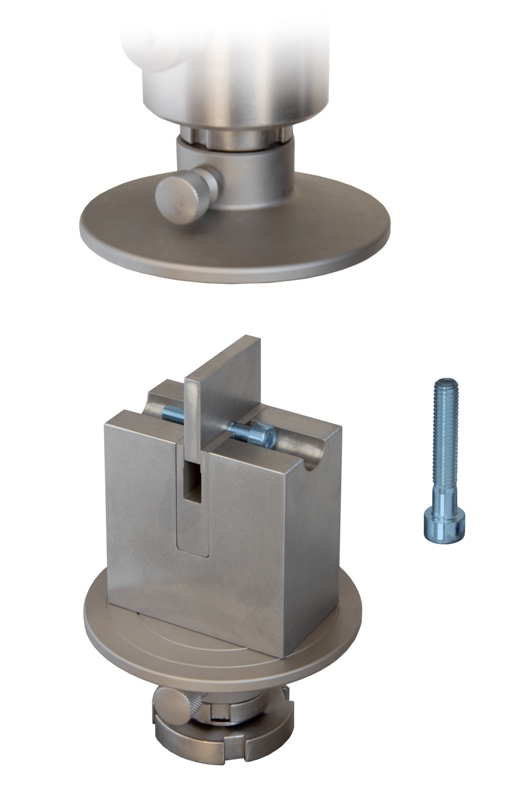

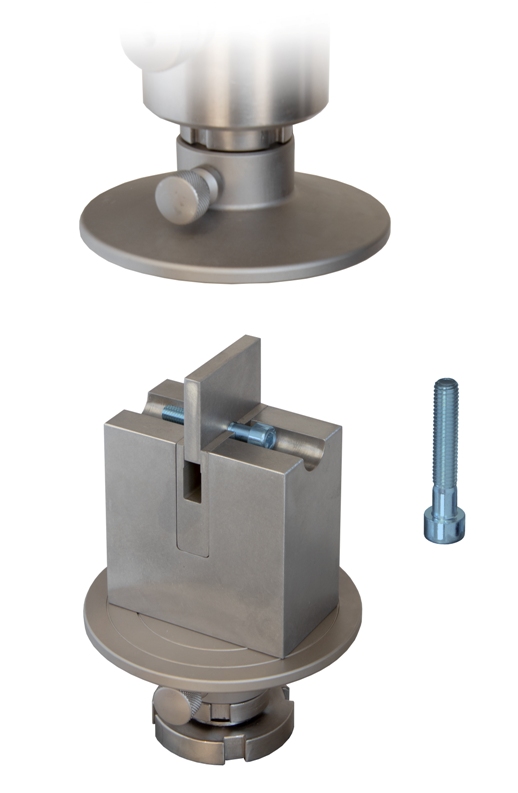

	THS890-UC6.4 + TH23-96 Double shear test fixture for fasteners according to NASM1312-13 Doppelschervorrichtung zum Testen von Schrauben gemäß NASM1312-13 more

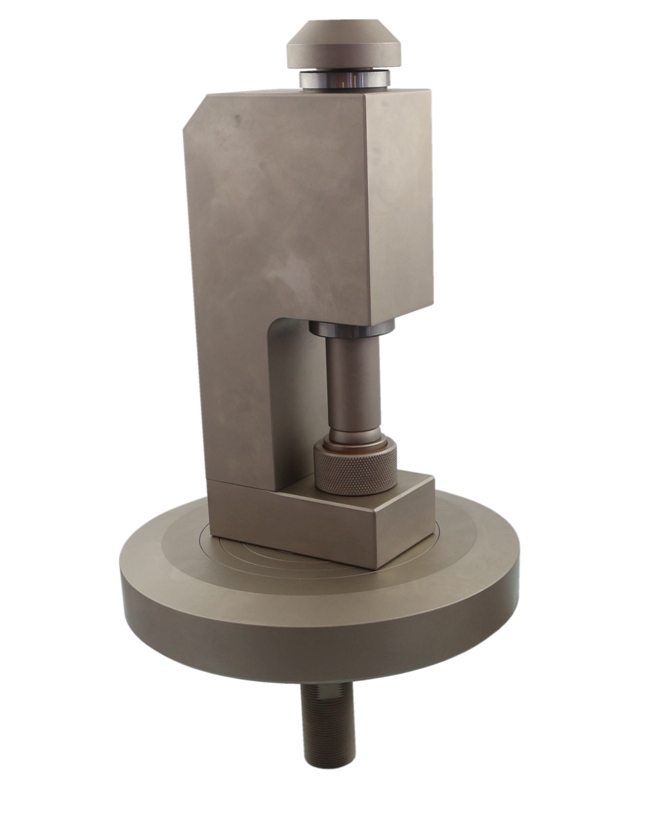

	THS1339-D25-R12.5 + TH23-156-AmM28x1.5-SV1 Compression test fixture for metallic materials according to ASTM-E9 more

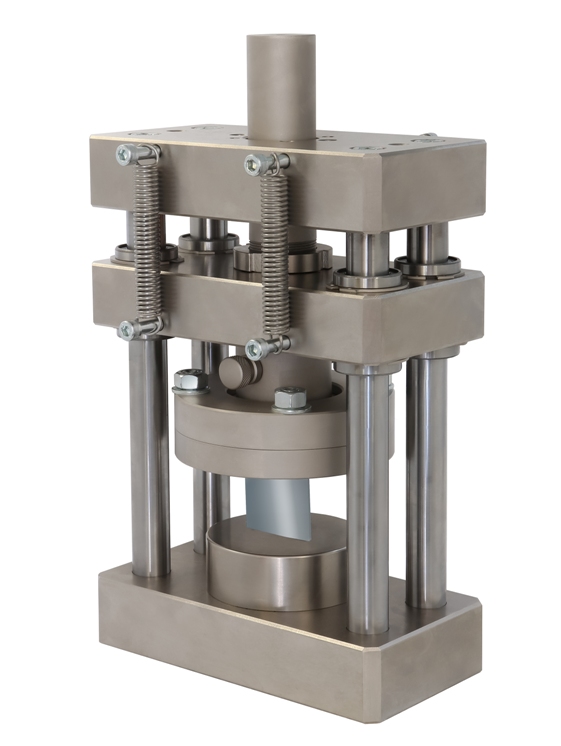

	THS1624-D100-GDE-V1 + TH23-156 + TH23-096 + THS233-116-ST Special compression test fixture, 100 kN Compression Platens: 138 mm Ø (upper) and 100 mm Ø (lower) Steel, nickel-plated

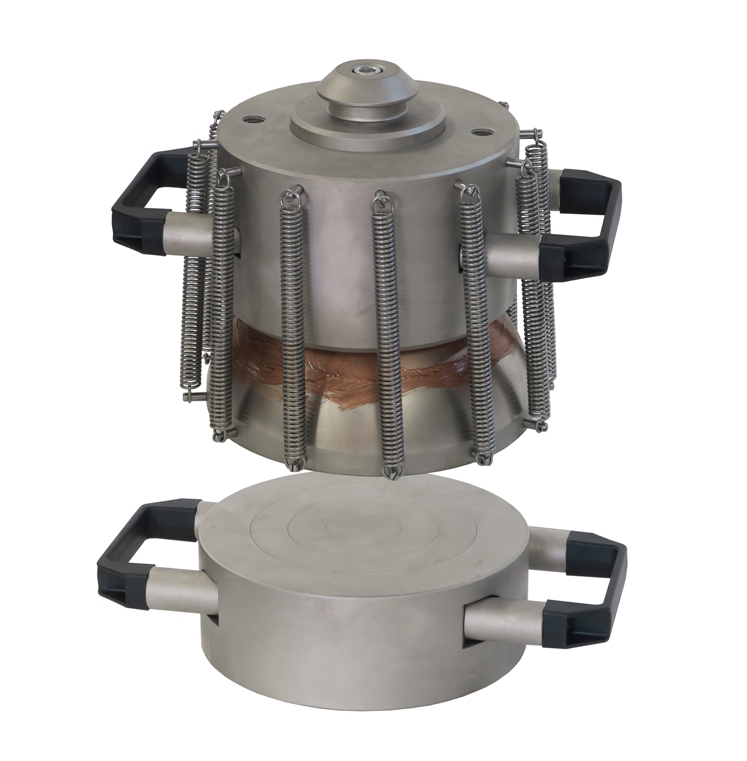

	THS223b-220-Am66+100-hdl + TH23-220+hdl Special compression test fixture to test 7 wire steel strand for reinforcement and prestressing of concrete 220 mm diameter

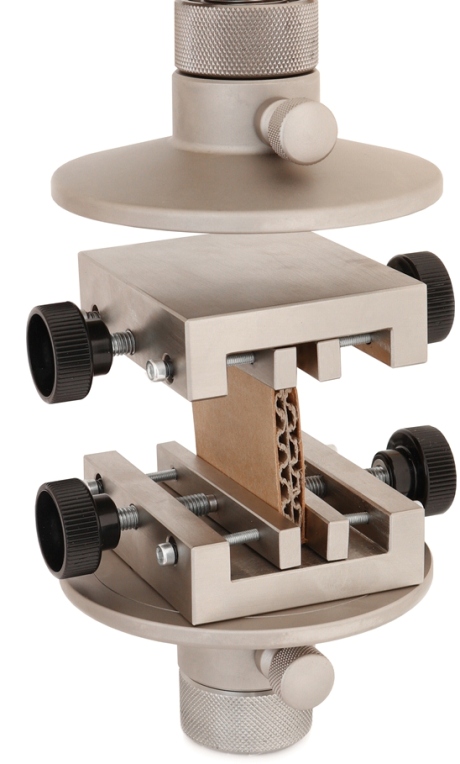

	THS1158-75-ASTM-C364 + TH23-096-Af159-ST Compression test fixture according to ASTM-C364 to test edgewise compressive strength of sandwich constructions more

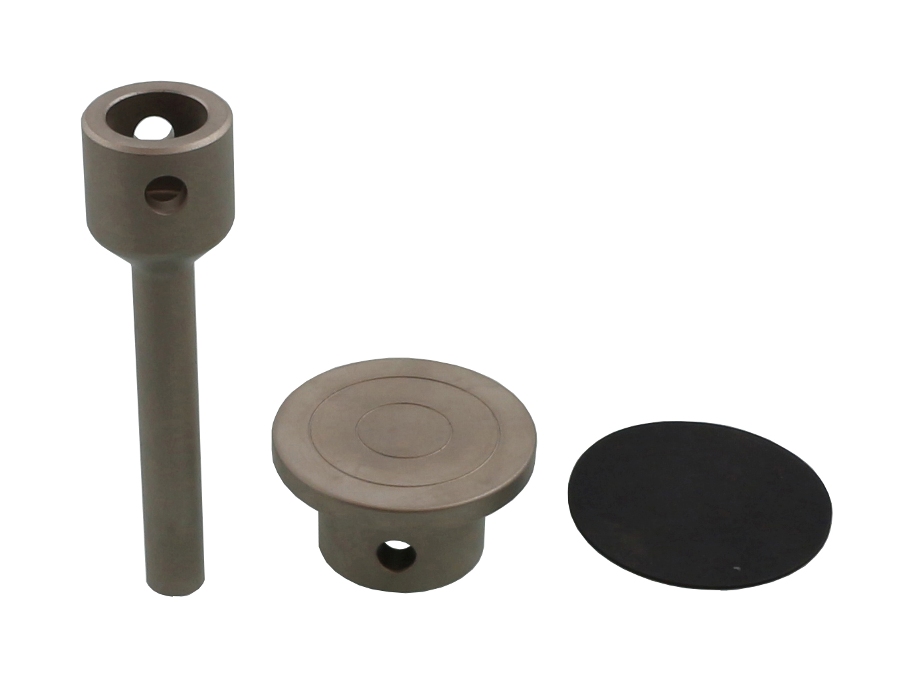

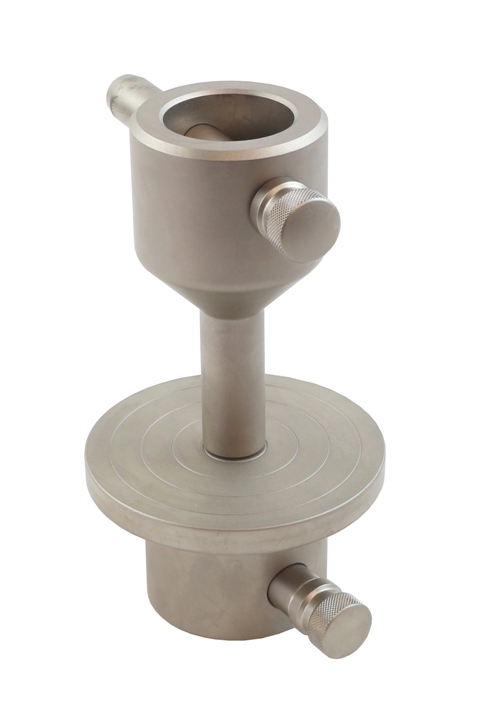

	THS42-F12.7-R0.39-80-Af20 +  TH23-56-Af20-ST DIN EN ISO9665-Fig.1 Gel strength test fixture for testing adhesives made of animal glues according to DIN EN ISO9665-Fig.1 Consists of - plunger THS42-F12.7-R0.39-80-Af20 - lower steel compression platen TH23-56-Af20-ST, 56 mm diameter, see TH23 - rubber disk, 1 mm thick - glass container for sample (not in the picture)

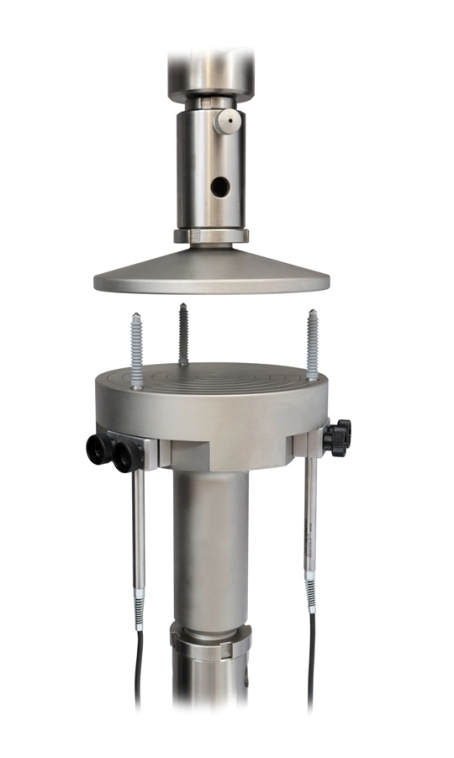

	TH23-156-Am50-th6 Compression Platen With 3 analogue Contact Gauging Sensors 0..20 mm more

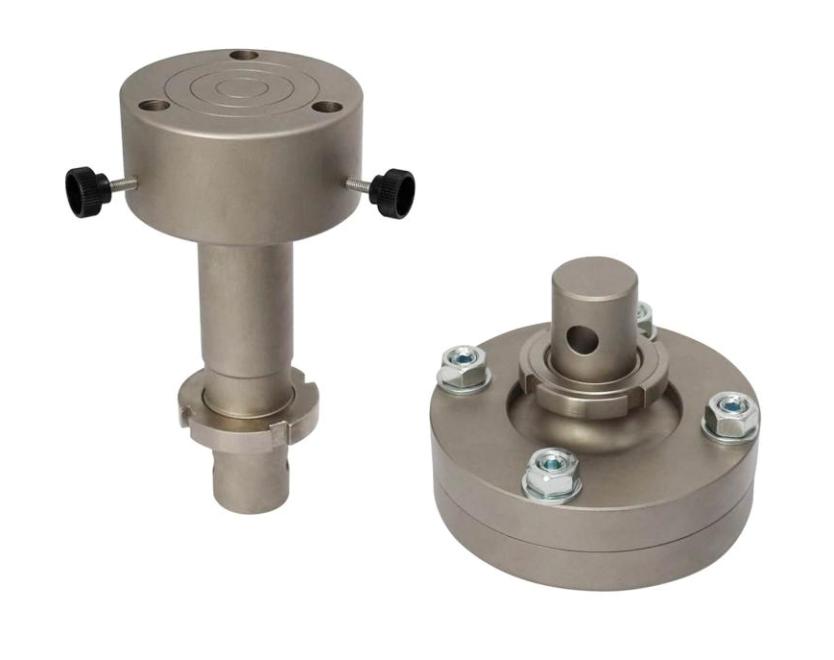

	TH23-96-Am35-L120 + THS223g-156-Am35 Left:  compression Platen with possibility for 3 LVDT gauging sensor with extra long adapter  Right: moveable compression Platen, ball rotation Links : Druckplatte mit einer Einbaumöglichkeit für 3 induktive Taster mit Federrückstellung Rechts: bewegliche Druckplatte, Kugelpfanne

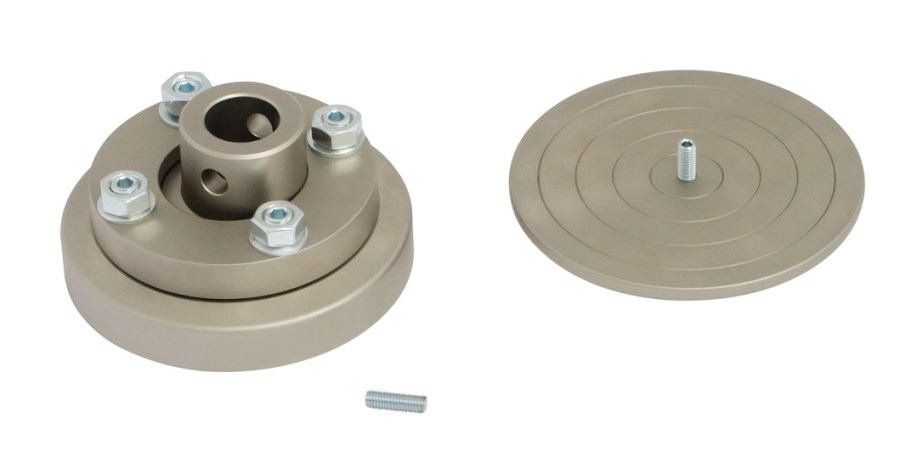

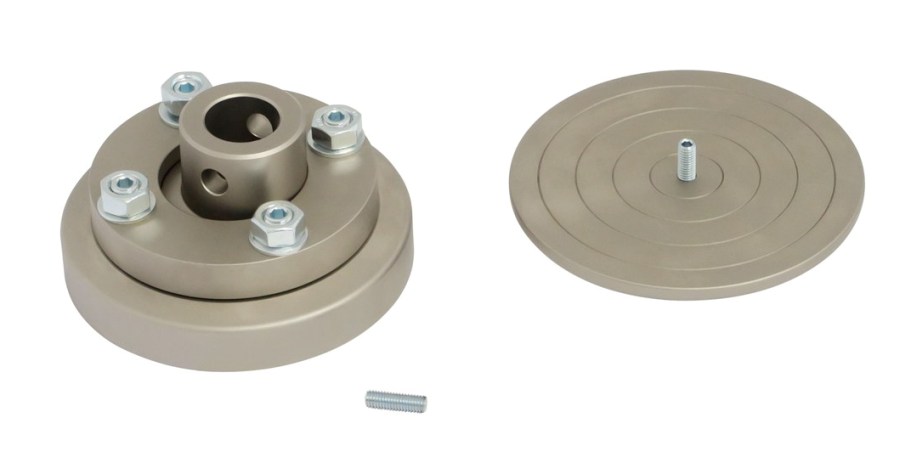

	THS223k-096-Af20-M5 + TH23-96-Af20-ST-M5 Special compression Platens with additional thread M5 to mount grips

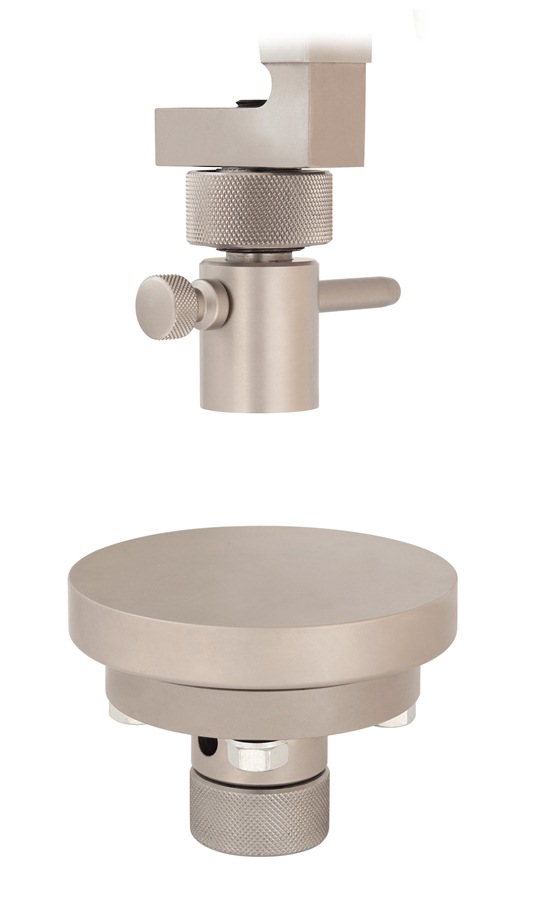

	TH23-28.66+THS223k-96-ST Compression platens to test internal bond strength of paperboard according to Tappi-T541. Incl. 1x lower spherically platen 96 mm Ø 1x upper platen 28.66 mm Ø (compressions surface 6.45cm2) Steel, hardened, nickel coated
