THS265
Cutters according to ASTM, ISO, DIN, etc.pdf
|
![THS265-CHB2x12-0.27kg-ISO37-Type-4-ISO527-2-Type-1BB-ISO527-2-Type-5B-JIS-K6251-Type-7-DIN53504-S3-GOST270-Type-6_2021-04-29](index_files/image002.jpg)
|
THS265-CHB2x12
Cutting die for samples 0-10 mm thick
According to ISO37
Type 4,
ISO527-2 Type 1BB, ISO527-2 Type 5B,
JIS-K6251 Type 7, DIN53504-S3, GOST270 Type 6
Bone-shaped 2x12 mm
|
![THS265-CHB3.18x9.53-01_ASTM-D638_ASTM-D1822_ GOST-R56800_Type_5](index_files/image004.jpg)
|
THS265-CHB3.18x9.53
Cutting die for samples 0-10 mm thick
According to ASTM-D638 Type V,
ASTM-D1822 Type L,
GOST-R56800 Type 5
Bone-shaped 3.18x9.53 mm
|
![THS265-CHB3x33_ASTM-D412-Type-D_EN455-2_3kg](index_files/image006.jpg)
|

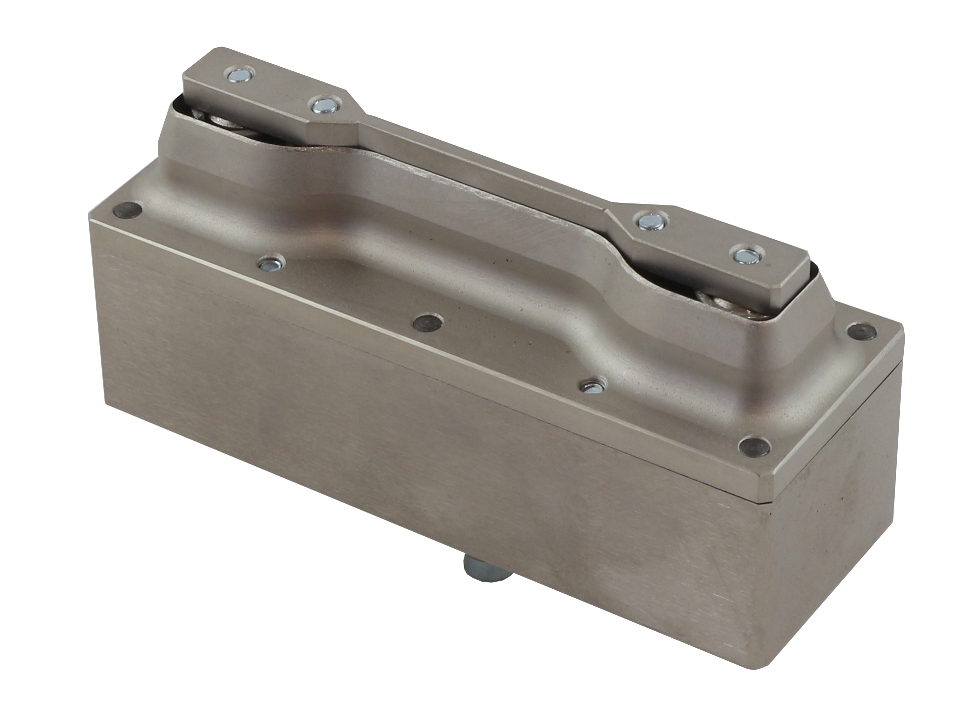

THS265-CHB3x33
Cutting die according to
ASTM-D412 Type D and EN455-2
Bone-shaped 3x33 mm
|
![THS265-CHB3x9.5-ASTM-D638-TypeV-ASTM-D1822-TypeL-Plastics-tensile-properties](index_files/image008.jpg)
|

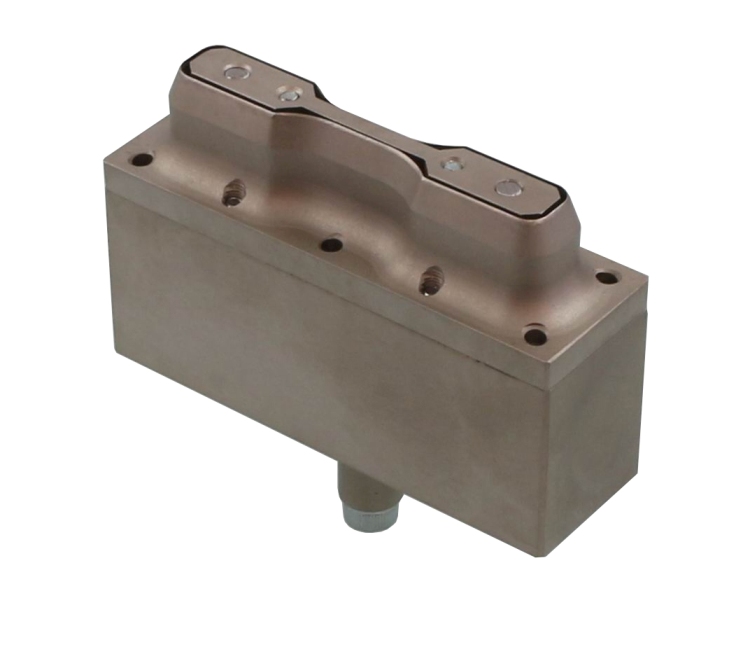

THS265-CHB3x9.5
Cutting die for samples 0-10 mm thick
According to ASTM-D638 Type V, ASTM-D1822 Type L
Bone-shaped 3.18x9.53 mm
|
![THS265-CHB4x16-0.45kg-ISO37-Type3-JIS-K6251-Type8-DIN53504-S3A0_2021-08-28](index_files/image010.jpg)
|

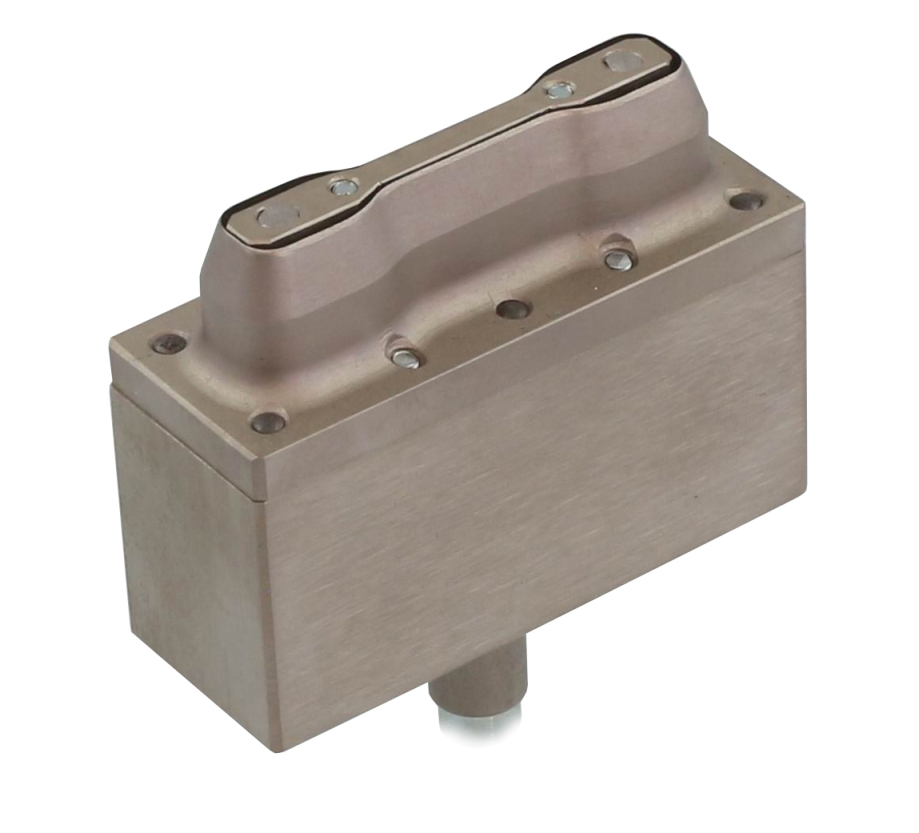

THS265-CHB4x16
Cutting die for samples 0-10 mm thick
According to ISO37 Type 3,
JIS-K6251 Type 8, DIN53504-S3A0
Bone-shaped 4x16 mm
|
![](index_files/image012.jpg)
|
THS265-CHB4x25
Cutting die for samples 0-10 mm thick
According to ISO37 Type 2,
ISO527-2 Type 5A, JIS-K6251 Type 6, DIN53504-S2, EN60811-3-2-Fig.1, EN60811-501
Fig.2, GOST270 Type 3, NBR15557 Fig.3
Bone-shaped 4x25 mm
|
![](index_files/image014.jpg)
|
THS265-CHB4x25
|
![](index_files/image016.jpg)
|

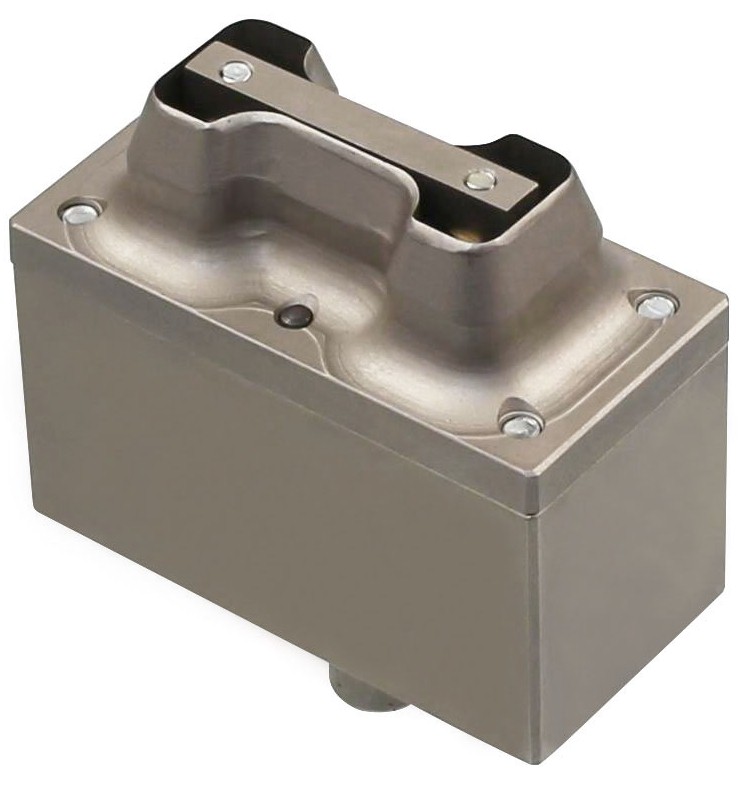

THS265-CHB5x12
Cutting die for samples 0-10 mm thick
According to
ASTM-D1708, ASTM-D2116, ASTM-D4894, JIS-K6935-2,
JIS-K7137-2-A
Bone-shaped 5x12 mm
|
![](index_files/image018.jpg)
|

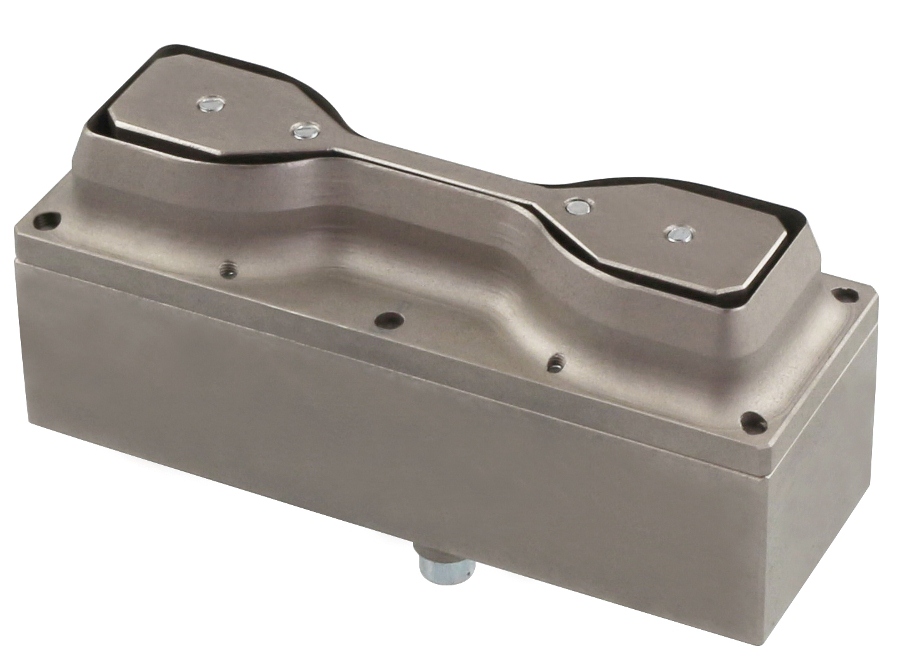

THS265-CHB5x21
Cutting die according to ISO37 Type 1A
Bone-shaped
5x21 mm
|
![THS265-CHB5x30-0.62kg_2022-12-10](index_files/image020.jpg)
|
THS265-CHB5x30
Cutting die for samples 0-10 mm thick
According to ISO527-2 Type 1BA
Bone-shaped 5x30 mm
|
![THS265-CHB6x32-10x100-ASTM-E8-Type3_0.8kg_metallic_material_tensile_test](index_files/image022.jpg)
|
THS265-CHB6x32-10x100-ASTM-E8-Type3
Cutting die according to
ASTM-E8 Type 3
For samples 0-10 mm thick
Bone-shaped 6x32 mm
|
![Description: Description: Description: Description: Description: tn_THS265-CH6x33-Cutter 1,597g 05-02-2018 02-](index_files/image024.jpg)
|
THS265-CHB6x33
Cutting die for samples
According to ASTM-D412 Die C,
ASTM-D638 Type IV, ISO37 Type 1, ISO527-3 Type 5, JIS-K6251 Type 5,
JIS-K7113 Fig.3 Type 2, JIS-K7127 Fig.2 ,JIS-K7137-2 B, DIN53504-S1,
EN12311-2 Type B, GOST270 Type 1,
GOST11262 Fig.2 Type 1,
GOST-R-56800 Type 4, NBR15557 Fig.2
Test
videos
|
![THS265-CHB6x57-ASTM-D638-T2_2023-03-10](index_files/image026.jpg)
|

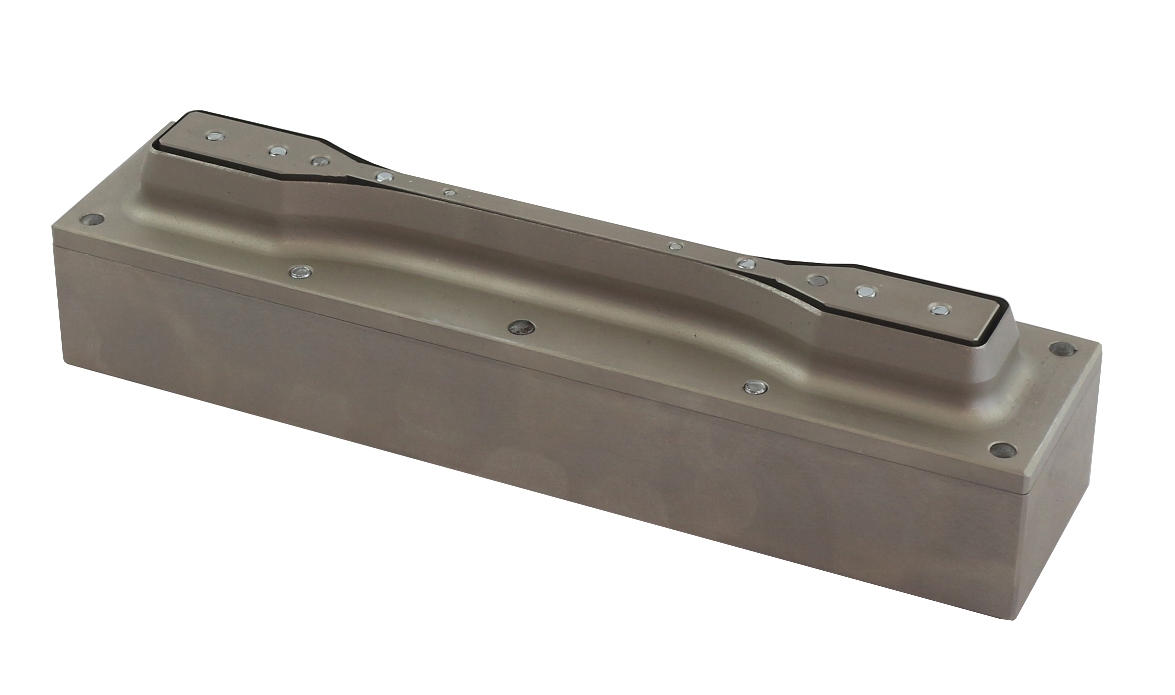

THS265-CHB6x57
Cutting die for samples
According to ASTM-D638 Type II,
GOST-R-56800 Type 2
Bone-shaped 6x57 mm
|
![THS265-CHB6x59-ASTM-D412-A-1.8kg_ 2023-04-29](index_files/image028.jpg)
|

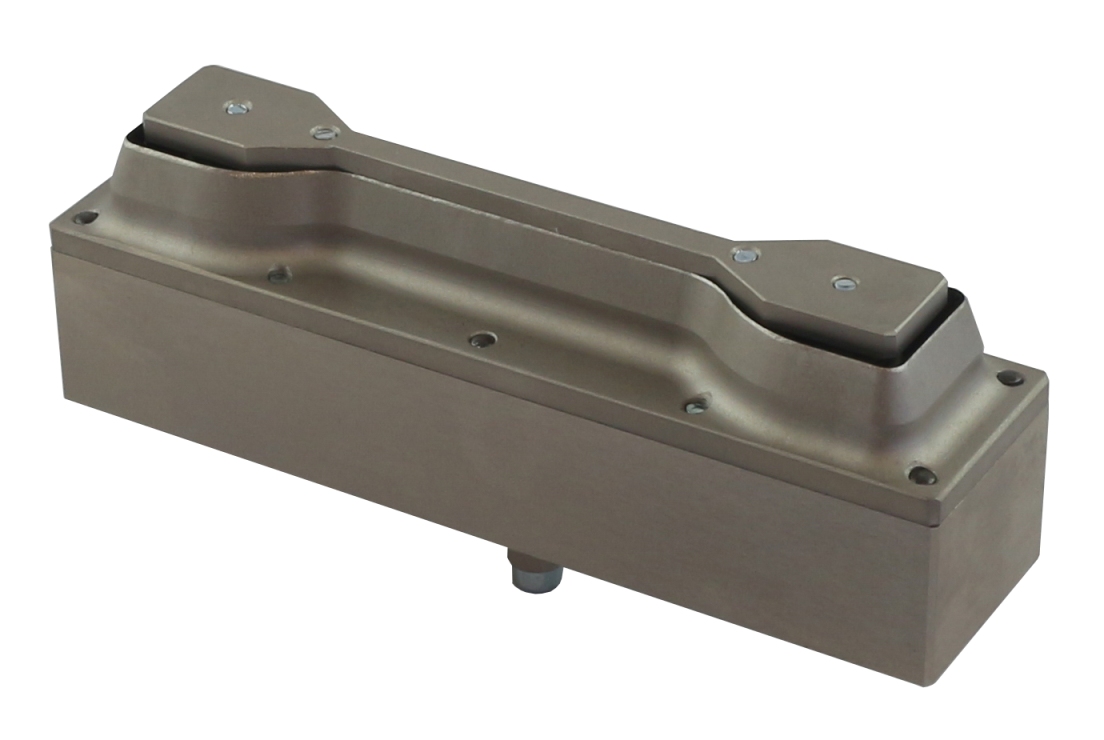

THS265-CHB6x59
Cutting die for samples
According to ASTM-D412 Die B
Bone-shaped 6x59 mm
|
![THS265-CHB8x45_JIS-K6301-Type-1_1kg_2024-03-08](index_files/image030.jpg)
|

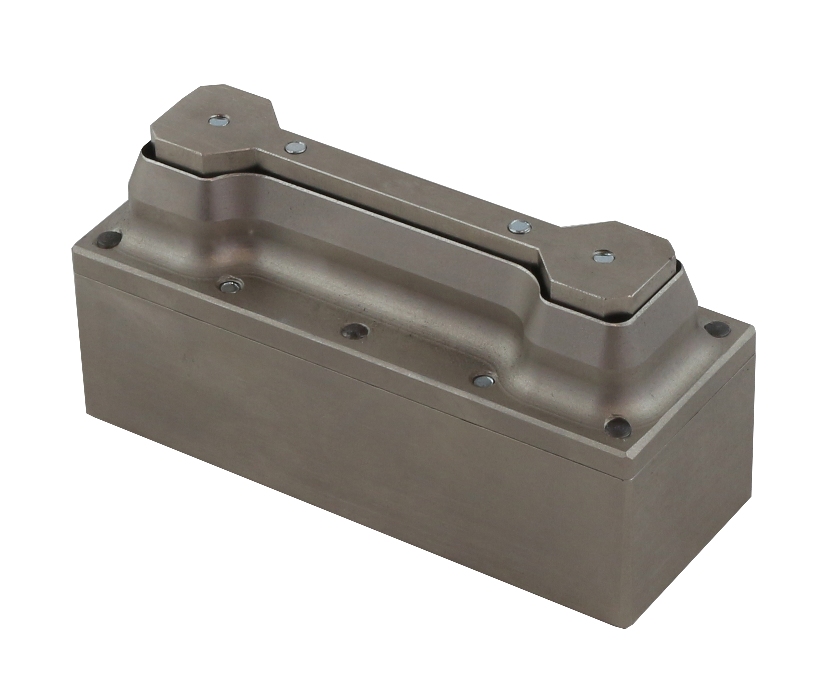

THS265-CHB8x45
Cutting die for samples
For samples 0-10 mm thick
Bone-shaped 8x45 mm
|
![THS265-CHB10x10-15x80_1.10kg_2024-07-20](index_files/image032.jpg)
|

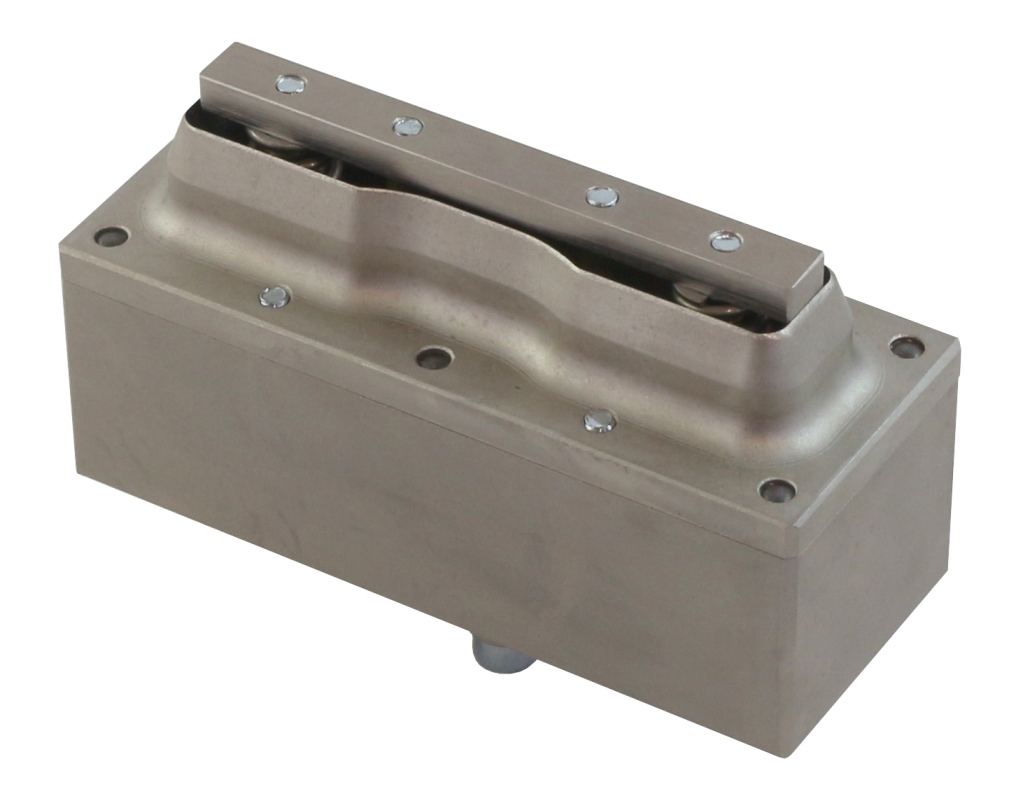

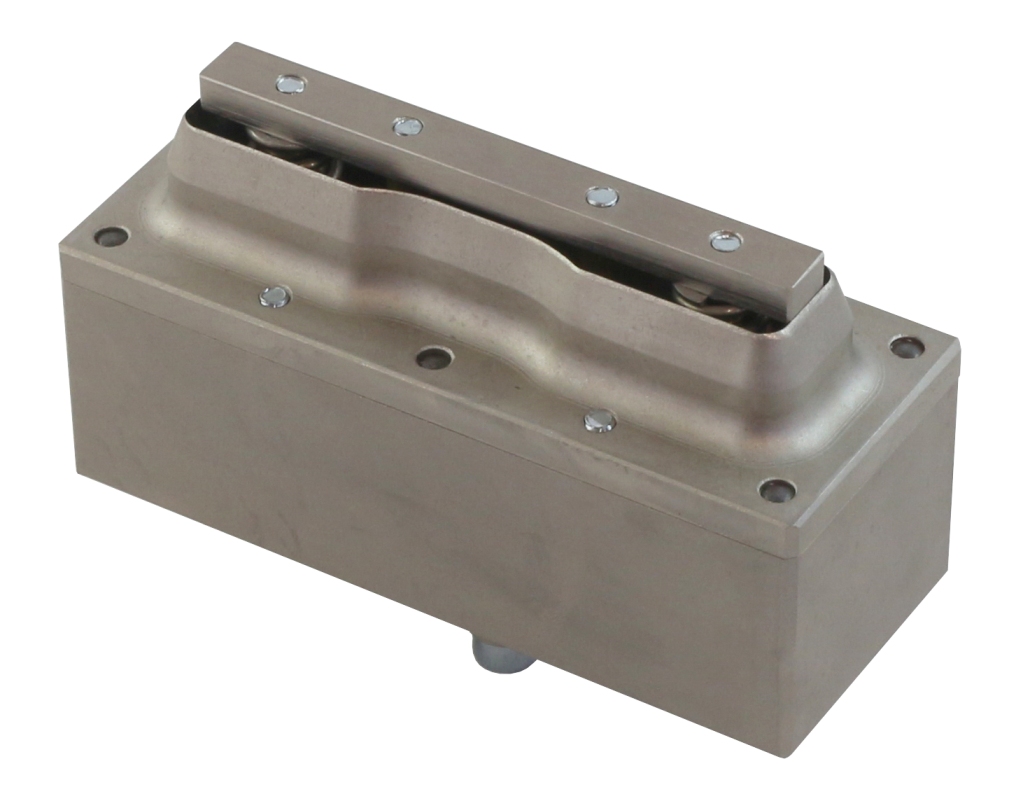

THS265-CHB10x10
Cutting die for samples
Bone-shaped 10x10 mm
|
![THS265-CHB10x40_2023-03-09](index_files/image034.jpg)
|
THS265-CHB10x40
Cutting die for samples
According to ISO1798 Type 1A,
JIS-K6251 Type 1, JIS-K6400-5 Fig.3-2
Bone-shaped 10x40 mm
|
![THS265-CHB10x60-Af20-2L_ISO527-2-1B_ISO527-3-F3-1B_JISK7127-F3_JISK7139-A2_JISK7162-1B_2kg_01 (1)](index_files/image036.jpg)
|
THS265-CHB10x60
Cutting die for samples
According to ISO527-2 Type 1B,
ISO527-3 Type 1B, JIS-K7127 Fig.3,
JIS-K7113 Fig.2 Type 1, JIS-K7161-1B,
JIS-K7139 Type A2, JIS-K7162-1B
Bone-shaped 10x60 mm
Coupling Af20 with 2 pin holes
|
![THS265-CH10x80-ISO527-2-1A_ 2022-12-10](index_files/image038.jpg)
|
THS265-CHB10x80
Cutting die for
samples 0-10 mm thick
According to ISO527-2
Type 1A,
ISO3167 Type A, JIS-K7139 Type A1,
JIS-K7161-1A, JIS-K7162-1A, GOST11262-Fig.1 Type 1A
Bone-shaped 10x80 mm
|
![THS265-CHB12.5x57-20x200-ASTM-E8-Type2_3.1kg_metallic_material_tensile_test](index_files/image040.jpg)
|
THS265-CHB12.5x57-20x200-ASTM-E8-Type2
Cutting die for samples 0-10 mm thick
According to ASTM-E8 Type 2
Bone-shaped 12.5x57
mm
|
![THS265-CHB12x59-ASTM-D412-A-1.8kg_2023-04-28](index_files/image042.jpg)
|

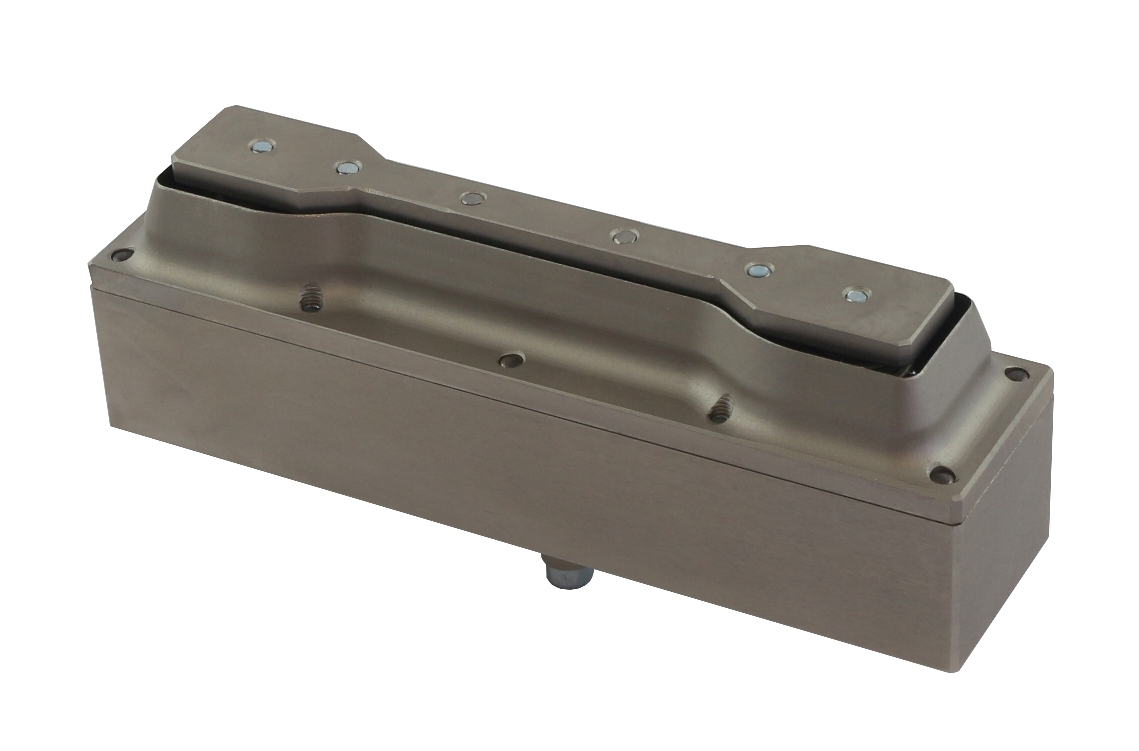

THS265-CHB12x59
Cutting die for samples 0-10 mm thick
According to ASTM-D412 Die A
Bone-shaped
12x59 mm
|
![THS265-CHB13x55_2.5kg_024-02-24](index_files/image044.jpg)
|

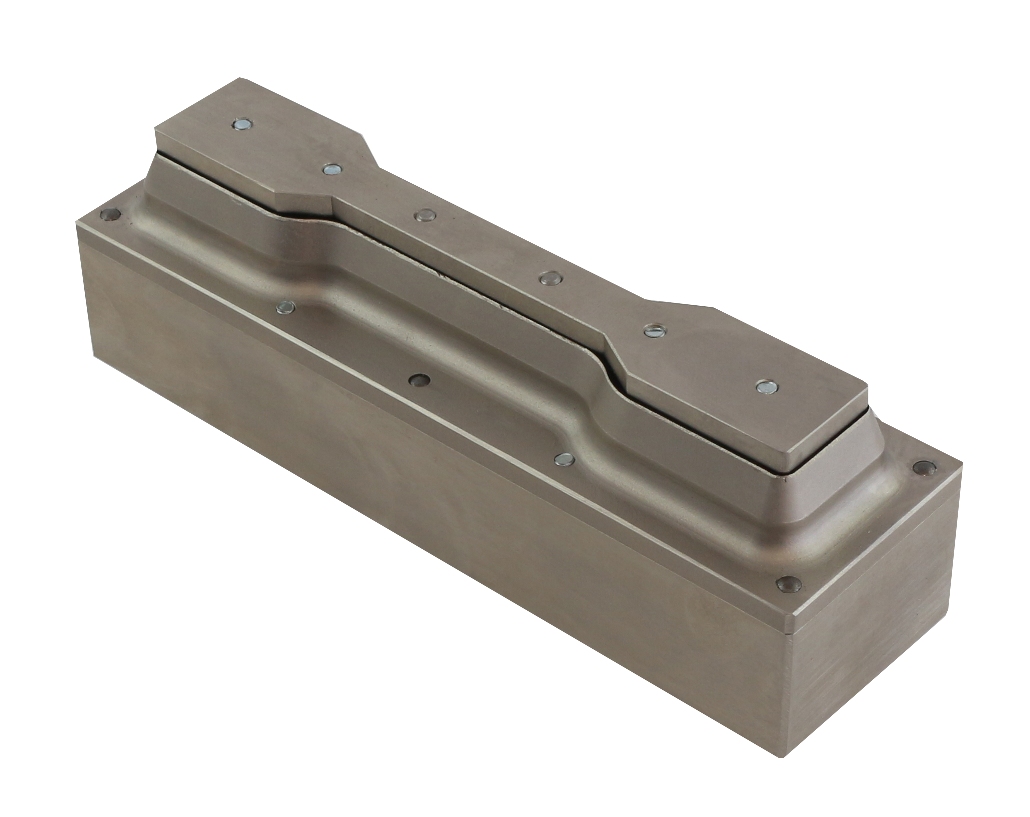

THS265-CHB13x55
Cutting die for samples 0-10 mm thick
According to ISO1798 Type I
JIS-K6400-5 Fig.2-1
Bone-shaped
13x55 mm
|
![THS265-CHB13x57_2023-01-03](index_files/image046.jpg)
|

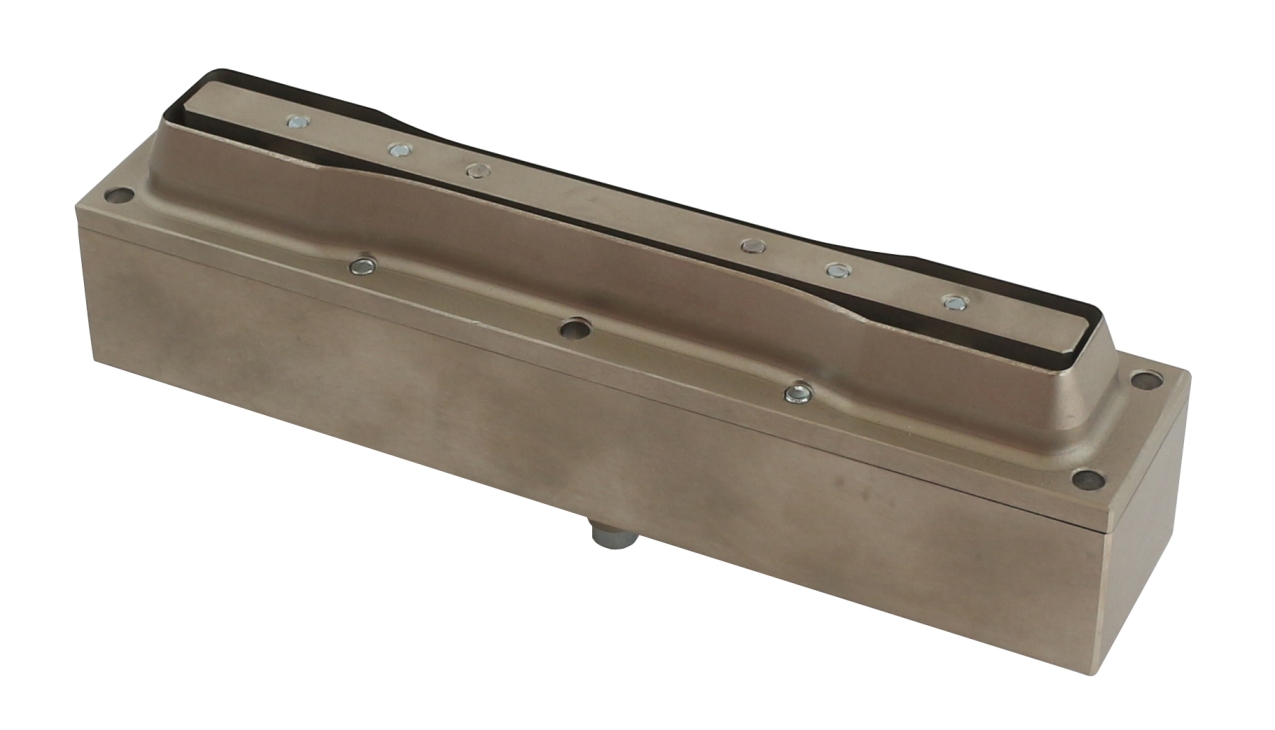

THS265-CHB13x57
Cutting die for
samples 0-10 mm thick
According to ASTM-D638 Type I,
GOST-R-56800 Type1
Bone-shaped
13x57 mm
|
![THS265-CHB19x57-ASTM-D638-t3-4kg-GOST-R-56800-Type3_2023-04-05](index_files/image048.jpg)
|

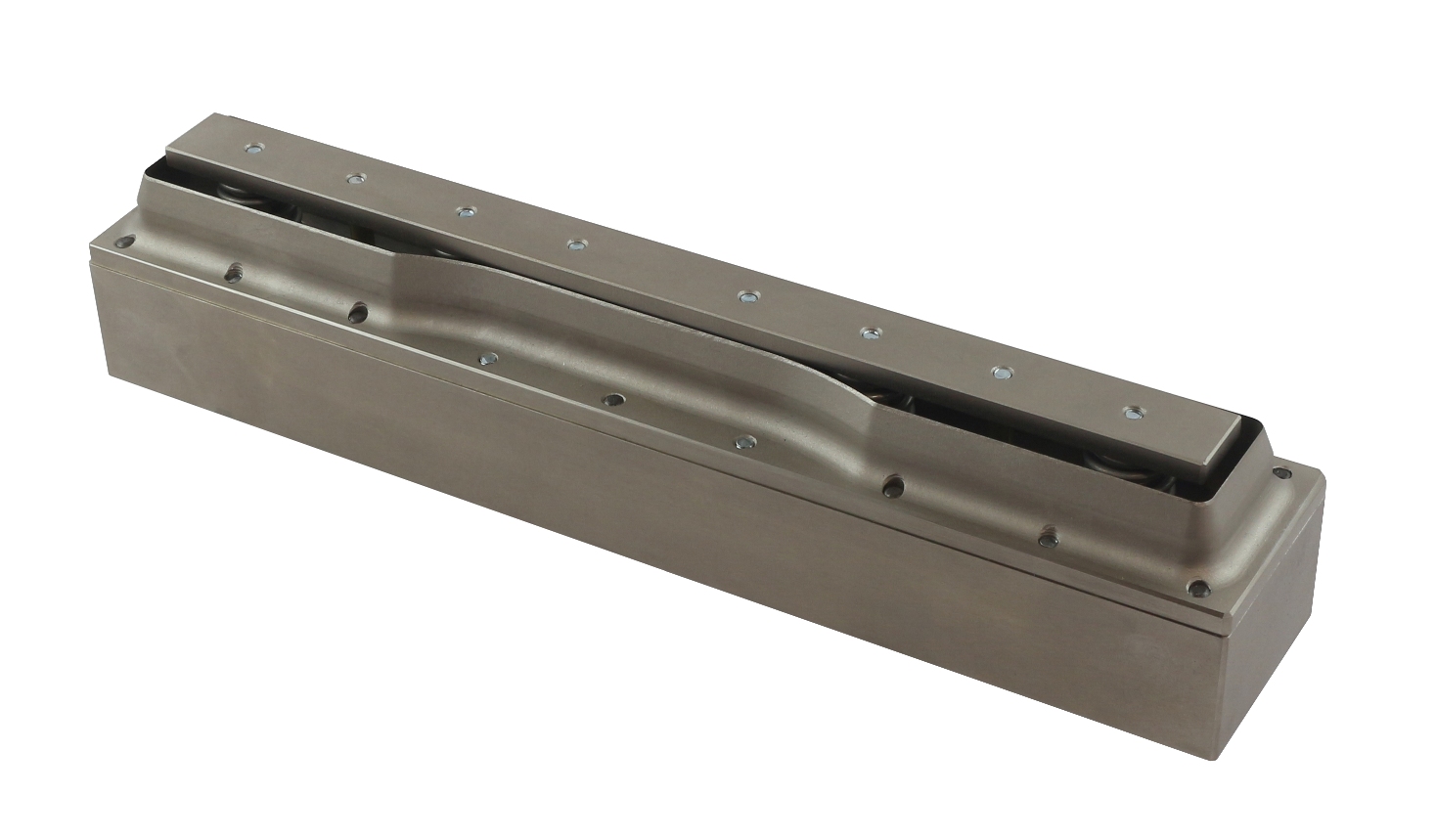

THS265-CHB19x57
Cutting die for samples 0-10 mm thick
According to ASTM-D638-t3,
GOST-R-56800 Type3
Bone-shaped
19x57 mm
|
![THS265-CHB25x50-S14-ISO1926_2.8_2024-06-08](index_files/image050.jpg)
|

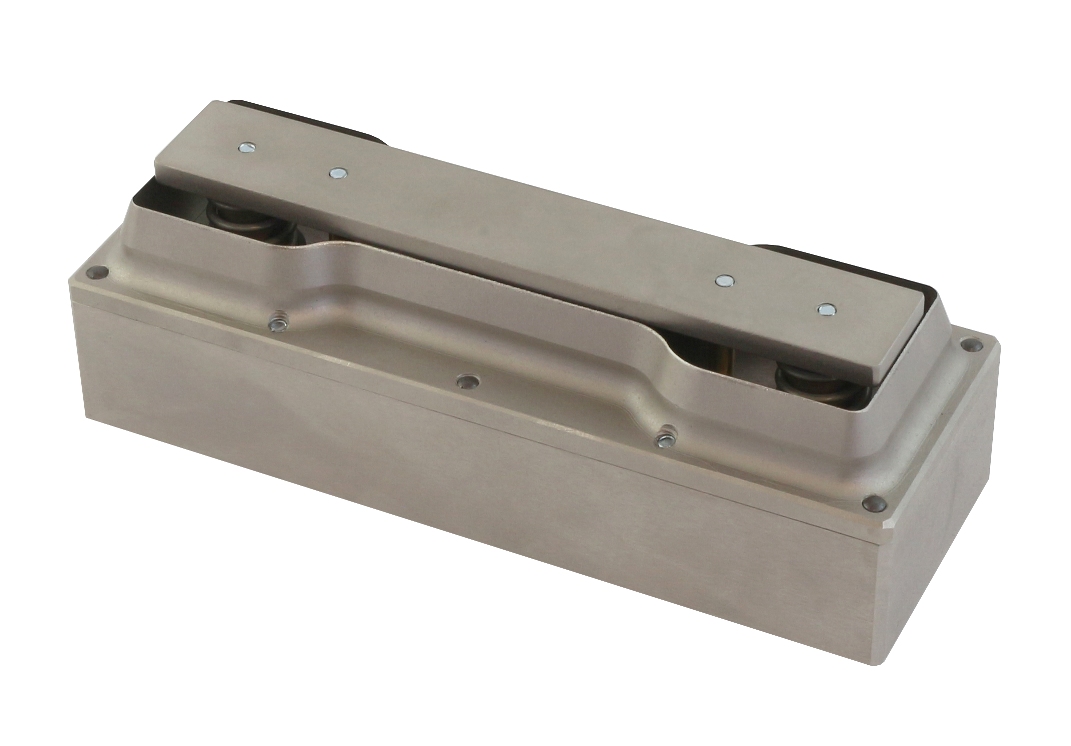

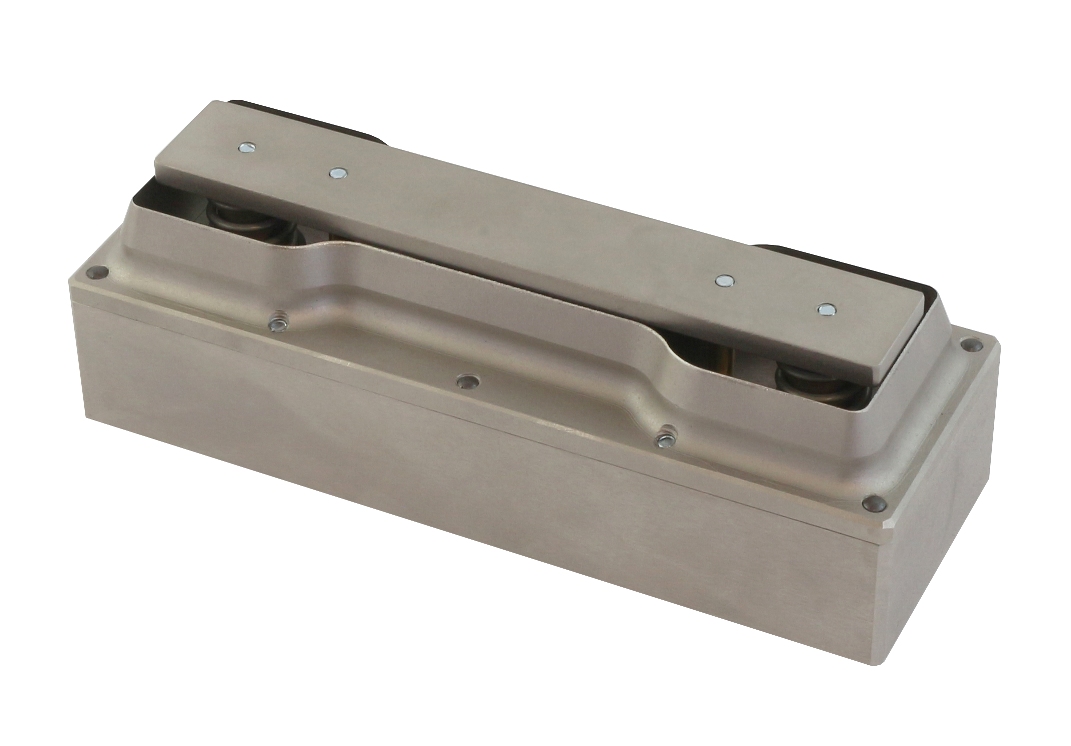

THS265-CHB25x55
Cutting die for samples 0-10 mm thick
According to ISO1926, EN12230
Bone-shaped
25x55 mm
|
