THS265-CH



Back

Description: pdf_icon.gif THS265 Cutters according to ASTM, ISO, DIN, etc.pdf

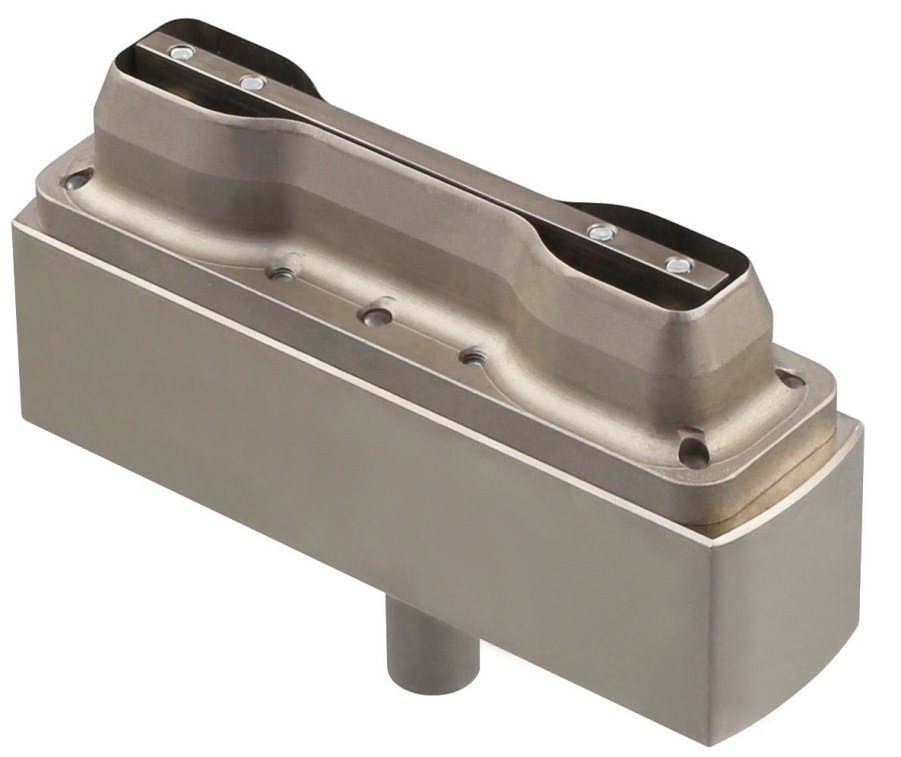

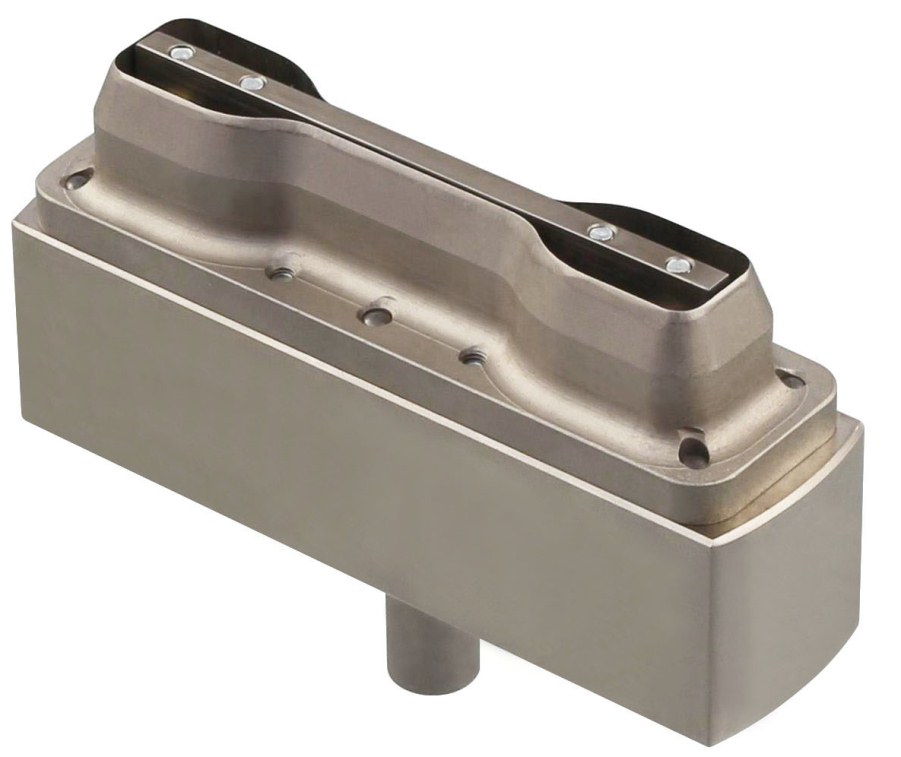

THS265-CHB2x12-0.27kg-ISO37-Type-4-ISO527-2-Type-1BB-ISO527-2-Type-5B-JIS-K6251-Type-7-DIN53504-S3-GOST270-Type-6_2021-04-29

THS265-CHB2x12

Full hardened steel cutting die

For samples 0-10 mm thick

According to ISO37 Type 4,
ISO527-2 Type 1BB, ISO527-2 Type 5B,
JIS-K6251 Type 7, DIN53504-S3, GOST270 Type 6
Bone-shaped 2x12 mm

THS265-CHB3.18x9.53-01_ASTM-D638_ASTM-D1822_ GOST-R56800_Type_5

THS265-CHB3.18x9.53

Full hardened steel cutting die

For samples 0-10 mm thick
According to ASTM-D638 Type V,
ASTM-D1822 Type L,
GOST-R56800 Type 5
Bone-shaped 3.18x9.53 mm

THS265-CHB3x33_ASTM-D412-Type-D_EN455-2_3kg

THS265-CHB3x33

Full hardened steel cutting die
According to ASTM-D412 Type D and EN455-2
Bone-shaped 3x33 mm

THS265-CHB3x9.5-ASTM-D638-TypeV-ASTM-D1822-TypeL-Plastics-tensile-properties

THS265-CHB3x9.5



Full hardened steel cutting die

for samples 0-10 mm thick

According to ASTM-D638 Type V, ASTM-D1822 Type L

Bone-shaped 3.18x9.53 mm

THS265-CHB4x16-0.45kg-ISO37-Type3-JIS-K6251-Type8-DIN53504-S3A0_2021-08-28

THS265-CHB4x16

Full hardened steel cutting die

For samples 0-10 mm thick
According to ISO37 Type 3,
JIS-K6251 Type 8, DIN53504-S3A0
Bone-shaped 4x16 mm

THS265-CHB4x25

Full hardened steel cutting die

For samples 0-10 mm thick
According to ISO37 Type 2,
ISO527-2 Type 5A, JIS-K6251 Type 6, DIN53504-S2, EN60811-3-2-Fig.1, EN60811-501 Fig.2, GOST270 Type 3, NBR15557 Fig.3

Bone-shaped 4x25 mm

THS265-CHB4x25

THS265-CHB5x12

Full hardened steel cutting die

For samples 0-10 mm thick
According
to ASTM-D1708, ASTM-D2116, ASTM-D4894, JIS-K6935-2,
JIS-K7137-2-A
Bone-shaped 5x12 mm

THS265-CHB5x21


Full hardened steel cutting die

According to ISO37 Type 1A
Bone-shaped 5x21 mm

THS265-CHB5x30-0.62kg_2022-12-10

THS265-CHB5x30

Full hardened steel cutting die

For samples 0-10 mm thick
According to ISO527-2 Type 1BA
Bone-shaped 5x30 mm

THS265-CHB6x32-10x100-ASTM-E8-Type3_0.8kg_metallic_material_tensile_test

THS265-CHB6x32-10x100-ASTM-E8-Type3



Full hardened steel cutting die
According to ASTM-E8 Type 3

For samples 0-10 mm thick
Bone-shaped 6x32 mm

Description: Description: Description: Description: Description: tn_THS265-CH6x33-Cutter  1,597g  05-02-2018  02-



THS265-CHB6x33

Cutter is suitable for cutting samples according to
ASTM-D412 Die C,
ASTM-D638 Type IV, ISO37 Type 1, ISO527-3 Type 5, JIS-K6251 Type 5,
JIS-K7113 Fig.3 Type 2, JIS-K7127 Fig.2 ,JIS-K7137-2 B, DIN53504-S1,
EN12311-2 Type B, GOST270 Type 1,
GOST11262 Fig.2 Type 1,
GOST-R-56800 Type 4, NBR15557 Fig.2

Test videos

Description: Description: Description: Description: Description: tn_THS265-CH6x33

THS265-CHB6x33

Description: Description: Description: Description: Description: tn_THS265-CH6x33.

THS265-CHB6x33

THS265-CHB6x57-ASTM-D638-T2_2023-03-10

THS265-CHB6x57

Full hardened steel cutting die

According to ASTM-D638 Type II,
GOST-R-56800 Type 2

Bone-shaped 6x57 mm

THS265-CHB6x59-ASTM-D412-A-1.8kg_ 2023-04-29

THS265-CHB6x59

Full hardened steel cutting die

According to ASTM-D412 Die B

Bone-shaped 6x59 mm

THS265-CHB8x45_JIS-K6301-Type-1_1kg_2024-03-08

THS265-CHB8x45

Full hardened steel cutting die for plastic samples
For samples 0-10 mm thick
Bone-shaped 8x45 mm

THS265-CHB10x40_1.5kg_JIS-K6251-1_JIS-K6400-5_ISO1798-Type1A_cutting_die

THS265-CHB10x40



Full hardened steel cutting for samples according to ISO1798 Type 1A,
JIS-K6251 Type 1, JIS-K6400-5 Fig.3-2

Bone-shaped 10x40 mm

THS265-CHB10x40_2023-03-09

THS265-CHB10x40

THS265-CHB10x60-Af20-2L_ISO527-2-1B_ISO527-3-F3-1B_JISK7127-F3_JISK7139-A2_JISK7162-1B_2kg_01 (1)

THS265-CHB10x60



Full-hardened steel cutting for samples according to ISO527-2 Type 1B,
ISO527-3 Type 1B, JIS-K7127 Fig.3,
JIS-K7113 Fig.2 Type 1, JIS-K7161-1B,
JIS-K7139 Type A2, JIS-K7162-1B

Bone-shaped 10x60 mm

Coupling Af20 with 2 pin holes

THS265-CHB10x60_ISO527-2-1B_ISO527-3-F3-1B_JISK7127-F3_JISK7139-A2_JISK7162-1B_2kg_02

THS265-CHB10x60

THS265-CH10x80-ISO527-2-1A_ 2022-12-10

THS265-CHB10x80



Full hardened steel cutting die

For samples 0-10 mm thick
According to ISO527-2 Type 1A,
ISO3167 Type A, JIS-K7139 Type A1,
JIS-K7161-1A, JIS-K7162-1A, GOST11262-Fig.1 Type 1A
Bone-shaped 10x80 mm

THS265-CHB10x80

THS265-CHB12.5x57-20x200-ASTM-E8-Type2_3.1kg_metallic_material_tensile_test

THS265-CHB12.5x57-20x200-ASTM-E8-Type2



Full hardened steel cutting die
According to ASTM-E8 Type 2

For samples 0-10 mm thick
Bone-shaped 12.5x57 mm

THS265-CHB12x59-ASTM-D412-A-1.8kg_2023-04-28

THS265-CHB12x59

Full hardened steel cutting die
For samples 0-10 mm thick
According to ASTM-D412 Die A
Bone-shaped 12x59 mm

THS265-CHB13x55_2.5kg_024-02-24

THS265-CHB13x55

Full hardened steel cutting die for plastic samples
According to ISO1798 Type I
JIS-K6400-5 Fig.2-1
For samples 0-10 mm thick
Bone-shaped 13x55 mm

THS265-CHB13x57_2023-01-03

THS265-CHB13x57

Full hardened steel cutting die
For samples 0-10 mm thick

According to ASTM-D638 Type I,
GOST-R-56800 Type1
Bone-shaped 13x57 mm


Test videos

THS265-CHB19x57-ASTM-D638-t3-4kg-GOST-R-56800-Type3_2023-04-05

THS265-CHB19x57

Full hardened steel cutting die

For samples 0-10 mm thick
According to ASTM-D638-t3,
GOST-R-56800 Type3
Bone-shaped 19x57 mm

THS265-CHB25x50-S14-ISO1926_2.8_2024-06-08

THS265-CHB25x55

Full hardened steel cutting die
For samples 0-10 mm thick
According to ISO1926,
EN12230
Bone-shaped 25x55 mm

THS265-CHB25x55  EN12230

THS265-CHB25x55

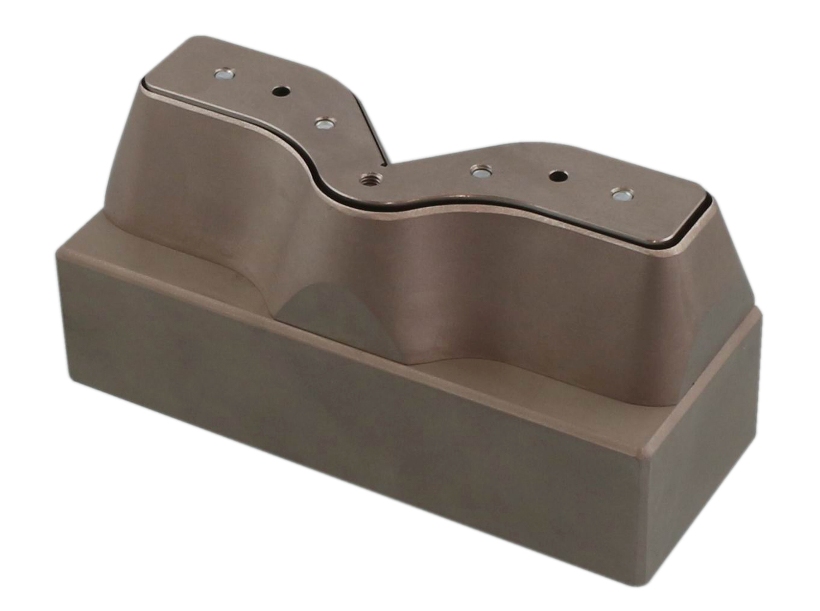

THS265-CHV12.7x102-ISO34-1-Fig2_1.49kg

THS265-CHV12.7x102



Steel cutting die according to
ASTM-D624-Die-С, ASTM-D1004,
ISO34-1 Fig.2, ISO8067, DIN53515,
JIS-K6252-1 Fig.2, GOST262 Fig.2
V-shaped 12.7x102 mm

THS265-CHV25x110-ASTM-D624-Die-B-2023-04-07

THS265-CHV25x110

Steel cutting die
According to ASTM-D624 Die B
V-shaped 25x110 mm

THS265-CHV25x110-ASTM-D624-Typ-B-1.9kg_2023-05-03

THS265-CHV25x110



Steel cutting die
According to ASTM-D624 Type B
V-shaped 25x110 mm

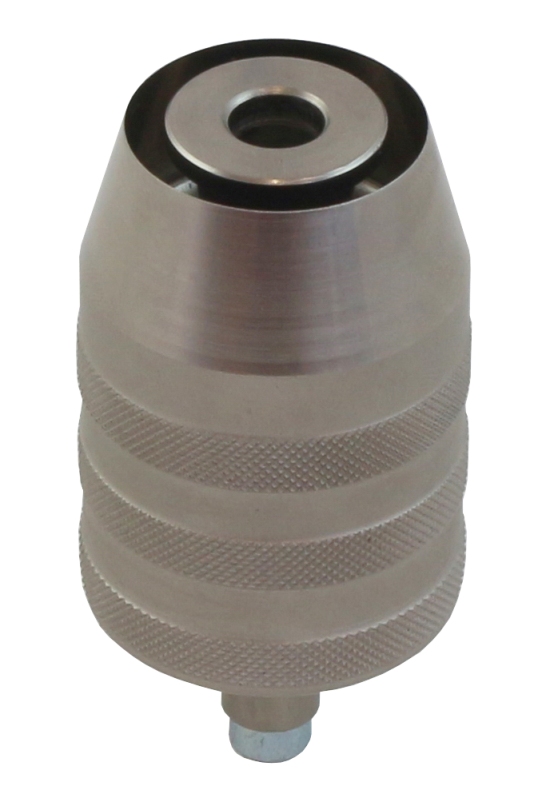

THS265-CHC13-0.11kg_2023-01-12

THS265-CHC13



Full hardened steel cutting die

Circular-shaped 13 mm

THS265-CHC20-x 2024-05-18_20kg

THS265-CHC20

Full hardened steel cutting die

Circular-shaped 20 mm


THS265-CHC25_0.3kg

THS265-CHC25



Full hardened steel cutting die

For samples 0-10 mm thick
Circular-shaped 25 mm

THS265-CHC28.8-ASTM-D575-Typel-2020-12-10

THS265-CHC28.8

Full steel cutting die for samples 0-10 mm
According to ASTM-D575 Type l
Coupling Am31.7/12.8 mm
Circular-shaped 28.8 mm

THS265-CHC32


Full hardened steel cutting die

Circular-shaped 32 mm

THS265-CHC50.5  Ready 2h1x Moutage 2022-04-16

THS265-CHC50.5

Full hardened steel cutting die

For samples 0-10 mm thick
Circular-shaped 50.5 mm

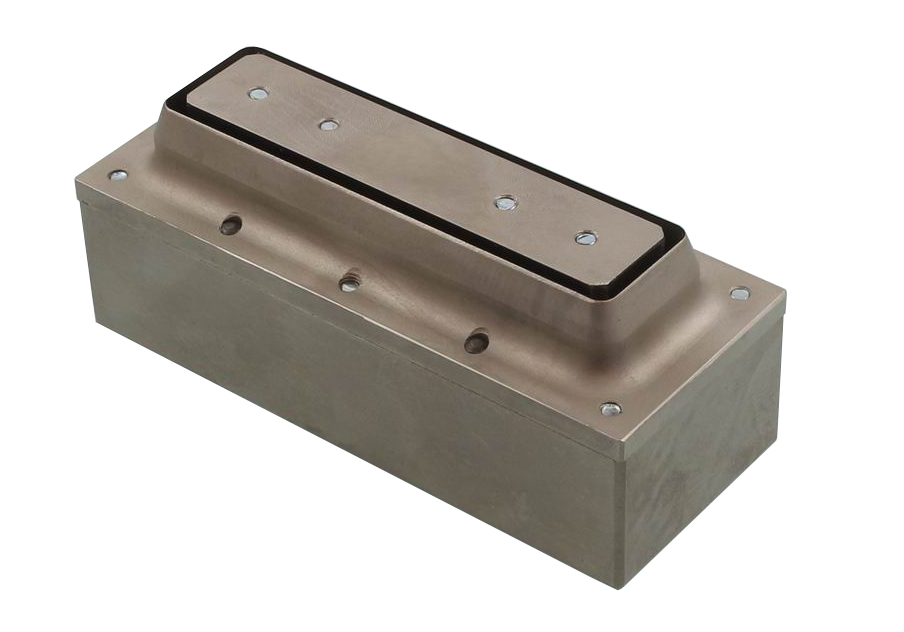

THS265-CHR10x10-2021-07-31

THS265-CHR10x10

Full hardened steel cutting die
For samples 0-10 mm thick
Rectangular 10x10mm

THS265-CHR10x80-ISO75-2-2019-10-21

THS265-CHR10x80

Full hardened steel cutting die

For samples 0-10 mm thick
According to ISO75-2
Rectangle-shaped 10x80 mm

THS265-CHR10x80

Full hardened steel cutting die

For samples 0-10 mm thick
According to
ISO75-2
Rectangle-shaped 10x80 mm

THS265-CHR12.7x127_2020-11-13

THS265-CHR12.7x127

Full hardened steel cutting die

For samples 0-10 mm thick
Rectangle-shaped 12.7x127 mm

THS265-CHR13x38 2021-02-05

THS265-CHR13x38

Full hardened steel cutting die

For samples 0-10 mm thick
According to ASTM-D1693
Rectangle-shaped 13x38 mm

THS265-CHR15x100_1.17kg

THS265-CHR15x100

Full hardened steel cutting die

For samples 0-10 mm thick
Rectangular blade shape 15x100 mm

THS265-CHR25x100 2022-01-13

THS265-CHR25x100

Full hardened steel cutting die

For samples 0-10 mm thick
Rectangle-shaped
25x100 mm

THS265-CHR15x150-1.70kg_2023-01-26

THS265-CHR15x150

Full hardened steel cutting die

For samples 0-10 mm thick
According to ISO527-3 Type 2
Rectangle-shaped
15x150 mm

THS265-CHR100x100 2021-03-24

THS265-CHR100x100

Full hardened steel cutting die

For samples 0-10 mm thick
Rectangle-shaped 100x100 mm

THS265-CHR10x200_2.3kg

THS265-CHR10x200



Full hardened steel cutting die

For samples 0-10 mm thick

Rectangular shape

Description: Description: Description: Description: Description: THS265-CHR50x260-ISO13934-1 9.15 kg-

THS265-CHR50x260


Full hardened steel cutting die

For samples 0-10 mm thick
According to ISO13934-1
Rectangle-shaped 50x260 mm
