THS648-RMV-D130xH100-Mkr 3-point bend test fixture to measure flexure
strength of denture and orthodonthic base polymers in a water bath according to DIN EN
ISO20795-1 / -2 |
|

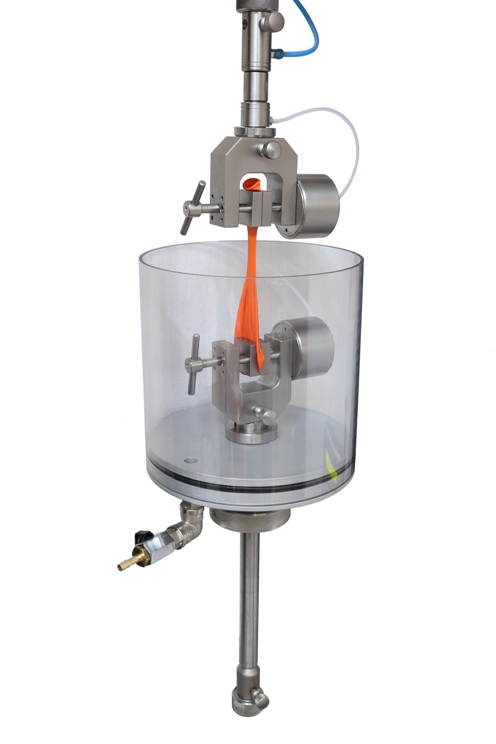

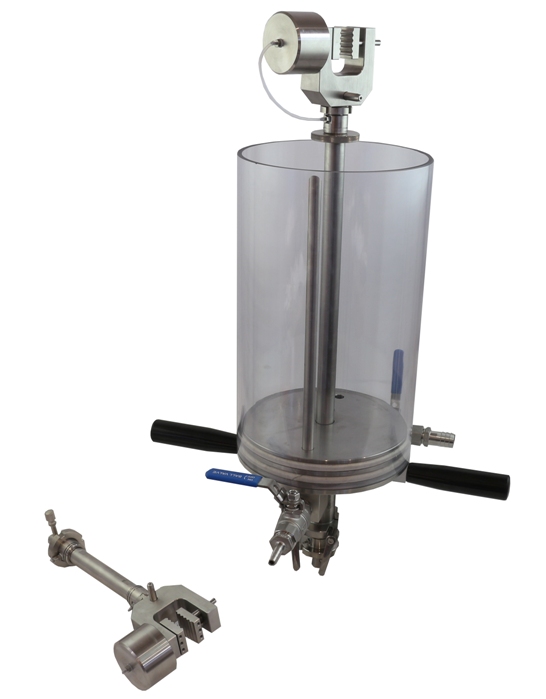

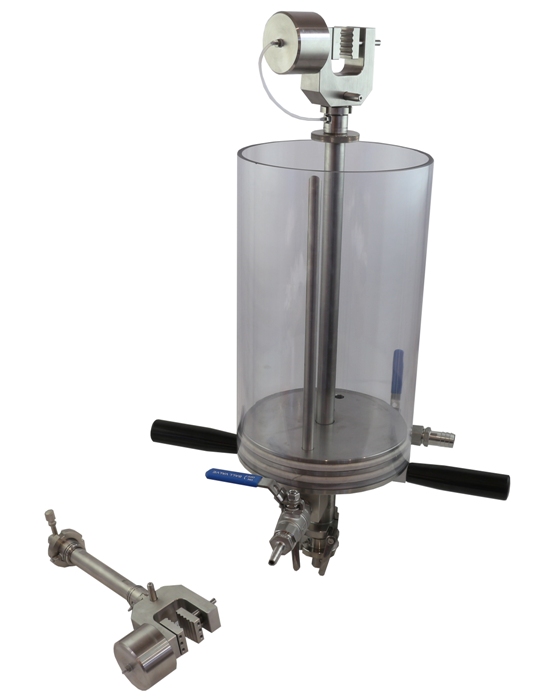

THS648-D200xH300-RMV Cyclic and creep loading test on human
flexor tendons Special Plexiglas container with
tensile grips |
|

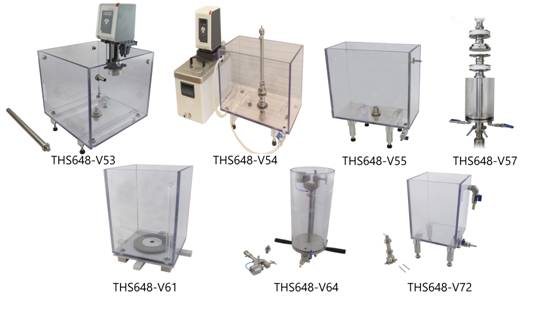

THS648-V54-Af158+37°C Makrolon liquid bath with heating +37°C External dimensions 450x250x250 mm Af158 coupling to connect the grips Drain hole in the bottom |
|

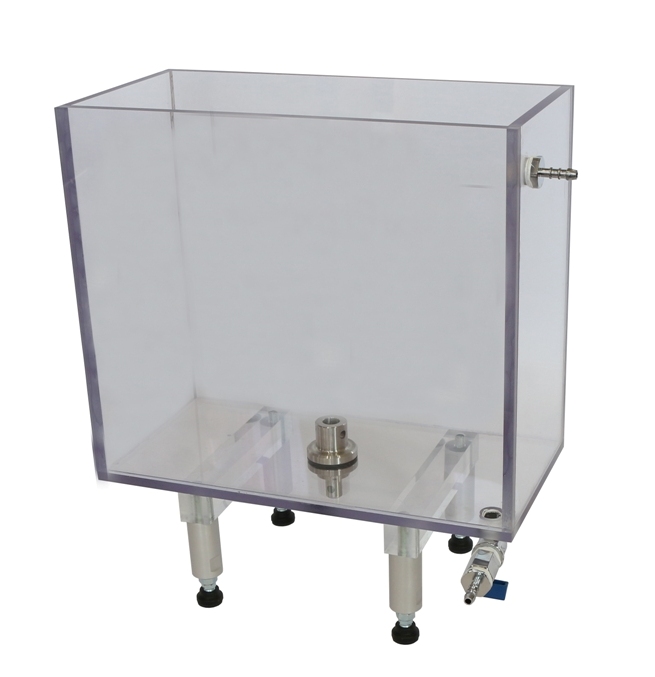

THS648-V55-400x200x350-Af159- Simple water bath without heating or cooling functions Af159 coupling to connect grips External dimensions: 400x200x350 mm Makrolon |
|

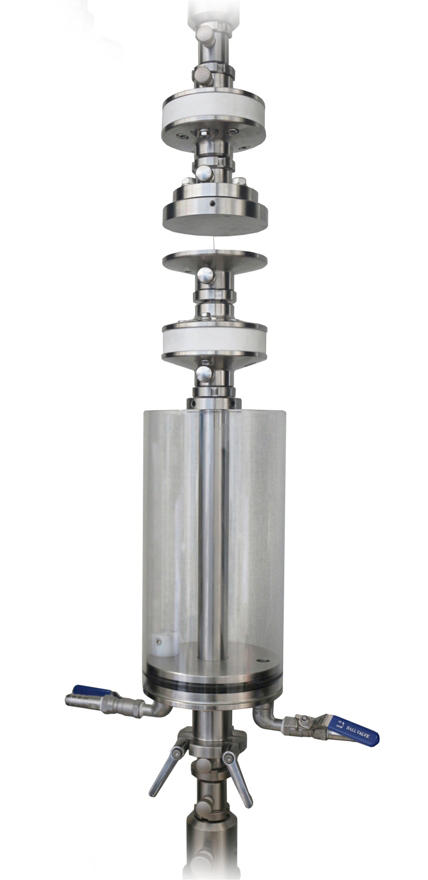

THS648-V57-D130xH250-RMV-GL Special Plexiglas container with compression platens, 96 mm
diameter |
|

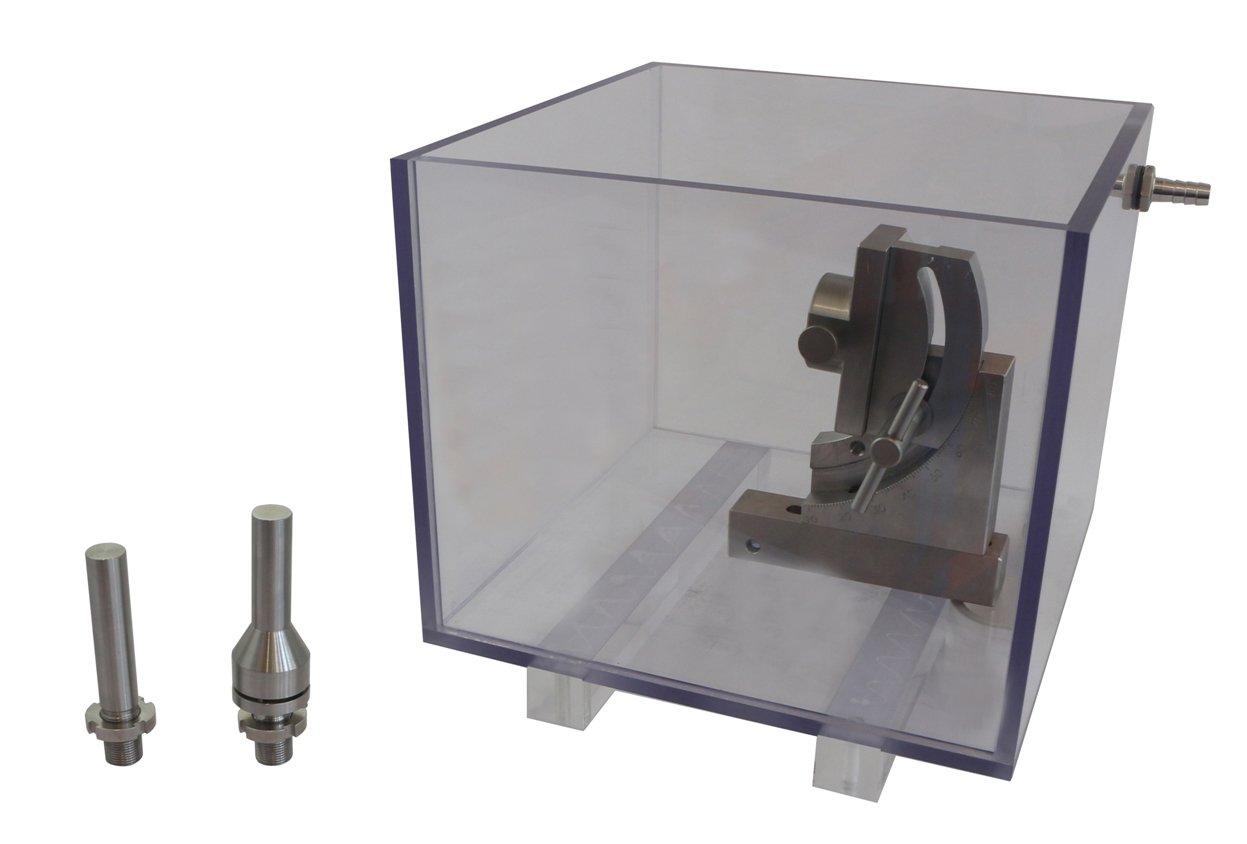

THS1959-ISO14801-V2a +
THS648-V54 Dynamic loading test fixture for testing dental implants according to DIN EN ISO14801 |
|

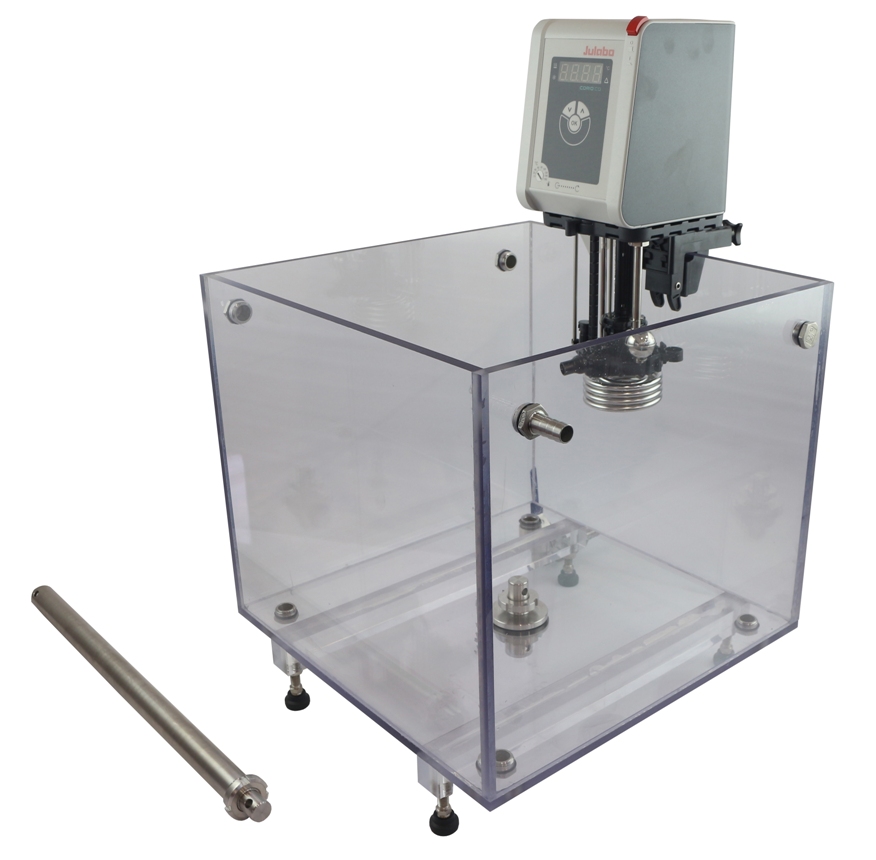

THS648-V53-400x400x350-Af20 Makrolon liquid bath with heating +37°C External dimensions 400x400x350 mm Am158 coupling to connect grips Drain hole in the bottom |
|

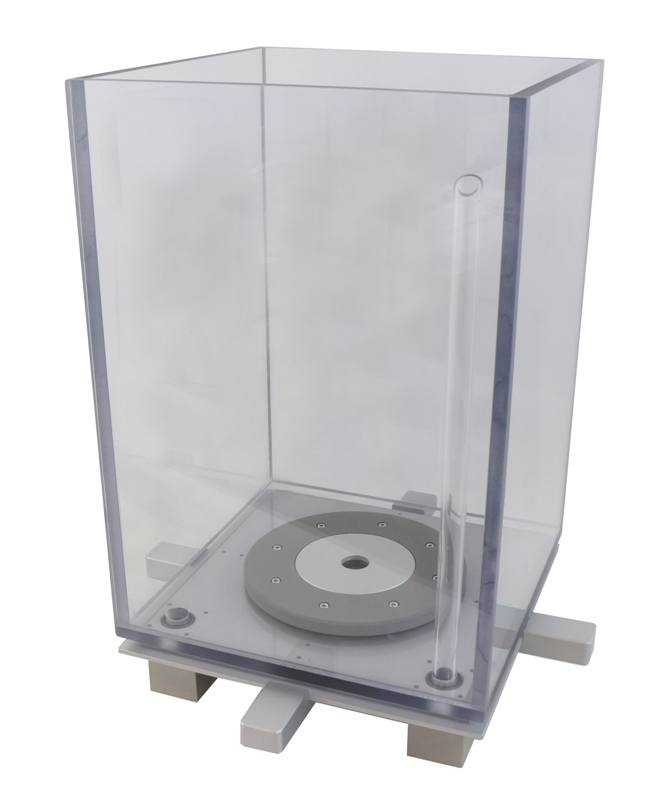

THS648-V61-250x250xH350-vmov Dimensions 250 x 250 x 350 mm Drain hole in the base |
|

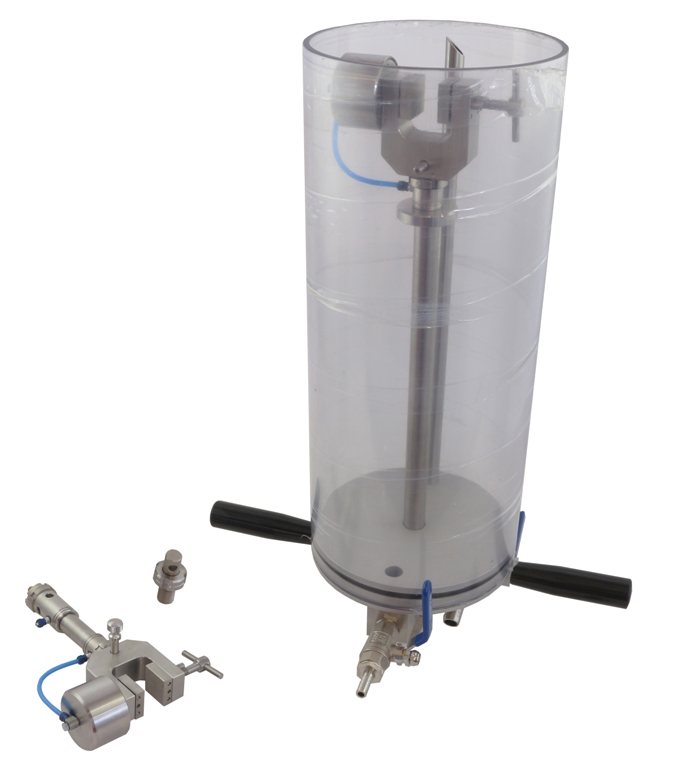

THS648-V64-D200xH450-RMV Special Plexiglas container with
pneumatic tensile grips Container diameter 200 mm, height 450 mm |
|

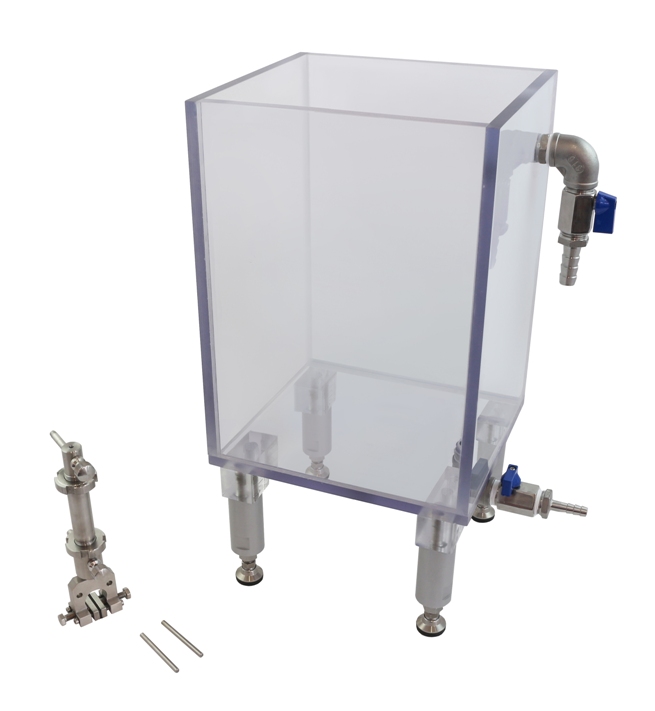

THS648-V72-200x220x300 Special Plexiglas container with tensile grips Container dimensions 200x220x300 mm |
|

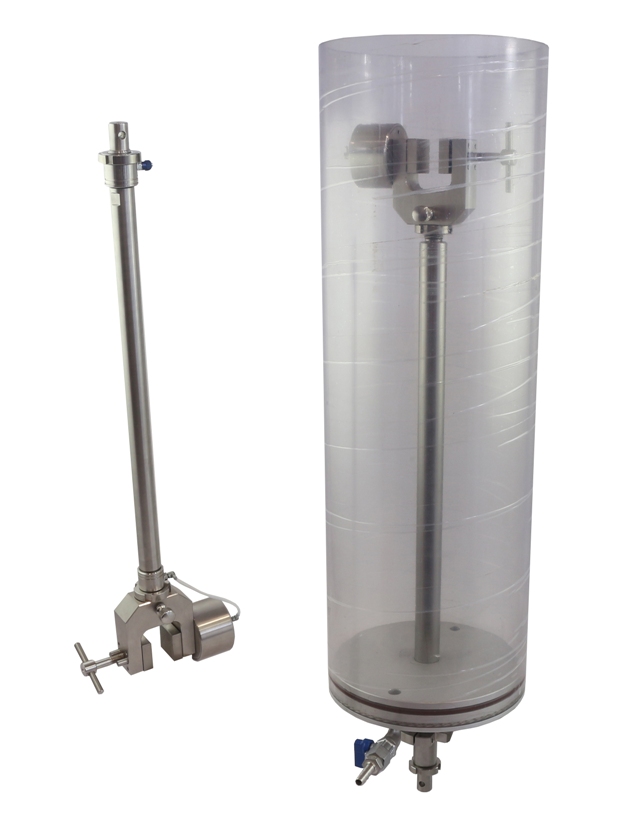

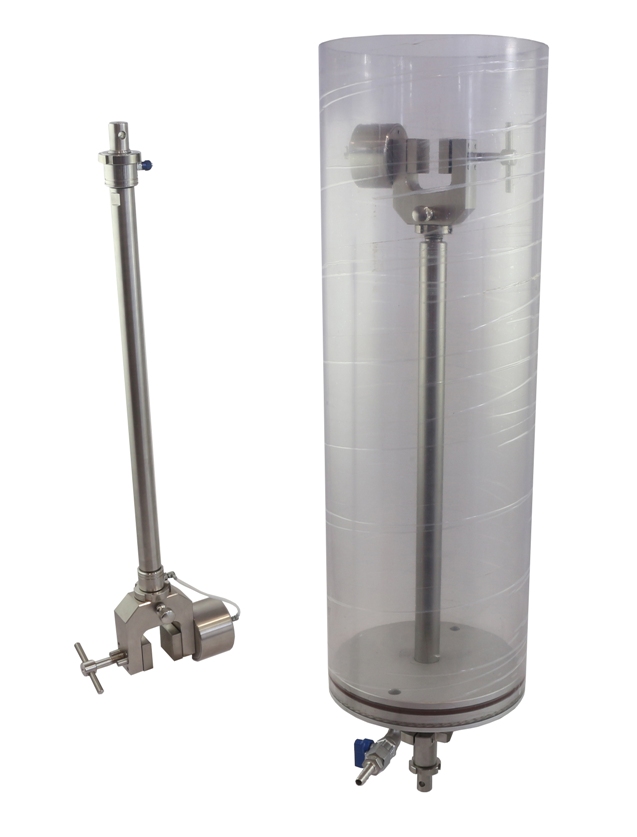

THS648-D200xH580-RMV TH240k-S20-A4-Af159 THS521-Am158-Am1665-D21-L450 Special Makrolon water bath Inner height 580 mm, Ø 190 mm Temperature range 0 … +280°C Max. load 1 kN Clamping surface 30x30 mm Coupling Af159 |
|
THS2007 |
|

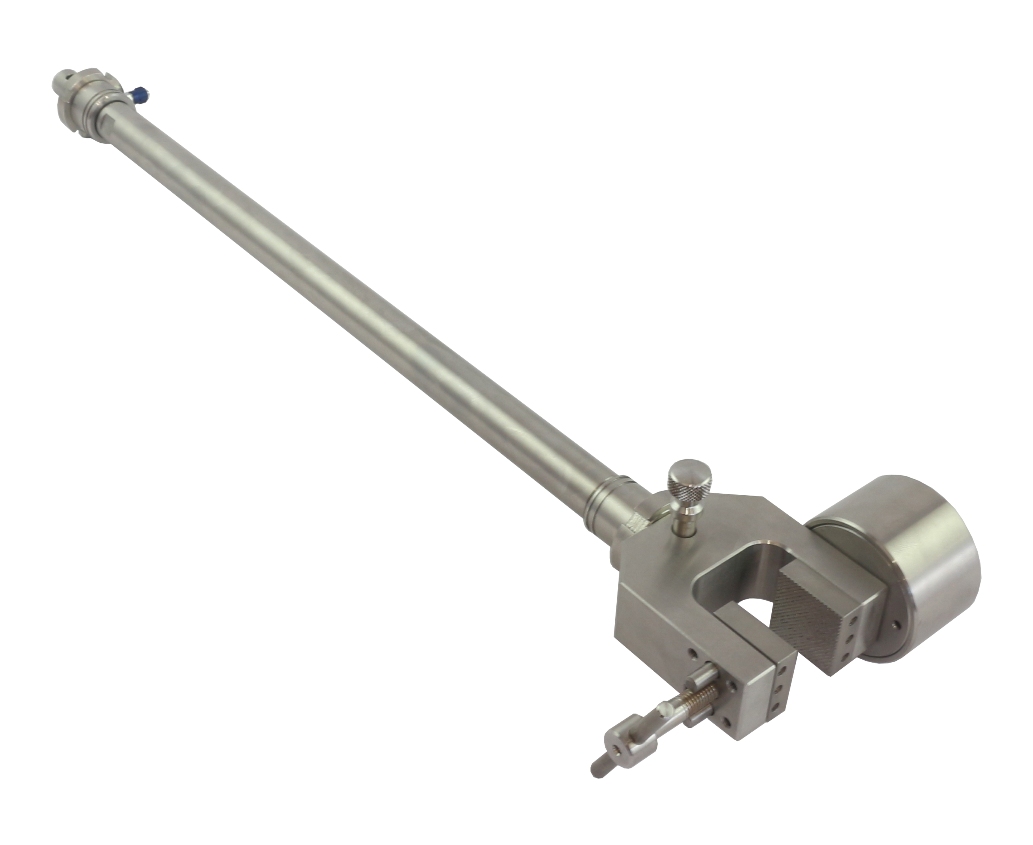

TH240k-S20-A4-Af159 THS521-Am158-Am1665-D21-L450 Stainless steel pneumatic grips with pull rods 450 mm long Temperature range 0 … +280°C Max. load 1 kN Clamping surface 30x30 mm Jaw opening 0-20 mm Coupling Af159 |
|
LX 22 Jan 2025 |
