tn_THS1679-102-P50-Af159  2021-01-29  01


THS1679-102-P50-Af159

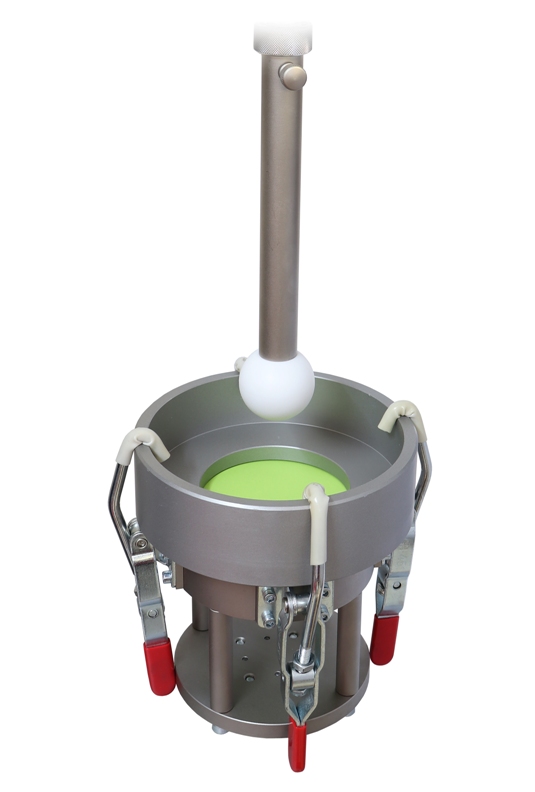

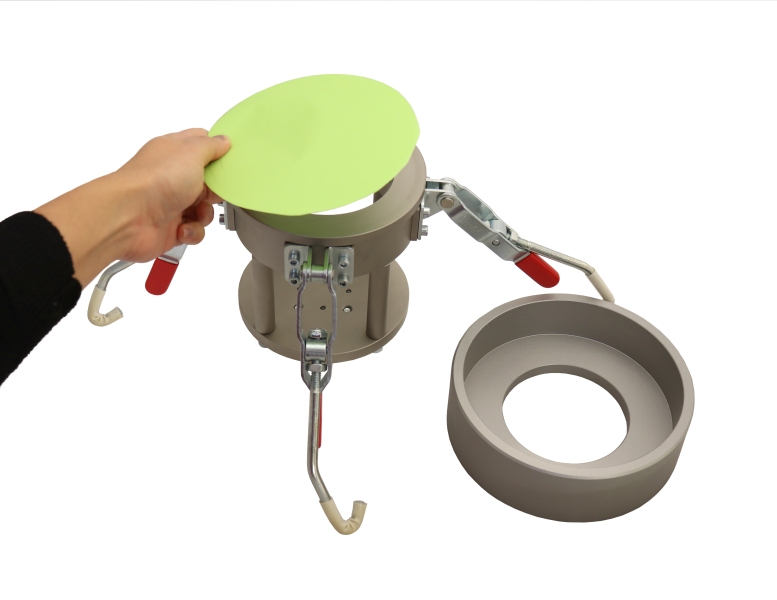

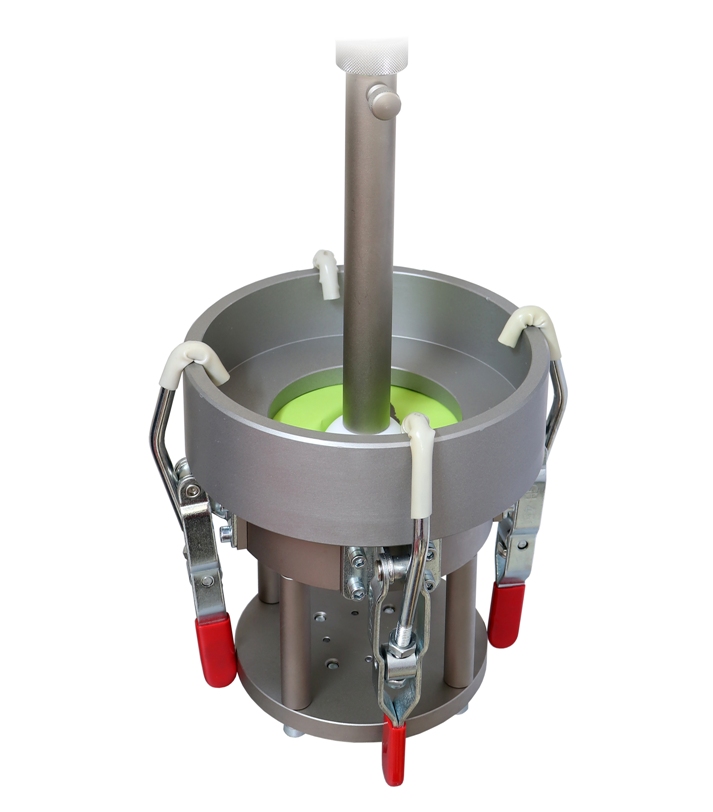

Special puncture fixture for testing ball burst for shade nets (HDPE Woven nets)

Samples size min. 150 mm Ø

Probe with plastic ball with diameter  50 mm

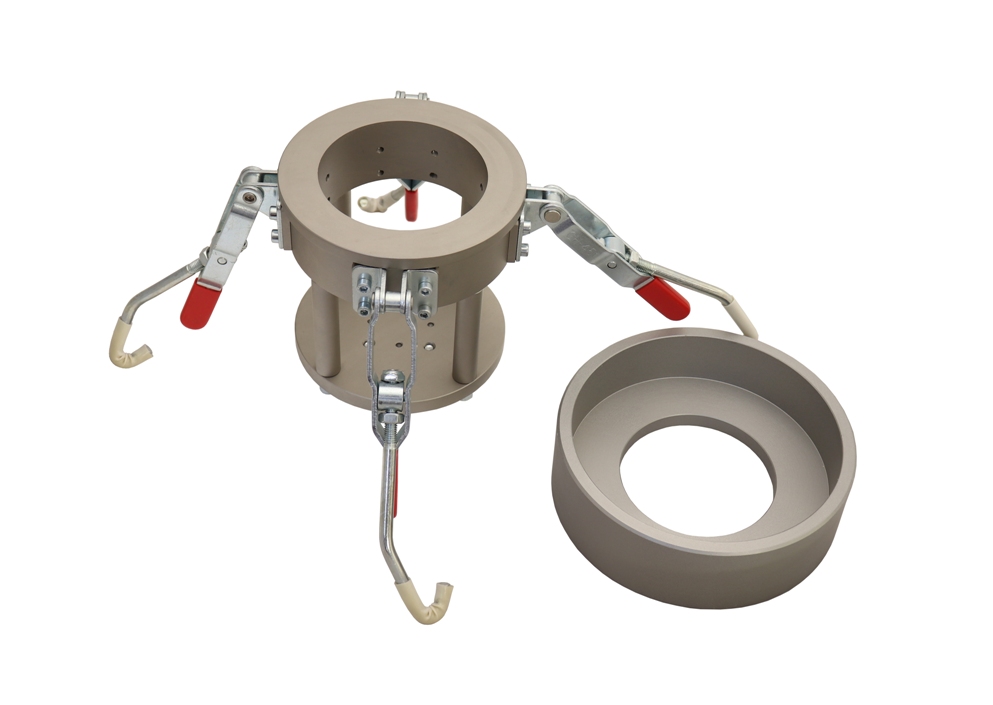

Holder with hole 102 mm diameter, height 146 mm

with 4 toggle clamps

Steel + Aluminium + Plastic

Coupling Af15.9

Animation

tn_THS1679-102-P50-Af159  2021-01-29  09

THS1679-102-P50-Af159

tn_THS1679-102-P50-Af159  2021-01-29  08

THS1679-102-P50-Af159

tn_THS1679-102-P50-Af159  2021-01-29  03

THS1679-102-P50-Af159

info@grip.de



ZT 04 Feb 2021
