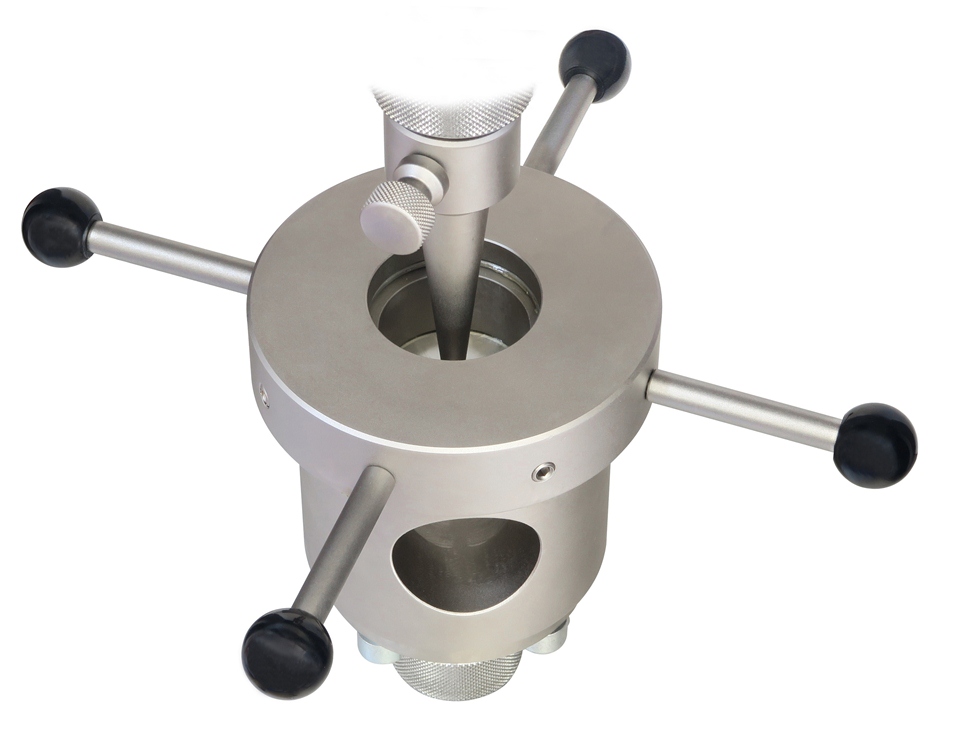

THS525-35-ASTM-F1306 020-

THS525-D35-R1.6V12-Af159

Puncture fixture for slow rate penetration resistance of flexible barrier films and laminates, similar to ASTM-F1306 but for smaller samples
Max. load 20 kN
Max. sample Ø 35 mm
For stripe samples: 50 mm width
Probe radius: 1.6 mm
Steel, nickel-plated

Coupling Af159



Description: Description: Description: Description: pdf_icon THS525 Datasheet.pdf

Description: Description: Description: Description: pdf_icon THS525 Datenblatt.pdf

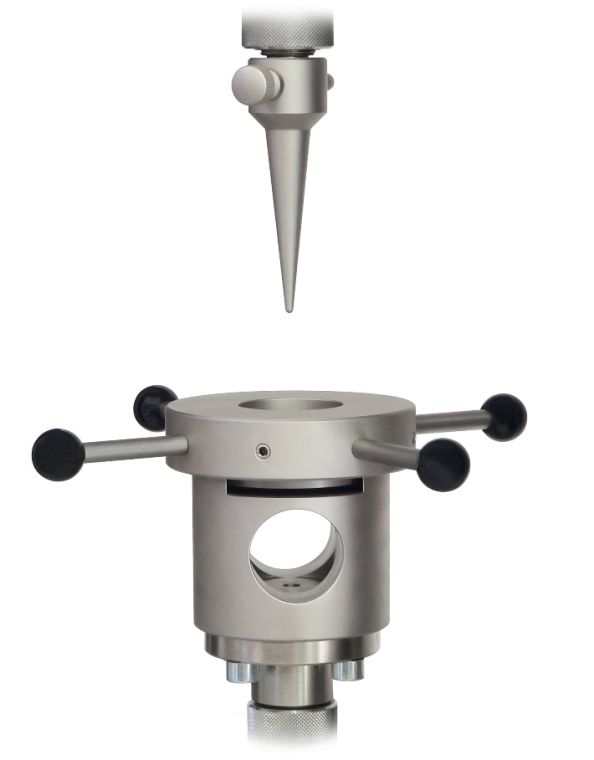

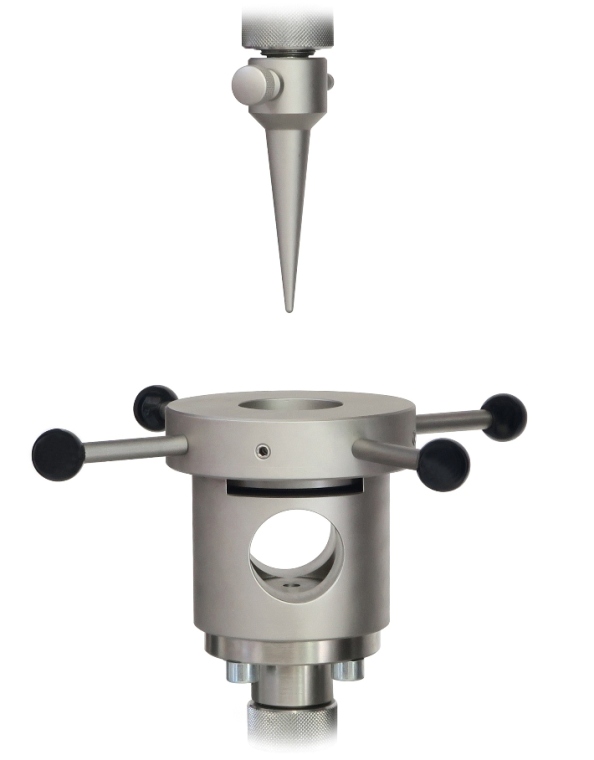

THS525-35-Similar_ASTM-F1306_Penetration_resistance_of_flexible_barrier_films_and_laminates_02

THS525-D35-R1.6V12-Af159

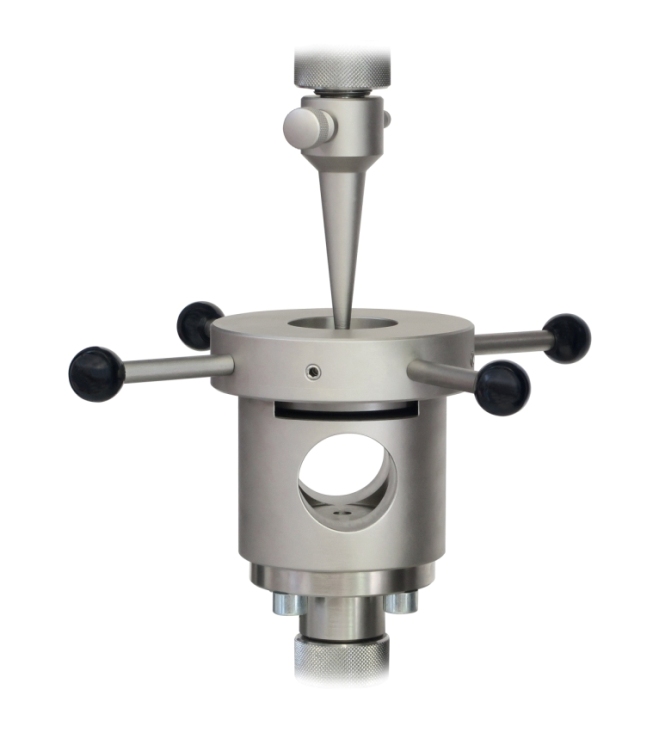

THS525-35-Similar_ASTM-F1306_Penetration_resistance_of_flexible_barrier_films_and_laminates_03

THS525-D35-R1.6V12-Af159

THS525-35+SG-L18_ASTM-F1306_Slow_Rate_Penetration_Resistance_of_Flexible_Barrier_Films_and_Laminates_2,7kg _2022-10-13 02

THS525-D35-R1.6V12+SG-L18

Special version with short handles

more

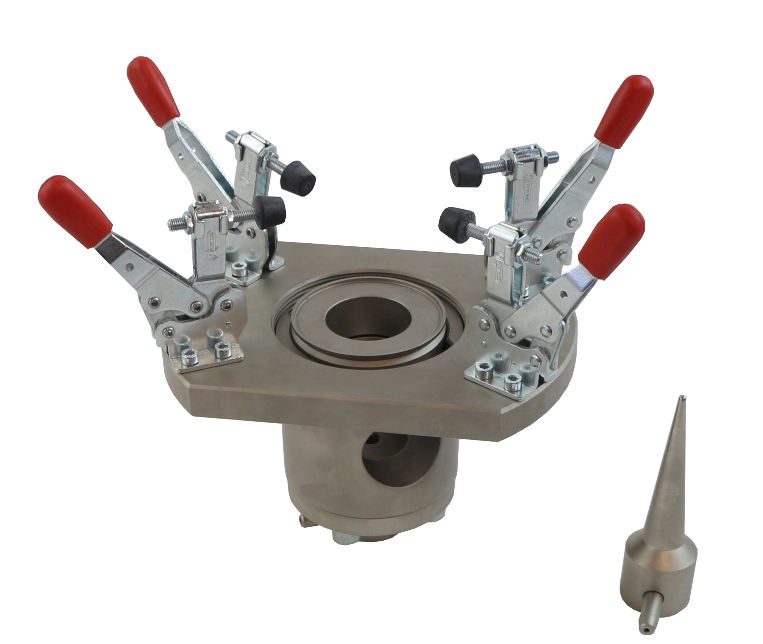

THS525-D35-SV1-Af159

Special puncture fixture
Max. load 10 kN
Max. sample Ø 35 mm
Steel, nickel-plated
Coupling Af159
