THS453-P7.92-ASTM-D751-22.1-Af159 2023-05-25

THS453-F0.8V30-Am159


Punch for the version
according to  ASTM-D751-22.1

The lower part is the same as for THS453-44.45-P25.4

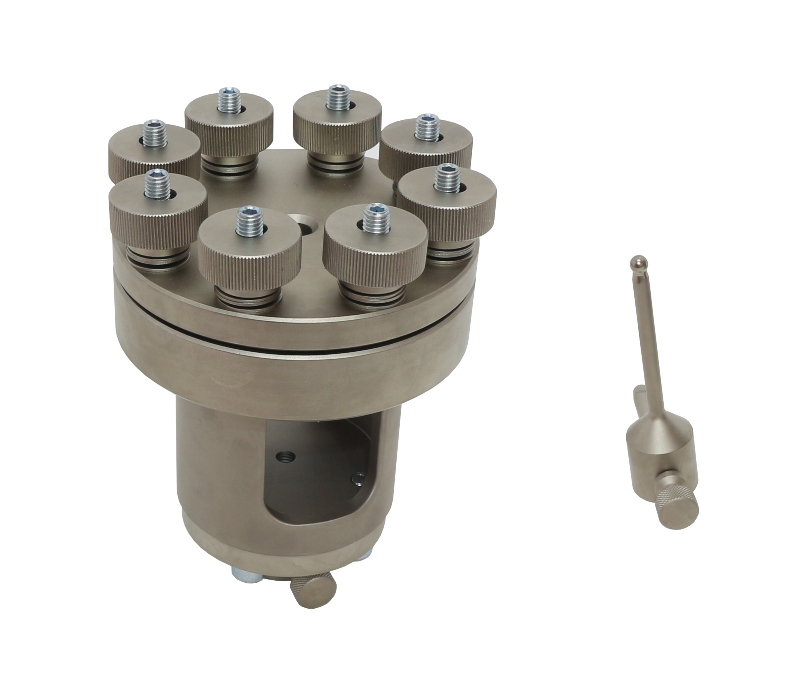

THS453-11.1-P6.35-Af159_4.65kg

THS453-D11.1-R3.2-Af159


Special version

Burst strength puncture test fixture similar to ASTM-D3787 but for smaller samples

Punch Ø 6.35 mm, hole Ø 11.1 mm

Standard coupling Af159

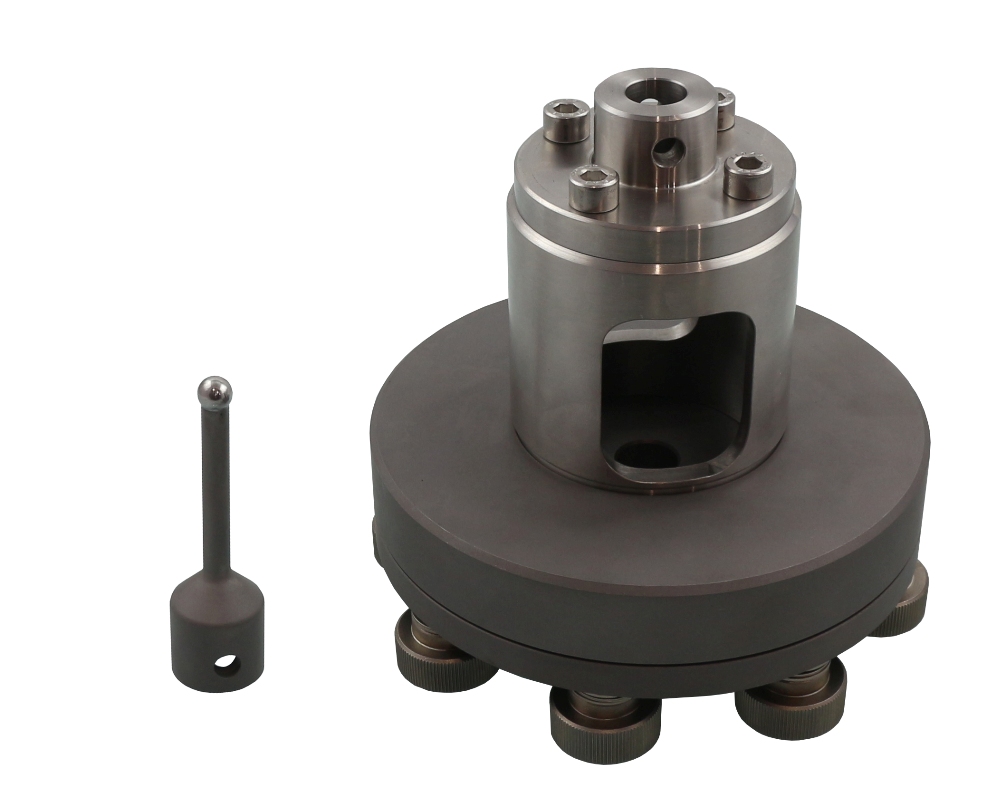

THS453-17.42-P9.9-Af159-SS 15.7kg textile puncture similar to ASTM-D3787

THS453-D17.42-R5-Af159


Puncture fixture to test burst strength of textiles

similar to ASTM-D3787, smaller version

Max. load 500 N

Probe ball diameter 9.9 mm

Inside diameter of clamping area 17.42 mm
Weight 15.7 kg

Steel

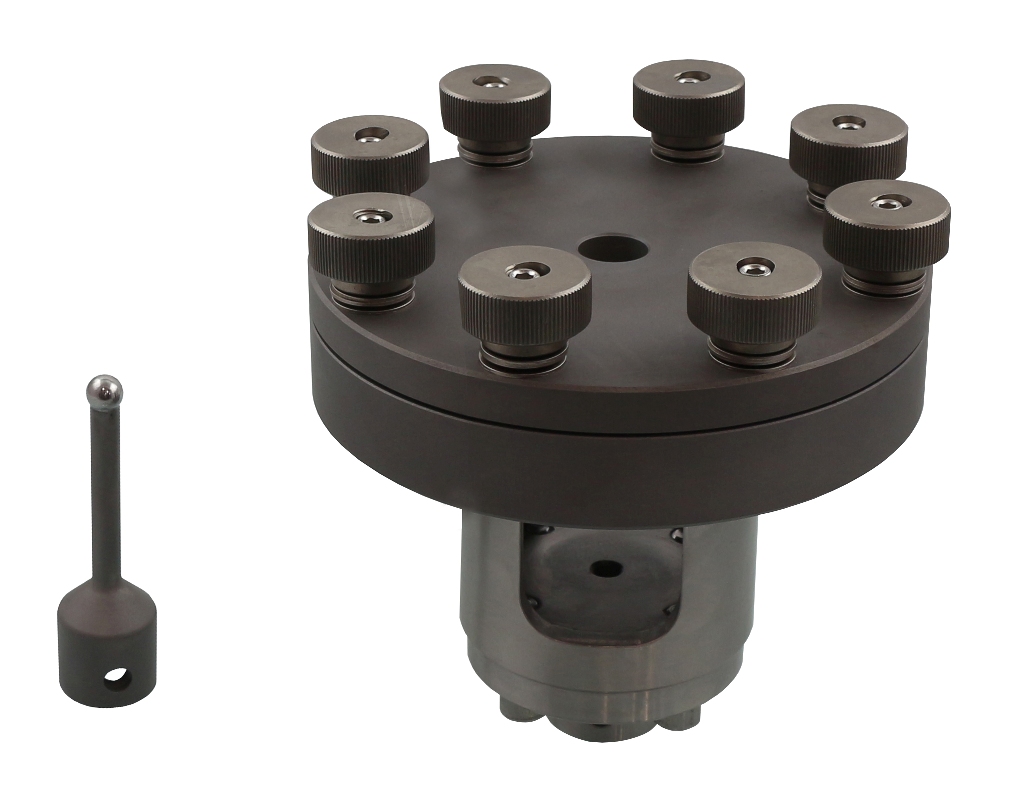

THS453-17.42-P9.9-Af159-SS 15.7kg , textile puncture similar to ASTM-D3787

THS453-D17.42-R5-Af159

THS453-45-P25.2-Am25-ISO3303-1-7.2kg_2023-03-16

THS453-D45-R12.6-ISO3303-1

Special puncture fixture to test bursting strength according to ISO3303-1
Max. load 20 kN
Hole diameter Ø 45 mm,
Plunger Ø 25.2 mm

Coupling Af159
Steel, nickel-plated

THS453-F0.8V30-Am159

Special fixture to test coated fabrics according to ASTM-D751-22.1
