THS438-A-B

Universal adapter to
Connect load cell to grip

A =  8, 15, 8, 20, 25, 30, 31.8, 32, 36, 40, 50, 60

B =  M4, M5, M6, M8, M10, M12,M16
       6-32 UNC, 10-32UNF, ¼-28UNF,
       3/8-24UNF, ½-20UNF, 5/8-18UNF

Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: Description: pdf_icon.gif THS438 Datasheet.pdf

THS438-158-M5 2018-10-22

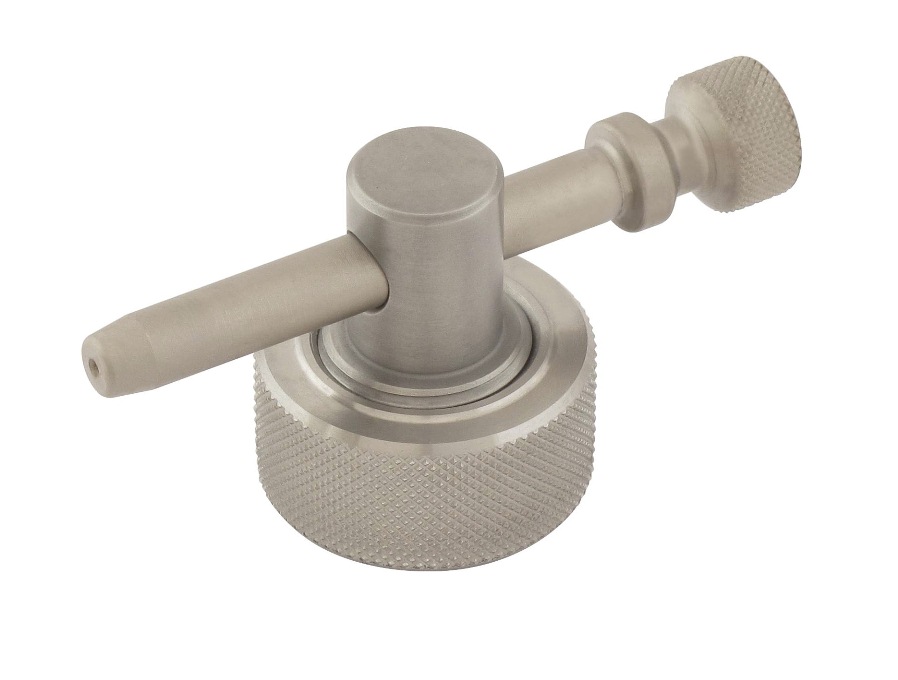

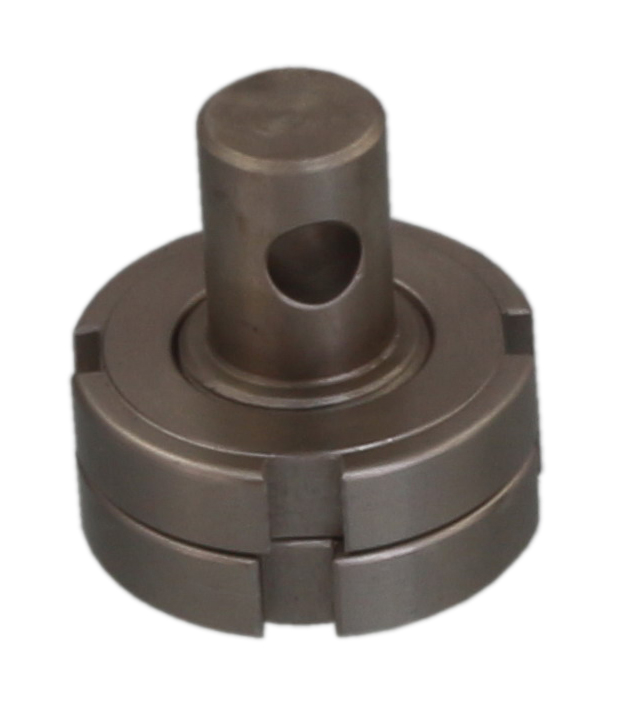

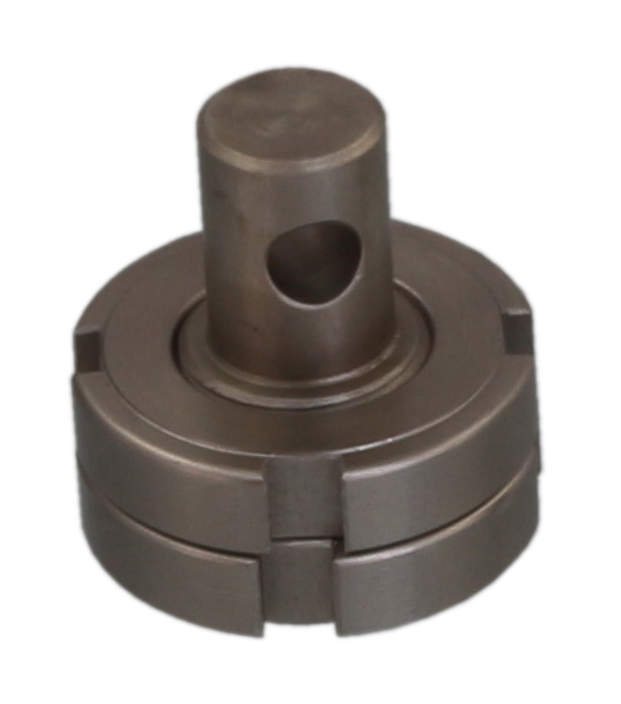

THS438-158-M5

Adapter male Ø 15.8 mm
Pin hole Ø 8 mm
Internal thread M5

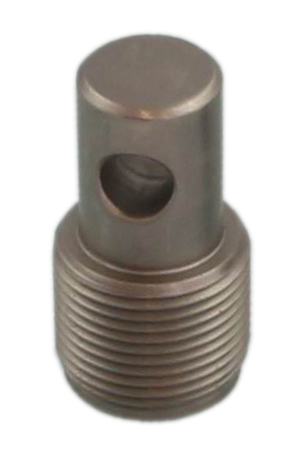

THS438-158-M8-1.2842-M22x1.5 2021-10-23

THS438-158-M8

Adapter male Ø 15.8 mm
Pin  hole Ø 8 mm
Internal thread M8

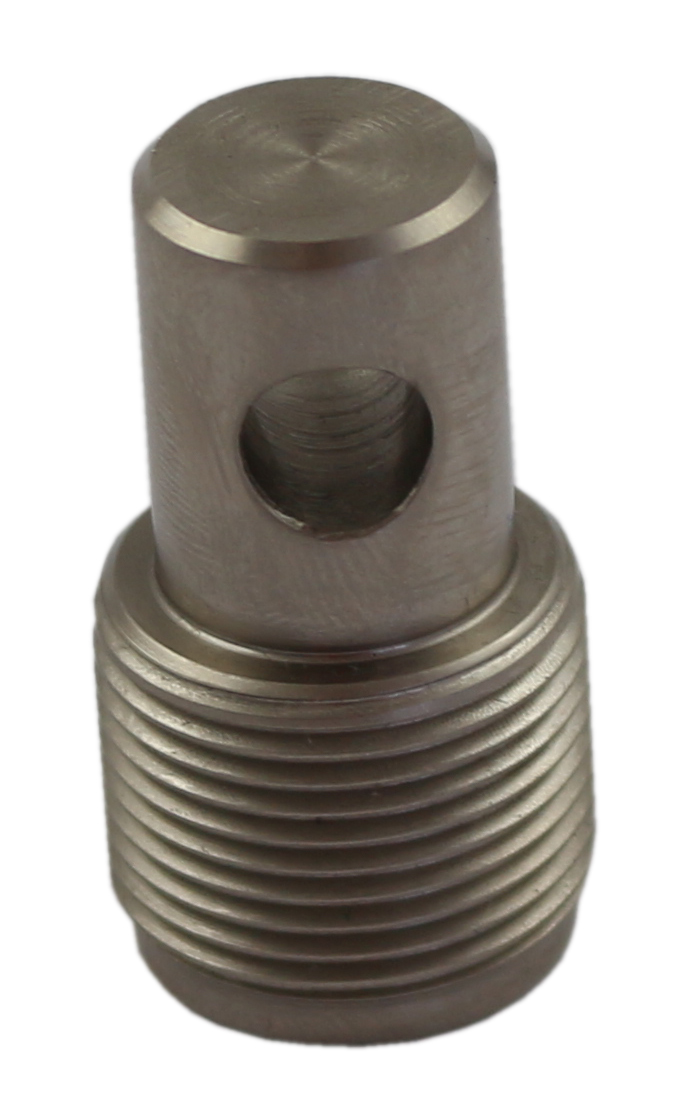

THS438-158-M10+D20-2017-06-27

THS438-158-M10

Adapter male Ø 15.8 mm
Pin hole Ø 8 mm
Internal thread M10

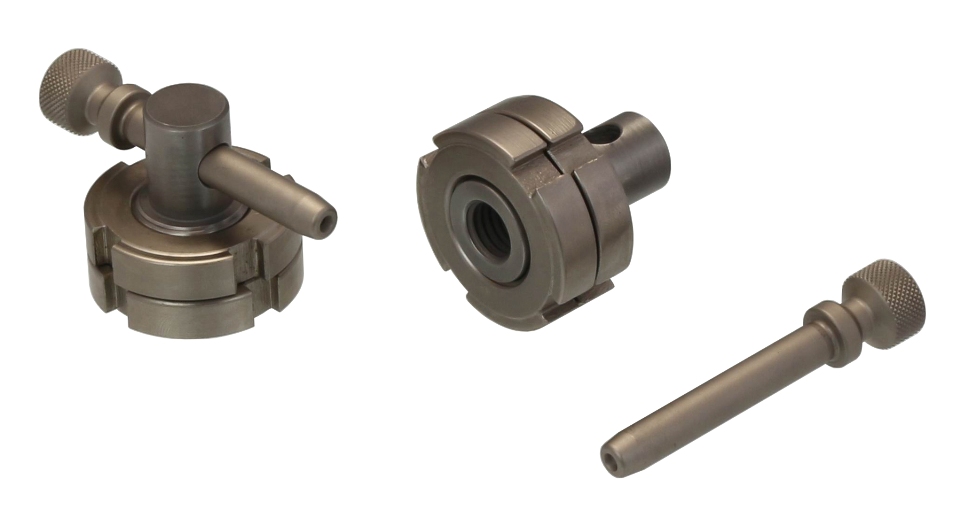

tn_THS438-158-M12 IMG_6283

THS438-158-M12

Adapter male Ø 15.8 mm
Pin hole Ø 8 mm
Internal thread M12

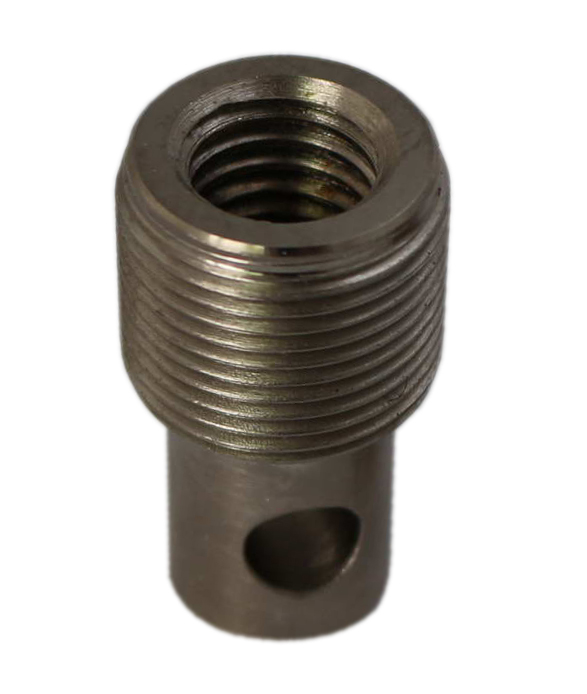

THS438-158-M14x2 2016-01-18

THS438-158-M14x2



Adapter male Ø 15.8 mm
Pin hole Ø 8 mm

Internal thread M14x2

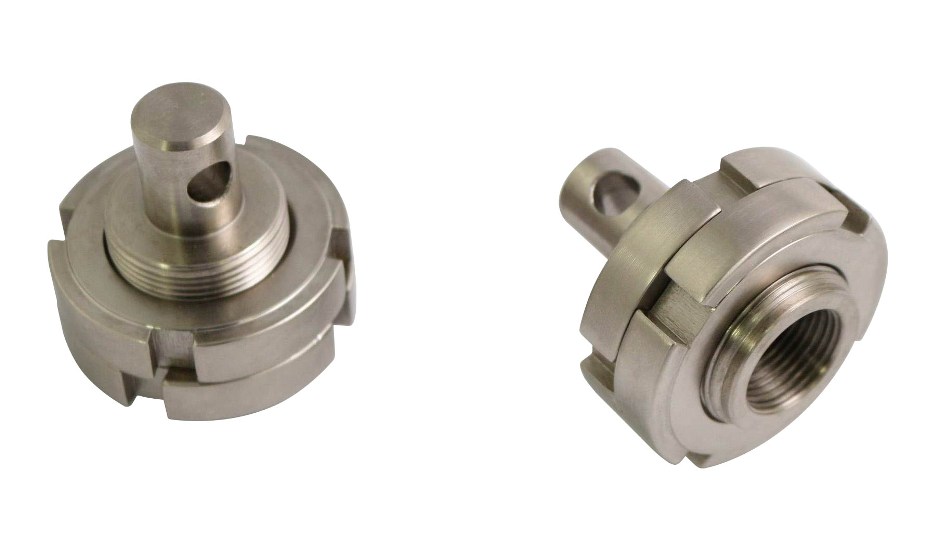

THS438-158-M20x1.5

Adapter male Ø 15.8 mm
Pin hole  Ø 8 mm
Internal thread M20x1.5

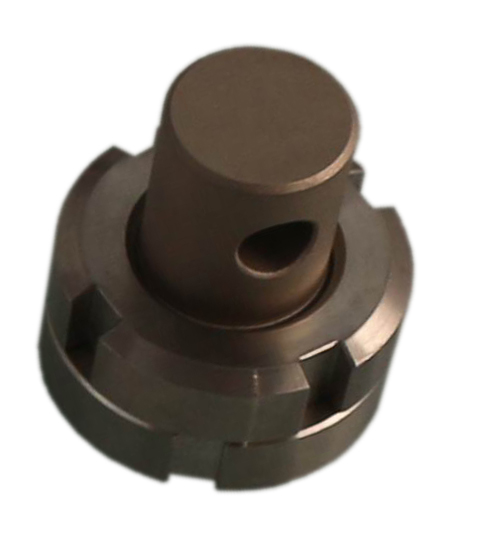

THS438-20-M10-ST 2022-02-19

THS438-20-M10

Adapter male Ø 15.8 mm
Pin hole Ø 8 mm
Internal thread M10

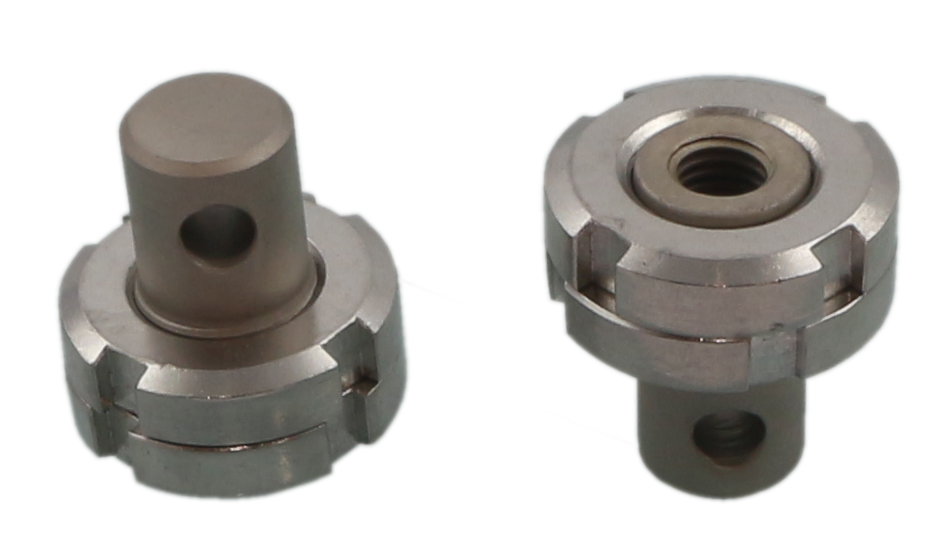

THS438-20-M12-ST 2021-12-29

THS438-20-M12

Adapter male Ø 20 mm
Pin hole Ø 8 mm

Internal thread M12

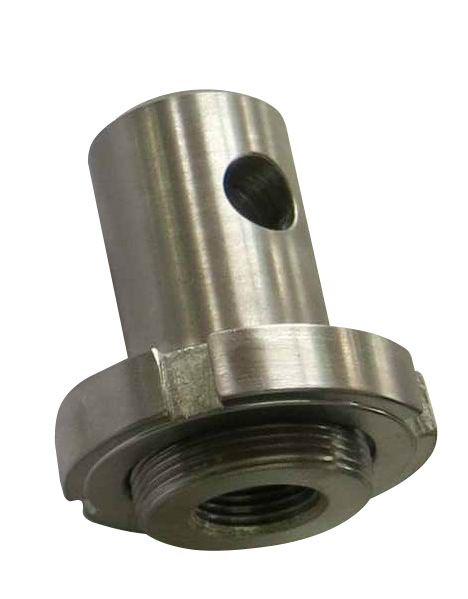

THS438-317-3/4-16UNF

Adapter male Ø 31.7 mm
Pin hole  Ø 12.8 mm

Internal thread 3/4-16UNF

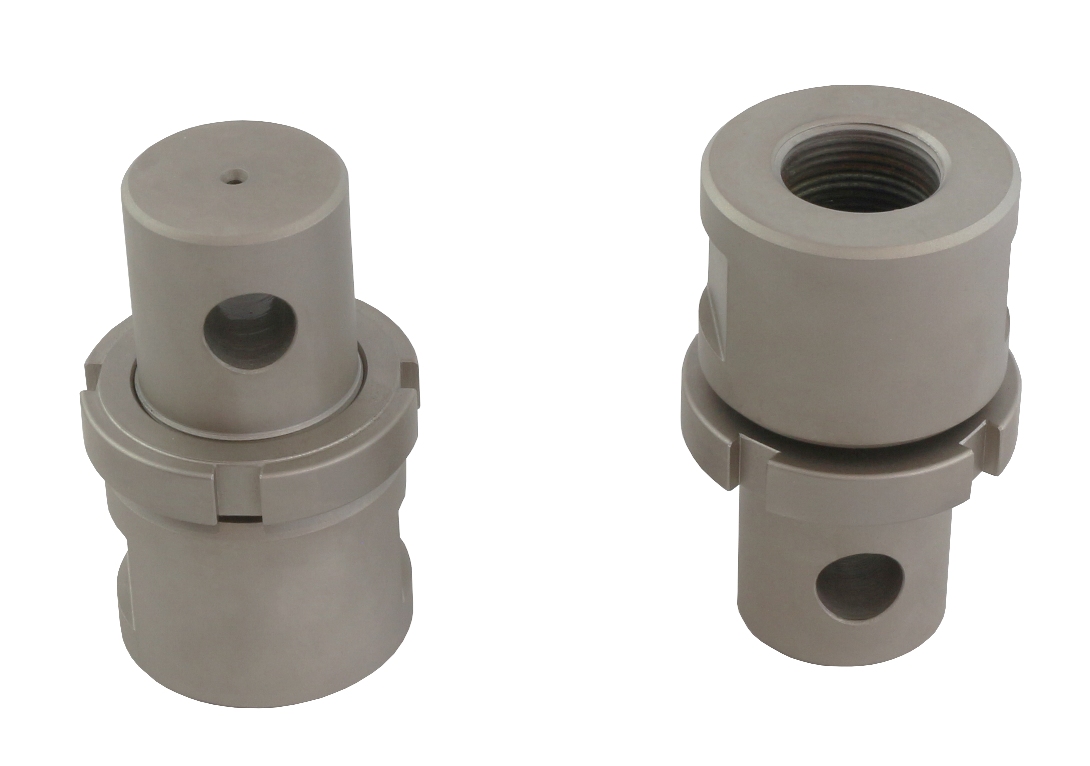

THS438-4016-M30x2-St 2024-04-13

THS438-4016-M30x2

Adapter male Ø 40 mm
Pin hole Ø 16 mm

Internal thread M30x2
Max. load 100 kN
Steel, nickel-plated

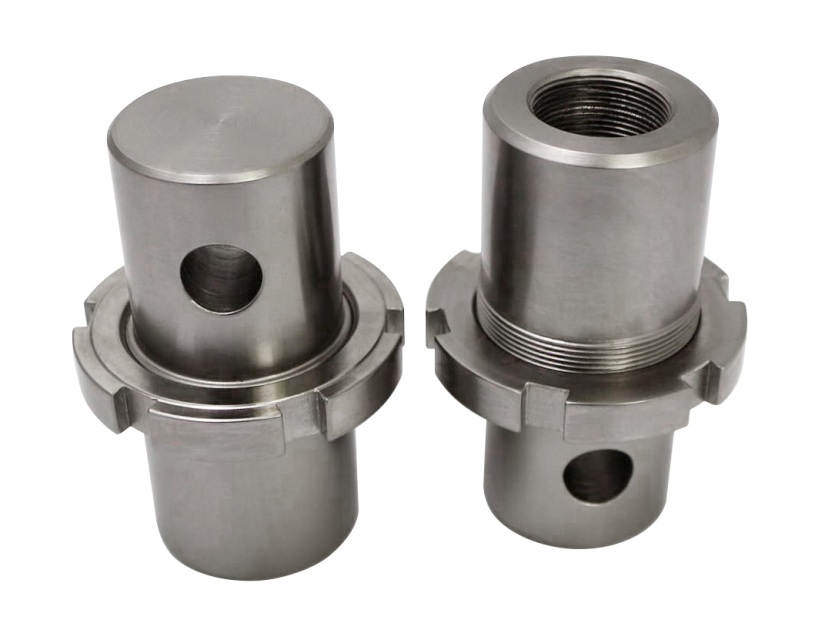

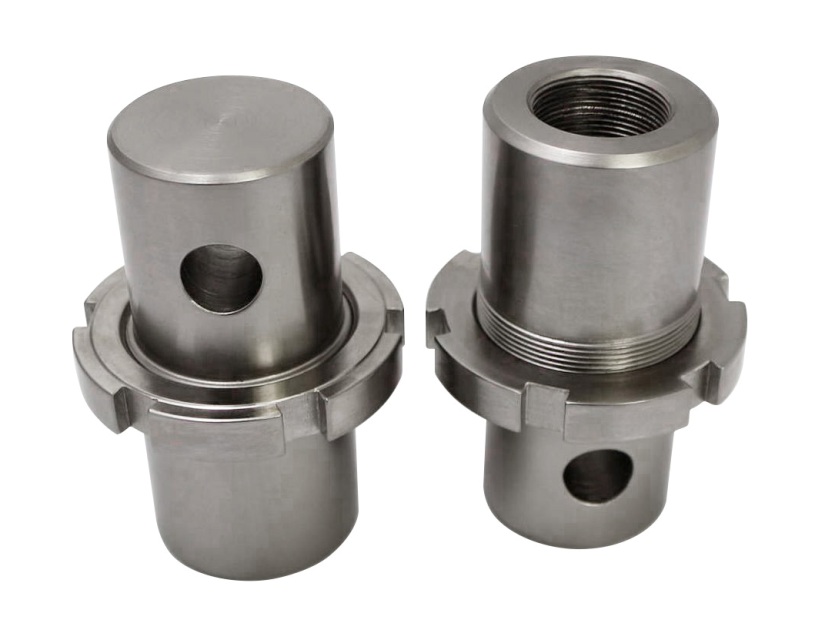

THS438-50/175-M32x1.5

Adapter male Ø 50 mm
Pin hole  Ø 175 mm
Internal thread M32x1.5
