G17 Adapters
Special



Back



Description: Description: Description: Description: Description: tn_THS327-8-M-8-

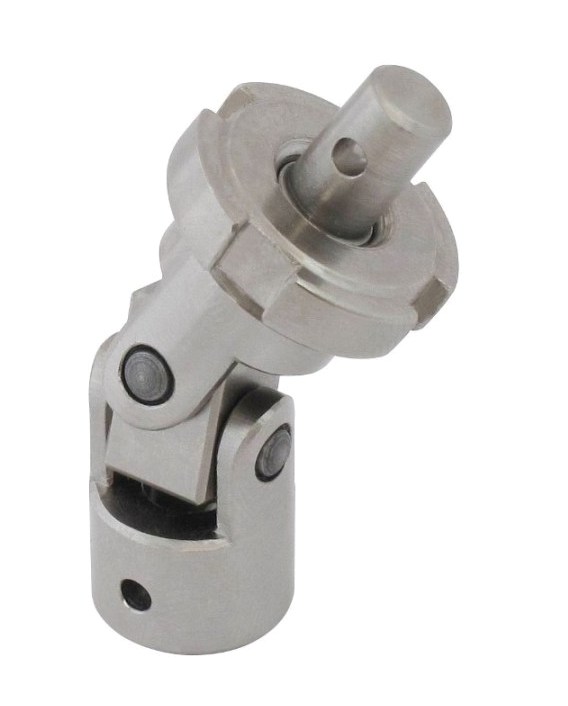

THS327-8-8

Special universal joint adapter from female Af8 to male M8



Description: Description: Description: Description: Description: THS327-20kN-159-8--M10-

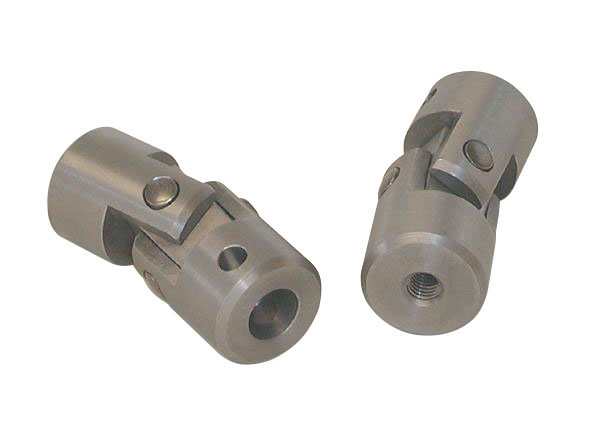

THS327-Af159-Km10

Special universal joint adapter from
Af159 to thread M10

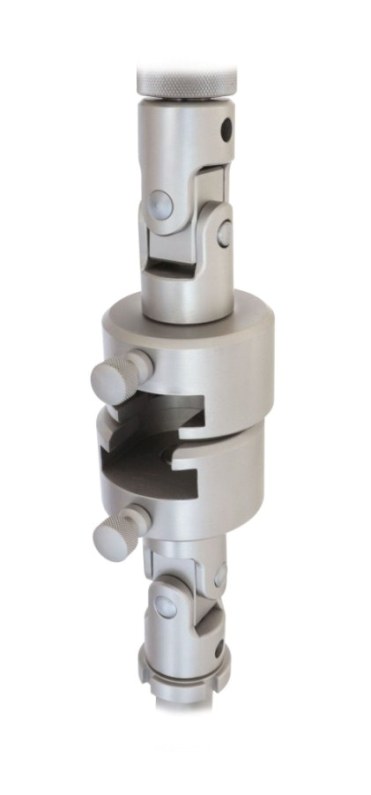

THS832 + THS327-Af158-Am50



Tensile fixture to test adhesive bond strength according to GOST14760-69

tn_THS327-wdf-Af20  monoaxial cardan wdf 11.04.2020

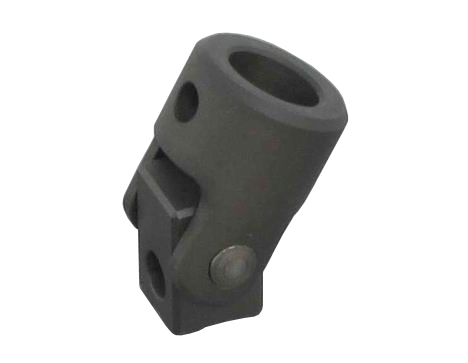

THS327-WDF-Af20

Swing adapter, moveable

Coupling: Af20/8mm



tn_THS327-AmM27x2-AfM27x2-HRC-x 11.04.2020 goodfoto

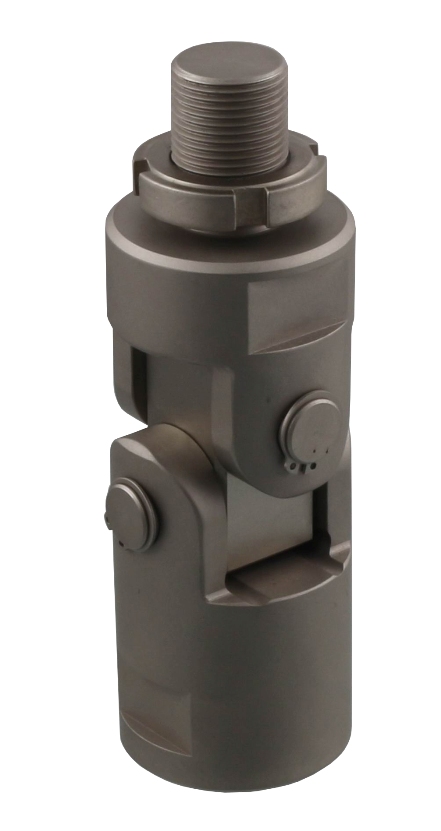

THS327-AmM27x2-AfM27x2-HRC

Cardan joint adapter

External thread M27x2 – Internal thread M27x2

Steel, hardened, nickel coated



tn_THS327-25_10-m317L100.

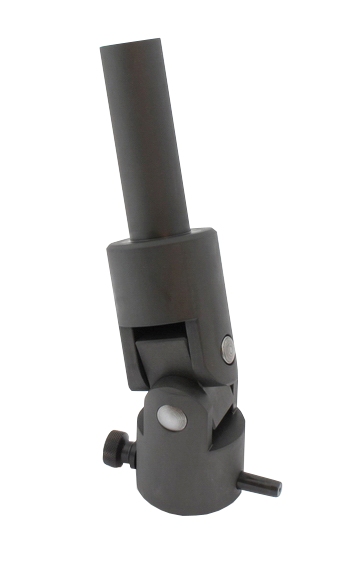

THS327-2510-M3175L100

Female 25mm Pin hole 10
Male Pin diameter 3175 Lenght100mm

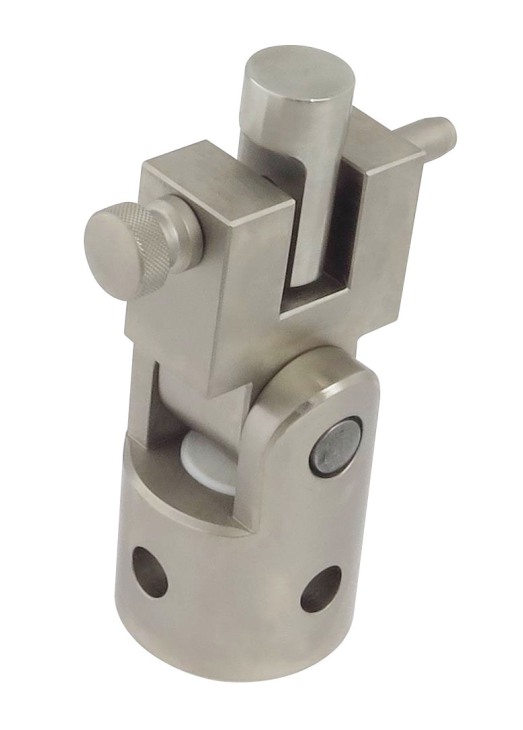

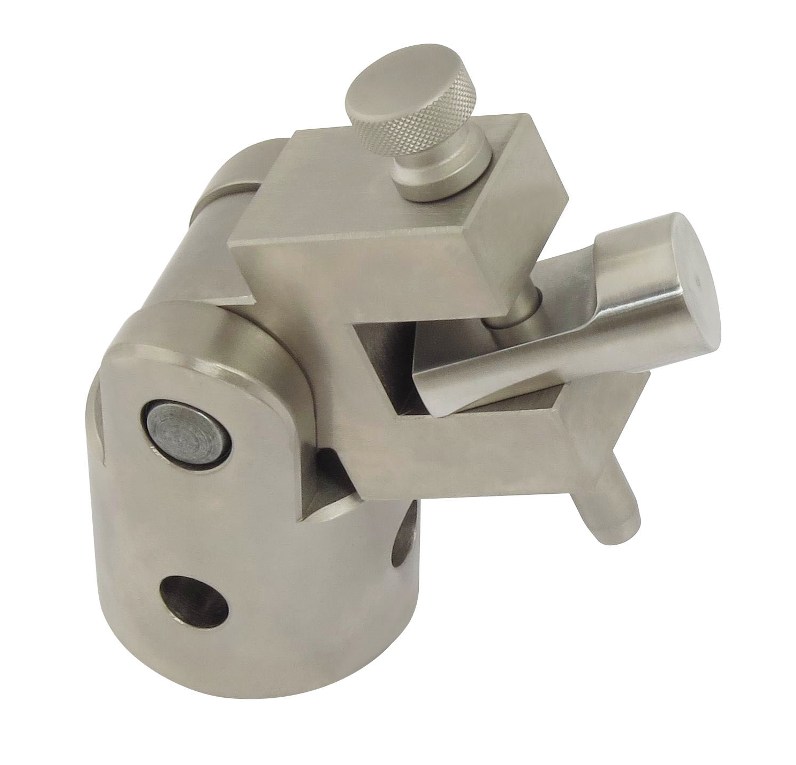

THS1068-Af318



THS327

THS1068-Af318



THS327

tn_THS327-Af318-G30  2,4kg  2019-01-10  01  02- -

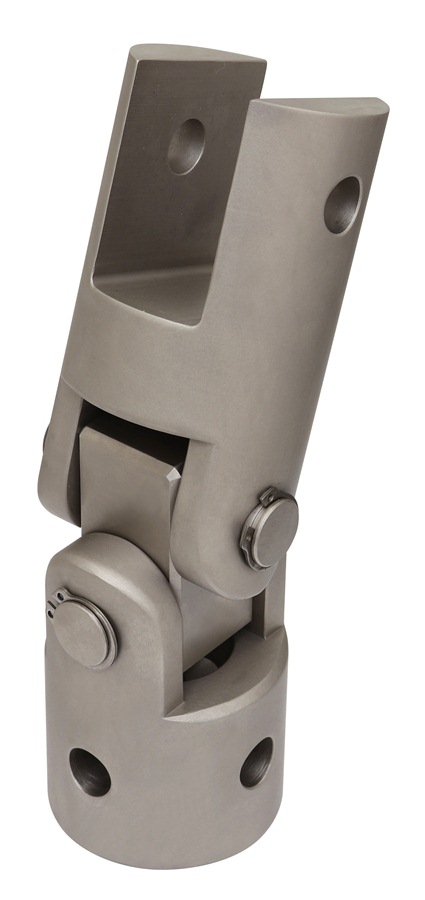

THS327-Af318-G30



Cardan joint adapter

with female coupling Af318

Description: Description: Description: Description: Description: tn_THS327-40-18-M  4,2kg  08-03-2018  01-

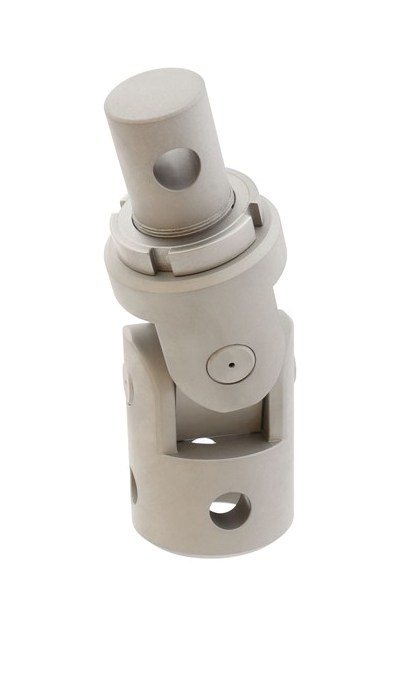

THS327-Af40-Am18-M

Special universal joint adapter Af40 to Am18

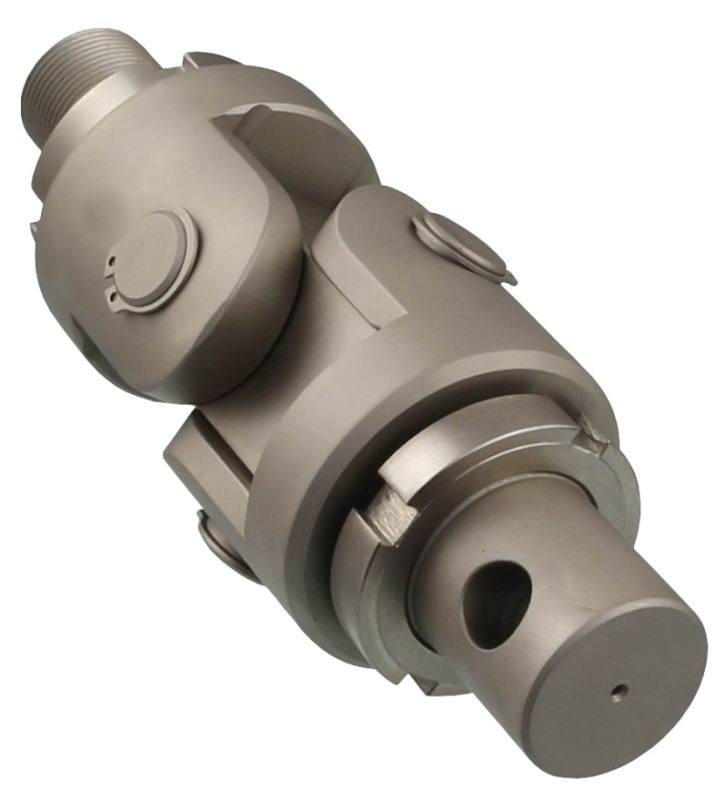

THS327-N40-Am40-AmM33x2



Special universal joint adapter from Am40 to thread Am33x2

tn_THS327-Am40-AmM33x2  4,5kg   special cardan 100kN

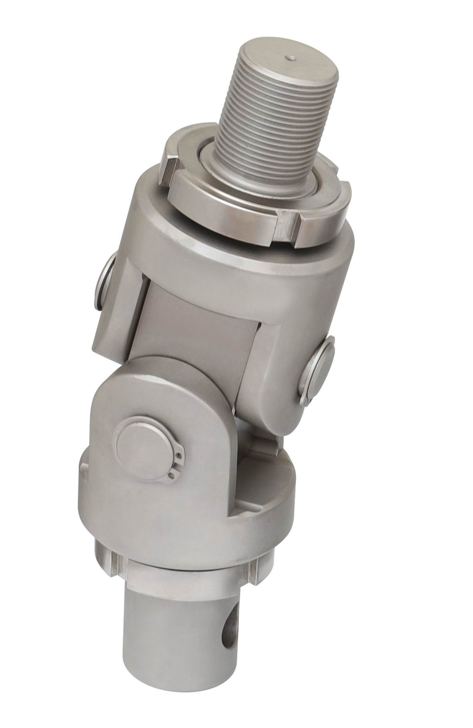

THS327-Am40-AmM33x2



Special Cardan joint adapter

Male 40/16mm – thread – Male thread M33x2

Capacity: 100kN


tn_THS327-50_25-xa-11.04.2020-ready 0.5h1x Montage

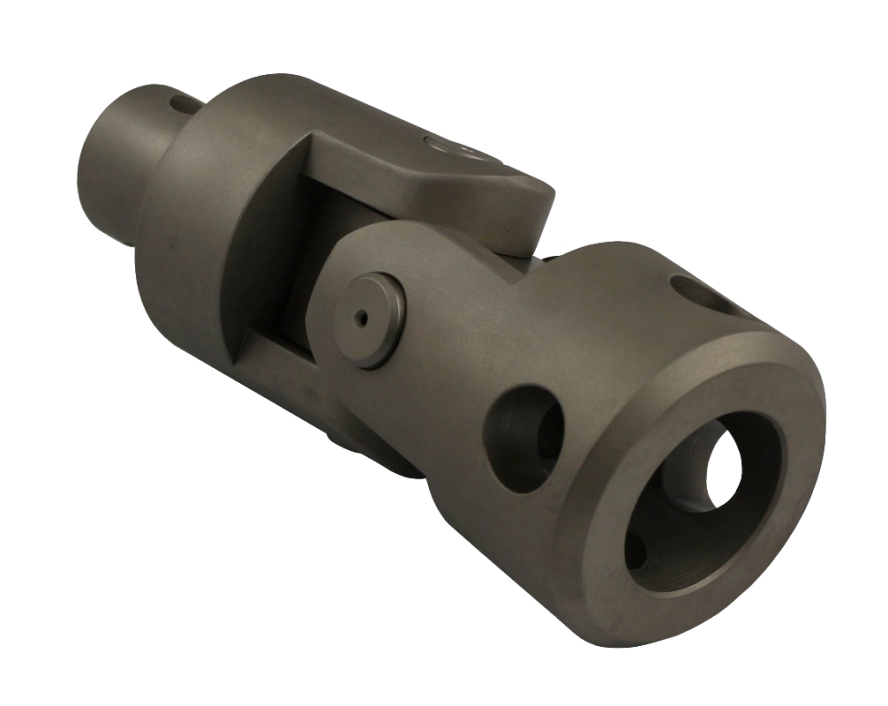

THS327-5025-5025

Special Cardan joint adapter

Adapter male 50/25mm - Female 50/25mm

Capacity: 100kN



Description: Description: Description: Description: Description: tn_THS327-Af60

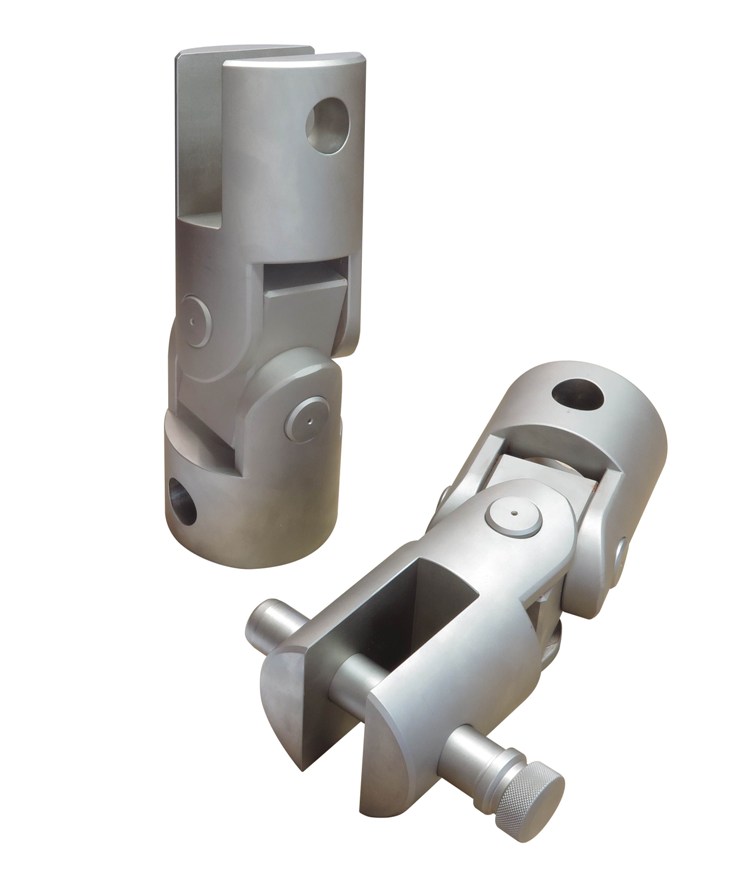

THS327-Af60-G40



Adapter Af603035

Special universal joint adapter from Af60 to Am40 mm wide

tn_THS327-400-6xM6-TK100-H180-HRC 21.3 kg_2418

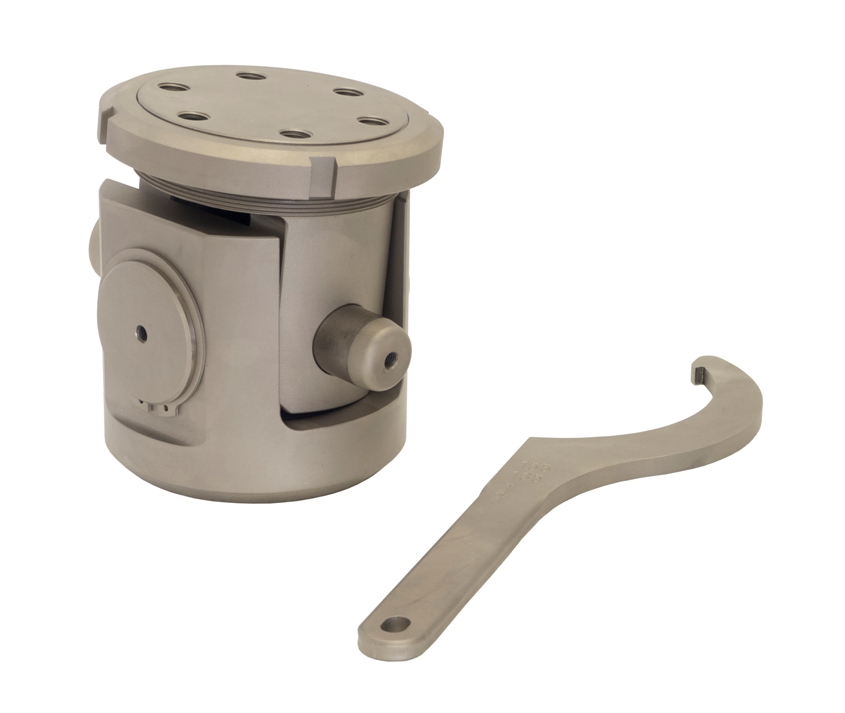

THS327-400-6xM6-TK100-H180-HRC

Special cardan adapter, 400kN

Steel, hardened, nickel coated
