Textiles



Back




Description: Description: Description: Description: pdf_icon.gifTextile test fixtures.pdf

Description: Description: Description: Description: pdf_icon.gifTextilprüfung.pdf

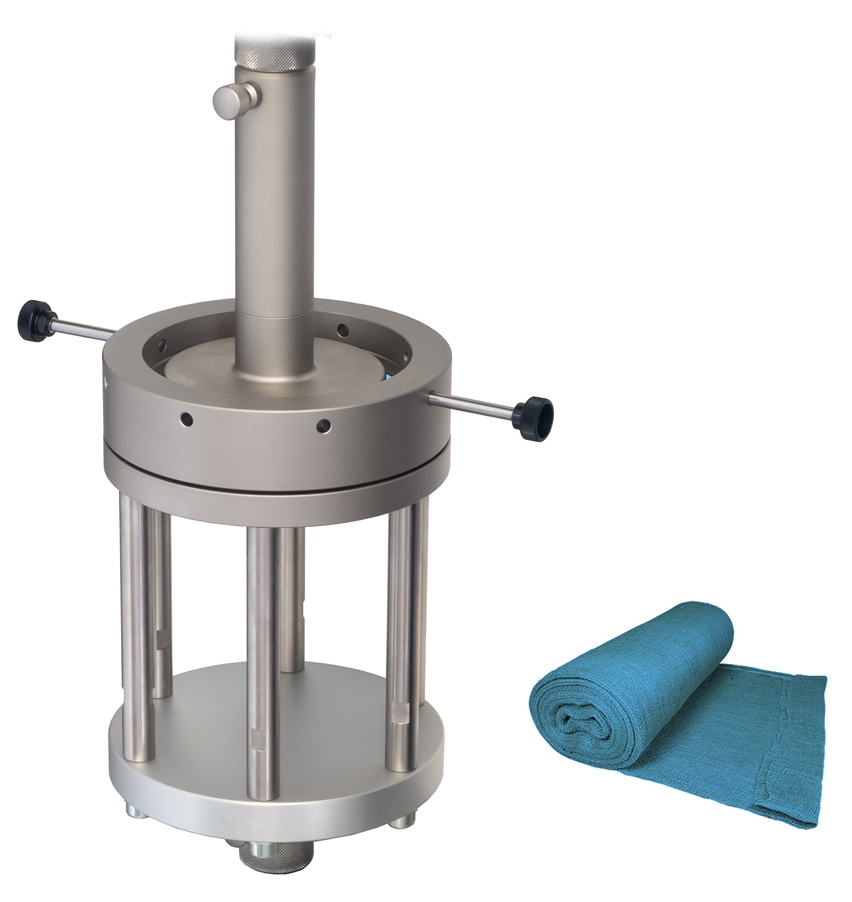

THS1541-120-156-R114.4+R50



Special test fixture to test elasticity of textiles according to ISO20932-2 Fig2, 3



Sondervorrichtung zum Testen der Elastizität von Textilien gemäß ISO20932-2 Fig 2, 3



more



Description: Description: Description: tn_THS1598-35H60-FD15 similar to ASTM-D4032 0.82 kg 013-

THS1598-35H60-FD15


Puncture fixture to determine stiffness of fabric similar to ASTM-D4032



more

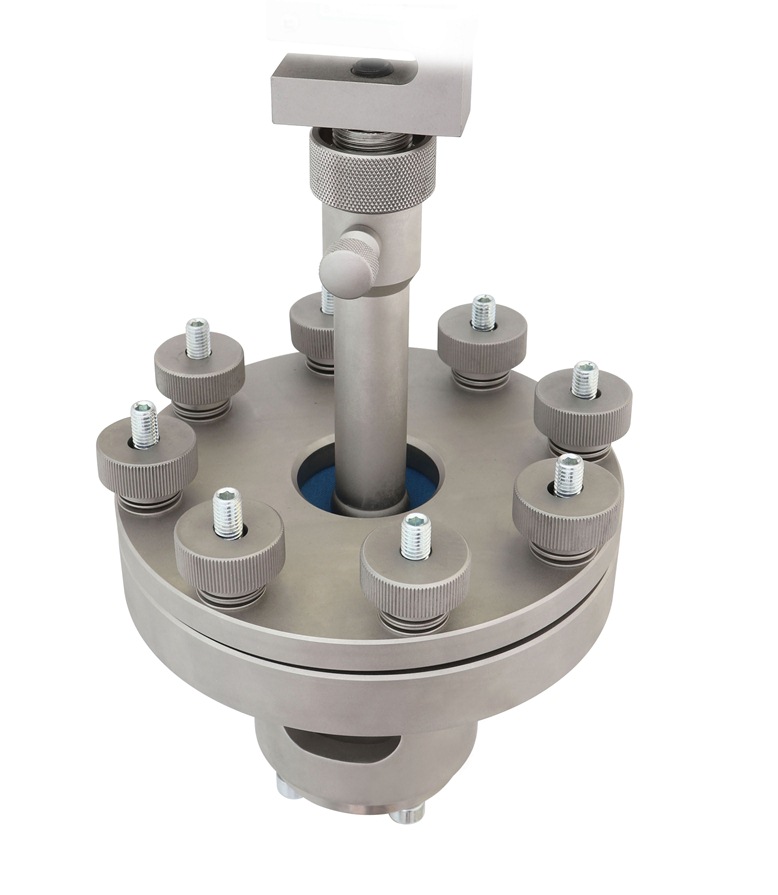

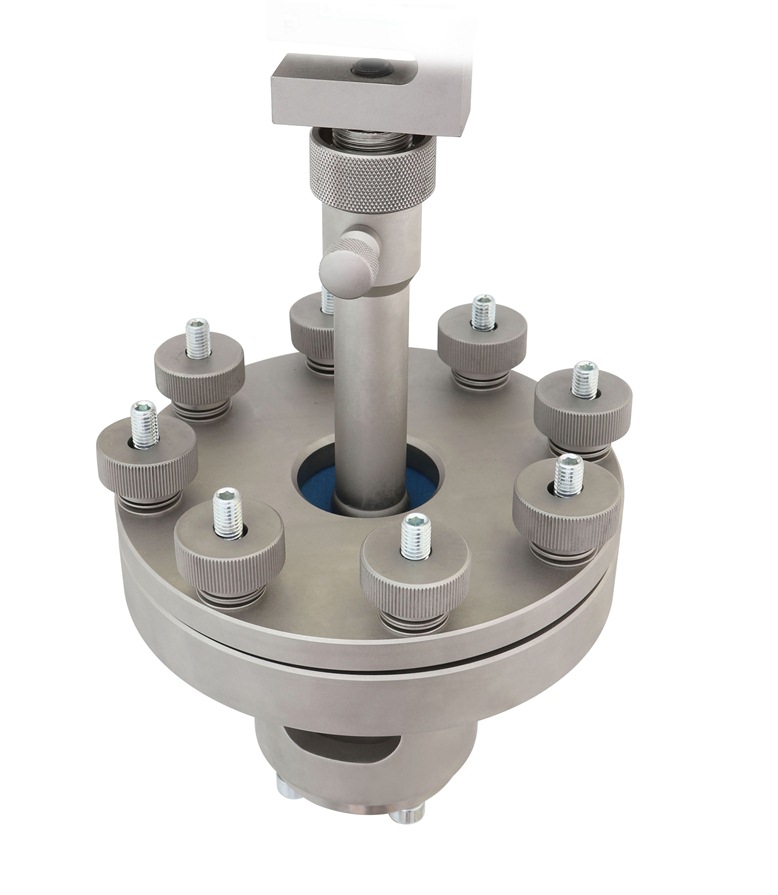

THS453-44.45-P25.4  7.5kg  21-09-2018  04-

THS453

Fixture for testing bursting strength of textiles according to ASTM-D3787, GB19976, ASTM-D751, ISO9073-5, ISO3303-1


more

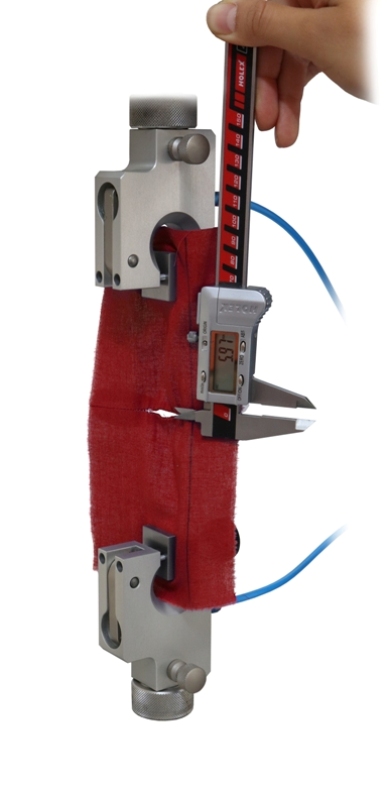

tn_TH229-B25x50+B25x25  ASTM-D1683  Textile    2020-08-11  04

TH229+B25x50+B25x25-ASTM-D1683



Failure in Sewn Seams of Woven Fabrics to ASTM-D1683



Versagen in genähten Nähten von Geweben gemäß ASTM-D1683



more

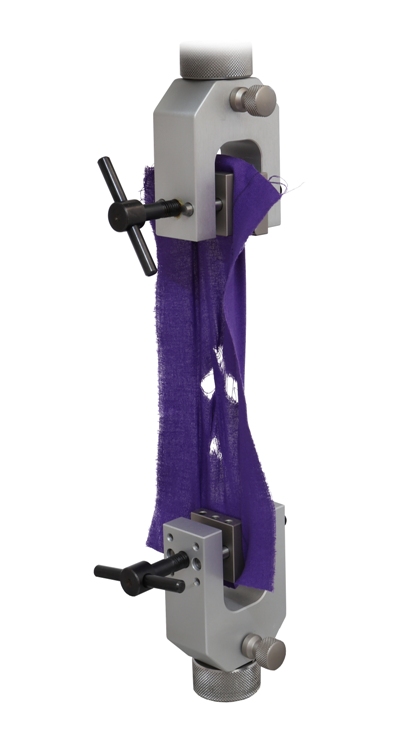

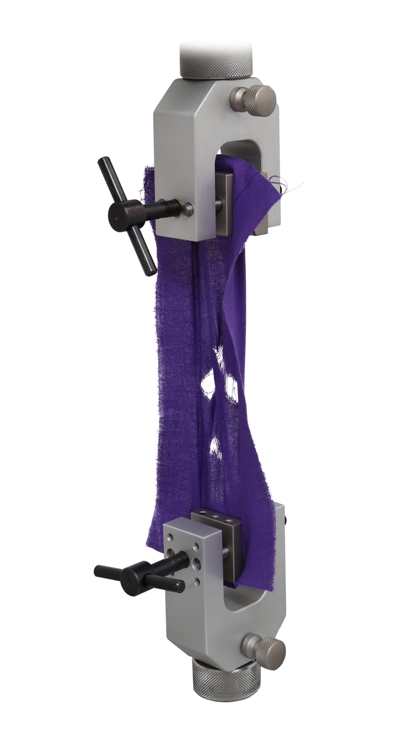

tn_TH240k+BW25+BW50 Grab Test Textile Breaking Strength ASTM-D5034  Textil    G06  2020-08-10  02

TH240k+BW25+BW50-ASTM-D5034



Breaking Strength and Elongation of Textile Fabrics (Grab Test) to ASTM-D5034



Bruchfestigkeit und Dehnung von Textilgeweben (Grab Test) gemäß ASTM-D5034

more

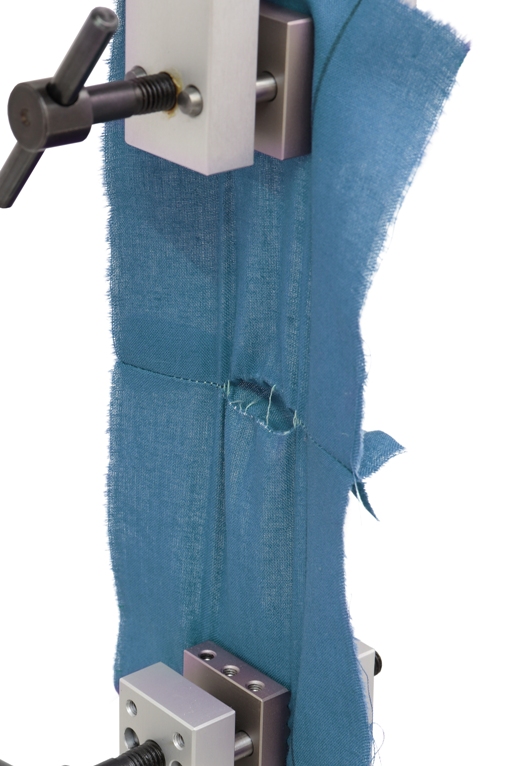

tn_TH240k+BW30+BW50   DIN EN ISO13936-2  slippage resistance Textil    2020-09-02  05


TH240k+BW25+BW50-DIN EN ISO13936-2


Determination of the slippage resistance of yarns at a seam in woven fabrics by fixed load method.



Bestimmung des Schiebewiderstandes von Garnen in Gewebenähten. Verfahren mit festgelegter Kraft.

more

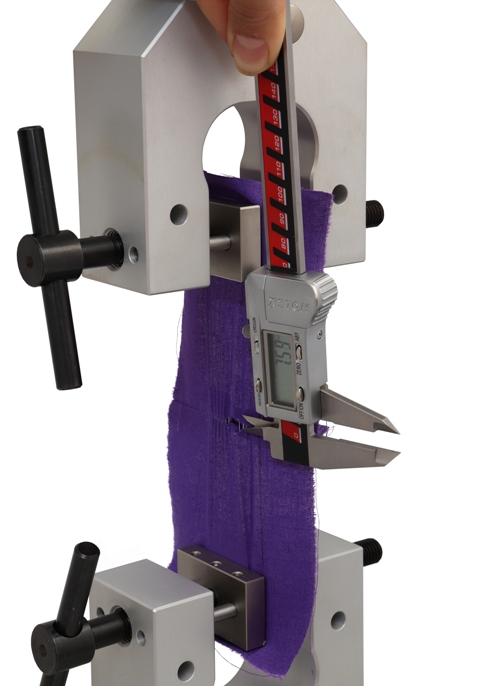

tn_TH240g-B25x25+B50x25  DIN EN ISO13936-1   Textile seam slippage resistance  2020-08-10  05

TH240g+B25x25+B25x50-DIN EN ISO13936-1


Determination of the slippage resistance of yarns at a seam in woven fabrics to DIN EN ISO13936-1.

Fixed seam opening method



Bestimmung des Schiebewiderstandes von Garnen in Gewebenähten gemäß DIN EN ISO13936-1.

Verfahren mit festgelegter Nahtöffnung



more

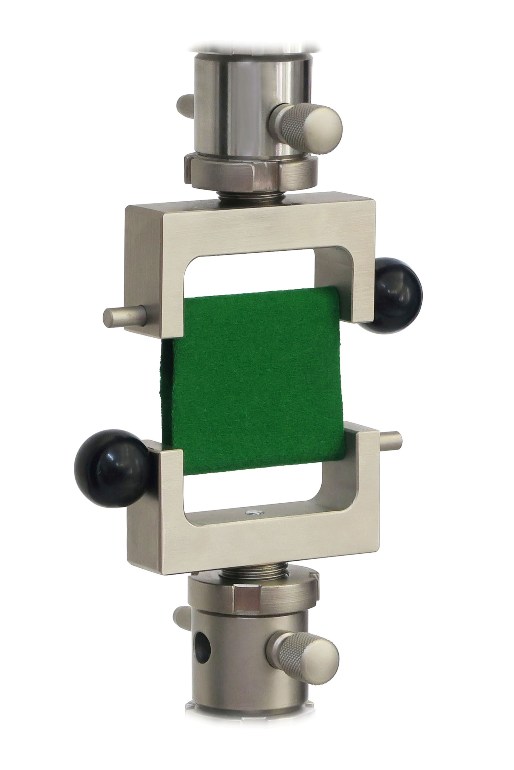

tn_THS353-6x50-Am1665 0.4kg 500N Textile A06_2431-

THS353-6x50-Am1665

Special clevis grip
Max. load 500 N

more

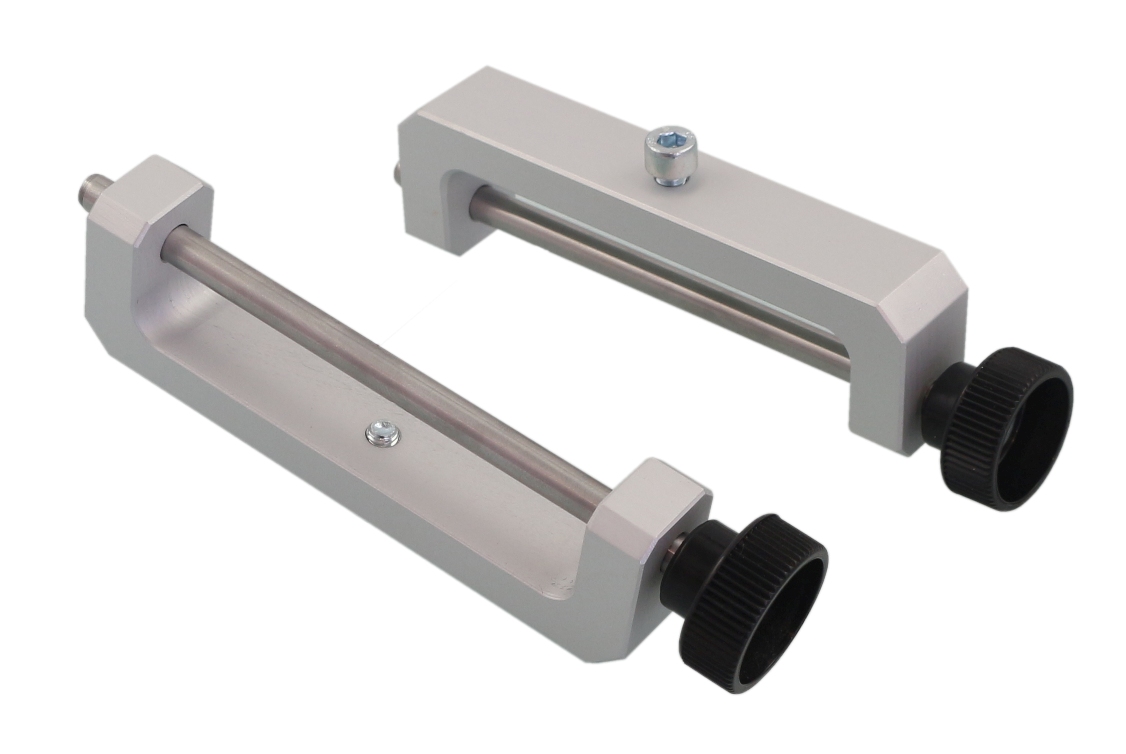

THS353-6x80-Af159-Al-EN14704-1-Fig C.2a_ISO20932-1_fabrics_elasticity_strip_test

THS353-6x80-Af159-Al



Special test fixture for elasticitystriptest on fabrics according to EN14704-1Fig.C-2a and ISO20932-1

Body: aluminium, anodized

Pin: steel, hardened

Max. load 500 N

Coupling Af159

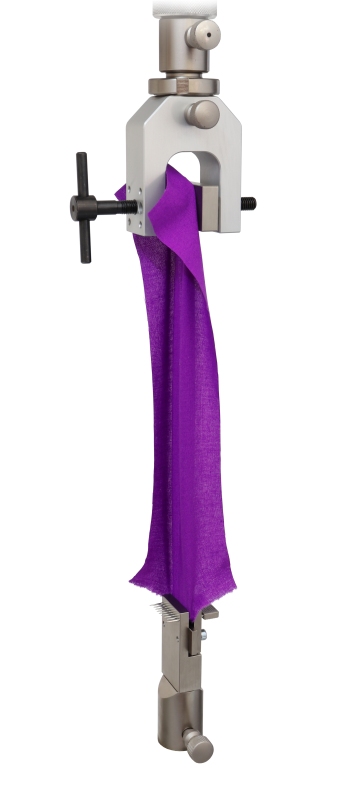

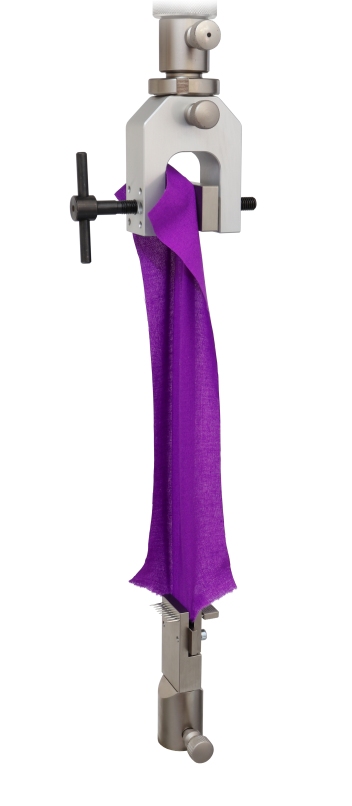

tn_THS1205-9x1.6-Af20  350g + TH240k+BP25+BP50   ISO12402-7 fig1  2020-09-16  06

THS1205

Needle tear test fixtures to test seam strength and yarn slippage according to ISO 17697 (Method A), EN 13572 (Method A), Adidas ST-05, DIN EN ISO 12402-7 Fig. 1



Nadelreißvorrichtungen zur Prüfung der Nahtfestigkeit und Fadenverschiebung von gewebten Stoffen gemäß ISO 17697 (Method A), EN 13572 (Method A), Adidas ST-05,  DIN EN ISO 12402-7 Fig. 1



more

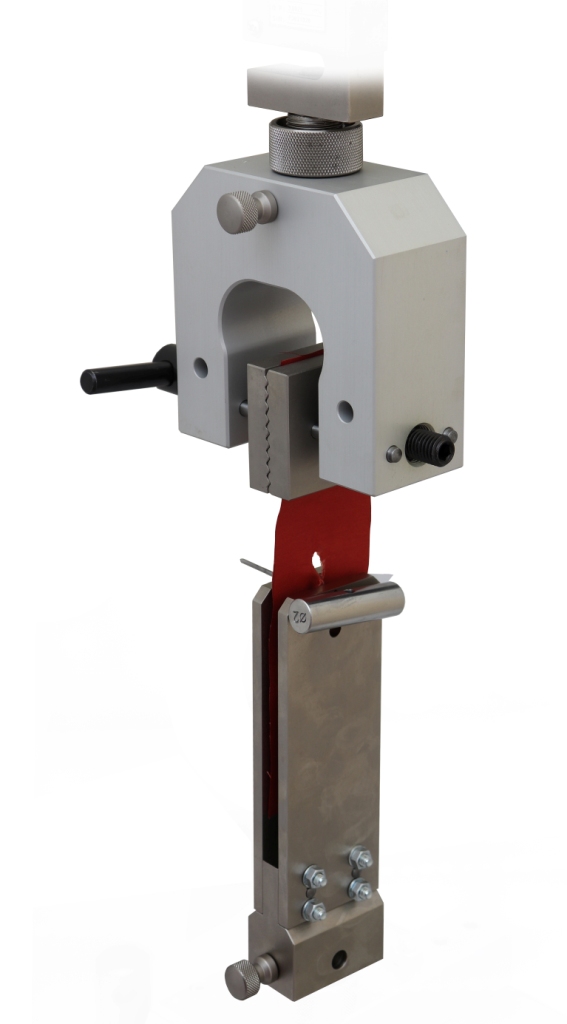

THS1477-10-Af159-UNE40413_1,3kg-2019-01-23

THS1477-10



Tear strength fixture to test textiles according to UNE-40413



more

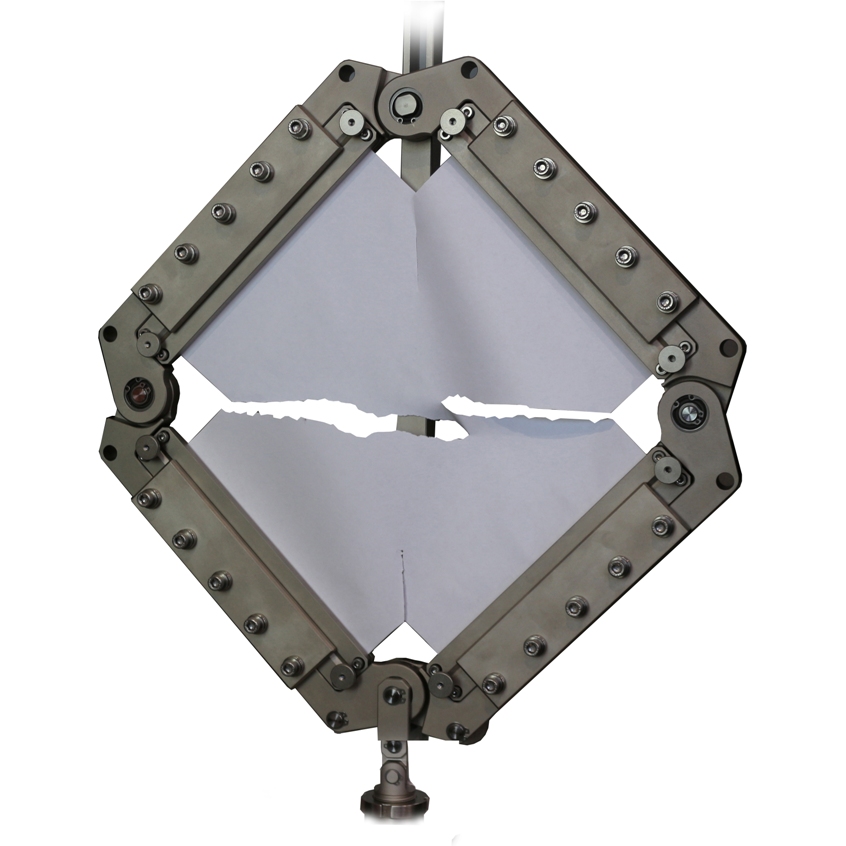

THS1051-V2 (similar to ASTM-D8067) stress-strain of fabrics, in-plane shear of sandwich panels 14.1kg

THS1051-V2



Picture frame shear test fixture

similar to ASTM-D8067 (in-plane shear test on sandwich panels)
The fixture can be used for stress-strain tests on silicone, rubber, elastic fabrics, etc.


more

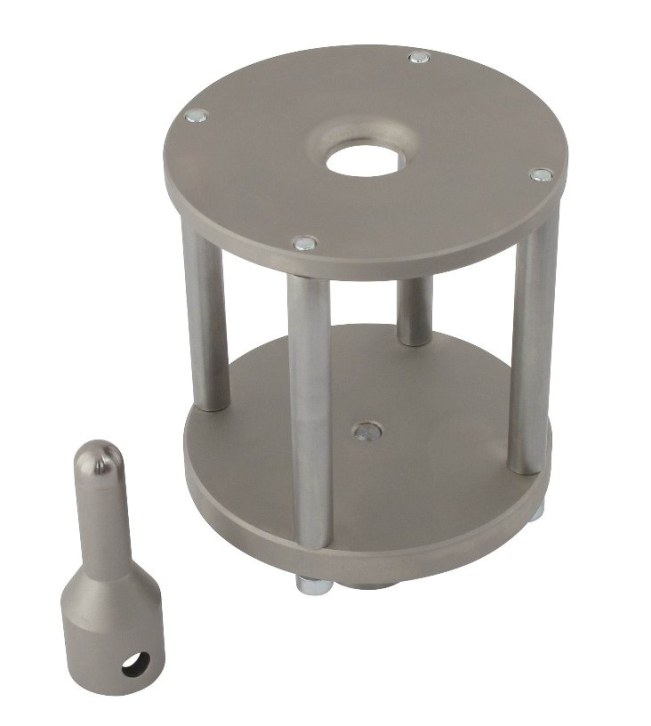

THS894-19-ASTM-D4032 Fabric Stiffness

THS894



Puncture fixture to test stiffness of fabric according to ASTM-D4032

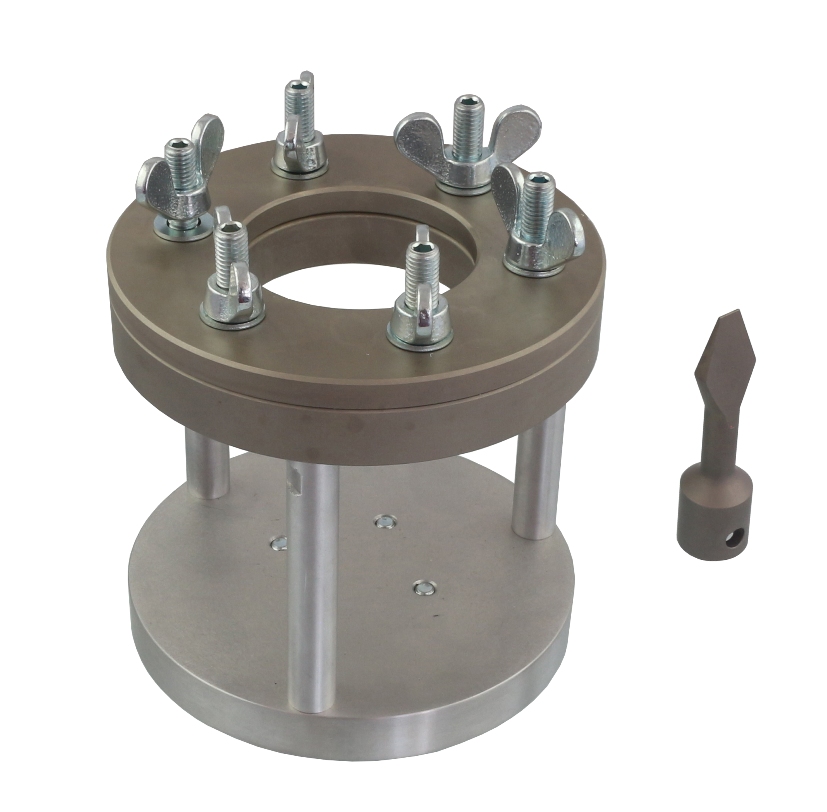

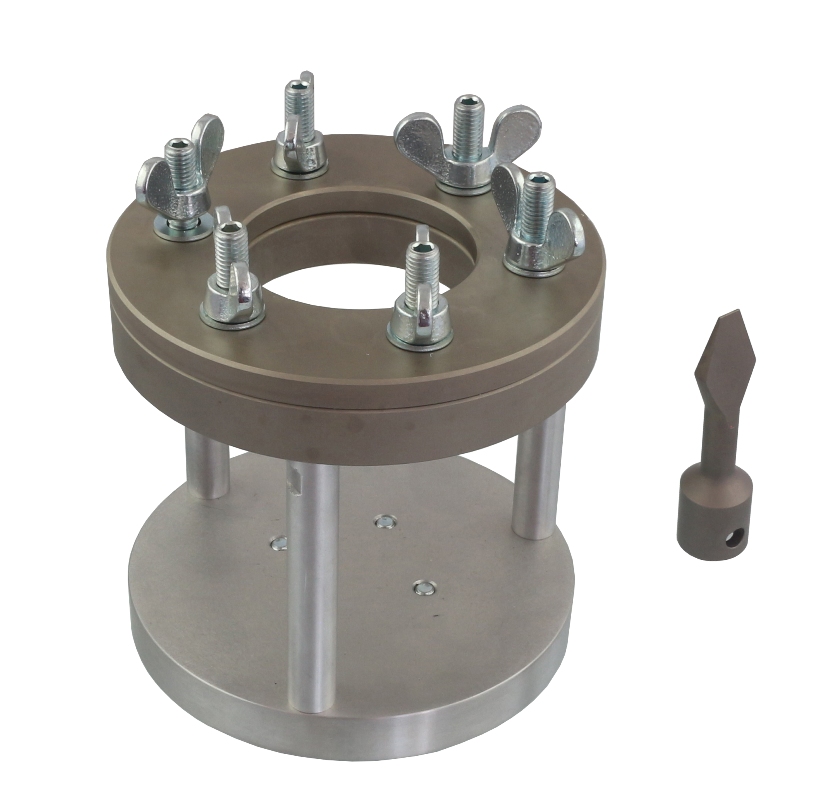

tn_THS1544-76.2R2-7.92R0.25-Af159-Mil-DTL-6396F-Fig.3 (fuel tanks) -TSO-C69c (emergency slides) puncture resistance


THS1544-76.2R2-7.92R0.25-Af159
-
MIL-DTL-6396F-TSO-C69c


Puncture resistance test fixture
for fuel tanks according to
MIL-DTL-6396F-Fig.3 and

fabrics for emergency evacuation slides to TSO C69c Appendix 1
Steel + Aluminium

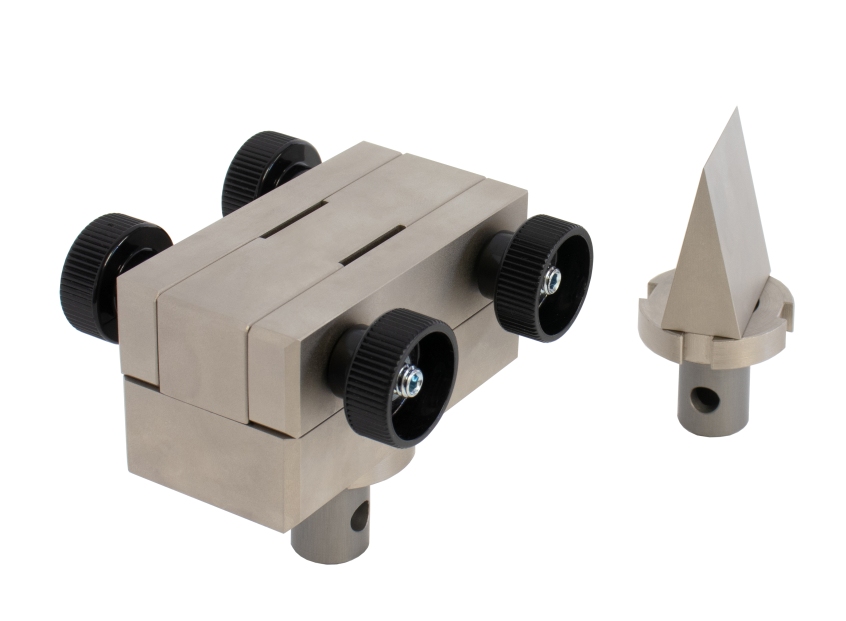

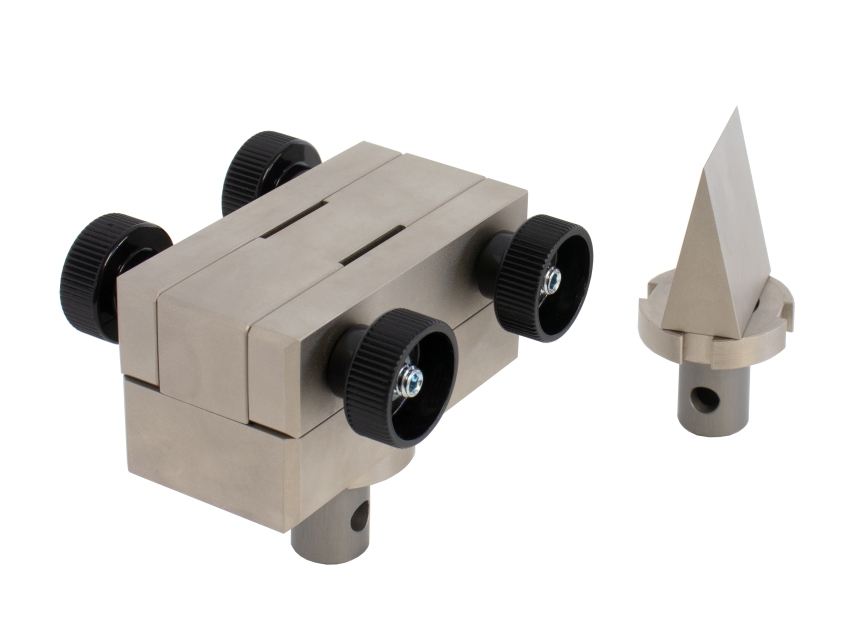

tn_THS1674-Am1665  BSLD3600 7.7     Toyota-Norm  Carpet-Teppich-Textilien   2021-03-24  1,2kg  02

THS1674-BSLD3600 7.7-Am1665



Special test fixture to measure rigidity of carpets or textiles according to Toyota standard BSLD3600 7.7



more

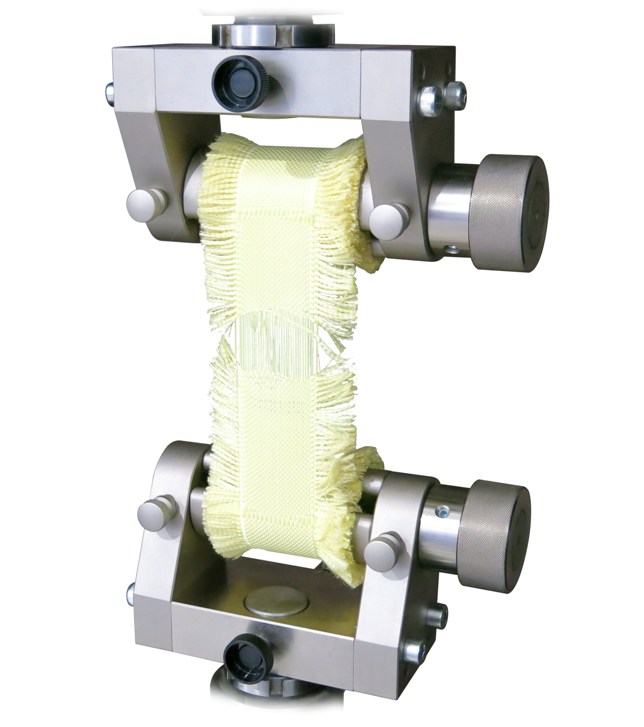

tn_TH222-60-120-Af40 Kevlar fabric test IMG_0010-

TH222-60-120-Af40



Ribbon test fixture for testing Kevlar fabric - lightweight, strong, heat-resistant synthetic material

more

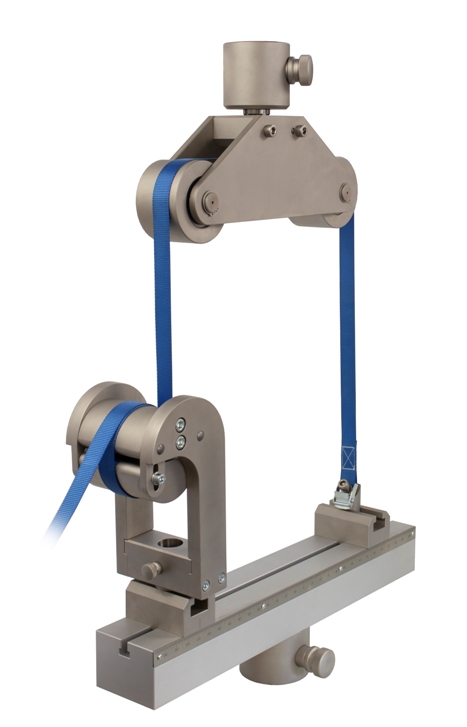

THS1717 + THS806-101.6-100-Af318 ECE R16 Tensile testing on seatbelt  -Gurtband02 (1)

THS1717 + THS806-101.6-100-ECE R16

Special tensile test fixture to measure breaking strength of vehicle safety seatbelts according to ECE R16

more

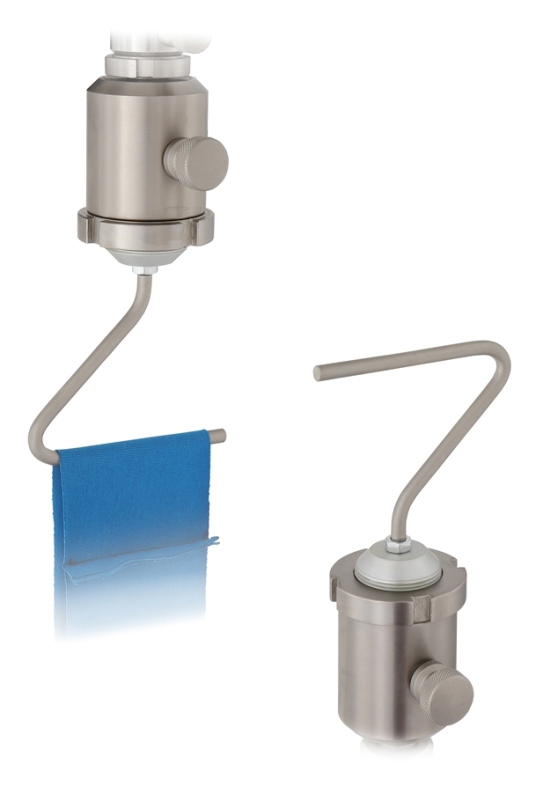

tn_TH231-D6-W80  363g  EN14704-1-fig.C2.b Stoffzug  Fabrics elasticity Loop test  2020-01-13  004

TH231-D6-W80



Special hook to test loop elasticity of fabrics according to EN14704-1-Fig.C2.b

Hook diameter 6 mm, width 80 mm

For smaller forces

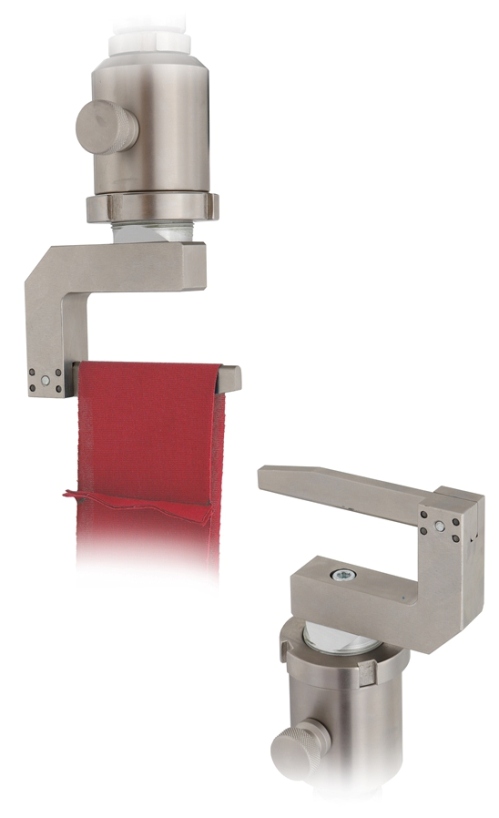

tn_TH231-R3-W80  743g    EN14704-1-fig.C2.b  Stoffzug  Fabrics elasticity Loop test 2020-01-13  005


TH231-R3-W80



Special hook to test loop elasticity of fabrics according to EN14704-1-Fig.C2.b

Hook radius 3 mm, width 80 mm

For higher forces

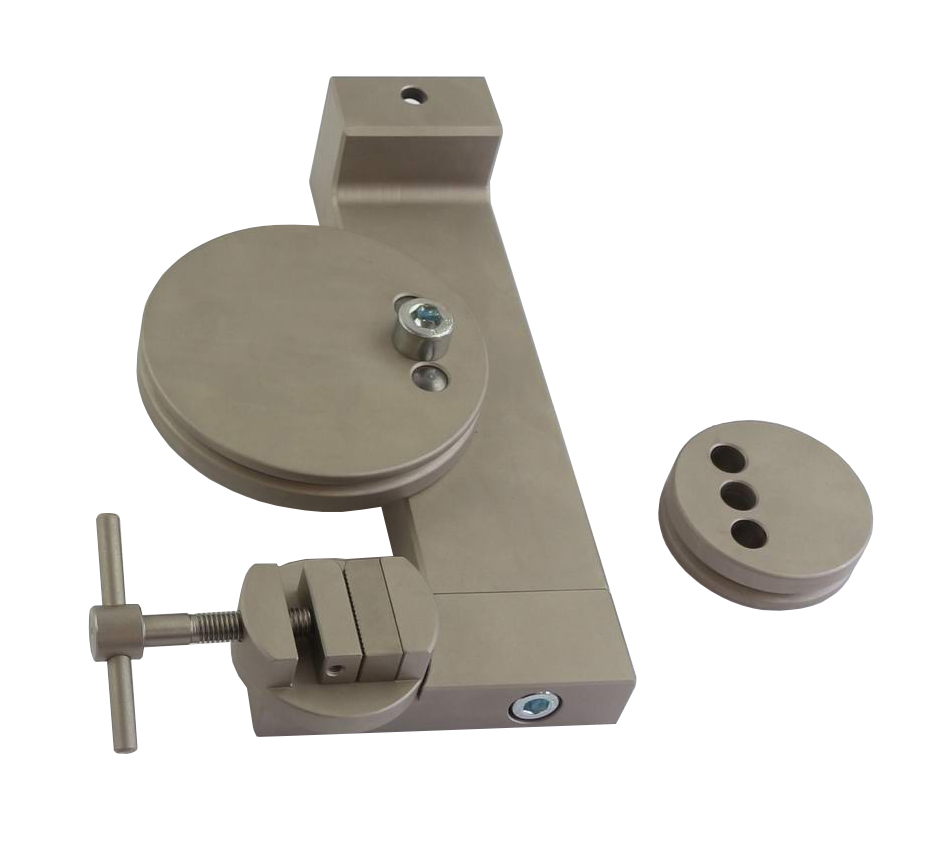

TH76-10-D50+D90+BP-ISO3341_Textile_glass_Yarns_3.4kg

TH76-10-D50+D90+BP-Af20

Special rope grip to determine breaking force and breaking elongation of textile glass yarns according to ISO3341
Max. load  10 kN
Steel, nickel coated

Coupling Af20

Incl.

1x bollard diameter 50 mm

1x bollard diameter 90 mm

1 set of pyramid (serrated) jaws

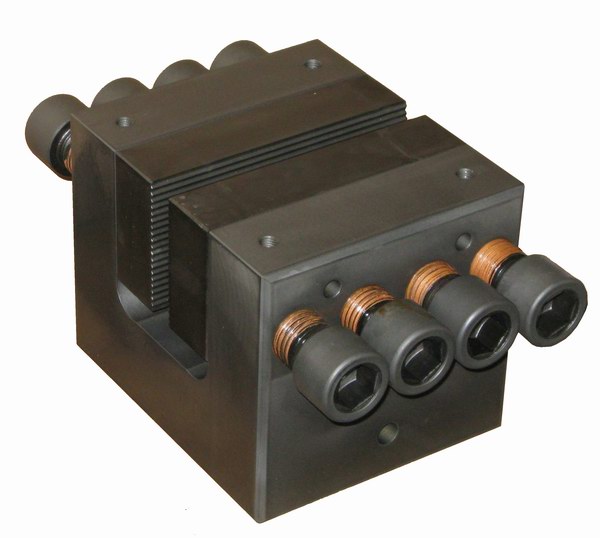

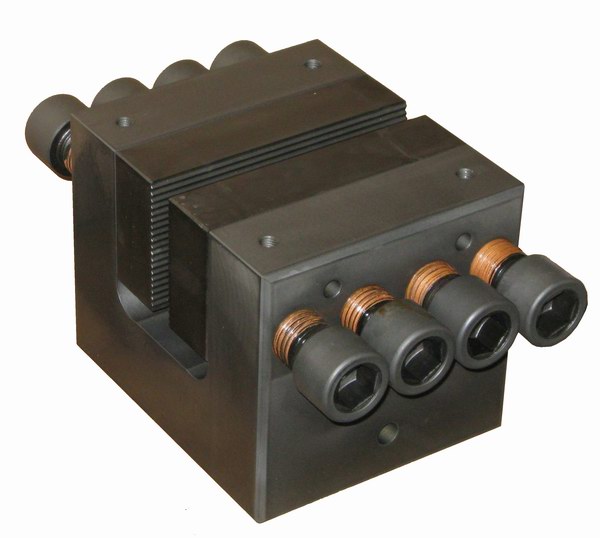

tn_THS668-200+BW

THS668-200+BW

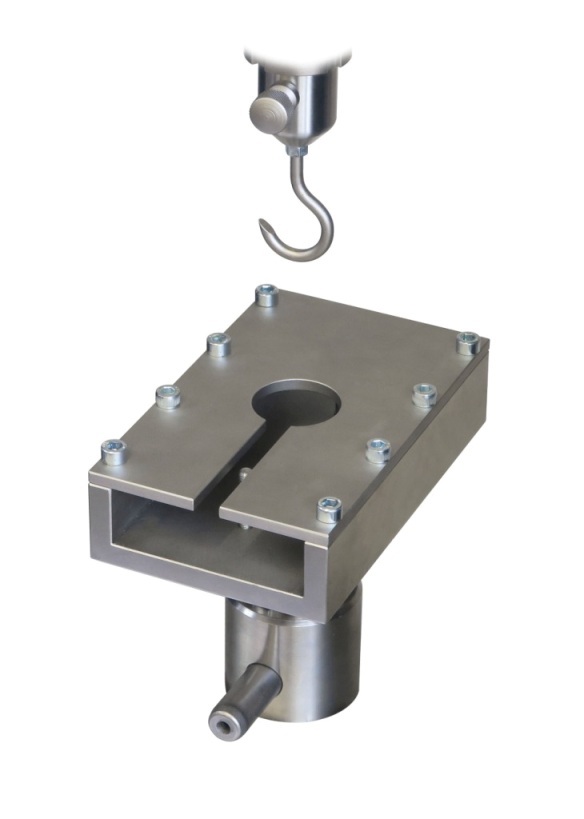

TH124-50 GOST14217_Carpets_Hook_0.12+2.6kg

TH124-50



Fixture to determine tuft bind strength of carpets according to GOST14217

more

THS1067_ISO4919_ASTM-D1335

THS1067

Carpet and floor covering test fixtures
According to
ISO4919, ASTM-D1335

more

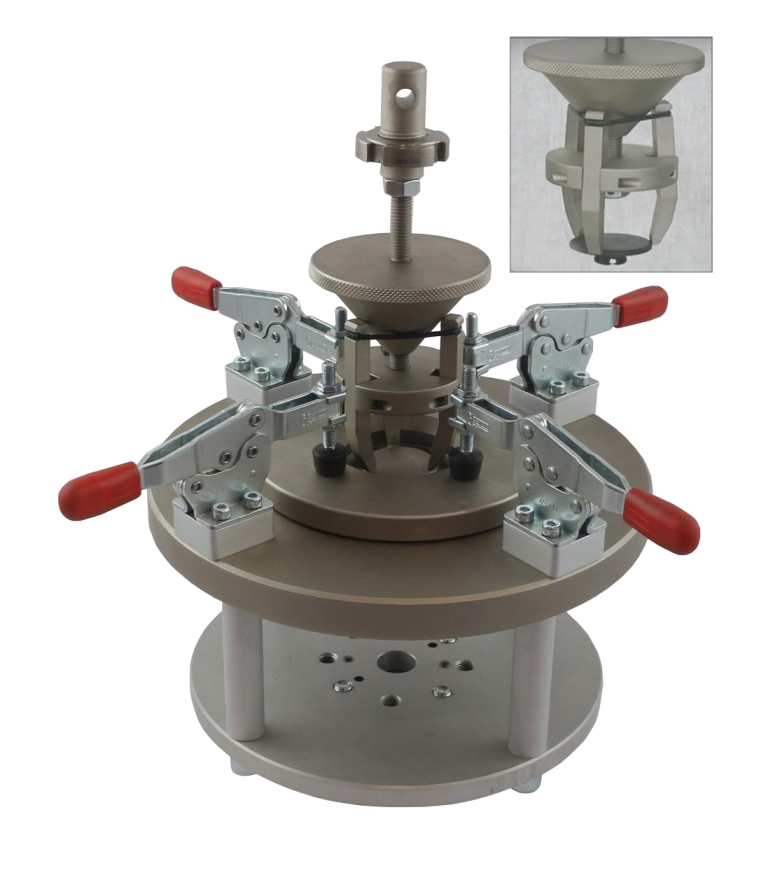

THS1947-Am16-7.6kg_carpet_plastic_button_textiles_2023-04-07 03

THS1947-Am16 + THS807-20-S50

Special pull-out strength test for plastic buttons from carpet

more
