Packaging


Back

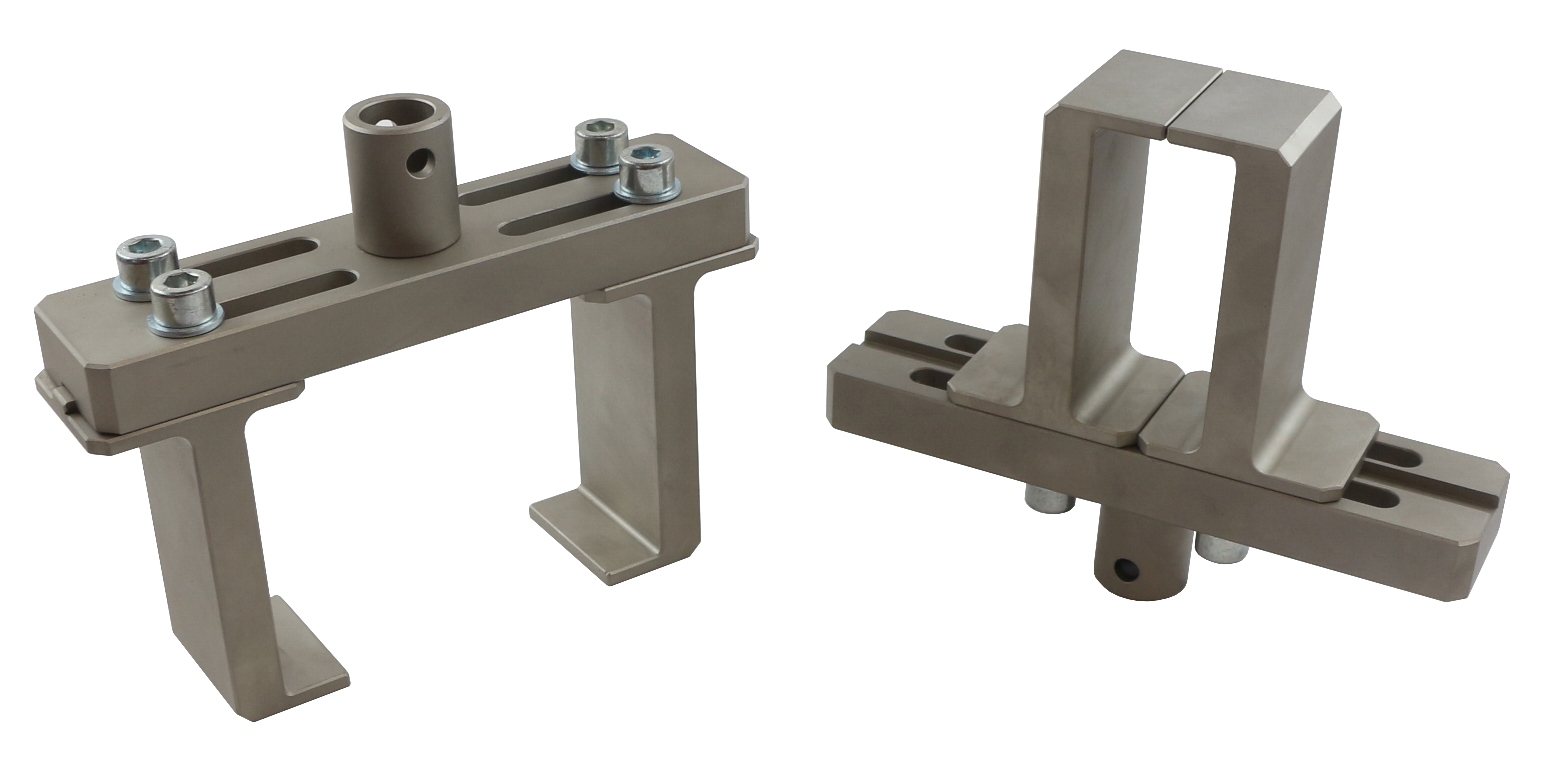

tn_THS504-S80-W50 IMG_1403-

THS504-S80-W50



Special tensile test fixture to test bottle caps

Adjustable opening to accommodate specimens of different diameter

Steel, nickel-plated

Coupling Af20



Sonder Prüfvorrichtung zum Testen von Flaschenverschlüssen

Einstellbare Öffnung zum Spannen von Proben mit unterschiedlichem Durchmesser

Stahl, vernickelt

Anschluss Af20

tn_THS562-200-3-Af20 2.25kg cork testing Korkprüfung a17 2020-06-04  05 (1)

Cork test fixtures

Vorrichtungen zum Testen von Kork



more

tn_THS807-D56-Af159  1,6kg + THS472g-Gu  A17   2020-07-21   02

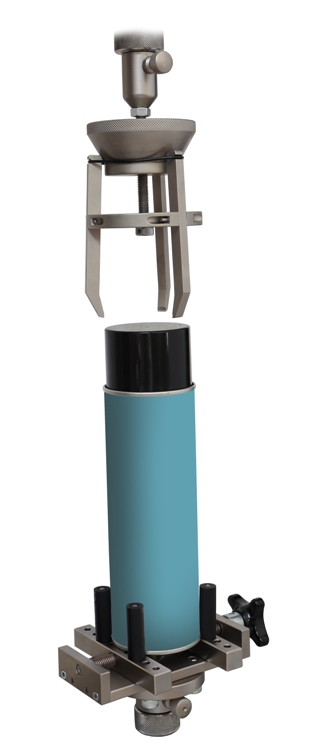

THS807-S56-Af159  + THS472g-Gu

Pull-off strength test of aerosol cap

Prüfung der Abzugskraft von Aerosolkappe

more

tn_THS472+BP +THS572-90-Af159  7kg  2021-08-05  01

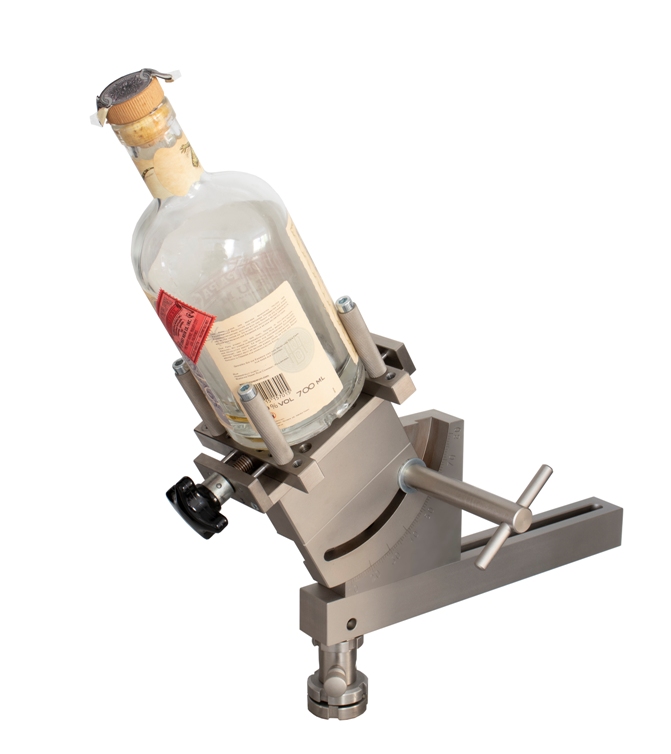

THS472+BP + THS572-90-Af159

Bottle holder attached to THS572-90 adapter with adjustable test angle
for peel tests on bottle foil seals under 90° and 135° angles

more

THS472k-GU + THS472g-GU  2020-05-19  01

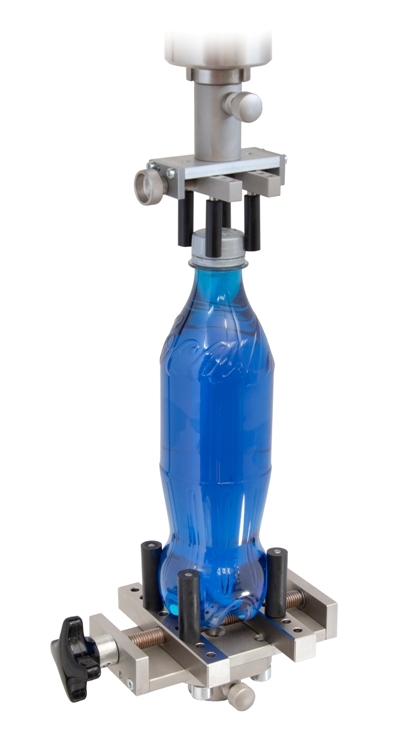

THS472

Torque testing holders



Halter für Drehmomentprüfung

more

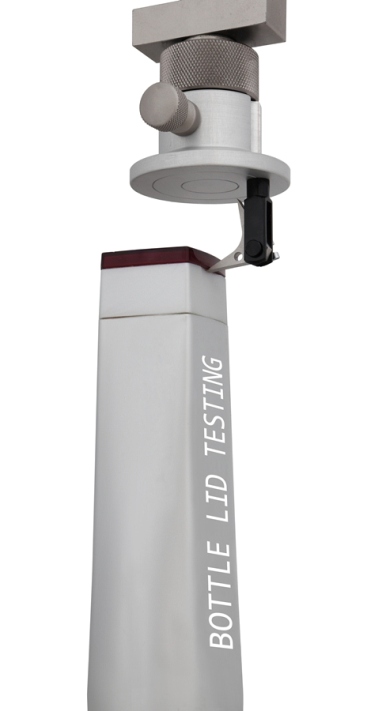

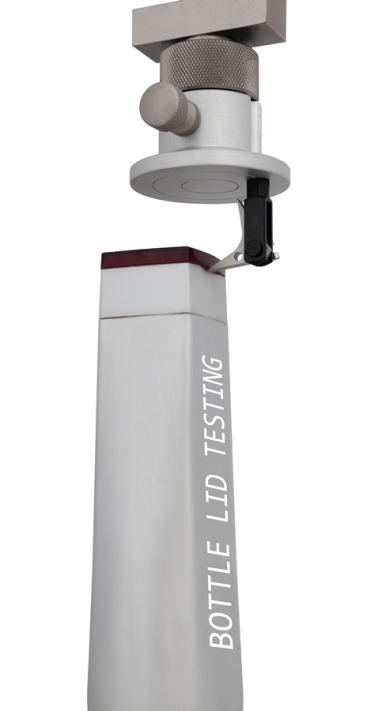

THS1064-40  100g  2019-03-05  IMG_47362

THS1064-40



Special fixture to test flip-caps of bottles

more

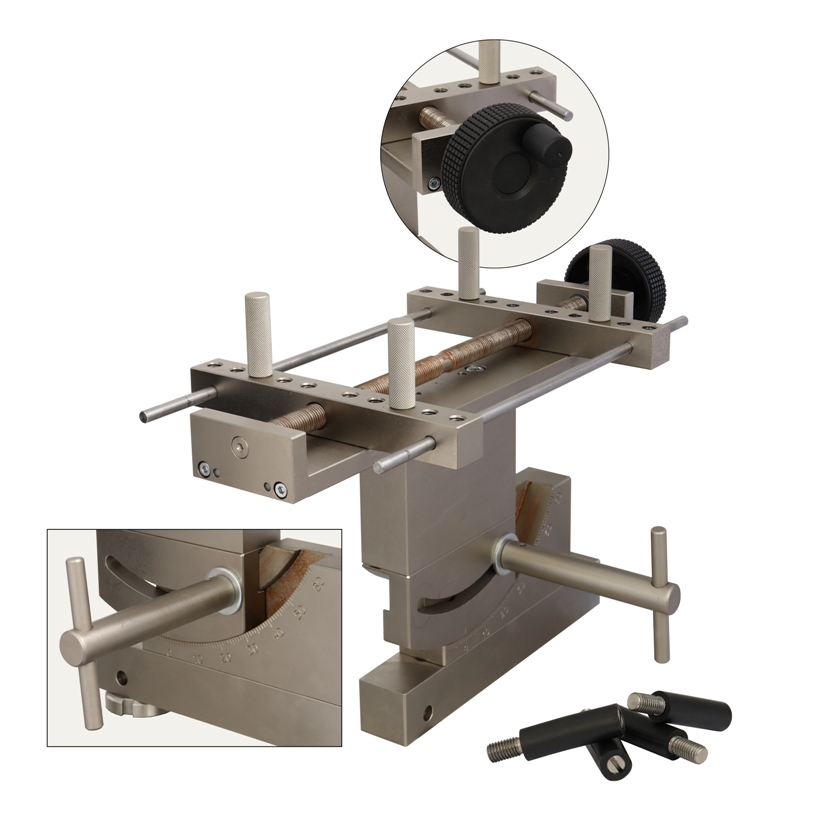

THS472W+BP+Gu-H40+THS572-60_7,65kg_2022-11-11_03

THS472W+BP-H40 + THS572-60



Special holder for peel test on aluminium foil packaging
Attached to
THS572-60 adapter with adjustable peel angle 0-60°



more

THS1217-V41+THS1217-V40-ASTM-F88_DIN-EN-868-5_ASTM-F904_verstelbar+TH240k+KO+BP_ 4kg

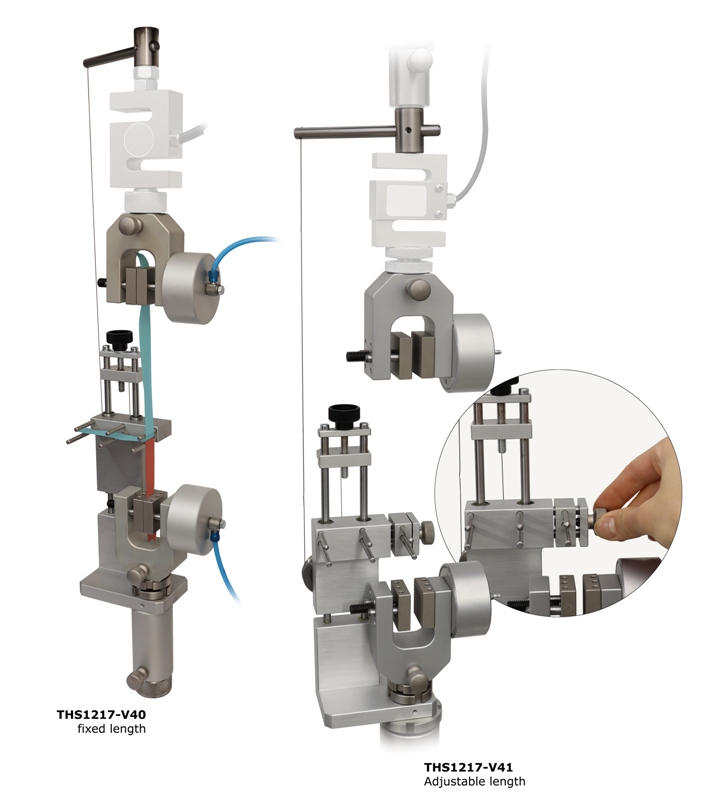

THS1217-V40 (-V41) + TH240k-Ko+BP30

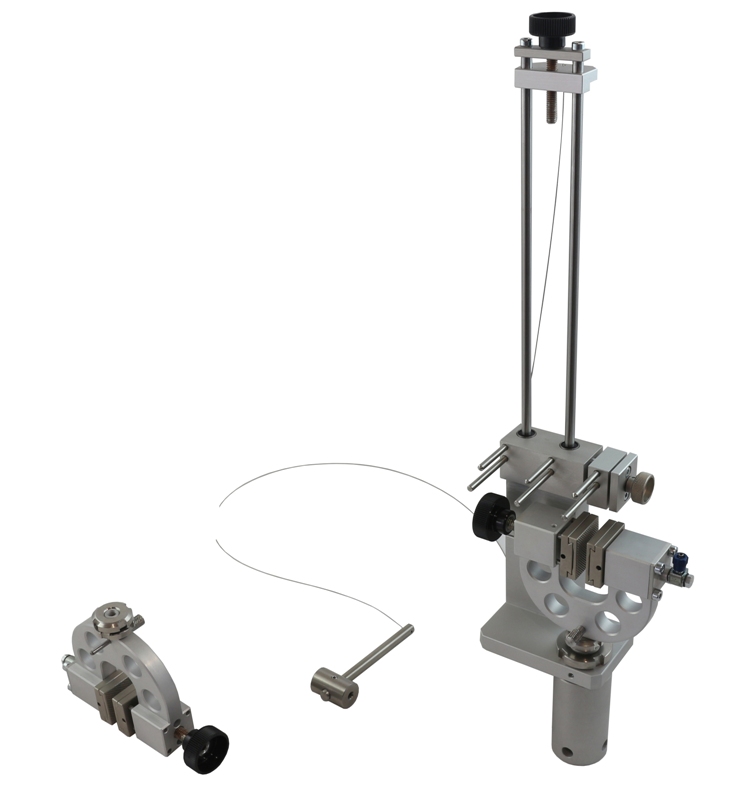

90° peel T-peel test fixture

to test seal strength of medical packaging

According to ASTM-F88, ASTM-F904 and
DIN EN868-5



THS1217-V40 - the unseparated length of the specimen can be adjusted



THS1217-V41 - the unseparated length of the specimen is fixed


more

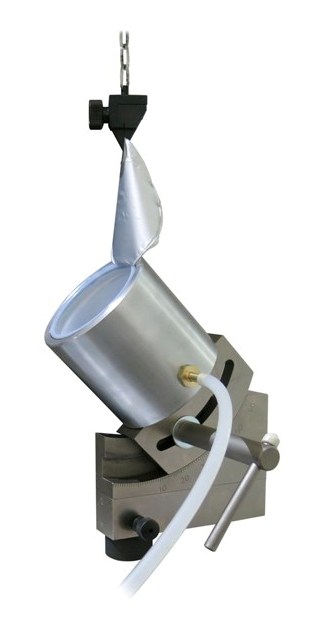

THS162-250-10 yogurt cup tester

THS162-250-VH

Peel test fixture for yogurt cup

more

THS1119-800+ith1-Af20-DIN53121-G02-02

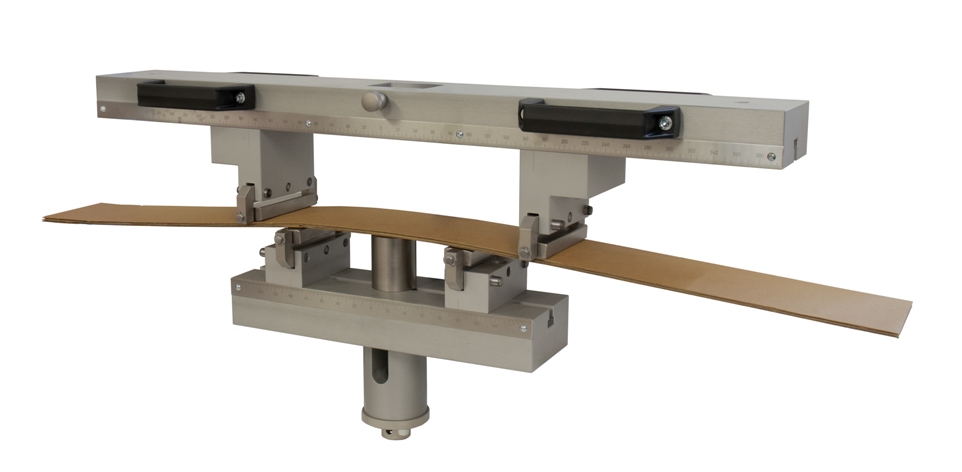

THS1119-800+ith1-Af20-DIN53121



Special bend test fixture to determine bending stiffness of paper and board by the beam method, according to DIN53121

more

tn_THS1276-27-1.6-101.6-Af20  TAPPI-T829   2020-11-12   03

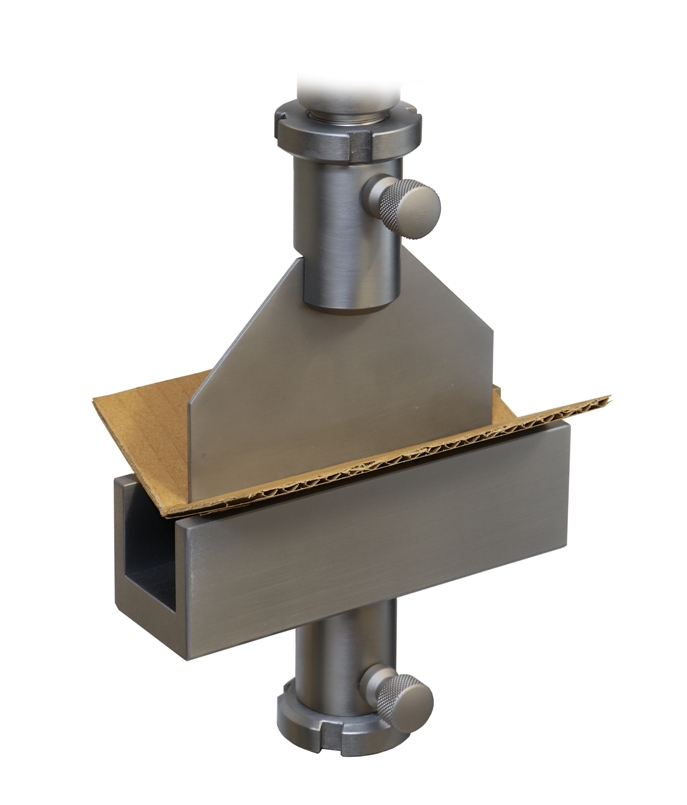

THS1276

Bend test fixture for paper and corrugated cardboard according to TAPPI-T829

Steel V2A

more

THS1489-V2-DIN19304_Testing_of_corrugated_board_2,43kg-2023-03-28_04

THS1489-V2-DIN19304

Grip to test paper  and cardboard,
according to DIN19304


Vorrichtung zum Testen von Papier, Karton, Kartonagen und Pappe, Nach DIN19304



more

THS1898-FEFCO-5_Compression_corrugated_fibreboard_manufacturers'_joint_Druckprüfung_Wellpappe_17kg

THS1898-FEFCO-5

Compression test fixture to determine strength of the manufacturers joint of corrugated fibreboard containers According to FEFCO Method 5

more

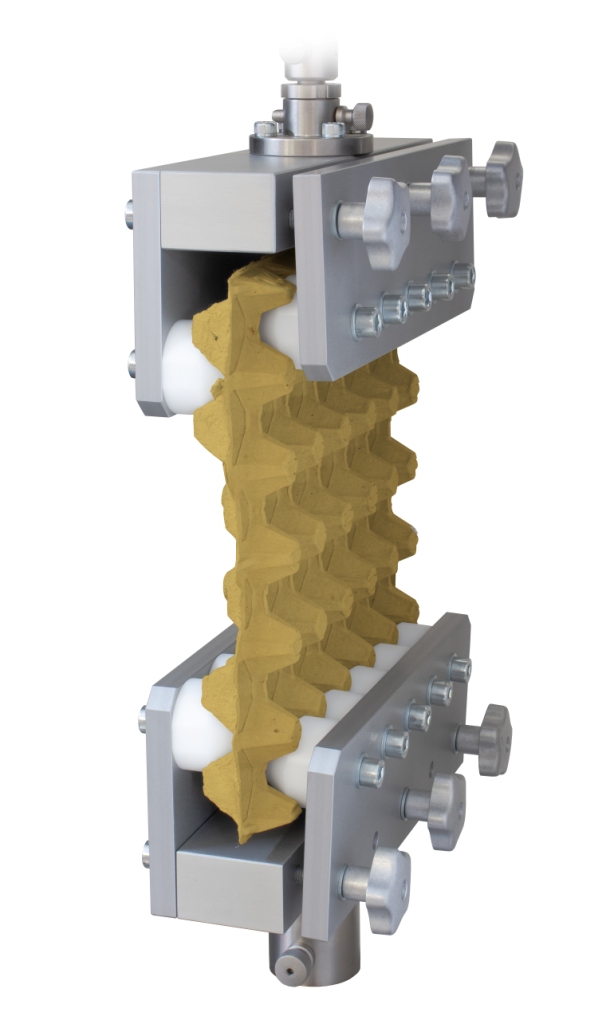

Description: tn_THS1342 Tensile test egg tray Eierkarton  02

THS1342



Special tensile test fixture to test egg trays


more

Description: tn_TH22-CWR10x300-H160 Bend test egg tray Eierkarton

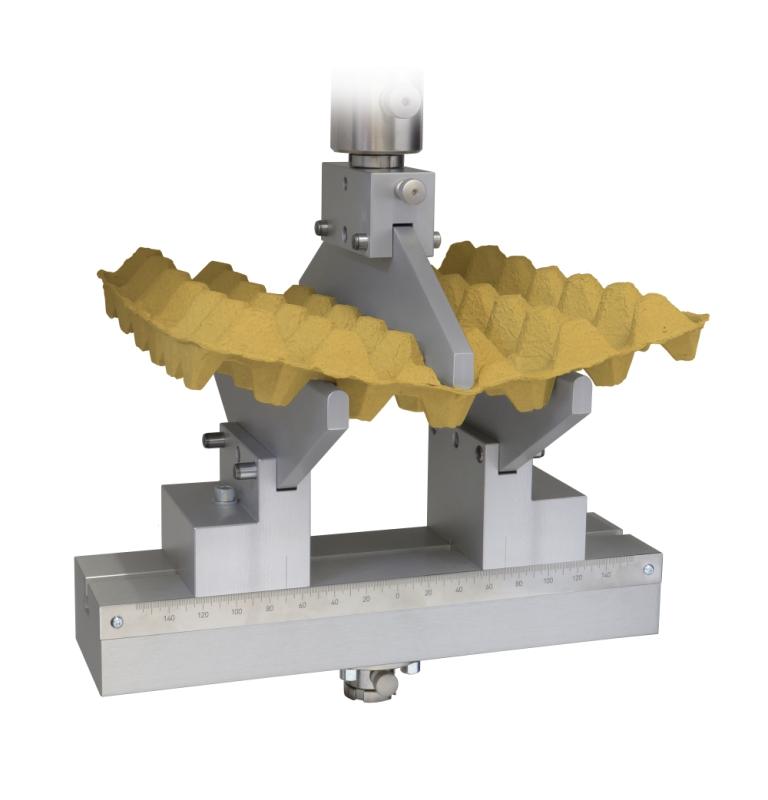

TH22-CWR10x300-H160



3-point bend test fixture to test egg trays



Biegeprüfvorrichtung zum Testen von Eierkartons



more

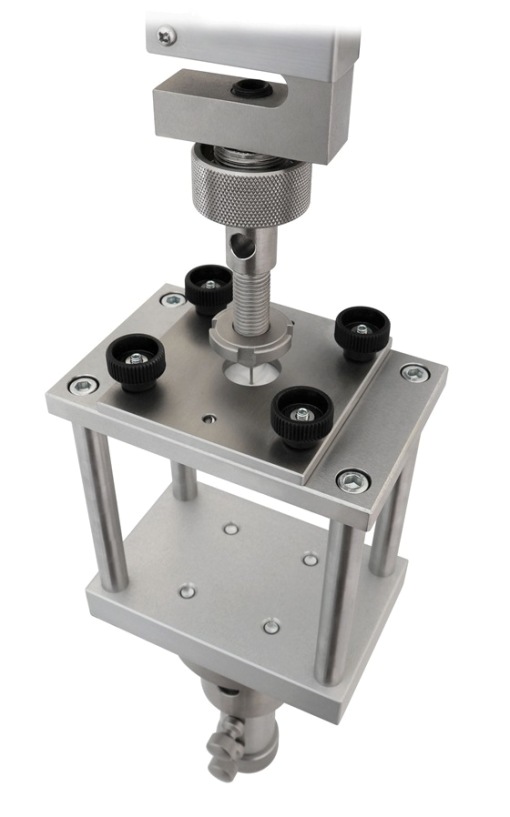

THS1441-10



Special puncture fixture to test food packaging foils, according to JIS-Z1707



more

Description: Description: Description: tn_THS1550-Af159-MIL-STD-3010A-xa 08.04.2020

THS1550-Af159-MIL-STD-3010A



Special puncture fixture to test military packaging materials according to MIL-STD-3010A Method 2065 Fig. 1

Steel + Aluminium



Sonder Durchstoßvorrichtung zum Testen von Verpackungsmaterial gemäß MIL-STD-3010A Testverfahren 2065 Bild 1

THS174-Tr100-Pr60x25-Am1665-DIN53142-2_7.8kg_puncture_test_corrugated_board

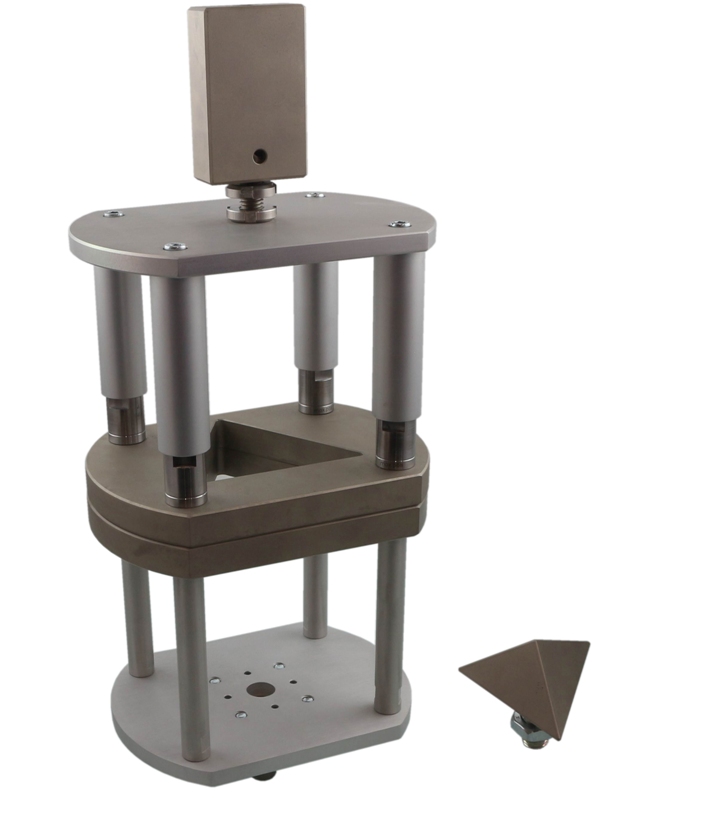

THS174-Tr100-Pr60x25-Am1665-
DIN53142-2



Special puncture test fixture for corrugated board, according to DIN53142-2



more

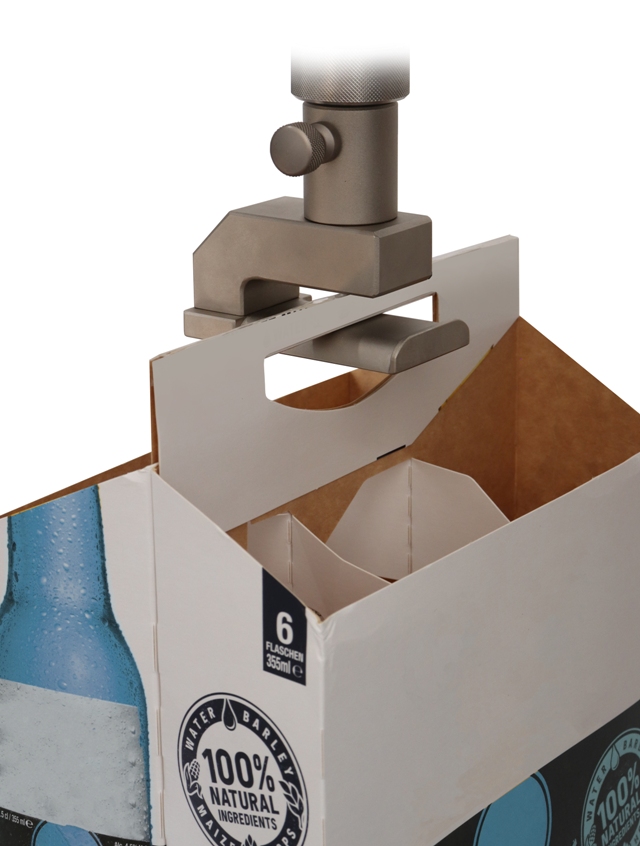

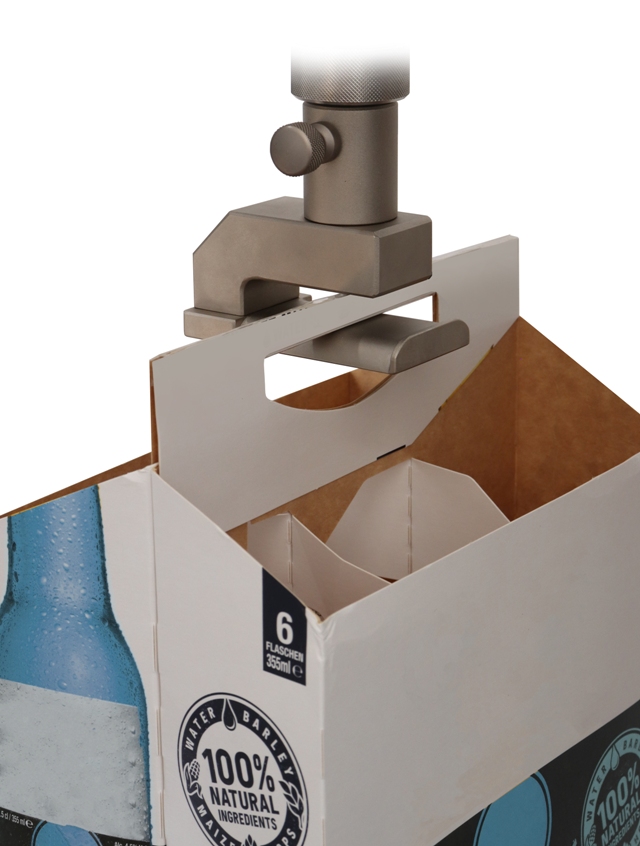

TH231-SV-40x60-R10_0.6kg_Haken_Hook_2023-09-07_01

TH231-SV-40x60-R10

Hook for testing bottle carton, carrying carton, carton with handle



Haken zum Prüfen von Flaschenkarton,  Tragekarton, Karton mit Tragegriff



more

tn_THS1475-100x350-Af20 0.823kg cardboard testing Karton Druckprüfung A17  2020-06-03  02

THS1475



Cardboard compression test fixture



Druckvorrichtung zum Testen von Karton



more

THS1151-20_0.46kg_Corrugated_Board_Pin_Adhesion_Flute_B_TAPPI-T821_01

THS1151



Compression test fixture to test pin adhesion of corrugated board

According to TAPPI-T821
For flute sizes  A, B, C



more

THS993-240_EN13393_Packaging_testing

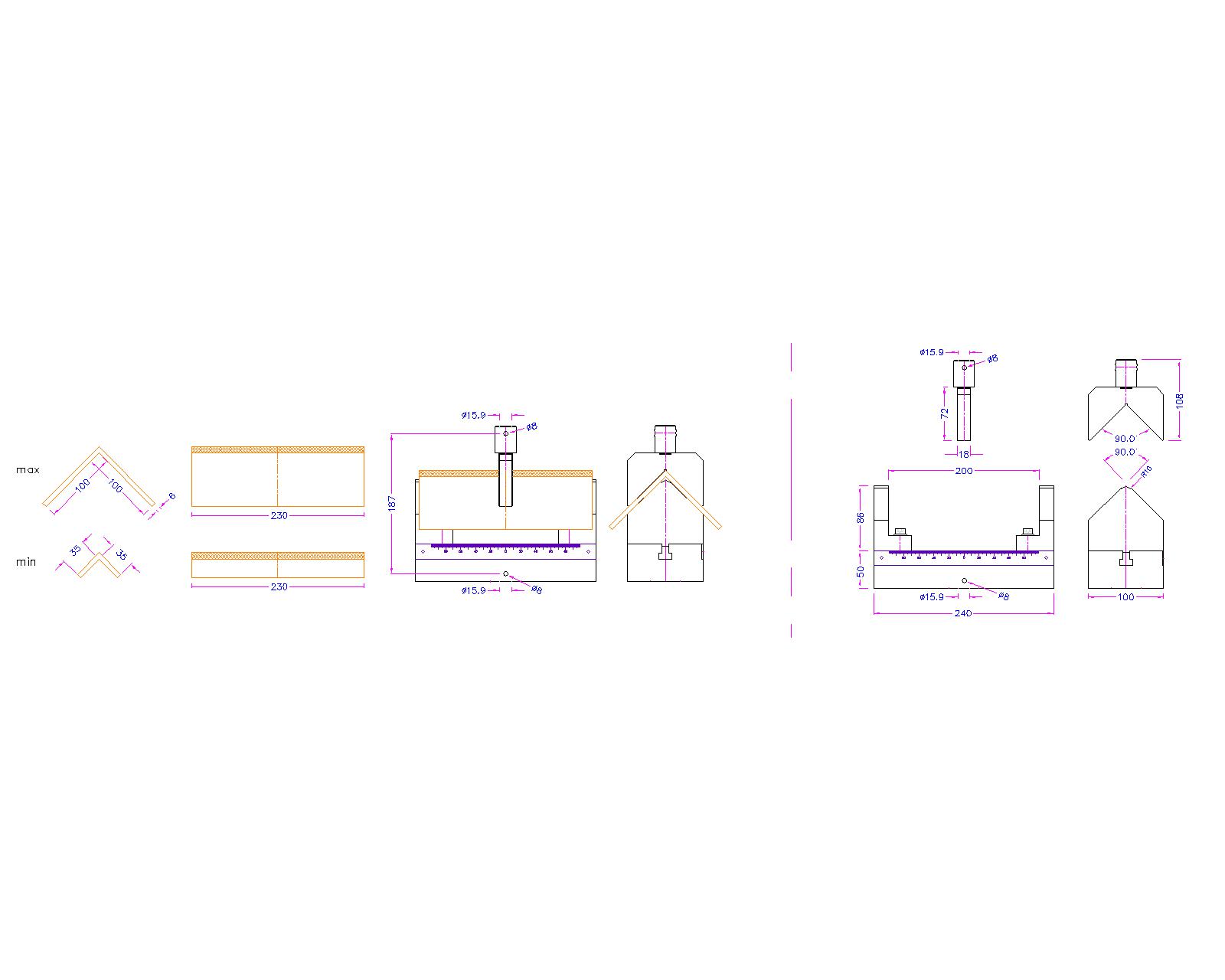

THS993-240

Special fixture for packaging testing
According to EN13393
Coupling Af159
