tn_THS1037-E50x50-S2-Af38 51,1 kg 2019-02-06 03 45° compression-shear test ASTM-D1037-fig 31

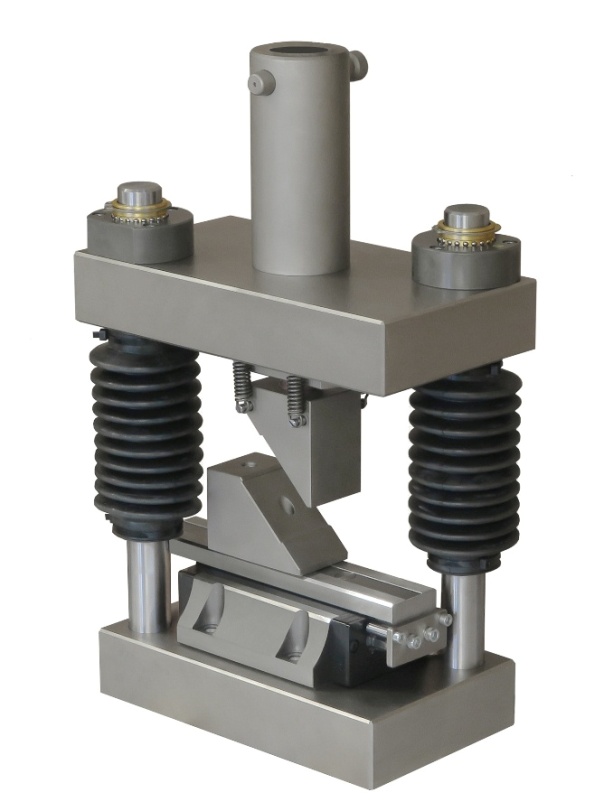

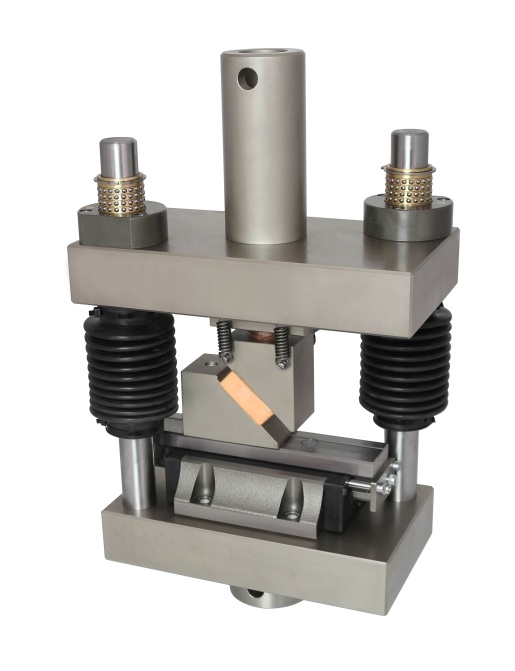

THS1037-E50x50-S2



45° compression-shear test fixture according to ASTM-D1037-Fig.31
Max. load 100 kN

THS1037-E50x50-S2-Af318_16_45°_shear_jig

THS1037-E50x50-S2

tn_THS1037-E50x50-S12-GT+P 3.5kg ASTM-D1037-Fig.31 carriers+inserts

THS1037-E50x50-S2-GT+P



Carriers and insert plates

For 45° compression-shear test fixture according to ASTM-D1037-Fig.31

to accommodate samples of multiple thickness.

Carriers have magnets to attach insert plates
