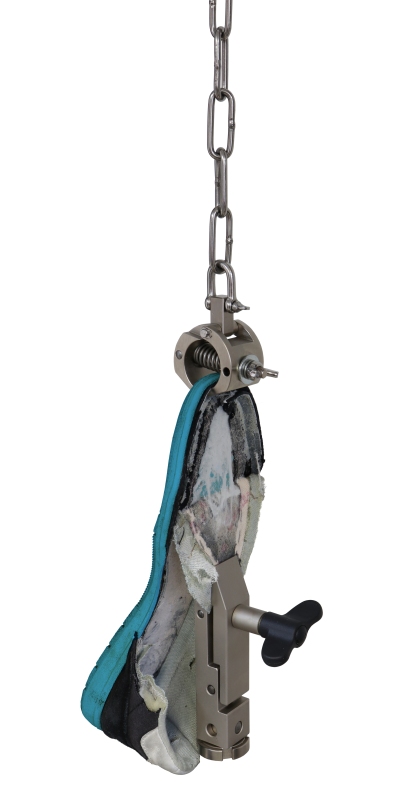

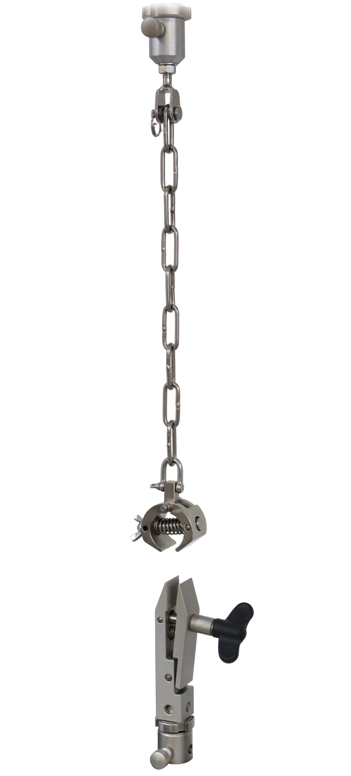

Bond strength test fixture to measure the force required to separate the upper from the sole of the footwear consists of upper and lower pincer grips
according to ISO17708 and ISO20344-Fig.5 Jaw opening of both pincer grips 0-10 mm Chain length 273 mm Steel, Coupling Af20

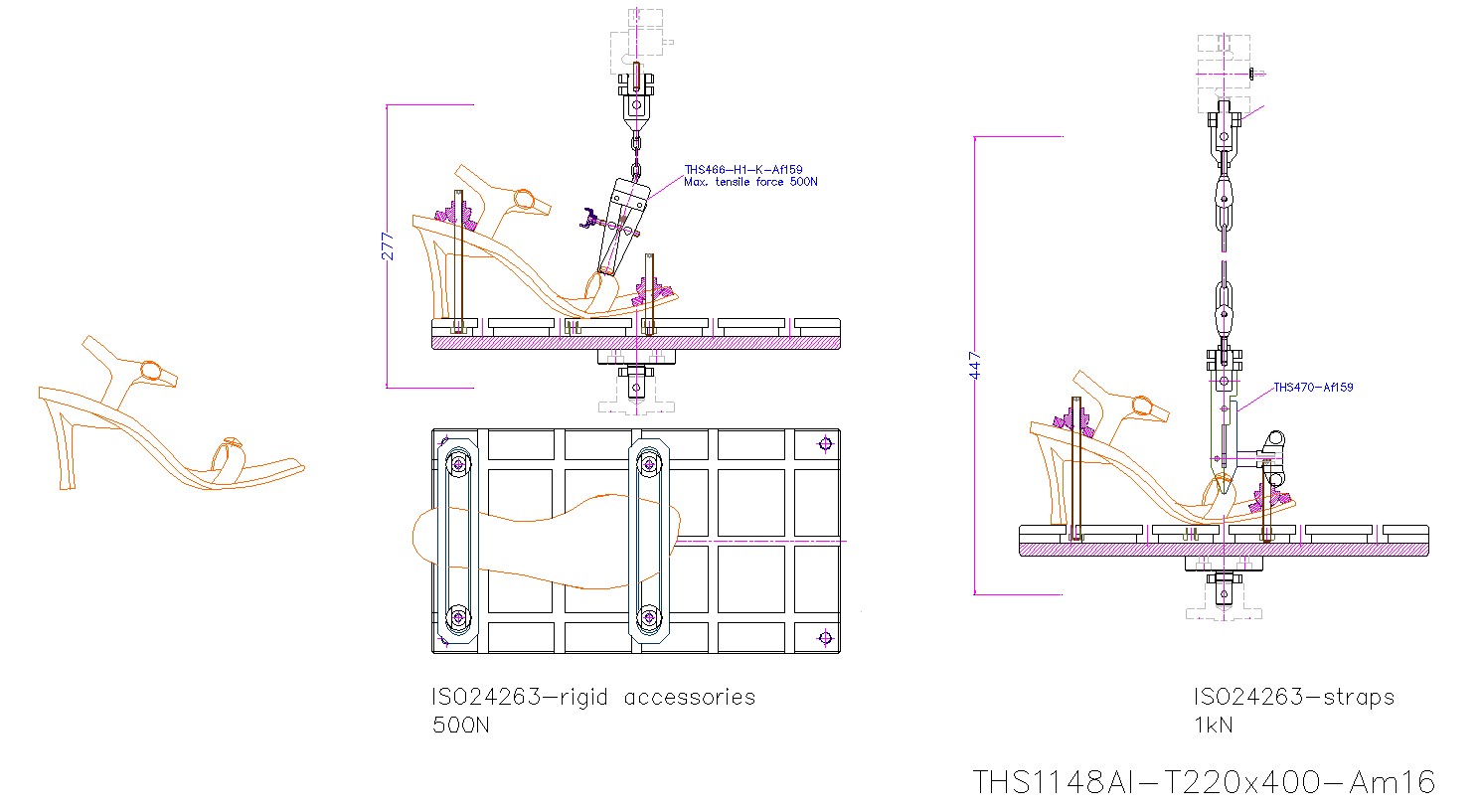

Test fixture for determining the attachment strength of straps, trims, and
accessories on footwear according to ISO24263
Max. load 1 kN
T-groove platen dimensions 220x400
mm
Aluminium, anodized
