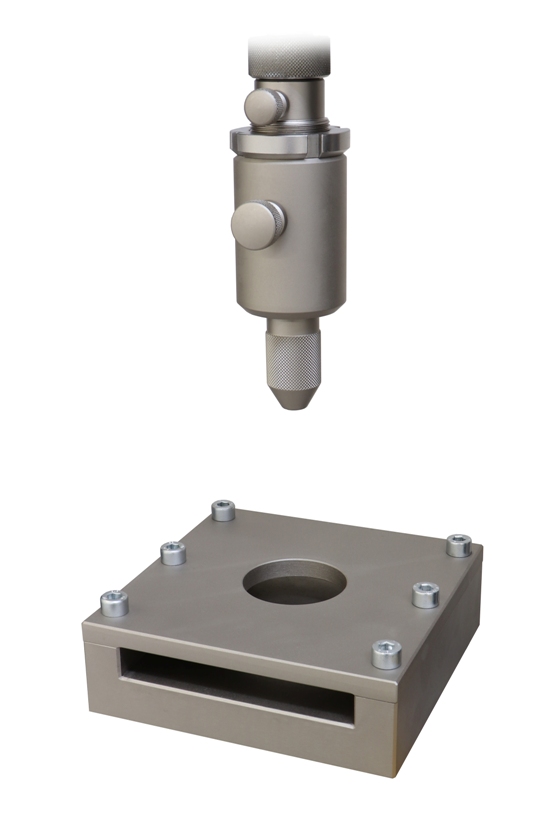

THS839-30-SH6-Am25_ASTM-D7332-Method-B_Fastener_Pull-Through_Test_Fixture_9,5kg

THS839-30-SH6-Am25-ASTM-D7332-Method-B



Fastener pull-through test fixture

for measuring the fastener pull-through resistance of a fiber-reinforced polymer matrix composite

according to ASTM-D7332 Method B

Max. load 20 kN

Coupling Am25

Fastener size M6

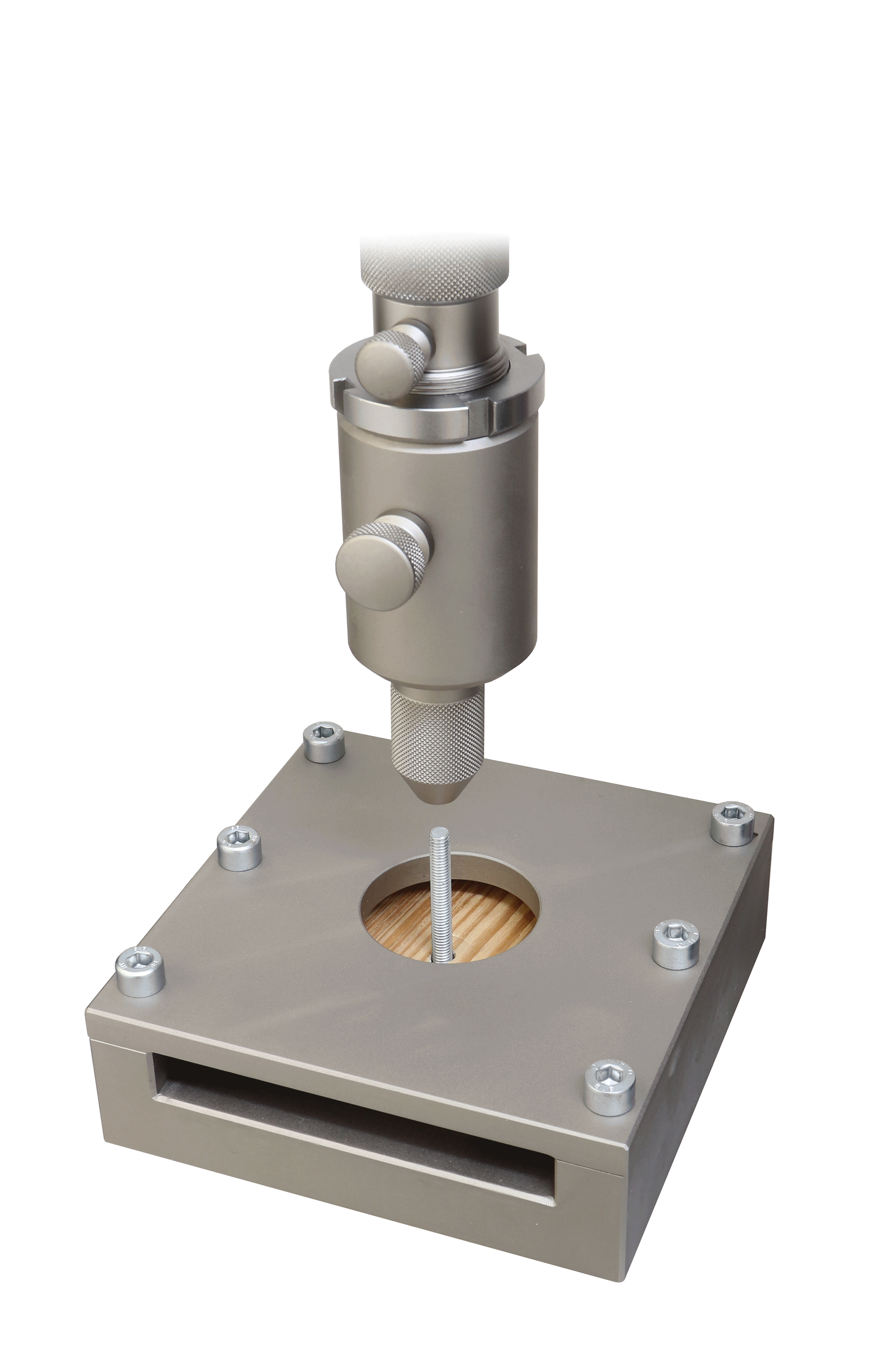

Animation

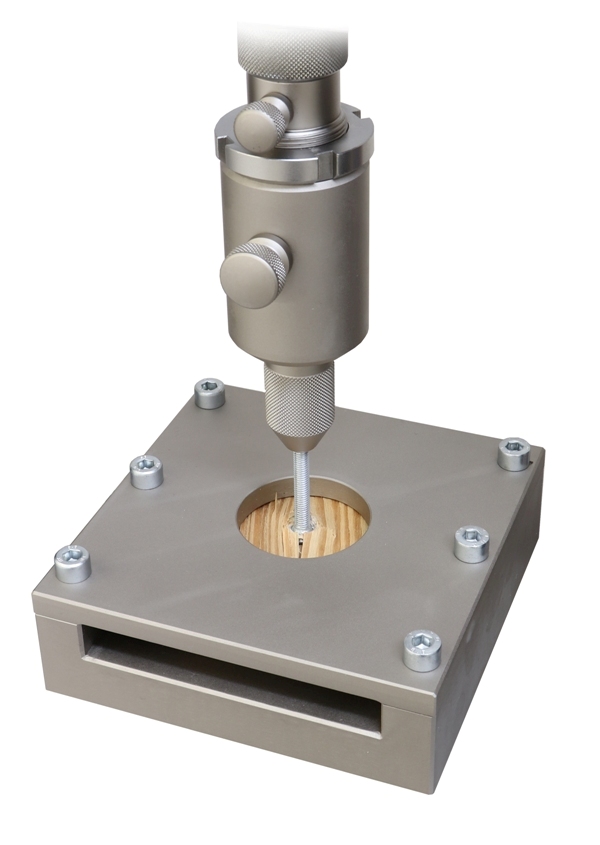

THS839-30-SH6-Am25_ASTM-D7332-Method-B_Fastener_Pull-Through_Test_Fixture_9,5kg_02

THS839-30-SH6-Am25-ASTM-D7332-Method-B

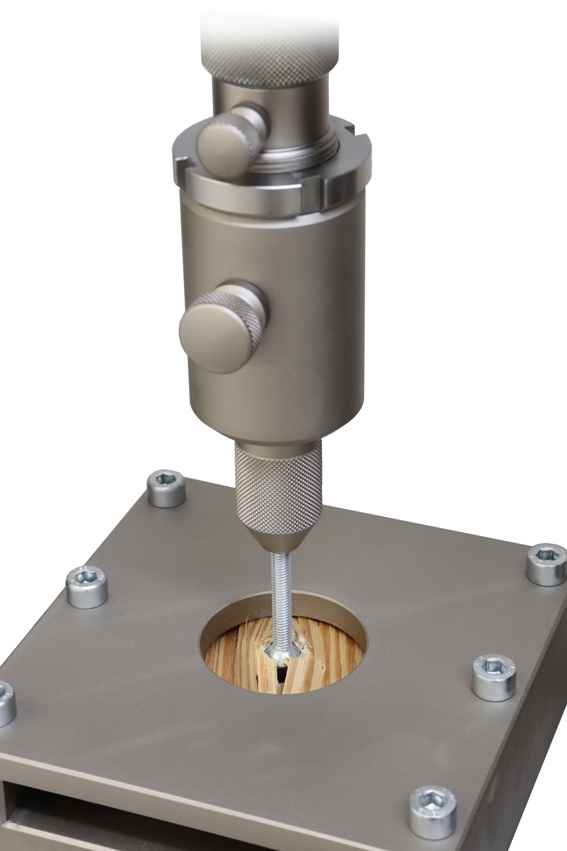

THS839-30-SH6-Am25_ASTM-D7332-Method-B_Fastener_Pull-Through_Test_Fixture_9,5_kg

THS839-30-SH6-Am25-ASTM-D7332-Method-B

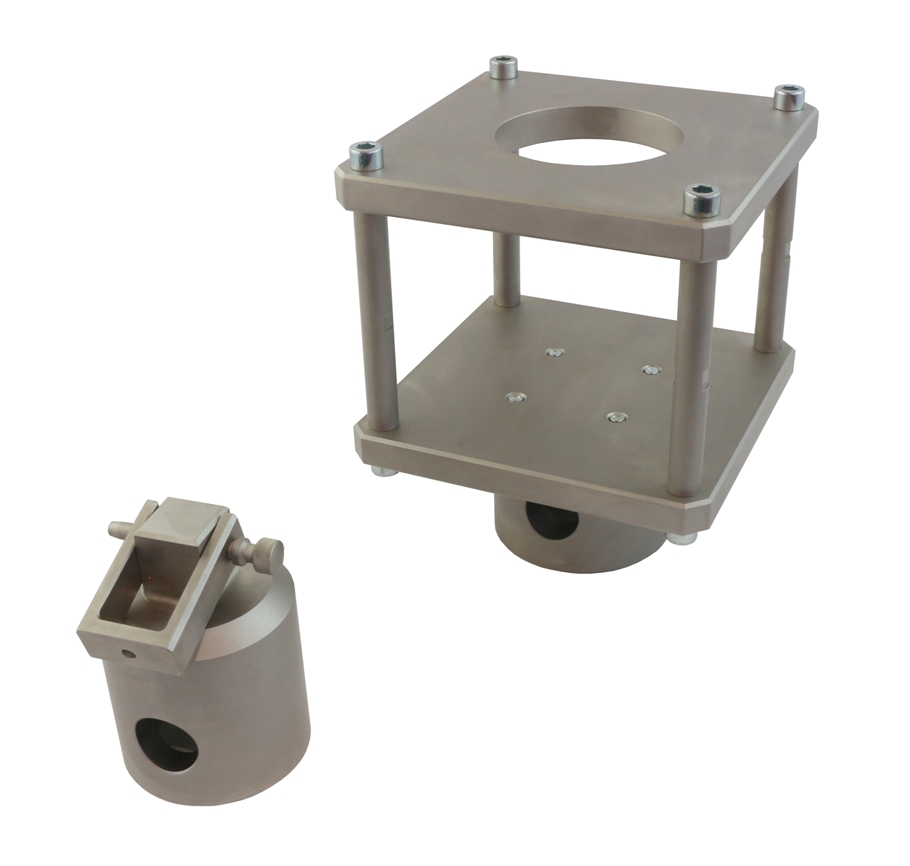

THS839-24x38-Af603035

Special fixture, similar to ASTM-D7332
Max. load 10 kN
Steel, hardened, nickel-plated

Temperature range: 0°C - +70°C
Coupling Af60/30-35
