THS1514-ISO4624-fig.3_Centering_Device_pull-off_test_for_paint_adhesion_0.38kg

THS1514-ISO4624

Centering device according to ISO4624 Fig.3 for ensuring proper coaxial alignment of the test assembly during the adhesion process

Hole diameter 20 mm, height 40 mm

Aluminium



Zentrierungshilfe gemäß ISO4624 Fig.3


Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: pdf_icon.gif TH1514 Datasheet.pdf

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: pdf_icon.gif TH1514 Datenblatt.pdf

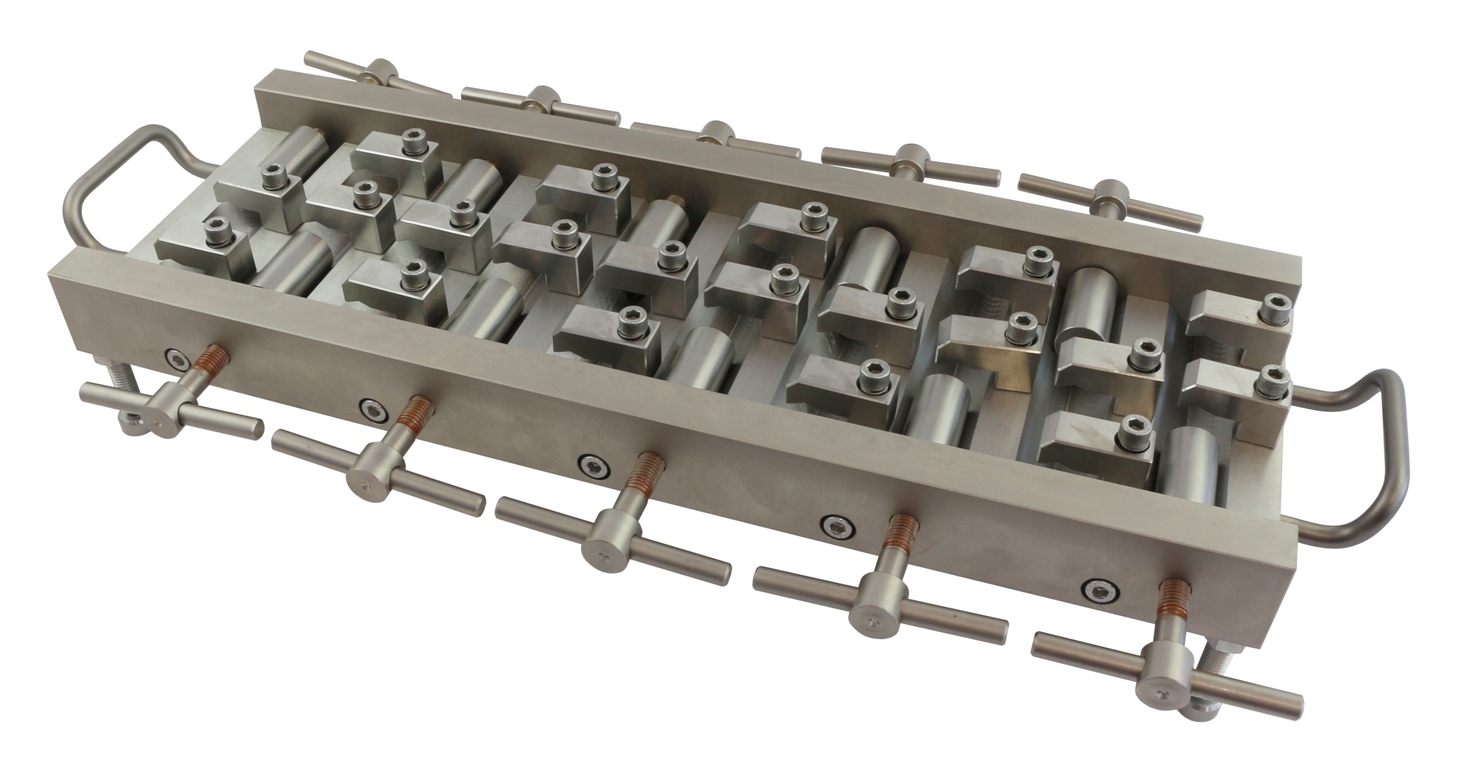

THS1514-ISO14916-B1_centering_fixture_Thermal_spraying_tensile_adhesive_strength_30kg

THS1514-ISO14916-B1


Equipment for sample preparation

for subsequent adhesion strength evaluation according to ISO14916 Figure B1

For 5 samples, steel

Temperature range 0 … +200°C



Vorrichtung zu Probenvorbereitung,
zur späteren Ermittlung der Haftzugfestigkeit, gemäß ISO14916 Bild B1
