Pneumatic wedge grip
Clamping force: 103 kN at 7 bar and 50 kN load
Jaw clamping surface: 67x60 mm (height x width)
temperature range: -30° … +180°C
Steel, nickel-plated

Description: Description: Description: Description: Description: Description: Description: Description: Description: pdf_icon.gif TH175 Datasheet.pdf
Description: Description: Description: Description: Description: Description: Description: Description: Description: pdf_icon.gif TH175 Datenblatt.pdf

Jaws

tn_TH175-50 pneumatischer Keilspannkopf 50kN

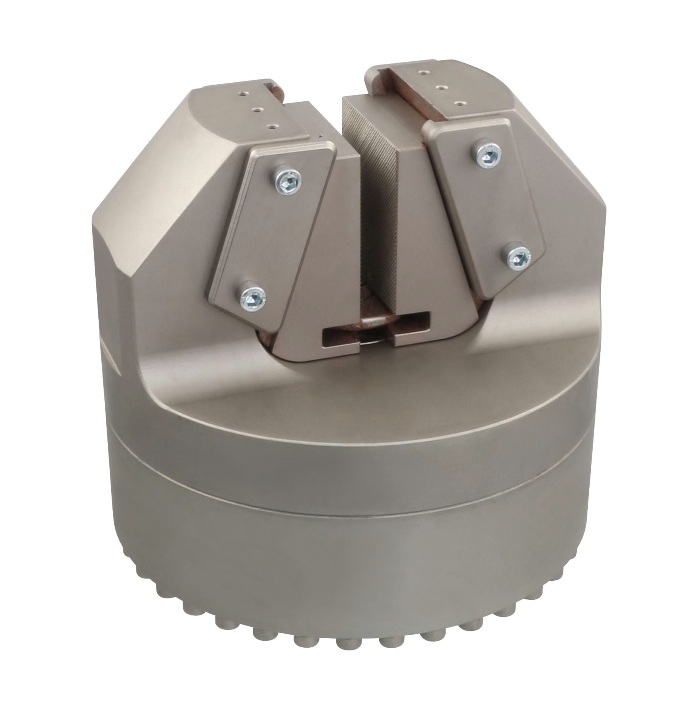

TH175-50

tn_TH175-50-Am35-xa 2020-12-11

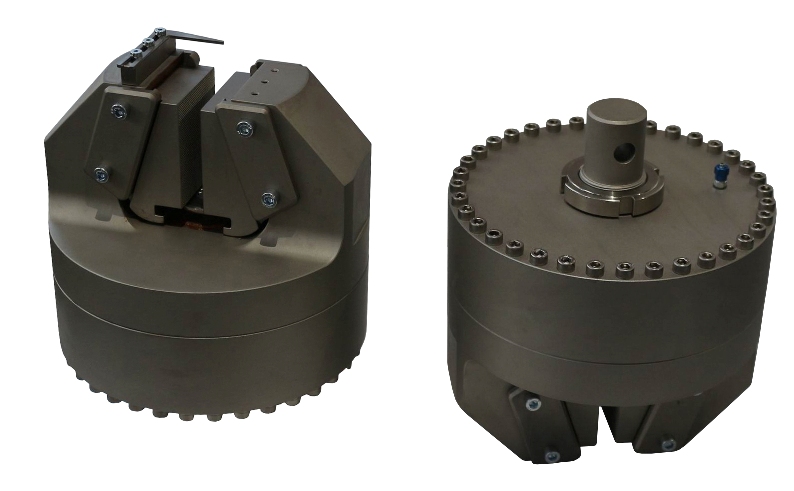

TH175-50-Am35

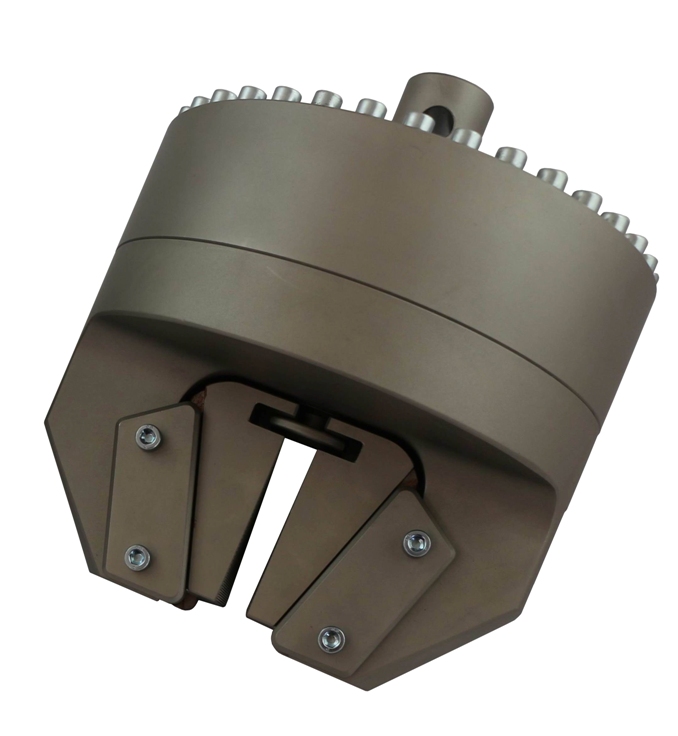

tn_TH175-50-Am317_Am35_Af318+BP12+BV12-x-2018-01-25-ready 17h6x Montage


TH175-50

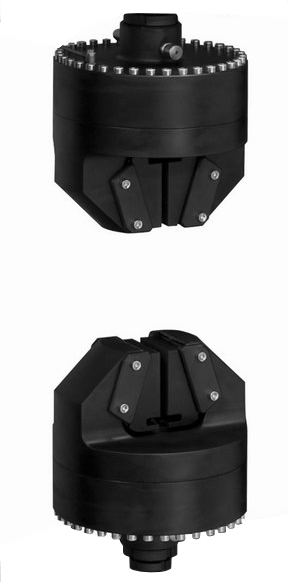

TH175-50-inmachine

TH175-50

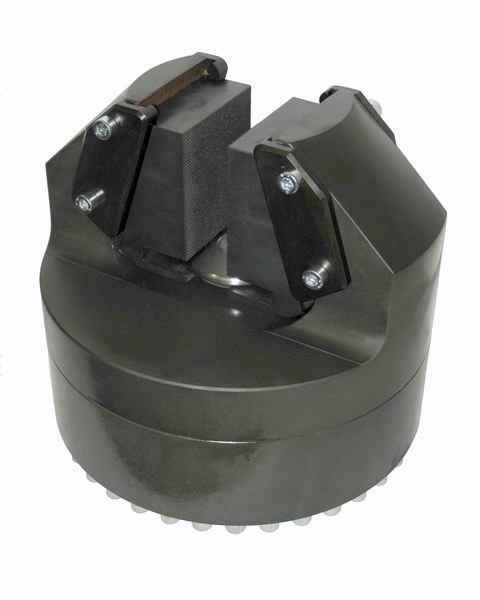

TH175-56-S30-Af318--12-08-2

TH175-56-S30-Af318

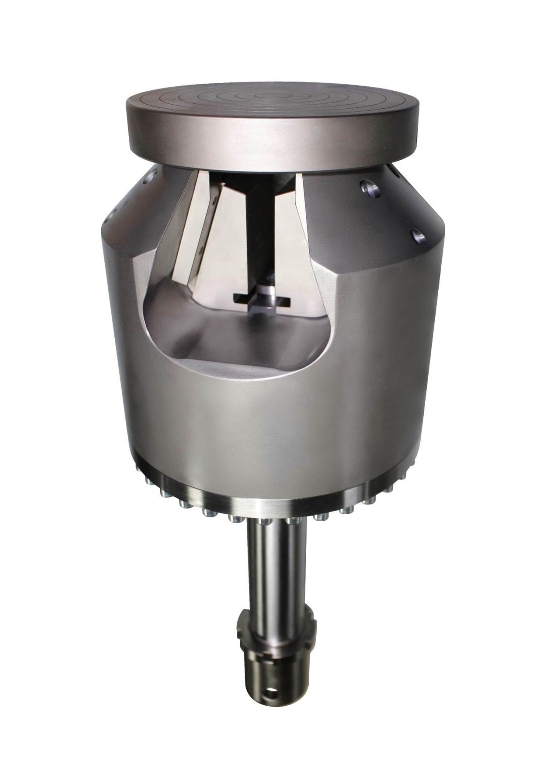

tn_TH175-50-F100-T280-Af38-L200+P156 pneumatic grip for chamber usage

TH175-50-F100-T280-Af38-L200+P156



Pneumatic grip for chamber usage



See more in G21

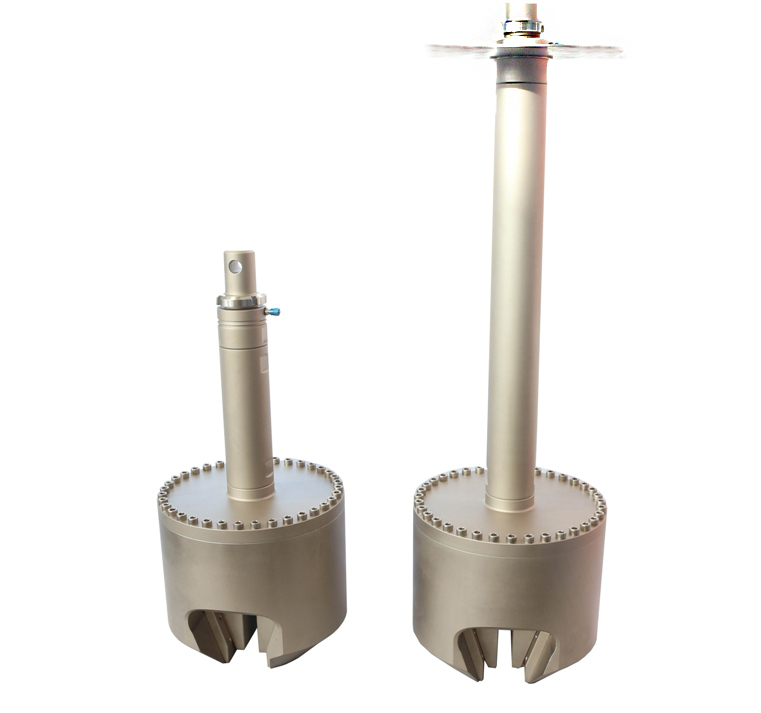

TH175-50-F100+BP13-L430-psd-Am317



Max. load 100 kN

Temperature range -30 … +180°C

Pyramid (serrated) jaws

Jaw opening 0-13 mm

Clamping surface 60x68 mm (width x  height)

Pull rod length: 430 mm and 180 mm

Diameter 50 mm

Adapter Am317
