tn_TH149+BP-Af15,9  2022-01-13 1

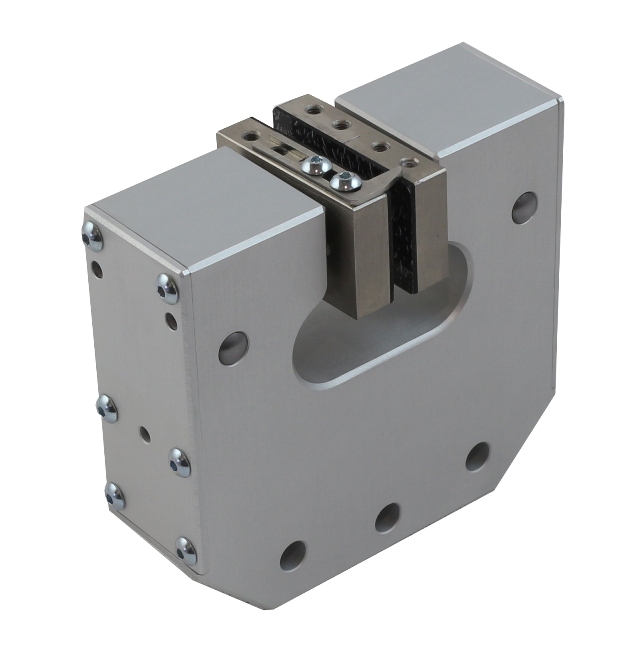

TH149

Pneumatic grip
Clamping force 2.2 kN at 7 bar,
max 5 kN / 16 bar
Aluminium, anodized


Pneumatischer Spannkopf
Spannkraft  2,2 kN at 7 bar, max 5 kN/16 bar


Description: Description: Description: pdf_icon.gif TH149 Datasheet.pdf

Description: Description: Description: pdf_icon.gif TH149 Datenblatt.pdf

Jaws

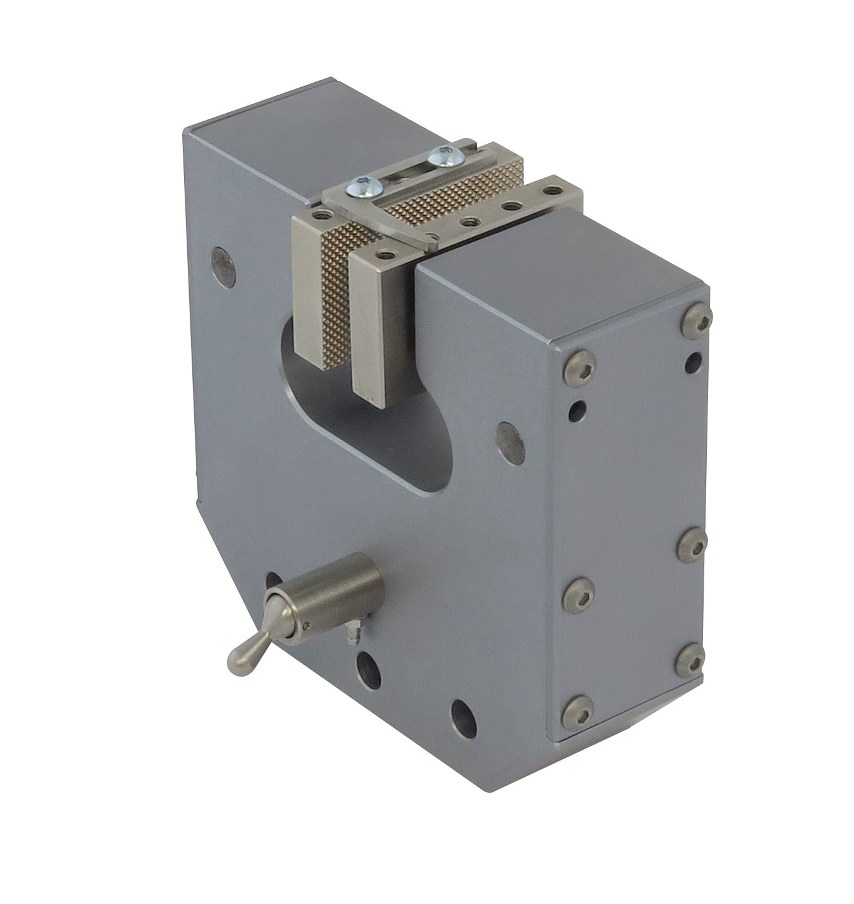

tn_TH149BP TH205-4-

TH149 + TH205-4-Option

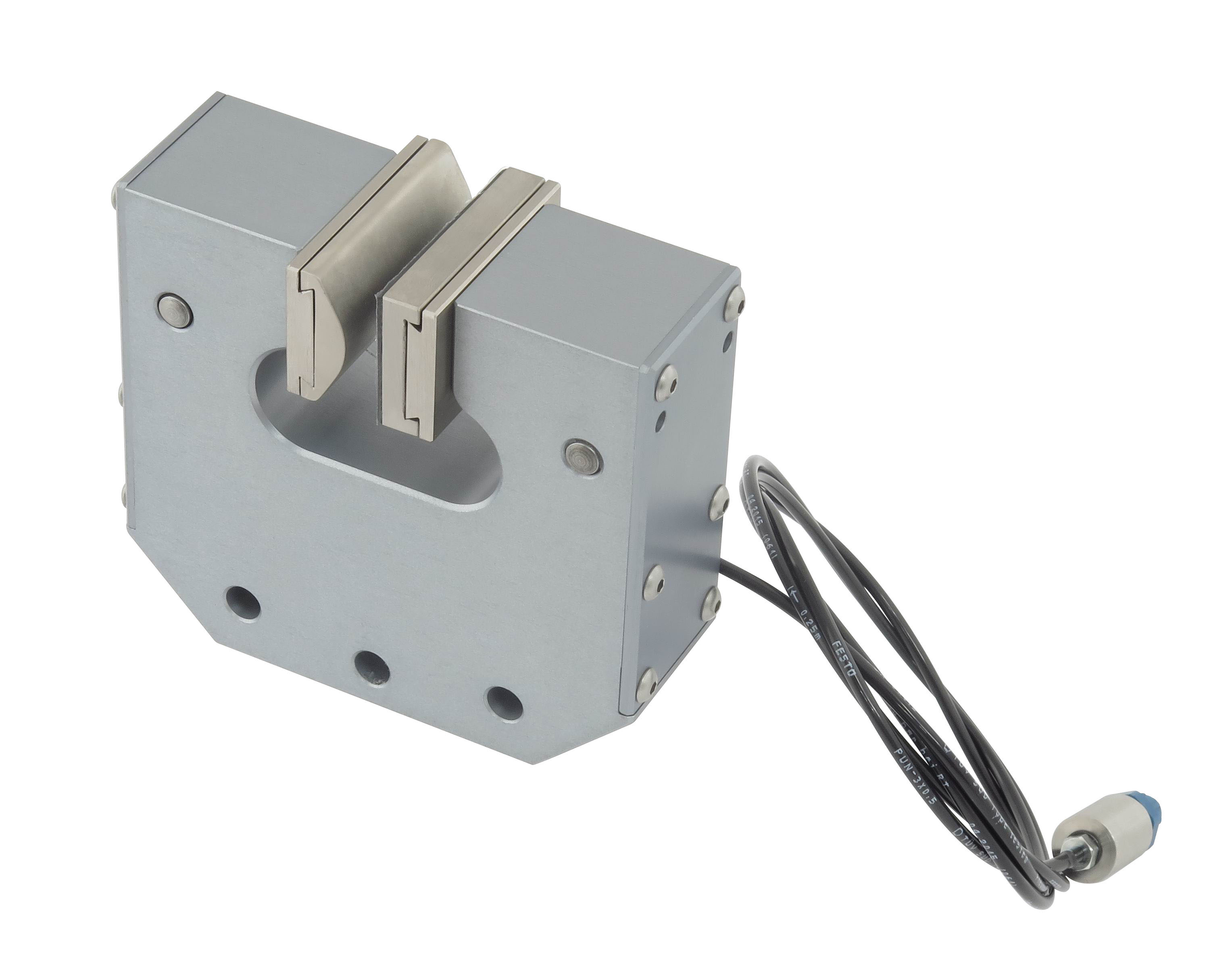

TH149GT + EBLCR15



Line contact insert jaws

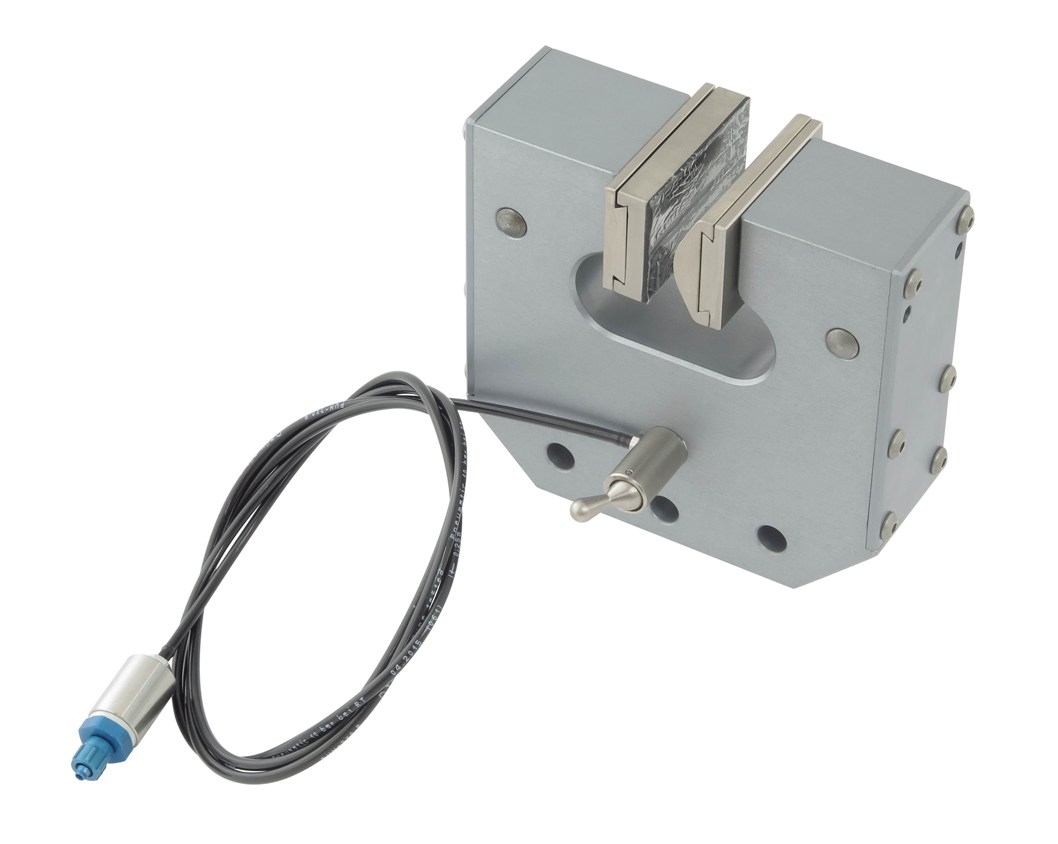

tn_TH149+GT+EBLCR15 line contact insert jaws-

TH149+GT+EBG+EBLCR15+TH205-4

EBG - Rubber jaws
EBLCR15 - Line contact jaws R.15 mm
TH205-4-1/8 - Hand switch

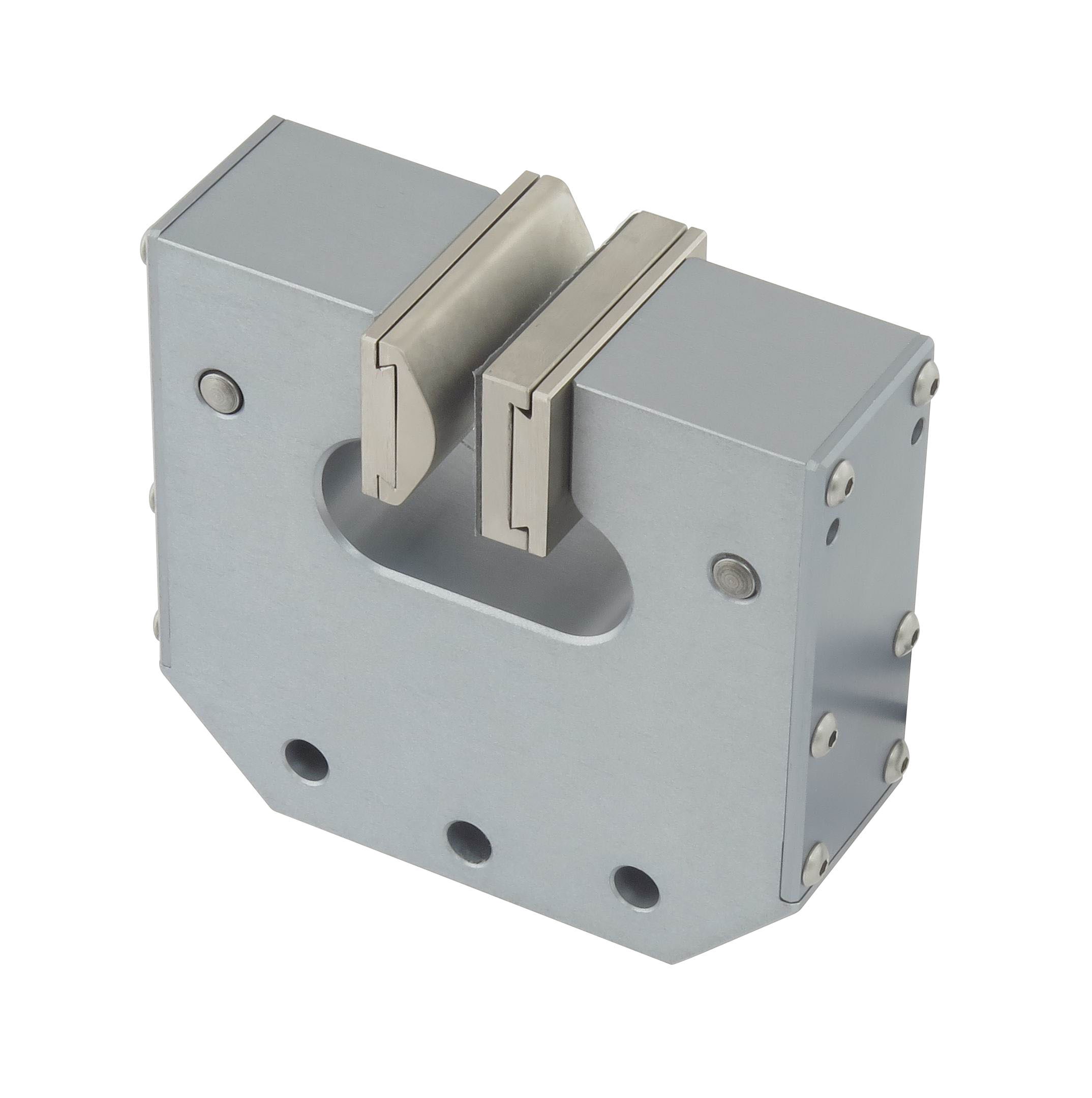

TH149GT + EBLCR15



Line contact insert jaws

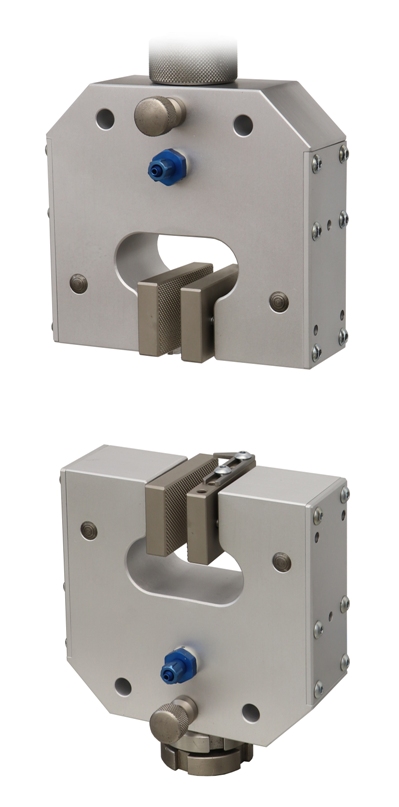

tn_TH149+BP-Af15,9  2022-01-13 03

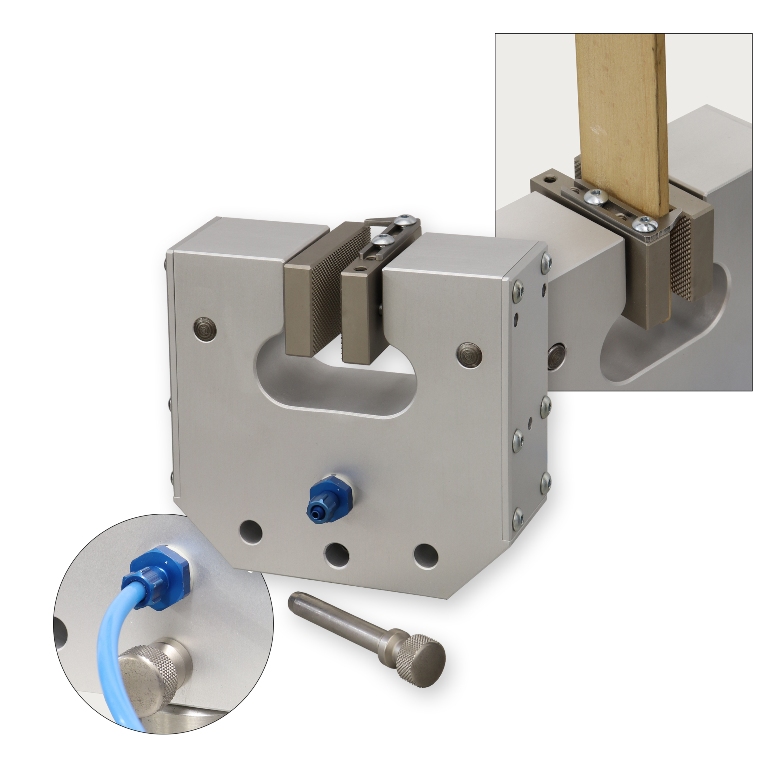

TH149-BP-Af159

Alignment tool serves to position a sample in the jaws

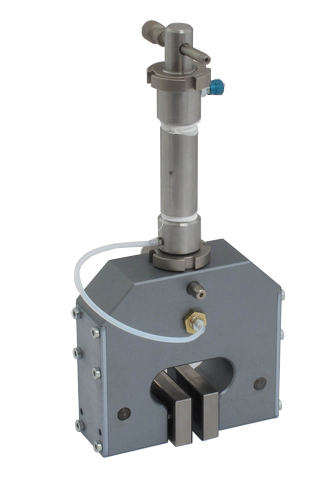

TH149+V+2R-3-12-09-2

Special versions

more
