G11 Special

Back

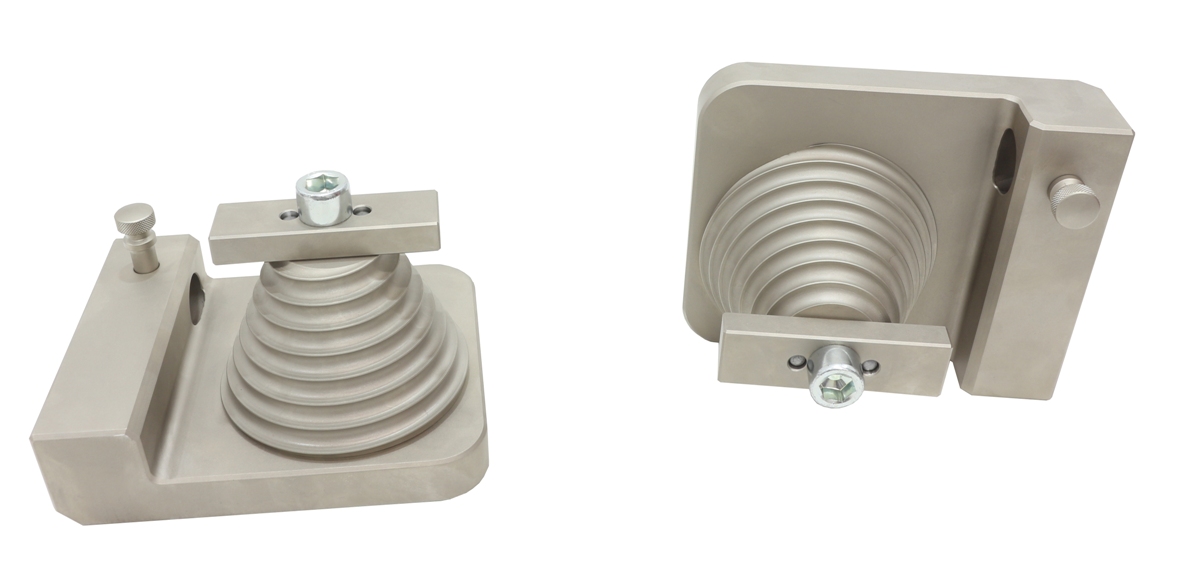

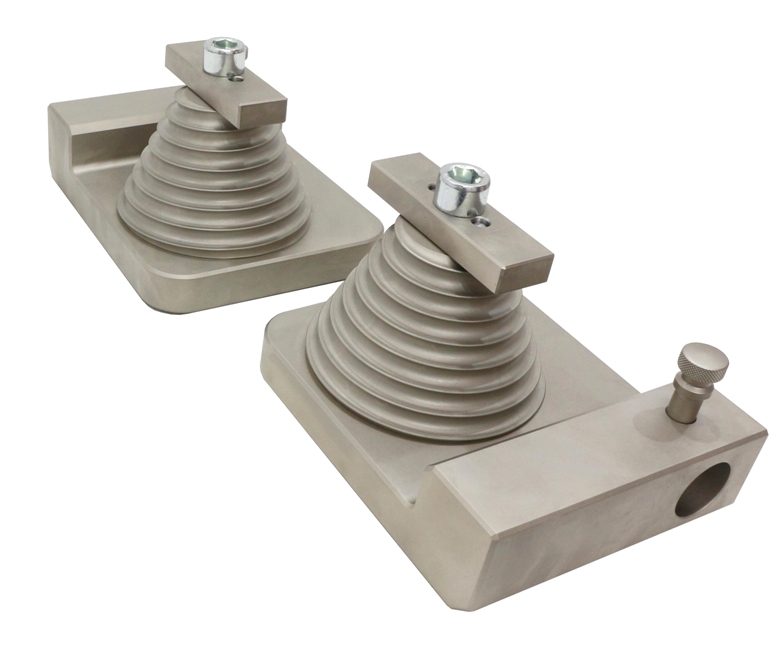

THS463-D115-K50-R5_capstan_rope_grip_12.5kg

THS463-D115-K50-R5



Special capstan rope grip with removable interchangeable rope cones.

A rope or cord is wrapped around the steel cones and pulled apart.

Min. rope length 4.2 m

Max. rope Ø 7 mm

Cones for specimens of different dimensions available on request.



Max. load 50 kN

Coupling Af318

Steel, nickel coated

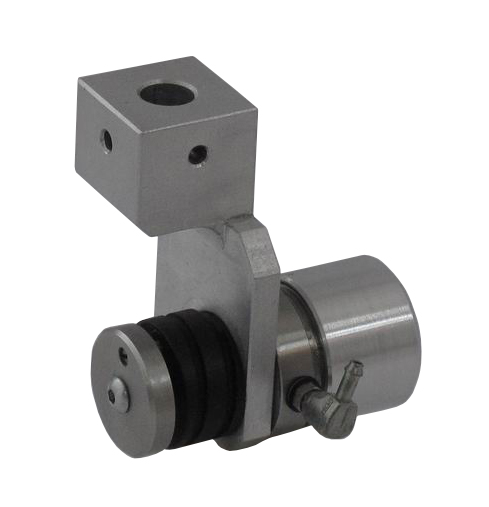

THS463-S30-Ko small rope grip 1399Ex

THS463-S30-Ko

Special small pneumatic rope grip

Spezielle kleine pneumatische Seilklemme

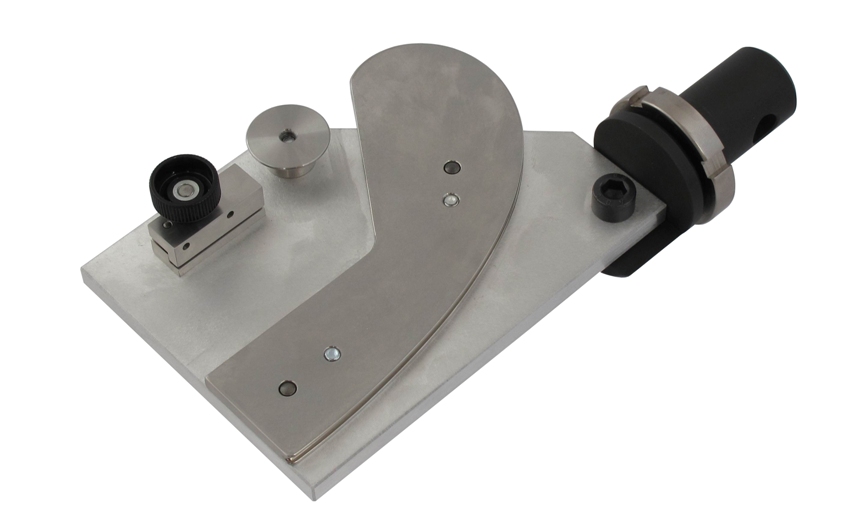

tn_THS887-50.2-Am317_sample lenght 800mm

THS887-50-D3

Rope grip for aramid fiber
Till 3 mm diameter
Curve for declining tension with polished guide R1.5
Stainless steel

Seilspannkopf für Aramidfasern
bis 3mm Durchmesser
Spannungsabbauschablone mit polierter Nut R1.5
V2a

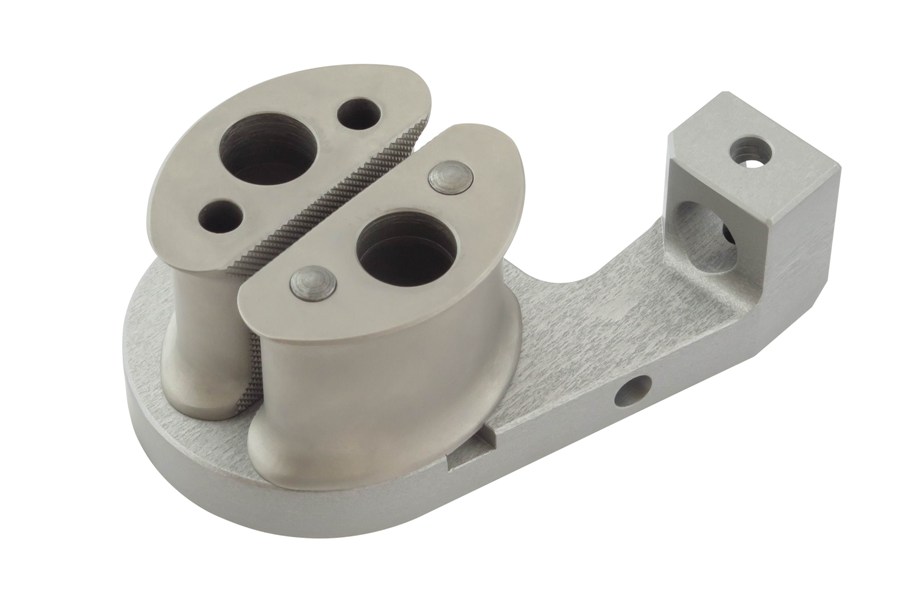

THS1161-70-15-Af159



Rope grip
Max. load 10 kN
Coupling Af159

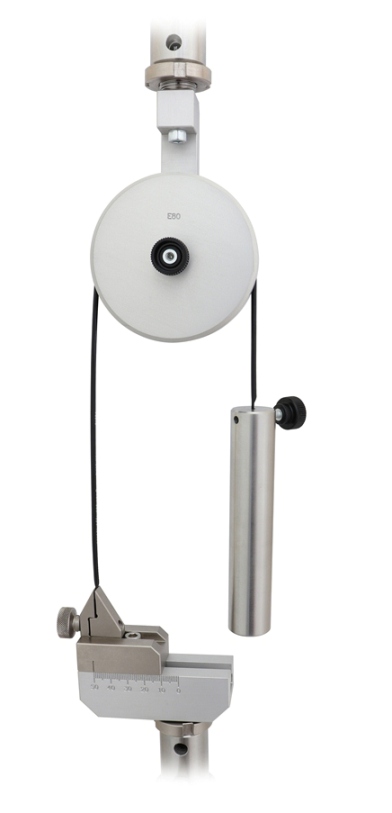

THS973-20-LV112 1,6kg 08-06-2018 02-


THS973-20-LV112



Electrical cables for motor vehicles. Single-core, unshielded.

Sliding properties of electrical cables for motor vehicles

according to LV112-1-Fig.3
