G11 Rope grips



Back

TH76-1-150-BD--diamond jaws for glas fiber--.jpg

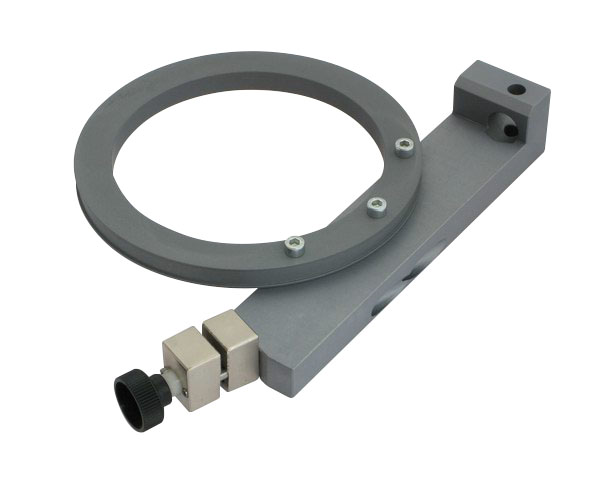

TH76-1+150+BD



Diamond surface jaws for glas fiber

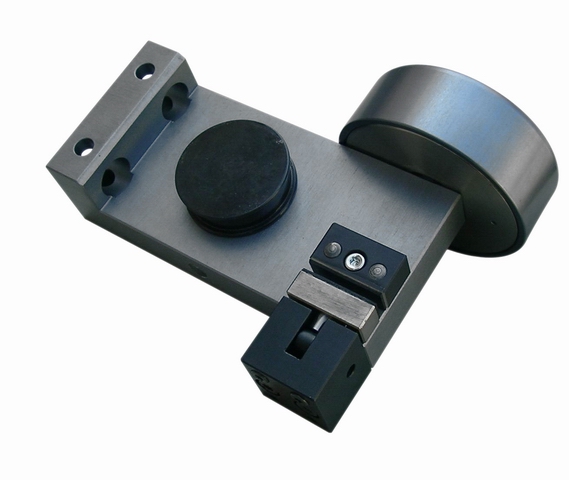

TH76-5+Ko-2A



Same as TH76-5+Ko but with 2 couplings

TH76-1-D100Ko  TH205-4-.jpg

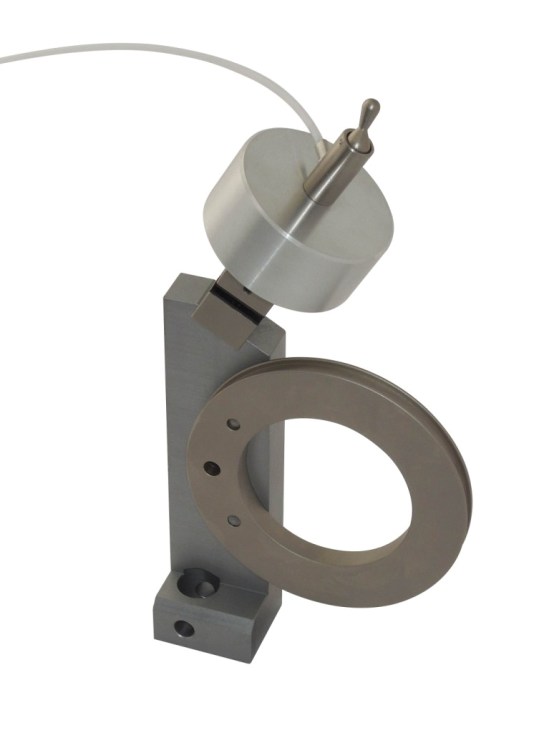

TH76-1-D100+Ko + TH205-4



100 mm capstan,

with pneumatic micro hand switch TH205-4

tn_THS1192-Ko-IEC60793-32 -1144g  +  TH76-1-D80+Ko+BD  2021-08-02 02

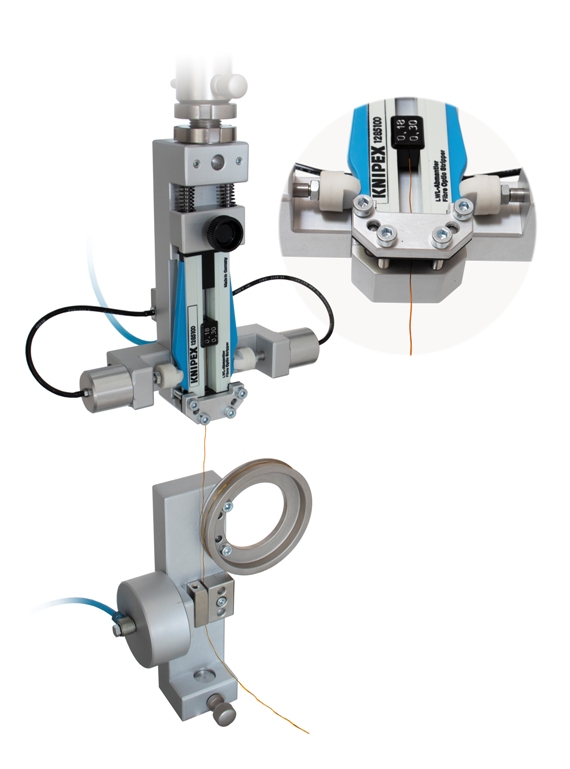

THS1192+Ko + TH76-1-D80+Ko-IEC 60793-1-32

Pneumatic stripping fixture according to DIN EN/IEC 60793-1-32 Fig. 1
to test optical fibre
Includes top grip with stripping tool and bottom capstan grip
Body: aluminium, anodized
Pneumatic accessories, see TH205

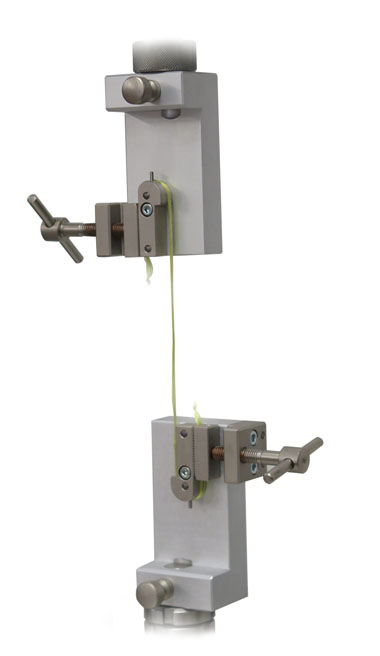

TH76-2-R9-Af159-GOST23785.1



Mechanical rope grip

to test breaking strength of cord

according to GOST23785.1 Ann. A

Max. load 2 kN

Jaw opening 0-8 mm

Min. sample length 300 mm

Coupling Af159

TH76-2-R9-Af159-GOST23785.1

TH76-2-R9+Ko-Af159-GOST23785.1



Pneumatic rope grip

to test breaking strength of cord

according to GOST23785.1 Ann. A

Max. load 2 kN

Jaw opening 0-8 mm

Min. sample length 300 mm

Coupling Af159

TH76-2-R9+Ko-Af159-GOST23785.1
