G09 Chuck & Button Head Grips



Back



THS565-60



Chuck grip carrier with spherical seated
Steel, hardened, nickel coating

Temperature range 0°C - +70°C



Description: Description: pdf_icon.gifTHS565 Datasheet.pdf

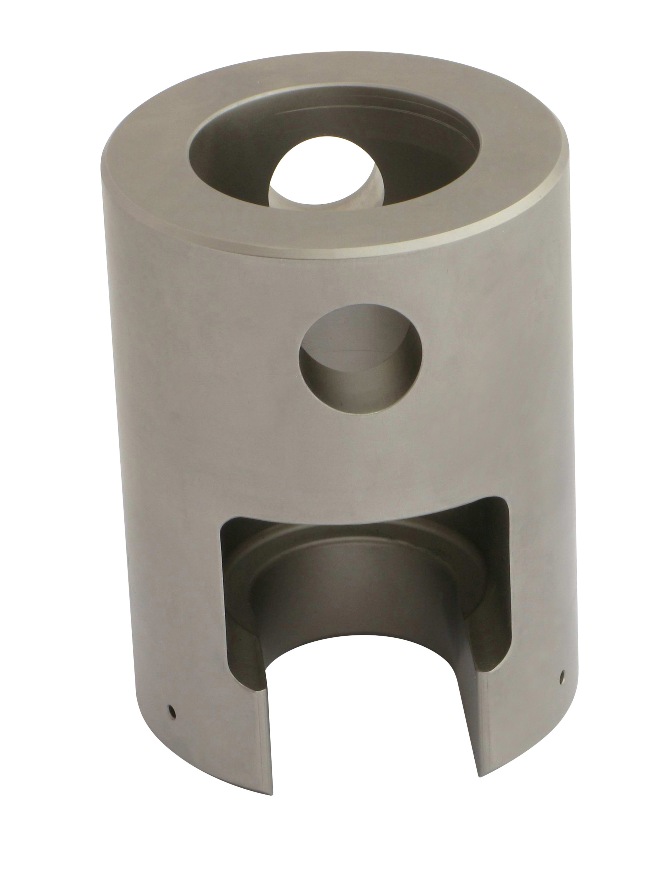

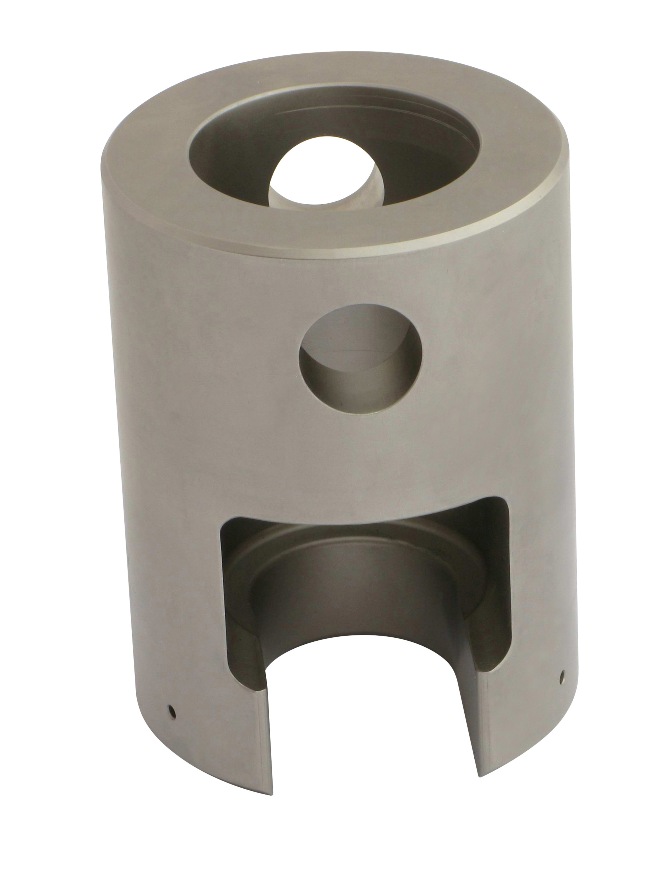

Description: Description: tn_THS565-6025-

THS565-60



Chuck grip carrier with spherical seated

Open for side loading

300 kN, Adapter 60 incl. Pin and ring

Träger für halbierte Einsätze

für Schulterproben mit Kugelpfanne

300 kN, Adapter 60 inkl. Ansteckstift und Ring

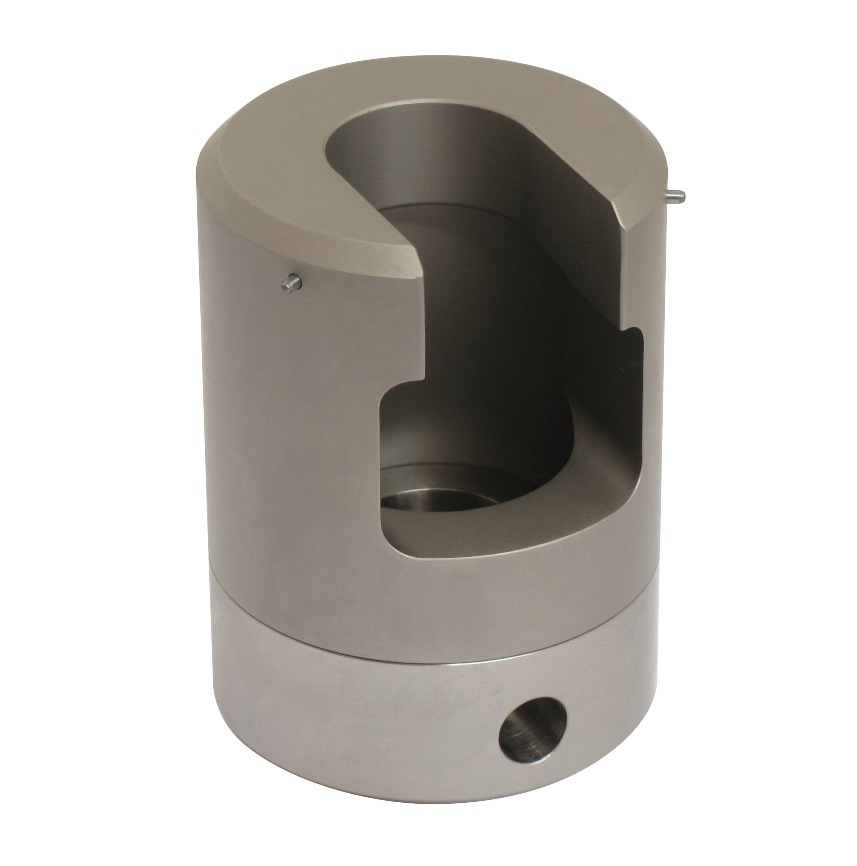

Description: Description: tn_THS565-60-Af3816-

THS565-60-Af38



Chuck grip carrier with spherical seated

Open for side loading

100  kN, Adapter 38/16 incl. Pin and ring



Träger für halbierte Einsätze

für Schulterproben mit Kugelpfanne

100 kN, Adapter 38/16 inkl. Ansteckstift und Ring

Description: Description: tn_THS565-60-EHK15R1-

THS565-60-EHK15R1



Insert for button head samples

Inserts are split into two parts





Einsatz für Schulterproben

Einsätze sind zweitgeteilt

Description: Description: Größenänderung THS565-EMspecial16

THS565-60-EM16

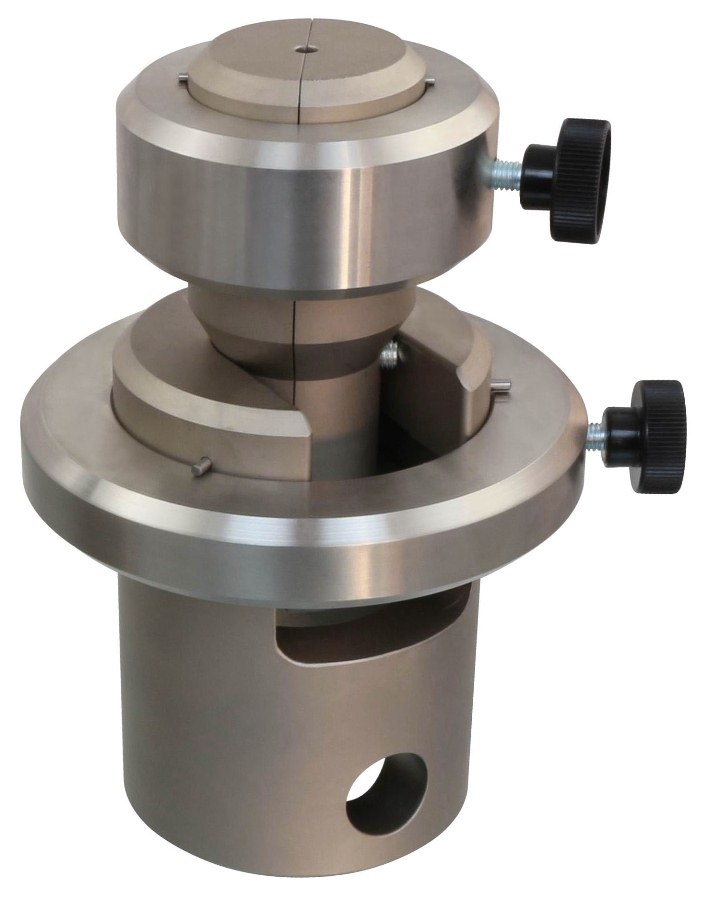

THS565-60-E12R1

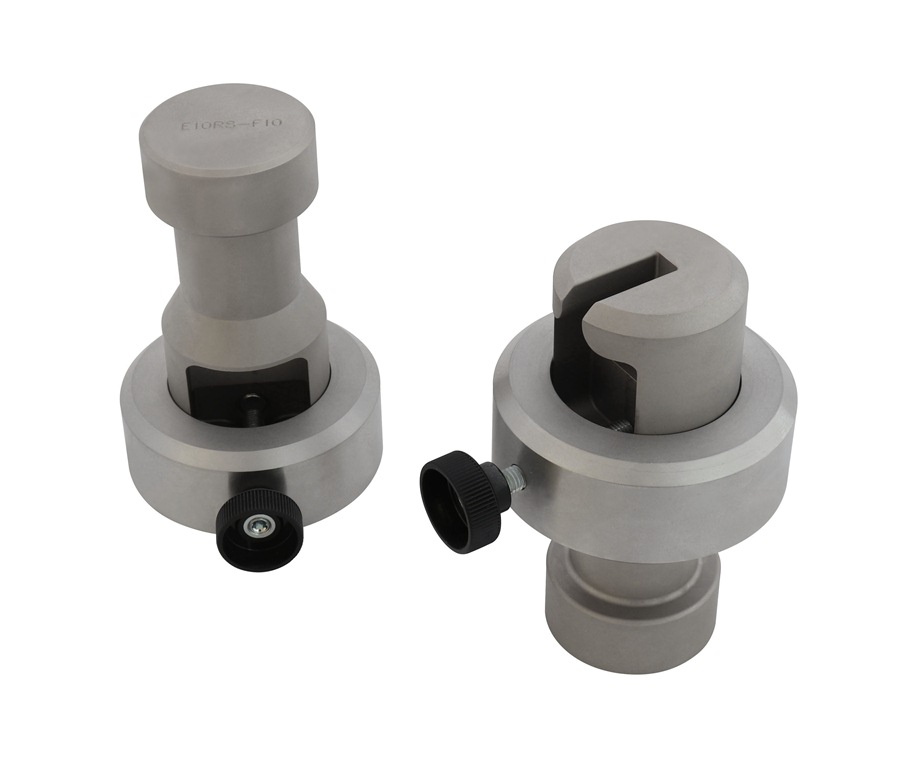

THS565-E10R8-F10

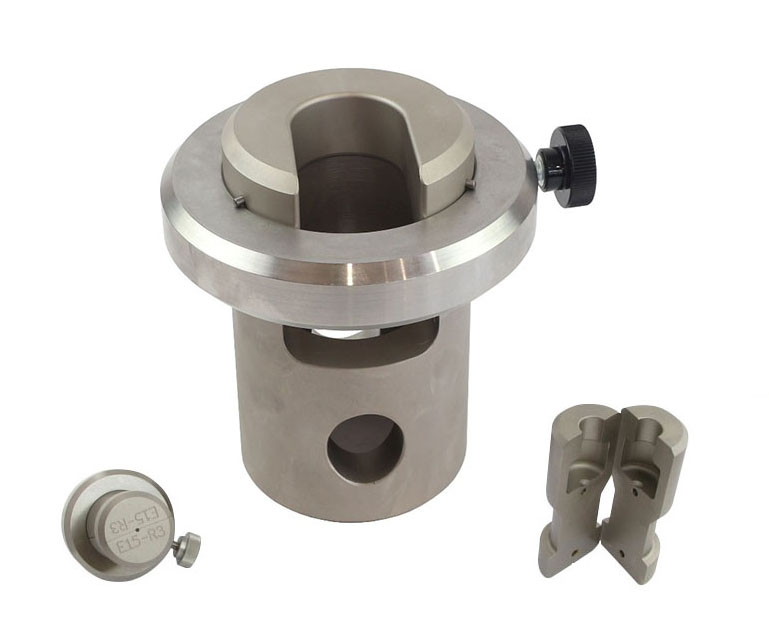

THS565-60-Af50-GT+E10R3b 100kN

THS565-60-Af50-GT+E10R3



Tensile test grip for shoulder-head samples 10 mm diameter with radius 3 mm

Max. load 100 kN

Coupling Af50

Steel, nickel-coated, hardened

Carrier + insert

THS565-60-E5R1_2.47kg_2022-07-21

THS565-60-E5R1

Inserts for button head samples
For shoulder-head samples 5mm diameter with radius 1 mm

Steel, hardened, nickel coating

THS565-60-E6.35R4.78_2022-10-08

THS565-60-E6.35R4.78

Inserts for button head samples
For shoulder-head samples 6.35 mm diameter with radius 4.78 mm
Steel, hardened, nickel coating

THS565-60-E10R3

THS565-60-E10R3



Pair of inserts for THS565-60-Af50-GT carrier

For shoulder-head samples 10 mm diameter with radius 3 mm

Steel, nickel-coated, hardened

THS565-60-E12.7R9.53_2022-10-08

THS565-60-E12.7R9.53

Inserts for button head samples
For shoulder-head samples 12.7 mm diameter with radius 9.53 mm
Steel, hardened, nickel coating

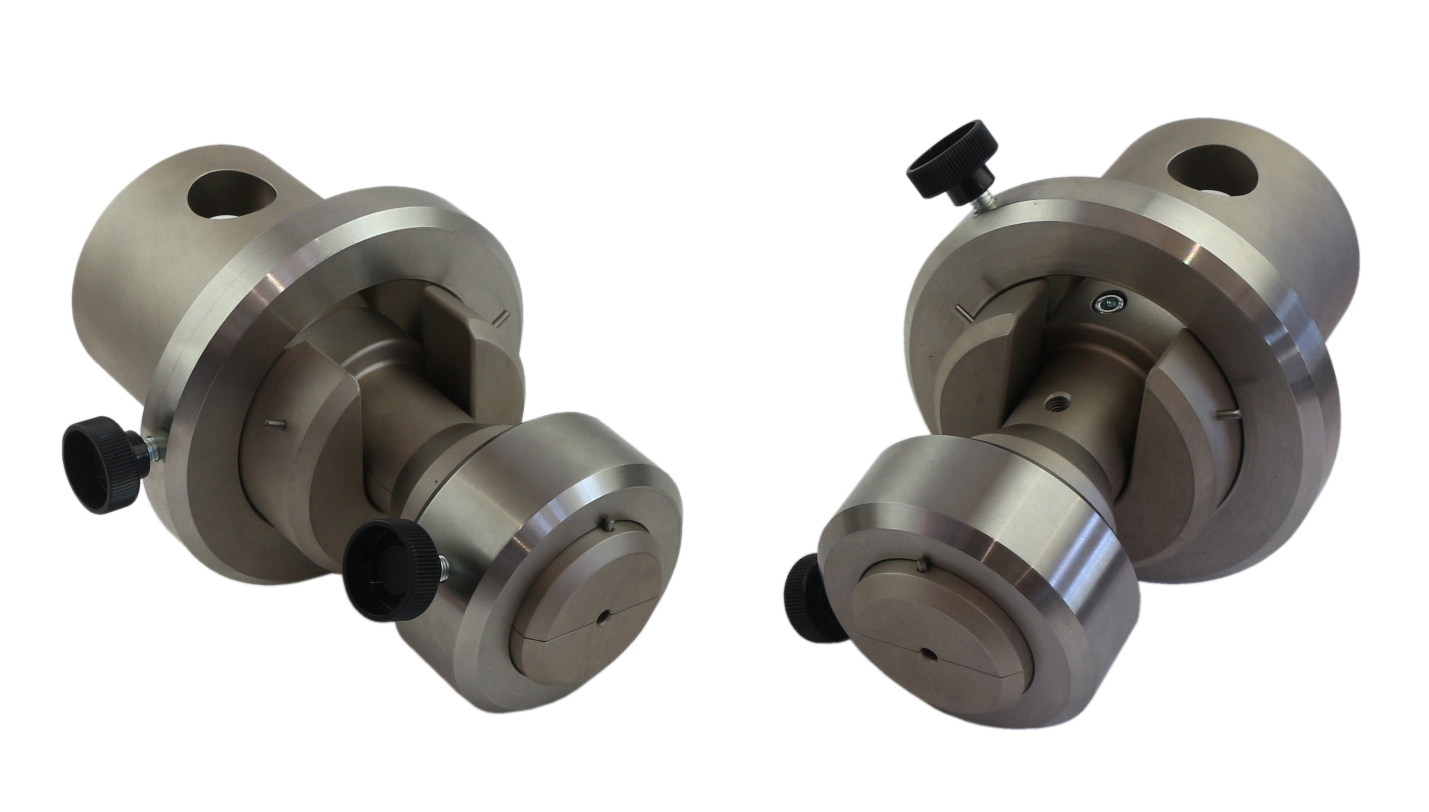

THS565-603035_2022-07-21

THS565-603035

Chuck grip carrier with spherical seat
Max. load 300 kN

Steel, hardened, nickel-plated
Coupling Af60/30-35

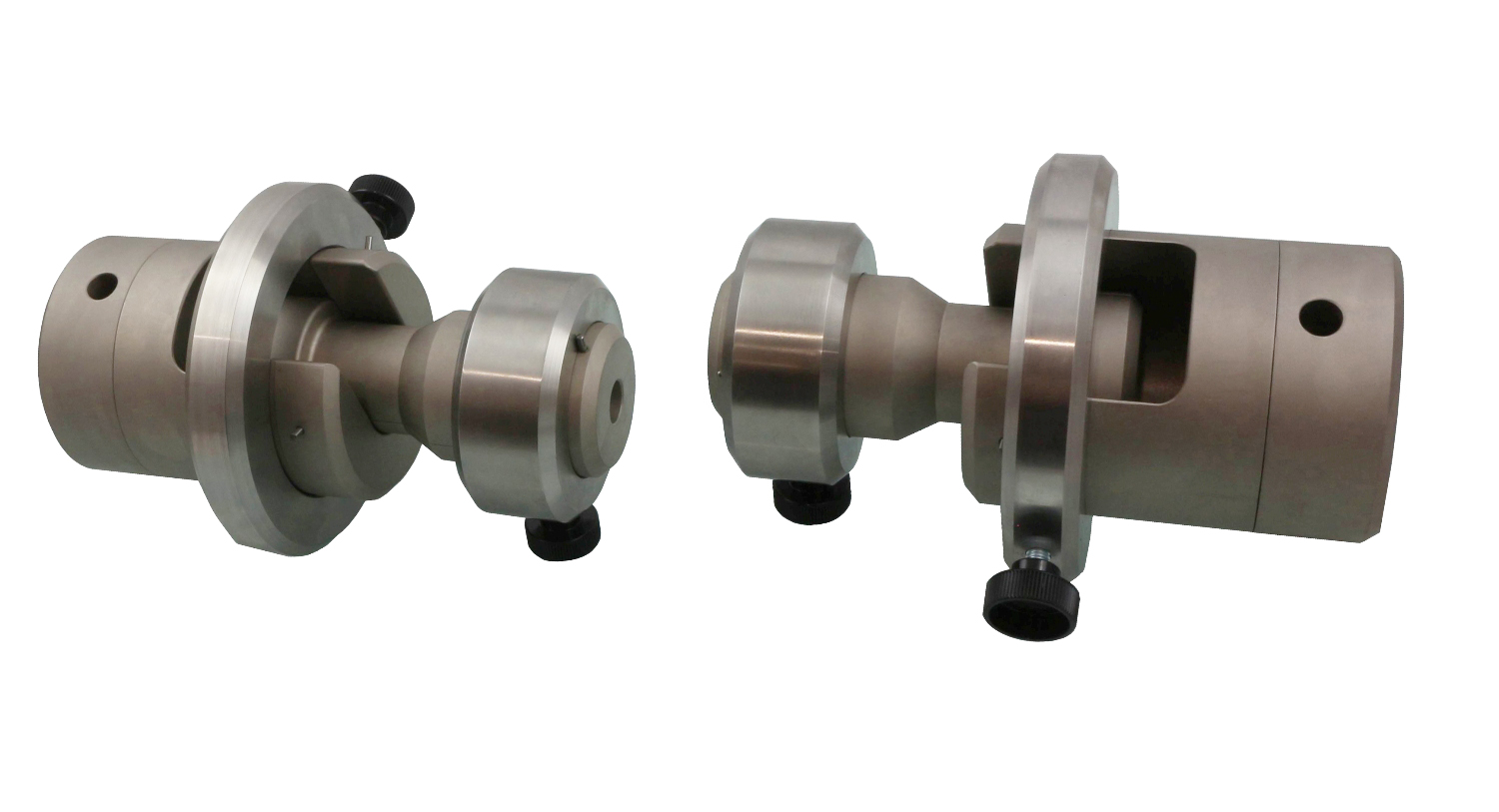

THS565-60-Af318+E16R2 ASTM-C565-Fig.3 Tensile Test Carbon Graphite Materials 01

THS565-60-Af318+E16R2
ASTM-C565-Fig.3



Special tensile test fixture

to test carbon and graphite mechanical materials according to ASTM-C565 Fig. 3
