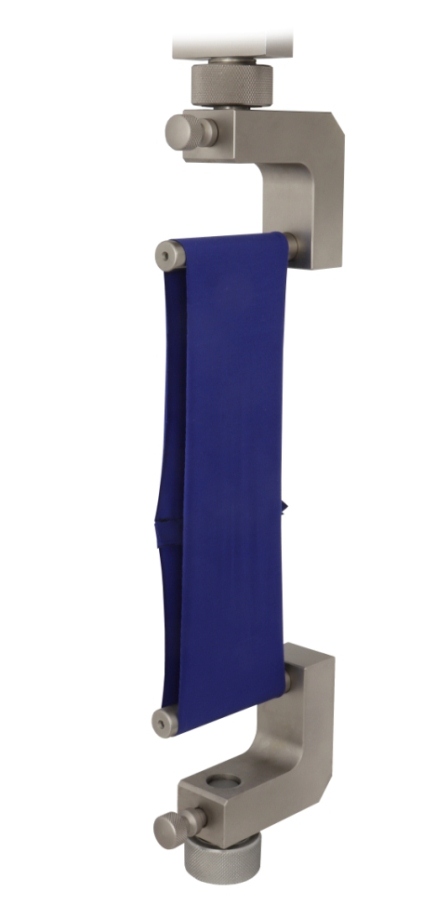

THS43-D13x76-Af159

Grips to test elongation and tension of elastic fabrics according to ASTM-D4964



More

Description: Description: Description: Description: pdf_icon.gif THS43 Datasheet.pdf

Description: Description: THS43-D10-Af159-

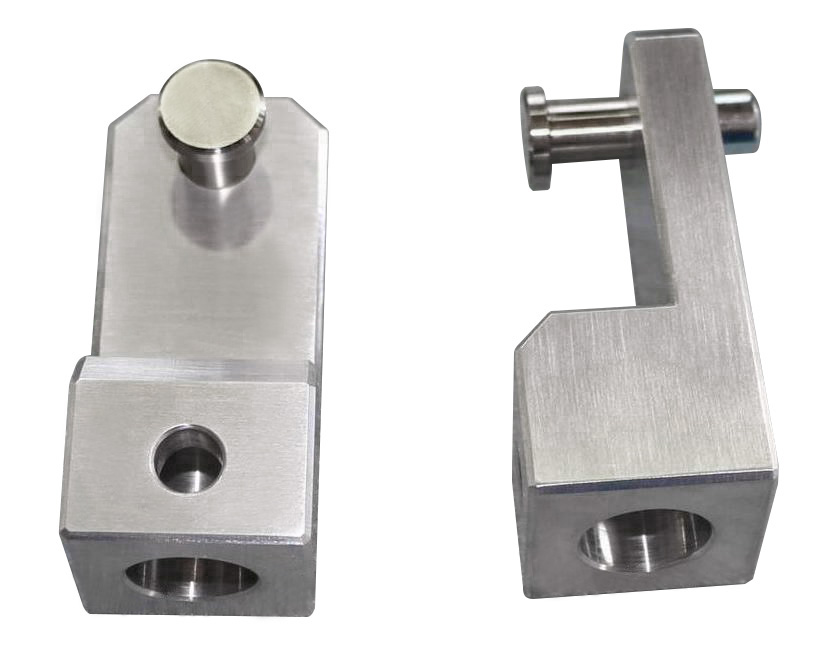

THS43-D10-Af159

Chuck grips
Diameter 10 mm
Max. load 1 kN
Coupling Af159

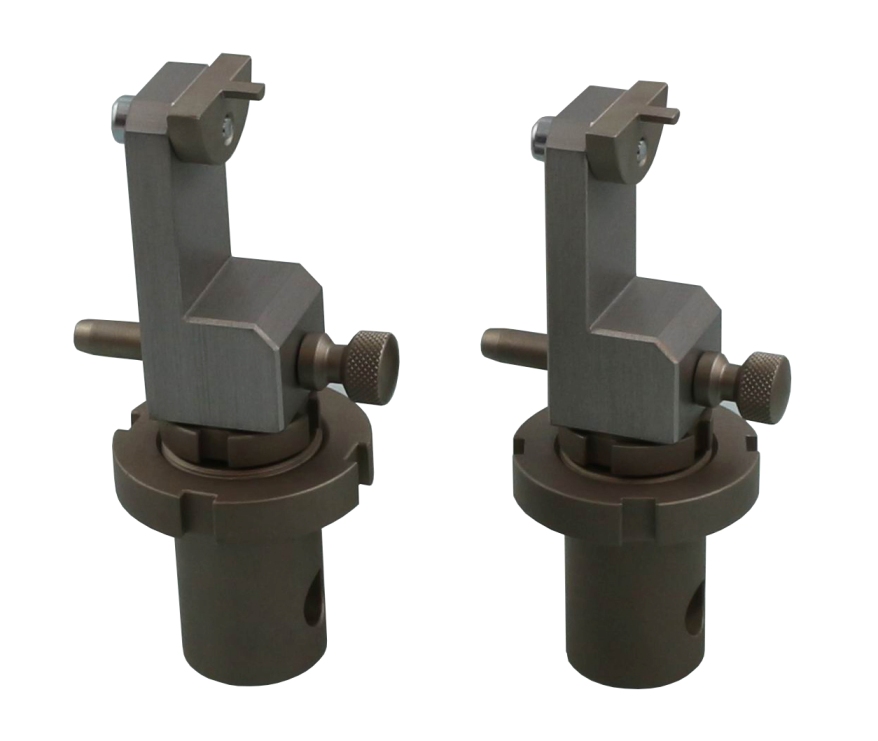

THS43-HR5x4 THS43-D10-GT-Af159+ER2.5c 2021-10-16


THS43-D10-GT+ER2.5-Af159

Chuck grips
Pin diameter 10 mm, Insert ER2.5
Aluminium, anodized
Max. load 0.1 kN
Coupling Af159

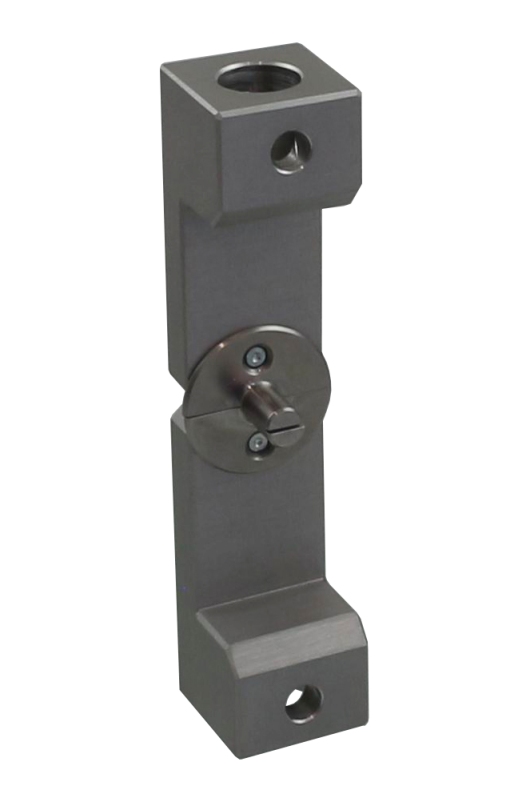

THS43-D10-Af159+THS43-10-ER4

THS43-D10-Af159+ER4.05

Chuck grips
Diameter 10 mm, Insert ER4.05
Max. load 0.5 kN
Coupling Af159

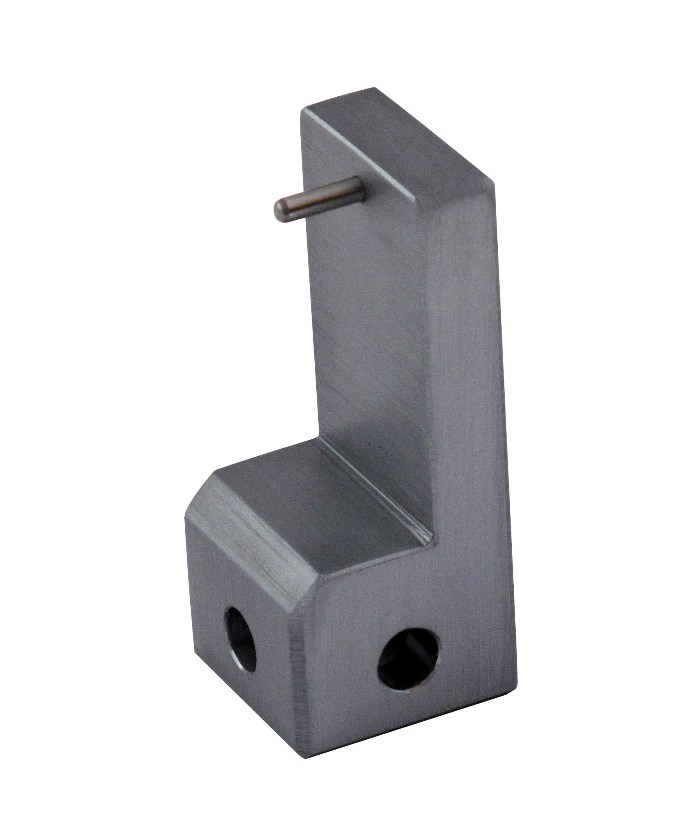

Description: Description: tn_THS43-D3.jpg

THS43-D3-Af159



Film grip
Diameter 3 mm
Max. load 1 kN
Coupling Af159

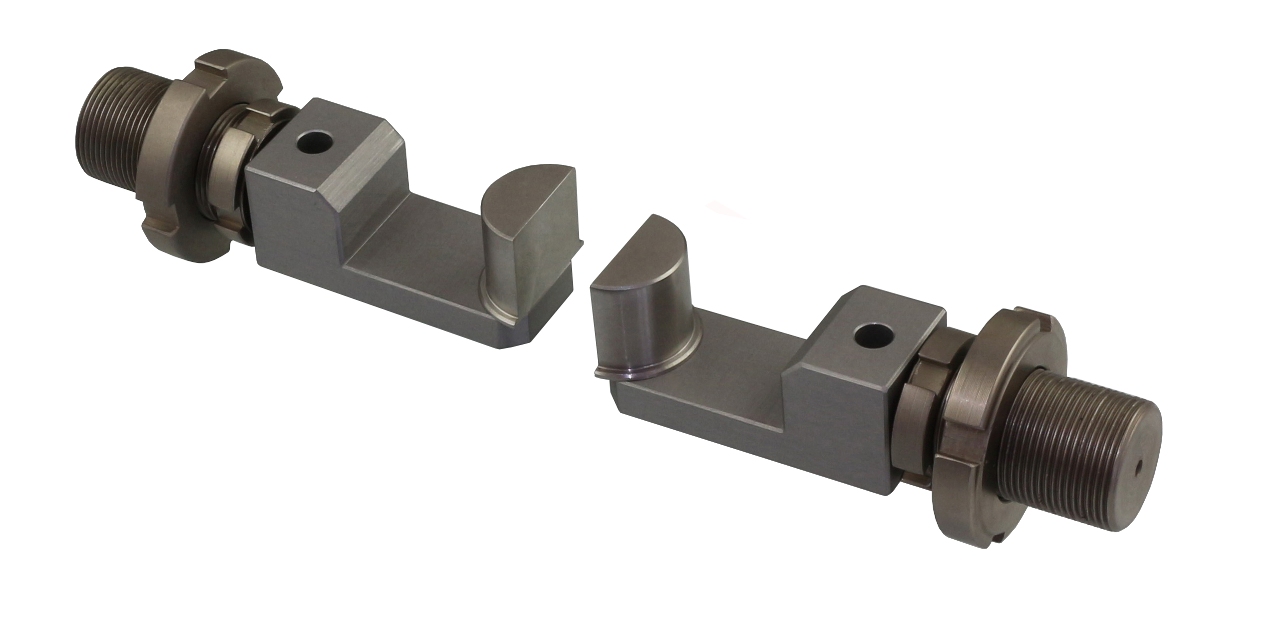

THS43-R14-Af159 Adapter male M28x2 1kg 2020-05-19 03

THS43-HR14-Af159+M28x1.5

Chuck grips
Radius 14 mm , adapter male M28x1.5
Max. load 1 kN
Coupling Af159

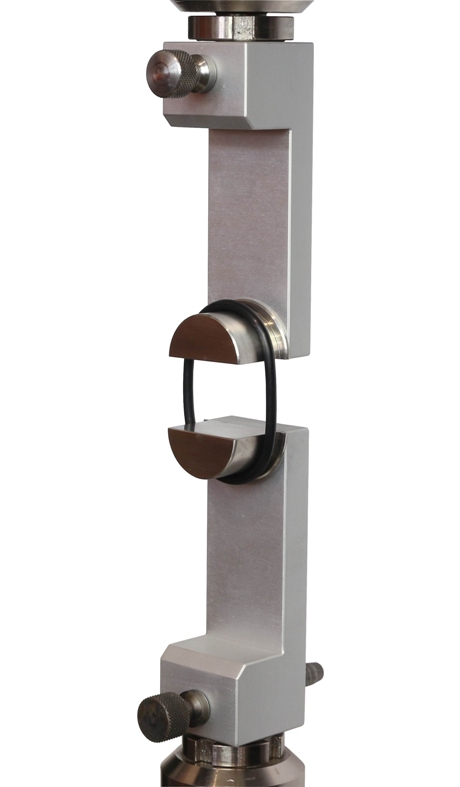

THS43-V20-R15-Af20 hook haken o-ring 2

THS43-HR15-Af20-V20

Hook haken O-ring
Half radius 15 mm
Max. load 2 kN
Coupling Af20

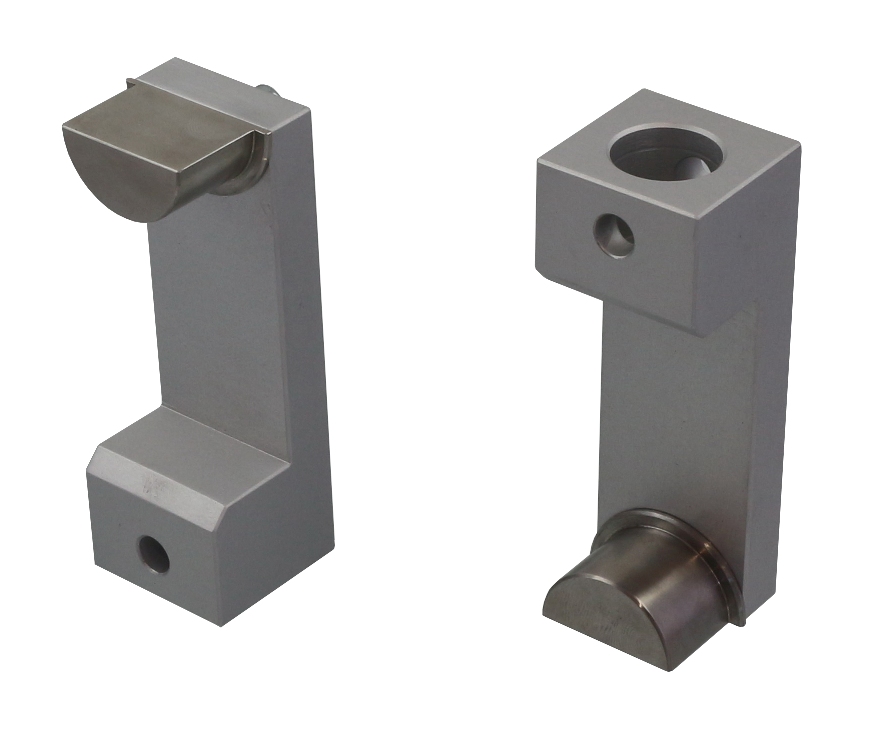

THS43-V20-R15-Af20_2021-05-21

THS43-HR15-Af20-V20

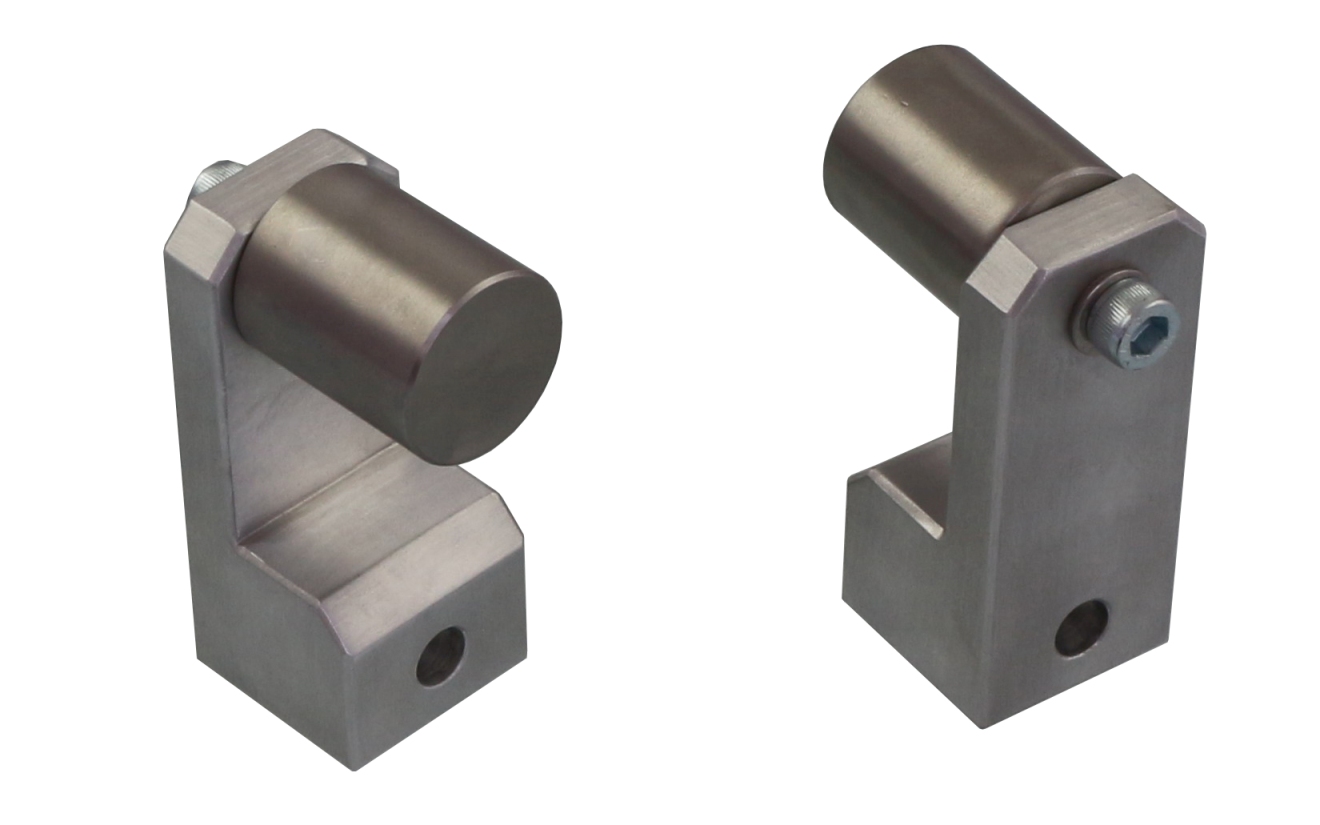

THS43-D25x30-Af159-2kN_2019-09-02

THS43-D25x30-Af159

Chuck grips
Diameter 25x30 mm
Max. load 2 kN
Coupling Af159

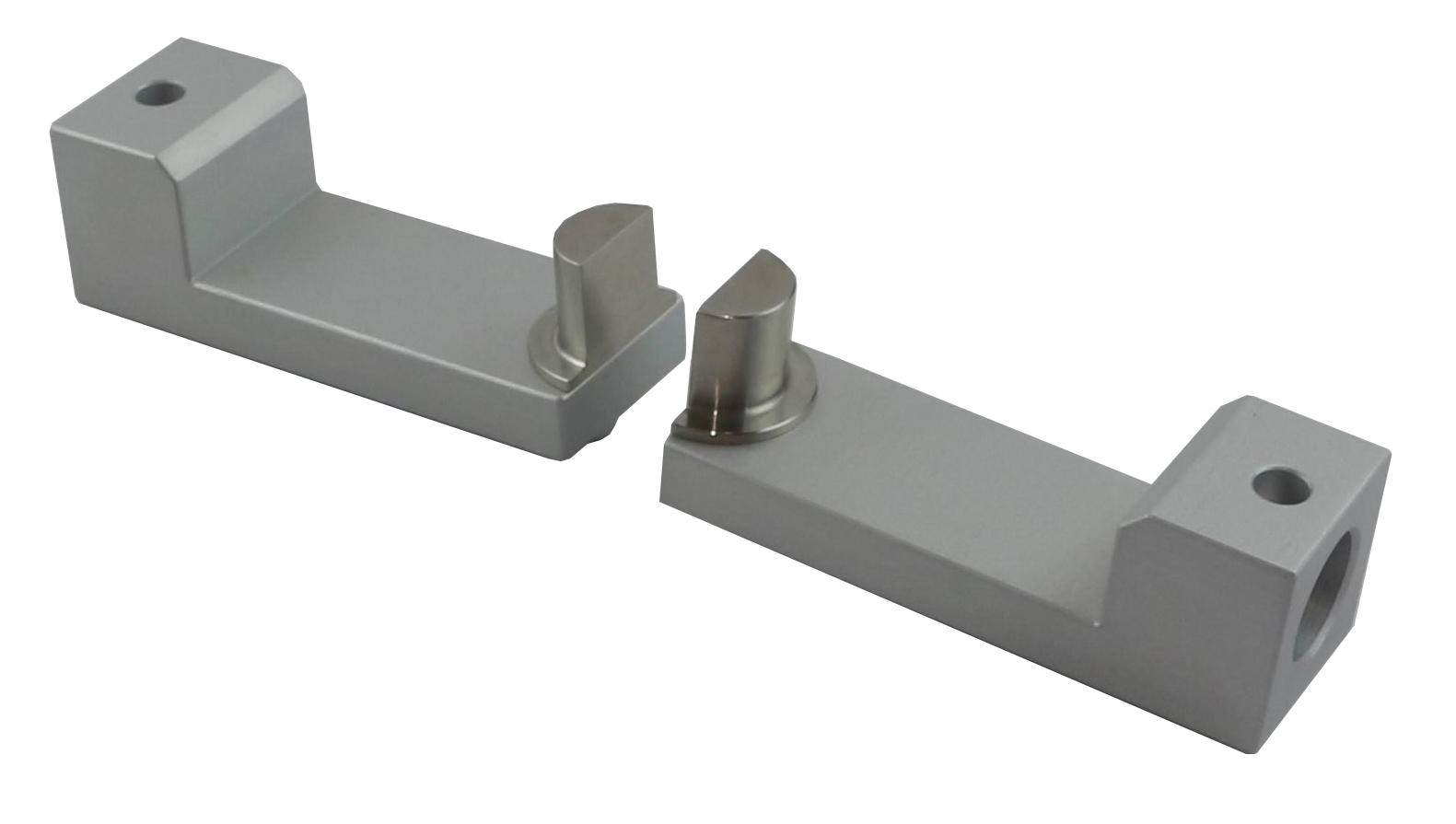

THS43-V22-Af20+ER10_2022-08-25

THS43-HR10-Af20+ER10

Chuck grips
Half radius 10 mm, Insert ER10
Max. load 2.5 kN
Coupling Af20

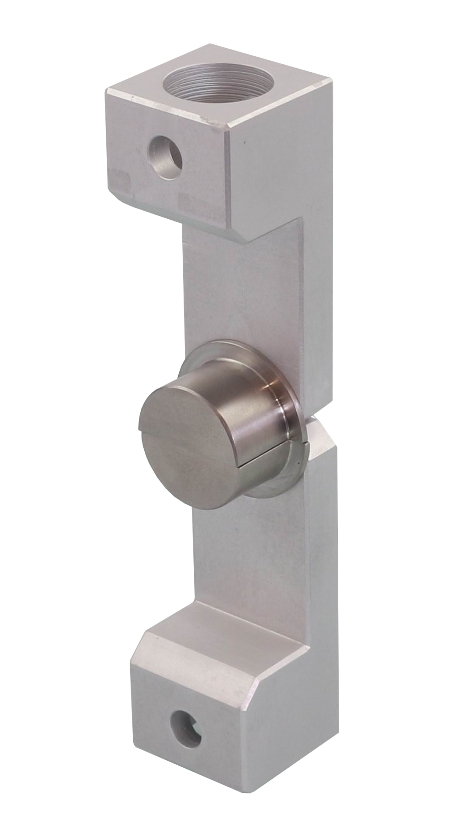

THS43-D10-Af20+ER12.5-0.20kg_2022-03-25

THS43-D10-Af20+ER12.5

Chuck grips
Diameter 10 mm, Insert ER12.5
Max. load 2.5 kN
Coupling Af20

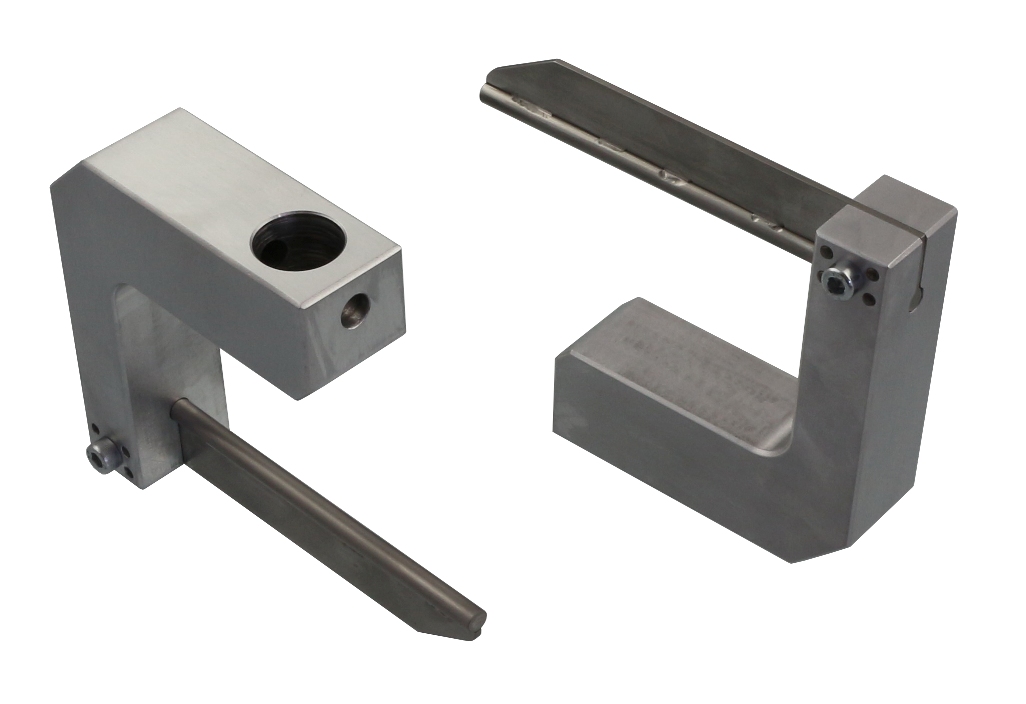

THS43 D6x105sp-Af20-x with support 2019-06-01

THS43-D6x105-Af20

Hook grips with supports

Pin diameter 6 mm, length 105 mm
Max. load 5 kN
Coupling  Af20

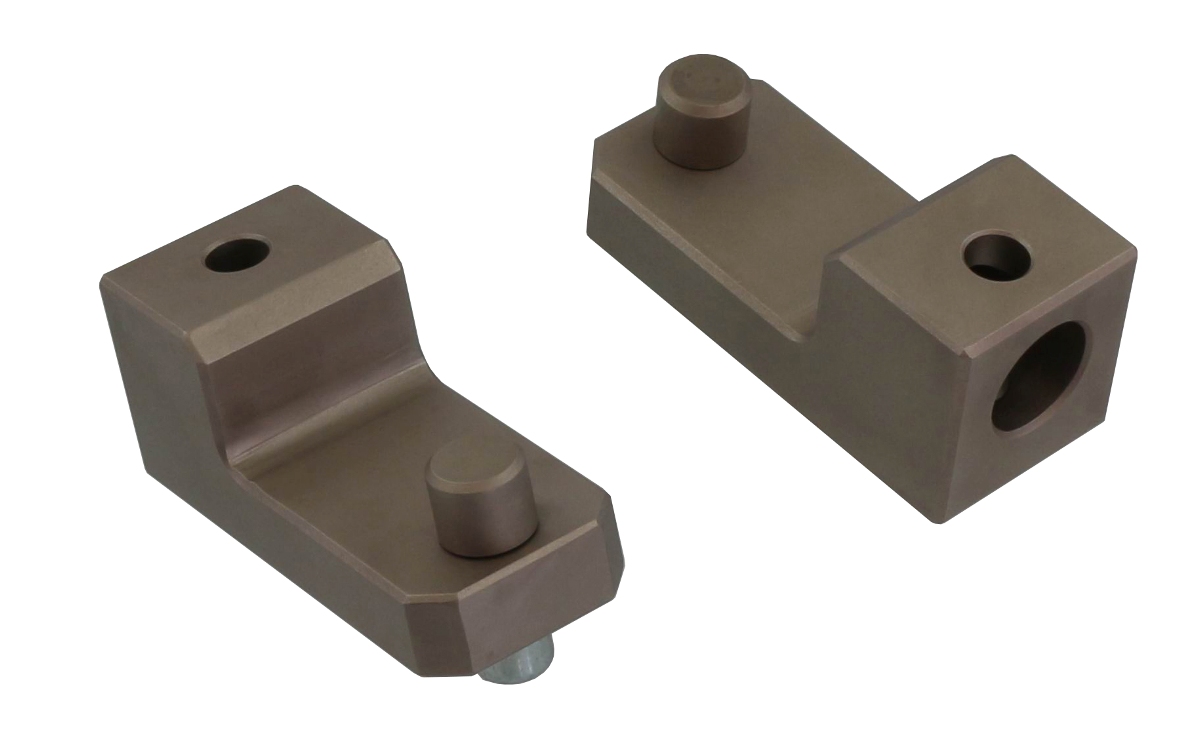

THS43-Am317-St+D12_2021-08-28

THS43-D12-Am317

Chuck grips
Diameter 12 mm
Max. load 5 kN
Coupling Am317

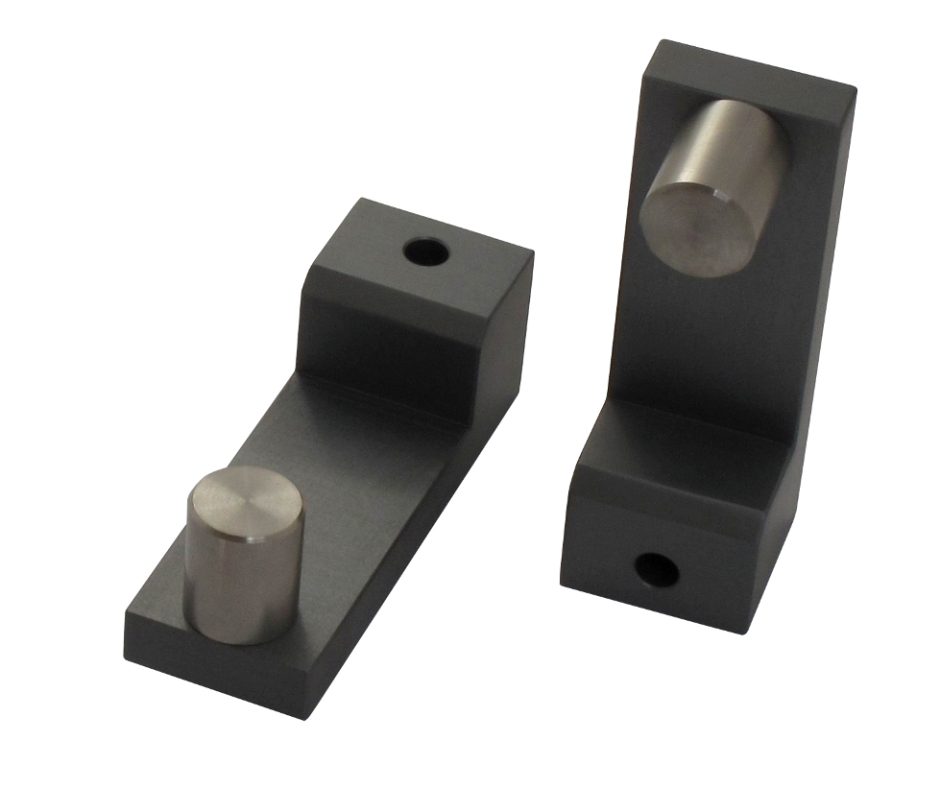

THS43-D20-Af159......d..

THS43-D20-Af159

Chuck grips
Diameter 20 mm
Max. load 5 kN
Coupling Af159

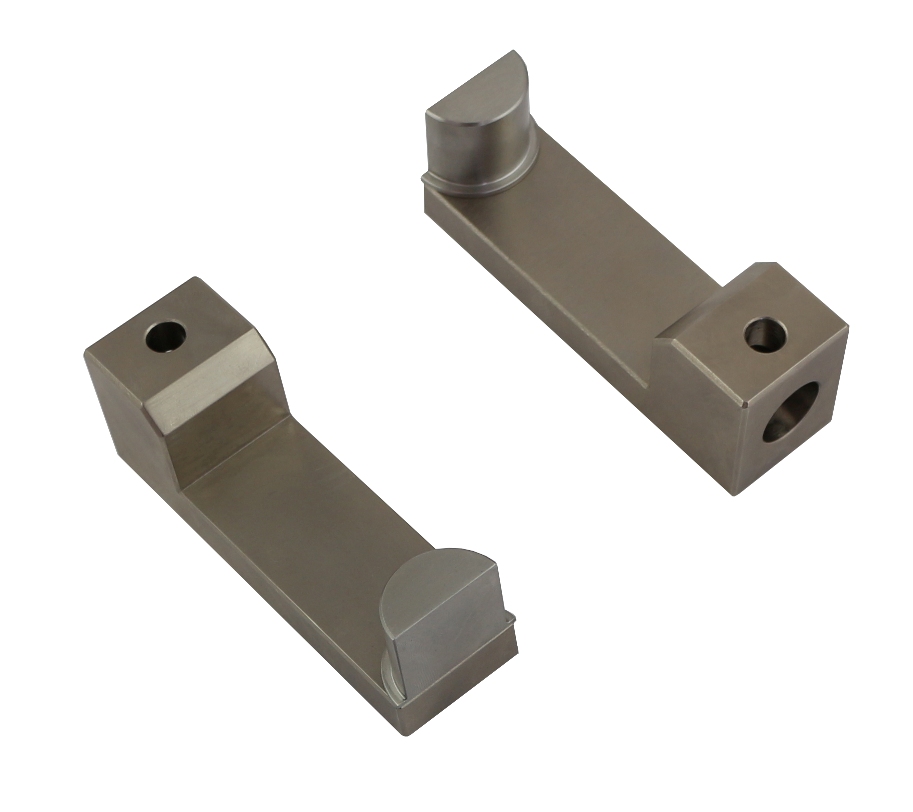

THS43-V20-R12

THS43-R12.7-Af159-V20

Chuck grips
Half radius 12.7 mm
Max. load 10 kN
Coupling Af159

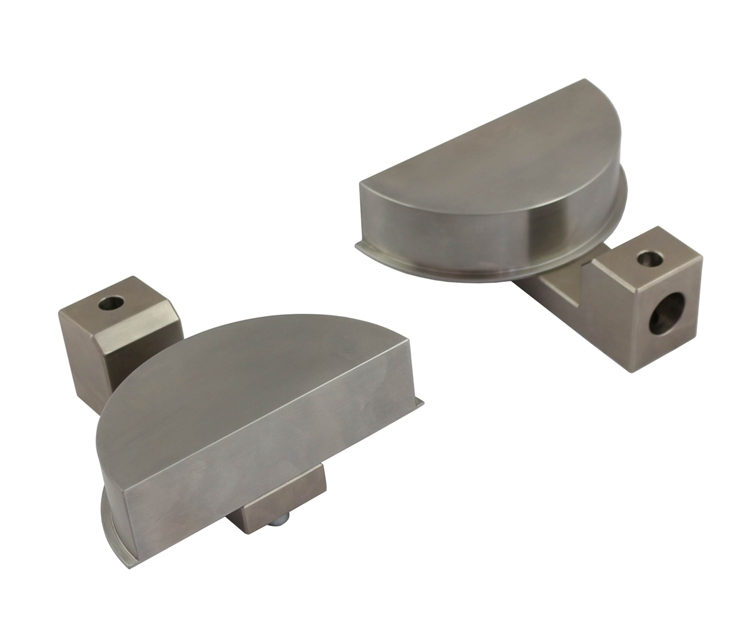

THS43-V20-R50.8-Af159-xa-2017-09-29

THS43-HR50.8-Af159

Chuck grips
Half radius 50.8 mm
Max. load 10 kN
Coupling Af159

THS43-K50-H190-Af159+ER38.1 3.7kg 002_2

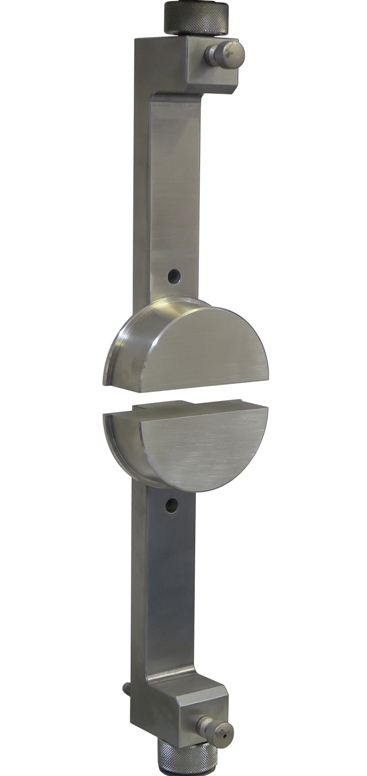

THS43-HR50-H190-Af159


Chuck grips
Half radius: 50 mm, length 190 mm
Coupling Af159

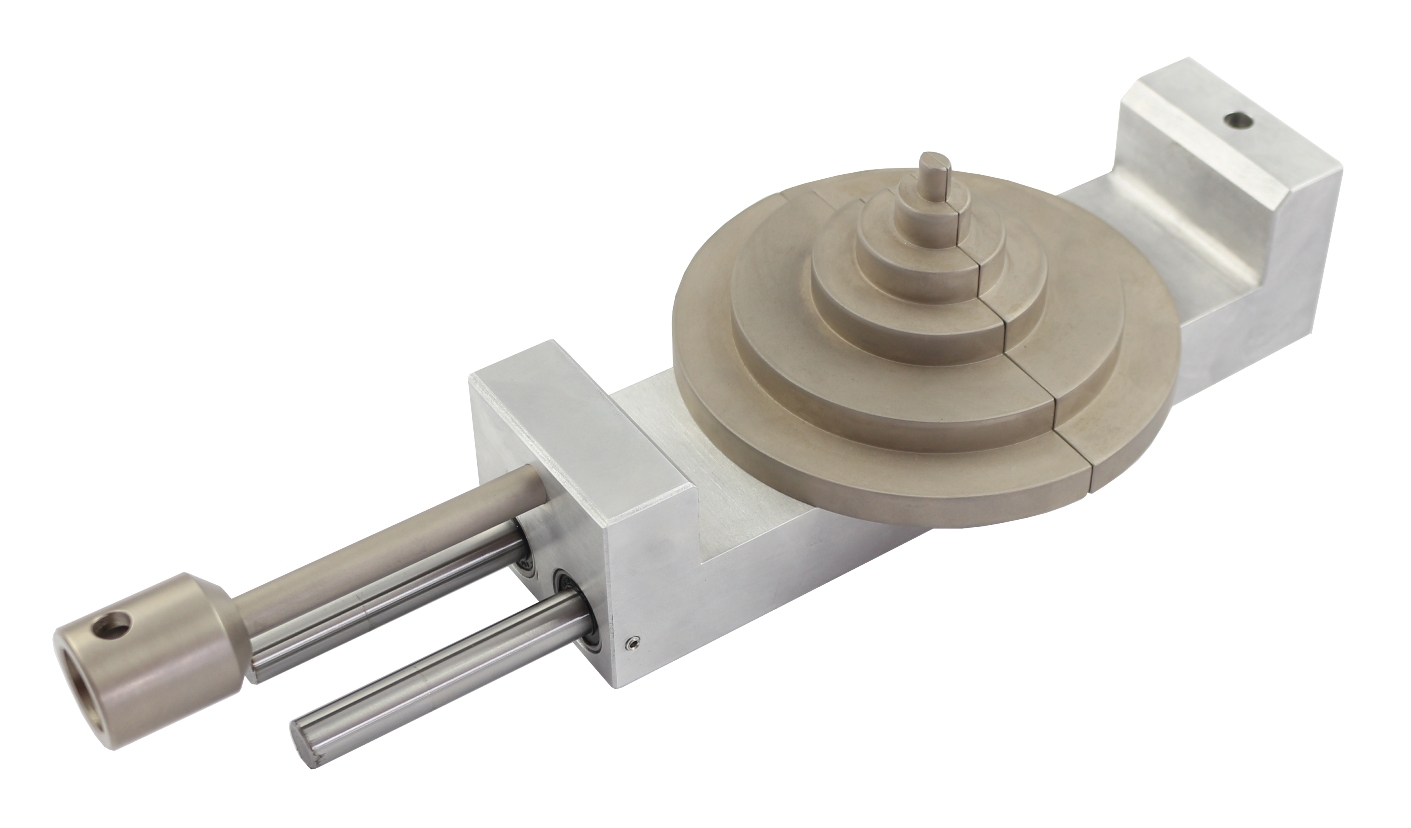

THS43-HR5-65-Af159 01

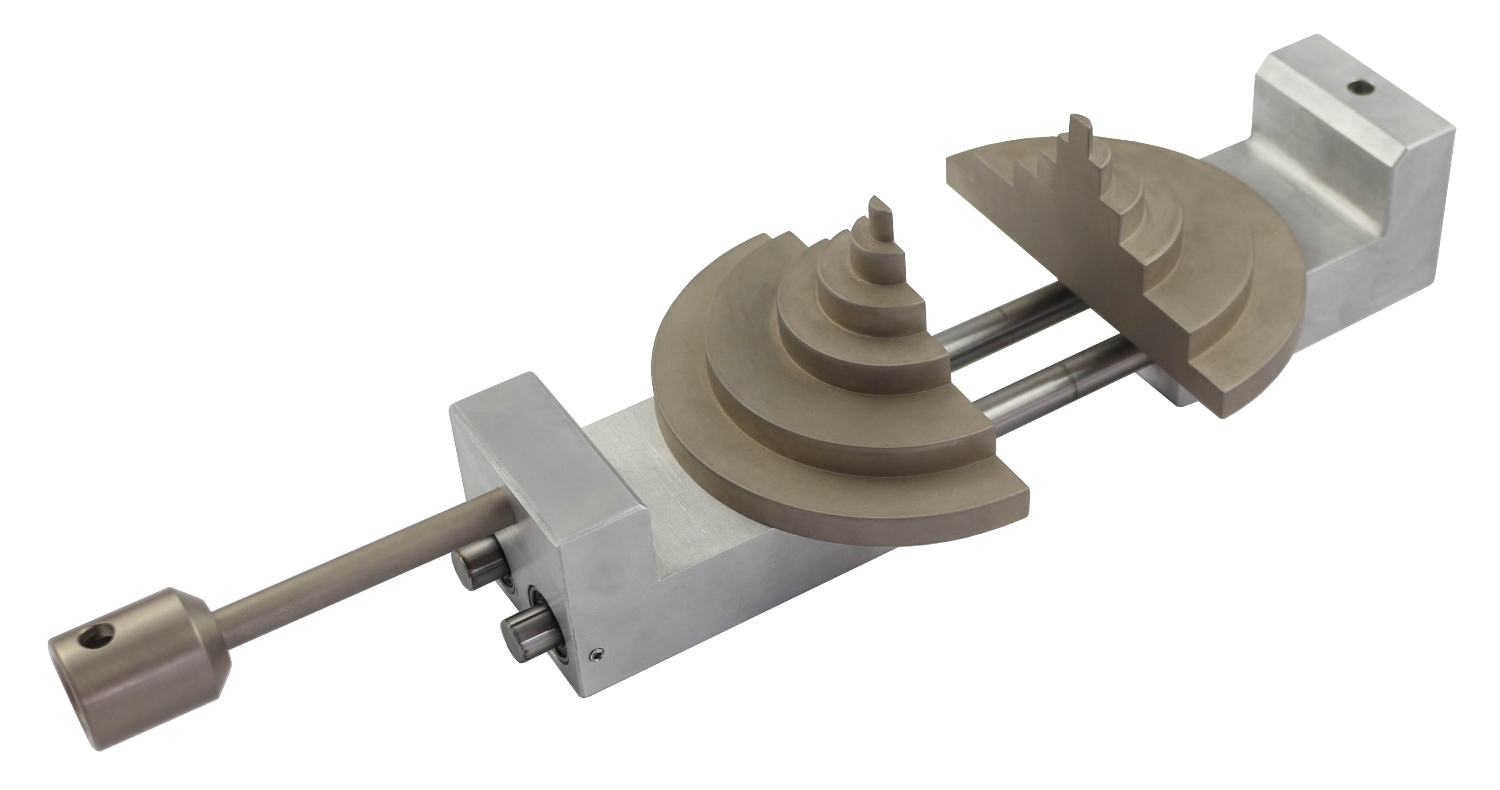

THS43-HR5-65-Af159

Chuck grip
Half radius: 5-65 mm
Coupling Af159

THS43-HR5-65-Af159-gde-V22

THS43-HR5-65-Af159

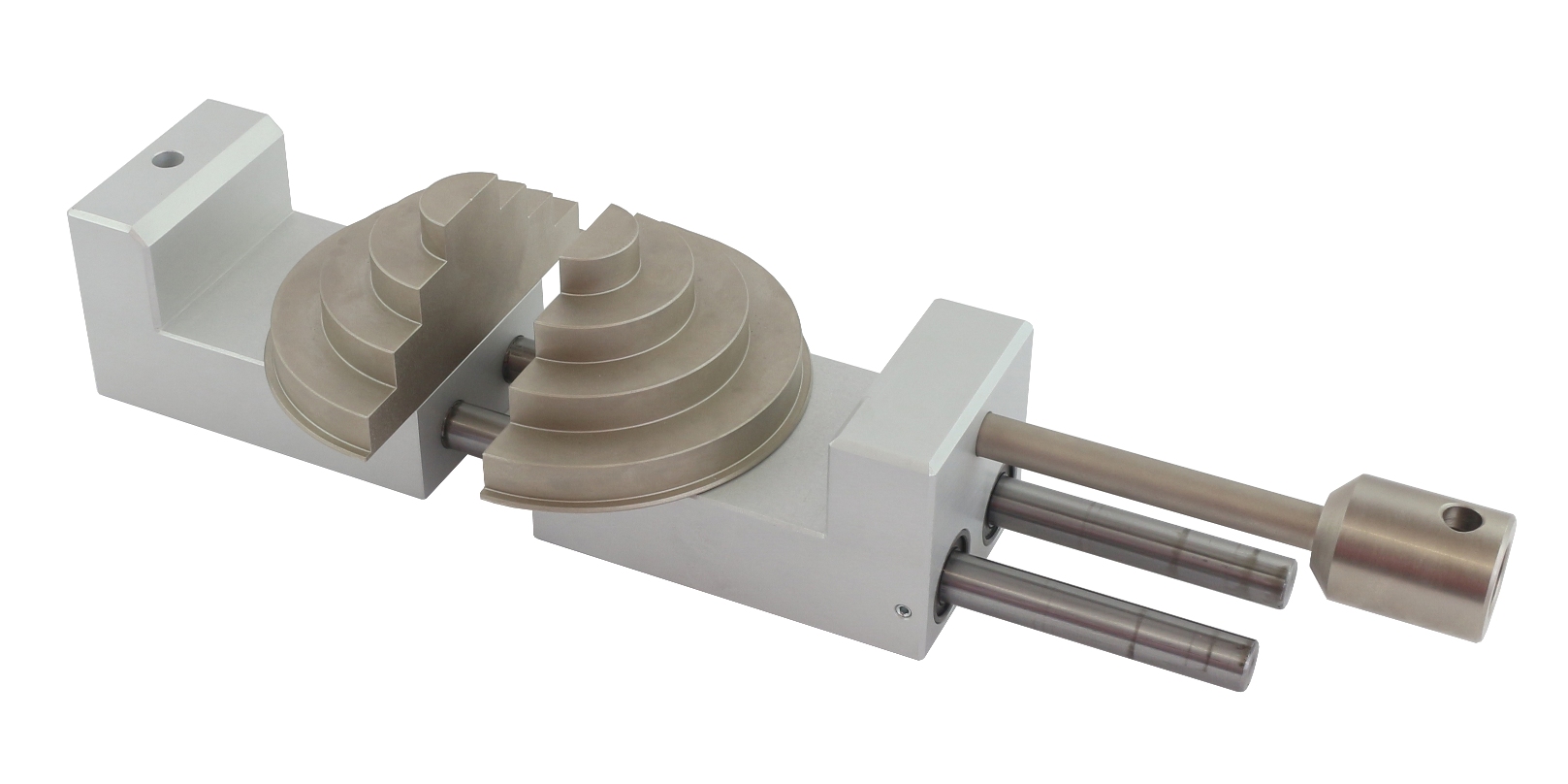

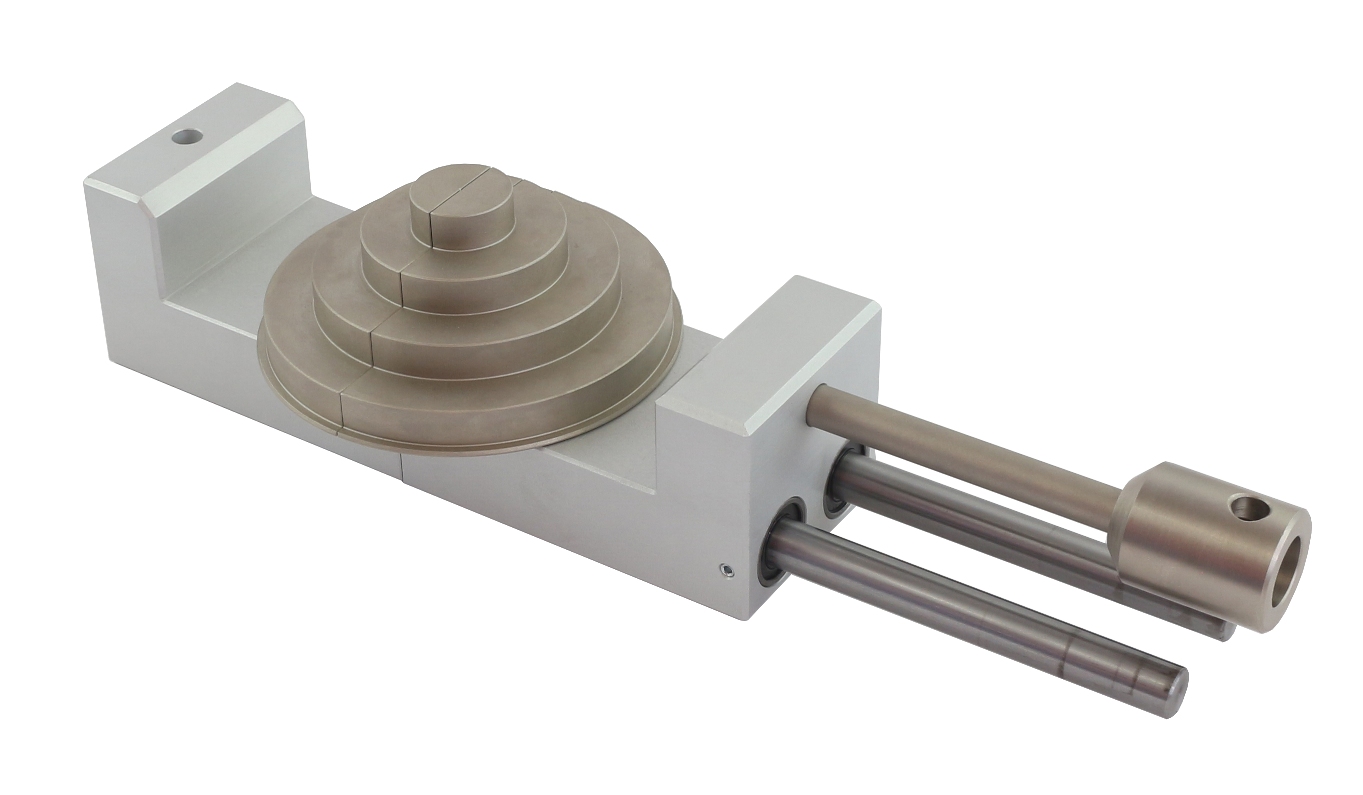

THS43-GDE-D25.4-D101.6-Af159-xg 2023-09-16

THS43-GDE-D25.4-D101.6-Af159

Special chuck grip
Diameter 25.4, 50.8, 76.2 and 101.6 mm

Coupling Af159

THS43-GDE-D25.4-D101.6-Af159-xi 2023-09-16

THS43-GDE-D25.4-D101.6-Af159

THS43-hR10 hook grip half radius--

THS43-HR5-Af159



Single hook grip with half radius

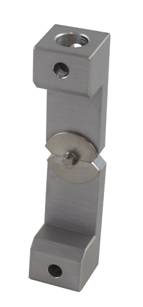

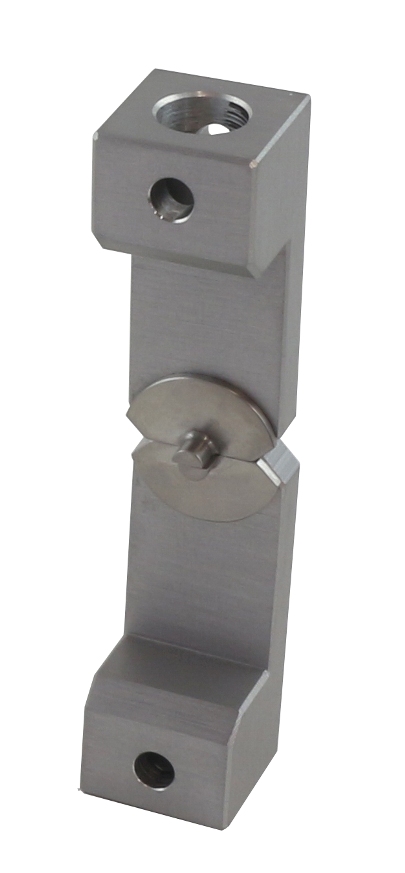

THS43-K30-R3-Af159 02

THS43-K30-R3-Af159



O-ring test fixture

Inserts with 3 mm radius, stainless steel

Body: aluminium anodized

Coupling Af159

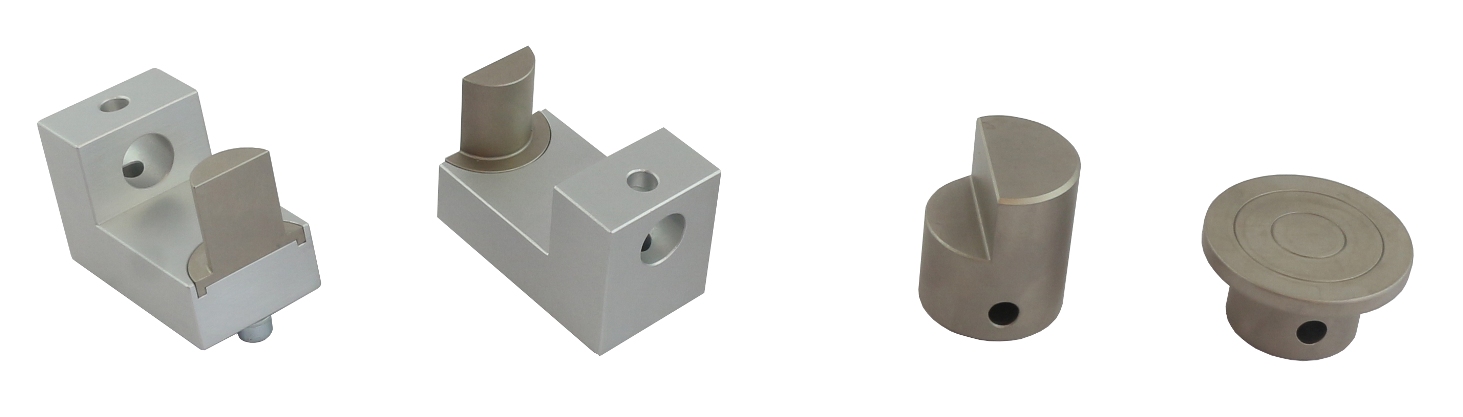

THS43-K46-Af159+ER12+THS43-K46-D40-a25-Af159+TH23-56-159-St

THS43-K46-Af159+ER12

+

THS43-K46-D40-a25-Af159
+
TH23-56-159-St



Combination of special fixtures for tensile and compression tests
