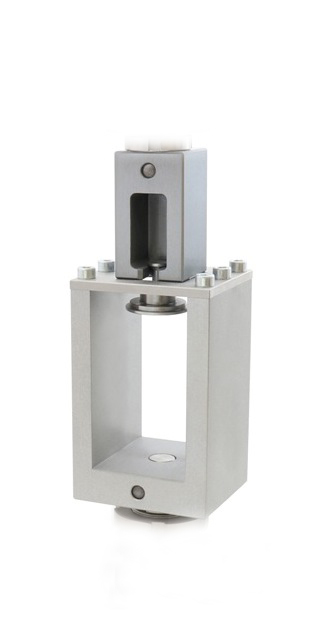

THS325-1-50x50-EN311_2245g_ 25-03-2018_01

THS325-1-50x50-EN311

Fixture to test surface soundness of wood-based panels according to DIN-EN311

Description: Description: Description: Description: Description: Description: Description: pdf_icon.gif THS325 Datasheet.pdf
Description: Description: Description: Description: Description: Description: Description: pdf_icon.gif THS325 Datenblatt.pdf

more

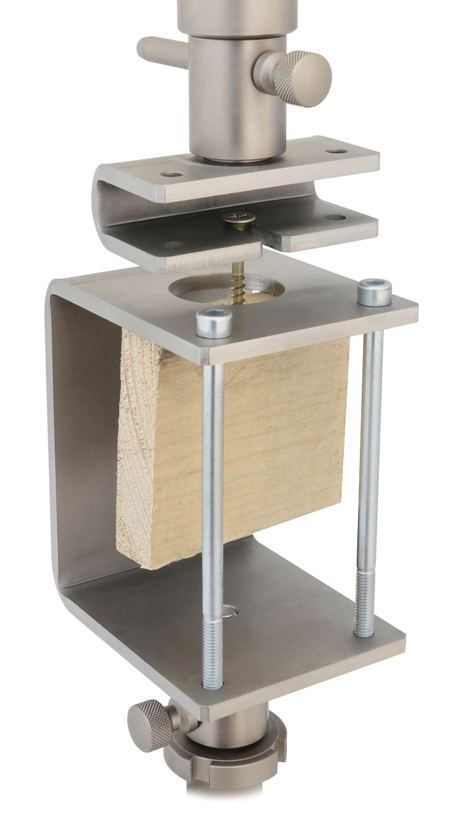

tn_THS325-2 EN320-15917 Holzausrissprüfung  Holzschraube wood screw

THS325-2-EN320-Fig.3

Fixture to test resistance to axial withdrawal of screws for wooden samples

according to DIN EN320-Fig.3

more

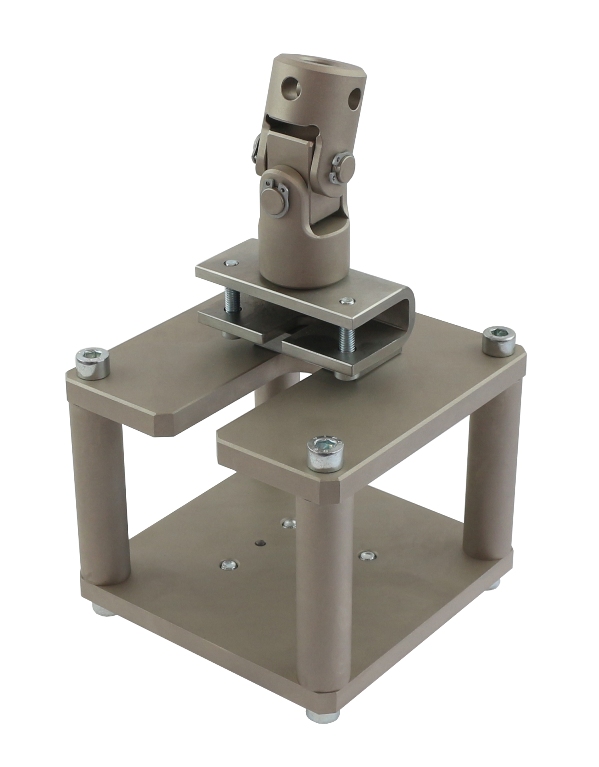

THS325-Af20+THS235-20-130x130-Af20_4.5kg_DIN-EN13446_wood_fasteners_withdrawal_force

THS325-Af20
+
THS235-20-130x130-Af20



Fastener withdrawal force test fixture for wood-based panels
according to DIN EN13446

Upper fixture: slit width 8.5 mm

Bottom fixture: slit width 20 mm

Steel, nickel-plated

Coupling Af20

For the bottom fixture, see THS235

THS325-160-D76-Af159_ASTM-C473_nail-pull_resistance_of_Gypsum_Panels_2.5kg

THS325-160-D76-Af159-ASTM-C473



Nail pull resistance test fixture for gypsum panel products according to ASTM-C473

Max. load 5 kN

Coupling Af159

Bottom specimen holder:
aluminium, anodized

Punch: steel, nickel-plated

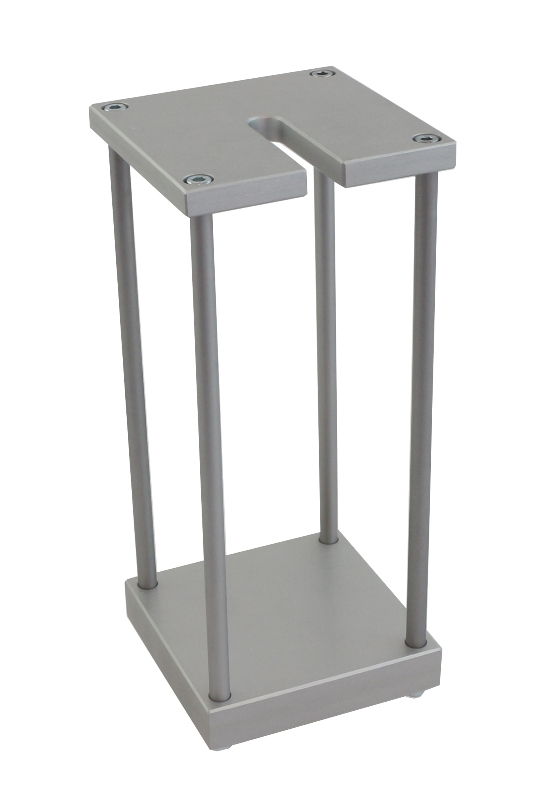

THS325-12-100x100-H200-Af159-Alu_1.34kg_2024-06-15

THS325-12-100x100-H200-Af159

Special syringe holder
Slot 12 mm wide
50 mm depth 100 x 100 mm
Height 200 mm
Aluminium, anodized
Coupling Af159
