G09 Chuck & Button Head Grips



Back

Description: Description: Description: Description: Description: THS314-60-S3-S6.4_THS314-60-S0.8-S2.4-x-2017-05-12-

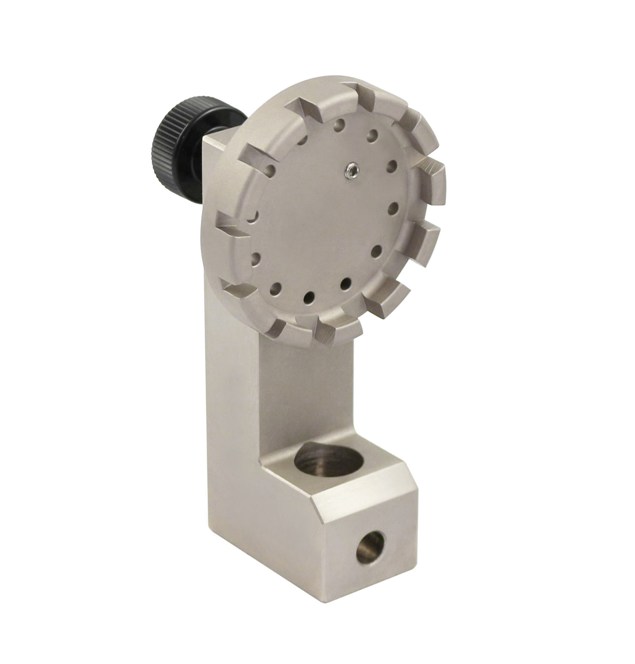

THS314-60



Wire terminal grips for measuring pull strength of wire terminals and connectors.

Max force:20 kN

Slot widths: 1, 1.2, 1.6, 2, 2.4, 2.7, 3, 4, 4.5, 5, 5.5, 6 mm
Steel, nickel-plated



Description: Description: Description: Description: Description: pdf_icon.gifTHS314 Datasheet.pdf
Description: Description: Description: Description: Description: pdf_icon.gifTHS314 Datenblatt.pdf



Description: Description: Description: Description: Description: THS314-150-S2-

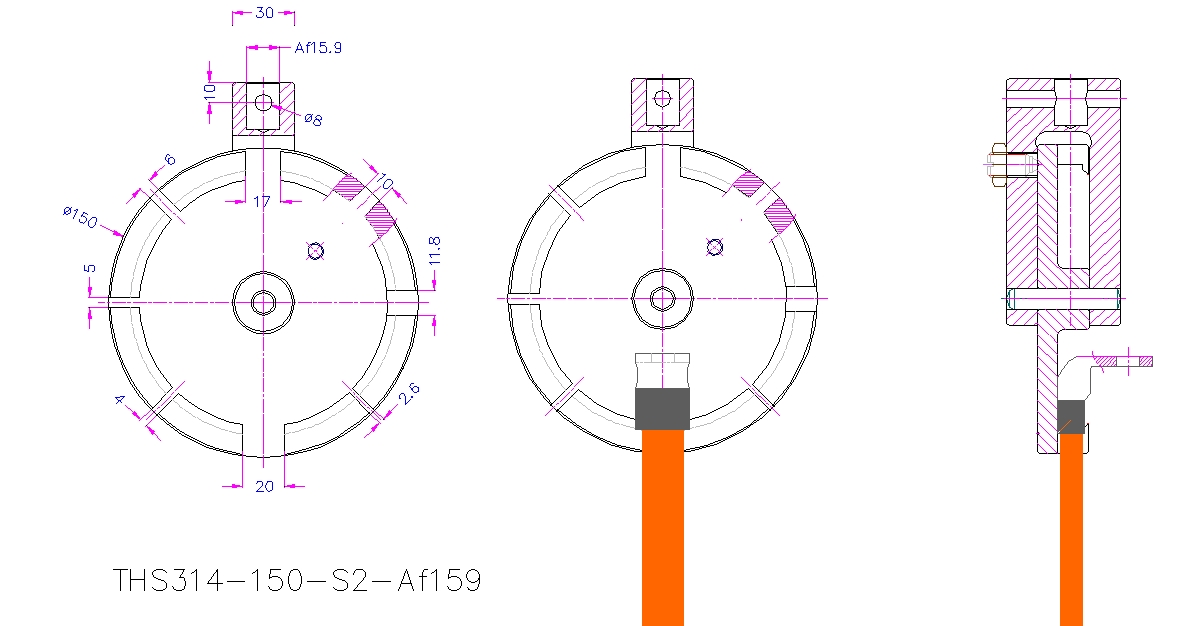

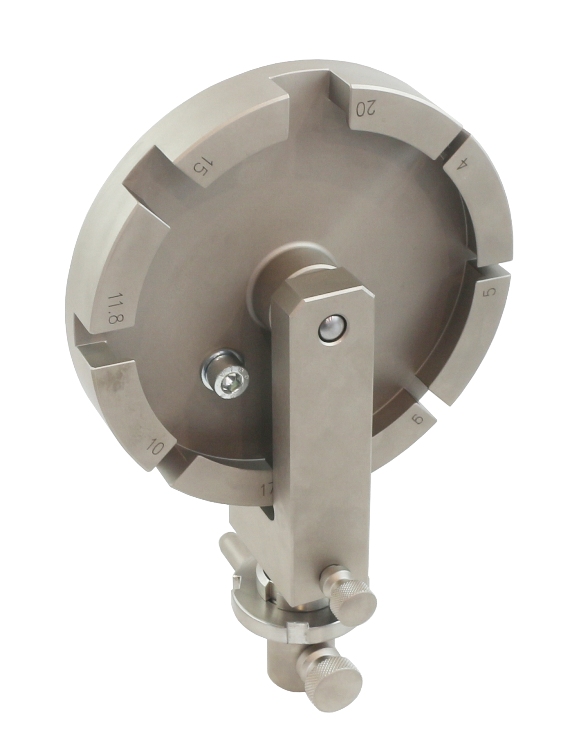

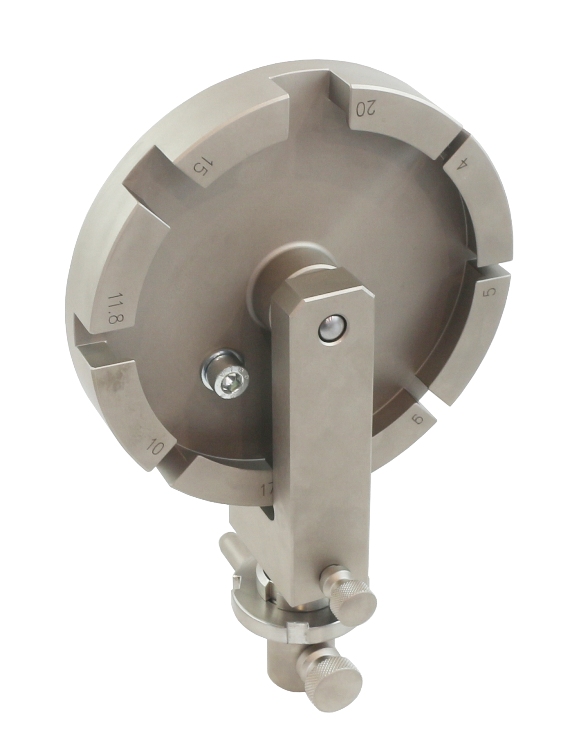

THS314-150-S2



Slot widths: 2.6, 3, 4, 5, 6, 8, 10, 11.8 mm





THS314-200-SM1



Special wire terminal grip to test samples 1-18, 20-36, 38 mm

THS314-200-SM1



Special wire terminal grip to test samples 1-18, 20-36, 38 mm



THS314-220 + TH243-20



Testing of cables max. 500 mm long and 3-13 mm diameter

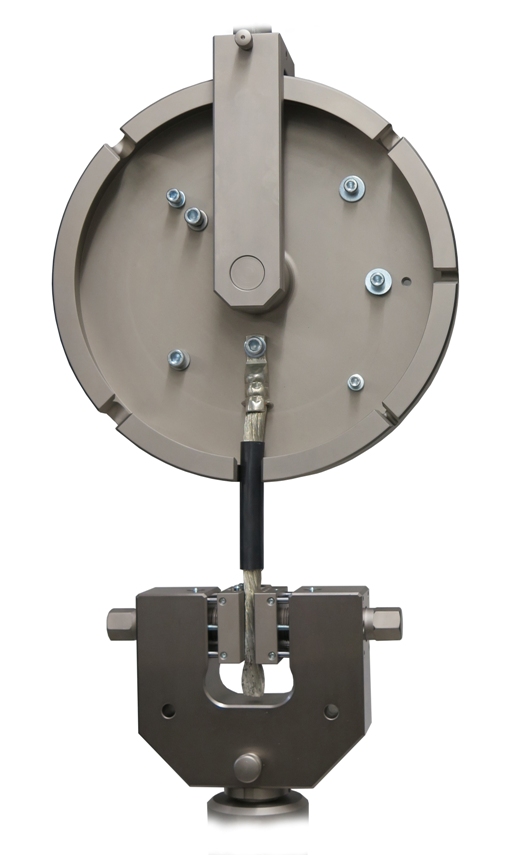

THS314-360-Af20 + THS90 crimp connections

THS314-360-Af20 + THS90+BP-Af36



Upper grip:

Special wire terminal grip

to test crimp connections on cables

Max. load 20 kN

Diameter 360 mm

For samples 5, 9, 13.5, 17, 19, 21 mm

Coupling Af20



Lower grip:

THS90

Max. load 50 kN

Pyramid (serrated) jaws

THS314-360-Af20 crimp connections

THS314-360-Af20



Special wire terminal grip

to test crimp connections on cables

Max. load 20 kN

Diameter 360 mm

For samples 5, 9, 13.5, 17, 19, 21 mm

Coupling Af20

Steel, nickel-plated

TH76-20  +  THS314-150

THS314-S21-Af159+E6.5-8-11-13-15



Special grip to measure pull strength of wire connectors

Incl. inserts with slot widths 6.5 mm, 8 mm, 11 mm, 13 mm, 15 mm

Steel, nickel-plated

Coupling Af159



Lower grip is required for the test
