TH89-30-5.5
Chuck
grip
Slot 5.5 mm
Coupling Af30
Schulterprobenspannzeug
Schlitzweite 5.5
mm
Adapteranschlu weiblich
30 mm (Af30)
 TH89
Datasheet.pdf
TH89
Datenblatt.pdf
|
|
|
TH89-159-7.4R1.5
Chuck grip
Max. load 20 kN
Slot 7.4 mm with radius 1.5 mm
Steel hardened, nickel-plated
Coupling Af159
Schulterprobenspannzeug
Max. Kraft 20 kN
Schlitzweite 7.4 mm mit Radius 1.5 mm
Stahl,
gehrtet, vernickelt
Adapteranschlu weiblich 159 mm (Af159)
|
|
|

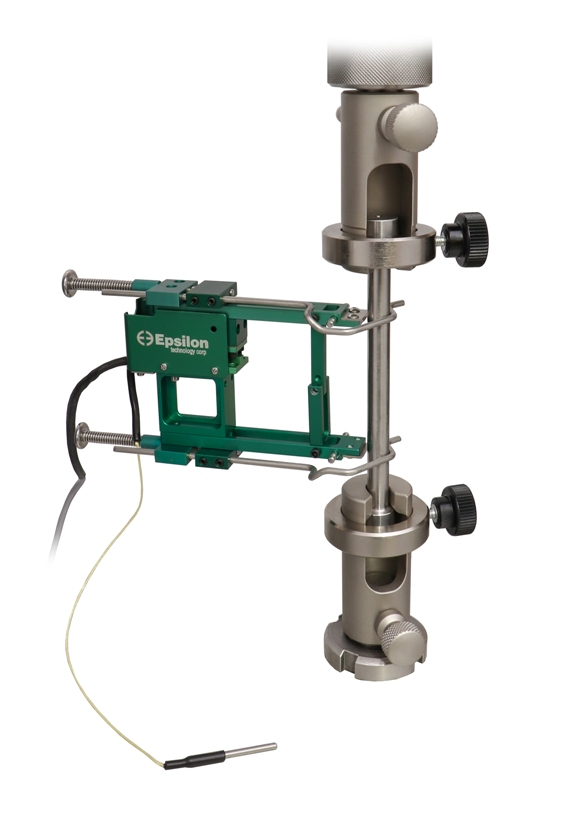

Axial extensometers
more
|
|
|

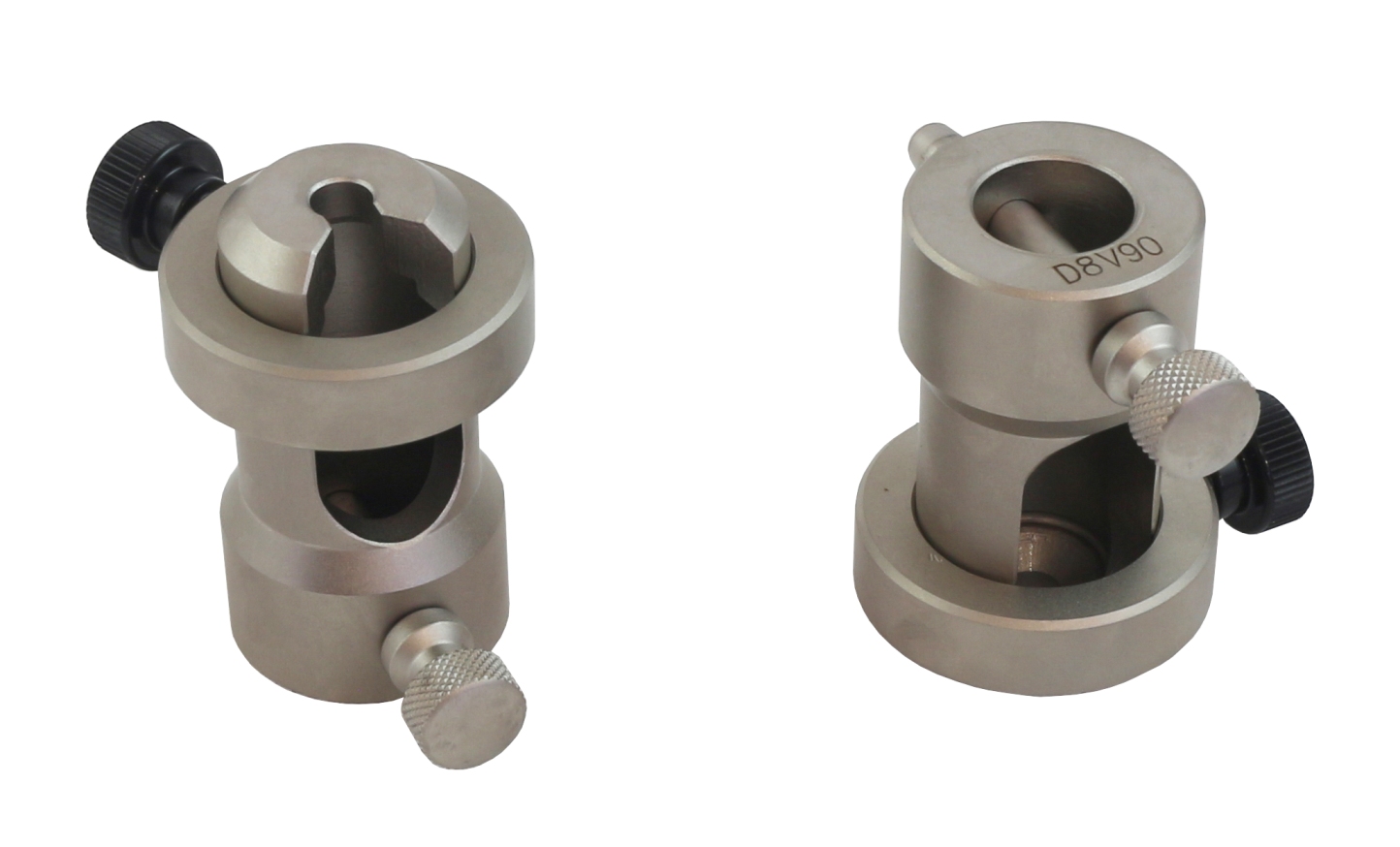

TH89-20-8V90
Chuck grip
Max. load 20 kN
Steel hardened, nickel-plated
|
|
|
TH89-20-18V60-DIN50125-Form-D5
Chuck
grip according to DIN50125 Form D5 for testing metallic materials
Steel,
hardened, nickel-plated
|
|
|

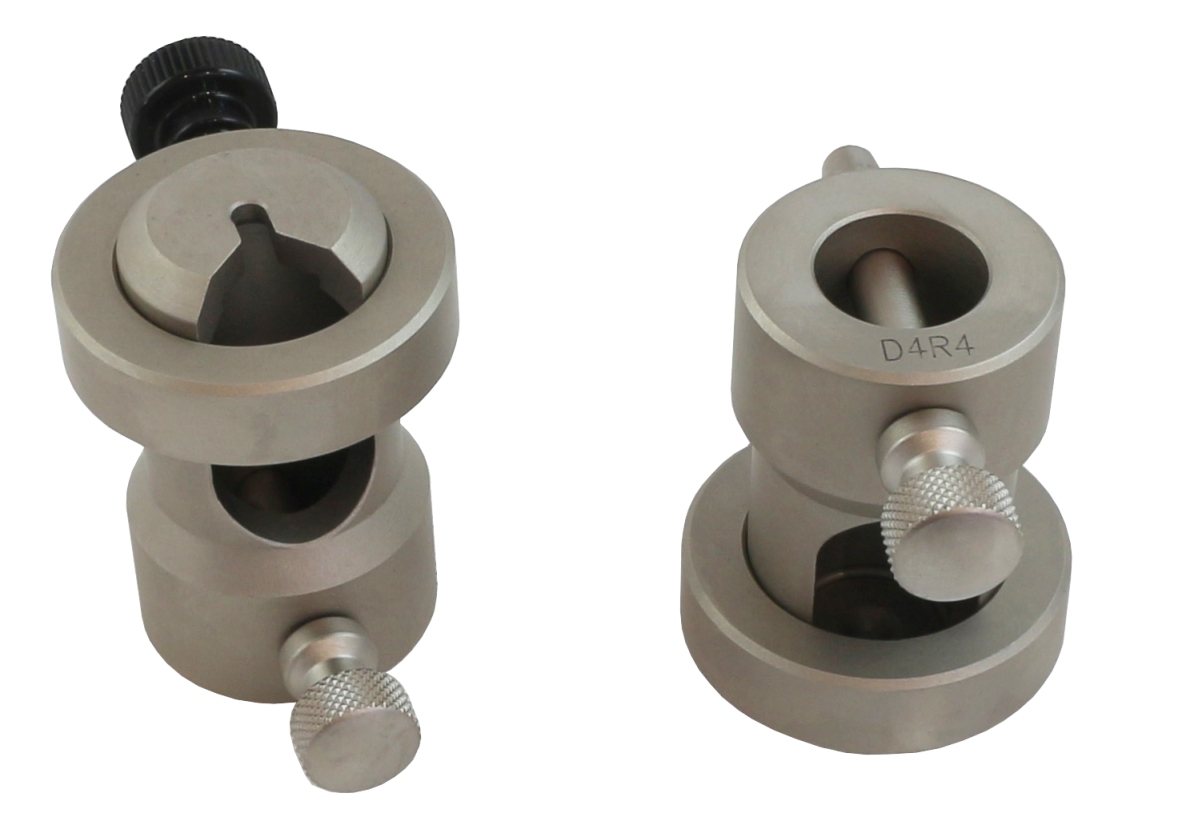

TH89-20-4R4-H65
Chuck grip
Max. load 20 kN
Slot 4 mm with radius 4 mm
Height 65 mm
Steel hardened, nickel-plated
Coupling Af20
|
|
|

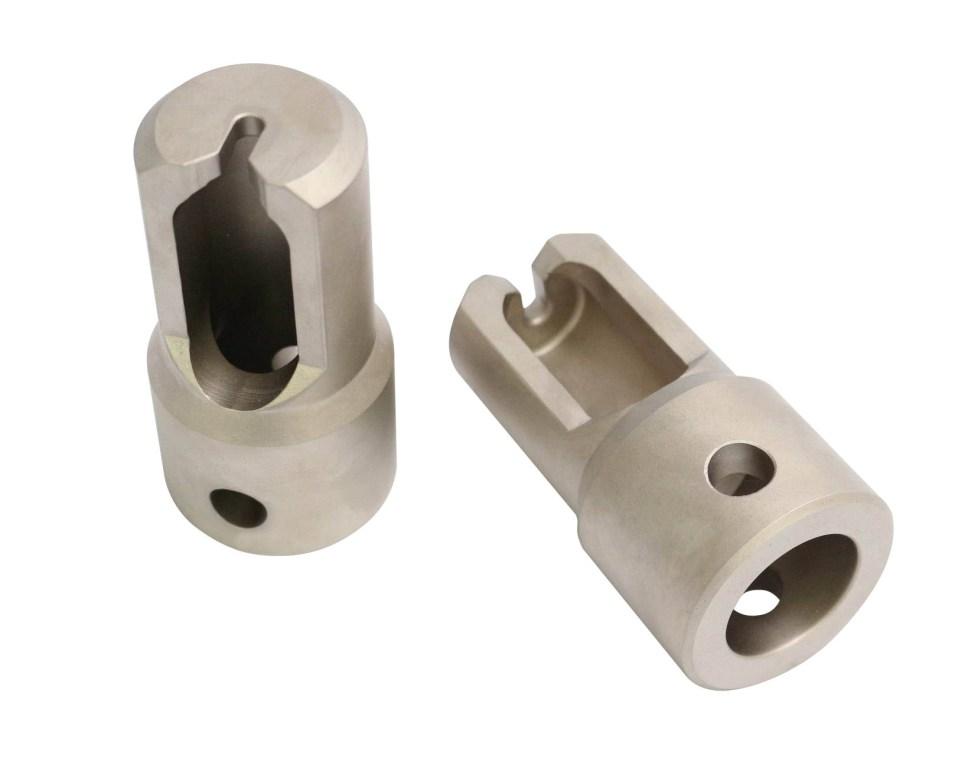

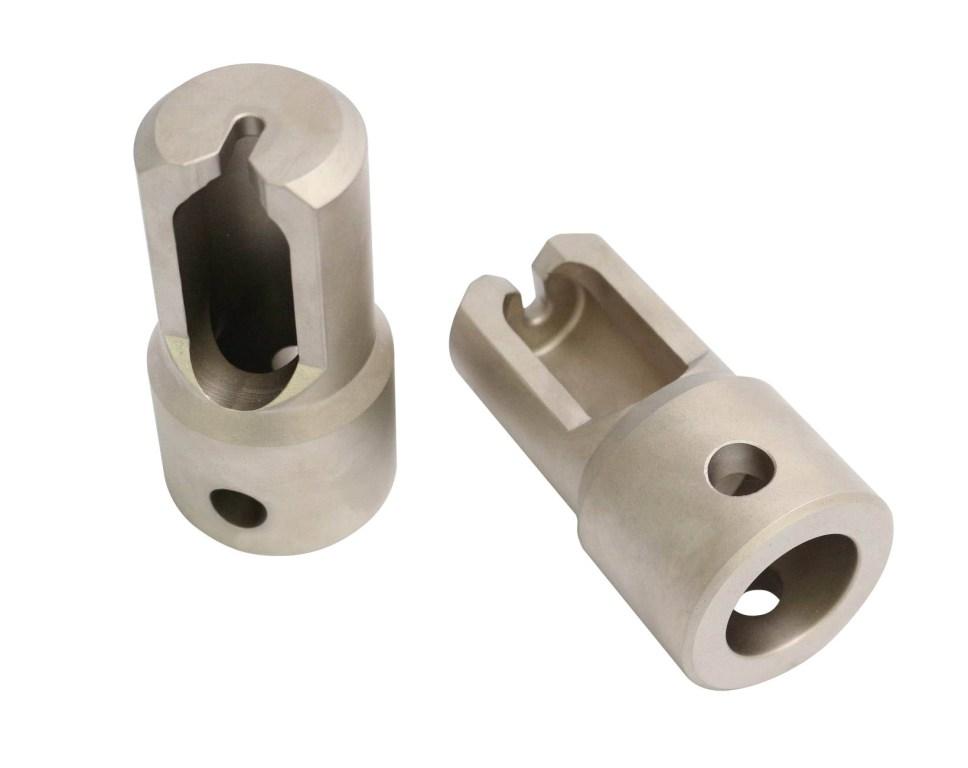

TH89-30-5
Chuck grip, slot 5 mm
Coupling Af30
Schulterprobenspannzeug
Schlitzweite 5
mm
Adapteranschlu weiblich 30 mm (Af30)
|
|
|

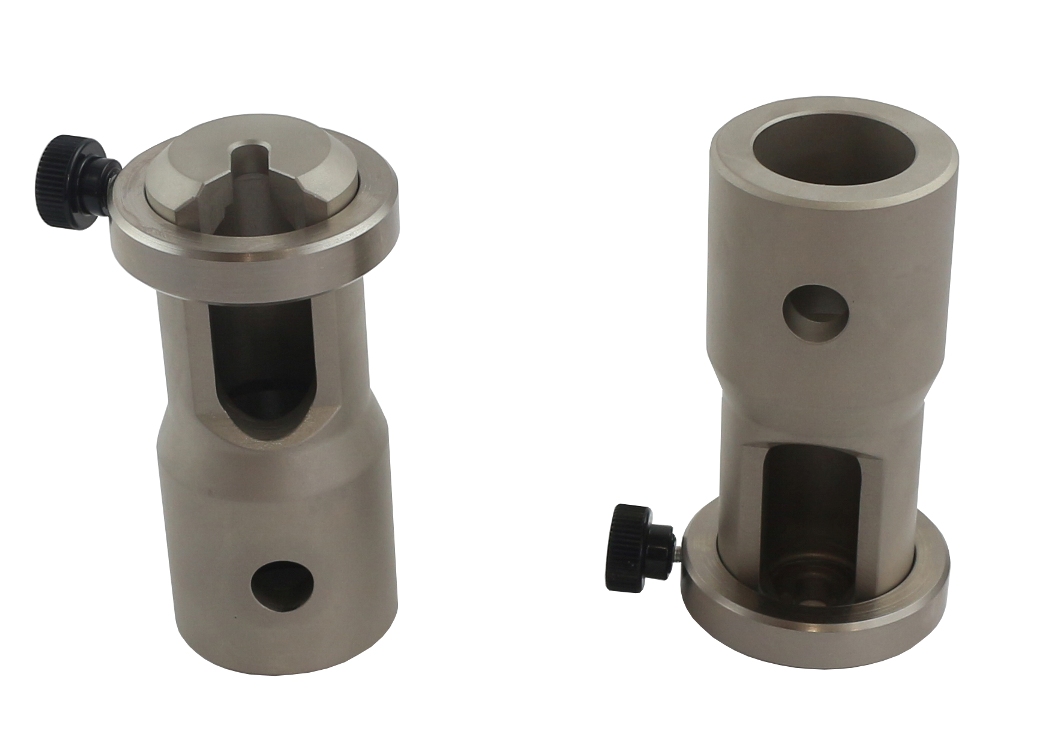

TH89-318-7
Chuck grip
Max. load 50 kN , slot 7 mm
Steel, hardened, nickel coated
Coupling Af318
Schulterprobenspannzeug
Max. Kraft 50 kN
Schlitzweite 7 mm
Stahl,
gehrtet, vernickelt
Adapteranschlu weiblich 318 mm (Af318)
|
|
|

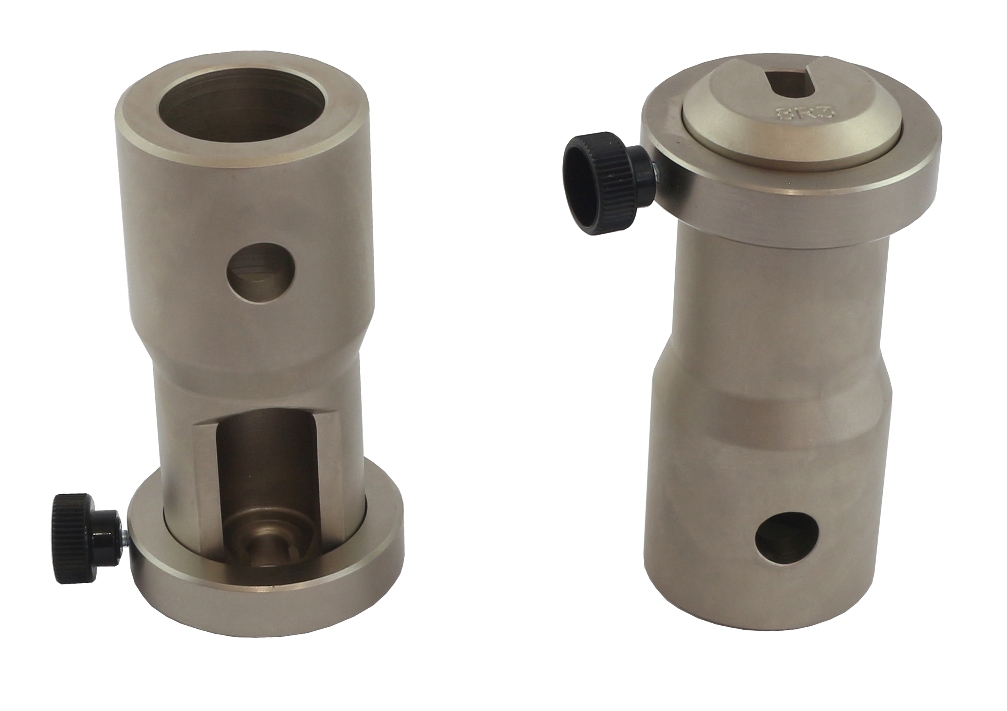

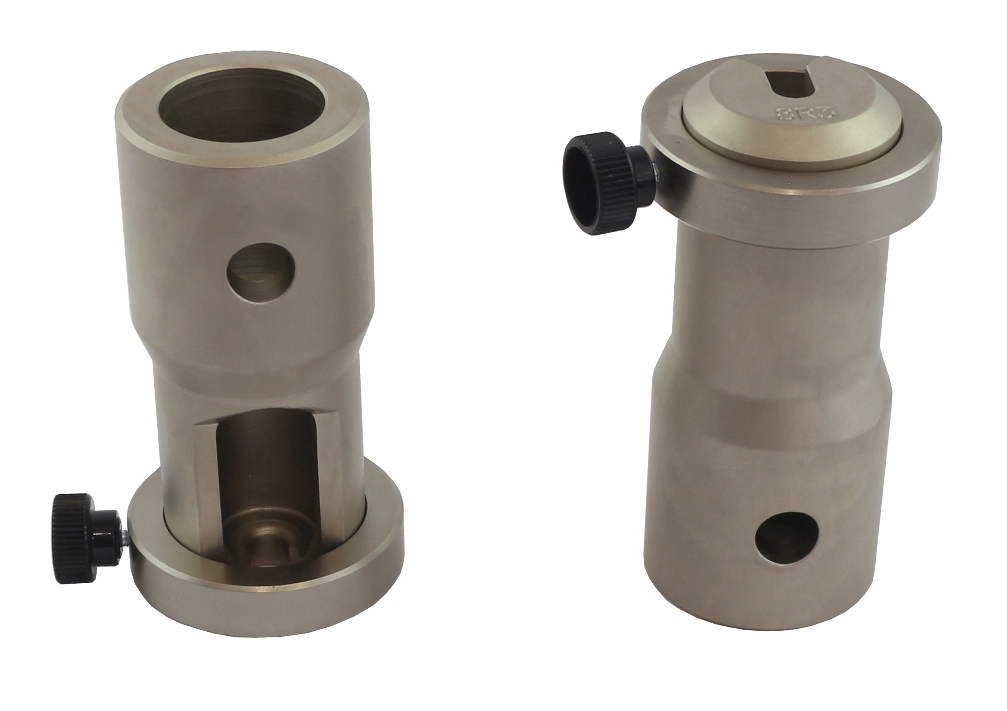

TH89-318-8R3
Chuck grip
Max. load 50 kN
Slot 8 mm with radius 3 mm
Steel hardened, nickel-plated
Coupling Af318
Schulterprobenspannzeug
Max. Kraft 50 kN
Schlitzweite 8 mm mit Radius 3 mm
Stahl,
gehrtet, vernickelt
Adapteranschlu weiblich 318 mm (Af318)
|
|
|

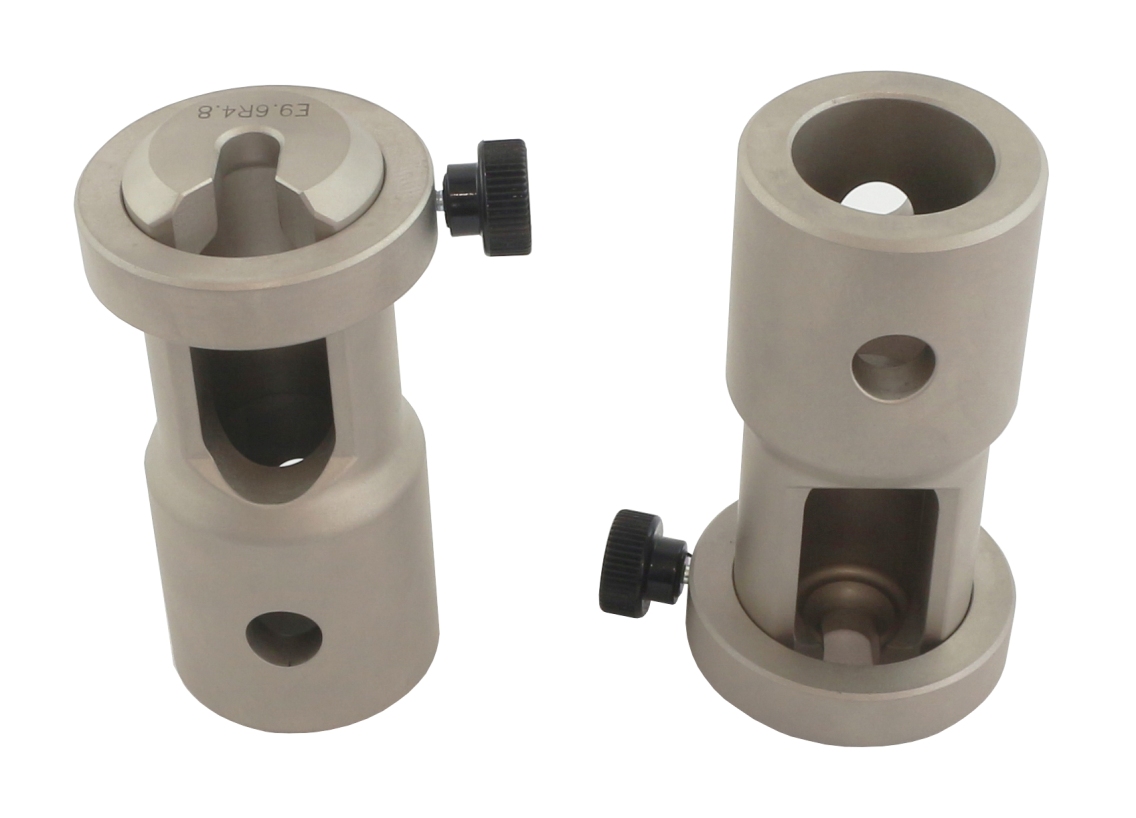

TH89-318-9.6R4.8
Chuck grip
Max. load 50 kN
Slot 9.6 mm with radius 4.8 mm
Coupling Af318
Schulterprobenspannzeug
Max. Kraft 50 kN
Schlitzweite 9.6 mm mit Radius 4.8 mm
Adapteranschlu weiblich 318mm (Af318)
|
|
|

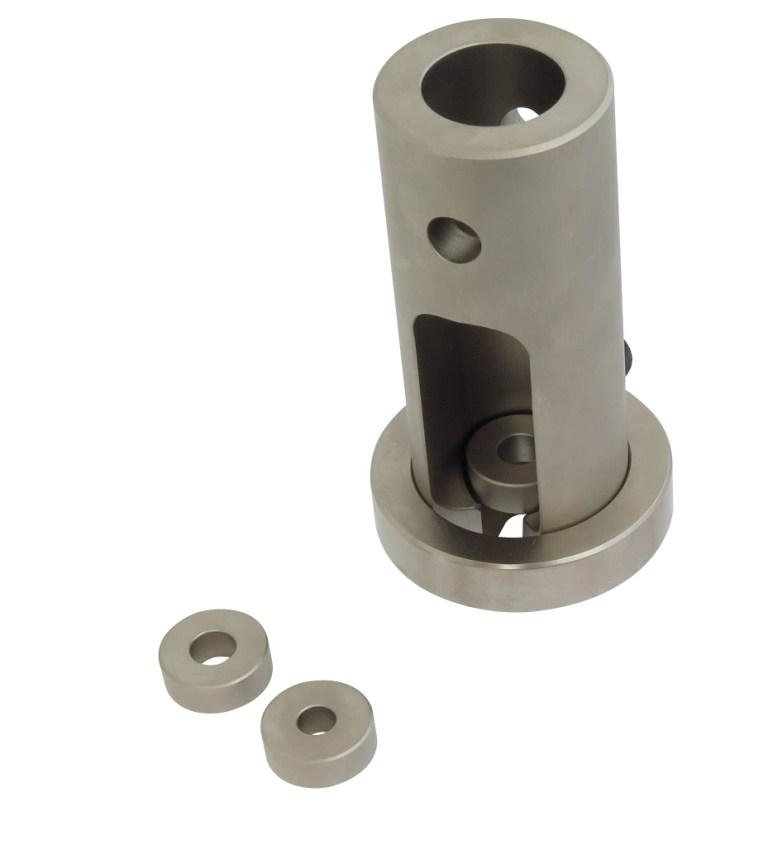

TH89-318-11.3
Chuck grip, slot 11.3 mm
Steel, hardened, nickel coated
Coupling Af318
Schulterprobenspannzeug
Schlitzweite 11.3 mm
Stahl,
gehrtet, vernickelt
Adapteranschlu weiblich 318mm (Af318)
|
|
|
TH89-3816-8R1-DIN50125-Form-C6x30
Chuck
grip according to DIN50125 Form C6x30 for testing metallic materials
Steel,
hardened, nickel-plated
Slot 8 mm with radius 1 mm
|
|
|

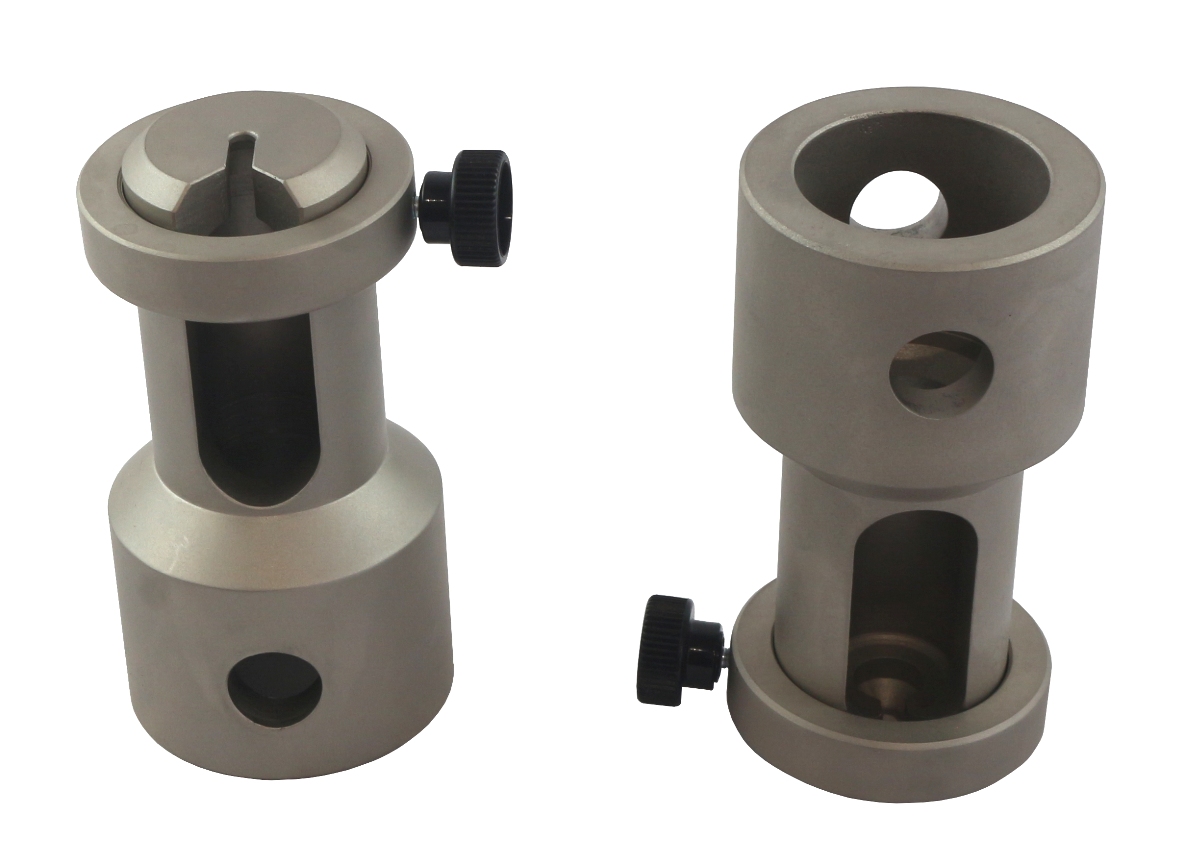

TH89-40-4R2
Chuck-grip
Max. load 15 kN
Slot 4 mm with radius 2 mm
Steel hardened, nickel-plated
Coupling Af40/16
Schulterprobenspannzeug
Max. Kraft 15 kN
Schlitzweite 4 mm mit Radius 2 mm
Stahl,
gehrtet, vernickelt
Adapteranschlu weiblich 40/16 mm (Af40/16)
|
|
|

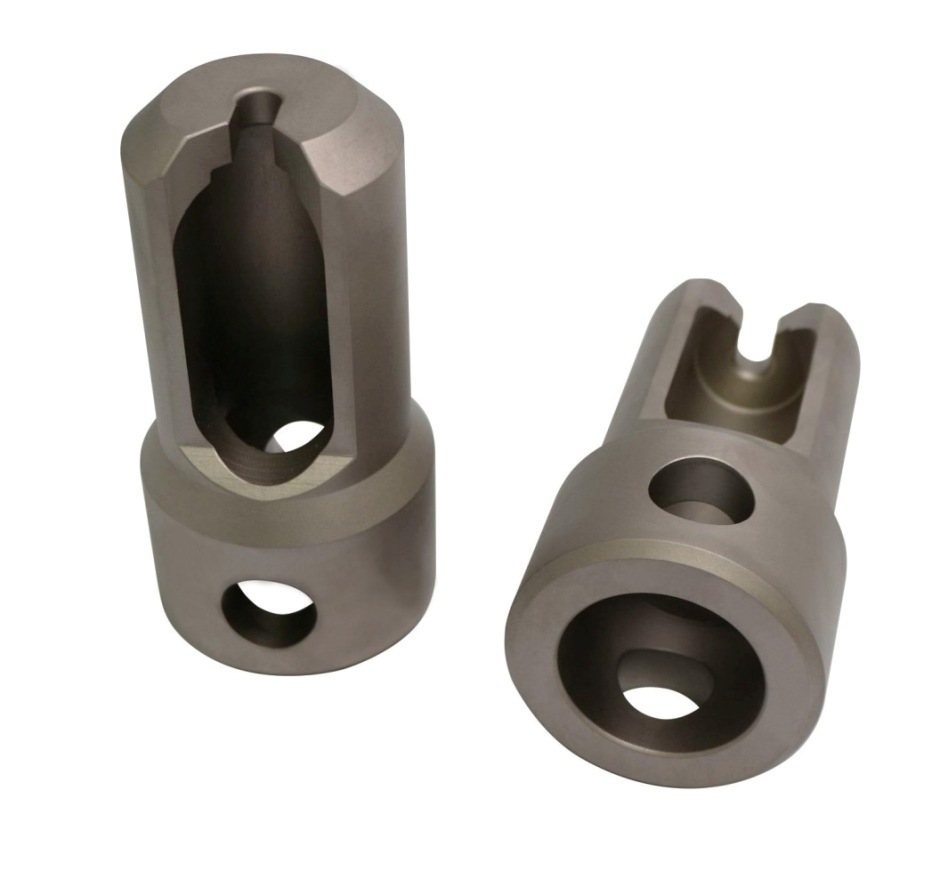

TH89-5025-10R3
Chuck grip
Slot 10 mm with radius 3 mm
Coupling Af50/25
Schulterprobenspannzeug
Schlitzweite 10 mm mit Radius 3 mm
Adapteranschlu weiblich 50/25 mm (Af50/25)
|
|
|
TH89-50-E10R3-35
+
TH89-50-E5R1.5-35
Chuck-grips
Steel hardened, nickel-plated
Coupling
Af50/25
Schulterprobenspannzeug
Stahl, gehrtet, vernickelt
Adapteranschlu weiblich 50/25 mm (Af50/25)
|
|
|

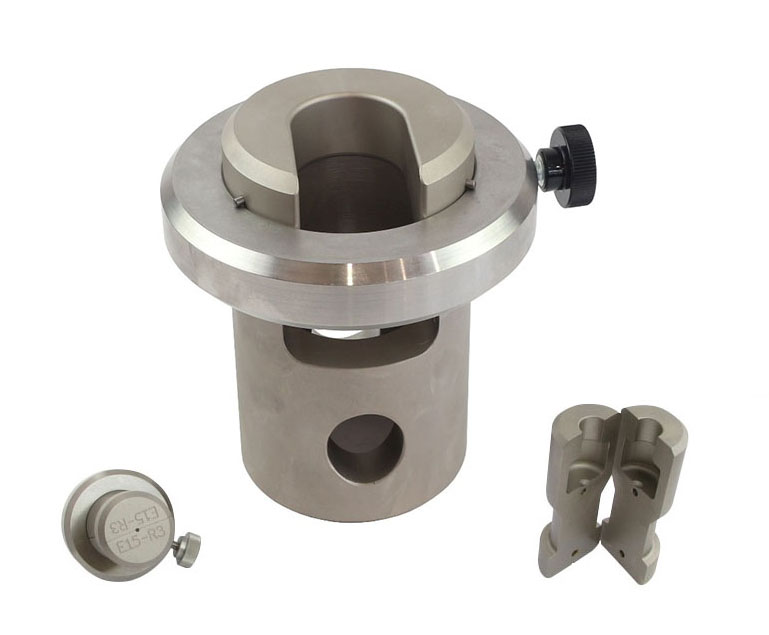

TH89-60-13R5
Inset for TH89-60-14.1-R8
|
|
|

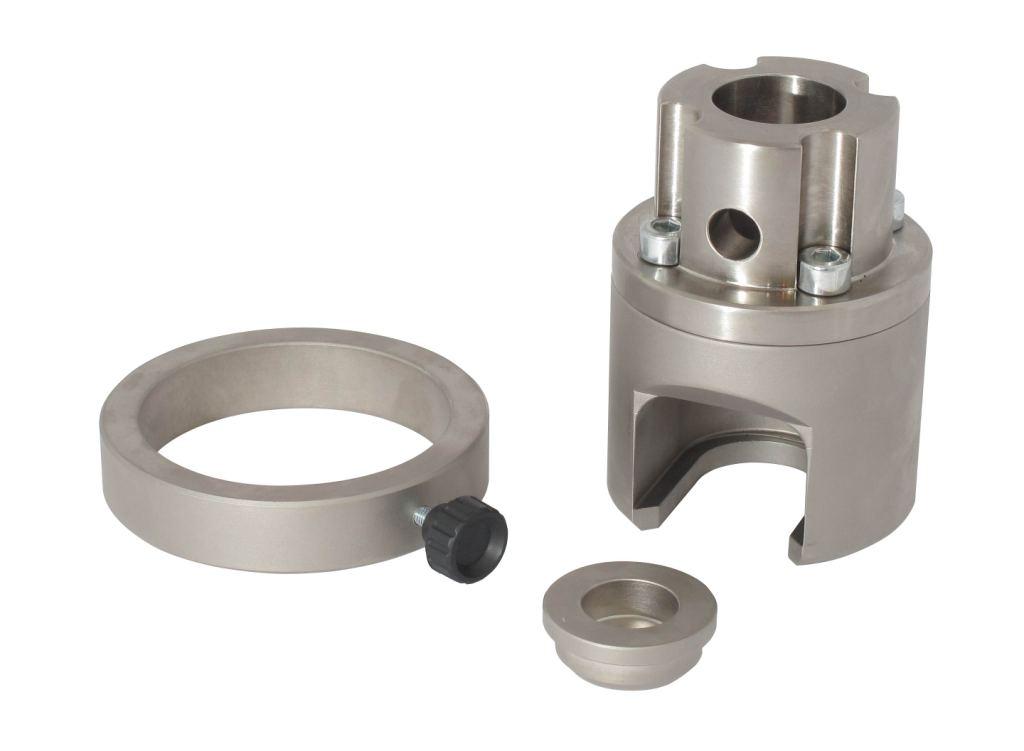

TH89-S48+E6.7R1-318
Special shoulder grip
Steel, nickel-plated
Coupling Af318
|
|
|

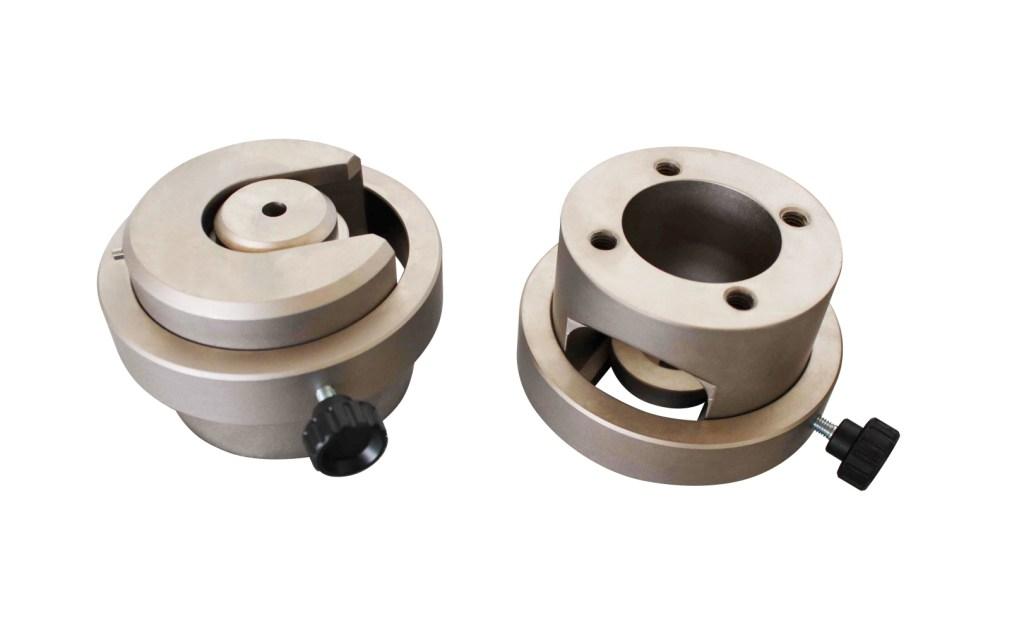

TH89-S48+E6
|
|
