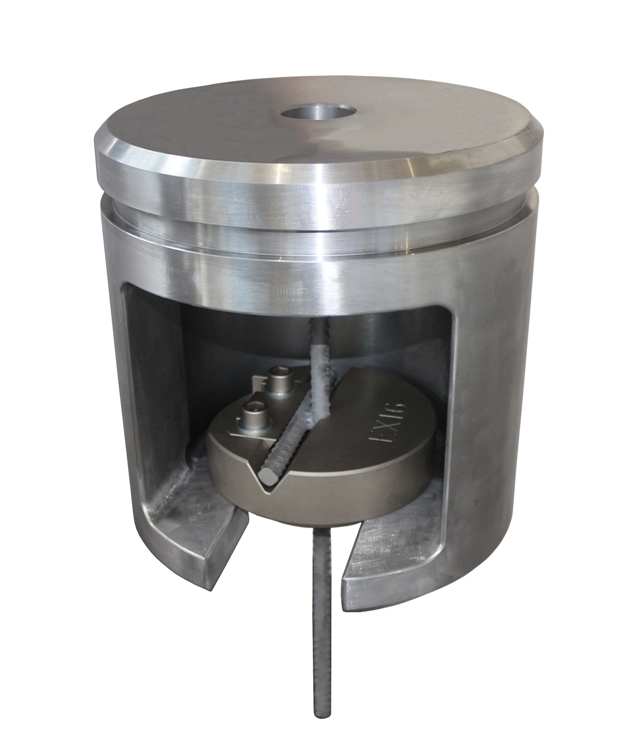

tn_THS756-V20-GT150-AM55x160+EXXX-GOST10922 shear grip1

THS756-V20-GT150-Am55x160+EXXX

Special chuck grip for shear tests on welded reinforcing products in accordance with GOST10922 Fig.3

See THS290 shear grips

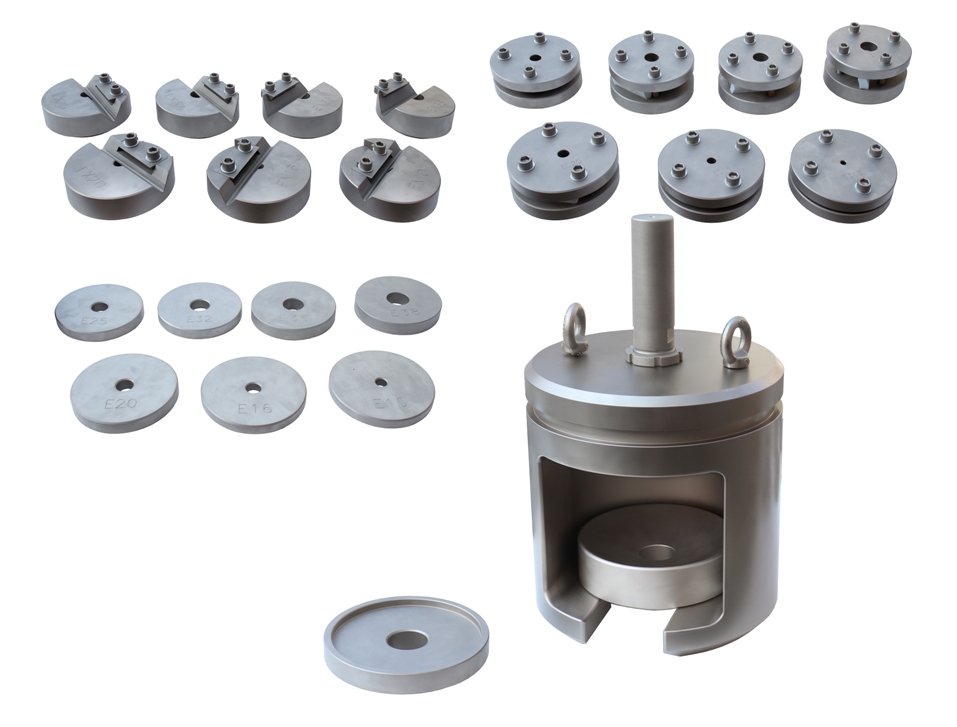

tn_THS756-1000 welded reinforcing products GOST 10922-fig.3 2020-09-24 01

THS756-1000-GT-Am55x150 + Ex



Chuck grip to test welded reinforcing products

according to GOST10922-fig.3
Max. load 1000 kN

Steel, hardened, nickel-plated

Coupling Am55x150

Carrier with inserts

tn_THS756-1000+GT+E welded reinforcing products GOST 10922-fig.3 2020-09-17  05

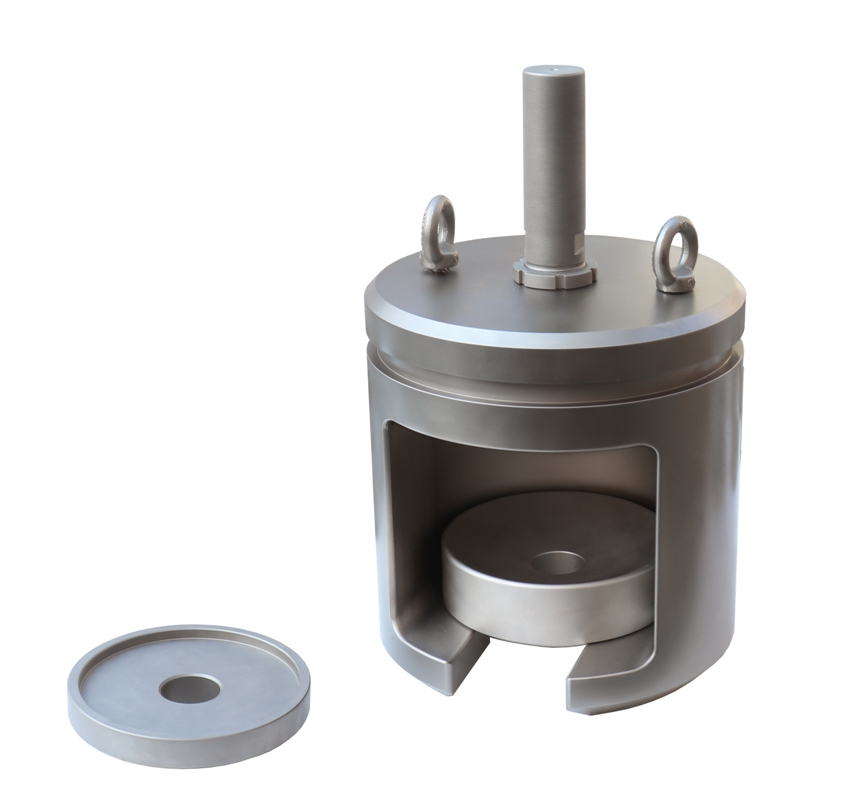

THS756-1000-GT-Am55x150 + Ex



Carrier with inserts

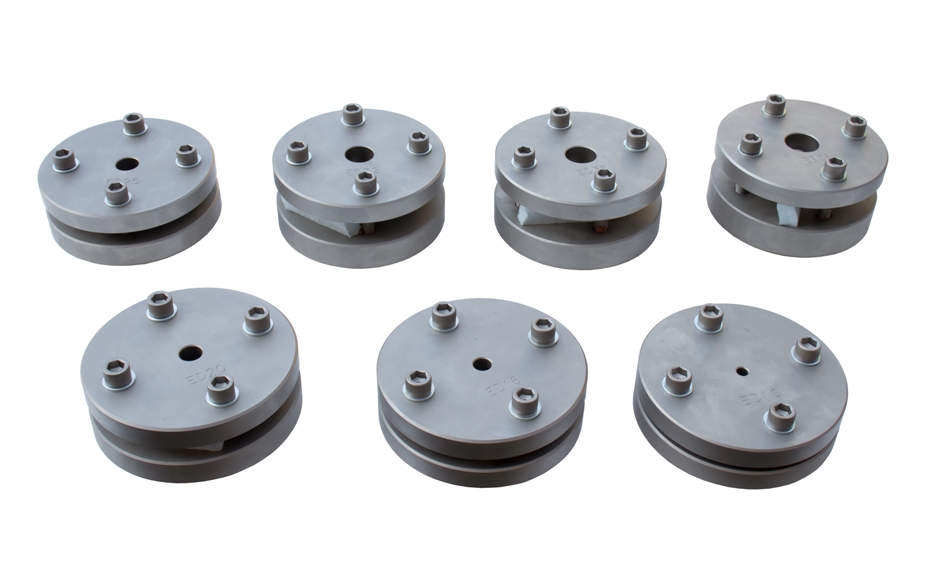

tn_THS756-1000-ED welded reinforcing products GOST 10922-fig.3 2020-09-17  03

THS756-1000-ED10, 16, 20, 25, 32, 35, 38



Inserts to test samples 10, 16, 20, 25, 32, 35, 38 mm Ø

Steel, hardened, nickel-plated

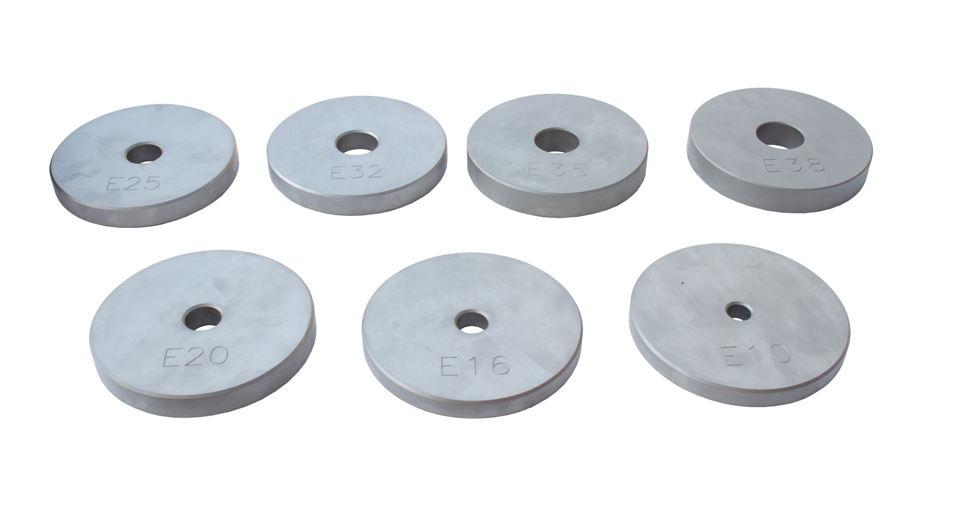

tn_THS756-1000-E welded reinforcing products GOST 10922-fig.3 2020-09-17  04

THS756-1000-E10, 16, 20, 25, 32, 35, 38



Inserts to test samples 10, 16, 20, 25, 32, 35, 38 mm Ø

Steel, hardened, nickel-plated

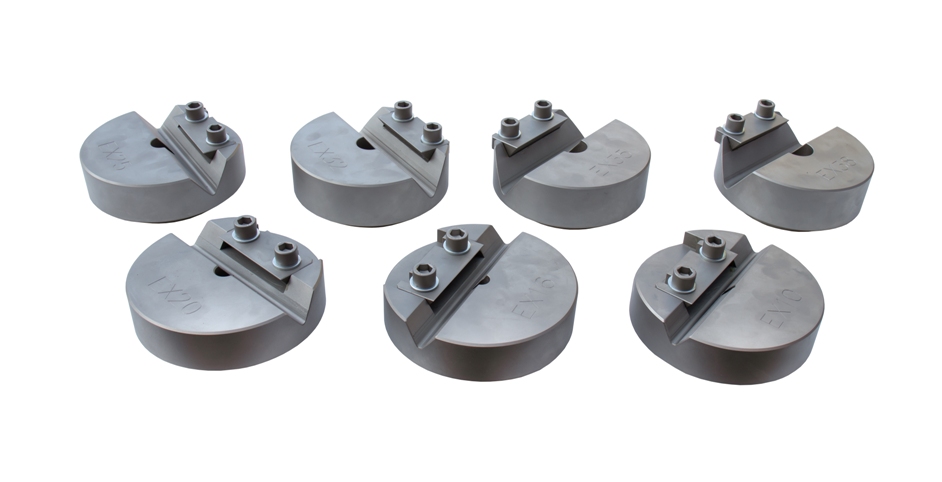

tn_THS756-1000-EX welded reinforcing products GOST 10922-fig.3 2020-09-17  02

THS756-1000-EX10, 16, 20, 25, 32, 35, 38



Inserts to test samples 10, 16, 20, 25, 32, 35, 38 mm Ø

Steel, hardened, nickel-plated
