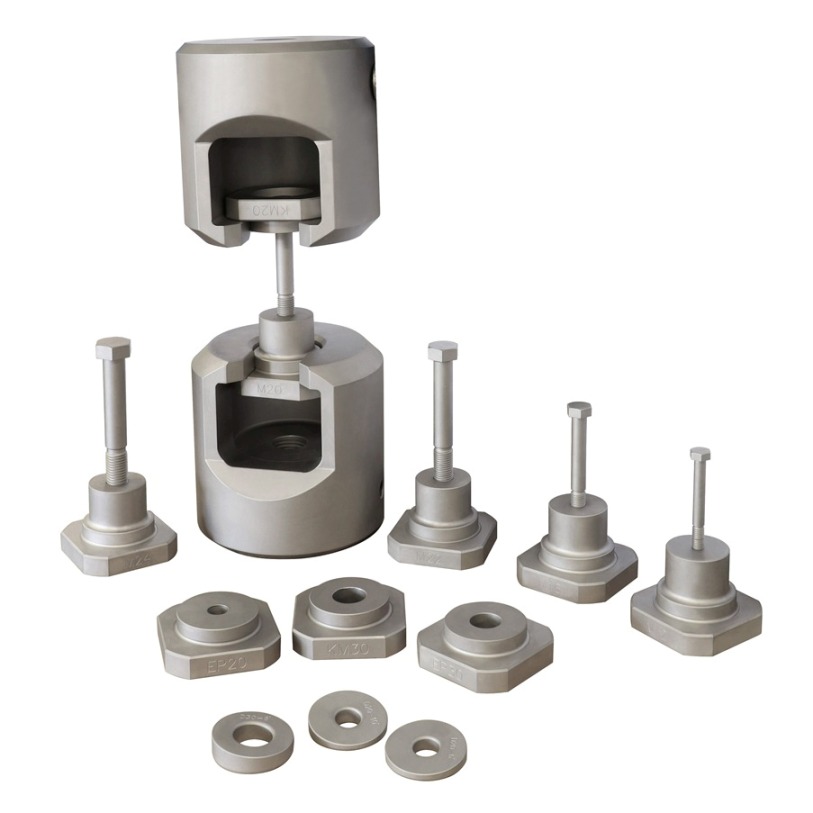

THS659-1000



Grip to test steel fasteners according to DIN EN ISO898-1-Fig.1, 2.

Max. load 1000 kN
Steel, nickel-plated

more

THS659-V35-GP80 KA-M60x3 1000kN ISO898 IMG_2718-

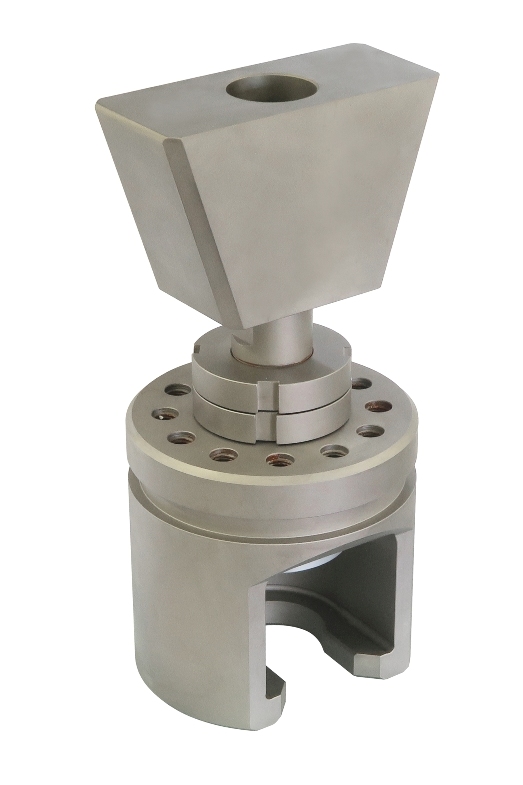

THS659-V35-GP80+KA-M60x3

Holder for inserts
Max. load 1000 kN
Steel, nickel-plated
With insert wedge adapter KA-M60x3
to connect to a larger grip

THS659-ISO898-1_2_fastener_tensile_test

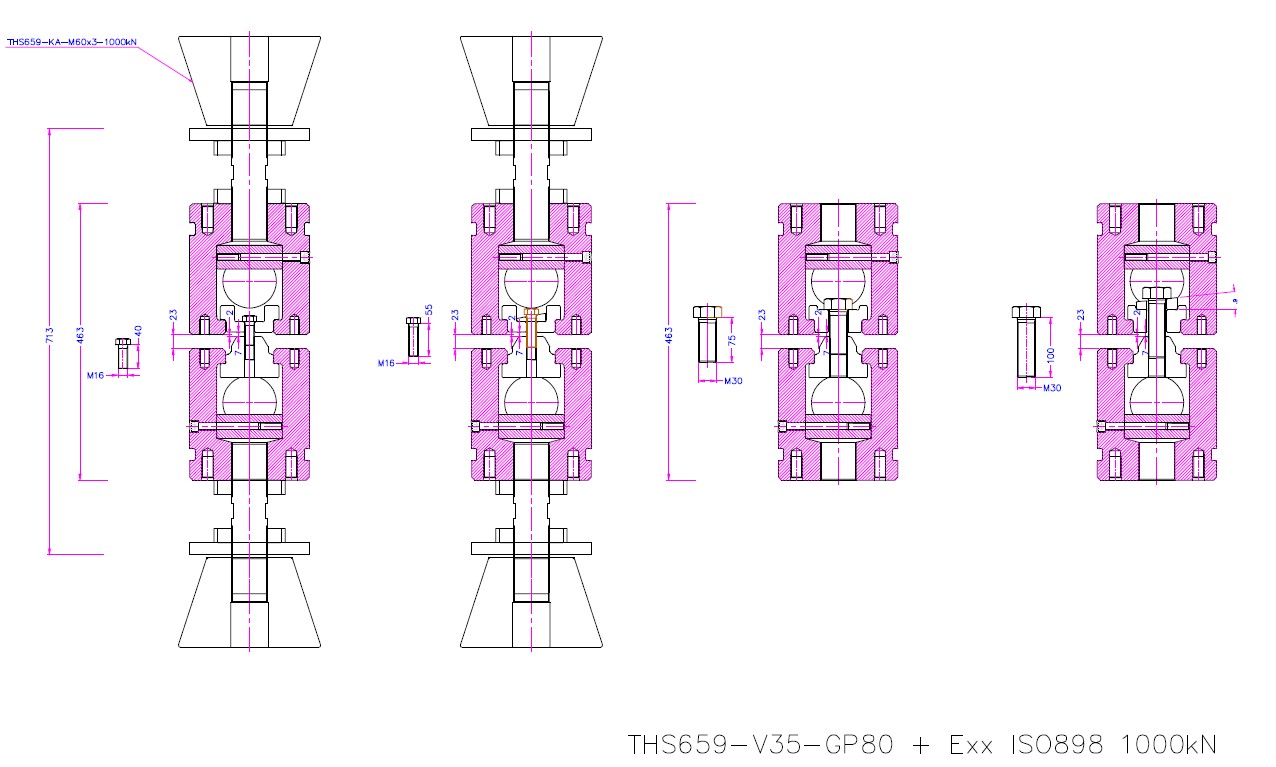

THS659-V35-GP80+Exx-ISO898-2



Special tensile test fixture for testing nuts according to DIN EN ISO898-2

Max. load 1000 kN

THS659-V58-GP60-Af6025_ISO898-1_ISO898-2_steel_fasteners_tensile_test

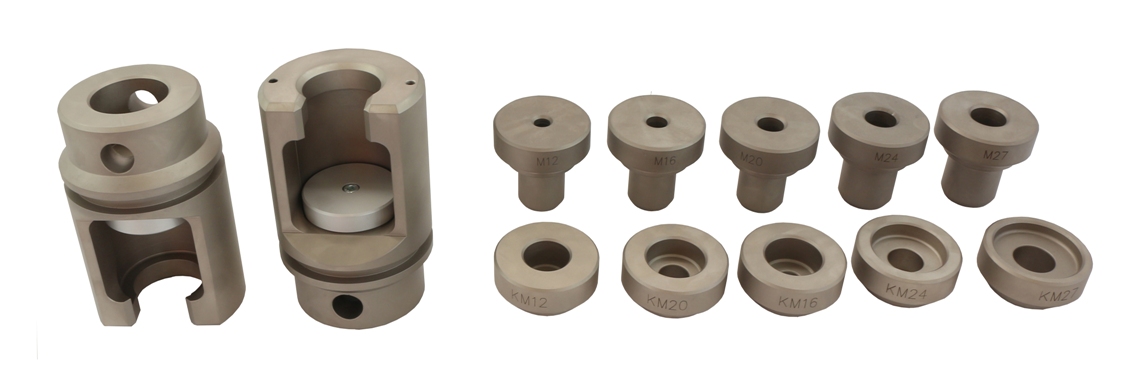

THS659-V58-GP60-Af6025



Chuck grip for testing tensile properties of threaded fasteners according to ISO898-1 and ISO898-2

For threaded samples M16, M20, M24, M27

Coupling Af60

Steel, nickel-plated, hardened

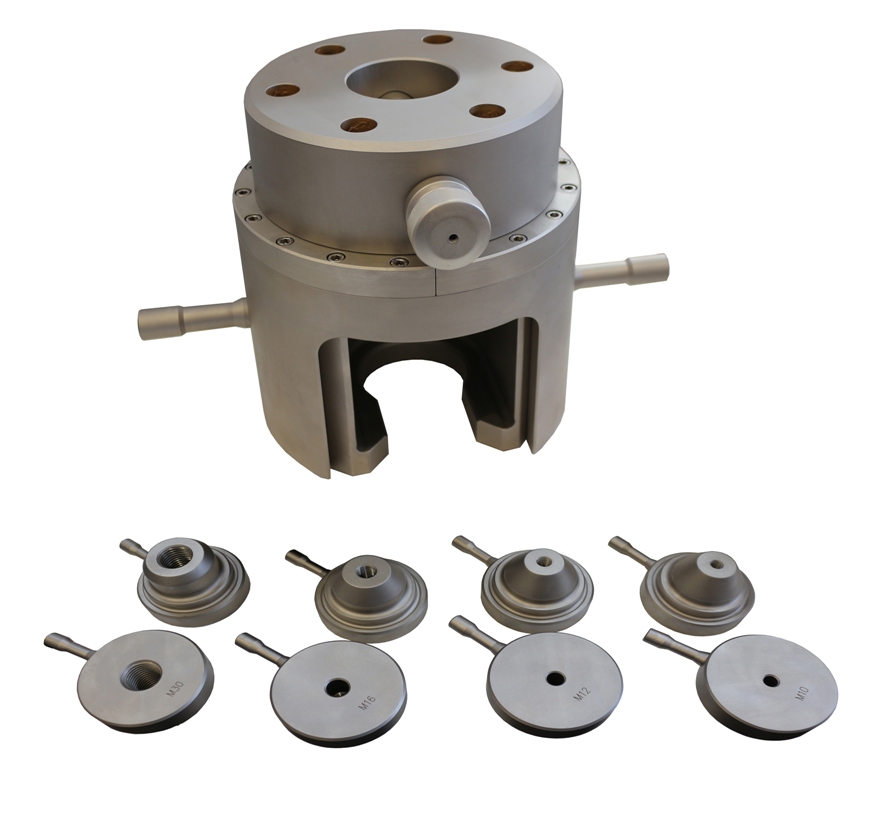

THS659-V59-GP80



Chuck grip for testing tensile properties of threaded fasteners

Max. load 300 kN
