G06 Vice grips



Back



tn_THS668-80-Af318

THS668-80-SCR1-Af318

A= Body width
B=  1scr  = 1 screws
C= Adapter size

A= Korpusbreite
B=  3scr  = 3 Schrauben
C= Adaptergröße



Description: pdf_icon.gifTHS668 Datasheet.pdf

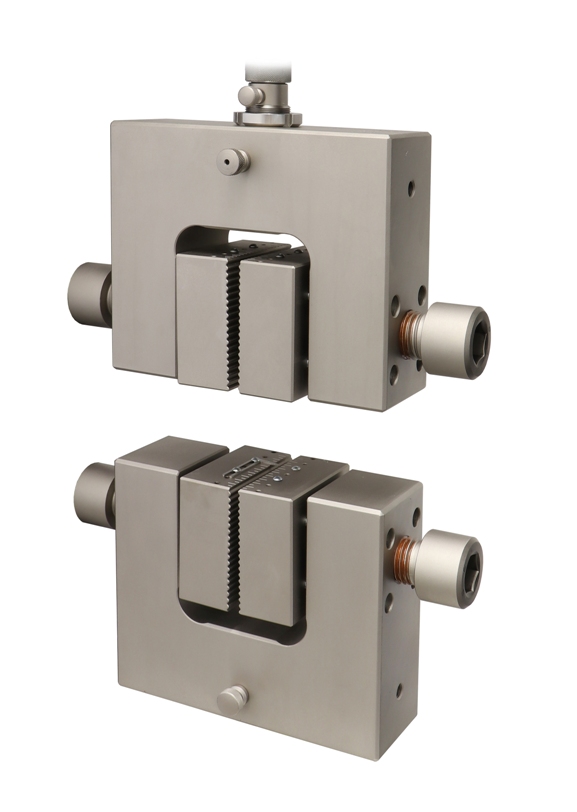

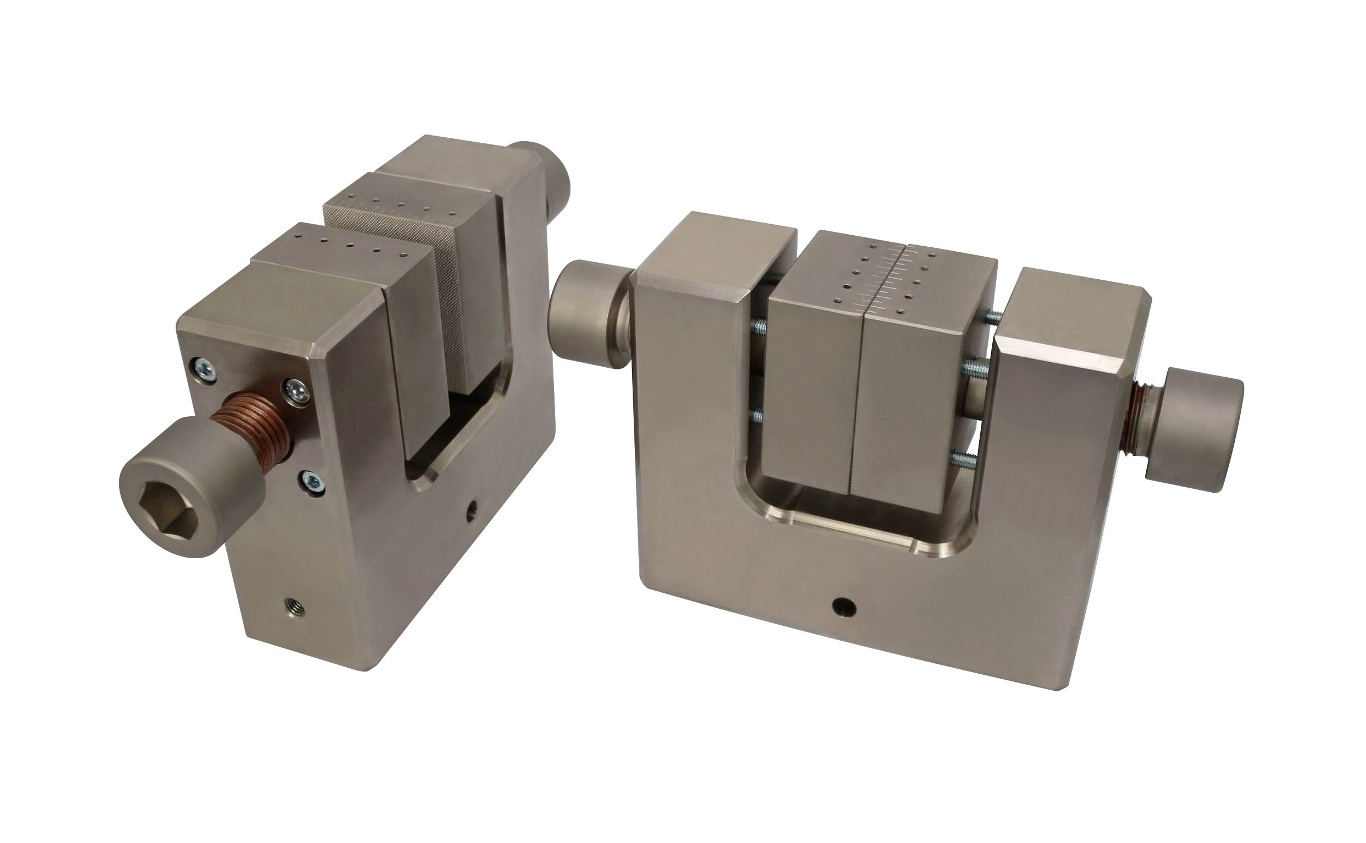

THS668-80-SCR1+BW100x100  58,3kg 2022-03-15 01

THS668-80-SCR1+BW100x100

Vise grip
For samples 0-16 mm

Clamping surface 100x100 mm

Coupling Af318

Max. load 100 kN

Steel, nickel-plated

more

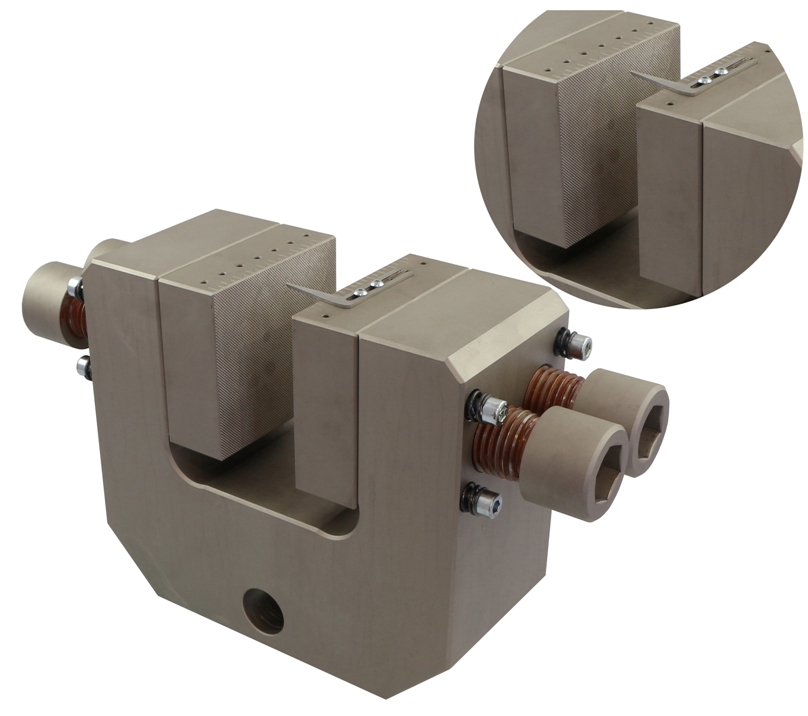

THS668-110-F50+BP

THS668-110-F50+BP

Vise grip
For samples 44 mm
Clamping surface 100 x110 mm
Coupling  Af60/30-35 mm
Max.load 50 kN
Steel, nickel-plated

more

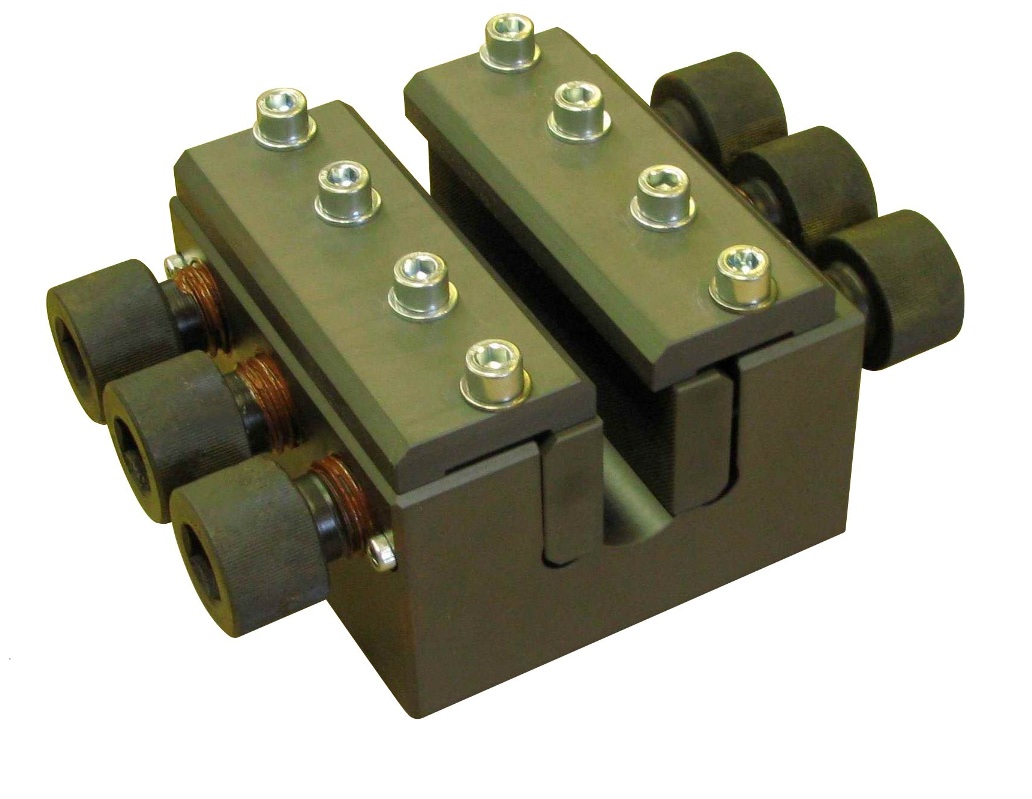

Description: tn_THS688-150-CPo counterplaten for dynamic tests 015-.jpg

THS668-150+BP



Vice grip for dynamic tests
Max.load 300 kN


See THS28

Description: THS668-200+BW.jpg

THS668-200+BW

Heavy vice grip
For samples 0-40 mm
Clamping surface 100x210 mm

Coupling Af40/16 mm
Max.load 100 kN

Steel, nickel coated

more

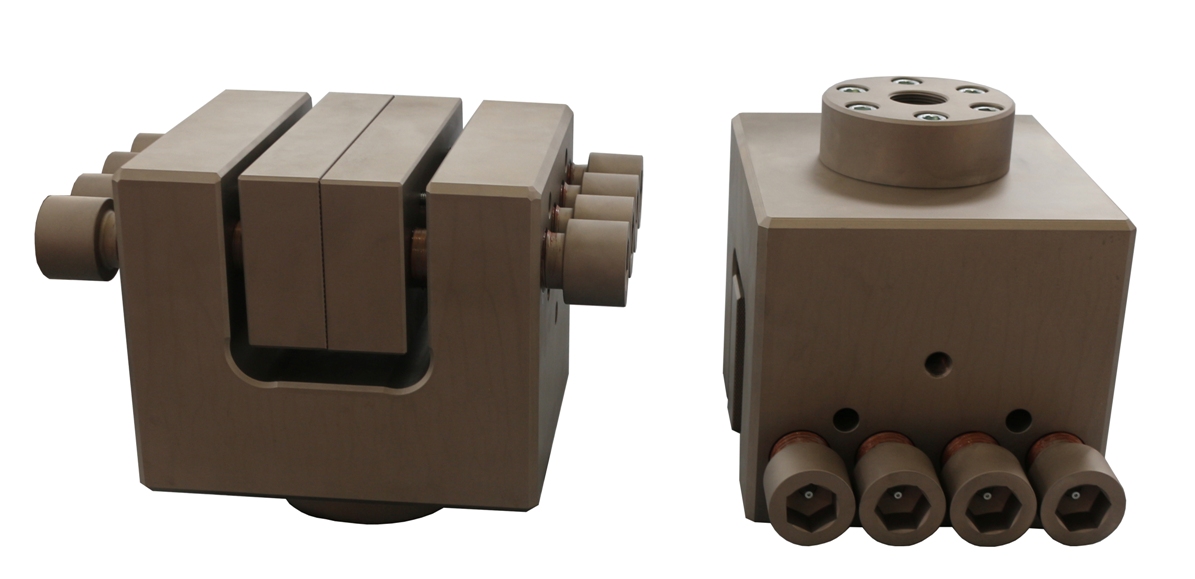

THS668-210-F250+BP-2018-05-08



THS668-210-F250+BP

Heavy vise grip
For samples 0-20mm
Clamping surface 100x210 mm

Coupling Af60/30 mm
Max.load 250 kN
Steel, nickel-plated

more

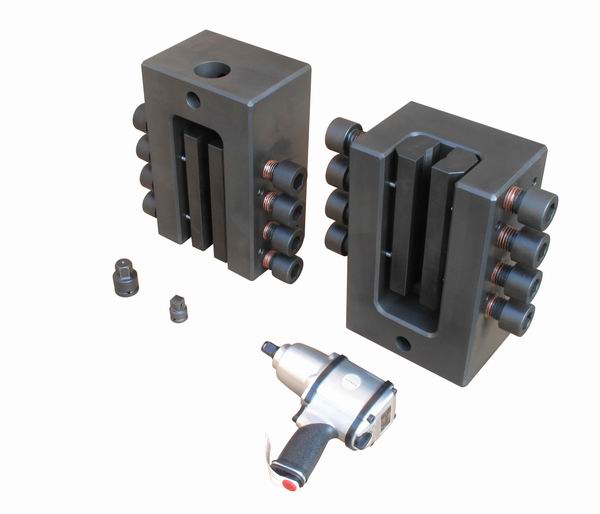

Description: THS668-300-A90 +  pnuematic screw driver .jpg

THS668-300-Af90

Pneumatic screw driver

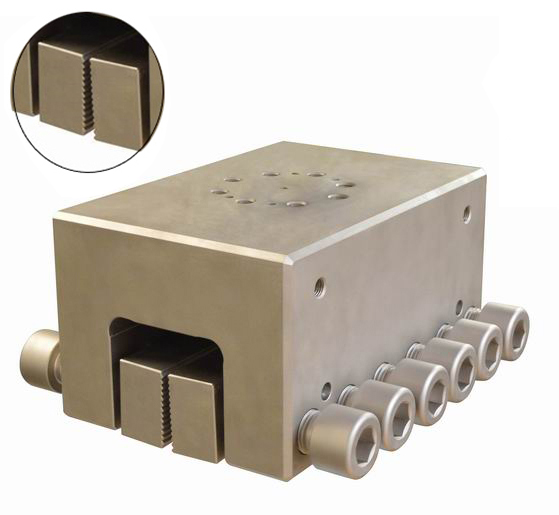

THS668-350-Am70 top-

THS668-350+BW

Heavy vise grip
For samles 0-18 mm
Coupling Am70
mm
Max.load 300 kN
Steel, nickel-plated

more

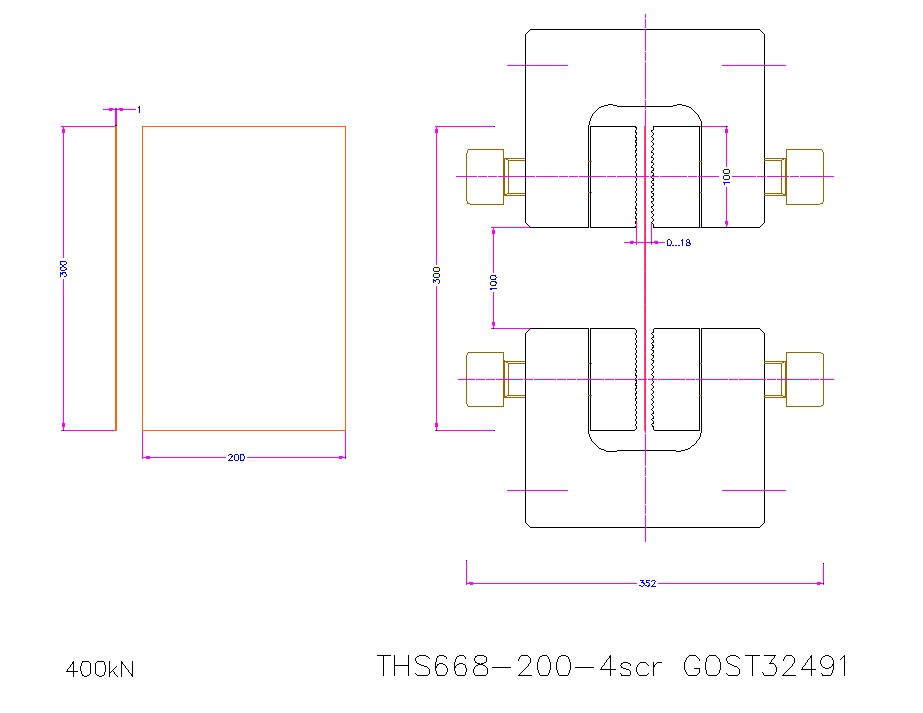

tn_THS668-200-4scr GOST32491  Geosynthetics. Tensile test with wide strip  textile

THS668-200-4scr-GOST32491


Geosynthetics
Tensile test with wide strip  textile  400 kN
Accroding to GOST32491
