G06 Vice grips



Back

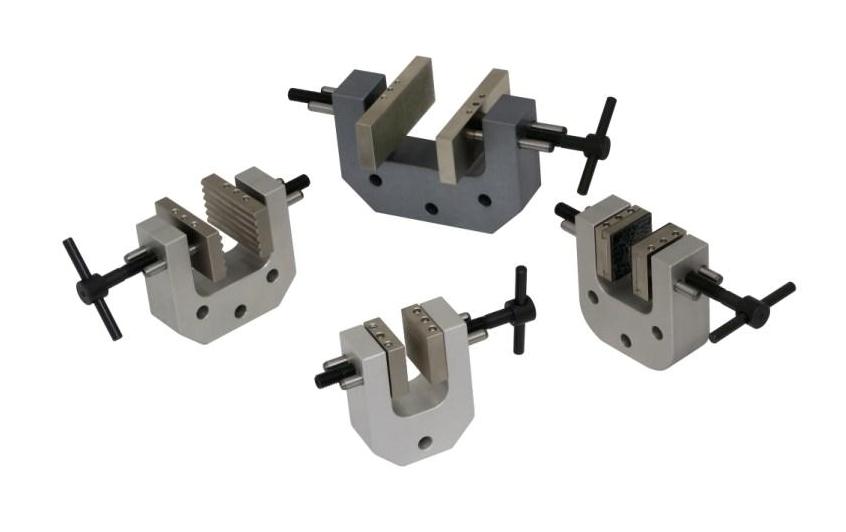

Description: TH240k -S20 -S30 -S50-



TH240k



Small vice grips


Kleine Schraubspannköpfe

Description: Description: Description: Description: pdf_icon.gifTH240k Datasheet.pdf
Description: Description: Description: Description: pdf_icon.gifTH240k Datenblatt.pdf

Jaws


TH240k-Af20+BP_2021-06-07

TH240k



U-form vise grip
Tensile force: 2.5 kN

Opening 0-10 mm



Schraubspannkopf U-Form
Zugkraft: 2,5 kN
Öffnungsweite 0 - 10 mm

tn_TH240k+B30x30+B30x50

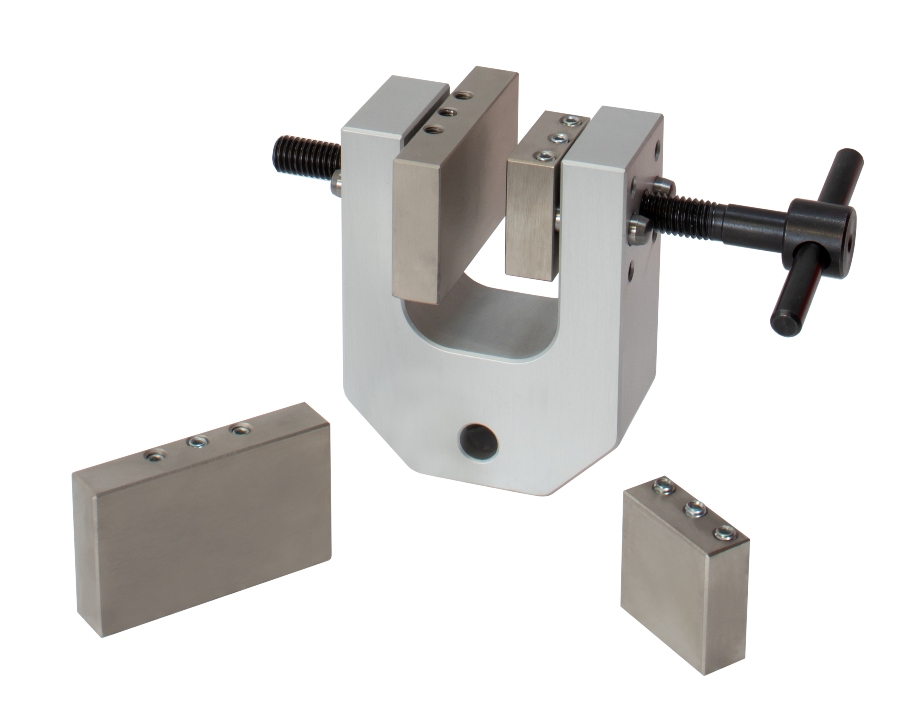

TH240k+B30x30+B30x50

With blank jaws
Clamping surface 30 x 30 mm and
30 x 50 mm

Description: tn_TH240k+BG50-

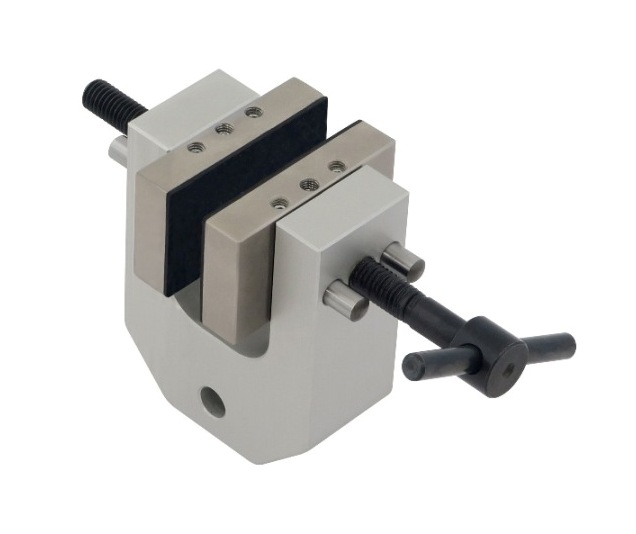

TH240k+BG50

With rubber jaws
Clamping surface 30 x 50 mm

Description: TH240k-S20+BV33-2015-

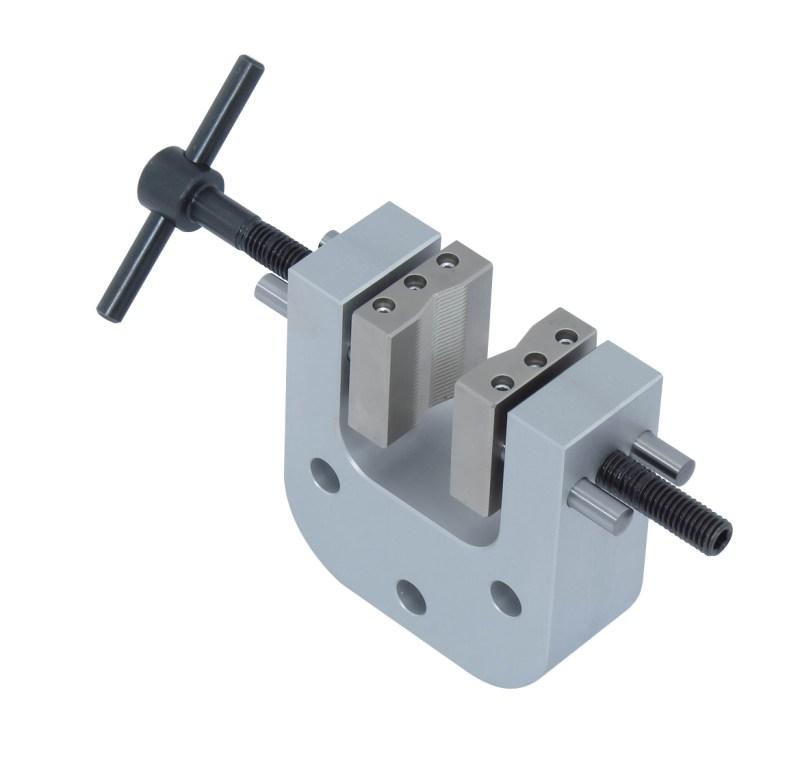

TH240k-S20



U-form vise grip
Opening 0-20 mm

more

Description: TH240k-S30GT EBP-V2astainless steel insertjaws-

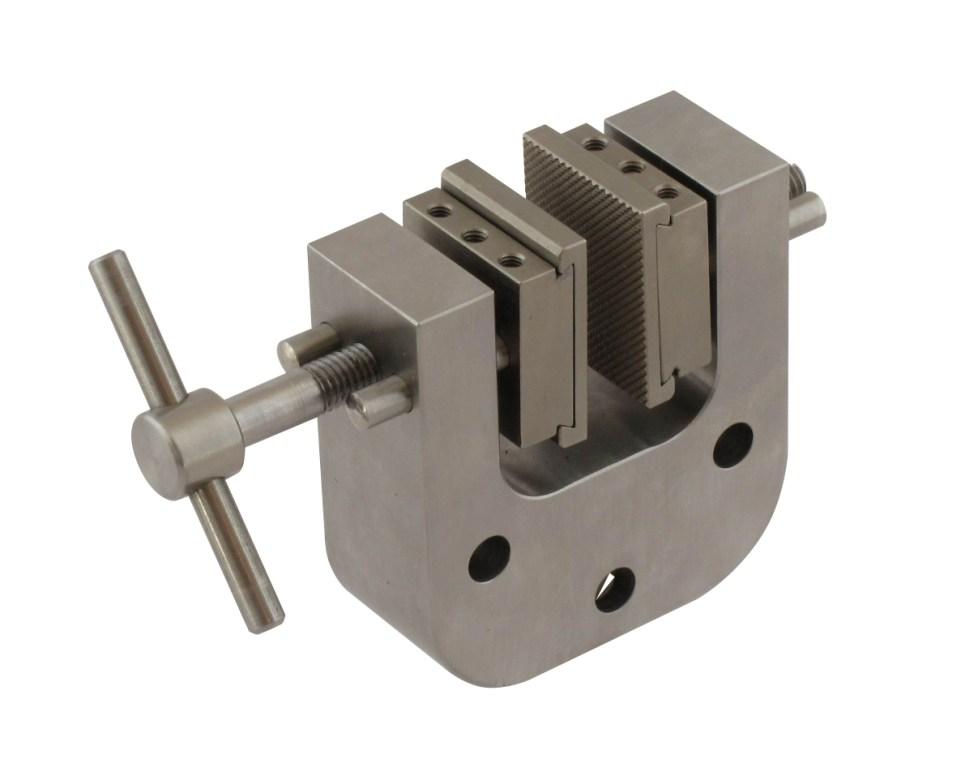

TH240k-S30



U-form vise grip
Opening 0-30 mm

more



Description: TH240k-S50+BP-

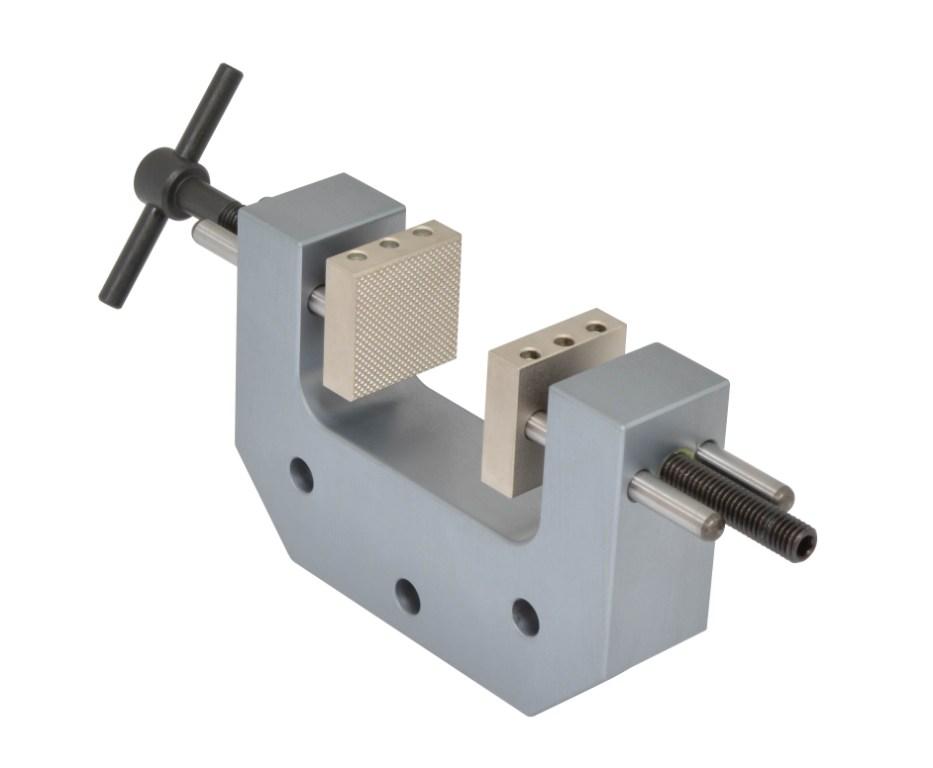

TH240k-S50



U-form vise grip
Tensile force: 1 kN
Opening 0-50 mm



Schraubspannkopf U-Form
Zugkraft: 1 kN
Öffnungsweite 0 - 50 mm

Description: TH240k-A4+BP-

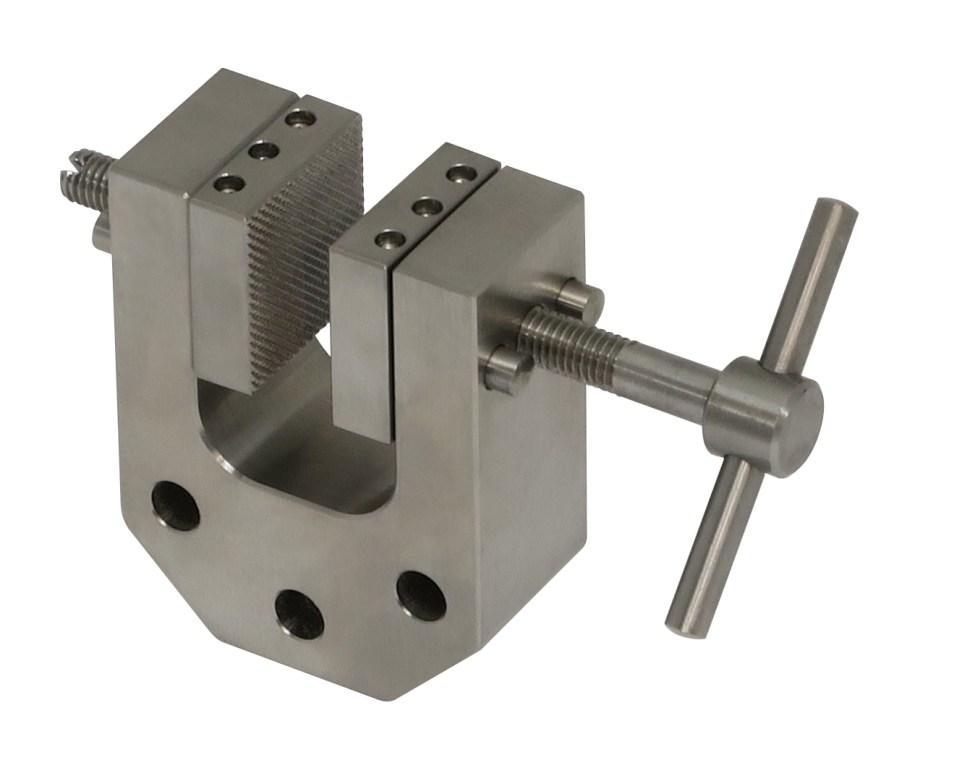

TH240k-A4



Stainless steel version
Tensile force: 5 kN

Opening 0-10 mm



Edelstahl-Version
Zugkraft: 5 kN

Öffnungsweite 0-10 mm

tn_TH240k+BW25+BW50 Grab Test Textile Breaking Strength ASTM-D5034  Textil    G06  2020-08-10  02

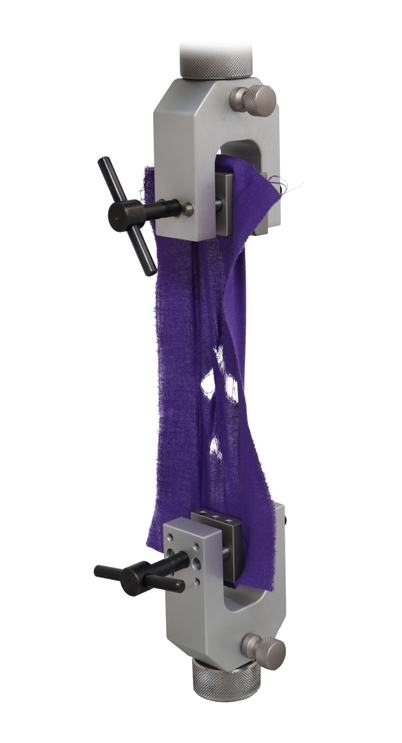

TH240k+BW25+BW50-ASTM-D5034



Breaking Strength and Elongation

of Textile Fabrics (Grab Test) to ASTM-D5034



Bruchfestigkeit und Dehnung von

Textilgeweben (Grab Test) gemäß ASTM-D5034

more

tn_TH240k+BW30+BW50   DIN EN ISO13936-2 slippage resistance  Textil    2020-09-02  04

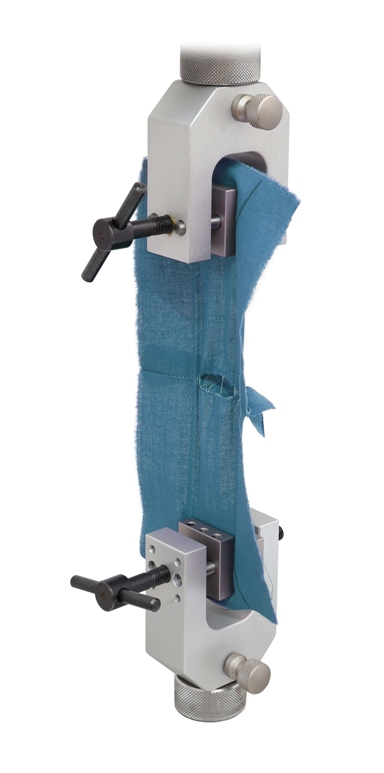

TH240k+BW30+BW50-DIN EN ISO13936-2



Determination of the slippage resistance of yarns at a seam in woven fabrics by fixed load method.



Bestimmung des Schiebewiderstandes von Garnen in Gewebenähten. Verfahren mit festgelegter Kraft.

more

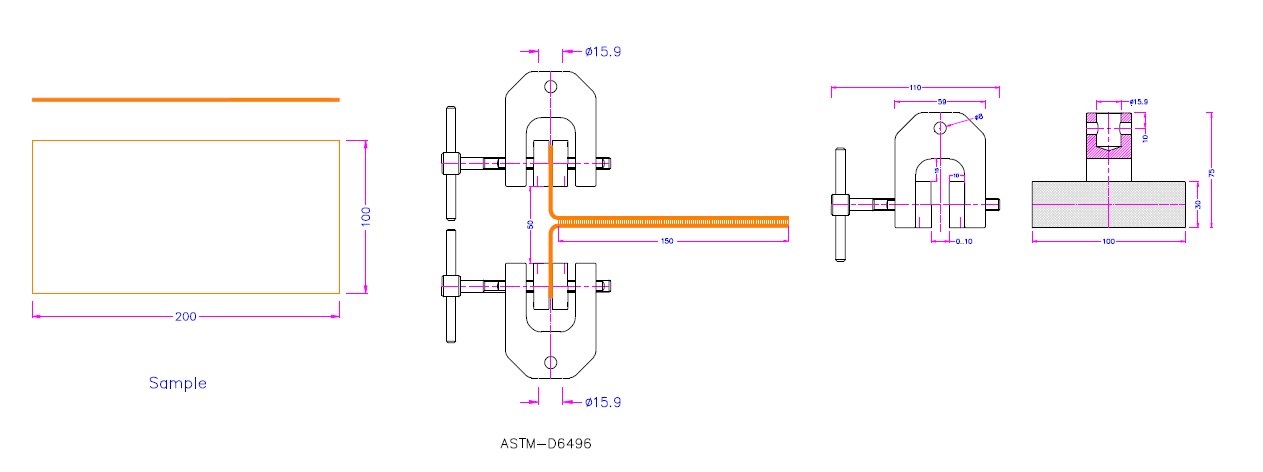

TH240k+BP100

TH240k+BP100

Tensile test grips to determine average bonding peel strength between the top and bottom layers of needle-punched geosynthetic clay liners
According to ASTM-D6496

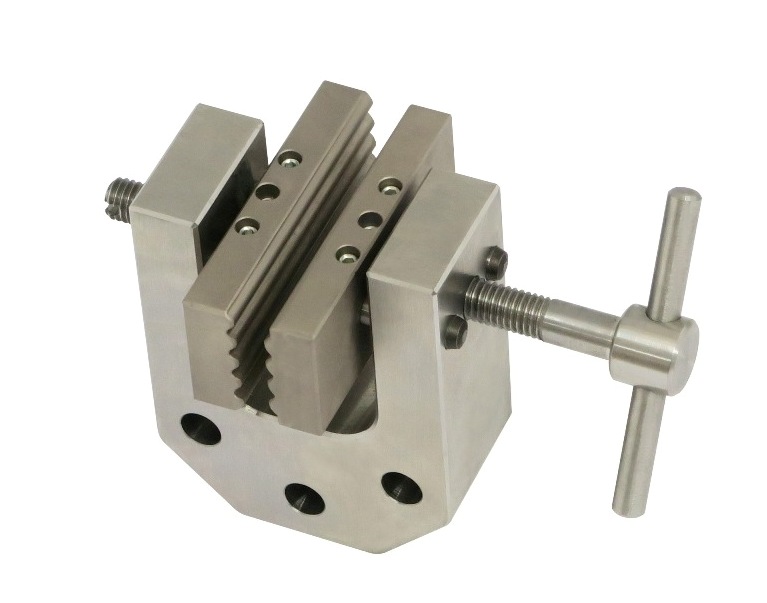

TH240k+BW25x60-

Special versions



more
