tn_TH240g+El IMG_2597-

TH240g+El

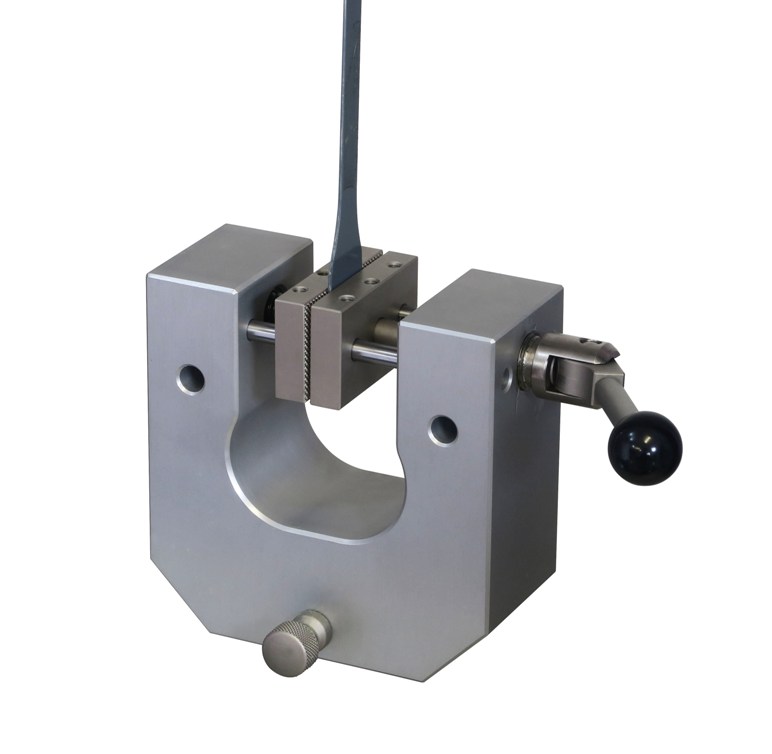

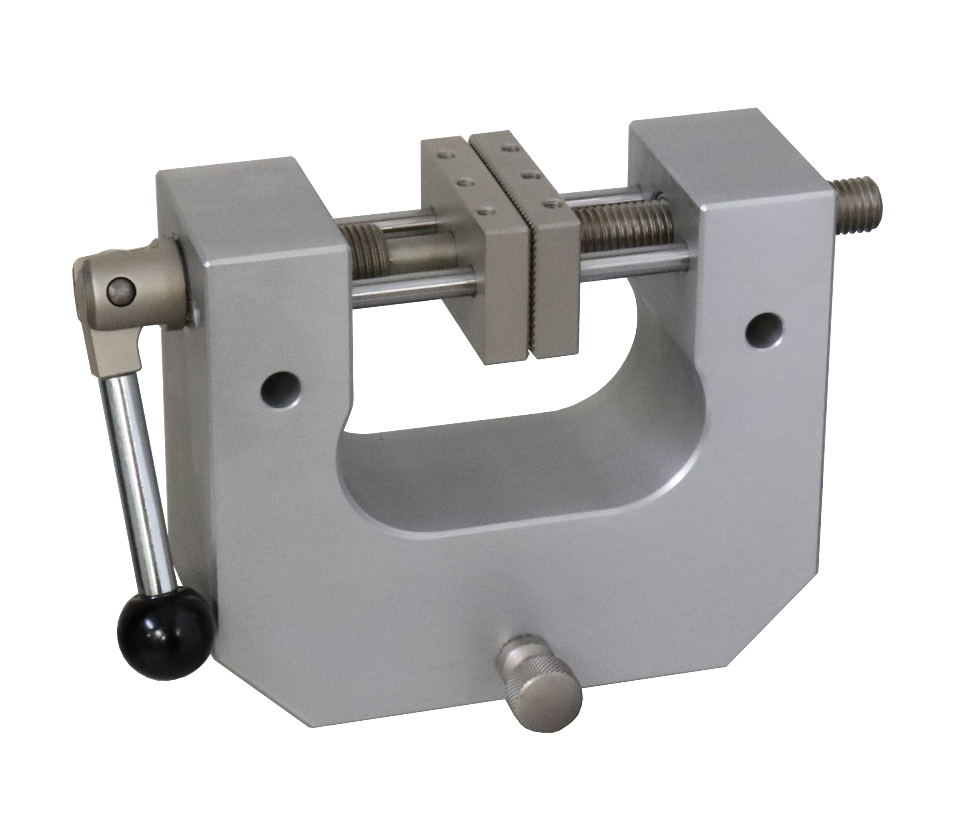

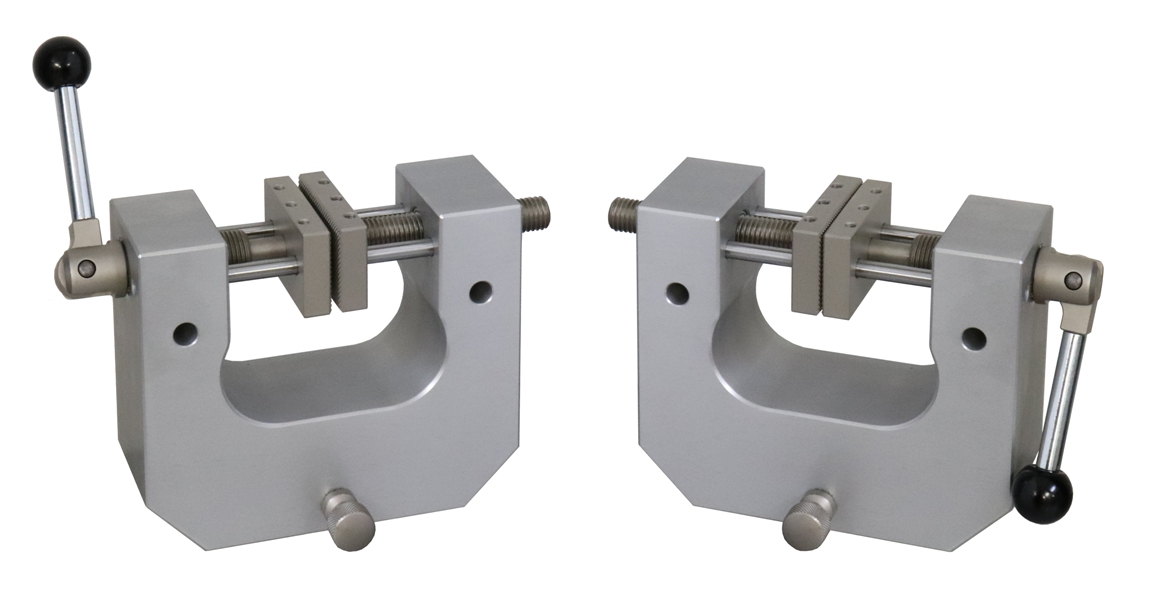

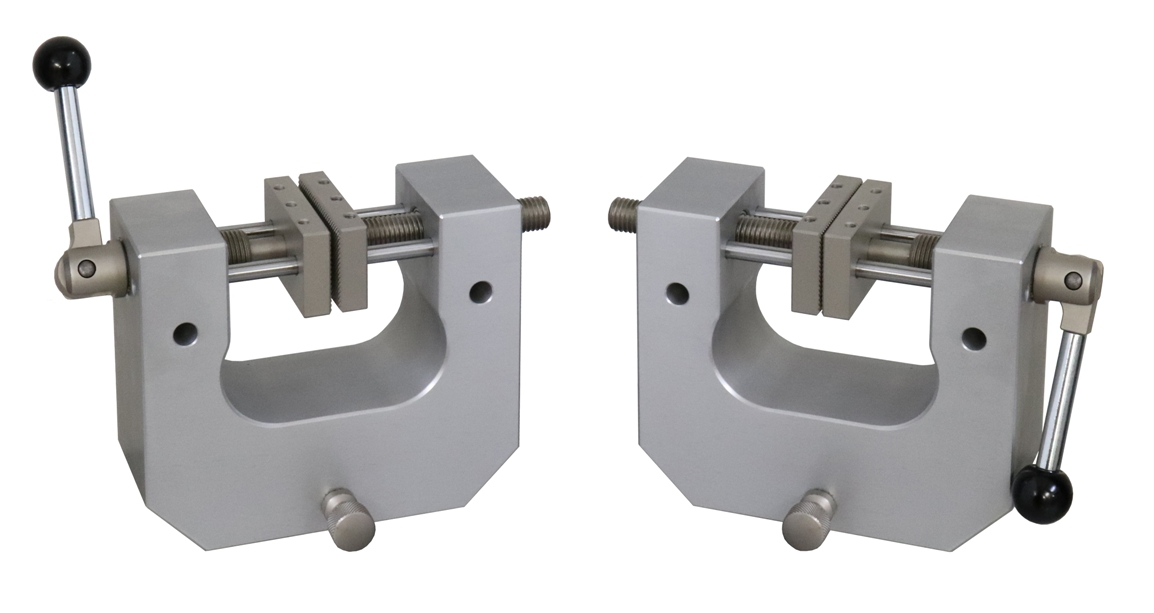

TH240g grip with quick-release lever



By rotating the lever, the jaw face can be opened and closed the same way as with a T-handle.

See video



By bending the lever by 90 the jaw face is moved backwards or forwards by 2 mm.

This is used either to clamp the specimen stronger in the jaw or to quickly release it without rotating the lever.

See video

tn_TH240g+El IMG_2598-

TH240g+El

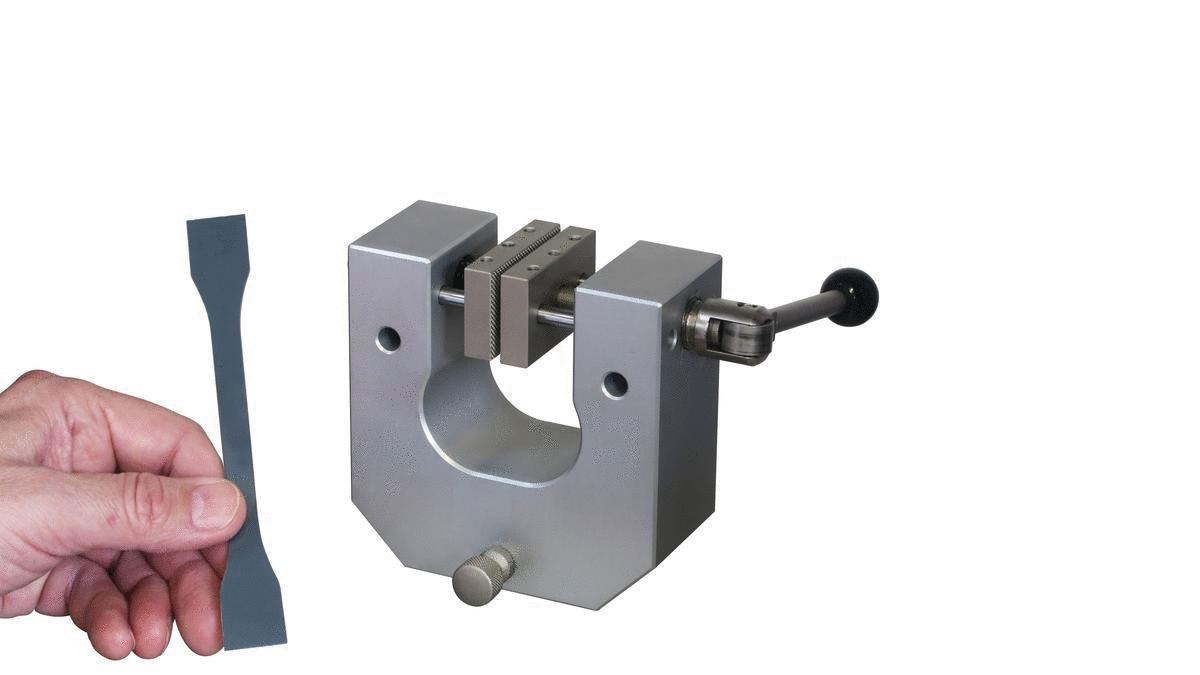

Animation

tn_TH240g+El IMG_2599-

TH240g+El

TH240g+El

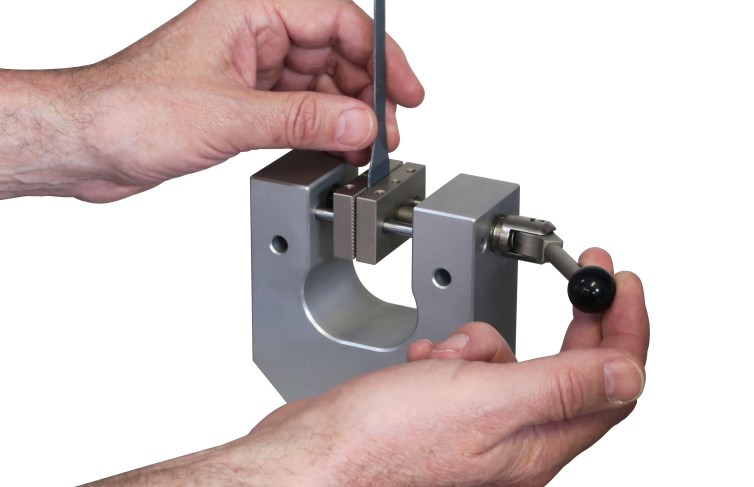

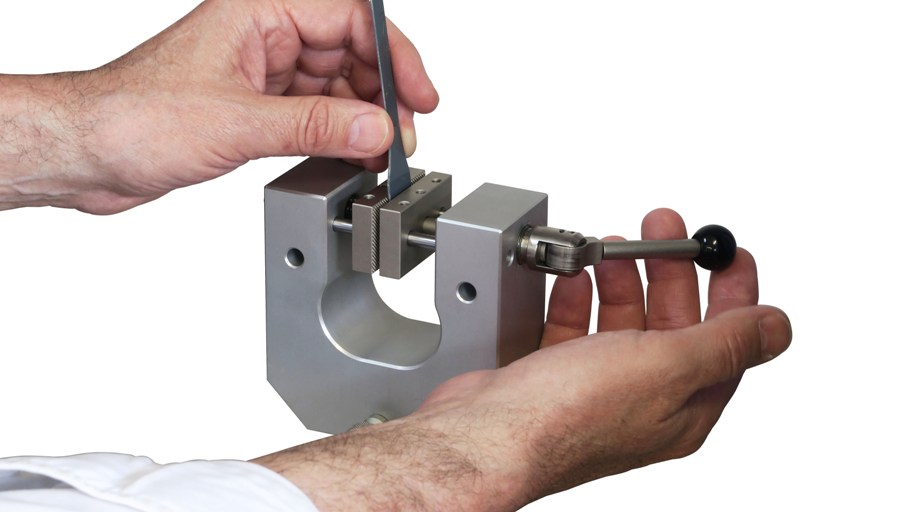

How to clamp a sample with a quick-release lever, See video

How to set jaw opening with a quick-release lever, See video

TH240g+El
