THS722-100-Af3618_2022-09-09

THS722

Rail shear test fixture
According  to ASTM-D7078

Standard Test Method for Shear Properties of Composite Materials
by V-Notched Rail Shear Method
Including nylon positioning tools.

Description: Description: Description: Description: pdf_icon.gif THS722 Datasheet.pdf
Description: Description: Description: Description: pdf_icon.gif THS722 Datenblatt.pdf

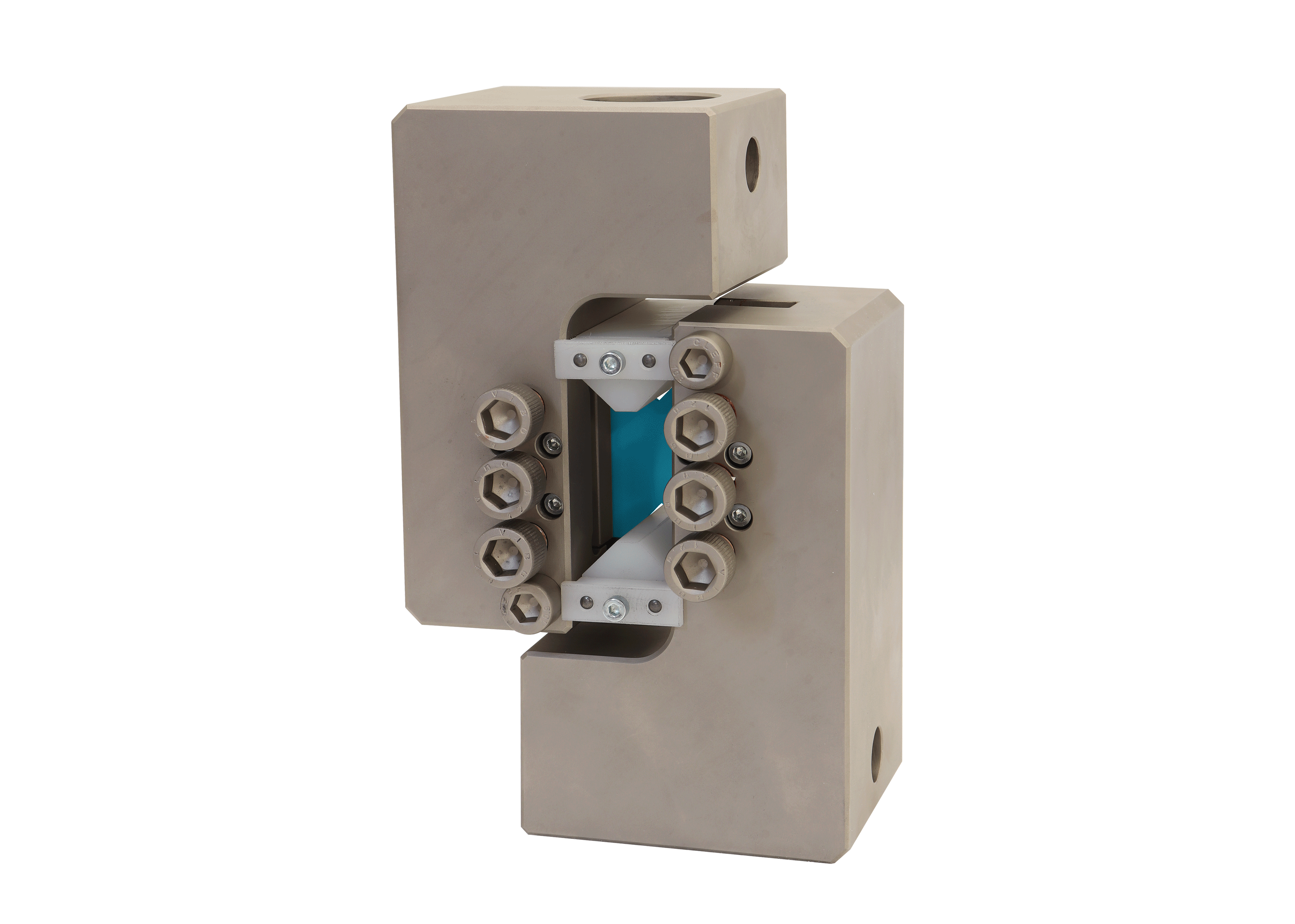

Animation

THS722

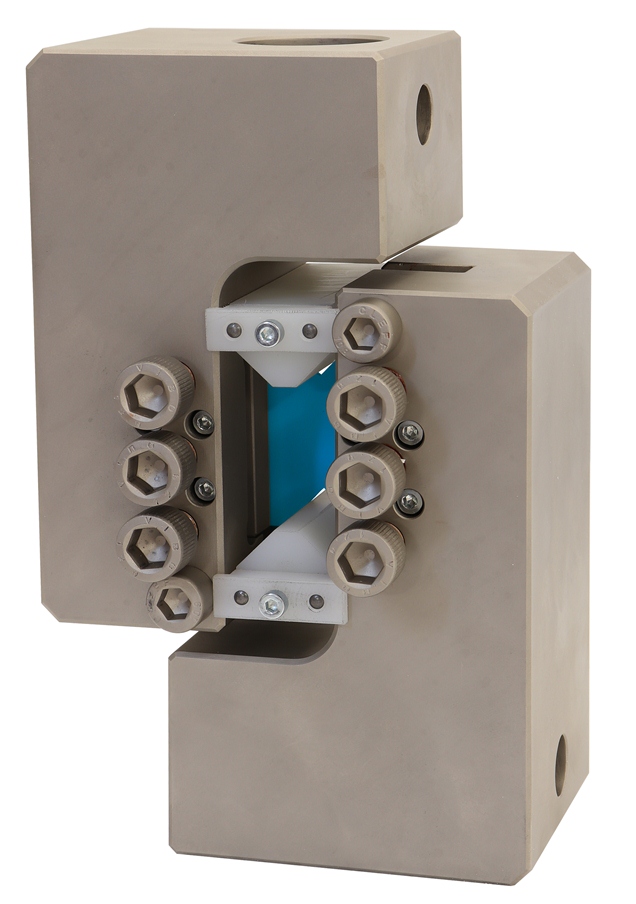

With specimen



THS722

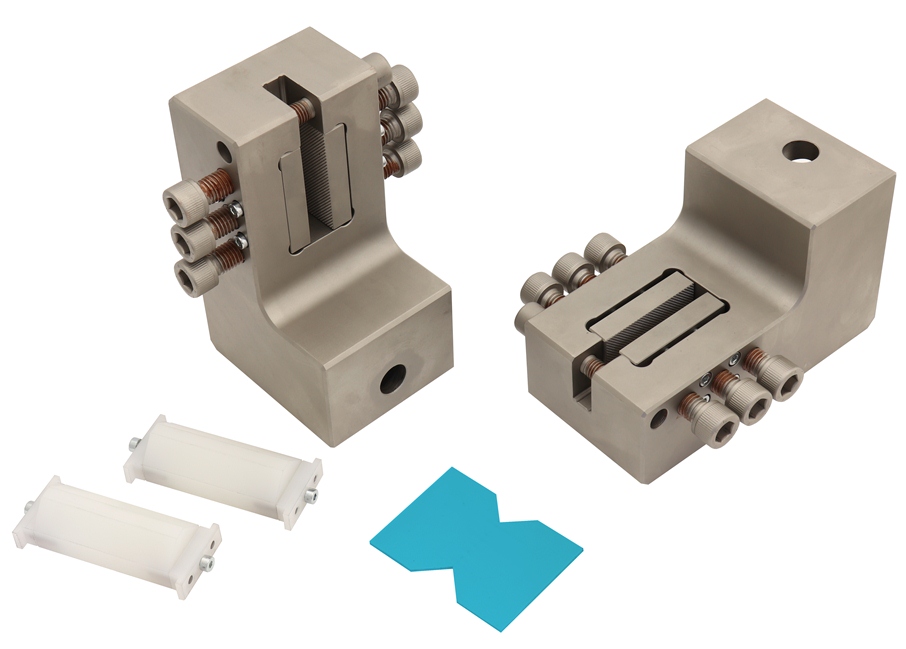

With specimen and nylon positioning tools

THS722

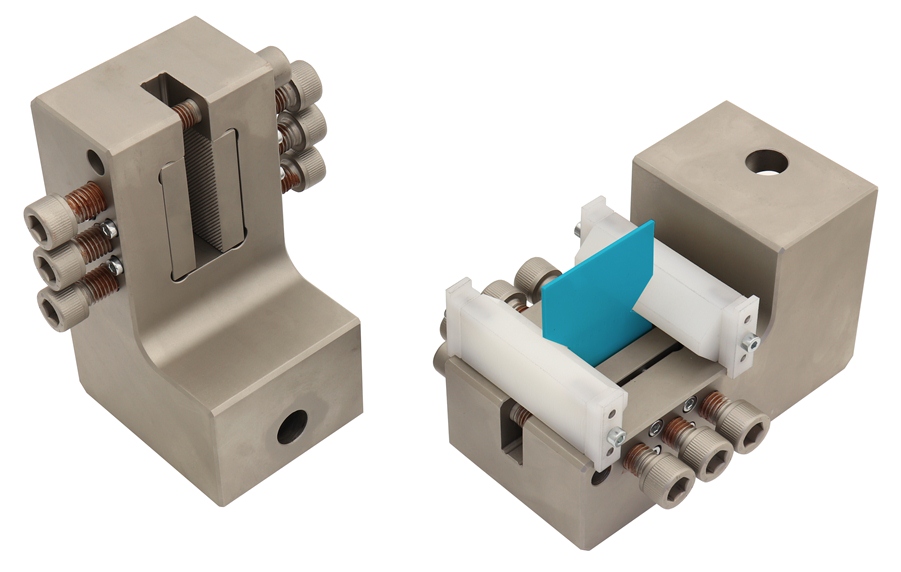

With specimen and nylon positioning tools
