Shear test Fixture

Back

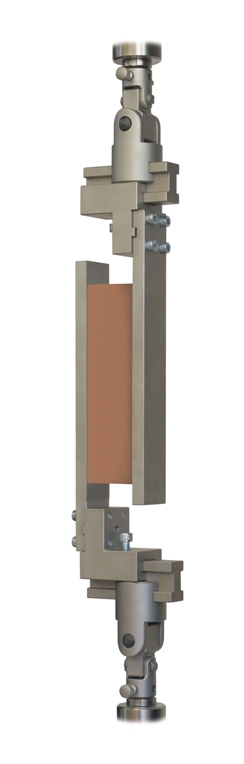

tn_TH193-V4-Af159 NFT 54-605, ISO1922, ASTM-C273, EN12090-Fig.1 18042019 11,3kg pair IMG_1171-  2020-07-09  01

TH193-V4

Shear test fixture, adjustable
According to NFT 54-605, ISO1922, EN12090-Fig.1, ASTM-C273
Steel, nickel-plated

Temperature range: 0 +70C

Coupling Af159

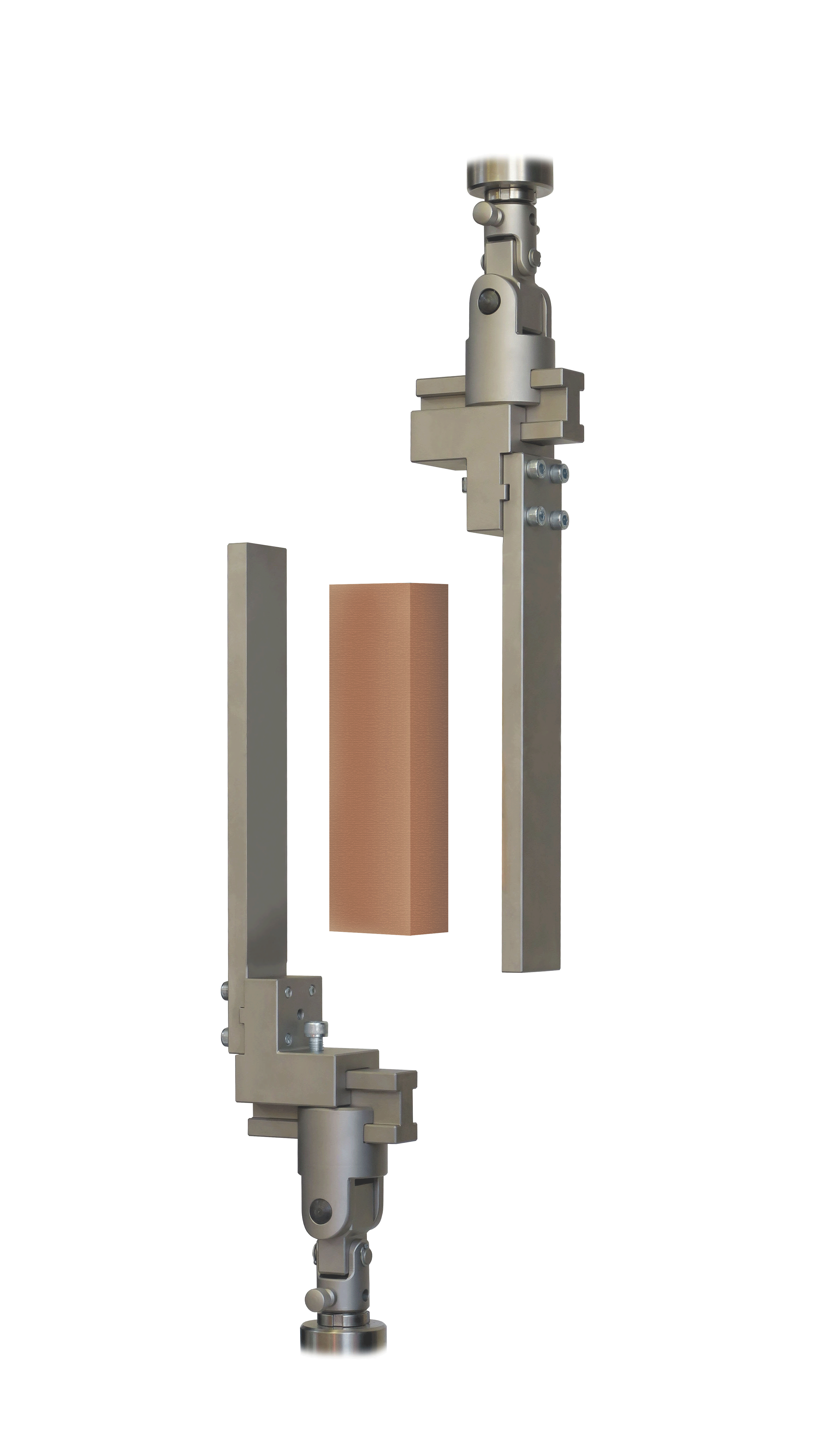

Animation

tn_TH193-V4-Af159 NFT 54-605, ISO1922, ASTM-C273, EN12090-Fig.1 18042019 11,3kg pair IMG_1171-  2020-07-09  02

TH193-V4

tn_TH193-V4-Af159 NFT 54-605, ISO1922, ASTM-C273, EN12090-Fig.1 18042019 11,3kg pair IMG_1171-  2020-07-09  04

TH193-V4

TH193-V4



Female coupling Af159
