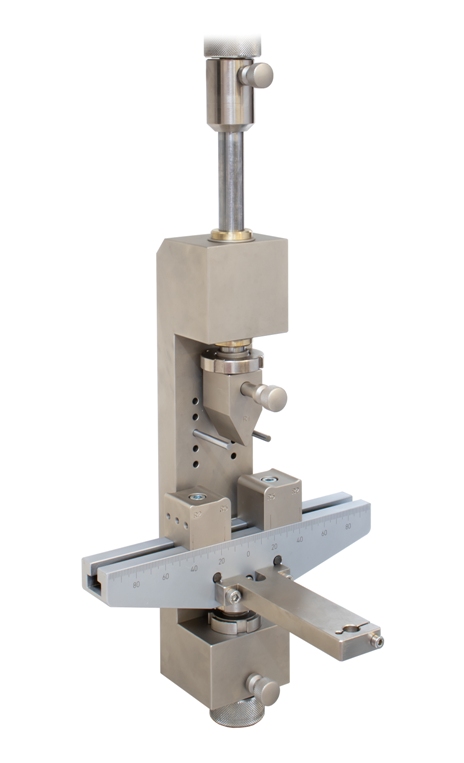

Guided 3 point bending jig
According to EN2562, ISO14130, ISO178
ASTM-D3410

Coupling Af159

Animation




tn_THS884-Af159+TH238+iTH2 gde T280 guided 3p bending jig Biegevorichtung mit Führung

THS884-ith2-Af159


THS884-ith2-Af159

tn_THS238-AR3+ORtn_3-St + THS884  EN2563  EN2562  5,7kg Aerospace Carbon fibre reinforced plastics 2020-11-09  01

THS238-AR3+OR3-St
+
THS884-EN2563-EN2562


Bend test fixture to test aerospace carbon fibre reinforced plastics according to
DIN EN2563 and DIN EN2562

tn_THS238-AR3+OR3-St + THS884  EN2563  EN2562  5,7kg Aerospace Carbon fibre reinforced plastics 2020-11-09  02

THS238-AR3+OR3-St
+
THS884-EN2563-EN2562

THS884-Af38+TH238-200-Af159+TH187-158-M-38-2L_ISO14125_EN2563_5.4kg__2023-03-16 04

THS884-Af38
+
TH238-200-Af159
+
TH187-158-M-38-2L

3-Point bend test fixture to test carbon fibre reinforced plastics according to
ISO14125, EN2563
Max. load 10 kN
Steel, nickel-plated
Coupling Af159

Incl. 1x bar 200 mm long

2x supports with radii R2 mm and R5 mm, 30 mm wide
