TH238-5P-CR3 ith1-Af20 ISO19927 plastic composites double-beam interlaminar shear 2-----

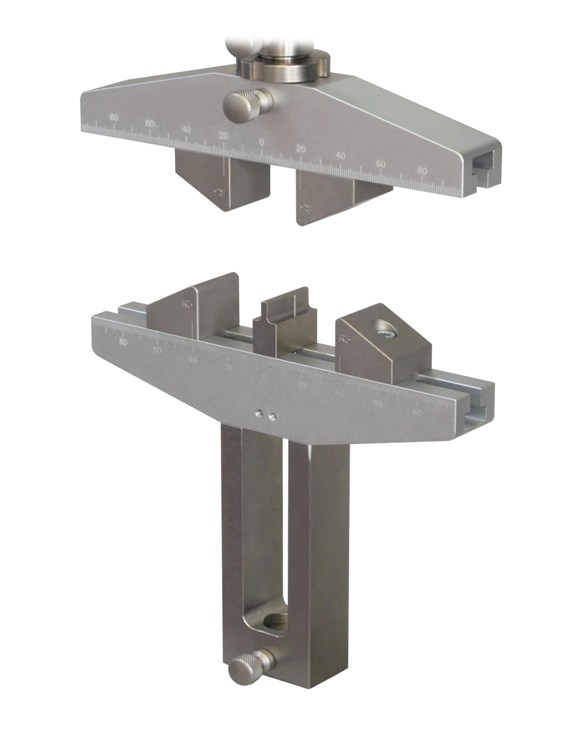

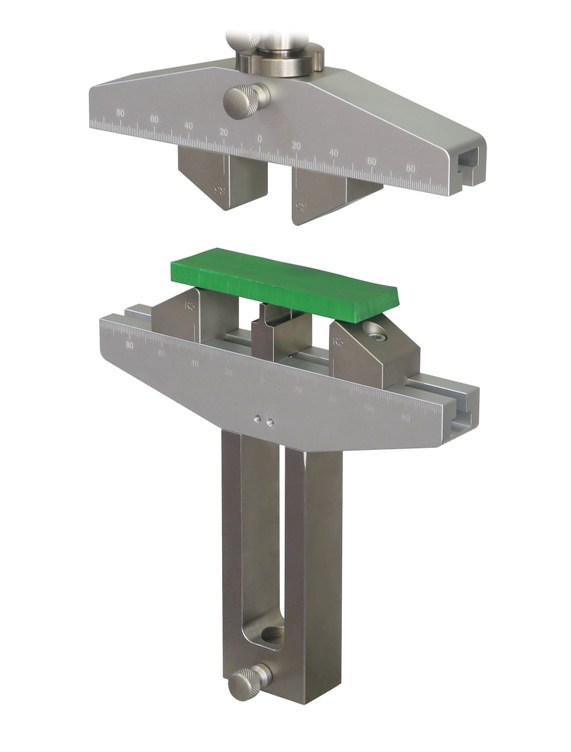

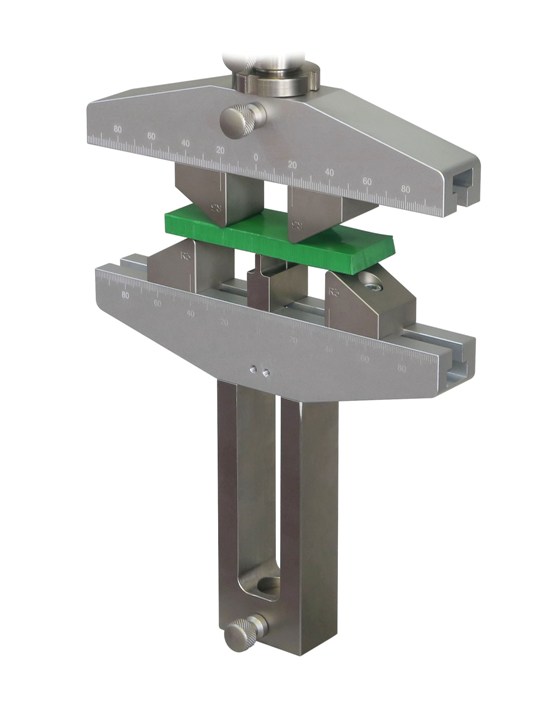

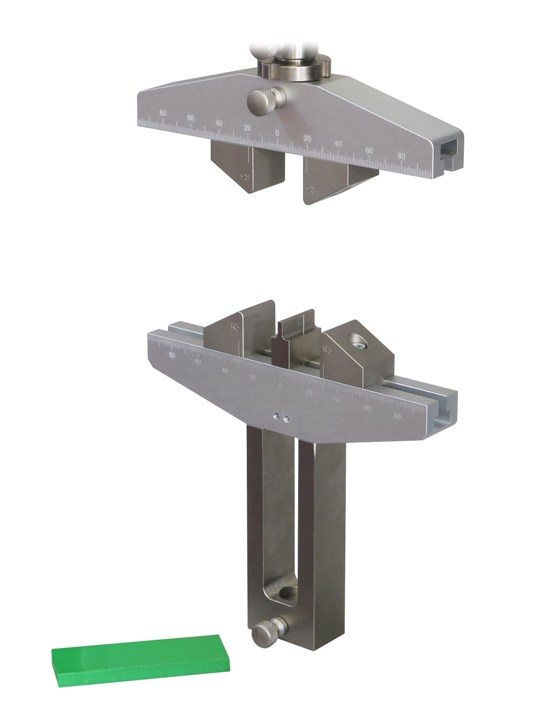

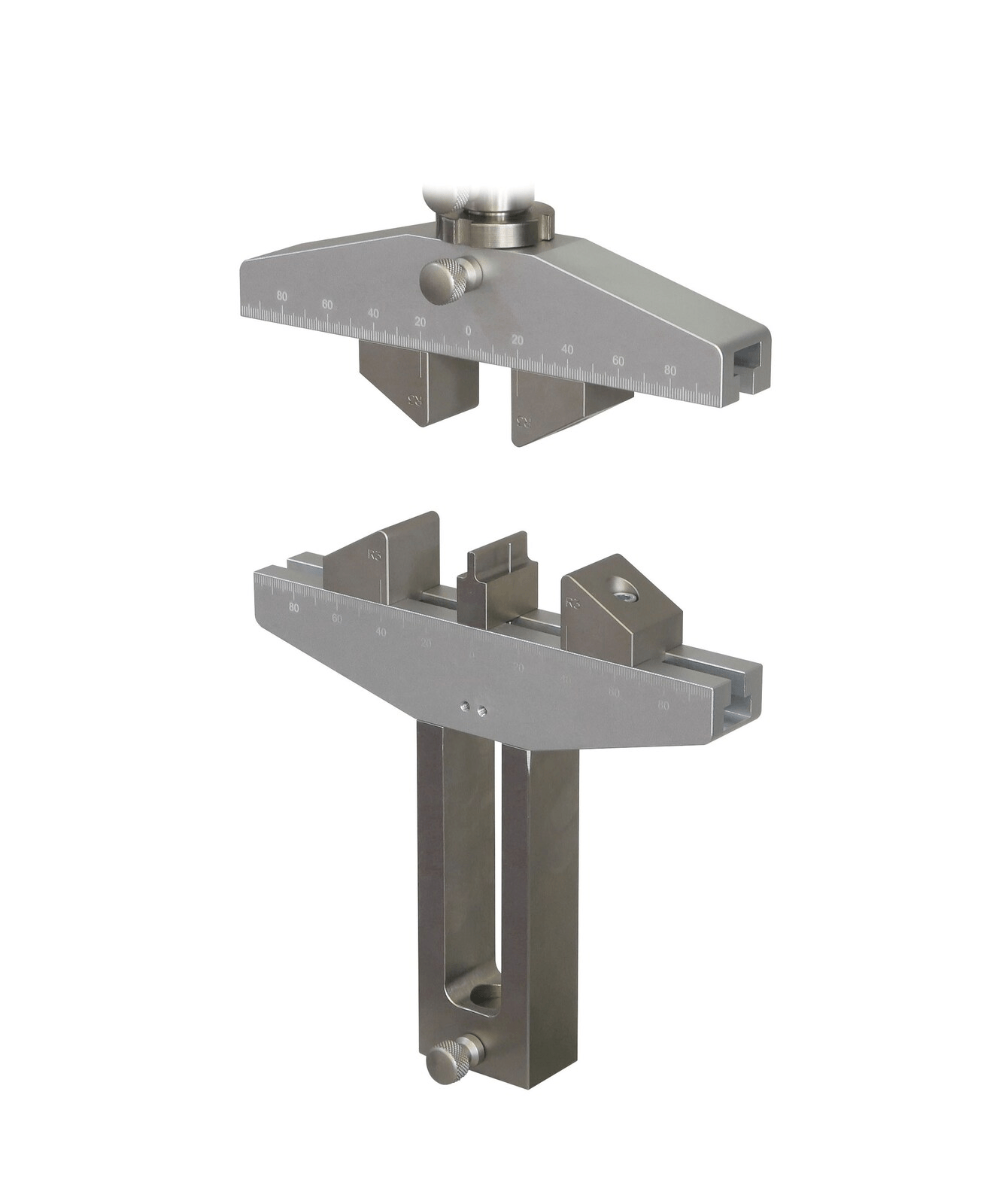

TH238-5P-CR3 ith1-Af20 ISO19927



Special 5-point bend test fixture with holder for extensometer

to test plastic composites by double-beam interlaminar shear method

according to ISO19927

Anvils with radius 3 mm

Coupling Af20

Steel, nickel-plated

Animation

tn_TH238-5P-CR3 ith1-Af20 ISO19927 plastic composites double-beam interlaminar shear 2.3kg IMG_2539-

TH238-5P-CR3 ith1-Af20 ISO19927

tn_TH238-5P-CR3 ith1-Af20 ISO19927 plastic composites double-beam interlaminar shear 2.3kg IMG_2535-

TH238-5P-CR3 ith1-Af20 ISO19927

tn_TH238-5P-CR3 ith1-Af20 ISO19927 plastic composites double-beam interlaminar shear 2.3kg IMG_2536-

TH238-5P-CR3 ith1-Af20 ISO19927
