![Description: tn_TH22-360-.jpg](index_files/image019.jpg)
|
TH22-360
3-point bending grip
Length
of lower bar 360 mm
Support
distance 30-250 mm,
with
turned supports 330 mm
incl.
3 sets of rollers Ø: 10, 20, 30 mm
roller
hardened nickel coated
|
![tn_TH22St-360-Af40](index_files/image020.jpg)
|

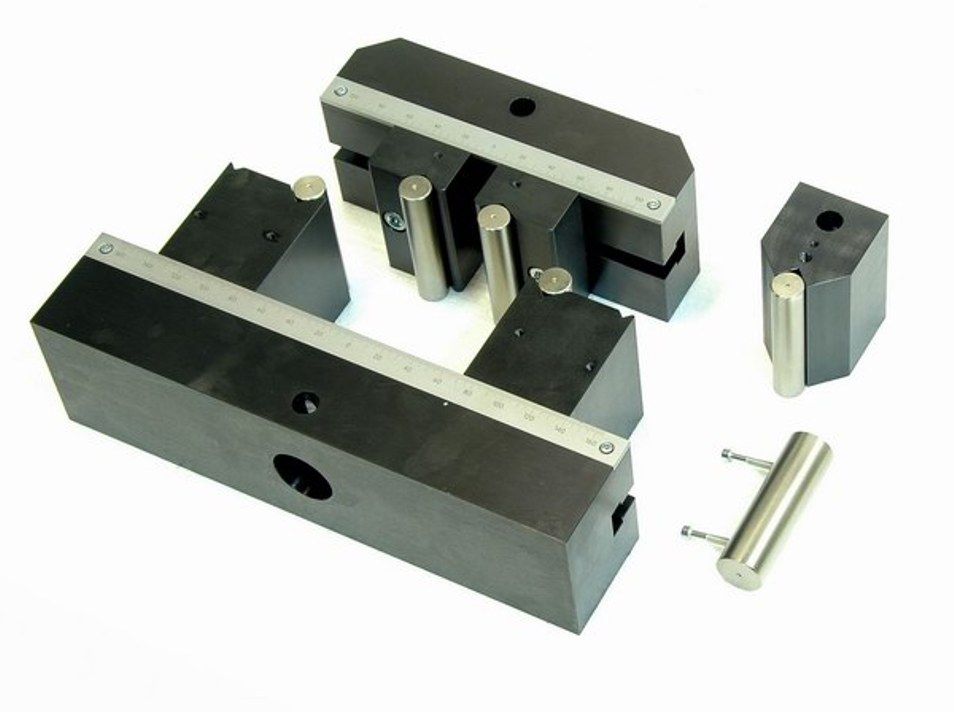

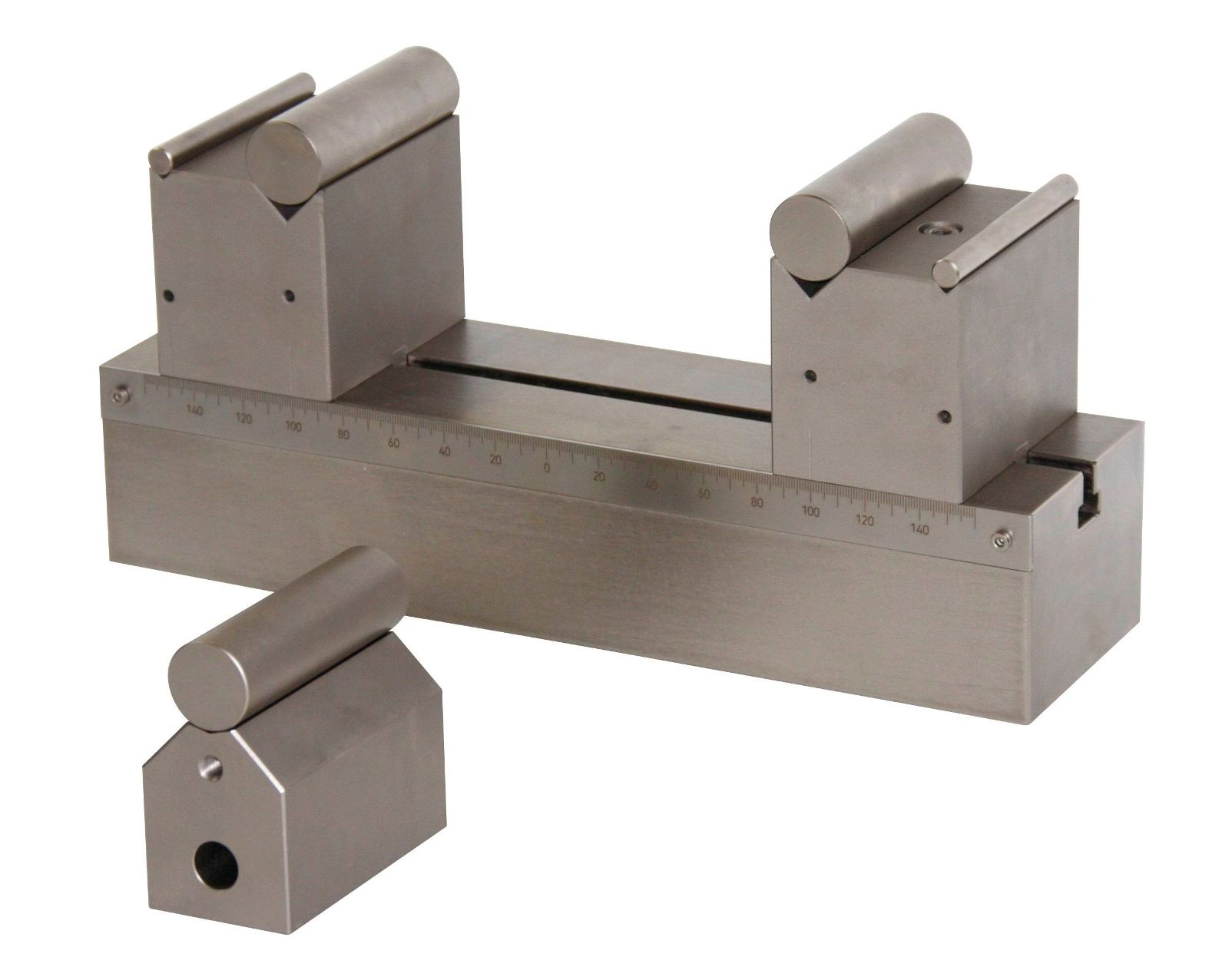

TH22St-360-Af40-St
3-point
bending grip
Max. load 100 kN
Rollers: 10, 20 and 30 mm diameter
Steel, nickel coated
Coupling Af40
|
![TH22St-360-Af60-Ni-](index_files/image021.jpg)
|

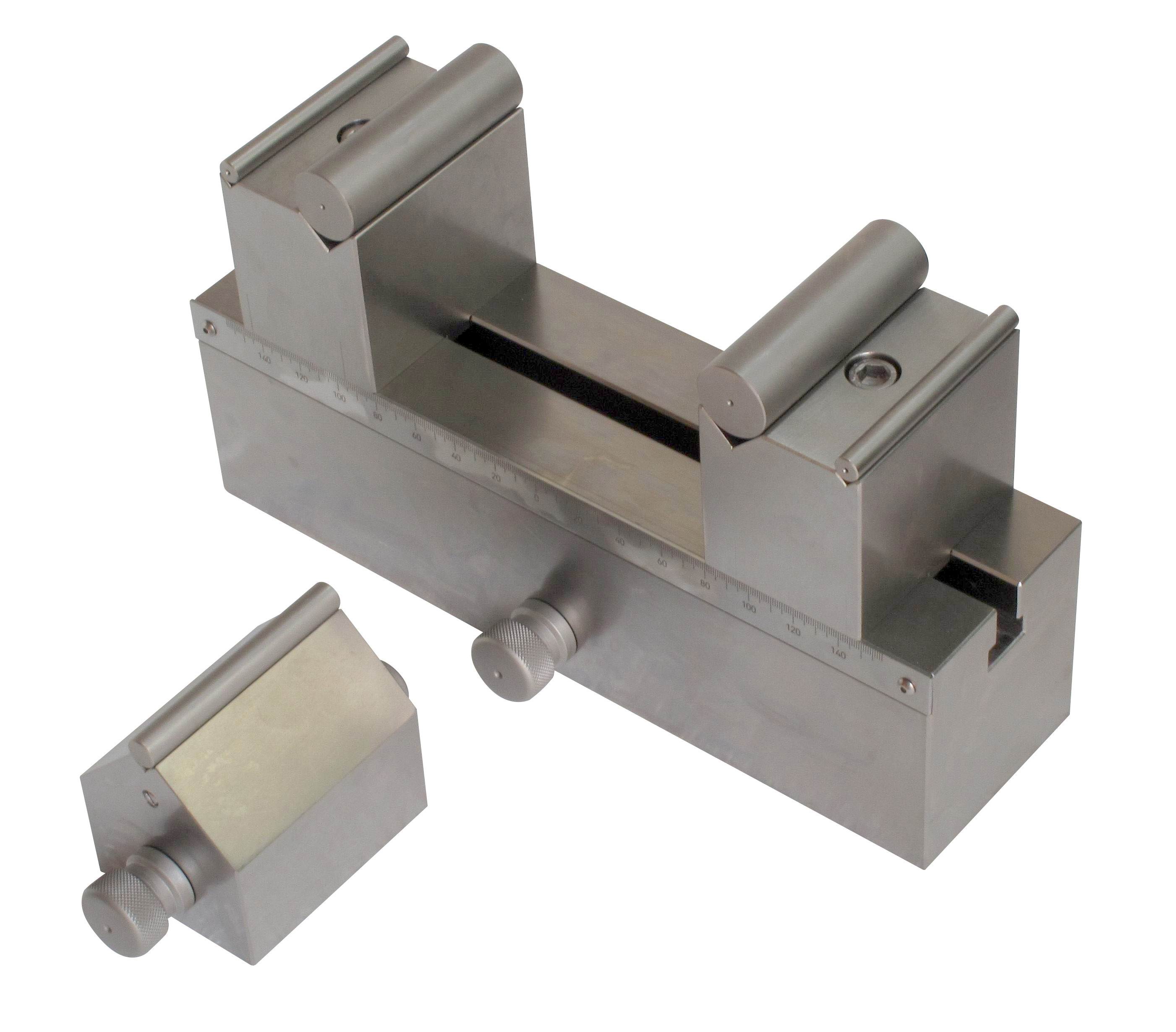

TH22St-360-Af60-St
3-point
bending grip
Max. load 250 kN
Rollers: 10,
20, 30 mm
Steel,
nickel coated
Coupling Af60
|
![TH22St-360-CX6-oX6-Af603035-lSO3327_hardmetals_transverse_rupture_strengt](index_files/image022.jpg)
|

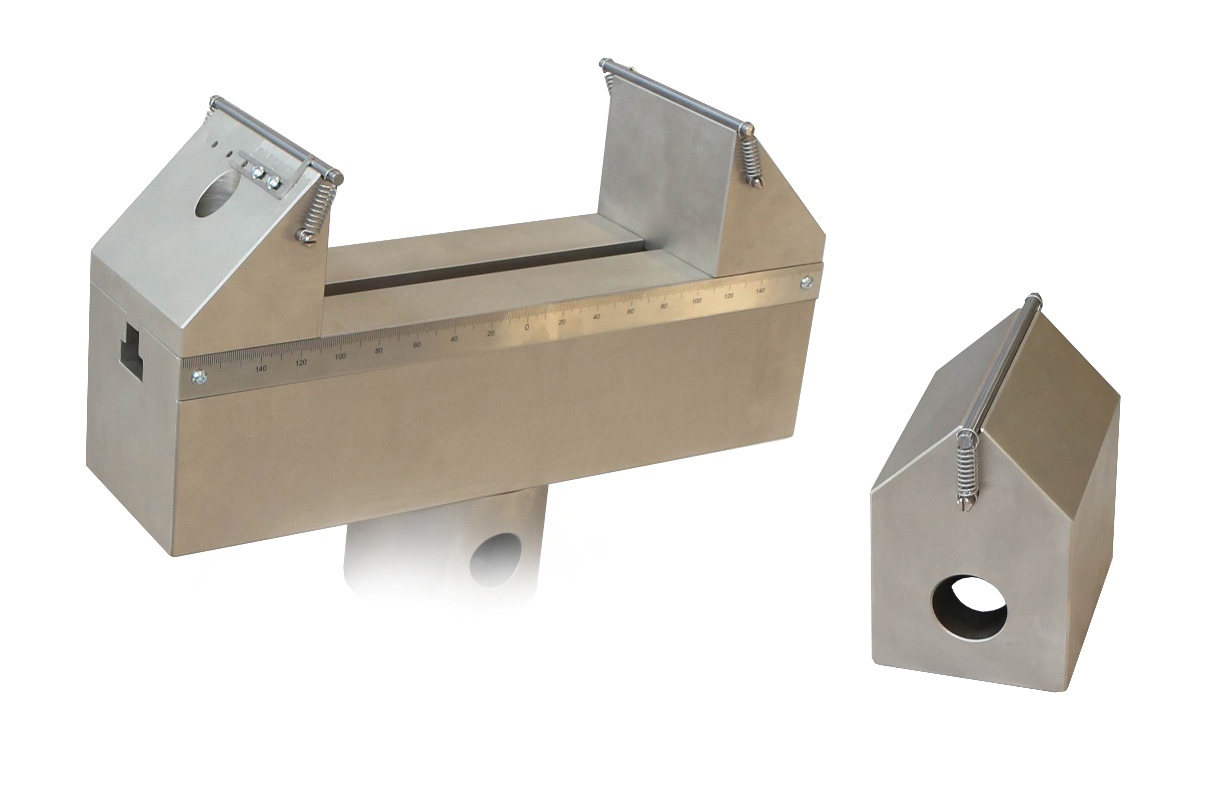

TH22St-360-CX6-oX6-Af603035-lSO3327
Bend test fixture for transverse rupture strength test on hard metals
According to ISO3327
Support rollers 6 mm diameter
Beam length 360 mm
Coupling Af60
Steel
|
![tn_TH22St-360-cX10-oX30eX10](index_files/image023.jpg)
|

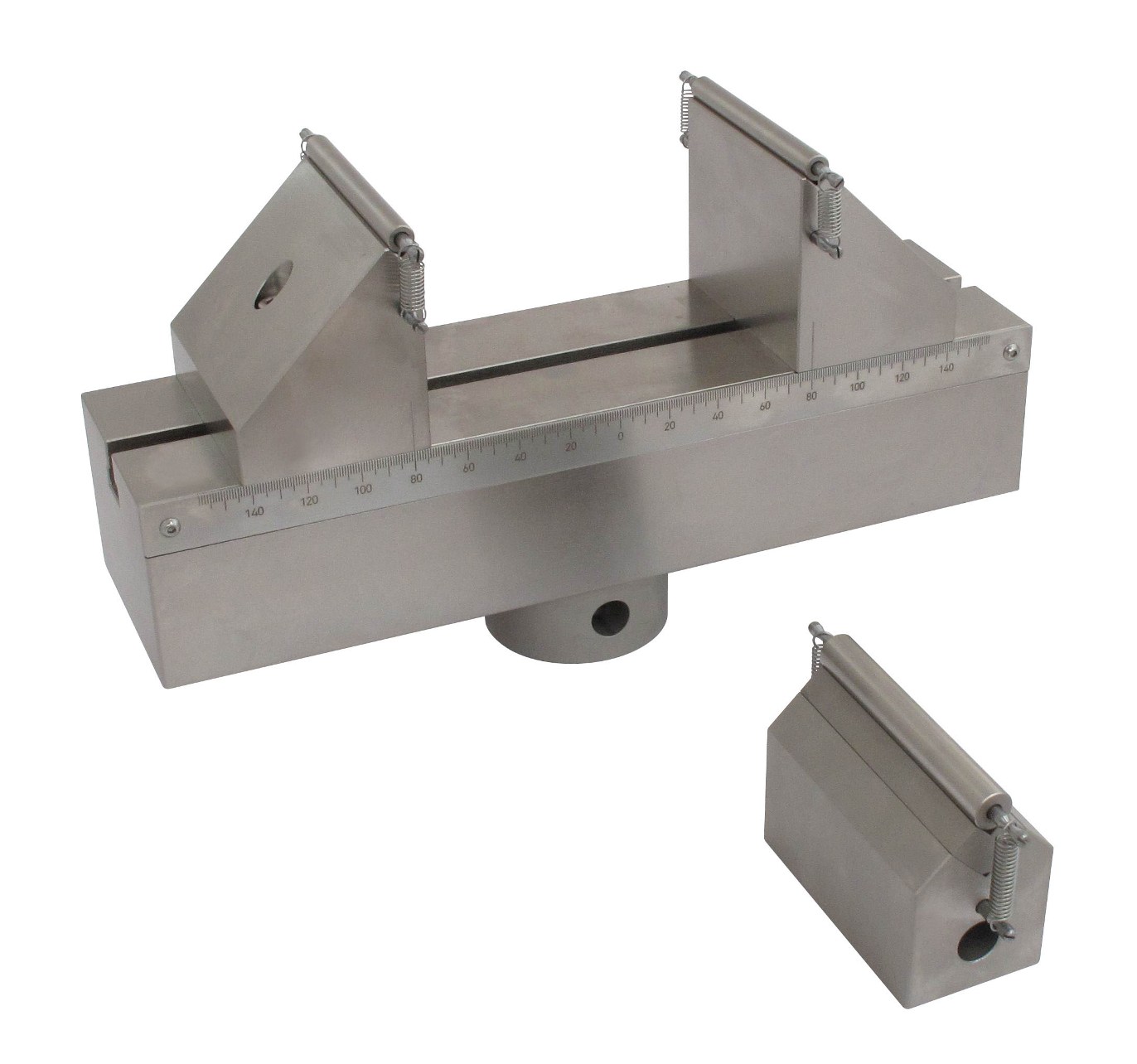

TH22St-360-CX10-oX10
3-point bending grip
Max. load 100 kN
Incl. supports with roller Ø 10x100 mm
Steel, nickel coated
|
![Description: TH22-360-Af318-St-3point-bending-fixture-Adapter-female-31.8mm-black.jpg](index_files/image025.jpg)
|
TH22-360-Af318-St
3 point bending fixture
Coupling Af31.8 mm
|
![tn_TH22St-360-CW30-iM64 HP-Suesser-UT-](index_files/image026.jpg)
|

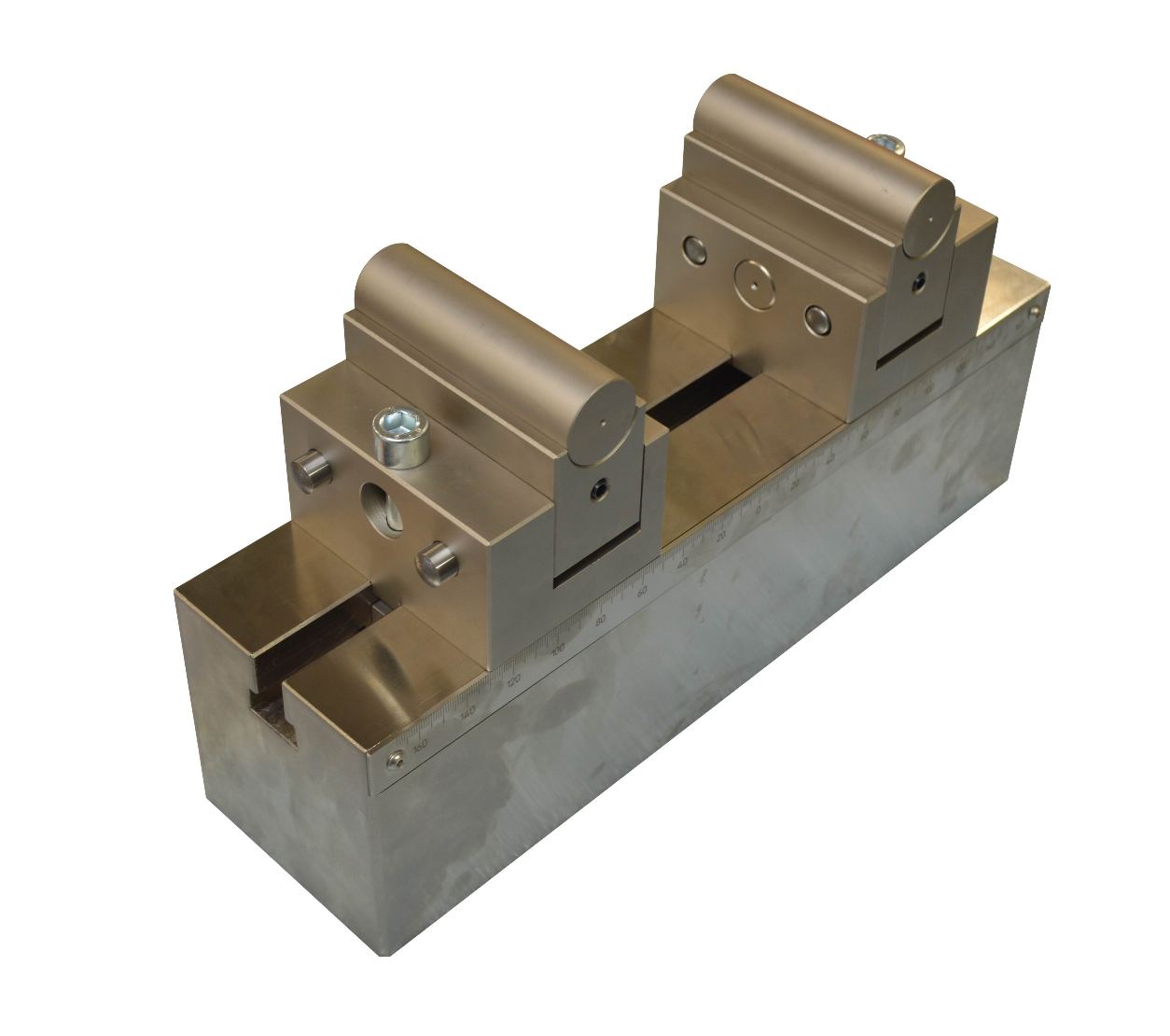

TH22St-360-CWGT+CWX+D30
3-point bending grip
Max. load 100 kN
Incl. carriers, inserts and rollers Ø 30x100 mm
Steel, nickel coated
|
![tn_TH22St-360-4P-Af40](index_files/image013.jpg)
|

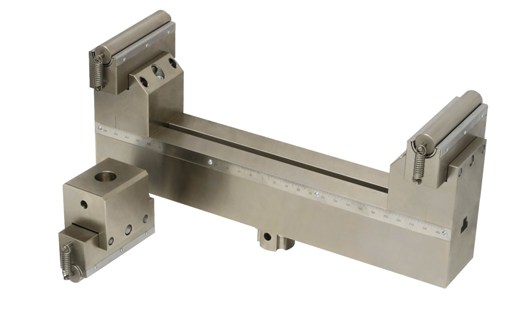

TH22St-5P-360-Af40
5-point
bending grip
Max. load 100 kN
Incl. support and roller Ø 30x100 mm
Steel, nickel coated
Coupling Af40
|
![tn_TH22St-360 CWR15 Skala fehlt IMG_8110-](index_files/image027.jpg)
|

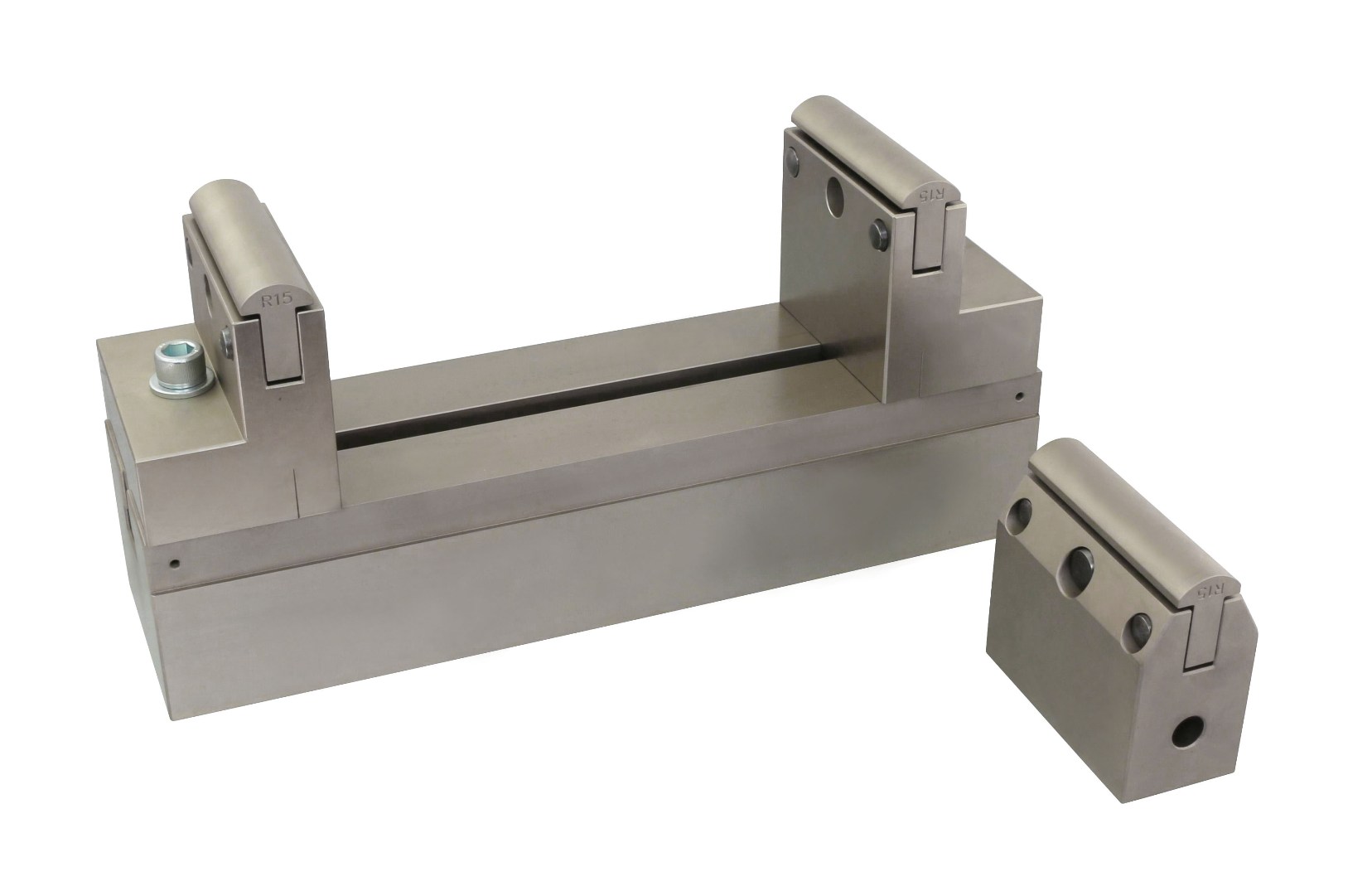

TH22St-360-CWGT+ER15
3-point
bending grip
Max. load 100 kN
Incl. carriers and inserts with milled radius 15 mm
Steel, nickel coated
|
![TH22-360-CWND30-OX30-ASTM E399 100 kN--](index_files/image028.jpg)
|

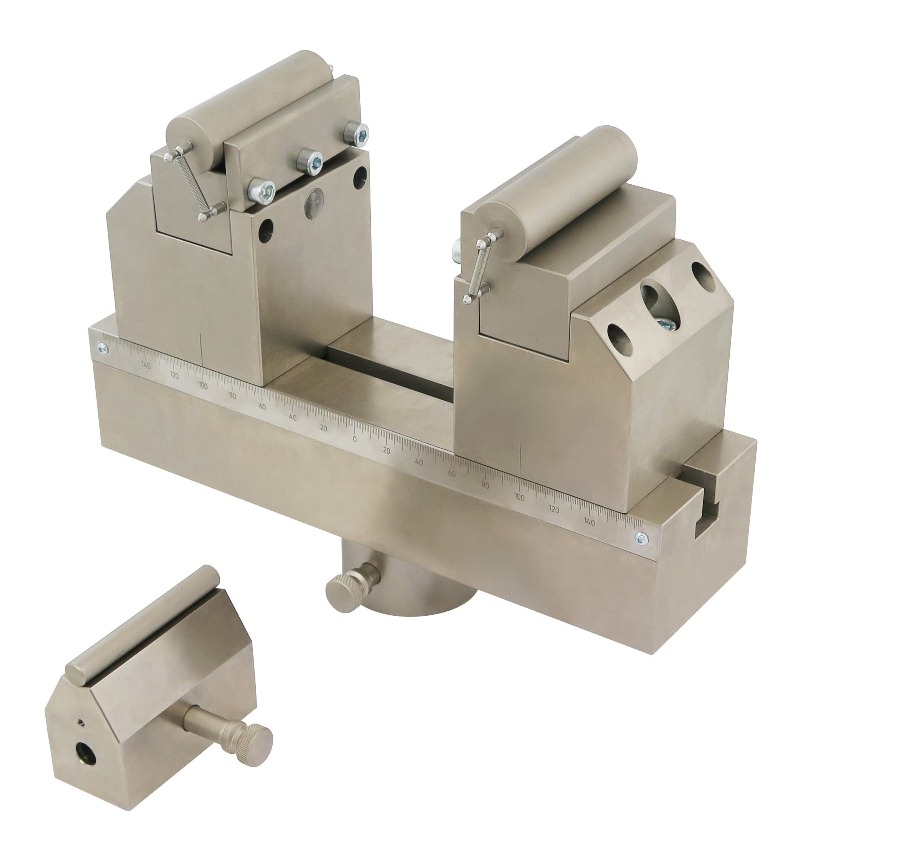

TH22-360-CWGT50+END30-OX30
Bend test fixture according to ASTM-E399
Max. load 100 kN
Steel, nickel-plated
Temperature range -70 … +350°C
|
