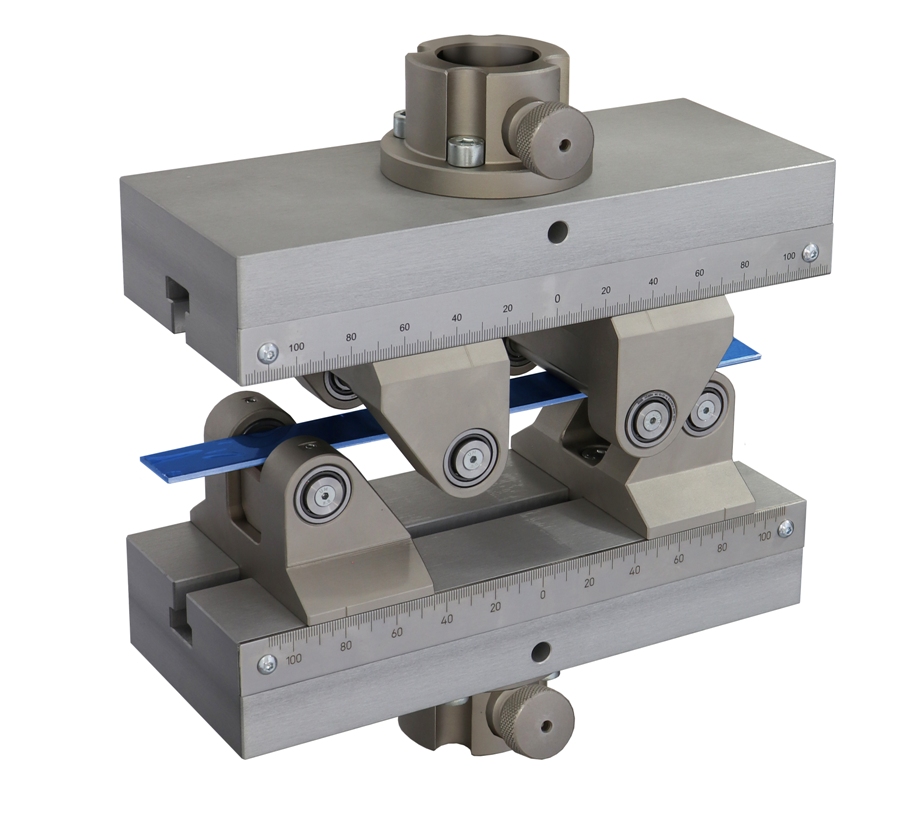

	TH22-4P-CWLD10-Af3618-ASTM-D6415 Special curved beam strength test fixture for testing fiber-reinforced polymer-matrix composites, according to ASTM-D6415 more
	TH22-5P-240-CWLD4+D10 Special 5-point bend test fixture to determine flexural properties of fibre-reinforced plastic composites according to DIN EN ISO14125 more

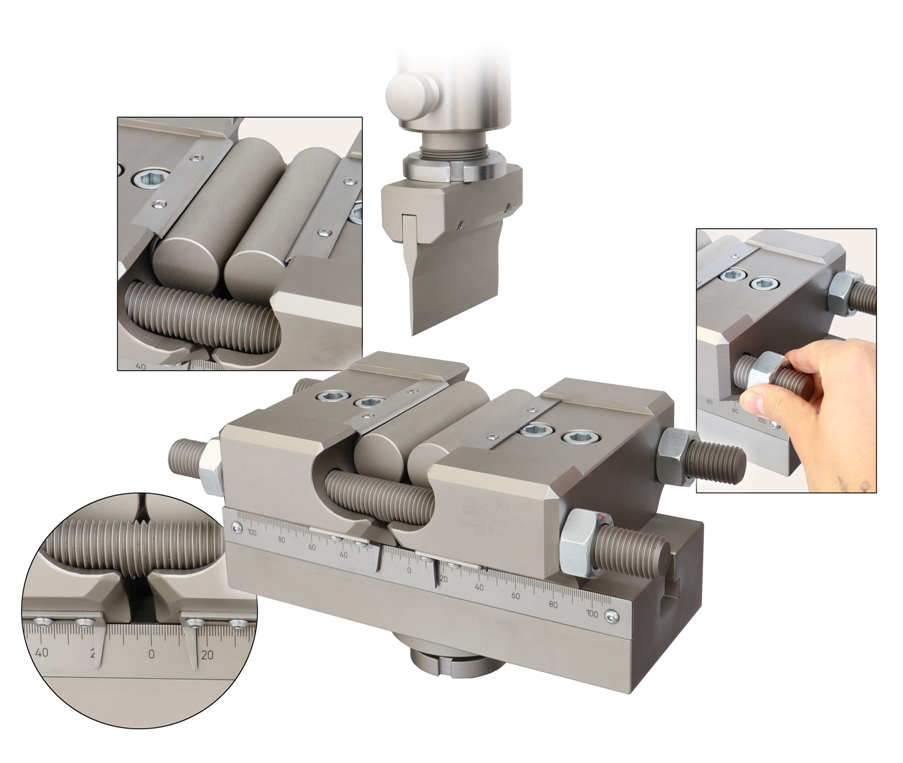

	TH22St-B240+FV-D30-M20-Af318 3-point bending fixture According to VDA238-100:2017 more

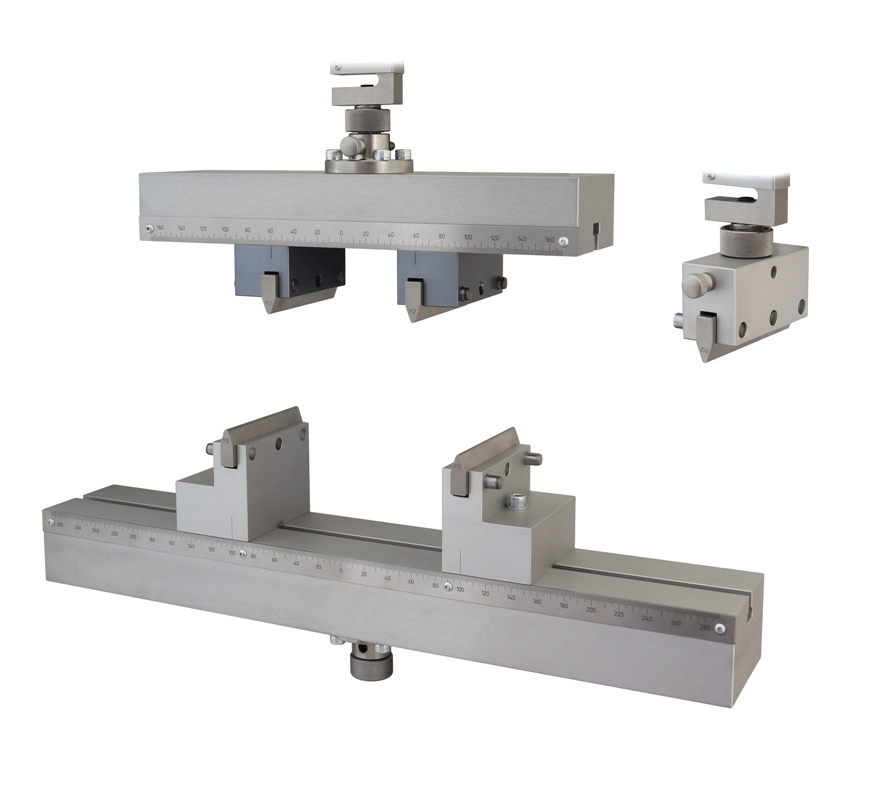

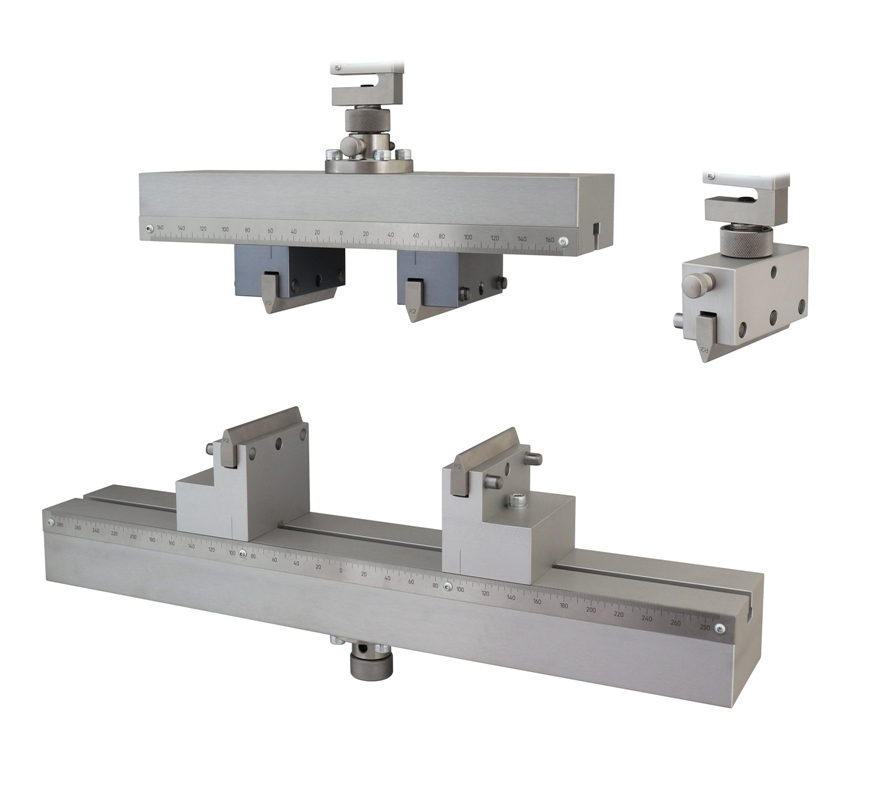

	TH22-5P-CWR2+110 Special 5-point bending fixture for testing wood-based panels, according to ISO14125 Fig.4 and DIN53293 more

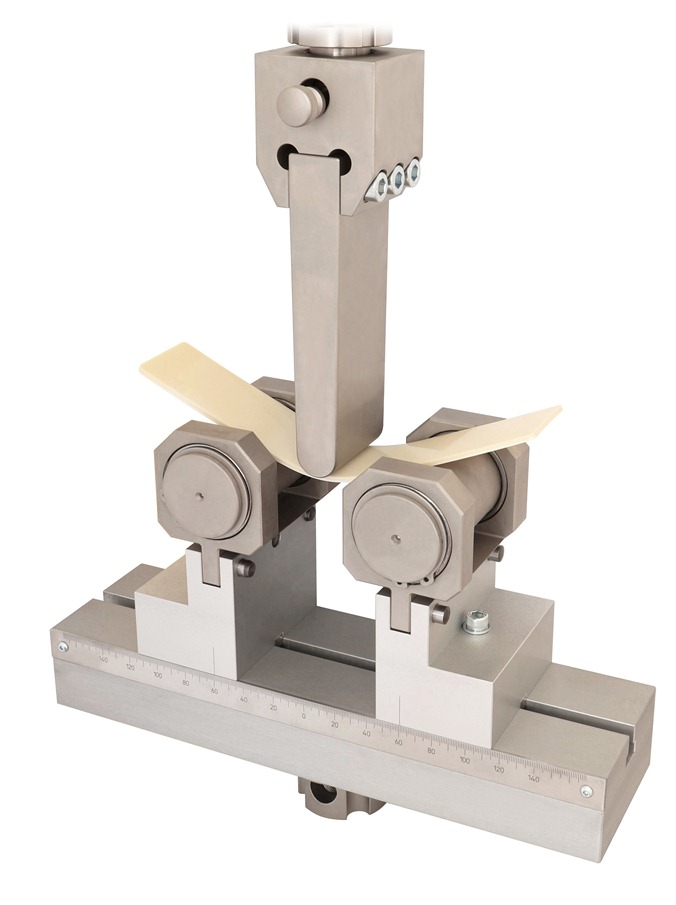

	TH22-360-CWR2.5+CWLD50-ORxx Special 3-point bend test fixture to test plastics and metals Max. load 50 kN more
	TH22-CWR10x300-H160 3-point bend test fixture to test egg trays Biegeprüfvorrichtung zum Testen von Eierkartons more
	TH22St-500-W350 Bend test fixture for bend testing for ductility of metallic materials According to ASTM-E190,  ASTM-E290 more

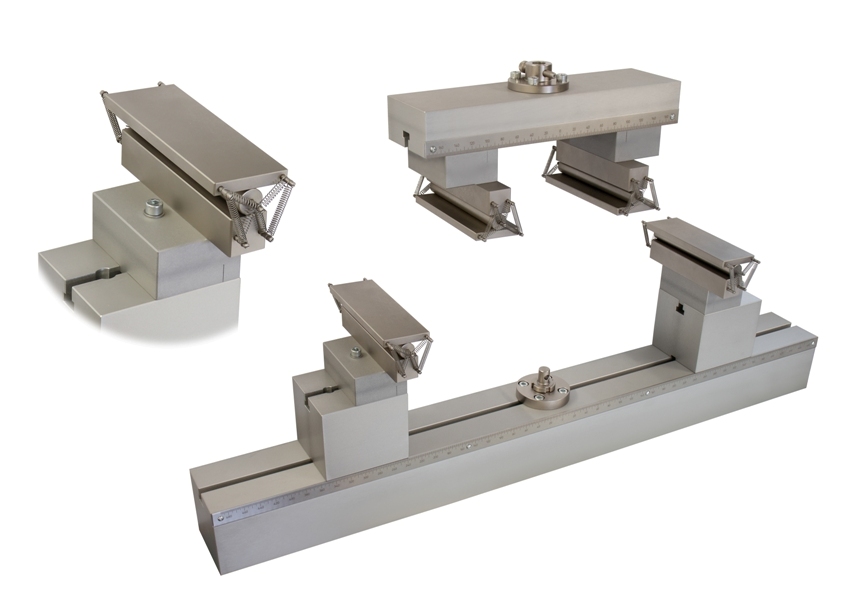

	TH22-1000-360-CM60x160-H200 4-point bending fixture to determine the shear strength and shear modulus of the core material of the metal faced insulating panels according to DIN EN14509 Fig. 4 more
	TH22-360-CX25 + TH22-iTH1-MT12-V90 Special bend test fixture with holder for a LVDT sensor MT12 Heidenheim Bending bar 360 mm, rollers 25 mm diameter

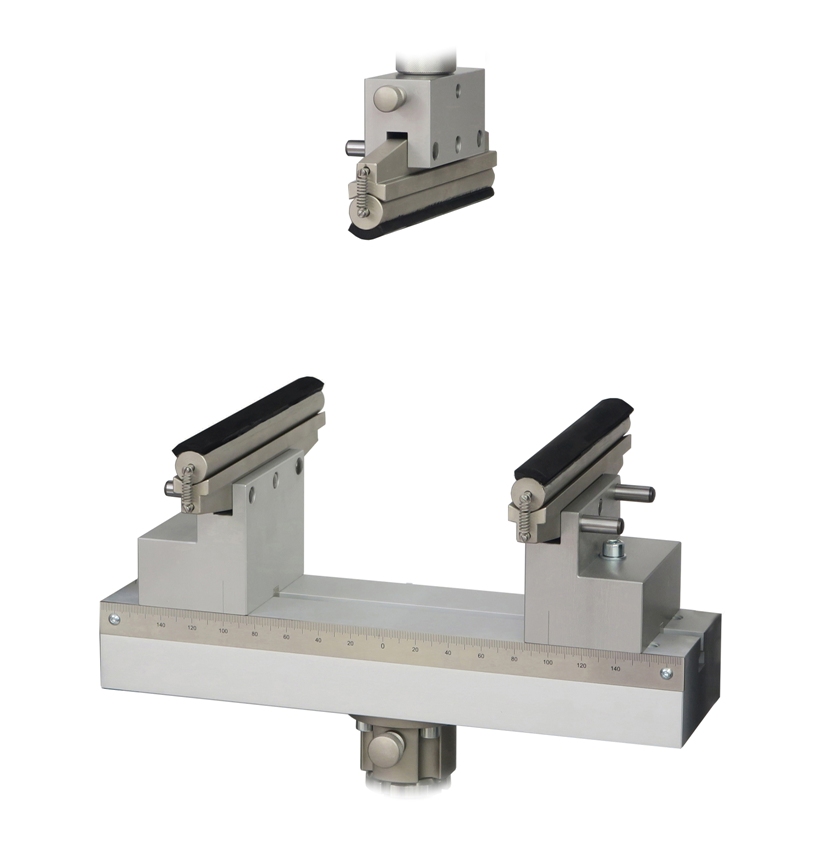

	TH22-360-CWXD20x200-OWXD20x200-ISO10545-4 3-point bend test fixture for determining the modulus of rupture and breaking strength of ceramic tiles according to ISO10545-4 Lower beam 360 mm long Rollers: 20Ø x 200 mm, rubber-coated Max. load 50 kN Coupling Af318 Aluminium beam, steel inserts and anvils
	TH22St-360-CWGT+EXER5 3-point bending grip Max. load 100 kN Incl. special carriers, inserts and prism with Radii e.g. 2, 3, 4, 6 mm Steel, nickel coated

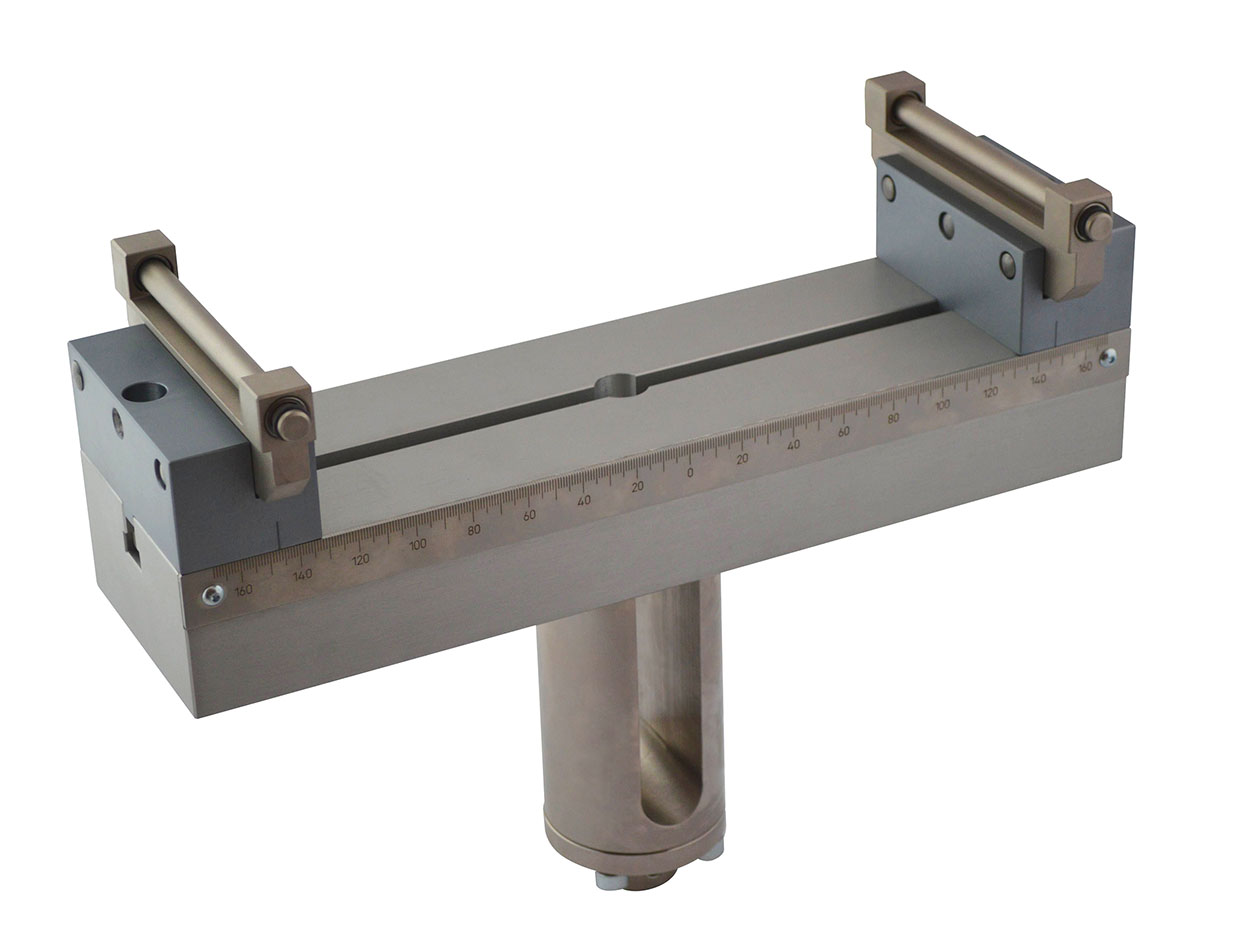

	TH22-360-oCWLD10-ith1 Special holder for extensometer Incl. Modification of bending bars
	TH22-400-CWR10x250-Af3816 Special bend test fixture with articulating rollers 420x20 Ø mm, steel Lower beam 400 mm long, aluminium Max. load 50 kN Coupling Af3816
	TH22-500-CX25x150-H200 3-point bending fixture  Max. load 50 kN Incl. special supports, 200 mm high Rollers Ø 25 mm, 150 mm long Aluminium
	TH22-4P-500-D50 4-point bending grip Max. load 100 kN Custom made – with special supports for Ø 50 rollers Upper bar with supports and special inserts with milled radius from a whole piece Steel, nickel plated
	TH22-3P-500-CWLD10-Af318 3-point bending fixture Max. load 10 kN Incl. 1x lower bar 500 mm 2x lower anvils with interchangeable rollers 10 mm Aluminium, anodized Coupling Af318
	TH22St-3P-600-CWL50D30-Af318 3-point bending grip Incl. carriers, special supports and rollers, moveable and fixable Steel, nickel coated Coupling Af318
	TH22-600-CX50-Af36 3-point bending grip Max. load 100 kN With special supports for Ø 50 rollers Steel, nickel plated
	TH22st-600+CWGT+ECWL50D30-Af318 3-point bending grip Incl. carriers, special supports and rollers, moveable and fixable Steel, nickel coated Coupling A318

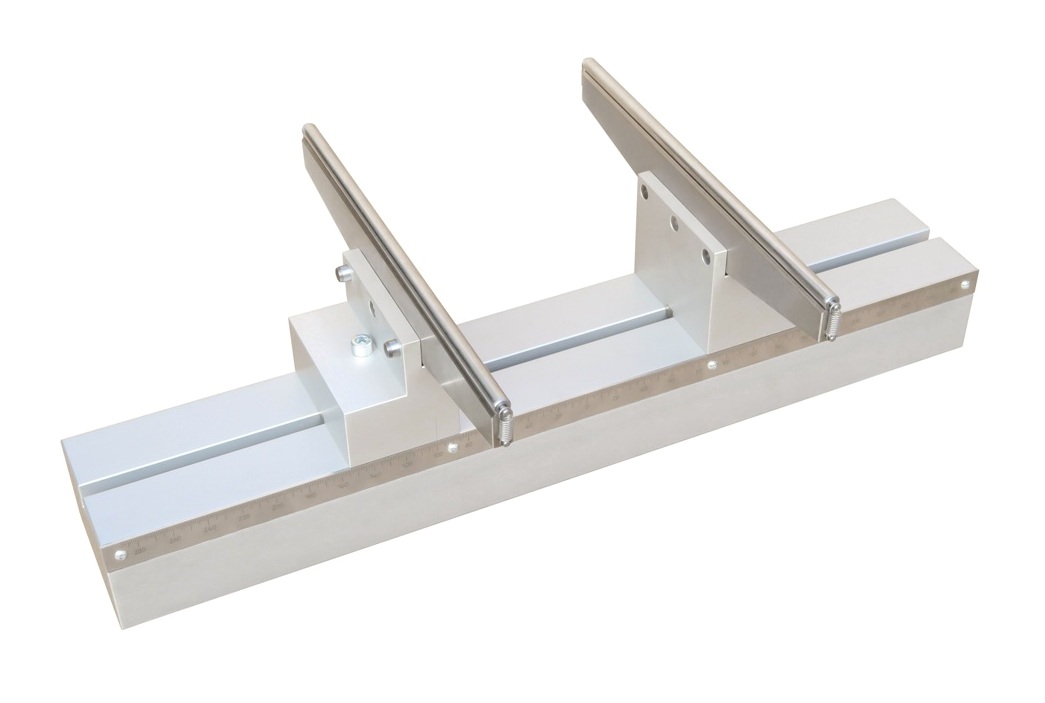

	TH22-600-CWEXD10x300 Lower bar for TH22 bending grip 600 mm long Incl. carriers und special inserts Ø 10x300 mm

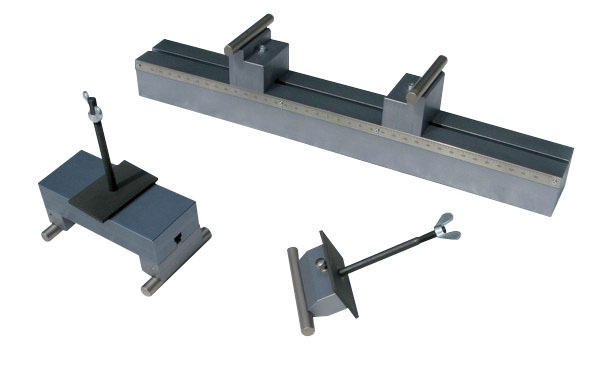

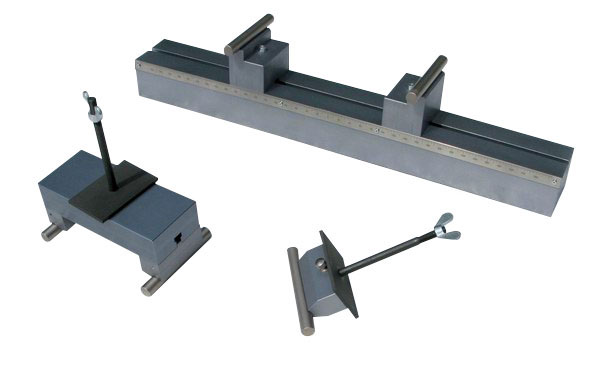

	TH22-4P-800 4-point bending grip Max. load 50 kN, Aluminium Incl. special support
	TH22-800-SFR50x100 3-point bending grip Max. load 100 kN Incl. lower bar 800 mm long, with special supports and rollers Ø 50x100 mm, steel
	TH22-4P-1200 4-point bending grip with special supports and rollers, lower bar 1200 mm long Max. load 100 kN Steel, nickel plated
	TH22-1300-A400-W20x600 3-point bending grip Max. load 100 kN Lower bar 1300 mm long, steel Special supports, inserts rollers Ø 20x600 mm

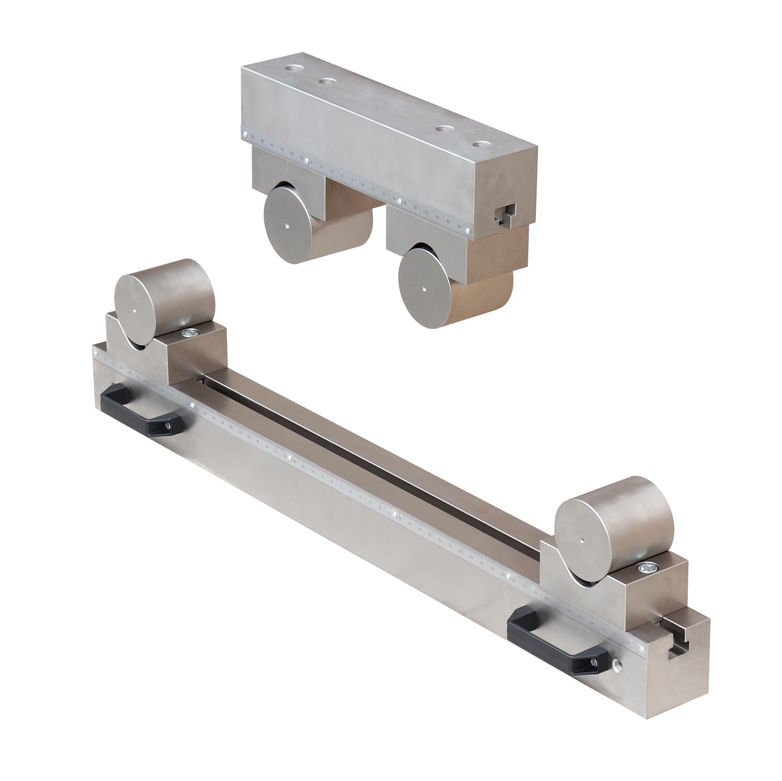

	THS1325 4-point bending grip According to EN14587 Fig. C1 Max. load 300 kN Incl. lower bar 1150 mm long, upper bar 450 mm long, with special supports and rollers Ø 100x150 mm Lower bar TH22-4P-1150-St-CX+D150
	TH22-1310 3-point bending fixture Max. load 50 kN, Aluminium Inclusive rollers Ø: 10, 20, 30 mm symmetric scale 1310 mm
	TH22-1530x530-CWL30x150 Special 4-point bending grip Max width of samples 150 mm Lower bar 1530 mm, upper bar 530 mm Incl. special supports, 300 mm high
	TH22-1530-CX50-H300 3-point bending grip Max. load 50 kN, Aluminium Incl. lower bar 1530 mm long, with special supports 300 mm high and rollers Ø 50 mm
