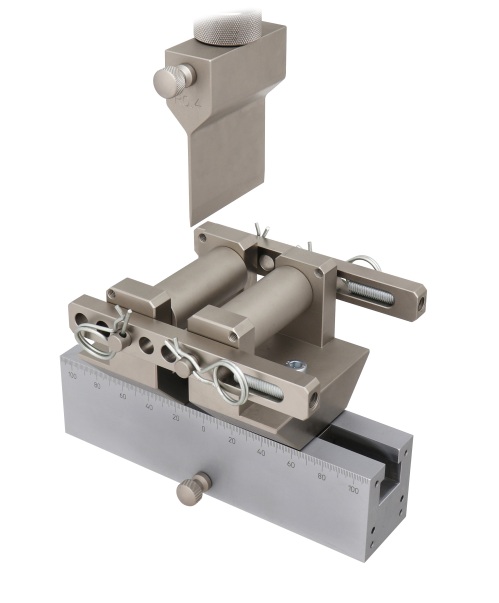

TH103-FV-VDA238-100_Sheet_metal_testing_04



TH103-FV-VDA238-100



3-point bend test fixture to test metallic materials according to VDA238-100 and DIN EN ISO7438 for smaller samples
Max. load: 20 kN

Incl.
1x upper anvil with radius 0.2 mm
1x upper anvil with radius 0.4 mm
Coupling Af159


Description: Description: Description: Description: Description: Description: pdf_icon.gif TH103-VDA238-2010 Datasheet.pdf
Description: Description: Description: Description: Description: Description: pdf_icon.gif TH103-VDA238-2010 Datenblatt.pdf

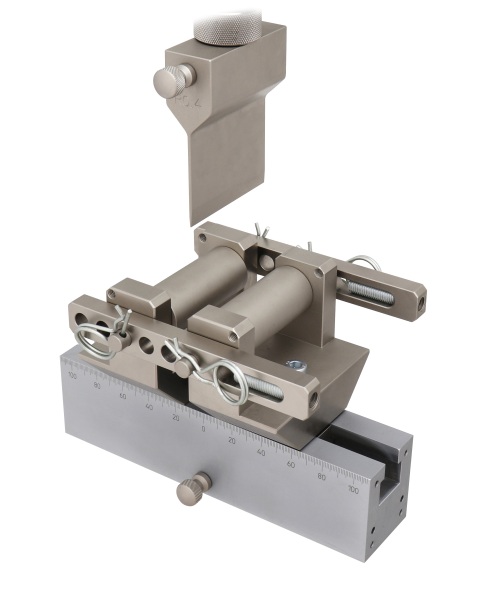

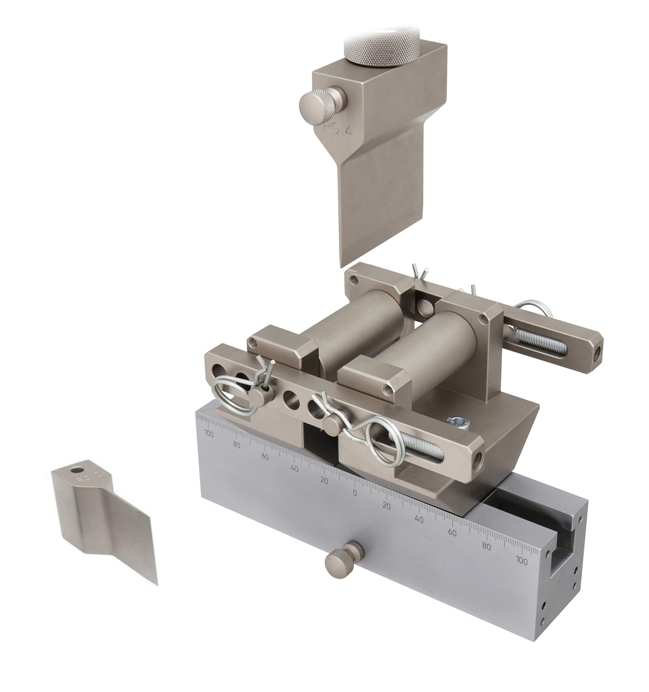

TH103-FV-VDA238-100_Sheet_metal_testing_05

TH103-FV-VDA238-100

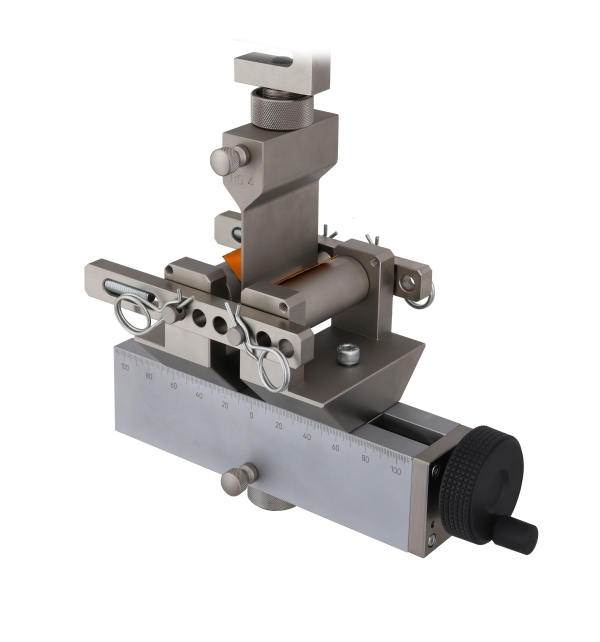

TH103-FV-VDA238-100 2021-08-23 01

TH103-FV-VDA238-100-cgr

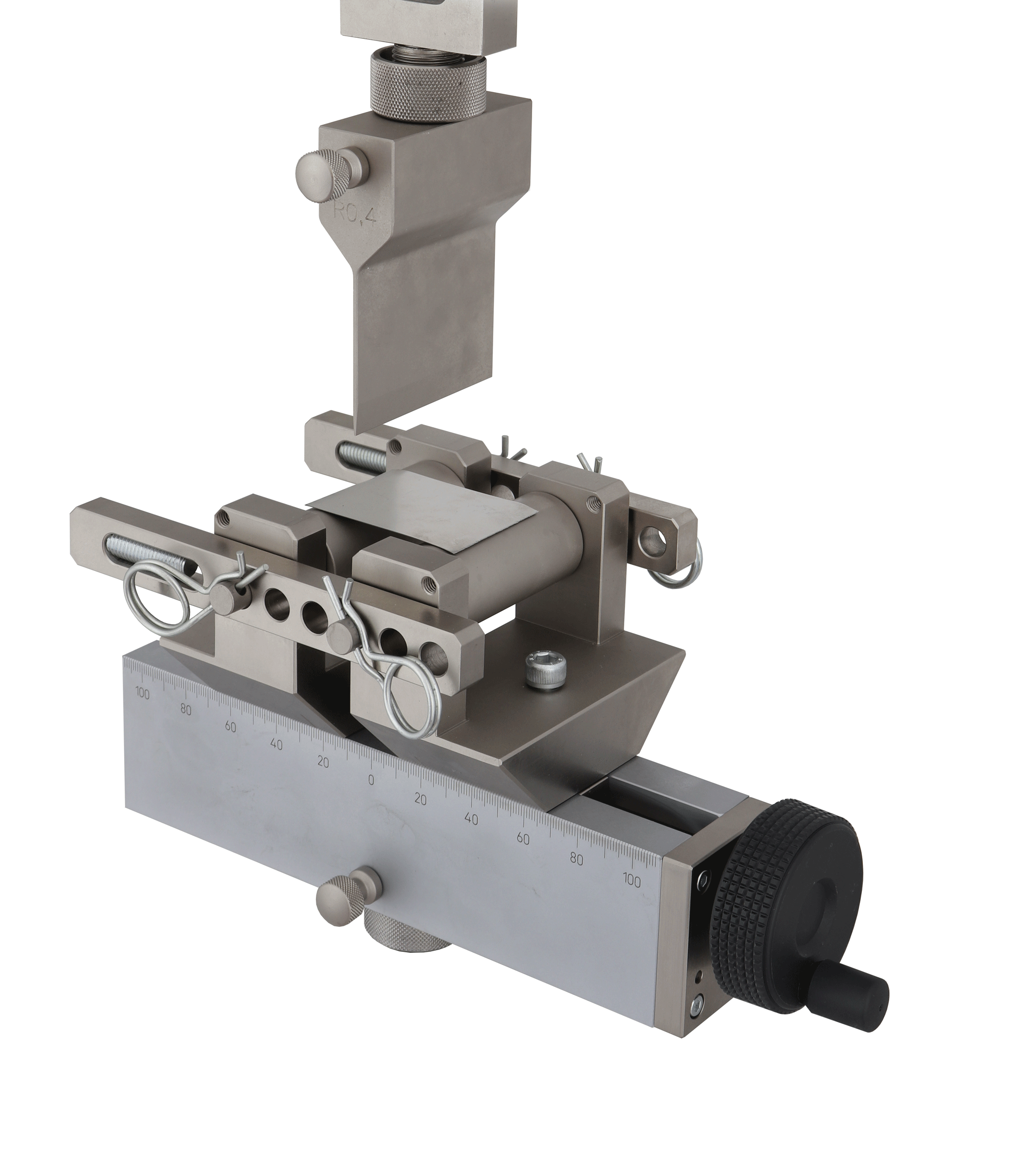

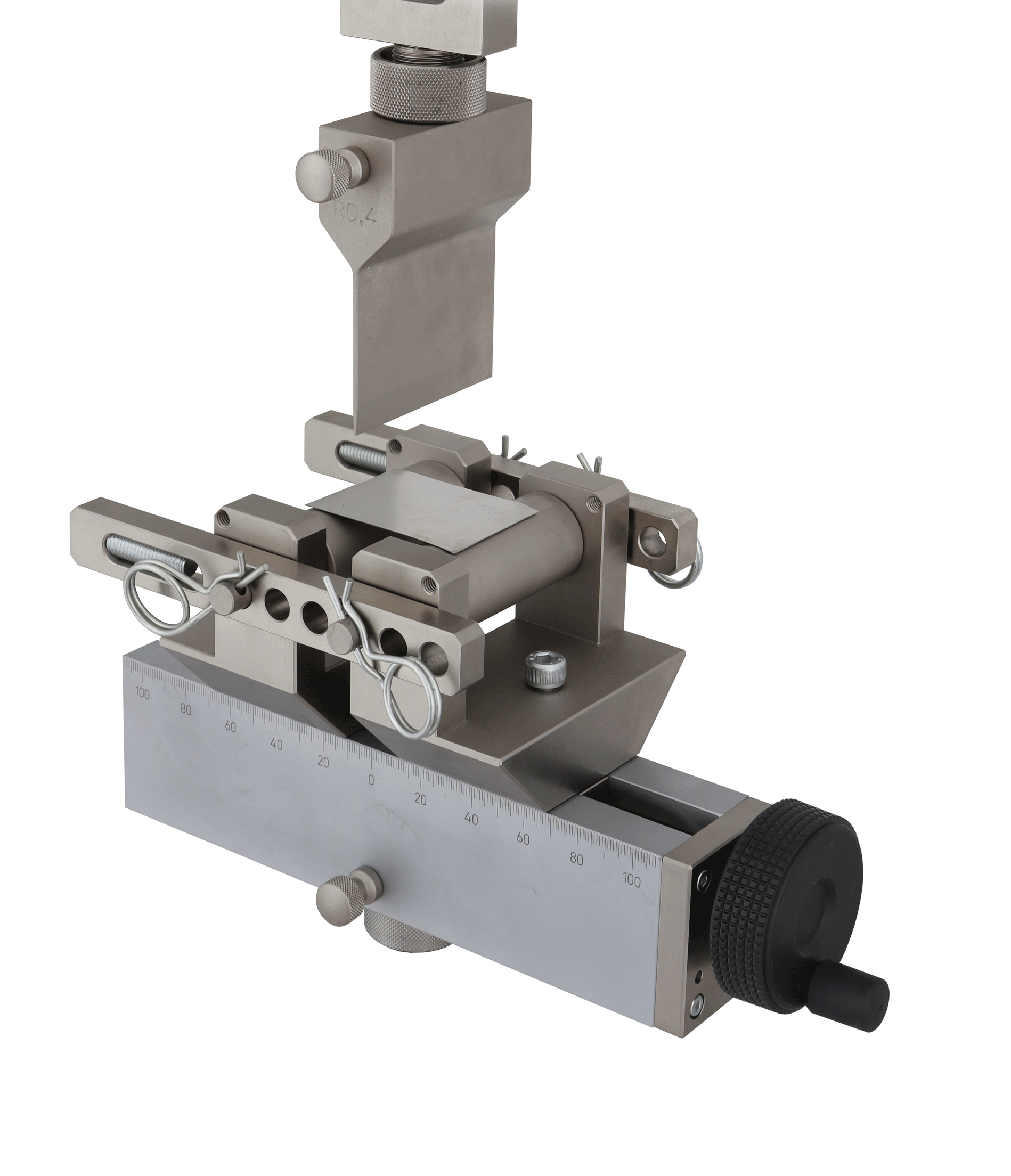

Animation

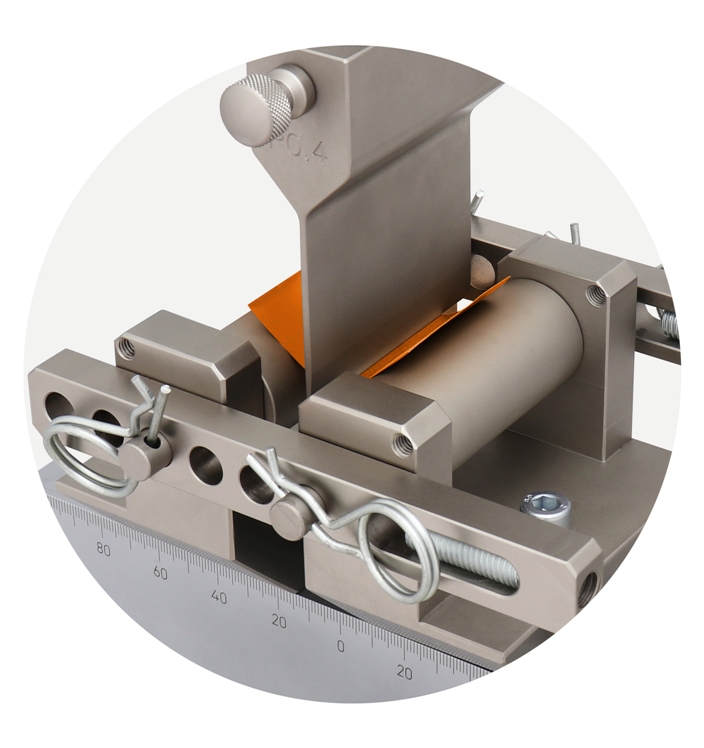

TH103-FV-VDA238-100 2021-08-23 03 closeup

TH103-FV-VDA238-100

TH103-FV-Af20 R04 R02 VDA238-100 2019-02-07

TH103-FV-VDA238-100

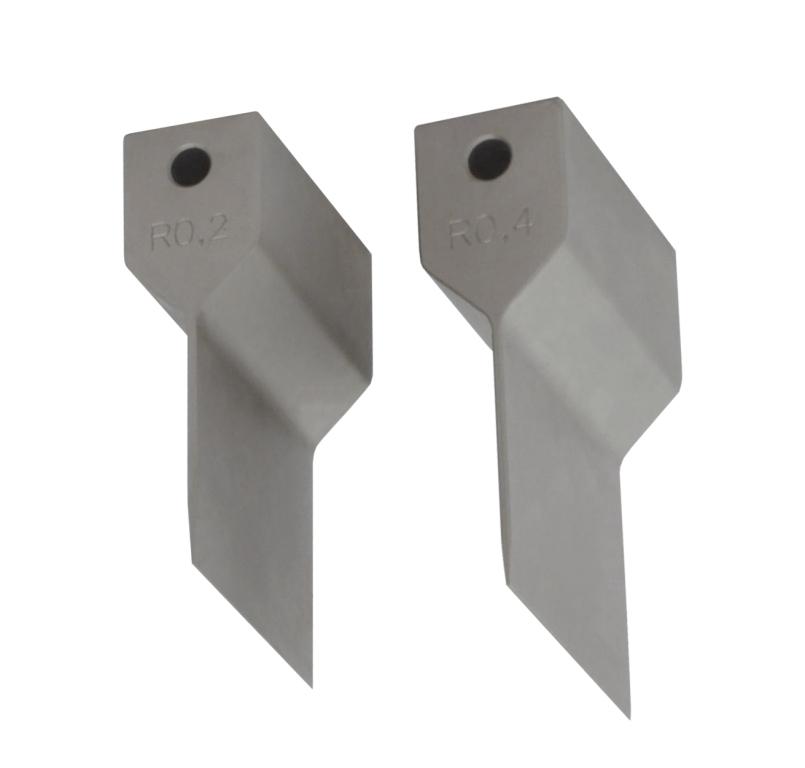

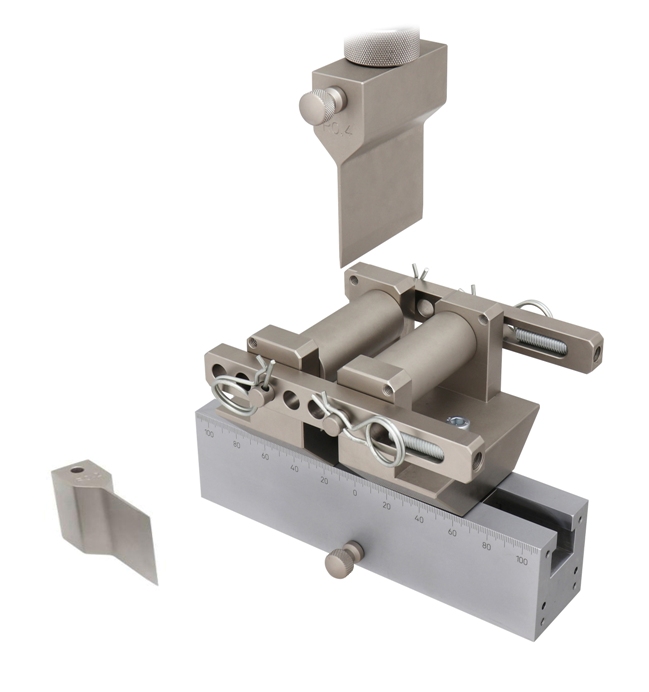

Upper anvils, 0.2 and 0.4 mm radii
