Special

Back

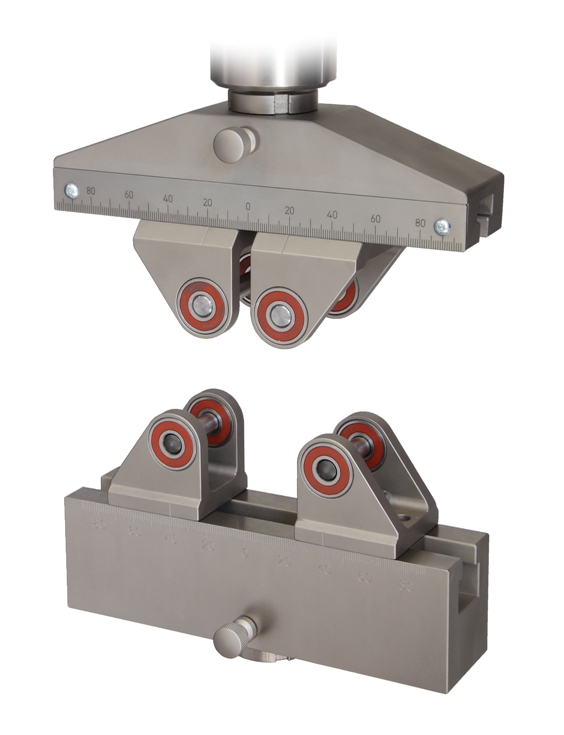

tn_TH103-L5-T120-ASTM-D6415  +120C   8,1kg   Hybrid-faserverbundwerkstoffe  G02  2020-05-11  02

TH103-CL5-T120-Af20-ASTM-D6415

Curved beam strength fixture for fiber-reinforced polymer-matrix composite
According to ASTM-D6415

Biegevorrichtung zum Testen von Faserverbundwerkstoffen gem ASTM-D6415



more

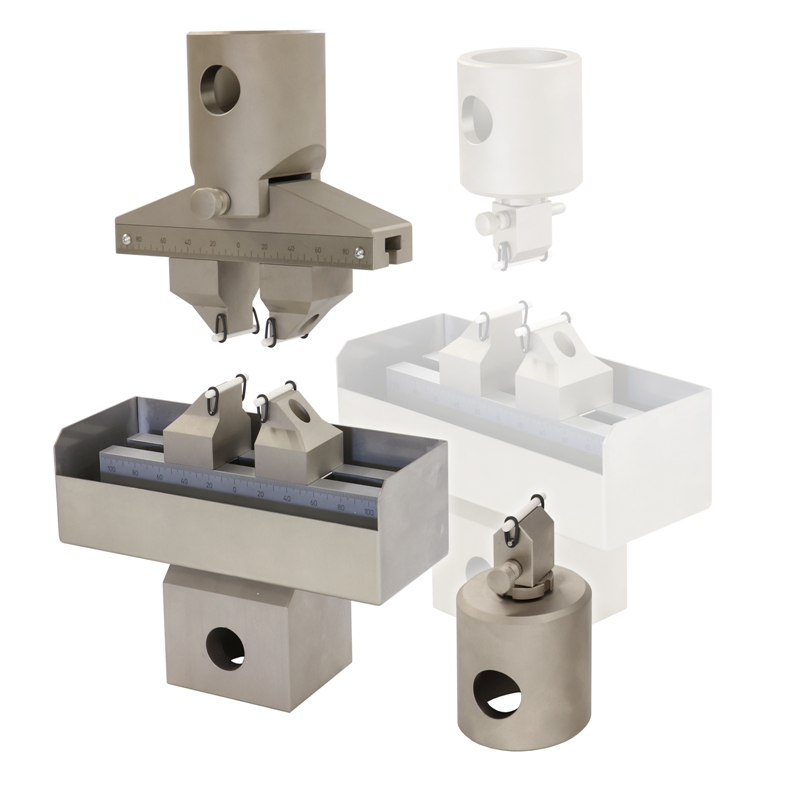

TH103-5P-220-CXD5x30-WDF-Af6030-35 + TH103-WNE + ceramic Keramik 20,2kg 2022-05-24 04

TH103-5P-B220-CX5-30-WDF-Af6030-35
+
TH103-WNE + Ceramic rollers



5-point bend test fixture with ceramic rollers

Incl. stainless steel container

more

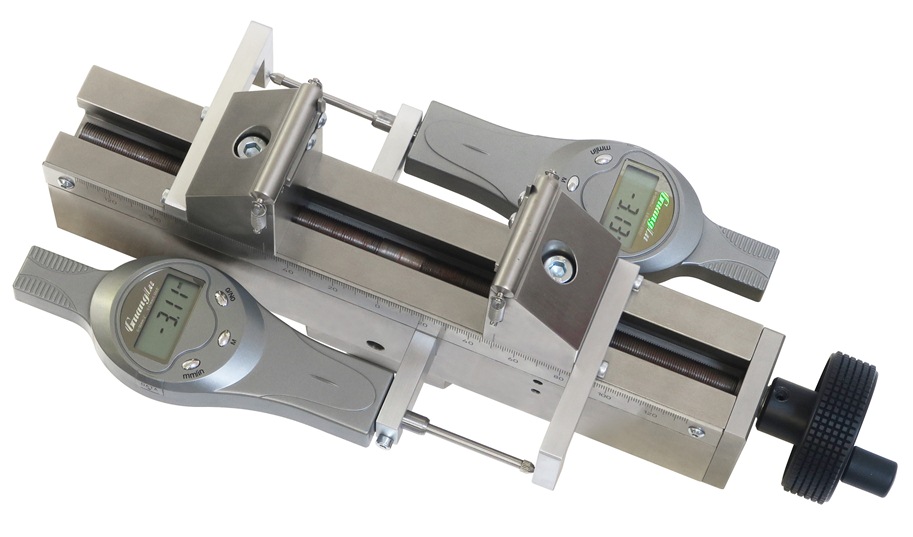

tn_TH103-300-CXD6-D10-OXD3-Am317-cgr+An 007-

TH103-B300-CX6-10-An-cgr-Am317


Bend test fixture with special digital display for span measure and centring device


more

TH103-3p-330-FTE  ASTM-D7774  9,4kg  2018-12-05 03- (1)

TH103-B330-FTE-ASTM-D7774

Bend test fixture to test flexural fatigue properties of plastics
According to ASTM-D7774 Procedure A and Procedure B

more

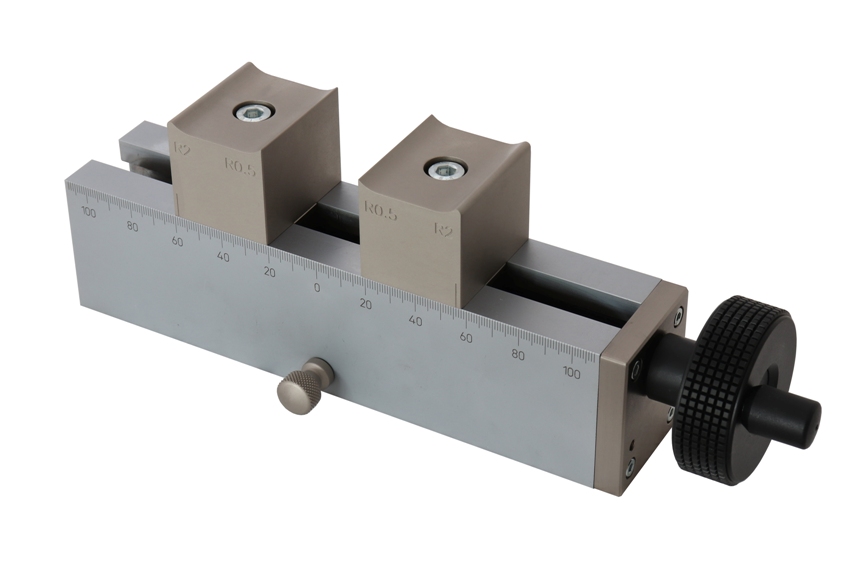

TH103-B220-AR0.5-2-cgr-Af159

TH103-B220-AR0.5-2-cgr-Af159

Bend test fixture with special anvils
radii 0.5-2 mm, coupling Af159

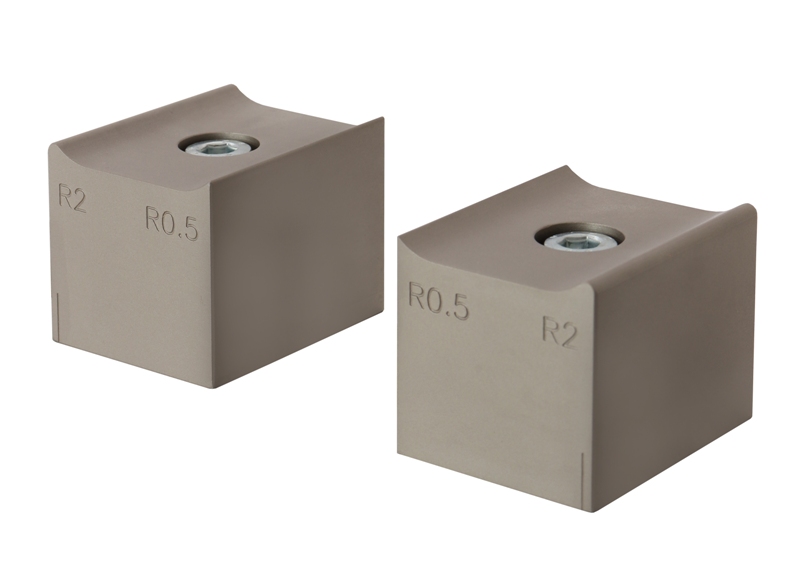

TH103-AR0.5-2

TH103-AR0.5-2



Special anvils, radii 0.5-2 mm

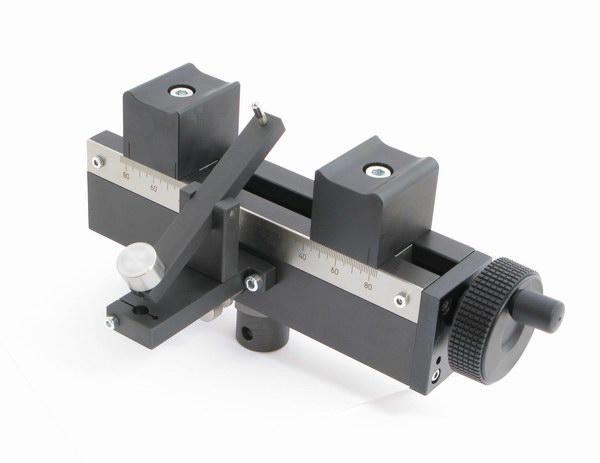

TH103-BK220-AR2R5-ITH

TH103-B220-AR2-5-ITH2-cgr

Special bending device for external extensometer 0-70C
Lower bar 220 mm , lower anvils 2-5 mm

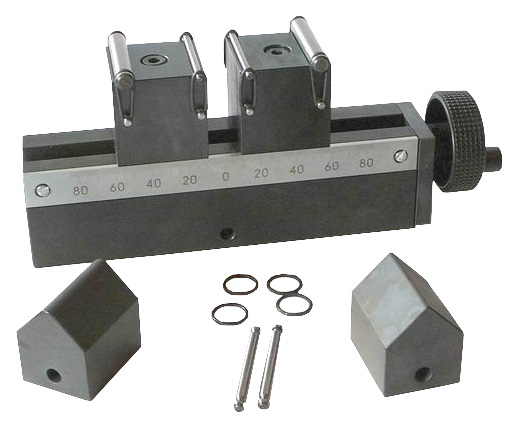

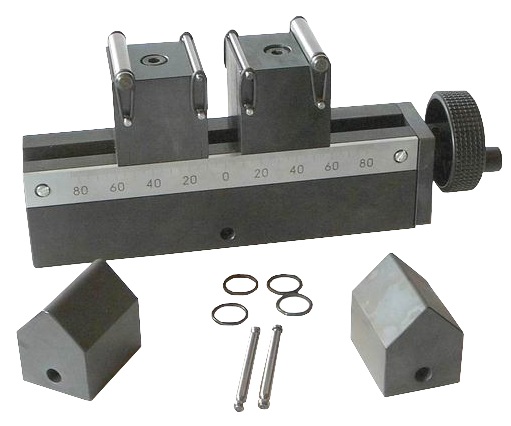

TH103-BK220-AXR2-AR3-OR2-OR3

TH103-B220-AX2-AX3-oFR2-oFR3-cgr

3-point bending device with centric gear Lower bar 220 mm, lower anvils 2 and 3 mm, upper anvils 2 and 3 mm

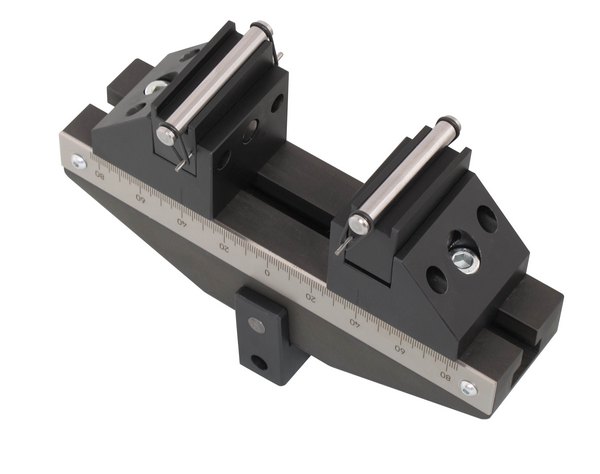

TH103-Bo200-CWN8-WDF

TH103-B200-CWEN8-WDF

4-point bend test fixture
Support moveable for ceramics Extra Movable adapter 0-70C
Lower bar 200 mm, lower anvils 8 mm

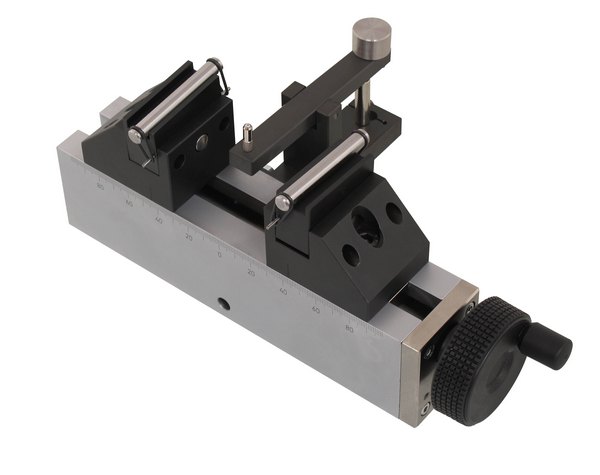

TH103-BK220-CWN8-ITH

TH103-B220-CWEN8-ITH2-cgr

Special bending device for external extensometer 0-70C
Lower bar 220 mm, lower anvils 8 mm

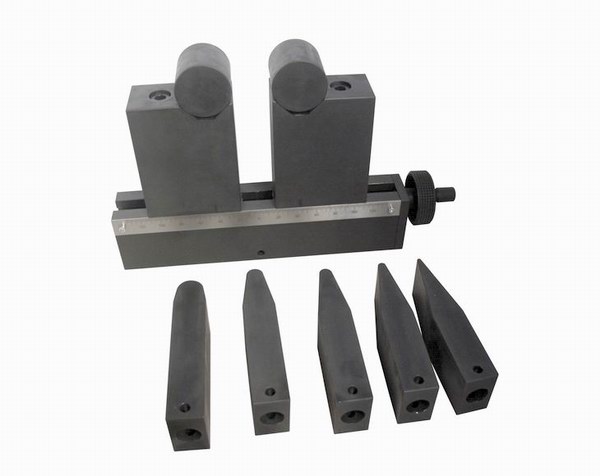

TH103-BK220-AX50H80-S9112

TH103-B300-AX50-H80-cgr

Special bend test fixture with special long bar 300 mm

tn_TH103-FV-oR2,3,4,5-W70-Af6025 ASTM-A262 ISO3651-2 stainless steel bend test after corrosion16-

TH103-FV-oFR2,3,4,5-W70-Af6025-ASTM-A262-ISO3651-2



Special 3-point bend test fixture

to test stainless steel after corrosion

according to ASTM-A262 and DIN EN ISO3651-2

Incl.
interchangeable upper anvils with 2, 3, 4, 5 mm radii

Max. load 50 kN

Steel, nickel-plated

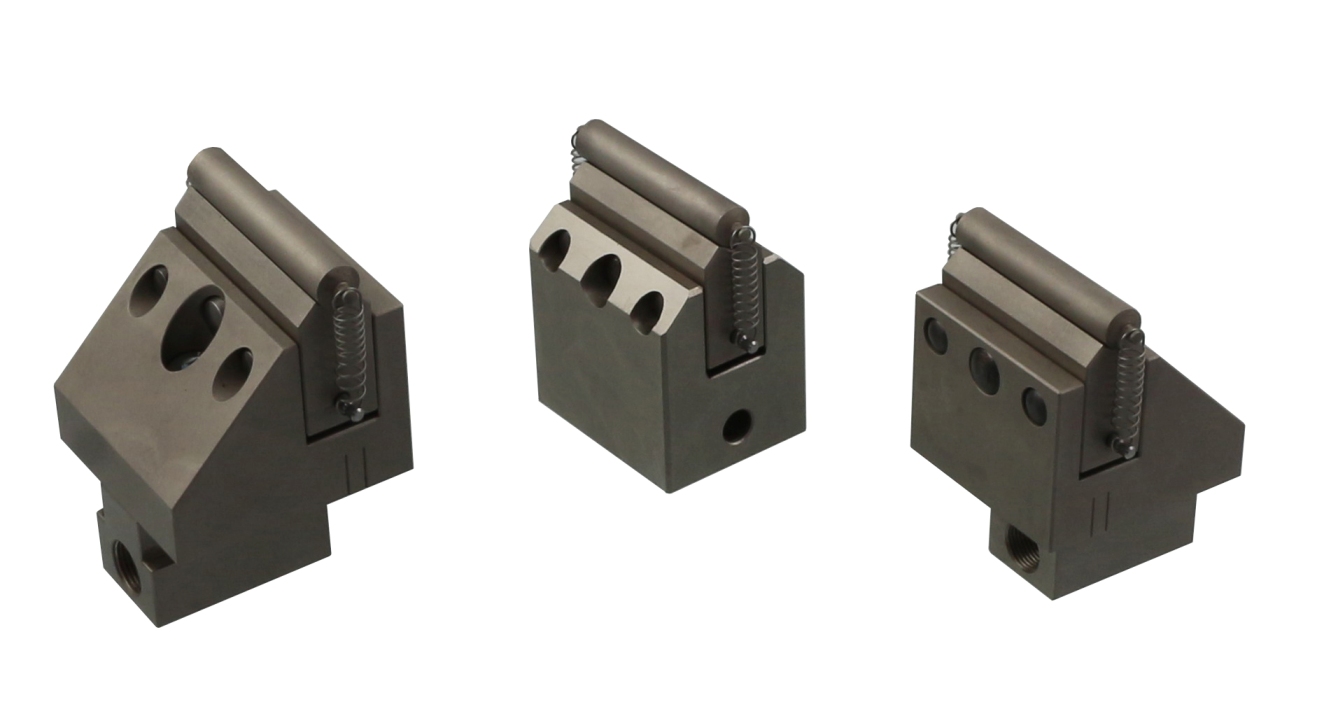

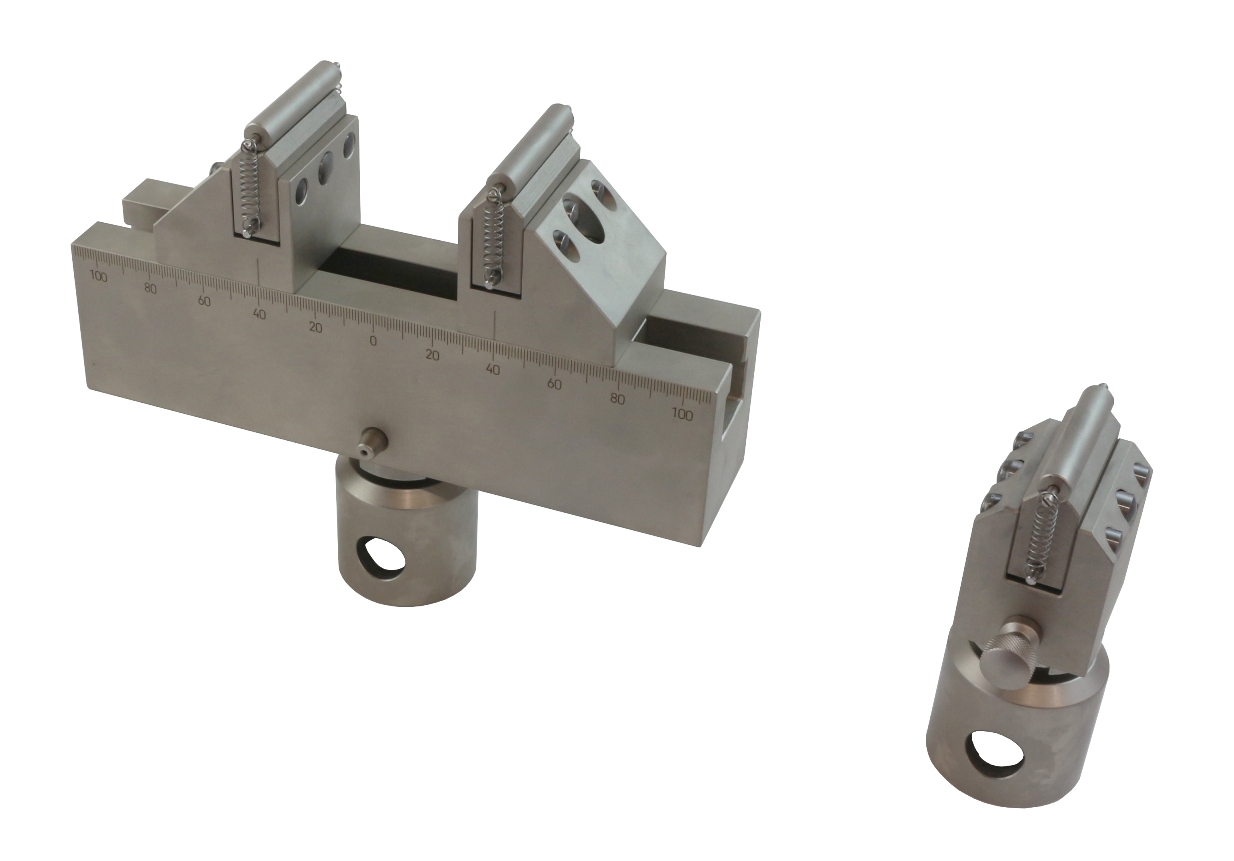

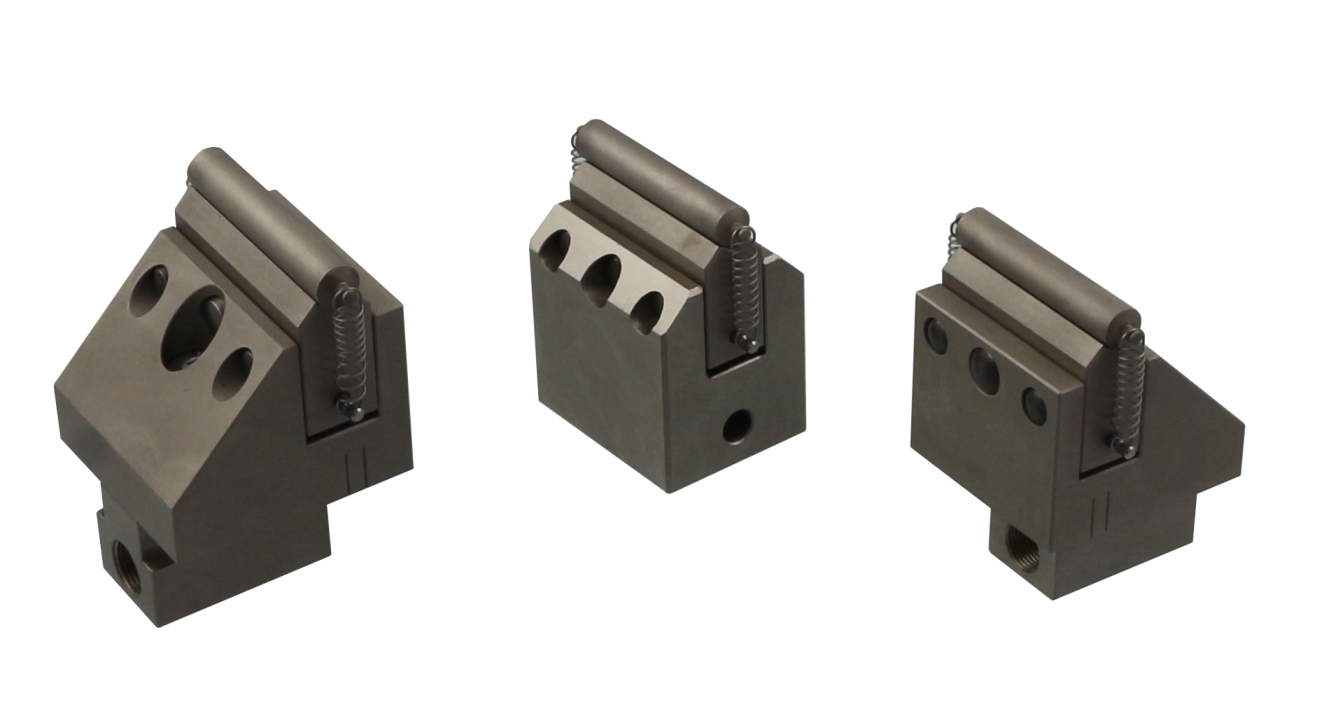

tn_TH103-360-CWEXD9.5-OWEX9.5-ASTM-C348-Fig3 Flexural Strength of Hydraulic-Cement Mortars

TH103-B360-CWEX9.5-oWGT9.5
ASTM-C348-Fig3



3-point flexural strength test fixture

For hydraulic-cement mortars

According to ASTM-C348Fig.3

Articulating anvils with diameter 9.5 mm

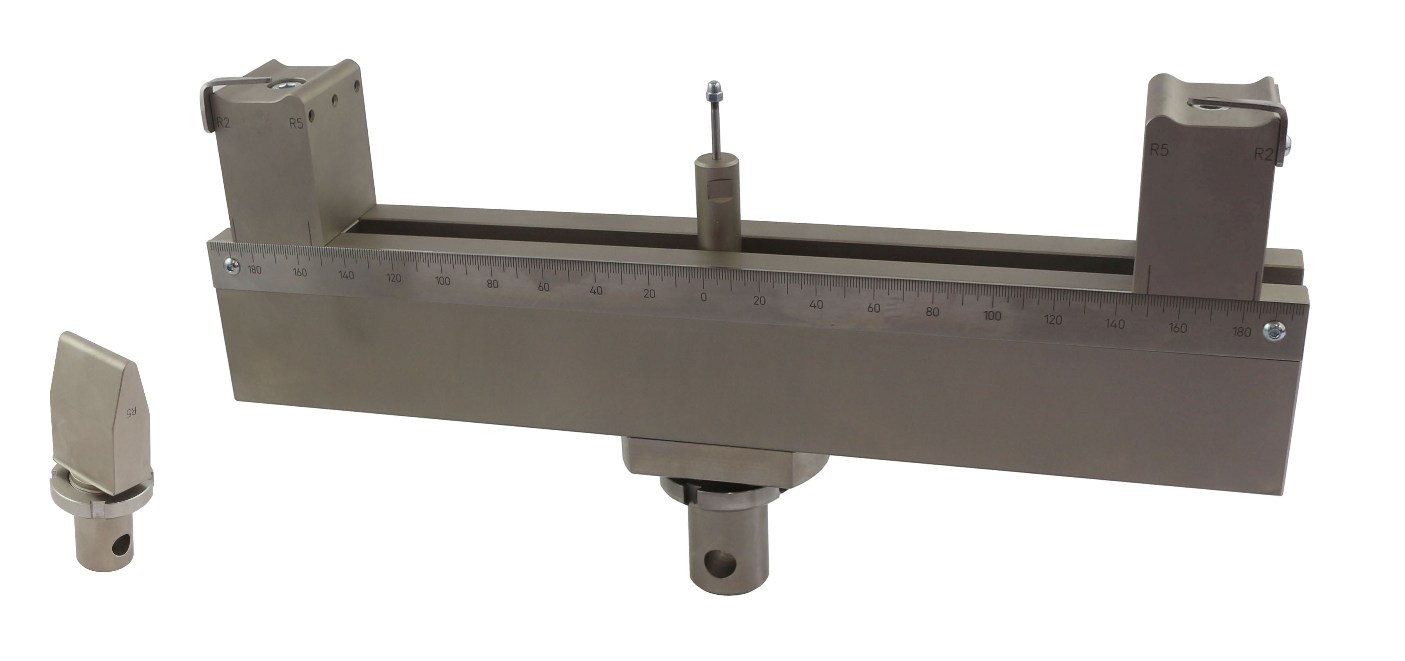

TH103-3P-400-Ar2r5-L60-OR5-Am317-13.20kg_2022-10-08

TH103-3P-B400-Ar2-5-oFR5-Am317

3-point bending fixture
Max. load 5 kN
Steel, nickel coated

Coupling Am317
Incl.
1x lower bar 400 mm long

2x special lower supports with radii 2 and 5 mm, H=60 mm

1x special 3 point nose with radius 5 mm, H=71 mm

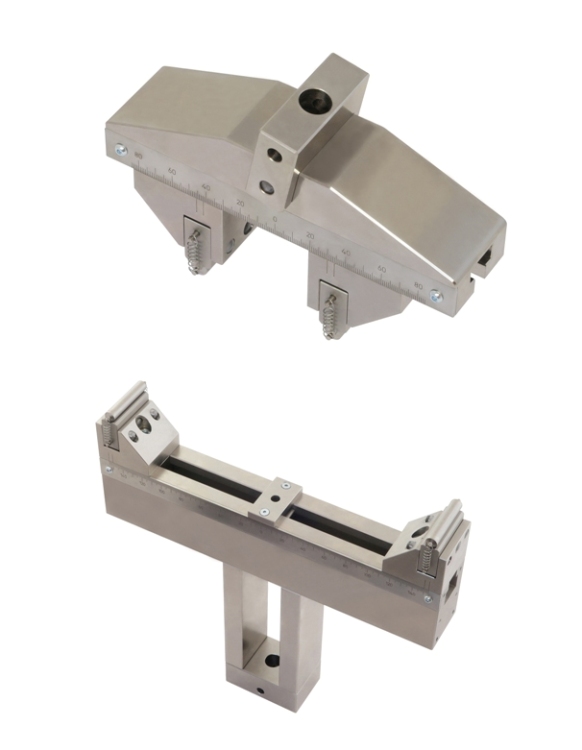

tn_TH103-4P-330-CWX10x50-WDF + ITH1 12-assembly

TH103-4P-B330-CWEX10-Af159-EN1170-4

4-point steel bending fixture
According to DIN EN1170-4

Incl.
1 upper bending bar 200 mm

1 lower bending bar 330 mm

4 anvils with articulated inserts + 4 rollers 10 mm diameter 50 mm wide

1 articulated upper adapter
Coupling Af159

Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: Description: Description: Description: Description: pdf_icon.gif TH103-EN1170-4-5 Datasheet.pdf

Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: Description: Description: Description: Description: pdf_icon.gifTH103-EN1170-4-5 Datenblatt.pdf

TH103-4P-330-CWX10x50-WDF+ith1

TH103-4P-B330-CWEX10-Af159-EN1170-5

4-point bending grip according to EN1170-5
Max. load 20 kN

Incl. 1x lower bar 330 mm

1x upper bar 200 mm
4x rollers 10x50 mm

Coupling Af159

Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: Description: Description: Description: Description: pdf_icon.gif TH103-EN1170-4-5 Datasheet.pdf

Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: Description: Description: Description: Description: pdf_icon.gifTH103-EN1170-4-5 Datenblatt.pdf
