tn_THS613-ELH für THS613-F150 BP15 2020-11-11 05

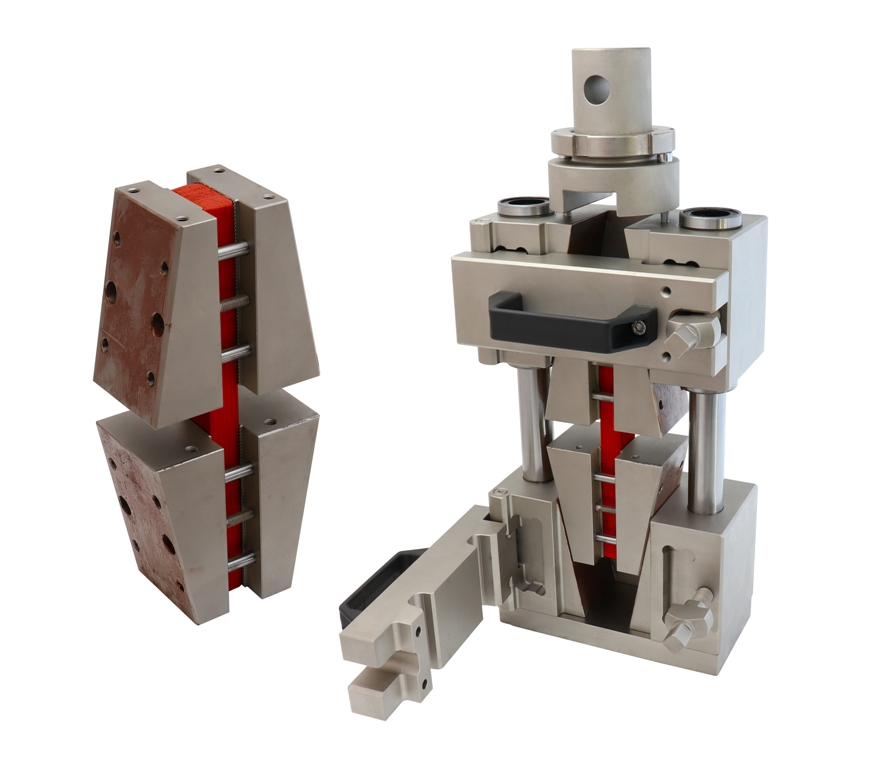

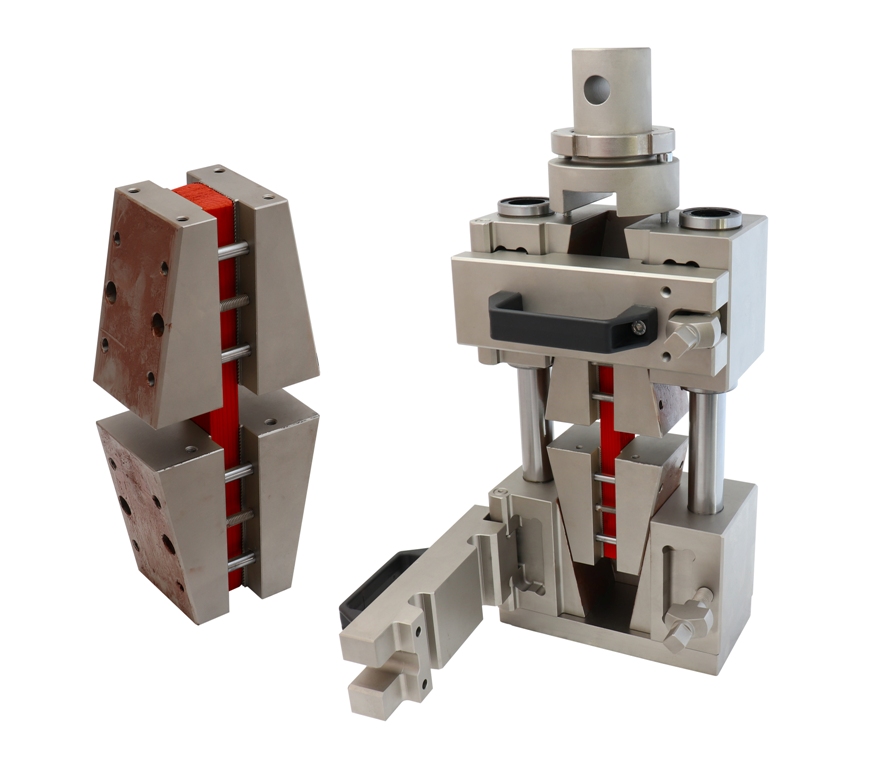

THS613-F150

Compression loading fixture for composite testing, 150 kN



According to ASTM D3410, ISO8515,

DIN EN ISO14126 Method 1,

AiTM1-0008



Kegelkeil-Druckversuch mit Führung

Description: Description: Description: pdf_icon.gif THS613 Datasheet.pdf
Description: Description: Description: pdf_icon.gif THS613 Datenblatt.pdf

tn_THS613-ELH für THS613-F150 BP15 2020-11-11 06

THS613-F150

Description: Description: Description: tn_THS613-ELH.jpg

THS613-ELHF



Sample fixing device

Description: Description: Description: tn_THS613-ELH+BP.jpg

THS613-ELHF+BP



Sample fixing device with pyramid jaws

tn_THS613-ELH für THS613-F150 BP15 2020-11-11 04

THS613-F150 + THS613-ELHF

tn_THS613-ELH für THS613-F150 BP15 2020-11-11

THS613-F150 + THS613-ELHF

Description: Description: Description: tn_THS613-T280 Keildruckversuch hohe Temperatur 6.6.2015 011-.jpg

THS613-F150-T-70+280

Version for temperature range
-70 … +280°C

Keildruckversuch
hohe Temperatur

TH121-2



Compression fixture to test composite materials

according to ASTM-6641, ASTM-D3410-Fig.5, ISO14126

For samples 4mm thick

Max. load 100 kN

Steel, nickel coated

To be used between two compression platens (TH23-116-St)



Sondervorrichtung für Stauchdruckversuch

an Verbundwerkstoffen gemäß ASTM-6641, ASTM-D3410-Fig.5, ISO14126

Für Prüflinge mit Dicke 4 mm

Max. Kraft 100 kN

Stahl, vernickelt

Die Vorrichtung wird zwischen Druckplatten verwendet



more
