THS223b-56-Af159-S3R-ith6 1.1kg_03

THS223b-56-Af159-S3R-ith6



Special self-aligning compression platen with holder for extensometer

Diameter 56 mm

more

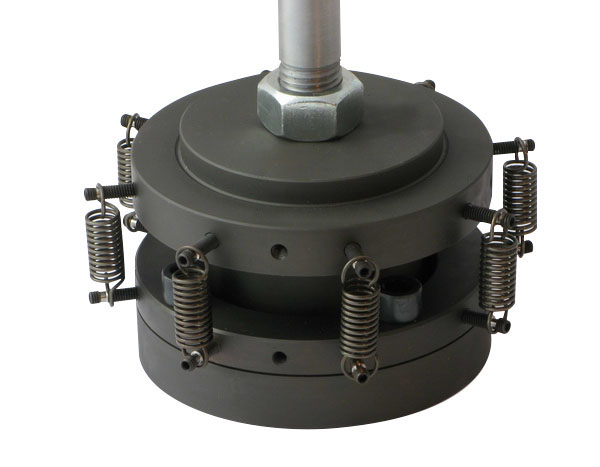

THS223S-136-

THS223S-136

Special spherical platen
Ø136 mm

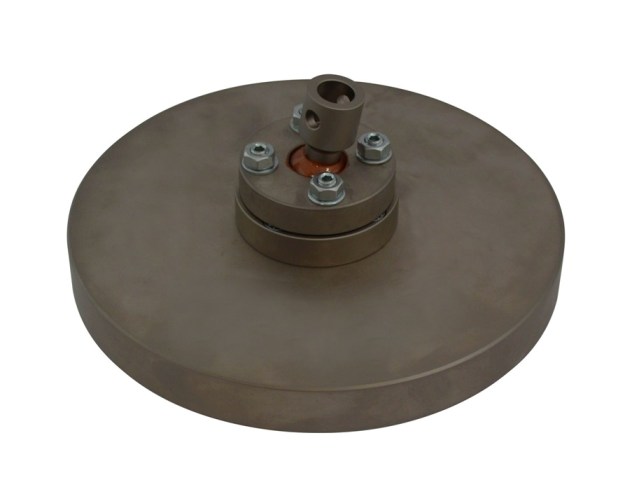

THS223b-TH36-D200-R1-Af159  DIN EN ISO2439 indentation hardness of cellular materials

TH36-D200-R1+THS223b-Af159

Compression platen with ball joint
to measure the indentation hardness
of flexible cellular materials
according to DIN EN ISO2439
Diameter 200 mm, radius 1 mm

For bottom platen, see TH36L

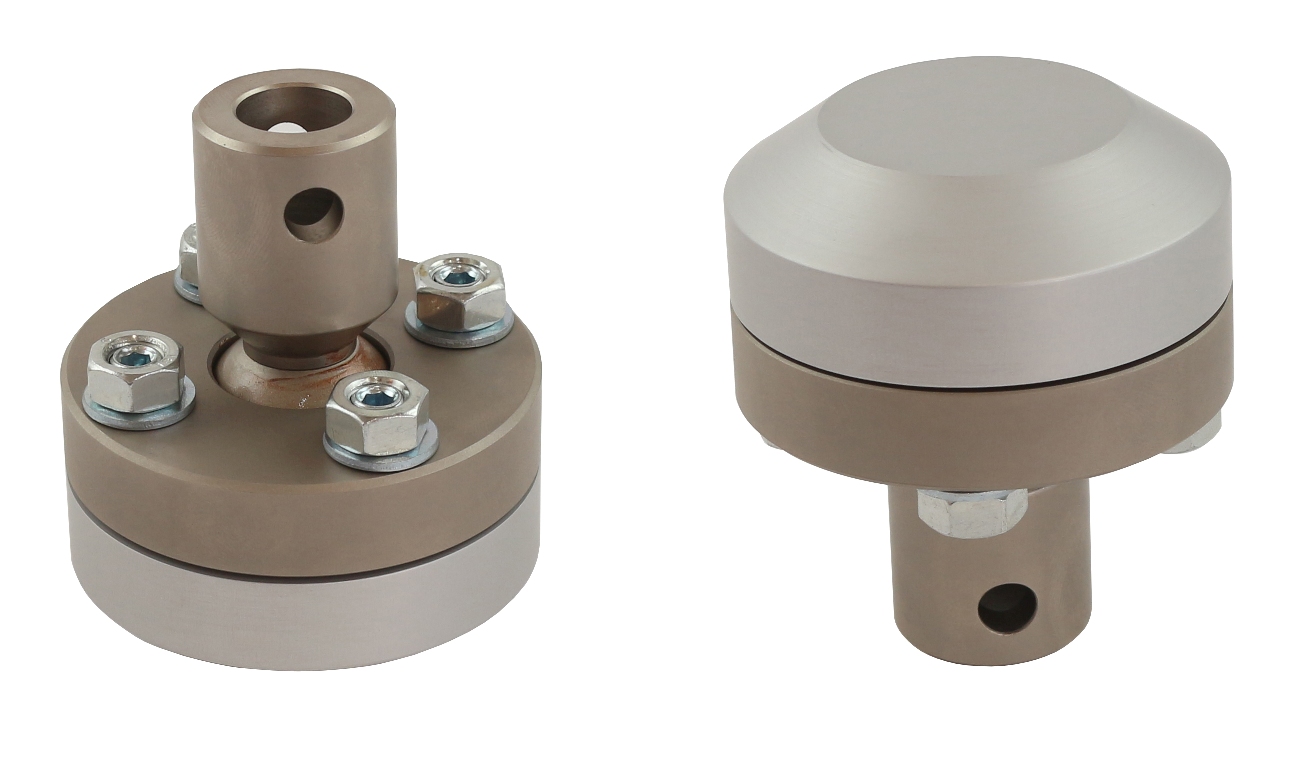

THS223b-40-A20-Af159 02

THS223b-40-A20-Af159

Spherically-seated compression platen

Special size Ø 40 mm , angle +-20°

Max. load 400 N

Aluminium + Steel

Coupling Af159

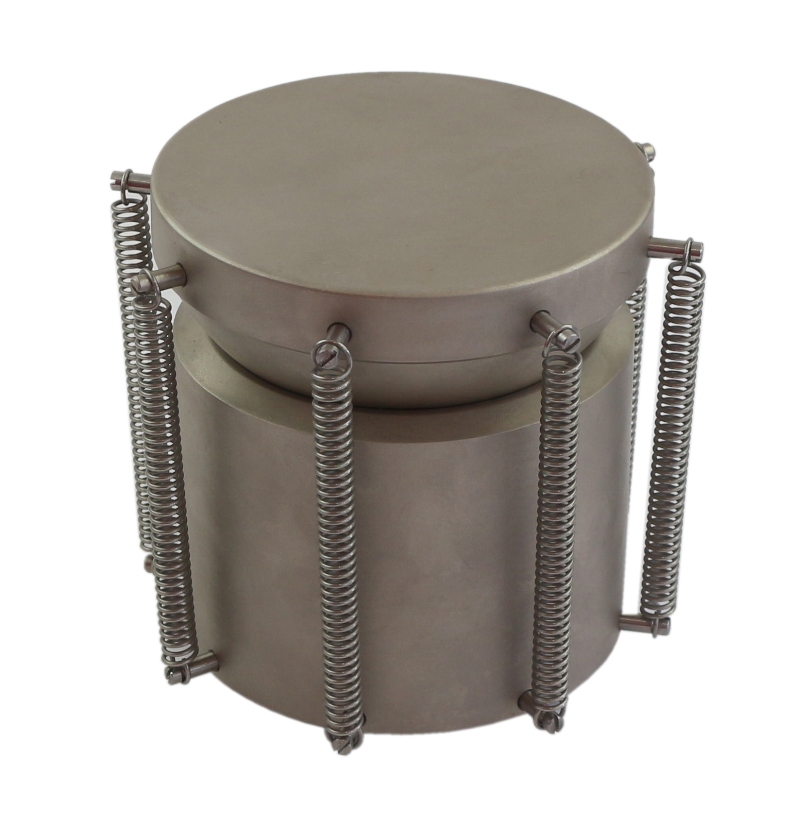

THS223b-96-M12_5.01kg_2022-07-05

THS223b-96-M12

Special compression platen Ø 96 mm
Max. load 500 kN

Steel, hardened, nickel coated

Coupling M12

THS223b-112.8-Af20-St-DIN53579_1.94kg_2020-09-12

THS223b-112.8-Af20-ST



Compression platens for flexible cellular materials, according to DIN53579-2
Max. load 5 kN
Steel, nickel-plated
Coupling Af20

TH36-196+4xD9-8xM4+THS223g-P138-TH36-Af30_11.1kg_01

TH36-196+4xD9-8xM4
+
THS223g-P138-TH36-Af30



Special steel compression platen

196x196 mm

Swiveling upper part ±1.5°

Max. load 50 kN

Coupling Af30

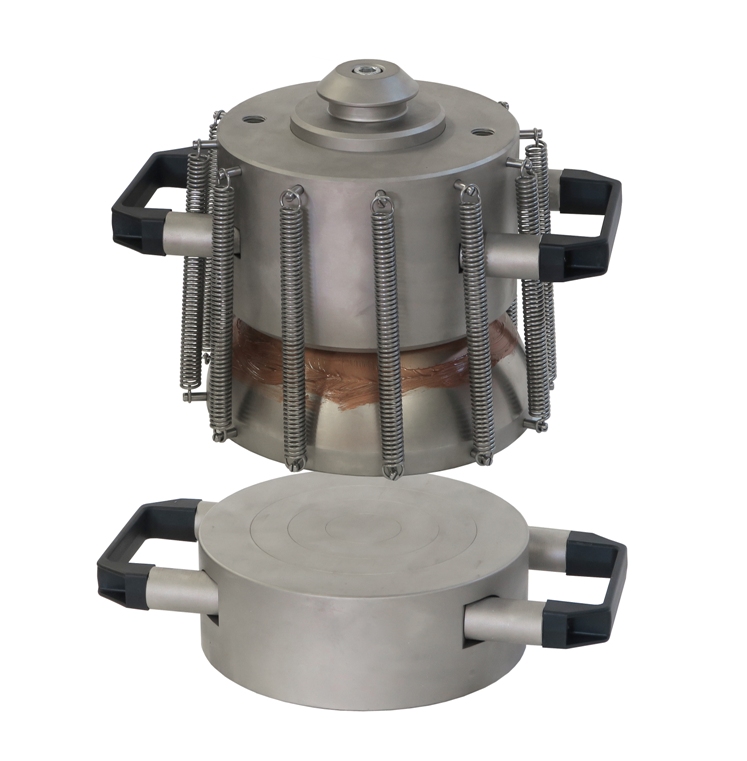

tn_THS223b-220-Am66+100-hdl +TH23-220+hdl 49.2+24.25kg 7 wire strand sompression 02

THS223b-220-Am66+100-hdl+TH36-D220x80-Am25+hdl

Special compression test fixture to test 7 wire steel strand for reinforcement and prestressing of concrete

220 mm diameter

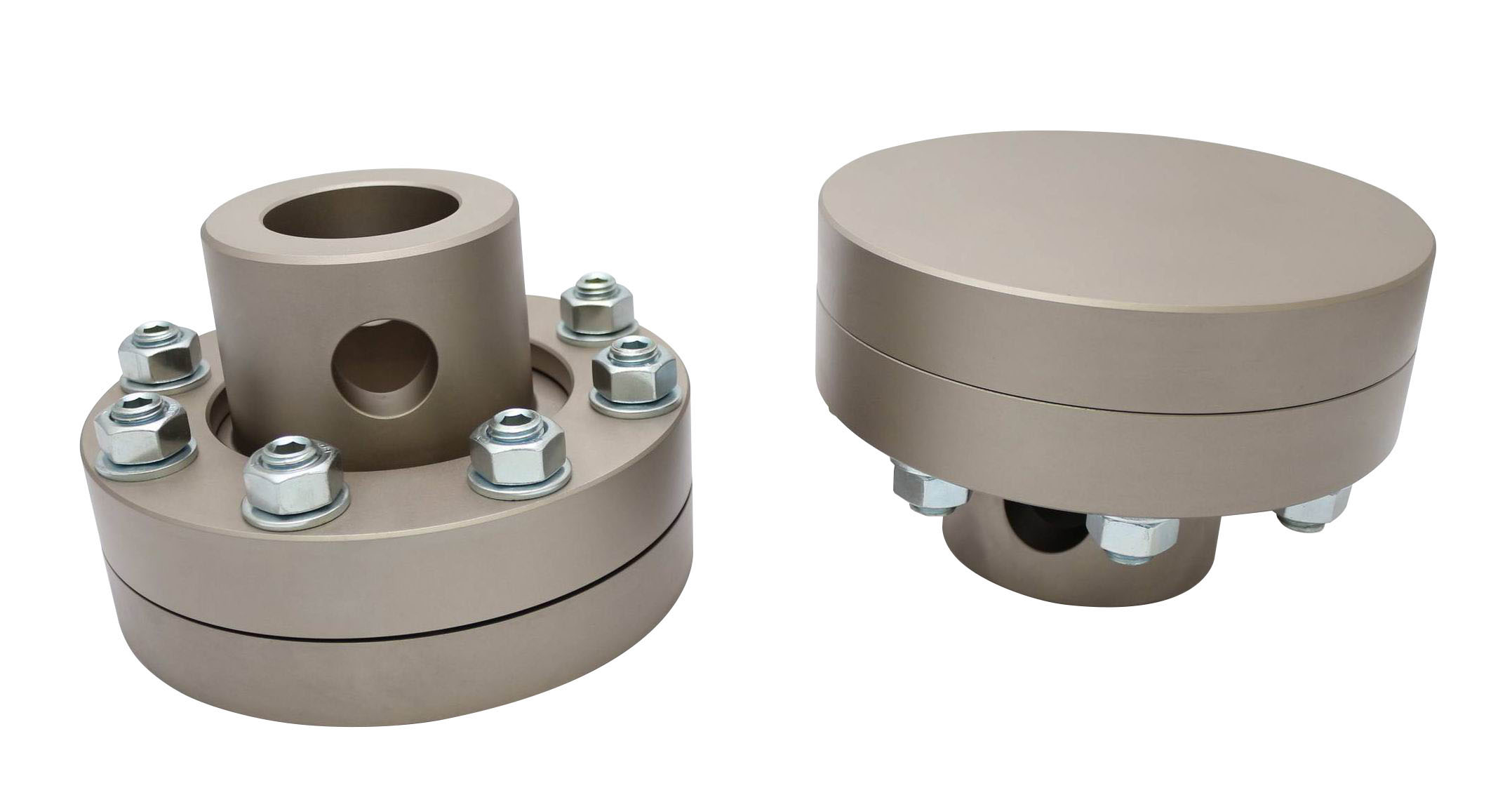

THS223w-196-Af603035


Spherically seated compression platens self-aligning and fixable
Max.load
300 kN

Steel, hardened, nickel coating

Coupling Af60/30-35

tn_THS223w-170x170-Af603035-St TH36-170-Af603035-St-xa 2020-12-19 21 21.9+9kg

THS223w-170x170+ST
+
TH36-170-Af603035-ST



Special platens

170x170 mm and 170 mm diameter

Steel, nickel-plated

tn_THS223w-170x170-Af603035-St TH36-170-Af603035-St-xd 2020-12-19- 21.9+9kg

THS223w-170x170+ST

+
TH36-170-Af603035-ST



Special platens

170x170 mm and 170 mm diameter

Steel, nickel-plated

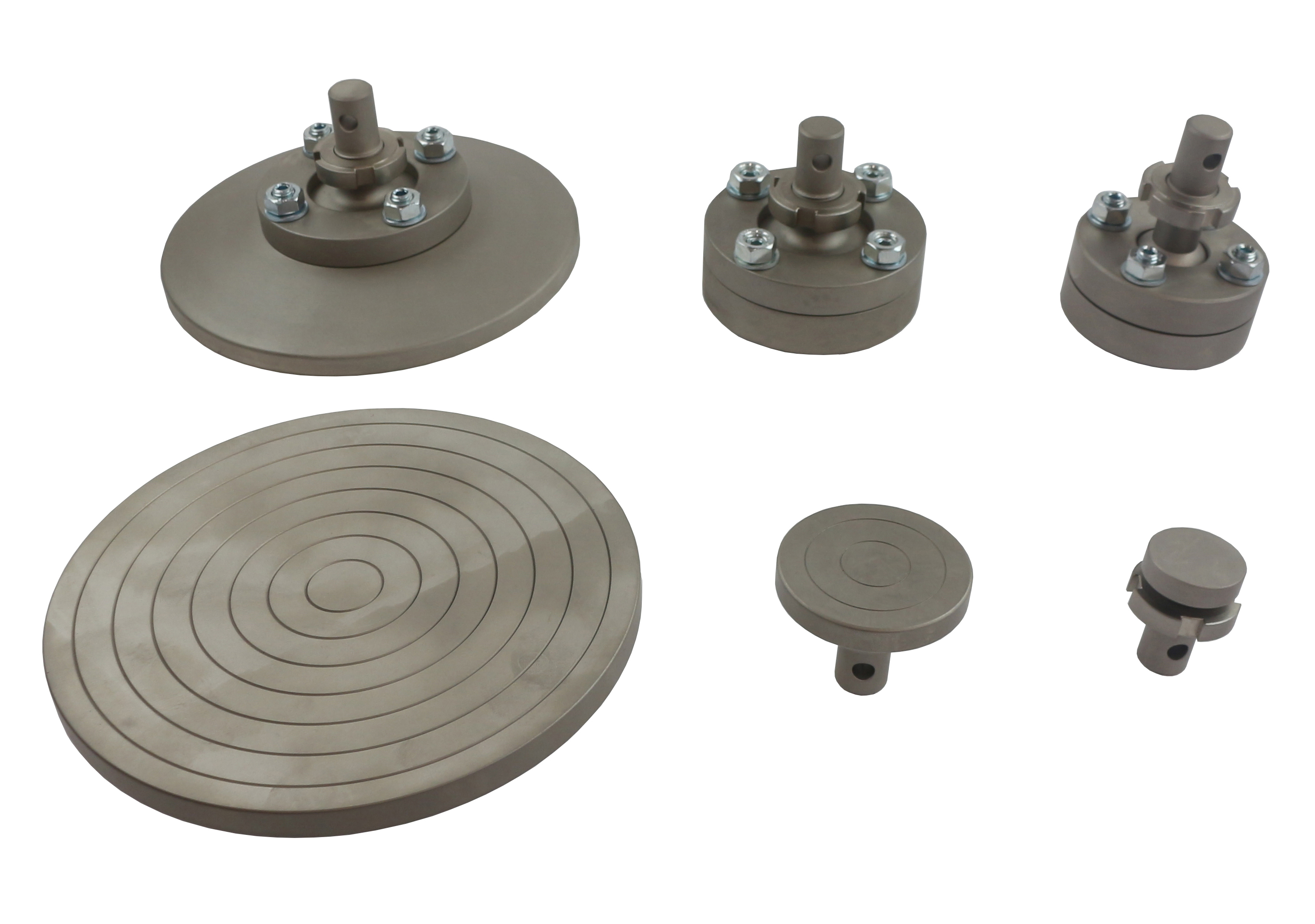

THS223k+TH23-156-Am16-St+THS223k+TH23-56-Am16-St+THS223b+TH23-30-Am16_ASTM-D1621_Rigid_Cellular_Plastics_compression

THS223k+TH23-156-St
+
THS223k+TH23-56-St
+
THS223b+TH23-30-Am16



3 pair compression platens, 30 mm,
56 mm, 156 mm Ø

Rigid + self-aligning platens

Suitable for testing compressive properties of rigid cellular plastics according to ASTM-D1621

Coupling Am16

Steel, nickel-plated

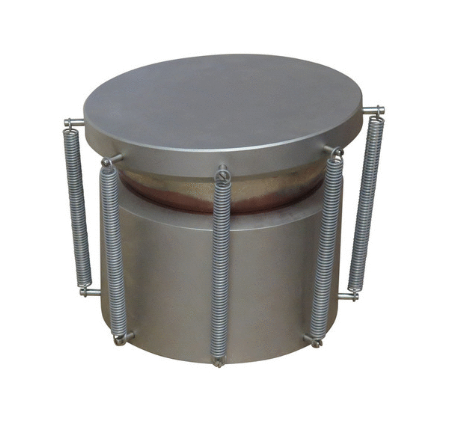

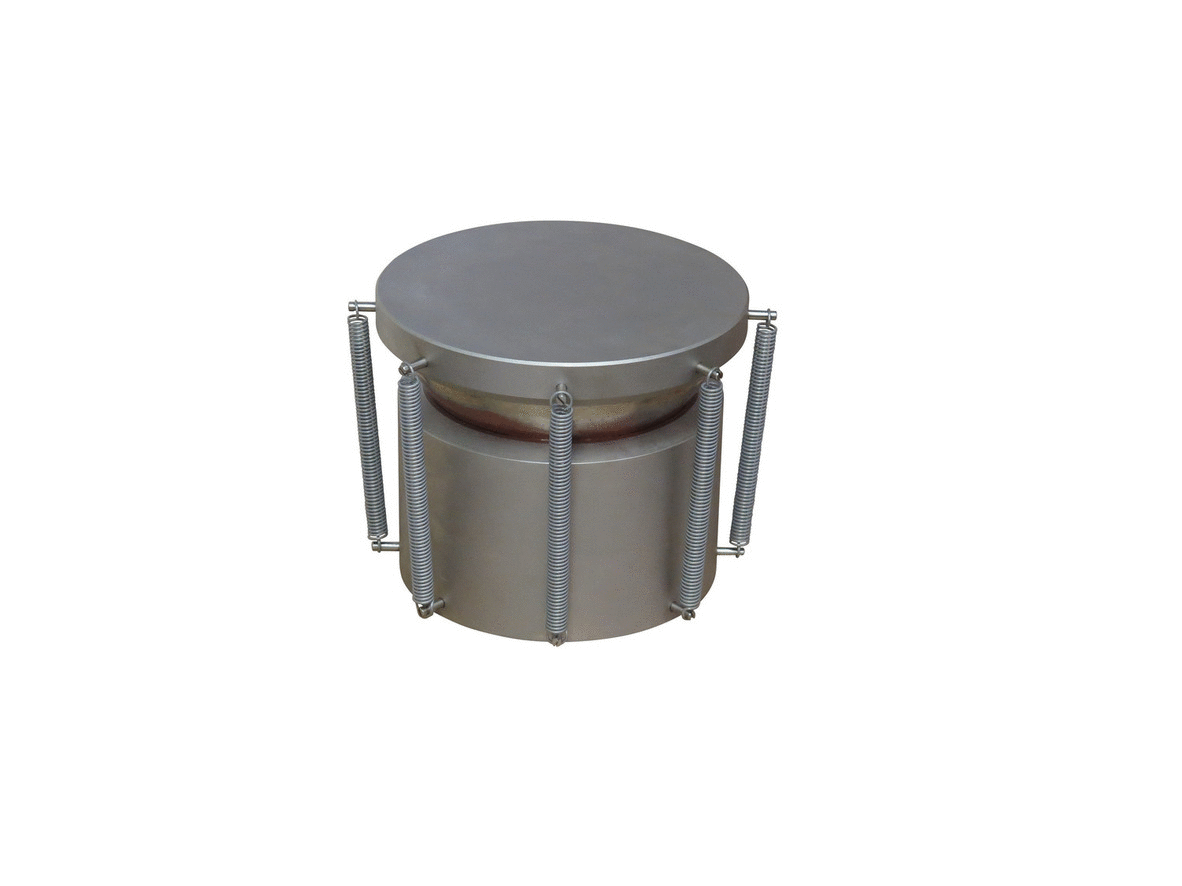

THS223b-220-M20

Max. load
600 kN



Animation

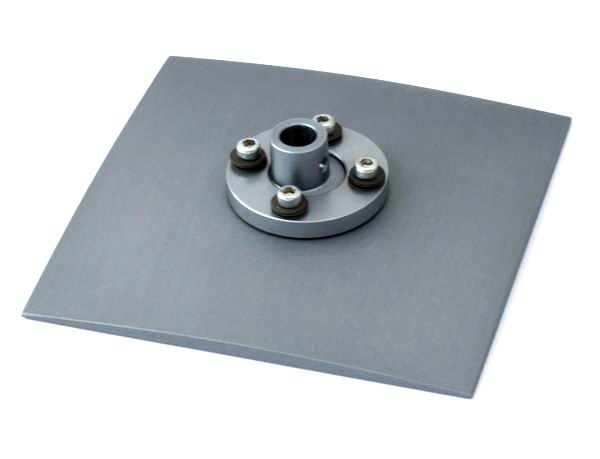

THS223i-100x100-AL

THS223i-S100x100

tn_THS223g-100x200-Am50-GOST-R56336  Screenshot_2

THS223g-100x200-Am50-GOST-R56336

Special compression platen to test resistance to repeated loading of geosynthetics for automobile roads according to GOST-R56336

Специальная плита для испытания на сжатие геосинтетических материалов для автомобильных дорог по ГОСТ-Р56336

Sonder Druckplatten zum Testen von Geotextilien für Straßenbau gemäß GOST-R56336

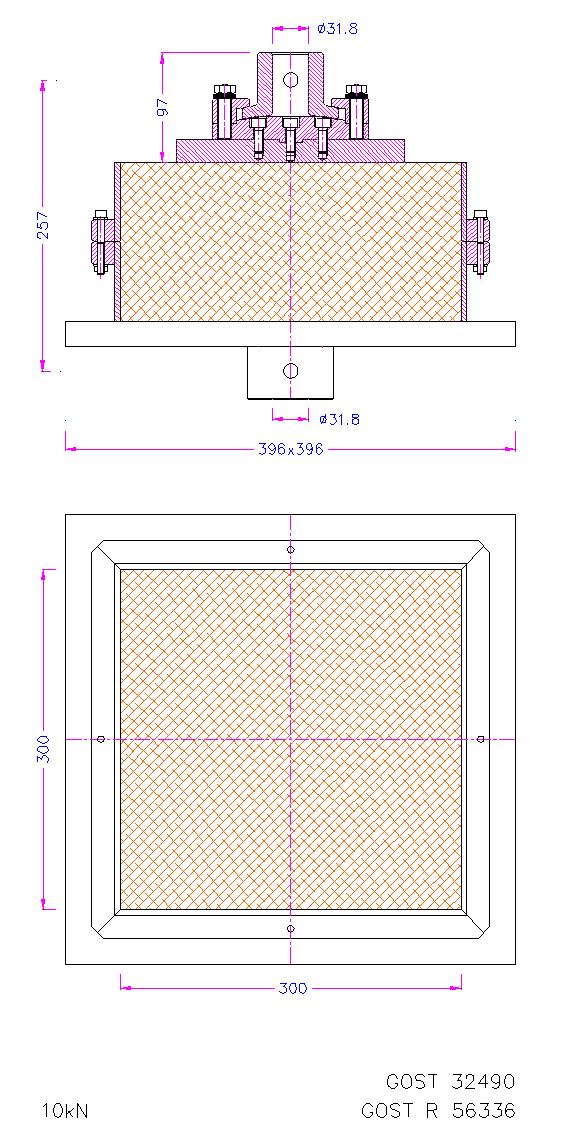

THS223g-Mold-300x300x75-GOST-R56336 GOST32490

THS223g-Mold-300x300x75

Mold for geosynthetics testing according to GOST-R56336

Испытательный контейнер для тестированя геосинтетических материалов в соответствии с ГОСТ Р56336

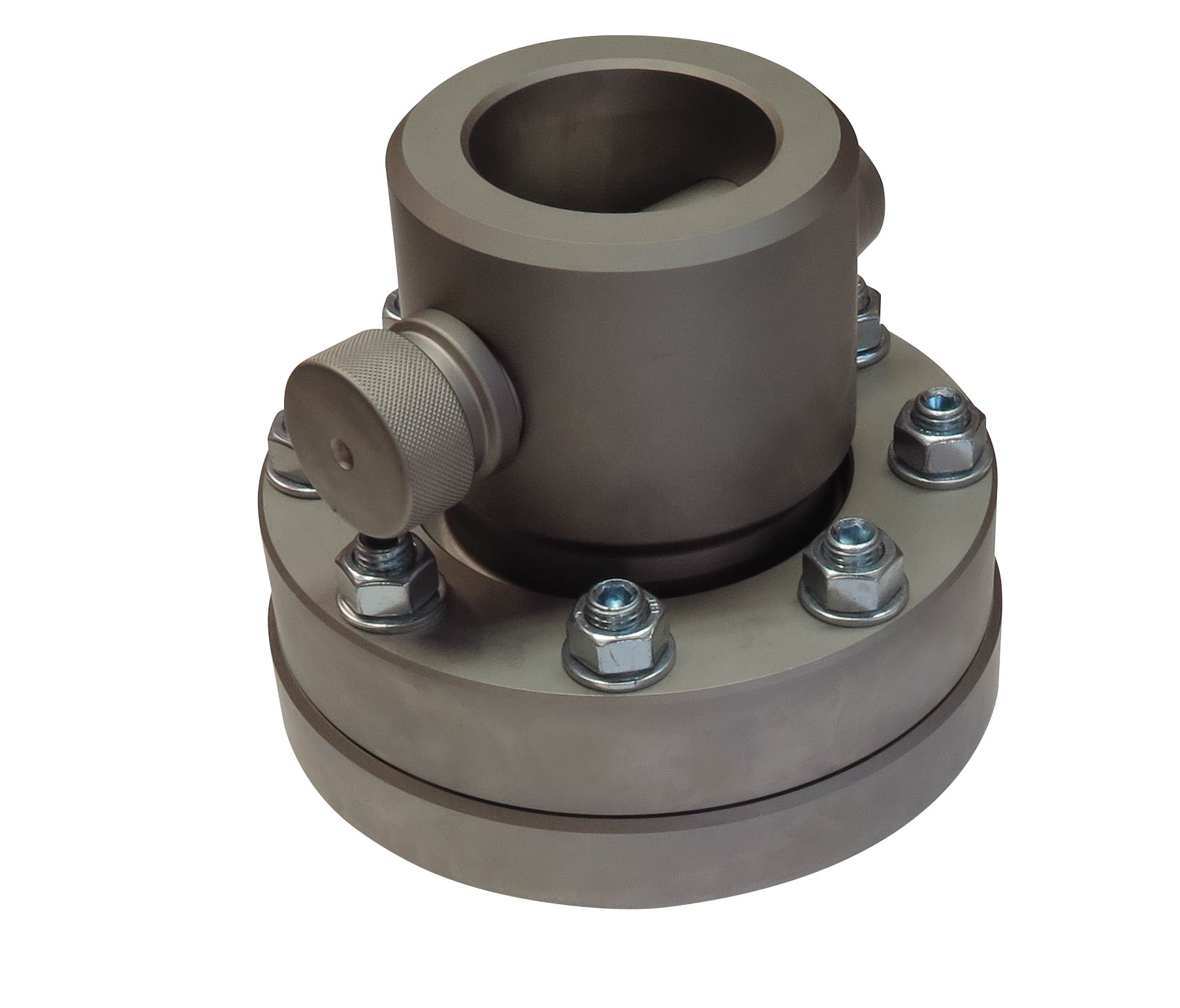

Description: Description: Description: tn_THS223z-156-Af80 1.9.2015-.jpg

THS223z-156-Af80

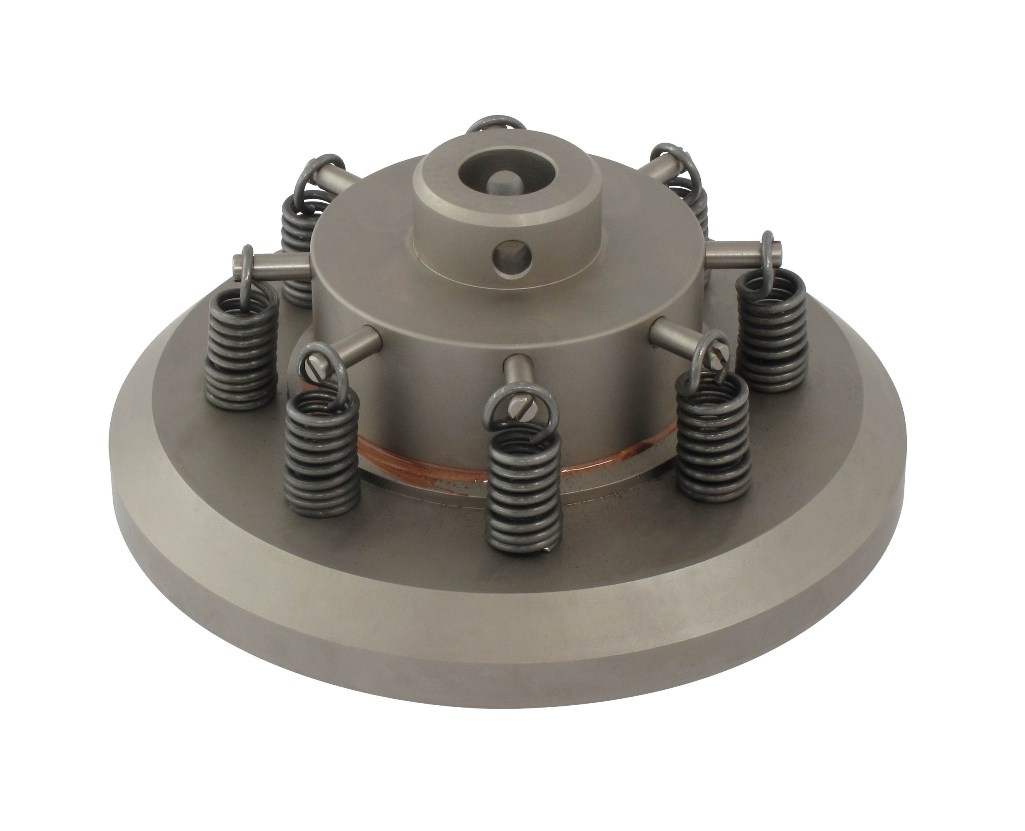

tn_THS223S-175-AF20-

THS223s-175-Af20

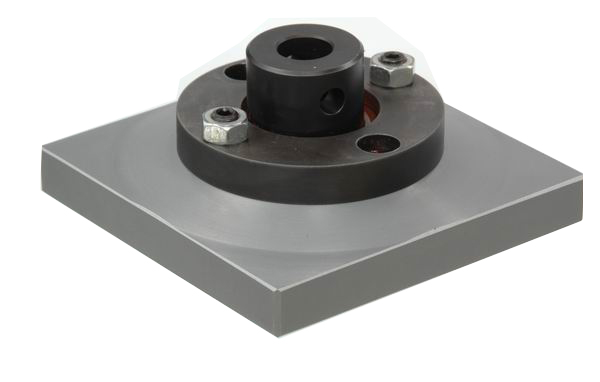

THS223k-q114-Af15p9-back

THS223k-114x114-Af159

Backside

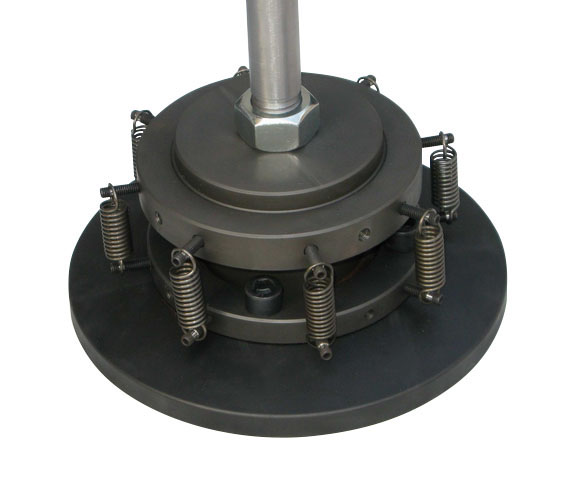

THS223s-220--

THS223s-220

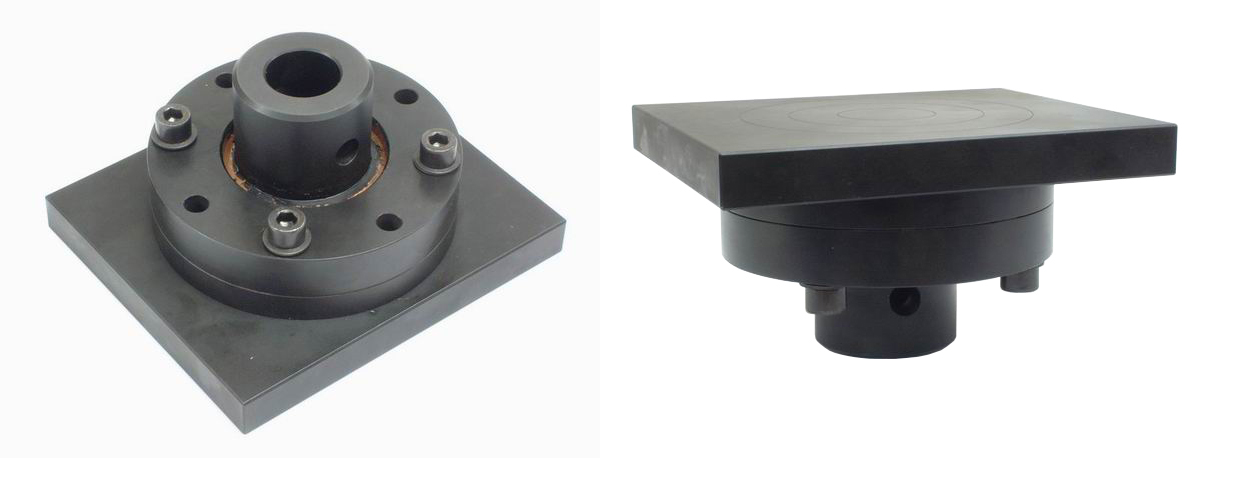

THS223g-150x180-Af318

THS223-150x180-Af318

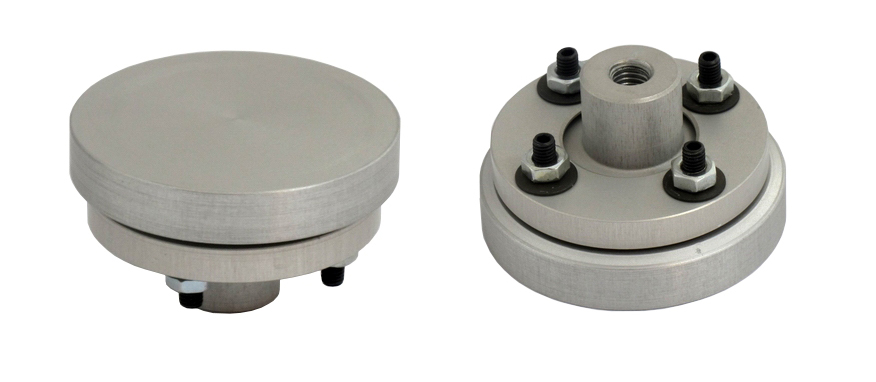

THS223i-40-M5. 29.02.2020

THS223i-40-M5

Special moveable compression platen

Diameter 20 mm

Aluminium, anozided

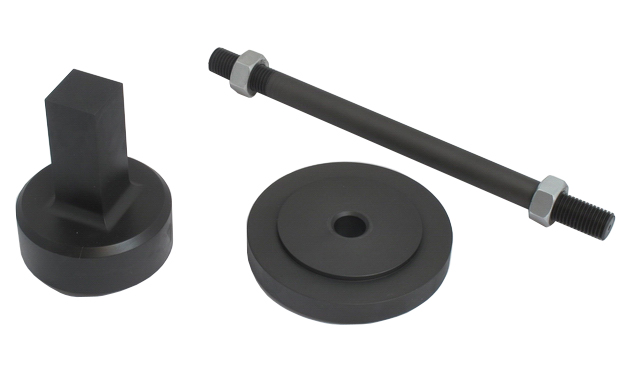

tn_THS223g-9723-3 29.02.2020

THS223g-9723-3

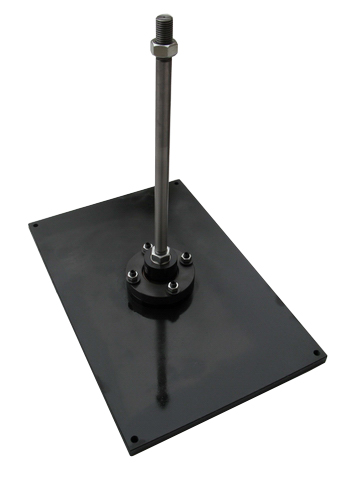

tn_THS223g-396x596 29.02.2020

THS223g-396x596

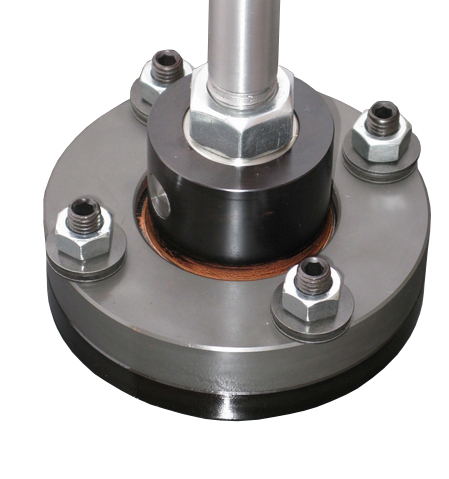

tn_THS223g-for TH36 platen 29.02.2020

THS223g

For TH36 platen
