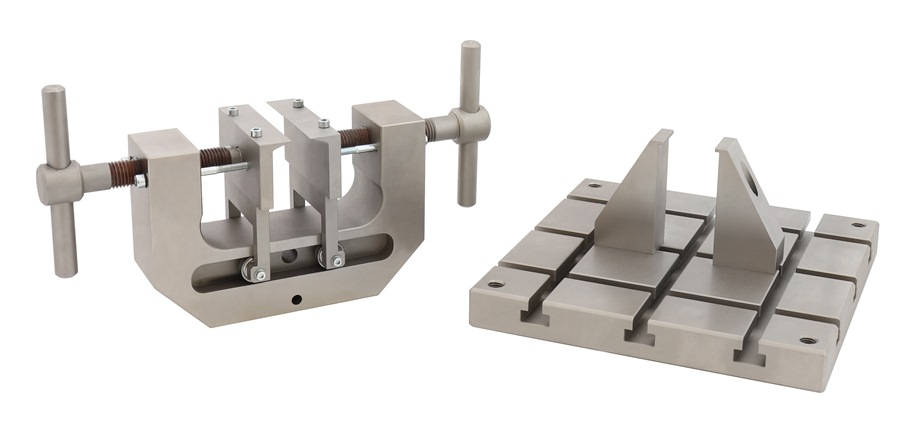

TH36T-250-ST+HL86x30 & TH154-S100-ST+S80-BL24a20



Custom made version with special holders to test car batteries in combination with a vise grip TH154-S100-ST with special jaws

Description: Description: Description: tn_TH36t-250-ALu-Af159-RTT-

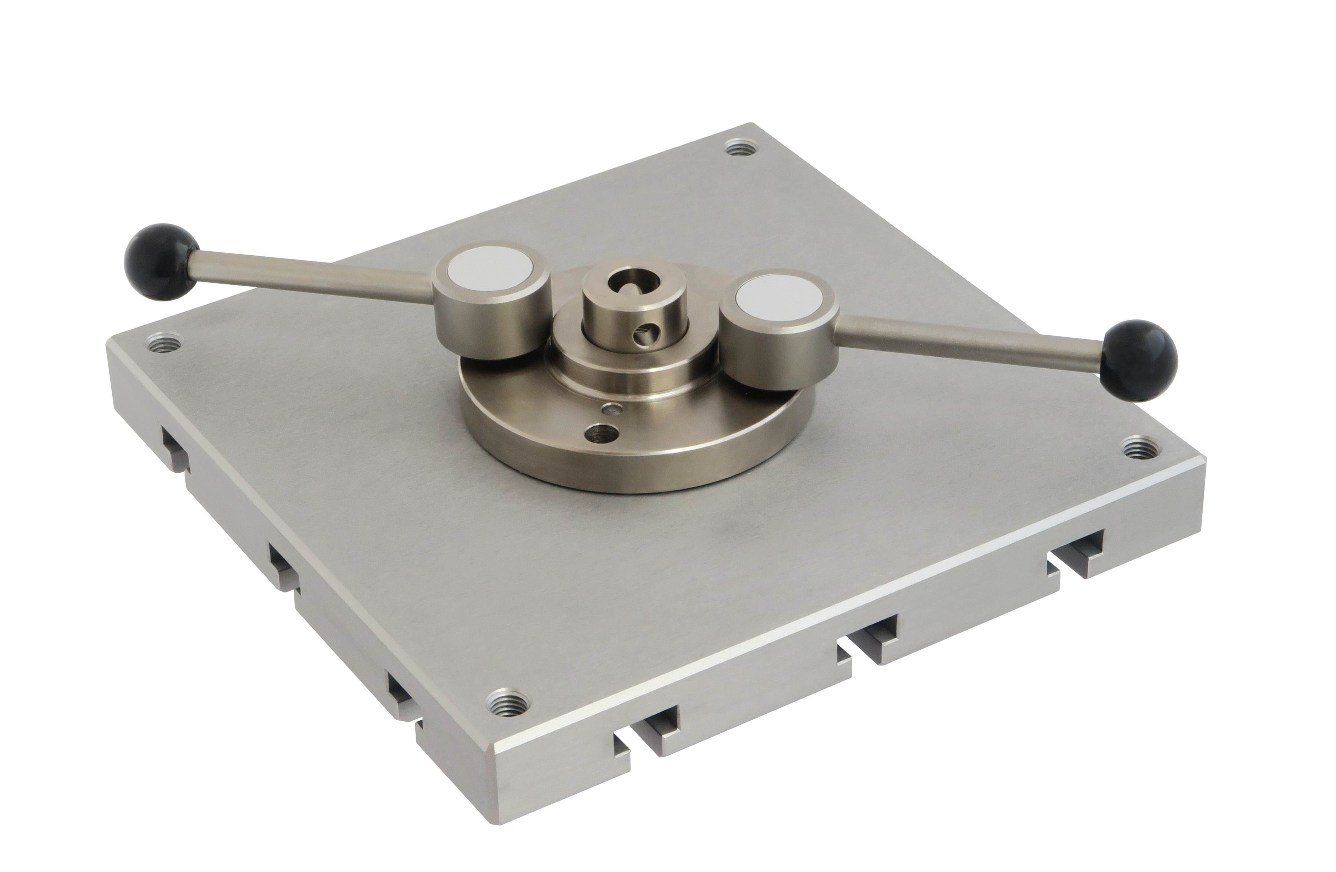

TH36T-250-AL-Af159



Special version with a rotatable adapter, Coupling Af159, platen dimensions 250X250 mm

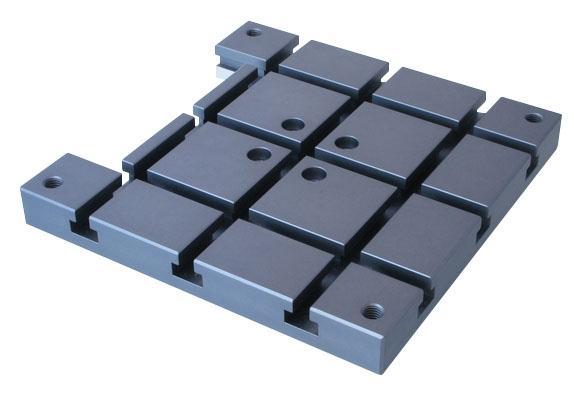

TH36T-250-Al-Z3



Special version with cutouts for one-column tensile testers

Description: Description: Description: Description: THS347St-300x260.jpg

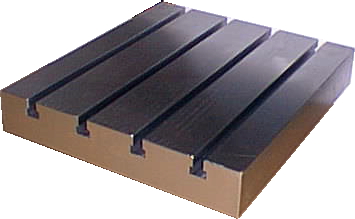

THS347-300x260-St

Special versions 300x260 mm

tn_TH36T-365x560-T60-M150-Al+NM12 +  TH36-250-AL  17,8kg  2021-01-19

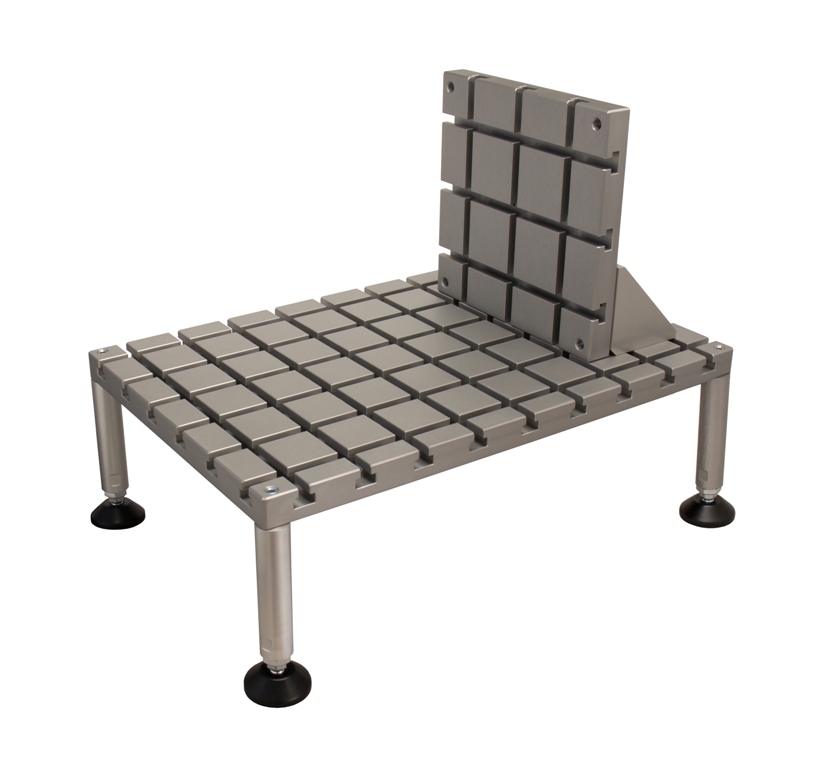

TH36T-365x560-T60-M150-Al+NM12 +  TH36-250-AL

Special T-Slot platens, 365x560 mm and 250x250 mm

With angle supports and legs

To supports specimens both vertically and horizontally during tensile tests

Aluminium, anodized

TH36L-410-L6x20-Al_THS223b-Af20+TH36-D200-R1

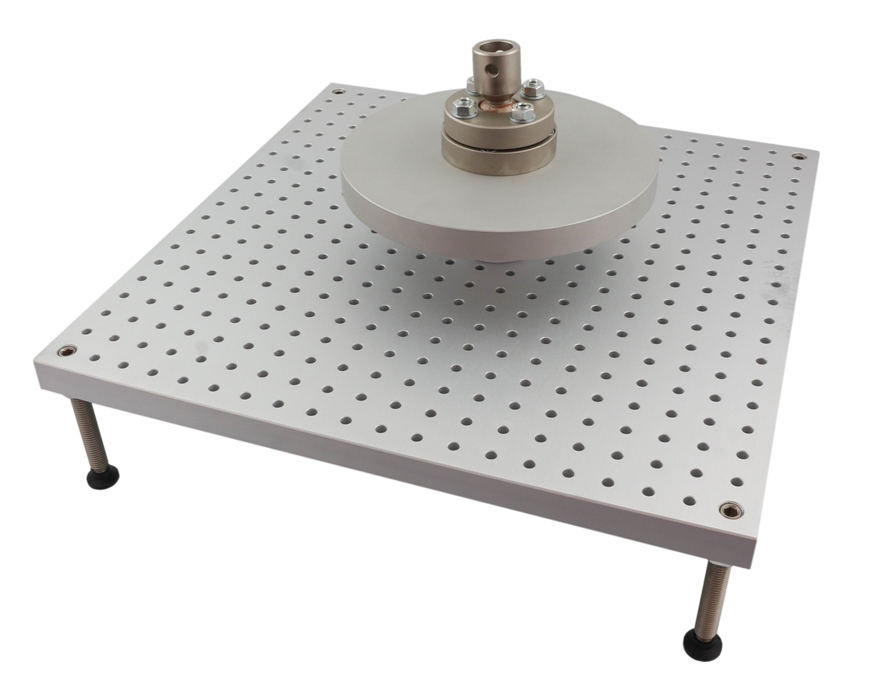

TH36L-410-L6x20-Al + THS223b-Af20+TH36-D200-R1



Lower square perforated compression platen 410x410 mm

Holes 6 mm diameter spaced at 20 mm

Anodized aluminium



Upper round compression platen

with spherically-seated adapter

Swivel angle 10

Steel, nickel-plated

TH36T-500x800x50-Al-BL 13.01.2020

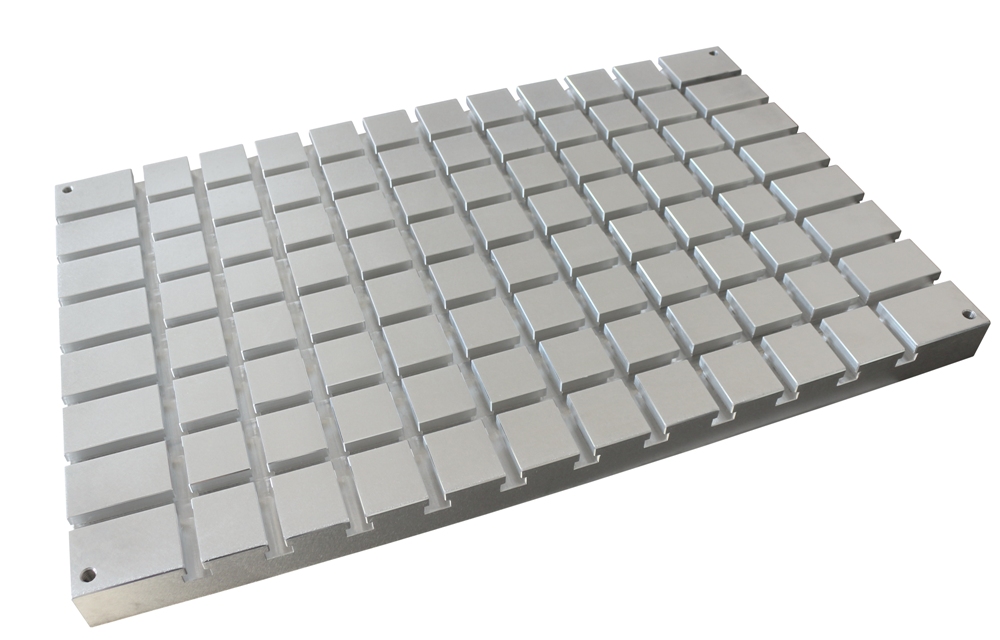

TH36T-500x800x50



Special T-groove platens

Aluminum

Weight approx 100 kg

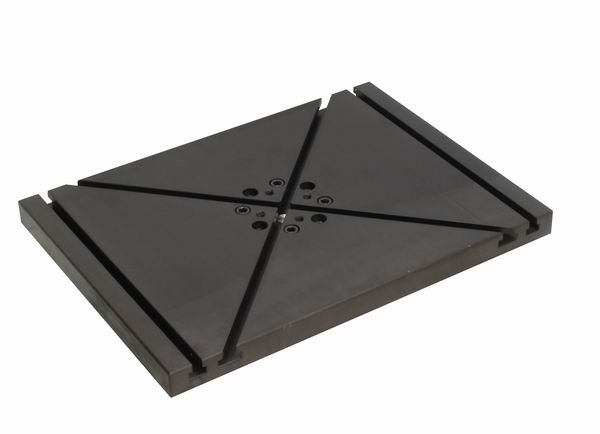

TH36T-550x400-S17



Special version with diagonal slots

Description: Description: Description: tn_TH36t-800x600-40xM8-Aluf.jpg

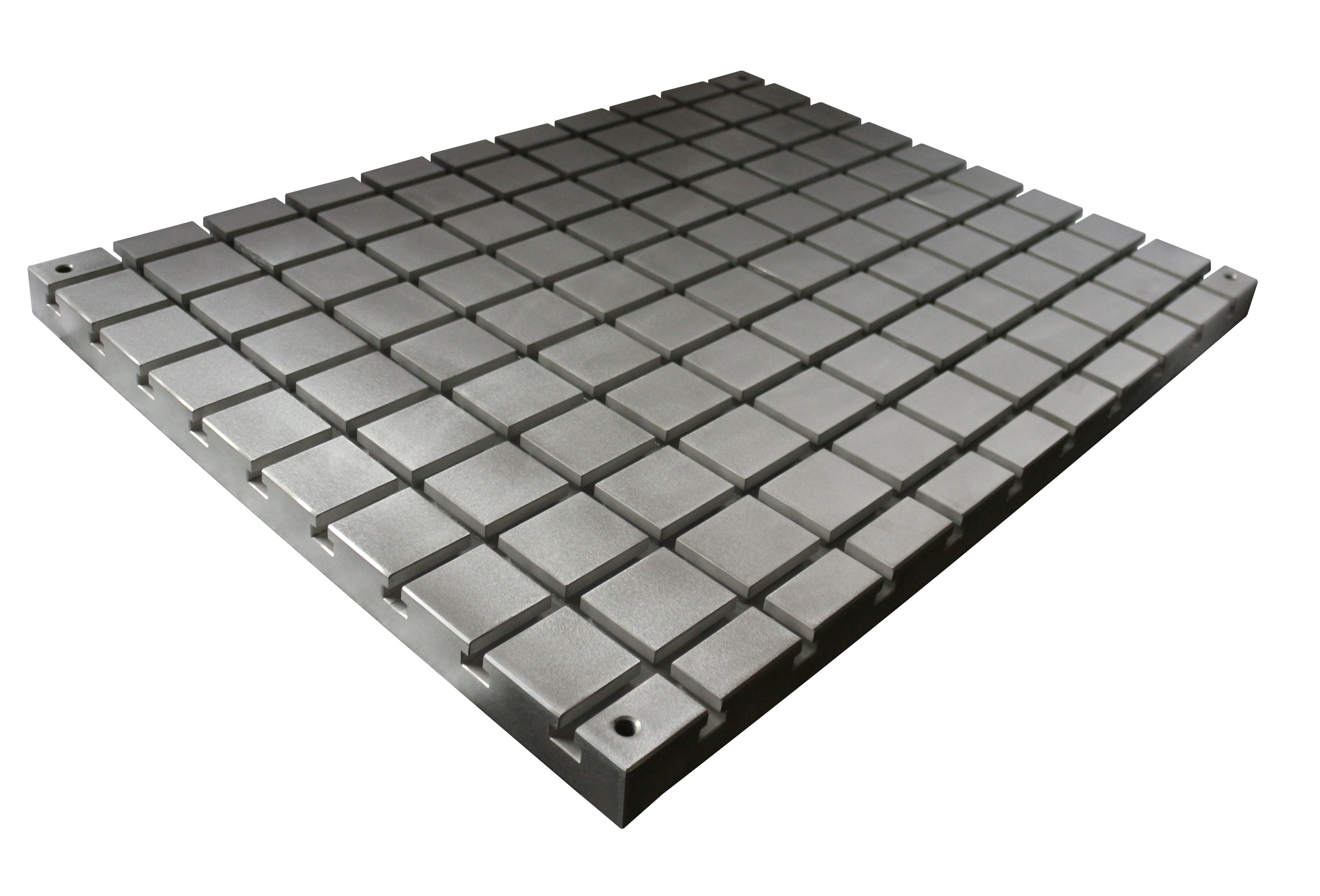

TH36t-800x600-40xM8



Special version 800X600 mm
