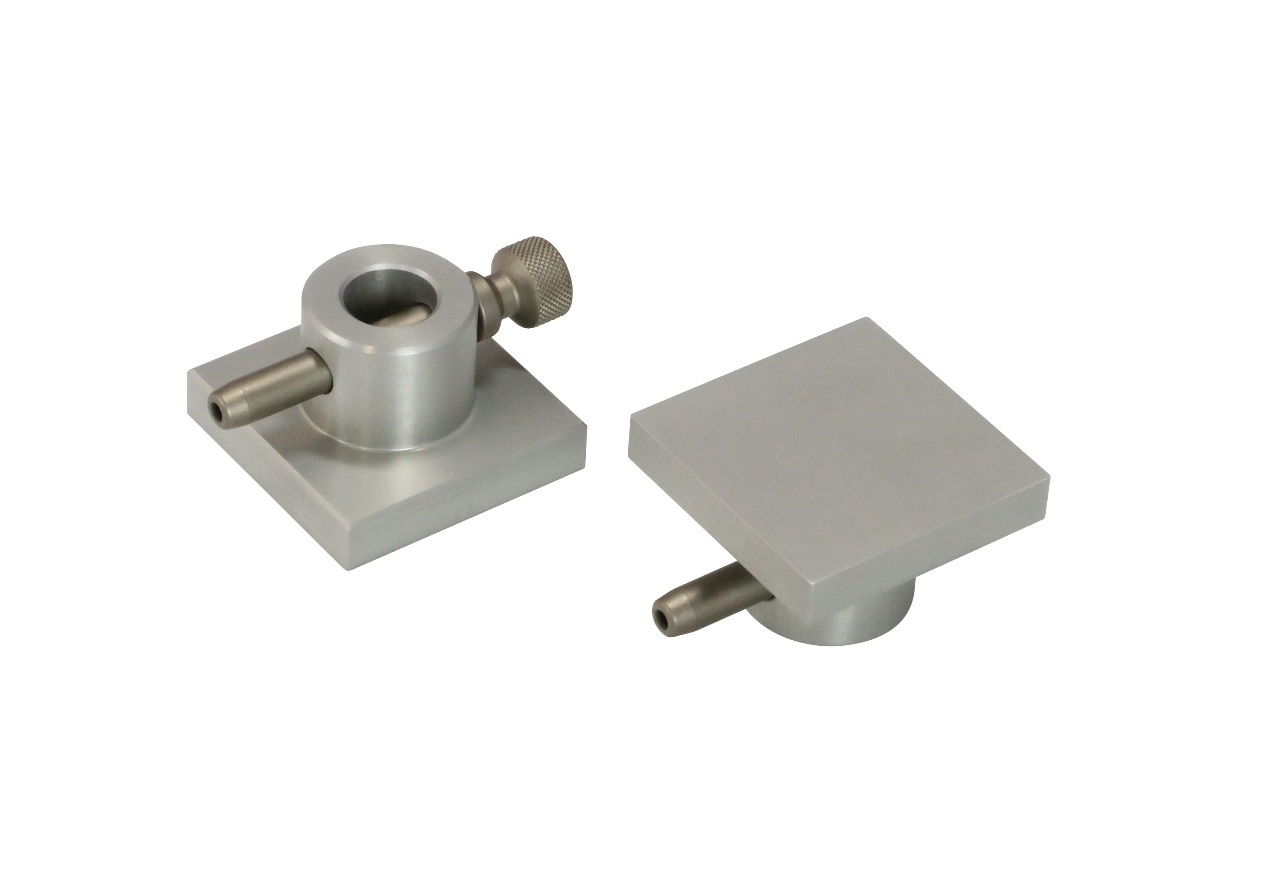

Description: Description: Description: Description: tn_TH36-50-Af159-

TH36

Rectangular
and round compression platens, aluminum and steel

Rechteckige und runde Druckplatten, Aluminium und Stahl


Description: Description: Description: Description: pdf_icon.gifTH36 Datasheet.pdf
Description: Description: Description: Description: pdf_icon.gifTH36 Datenblatt.pdf

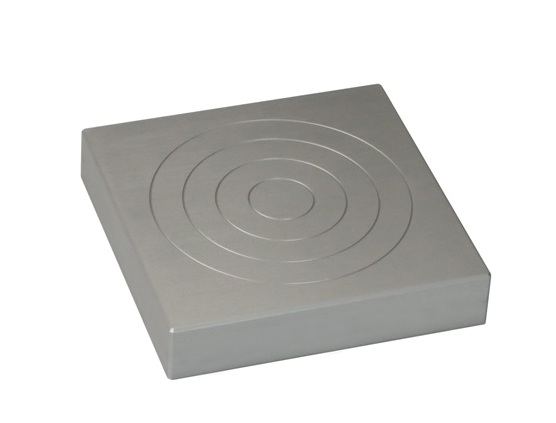

Description: Description: Description: Description: tn_TH36-100-alu-

TH36-100-Al

Compression platen 100x100 mm
Aluminum, anodized

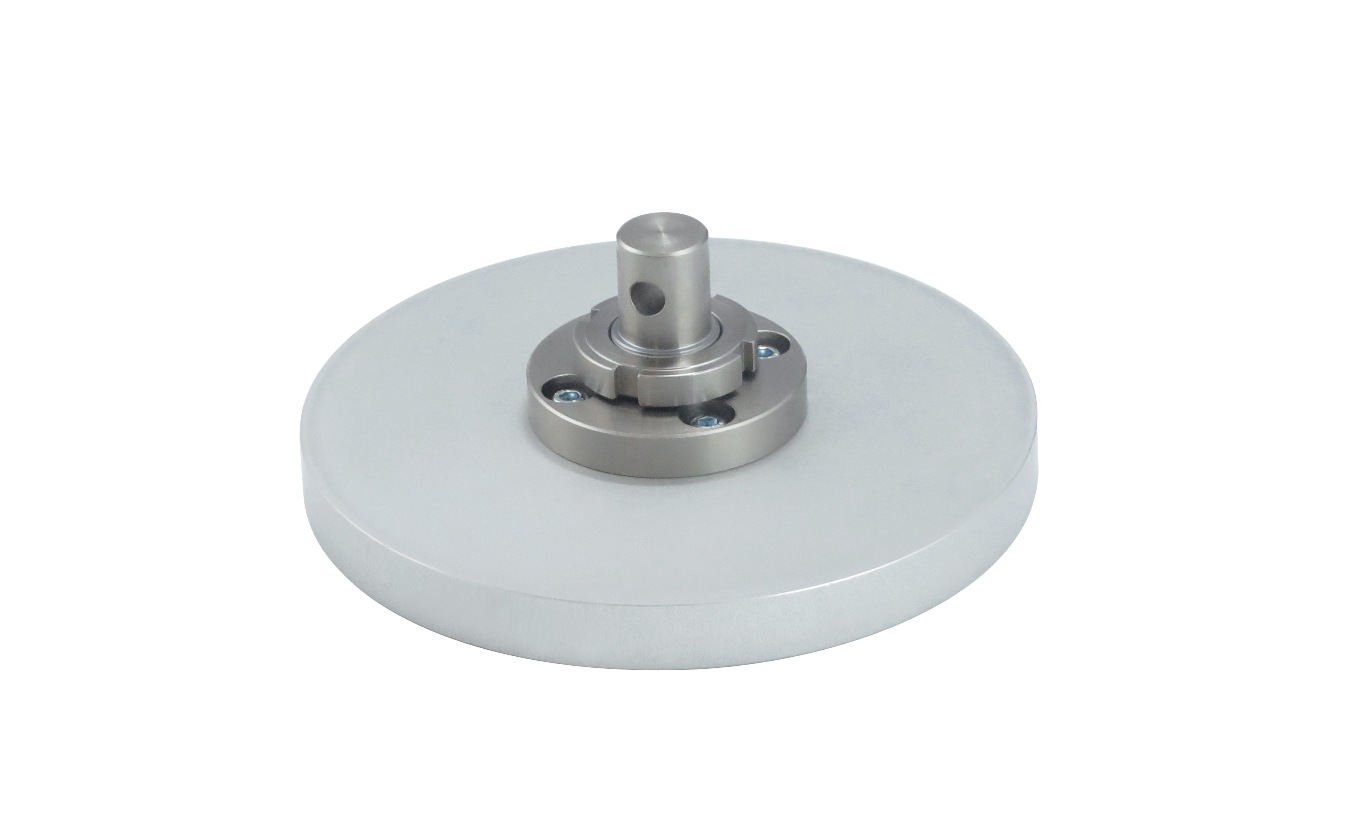

Description: Description: Description: Description: tn_TH36-D200-R1 + THS628-

TH36-D200-R1 + THS628



200 mm diameter round compression platen with adapter THS628
Aluminum, anodized

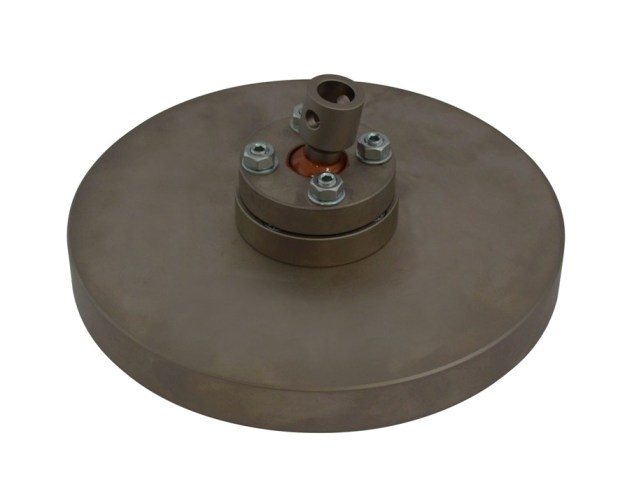

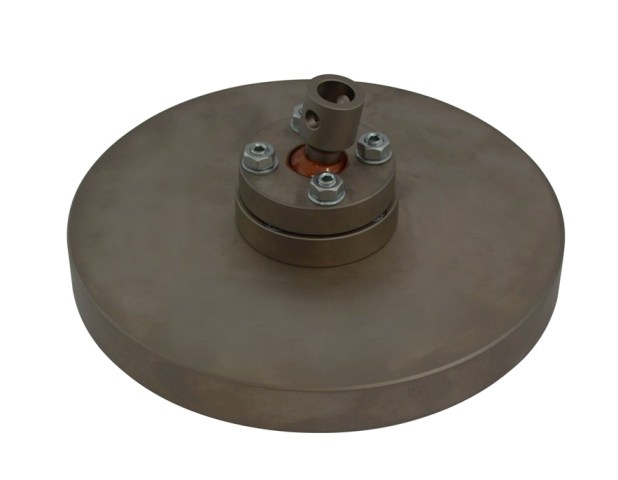

THS223b-TH36-D200-R1-Af159  DIN EN ISO2439 indentation hardness of cellular materials

TH36-D200-R1+THS223b-Af159

Compression platen with ball joint
to measure the indentation hardness
of flexible cellular materials
according to DIN EN ISO2439
Diameter 200 mm, radius 1 mm

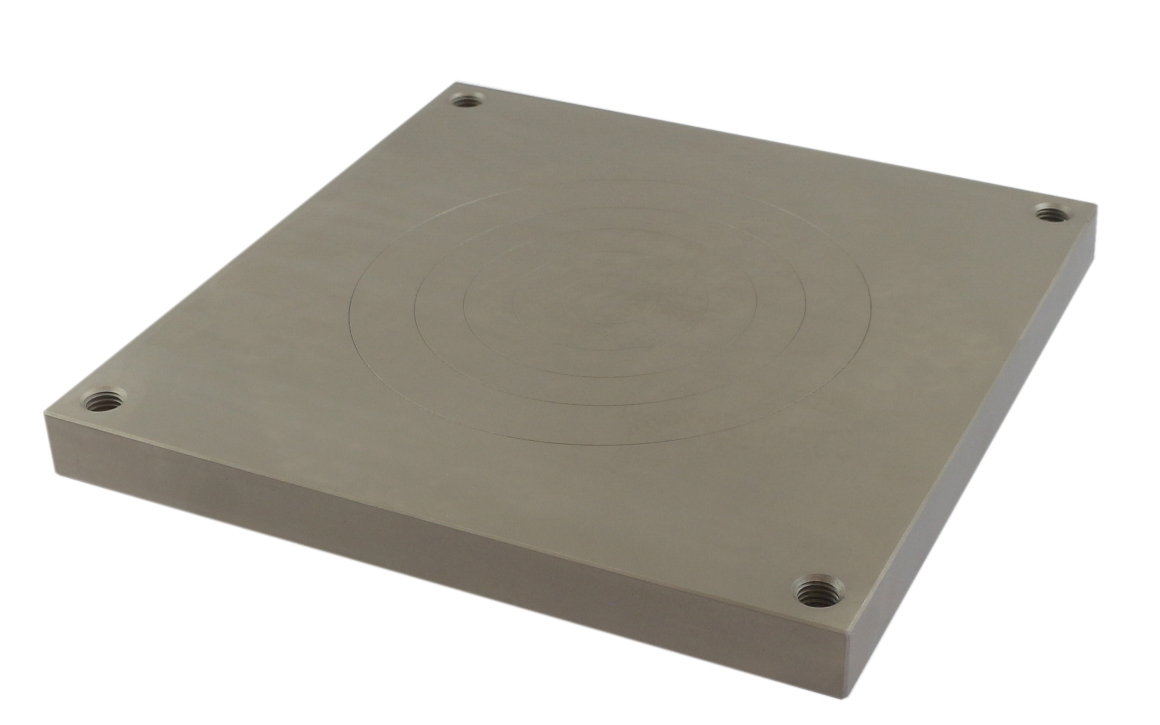

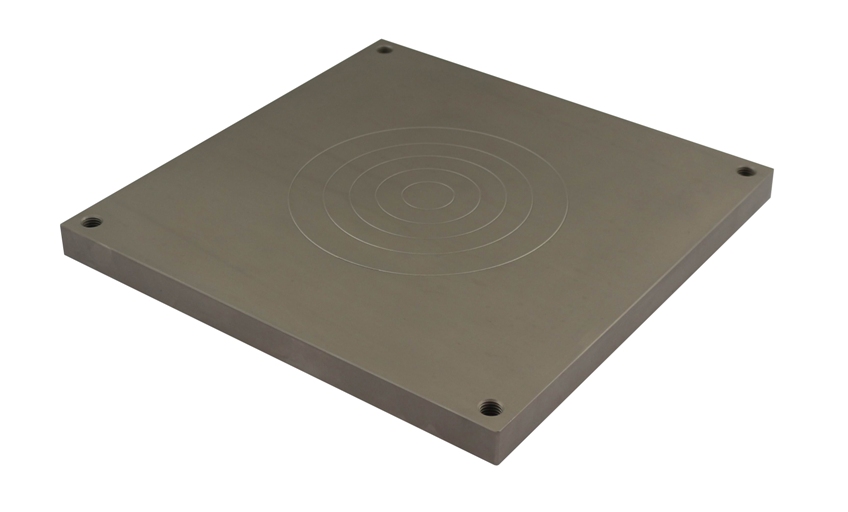

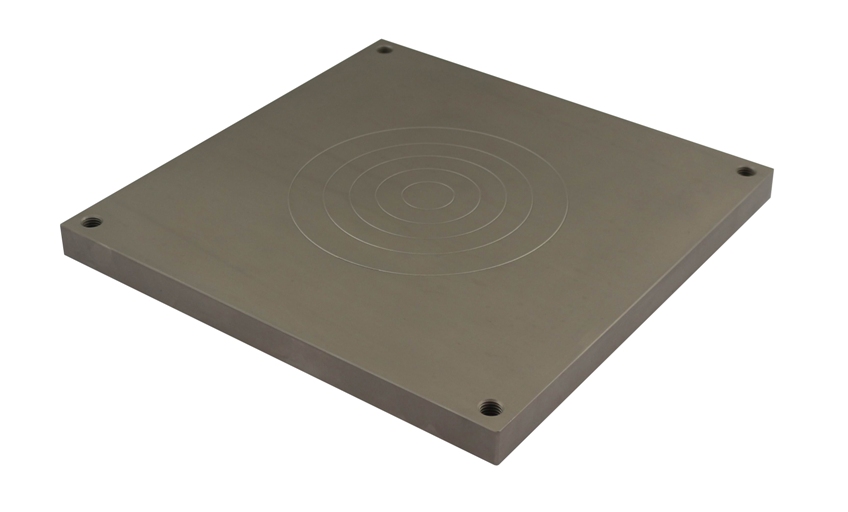

TH36-246-St-3xM8x40 2022-07-14

TH36-246-St-3xM8x40

Compression plate with centring rings

246x246 mm
Coupling lower Af31.8/12.8

Coupling flange 3xM8x40
Steel hardened, nickel-plated

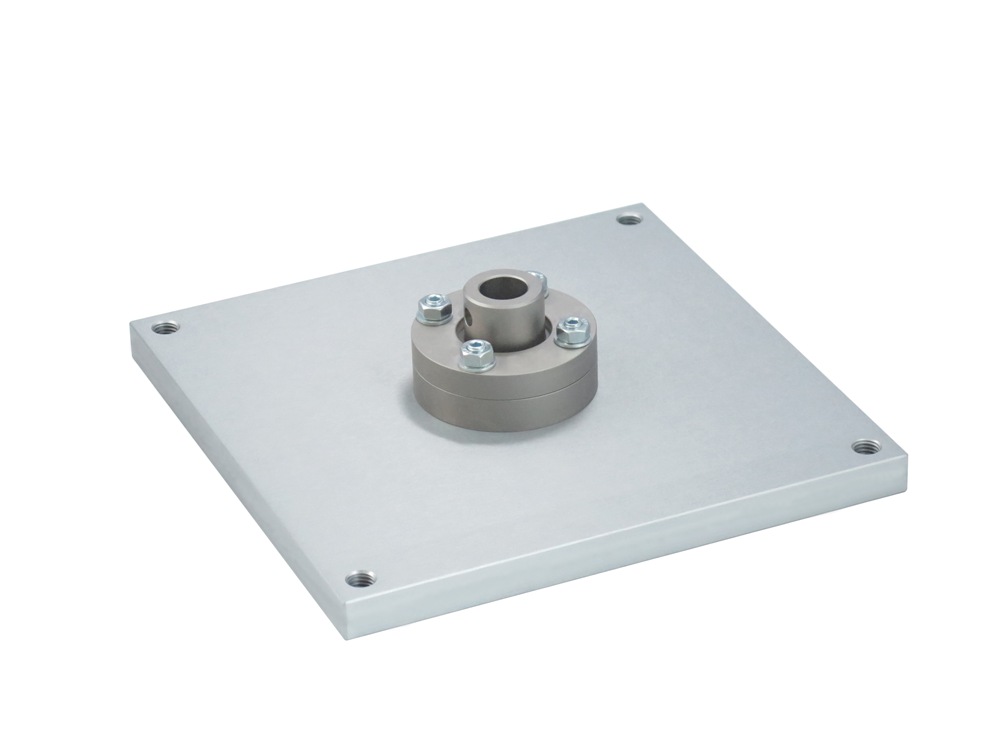

Description: Description: Description: Description: tn_TH36-250+THS223k-

TH36-250+THS223k



250x250 mm square compression platen with a mounted round spherically-seated platen THS223k
Aluminum, anodized

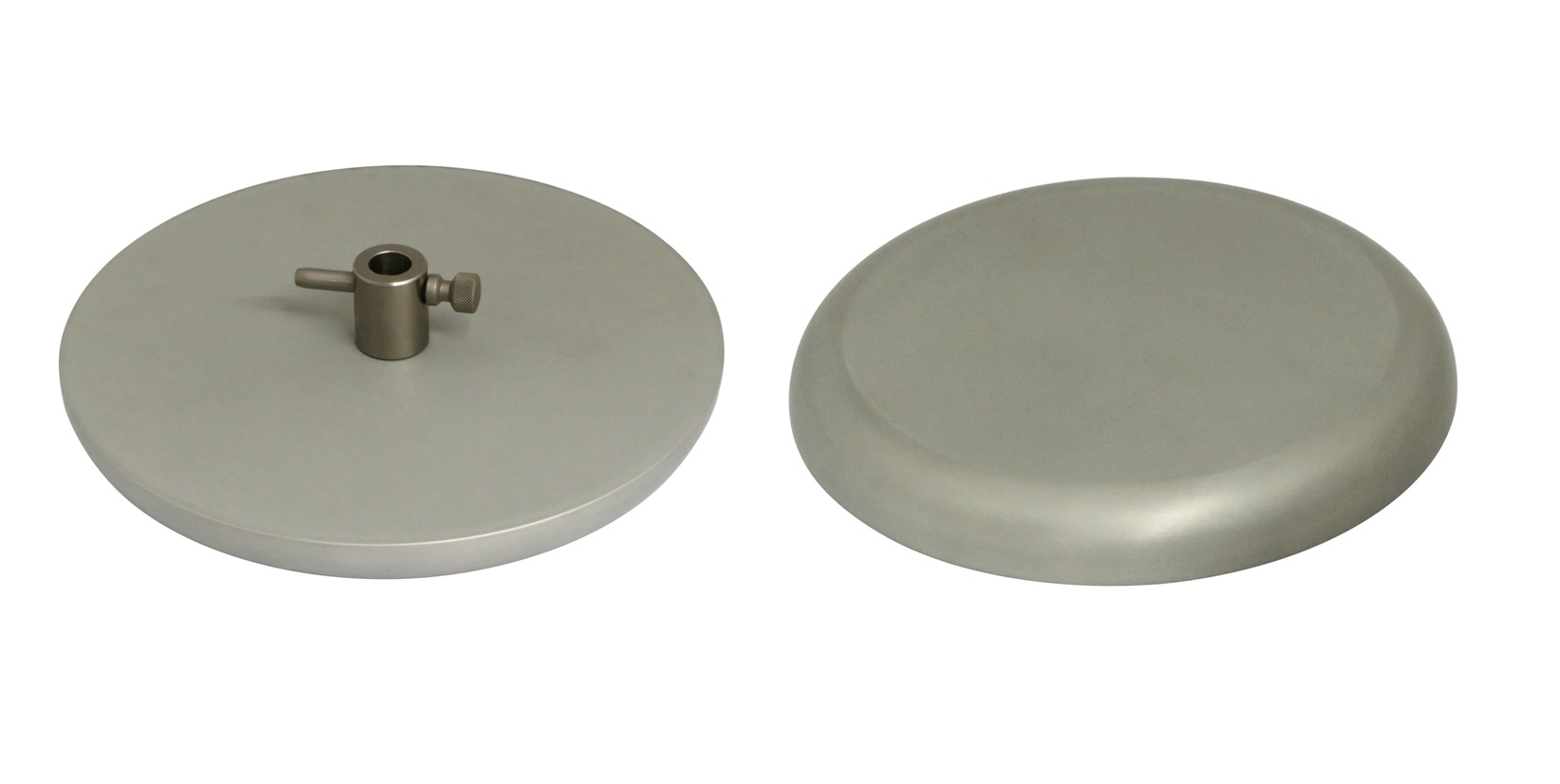

Description: Description: Description: Description: tn_TH36-D250-R25-ASTM-D3574 002_

TH36-D250-R25-ASTM-D3574



250 mm round compression platens
Suitable for testing flexible cellular materials according to ASTM-D3574

ASTM-D3574_flexible_cellular_materials

TH36-D250-R25 + TH36L-400-L6x20

Testing of flexible cellular materials according to ASTM-D3574 Round compression platen, diameter 250 mm, radius 25 mm Square compression platen, 400x400 mm
holes 6 mm spaced at 20 mm

TH36st-296x296 steel platen

TH36-296x296-St

296x296 mm compression platen
Steel, nickel-plated

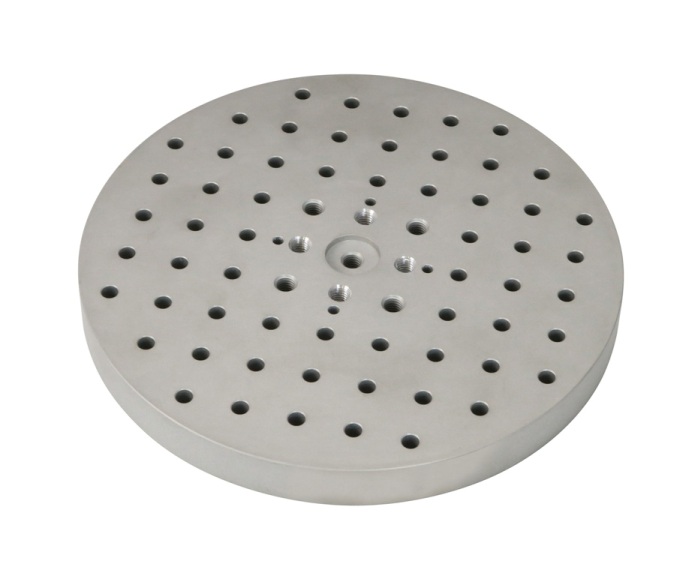

tn_TH36L-D200-L6x20 mm-

TH36L



Perforated compression platens



more

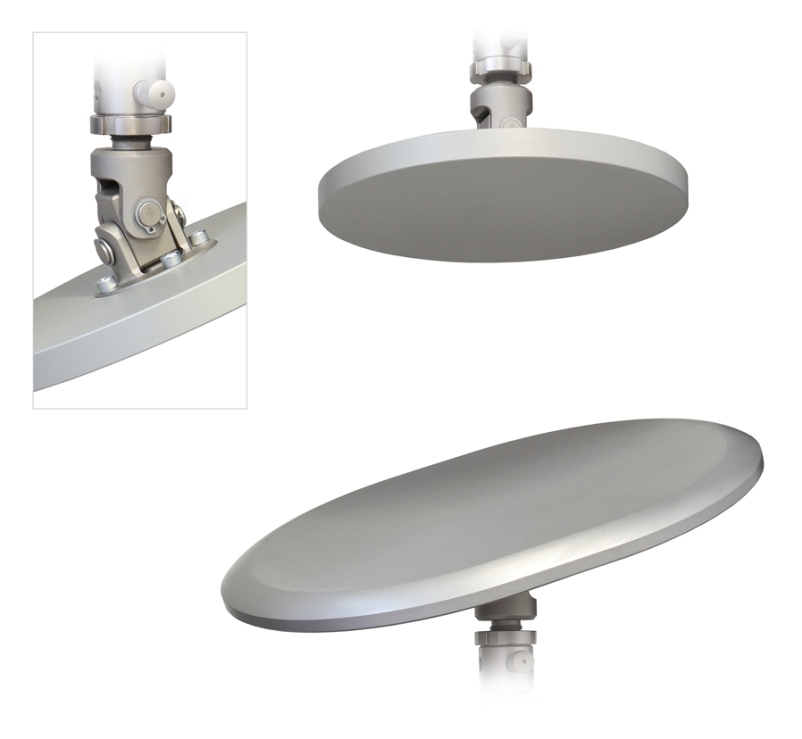

Description: tn_TH36-D200-Al-4xm6 + TH36-250x300-R125-Al-4xM6-TK44 + THS327-Am1665-M6  4kg  Druckplatte Kardanadapter  2020-01-14  02 -

Special versions

more
