G01 Compression Platens
Special

Back

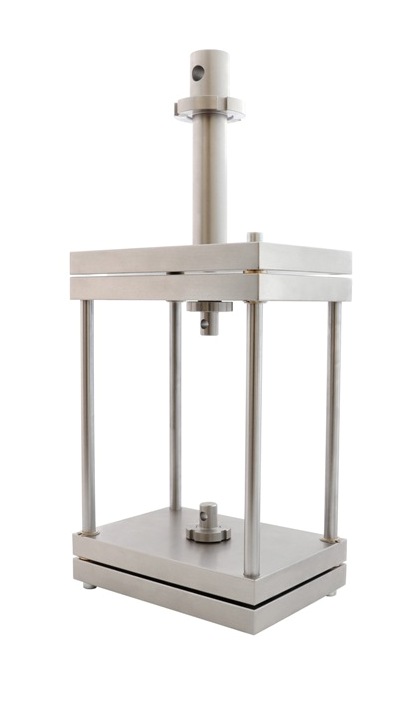

Description: tn_TH42-140x200-Am35  20,7kg  21-03-2018  02-

TH42

Compression cages

Druckkäfige



more

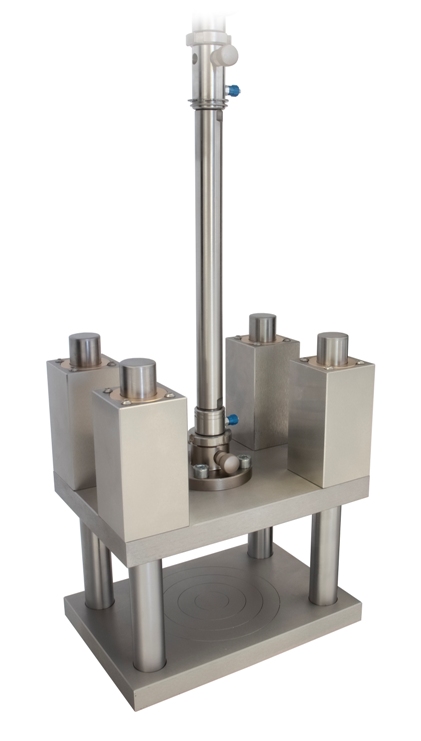

Description: tn_THS86-120224-32 016

THS86



Compression Platen with guides



Druckkäfig mit Führungssäulen



more

Description: tn_THS402-7,9-125  2,5kg  Feder-Spring   2019-08-23

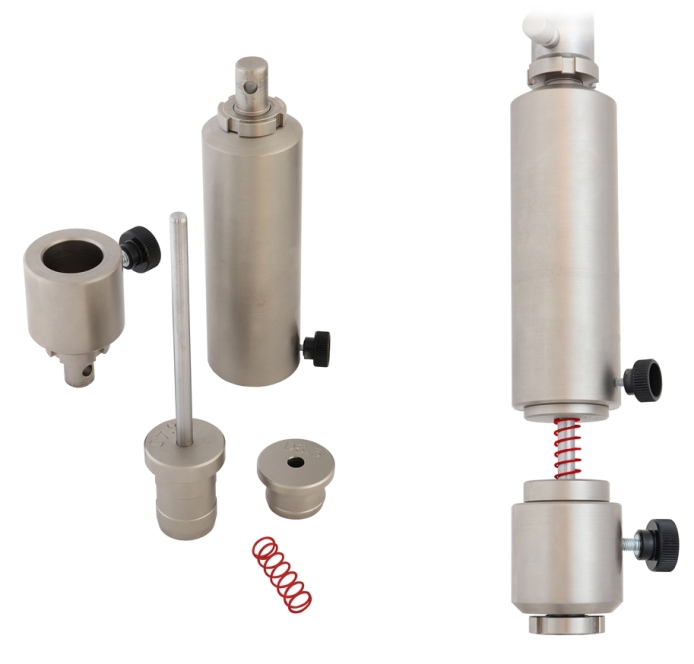

THS402



Spring compression testing



Druckfederprüfung



more

Description: tn_Keildruckversuch THS459 28.04.2020 006

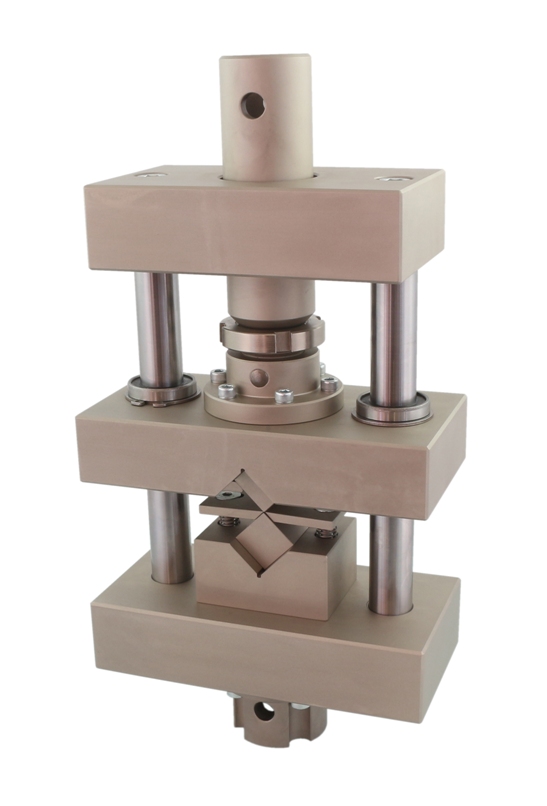

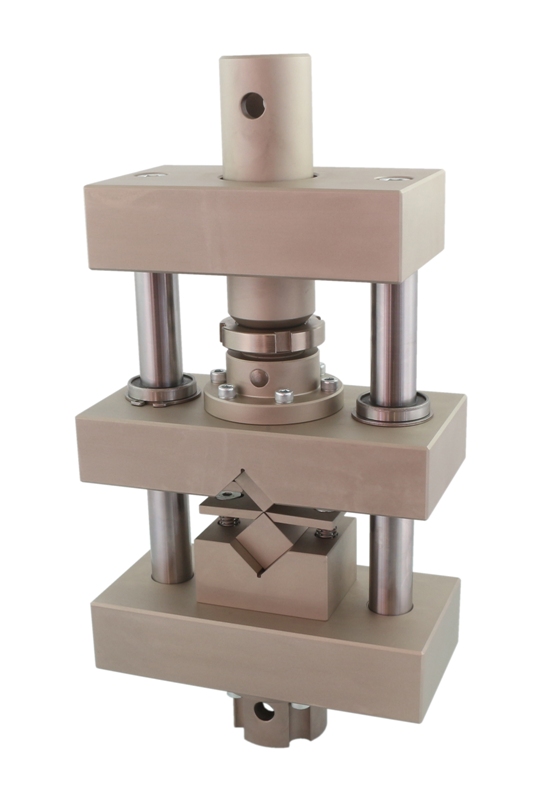

THS459-VDG-P340



Wedge pressure test conform to VDG-P340 50kN

To test cast iron with lamellar graphite vermicular graphite

Steel, hardened 62 HRC, nickel-plated Wedge angles of 90 ° ± 30 ’

Cutting edge radius 0.15mm to 0.20mm



Keildruckversuch

Keildruckprüfung VDG-P340  50kN

zum Testen von Gußeisen mit

Lamellengraphit Vermiculargraphit

Stahl, gehärtet 62 HRC, vernickelt

Keilwinkeln von 90° ± 30’

Schneidenradius  0,15mm bis 0,20 mm

Description: tn_THS523-20  Cork    2020-06-30 03

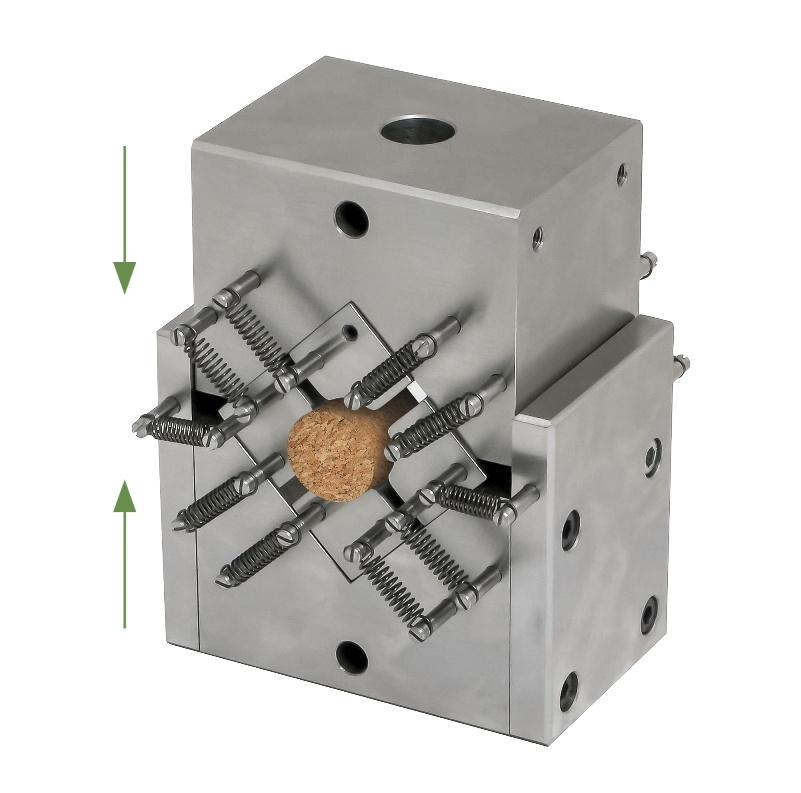

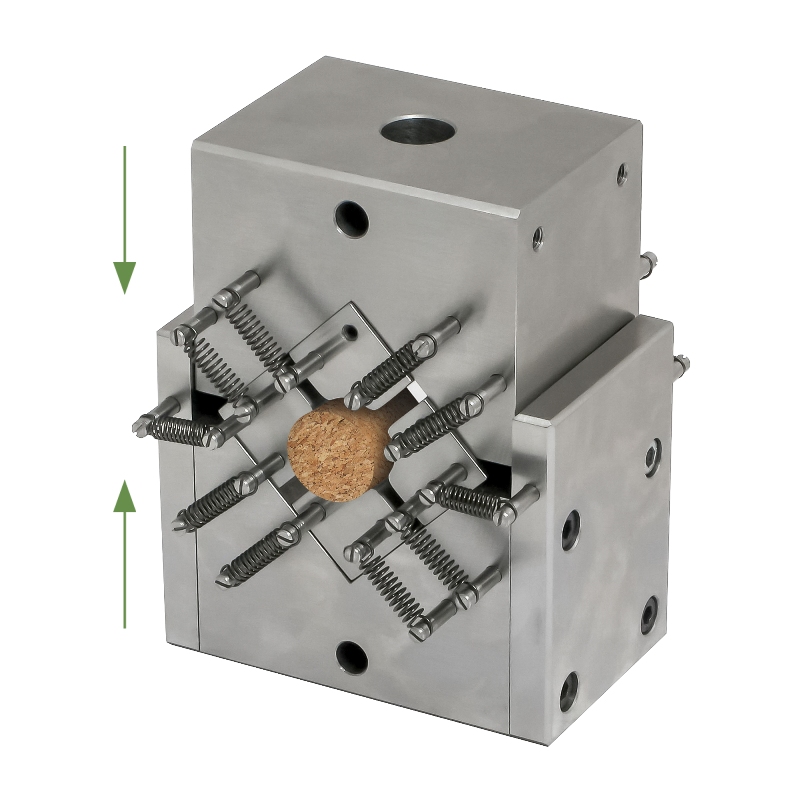

THS523



Special compression mechanism for cork testing



Zum Testen der Kompressibilität von Kork



more

Description: tn_THS747 ring crush test  Monotonic Equibiaxial Flexural Strength of Advanced Ceramics

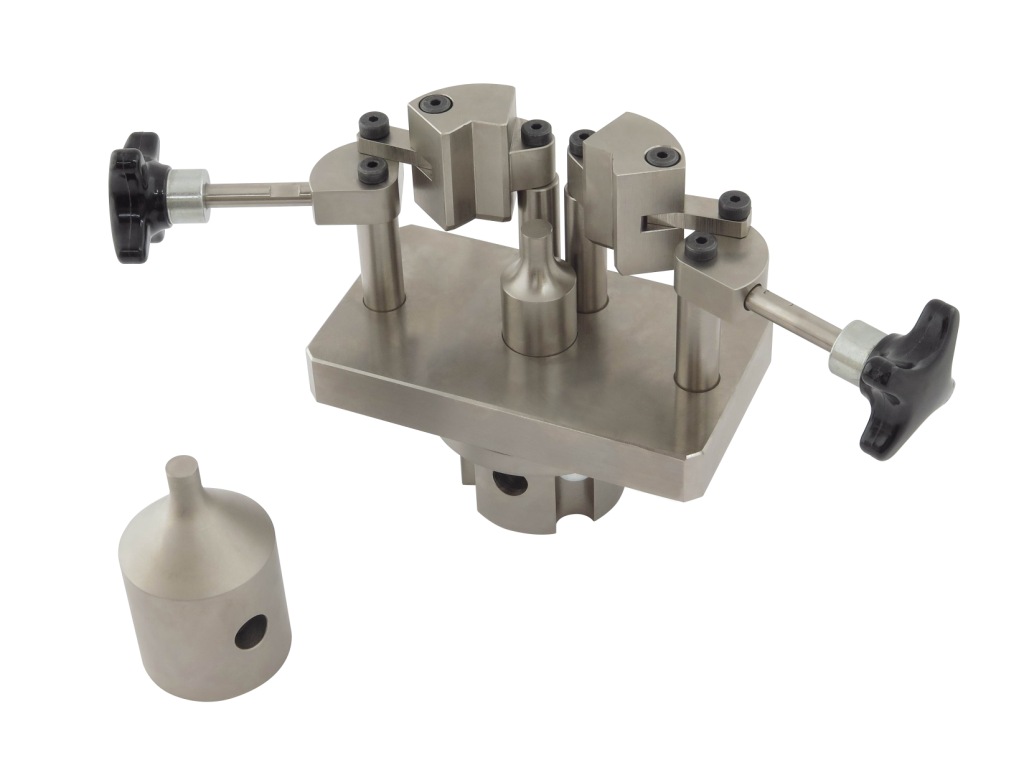

THS747

Double ring compression Platens to test bending strength of glass according to ISO1288-5 and to test flexural strength of advanced ceramics according to ASTM-C1499



Doppelring Druckplatten zum Testen der

Biegefestigkeit von Glas gemäß ISO1288-5 und von Hochleistungskeramik gemäß ASTM-C1499



more

Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Description: Beschreibung: Beschreibung: Beschreibung: Beschreibung: Description: Description: Description: Description: pdf_iconTHS747 Datasheet.pdf

Description: tn_THS838-Af318 ASTM-C1424  05

THS838-Af318



ASTM-C1424



Compression jig with guide


Druckvorrichtung mit Führung



more

Description: tn_THS927-EN14279  compression-

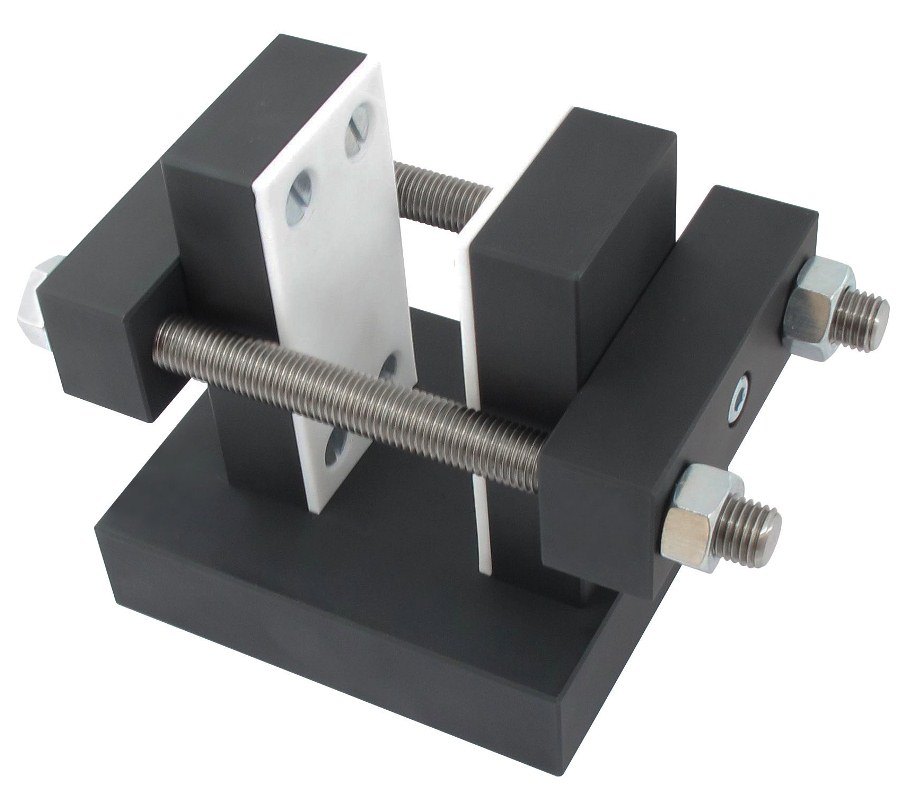

THS927

Special compression test fixture to test laminated veneer lumber according to DIN EN14279

Description: tn_THS1158-75-ASTM C364 + TH23-096-Af15,9-ST  1,2kg  15-08-2018  09

THS1158



Compression test fixture according to ASTM C364 to test edgewise compressive strength of sandwich constructions



more

Description: tn_THS1376-ASTM-D3967  Steinprobe  14,5kg  05-09-2018

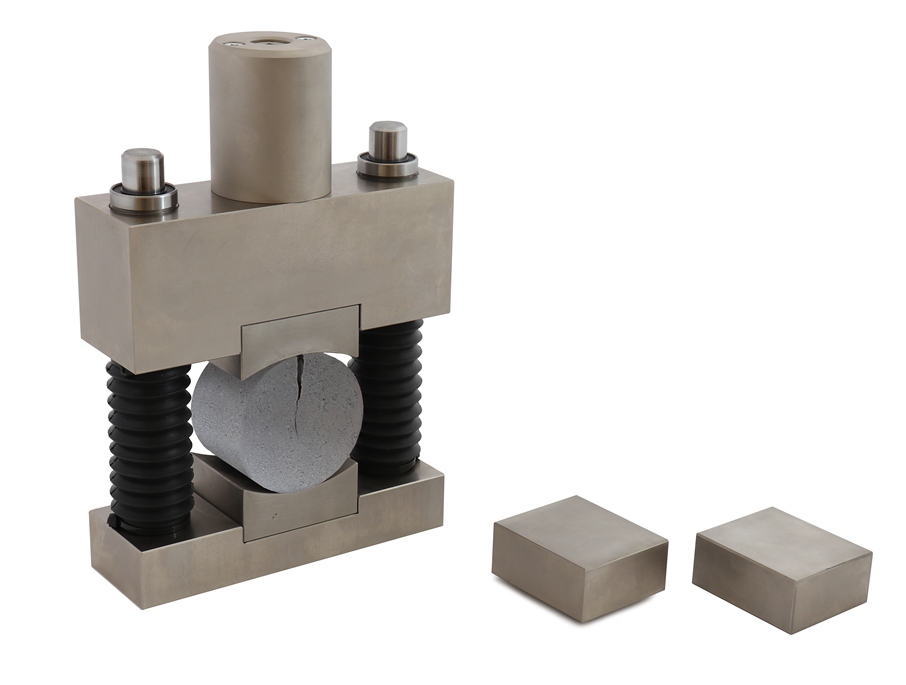

THS1376



Compression fixture to test splitting tensile Strength of rock specimens according to ASTM D3967

Incl.

2x inserts ER75 with radius R75 mm

2x inserts EF, flat

Steel, hardened, nickel-coated





more

Description: tn_THS1510 (THS223-Af5025 19.1kg + THS646-5025-4xKM12 6kg) DIN 13555 + ASTM F2378 Seal testing 008-

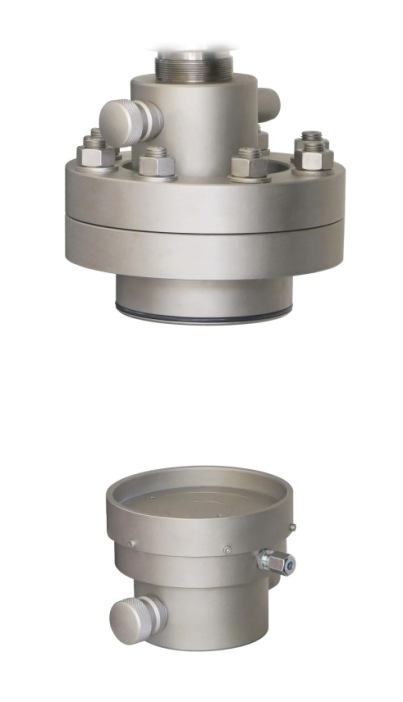

THS1510



Compression test  fixture to test sealability of sheet, composite, and solid form-in-place gasket materials according to DIN 13555 and

ASTM F2378



more

Description: tn_THS1624-D100-GDE-V1  +TH23-156+TH23-096 + THS233-116  ST   G01  13.65kg  2020-07-22

THS1624-D100-GDE-V1



Special compression test fixture, 100 kN

Compression Platens: 138 mm Ø (upper) and 100 mm Ø (lower)

Steel, nickel-plated



Sonder Druckvorrichtung, 100 kN

Druckplatten: 138 mm Ø (oben) und 100 mm Ø (unten)

Stahl, vernickelt

Description: THS1597-ISO9836-1

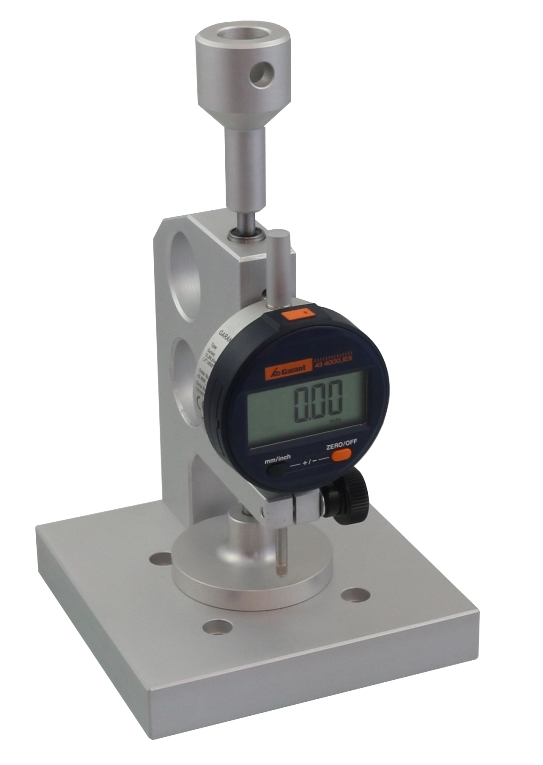

THS1597

Special fixture to test thickness of
geotextiles at specified pressures according
to DIN EN ISO9836-1

Sondervorrichtung zur Bestimmung der
Dicke von Geotextilien unter festgelegten
Drücken gemäß DIN EN ISO9836-1

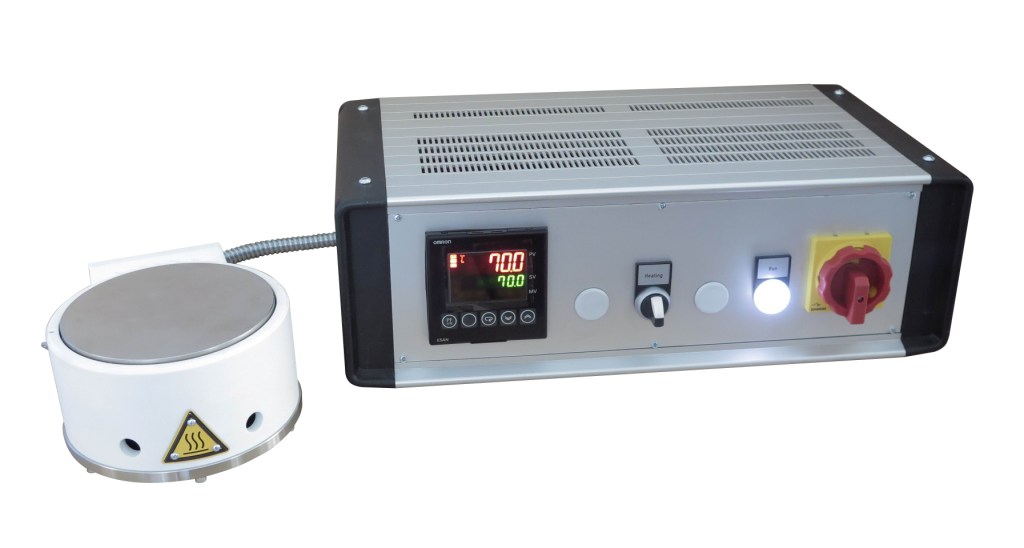

Description: tn_TH4220  platen heated 13.7.2015 005-

TH4220



Heatable compression platens



Beheitzbare Druckplatten



more
