Adhesives

Back

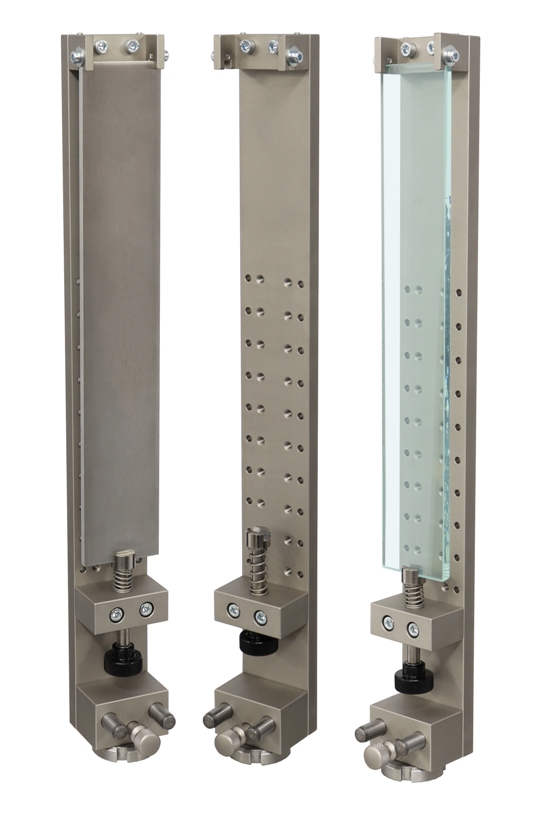

TH49-series 2023-01-26

TH49

180° peel test fixtures to test peel adhesion properties of self adhesive tapes, according to DIN EN1939,
FTM1, FTM3, FTM4

more

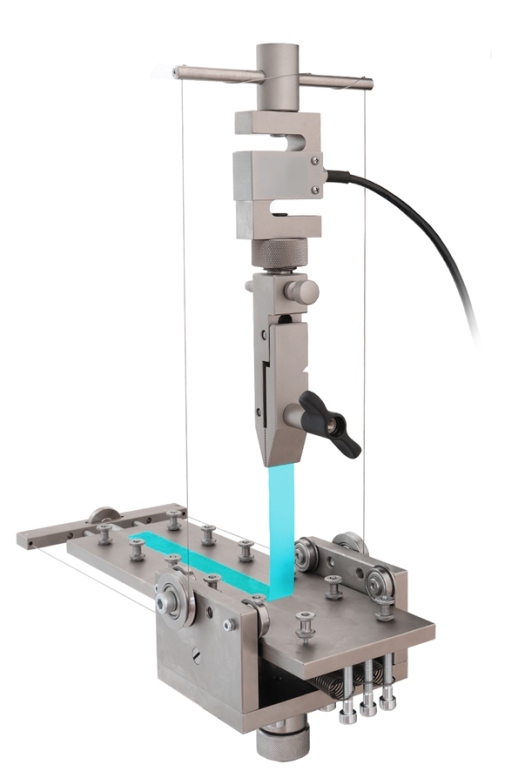

TH50-Standard top_THS470 2019-08-29  01

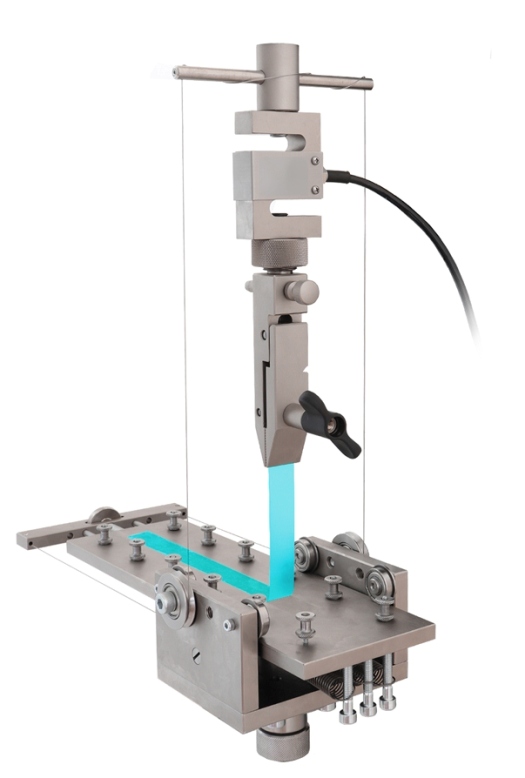

TH50



90° peel test fixture

According to ASTM-B571-Nr.11, EN28510, ISO 8510-1, ASTM-D2861-Fig.A, DIN EN1939 Fig.B1, ASTM-D3330, GOST26246.0-89, ASTM-D6862, ASTM-D6252



more

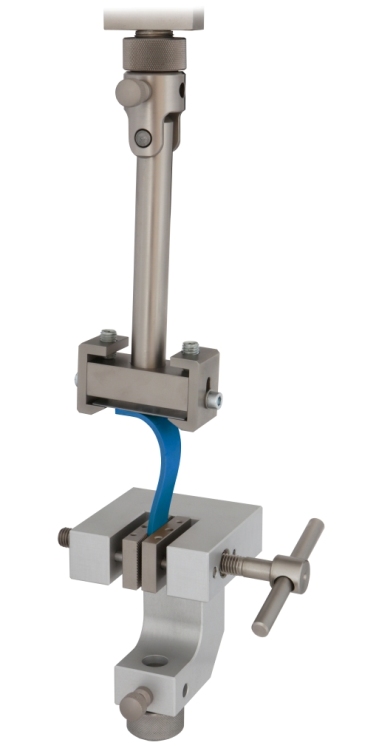

TH95-03  2019-06-03  02

TH95

Peel test fixtures according to ASTM D429, ISO813, DIN53531, GOST411

more

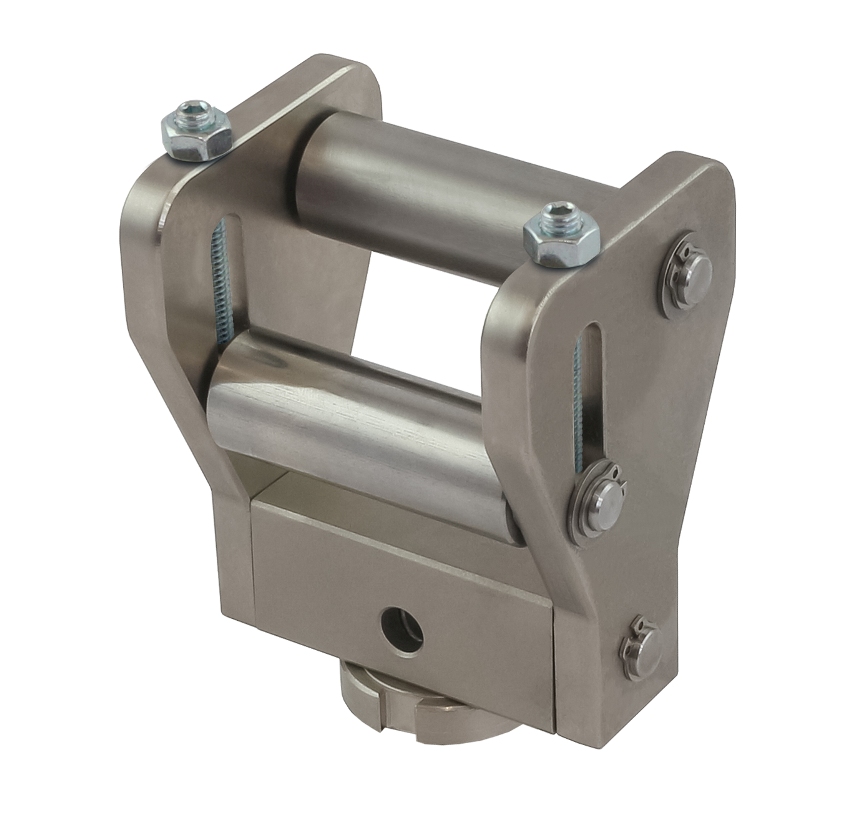

TH192-20-26-W57_Peel_fixture_DIN_EN1372_1kg_2023-05-17


TH192

90°
peel test fixture for testing adhesives for floor and wall coverings
According to DIN EN1372
, ISO22631

more

TH249-12-25-A30-Af159+TH249-P20x200x2 1,41kg 2021-10-02

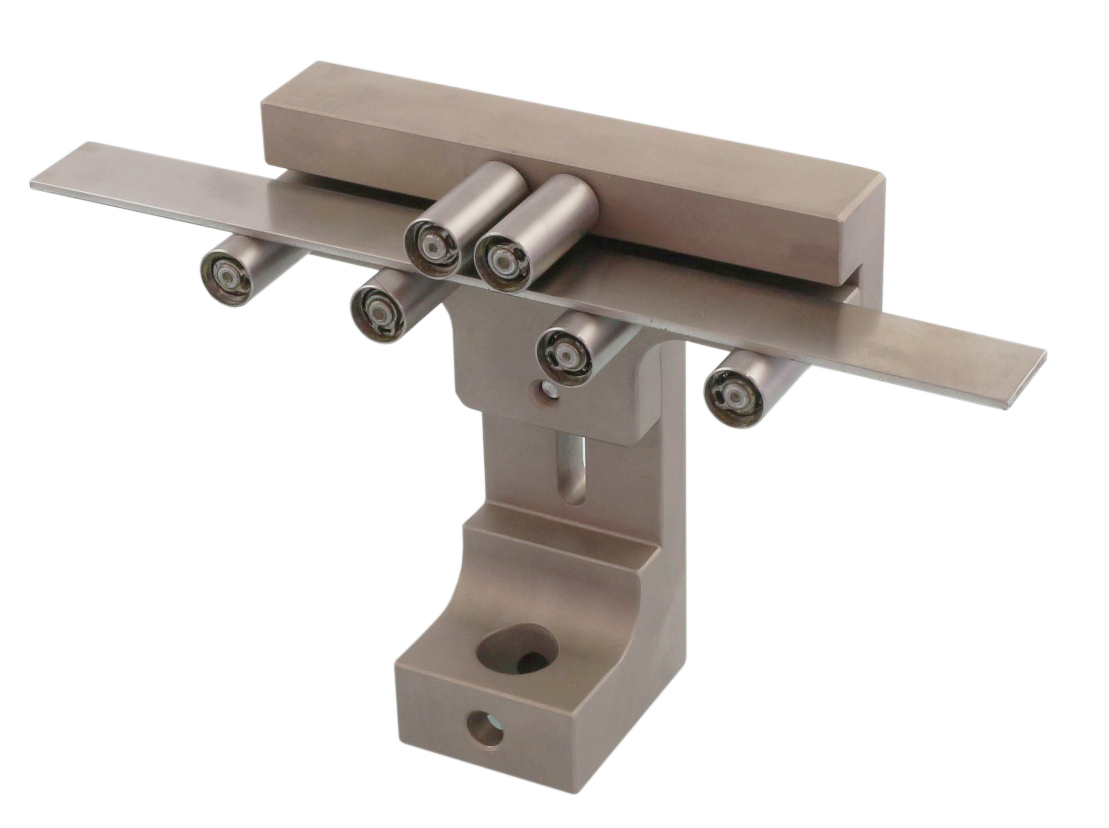

TH249

90° peel test fixture for adhesives
similar to DIN40802, DIN53278, DIN53494


more

TH105-D254-B254-Af159-ASTM-D3167

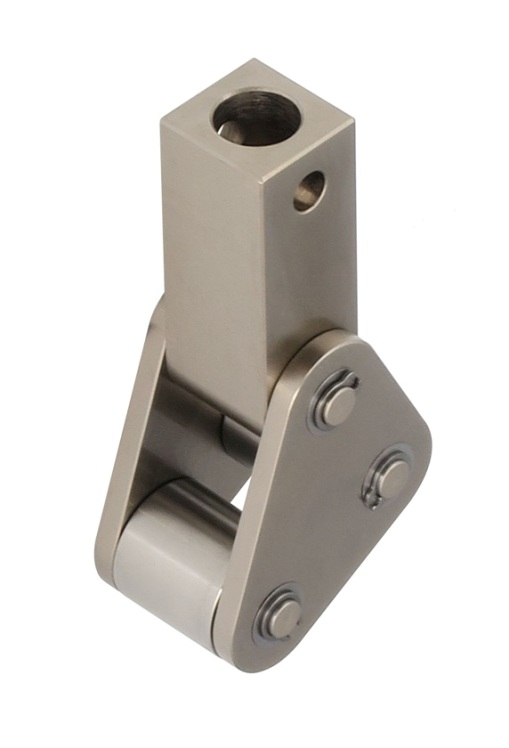

TH105



Peel test fixture for testing floating roller reel resistance of adhesives
According to ASTM-D3167, DIN53289, EN1464, ISO4578

more

THS989


Rollers for peel strength test
according to ASTM-D3330, JIS-C2107, PSTC-101,
KS-2563, JIS-Z-0237,
ISO22632

DIN EN1939, DIN EN ISO29862, Finat 06/2011, FED-STD-141D, ASTM-D5169, ASTM-D5170, BS EN12242



more

THS474-C307-Af159 -Sonderoeffnungsbreite-

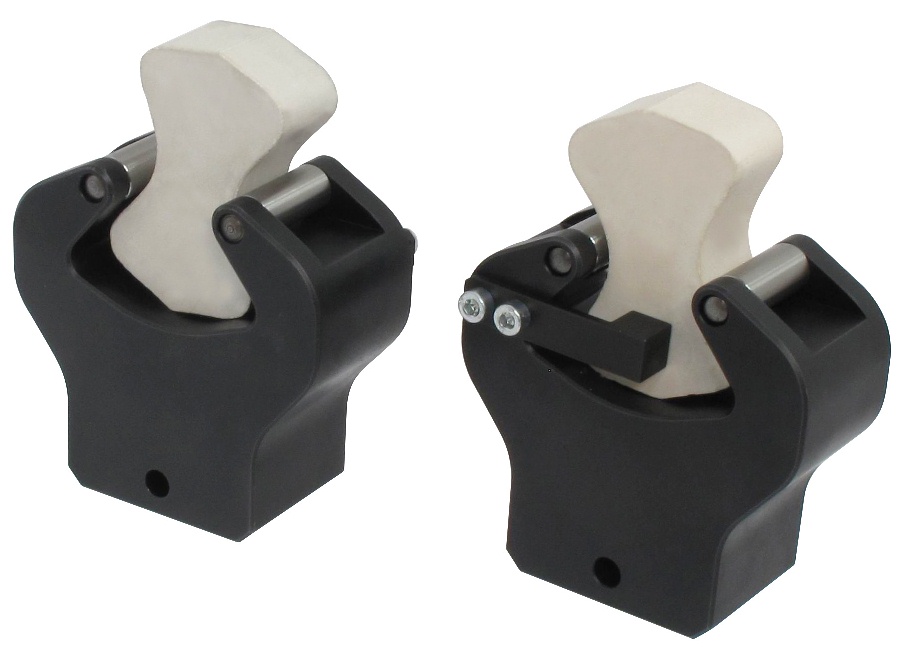

THS474-ASTM-C307

Chuck grip
 for tensile strength tests on chemical-resistant mortar, grouts, and monolithic surfacings
according ASTM-C307

more

Description: tn_THS692-10-ASTM-D2979-Tack-Test-Adhesives-Klebeverbindung 1.1kg TH 06

THS692



Pressure-sensitive tack test fixture for adhesives using an inverted probe machine according to ASTM-D2979



Tack-Test-Vorrichtung zum Testen von Klebeverbindungen gemäß ASTM-D2979



more

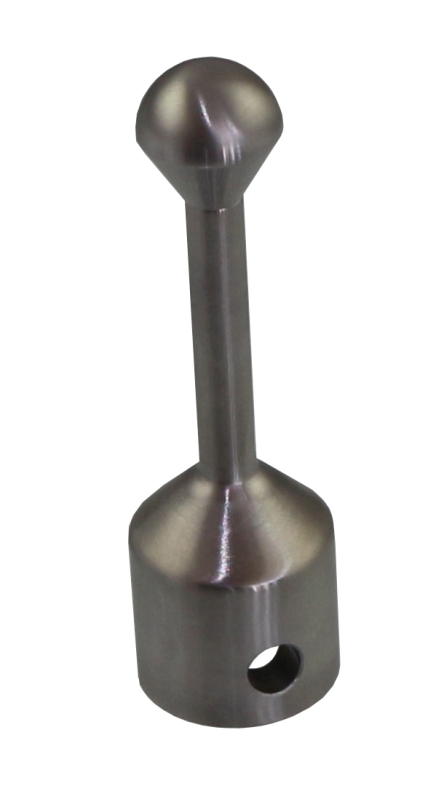

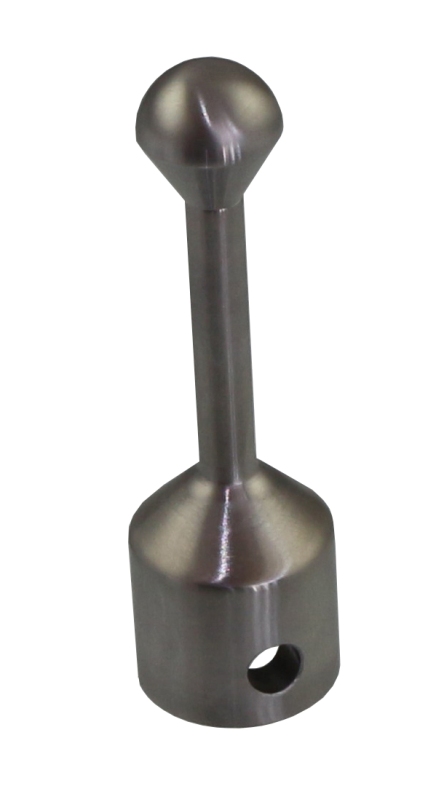

THS42-D20-65-Af159_2020-05-04

THS42-D20-65-Af159



Compression probe for tack testing of adhesives

Interchangeable ball diameter 20 mm

Probe length 65 mm, diameter 8 mm

Stainless steel

Coupling Af159

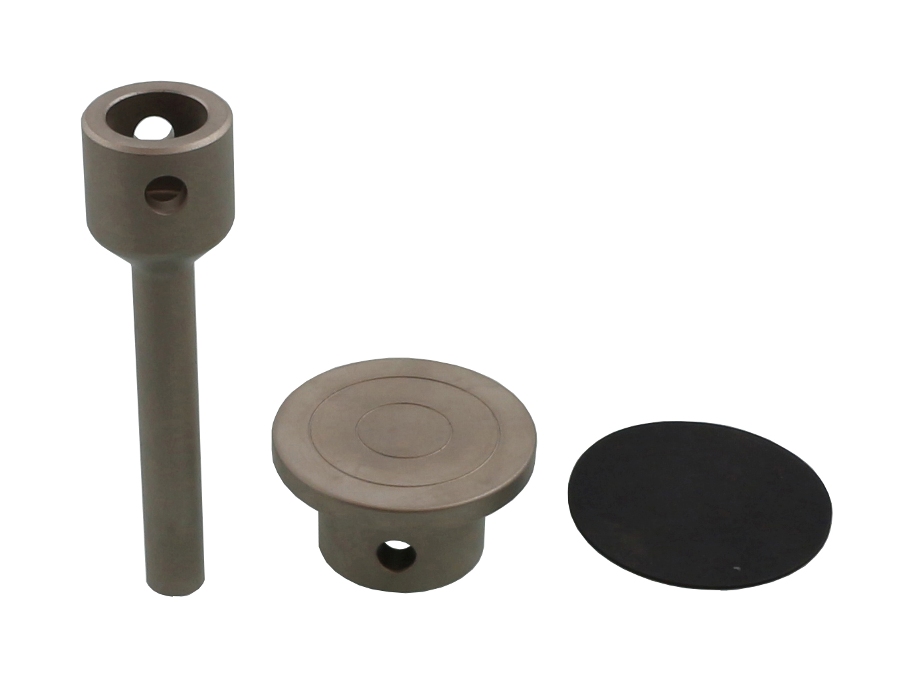

THS42-F12.7R0.39-80-Af20+TH23-56-Af20-ST_DIN EN ISO9665-Fig.1_Gel_strength_test_Adhesives_Animal_glues

THS42-F12.7-R0.39-80-Af20

TH23-56-Af20-ST DIN EN ISO9665-Fig.1



Gel strength test fixture for testing adhesives made of animal glues according to DIN EN ISO9665-Fig.1

Consists of

- plunger THS42-F12.7-R0.39-80-Af20

- lower steel compression platen TH23-56-Af20-ST, 56 mm diameter, see TH23

- rubber disk, 1 mm thick

- glass container for sample (not in the picture)



THS42-F12.7-R0.39-80-Af20


THS42-F12.7-R0.39-80-Af20


Diameter 12.7 mm, edge radius 0.39 mm

Pin length 80 mm

Coupling Af20

Steel, nickel-plated, hardened

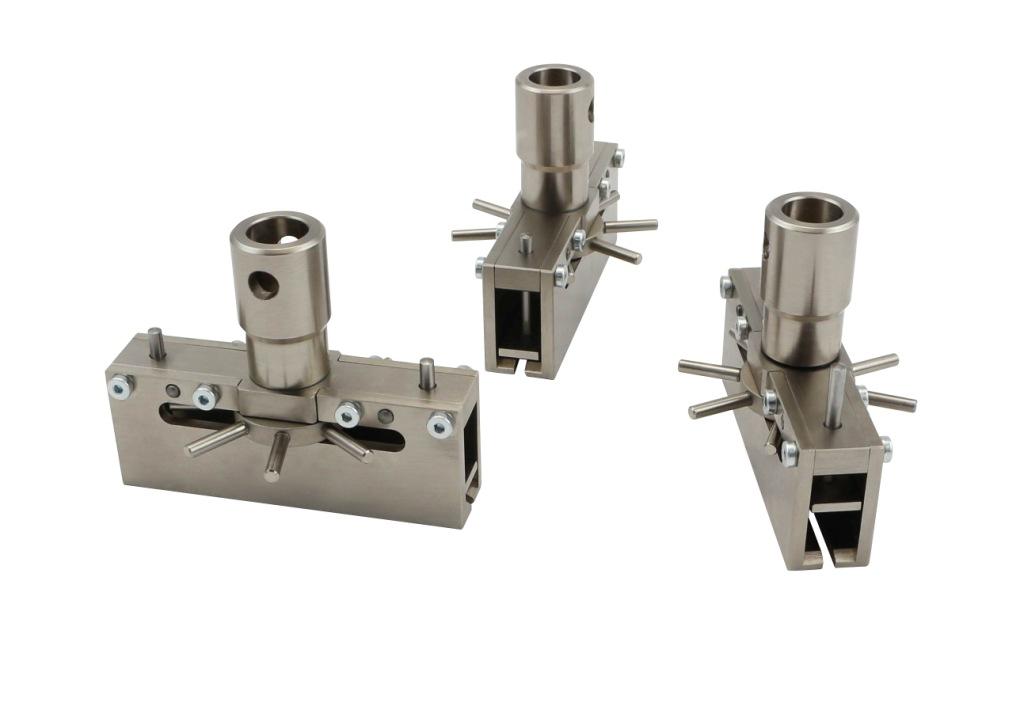

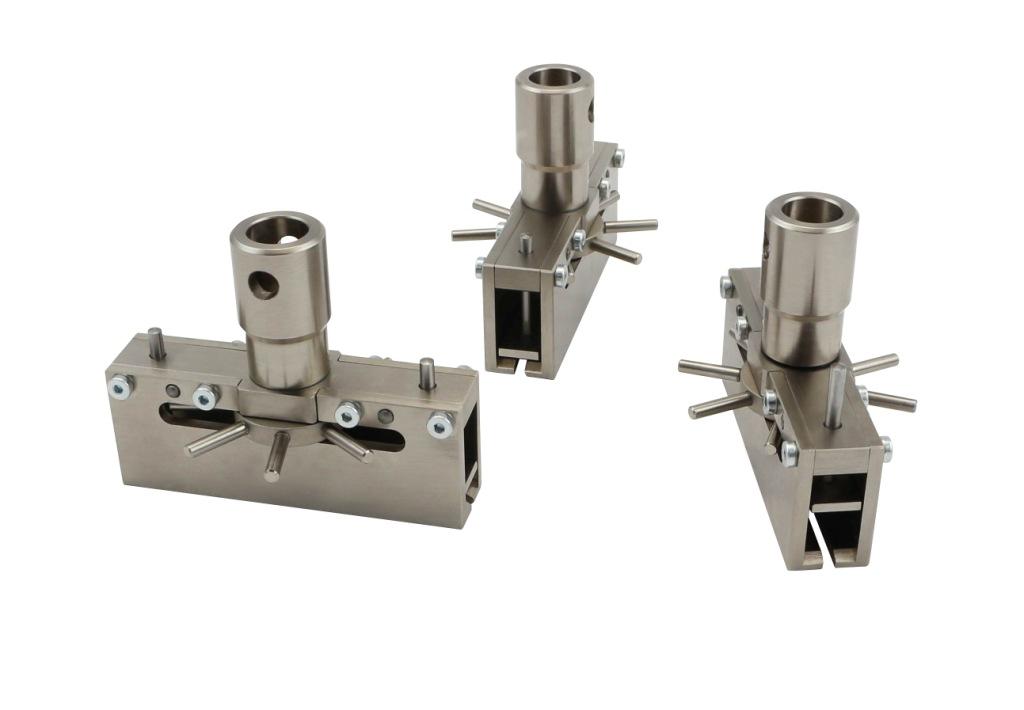

Description: tn_THS706 ASTM-D2229 2016-07-05-

THS706

Bottom grip to test adhesion between steel tire cords and rubber according to ASTM-D2229 and BISFA-E12


more

tn_THS1005-20-F5  0,66kg  ASTM-D4776-02  Adhesion of Tire cords  Reifen  2021-05-19  01

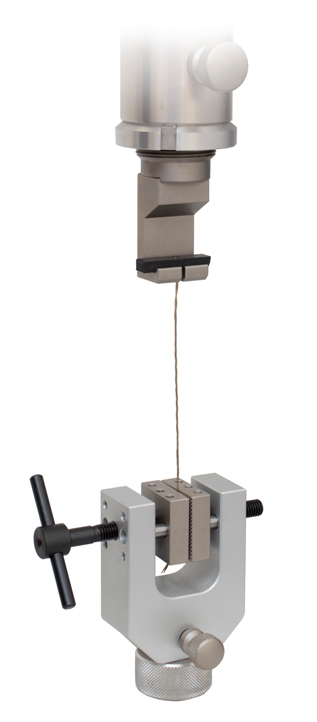

THS1005-20-ASTM-D4776

T-test of adhesion of tire cords according to ASTM-D4776

Upper special grip THS1005-20

Bottom grip – TH240k+BP

more

TH240k-S20+2Ko+UP20+BP+TH229+BP-Af159_rubber_to_metal_shear_test_1,3kg_04

TH240k-S20+2Ko+UP20+BP
+
TH229+BP-Af159



Special pneumatic vise grip for testing adhesion strength of rubber to metal



more

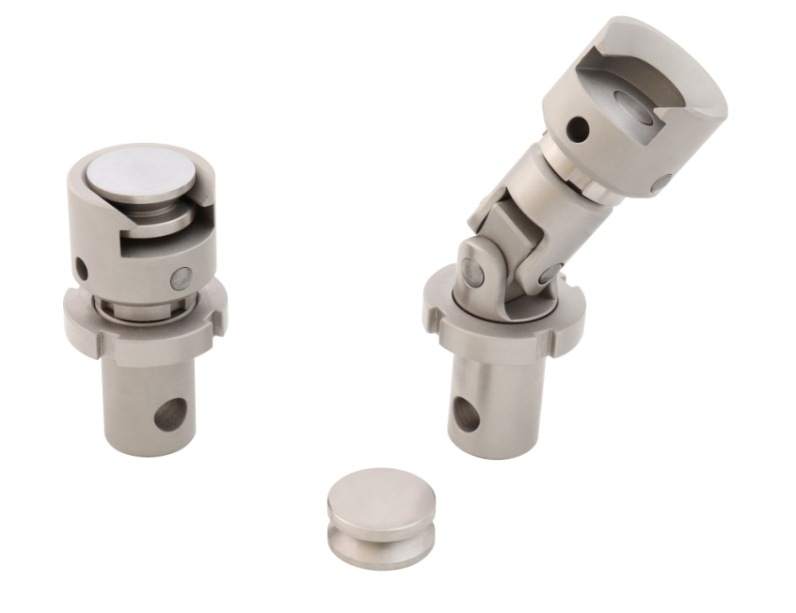

Description: tn_THS832-D35 GOST209-75A 2,2kg  08-08-2018  08-


THS832-D35



Adhesive bond strength tensile fixture according to GOST209-75A



more

THS1953-GT-E25-13.7-Af20_GOST 209-Fig.2_rubber_glue_A10_2.2kg_01

THS1953-GT-E25-13.7-Af20-GOST209-Fig.2



Special adhesion test fixture to test rubber and glue adhesion strength according to GOST209 Fig. 2


more

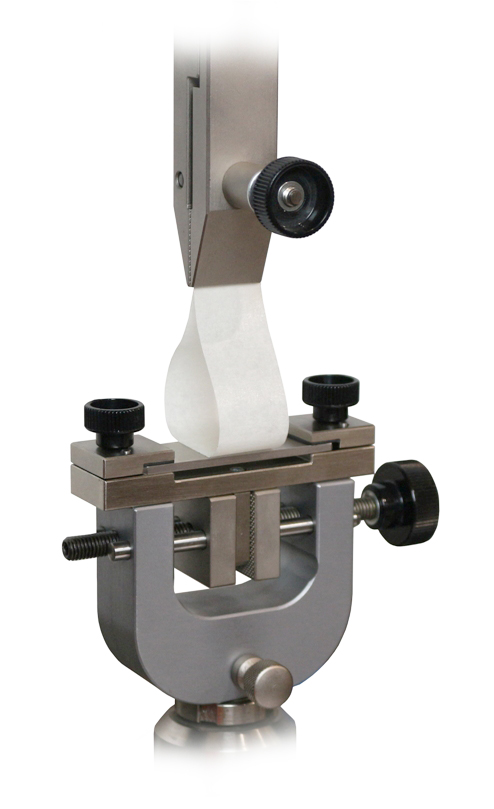

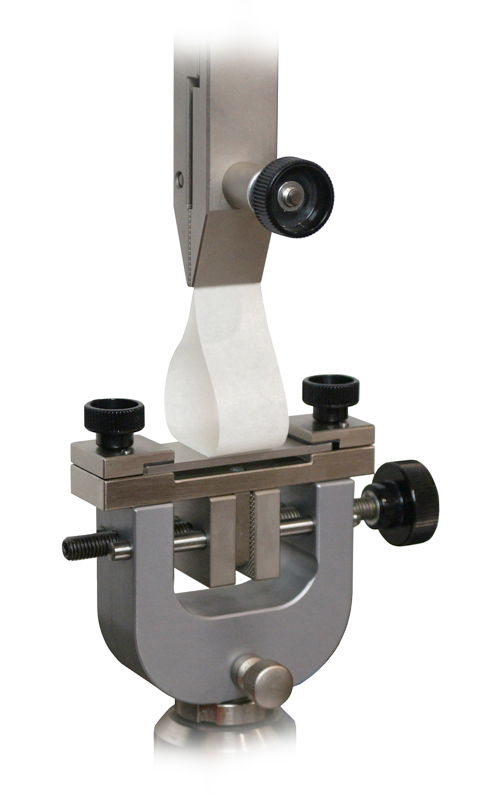

THS864-10-ASTM-D6195_2021-01-04

THS864

Loop tack test fixture to test adhesives according to ASTM-D6195, DIN EN1719, Finat-FTM9; similar to PSTC-16.

more

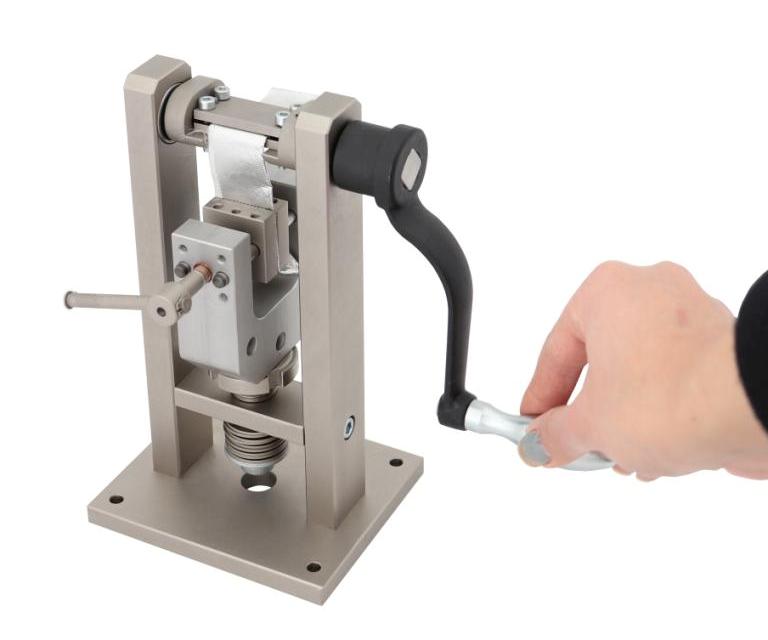

Description: tn_THS1011-TR60917-ASTM-B571  3,6kg  2019-02-22   01

THS1011



Bend test fixture to test metallic coatings according to ASTM-B571



more

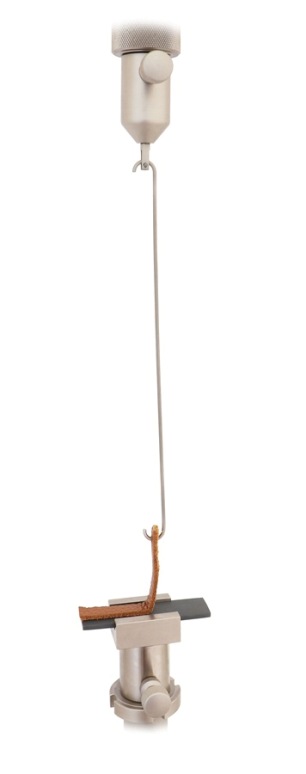

THS1186-20 Af15,9 DIN-EN-ISO11644 330g  23-07-2018  03-

THS1186-20

Test fixture to test adhesion properties on leather according to DIN-EN-ISO11644


more

THS633-150 - 29-05-12 011

THS633



Shear test fixture to determine bond strength at tearing of rubber and glue

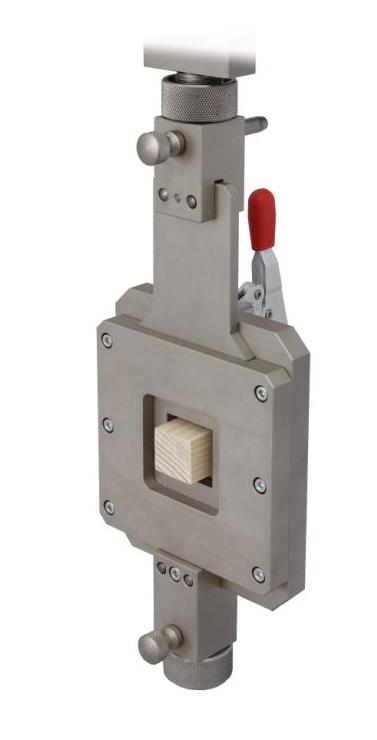

Description: tn_THS1399-ASTM-D4501 Shear Adhesives 270219 3.4 kg-



THS1399



Shear strength fixture to test adhesives according to ASTM-D4501



more

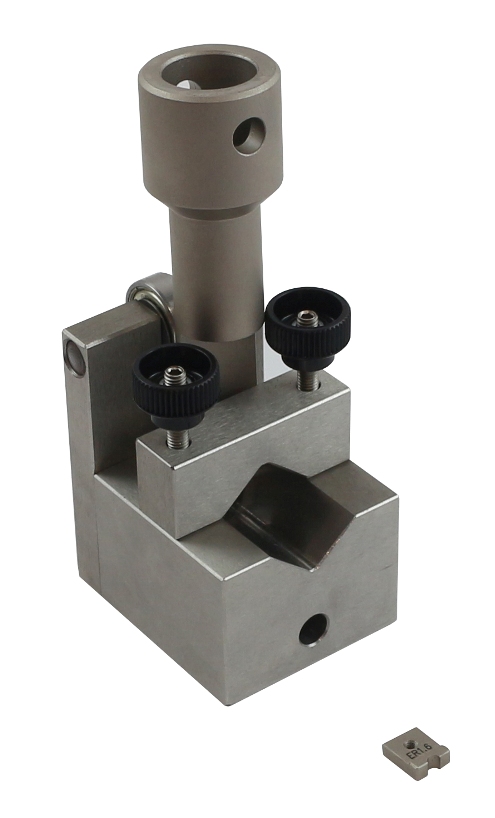

THS633-540-V5_similar_ISO29022_adhesive_bond_strength_dentistry_1.21kg_01

THS633-540-V5-ISO29022-Af20



Shear test fixture to determine the adhesive bond strength between dental restorative material and tooth similar to DIN EN ISO29022



more

THS919-100-Af20_7.52kg_ISO29864-B_EN14410_ASTM-D3759_breaking_strength_self-adhesve_tape.

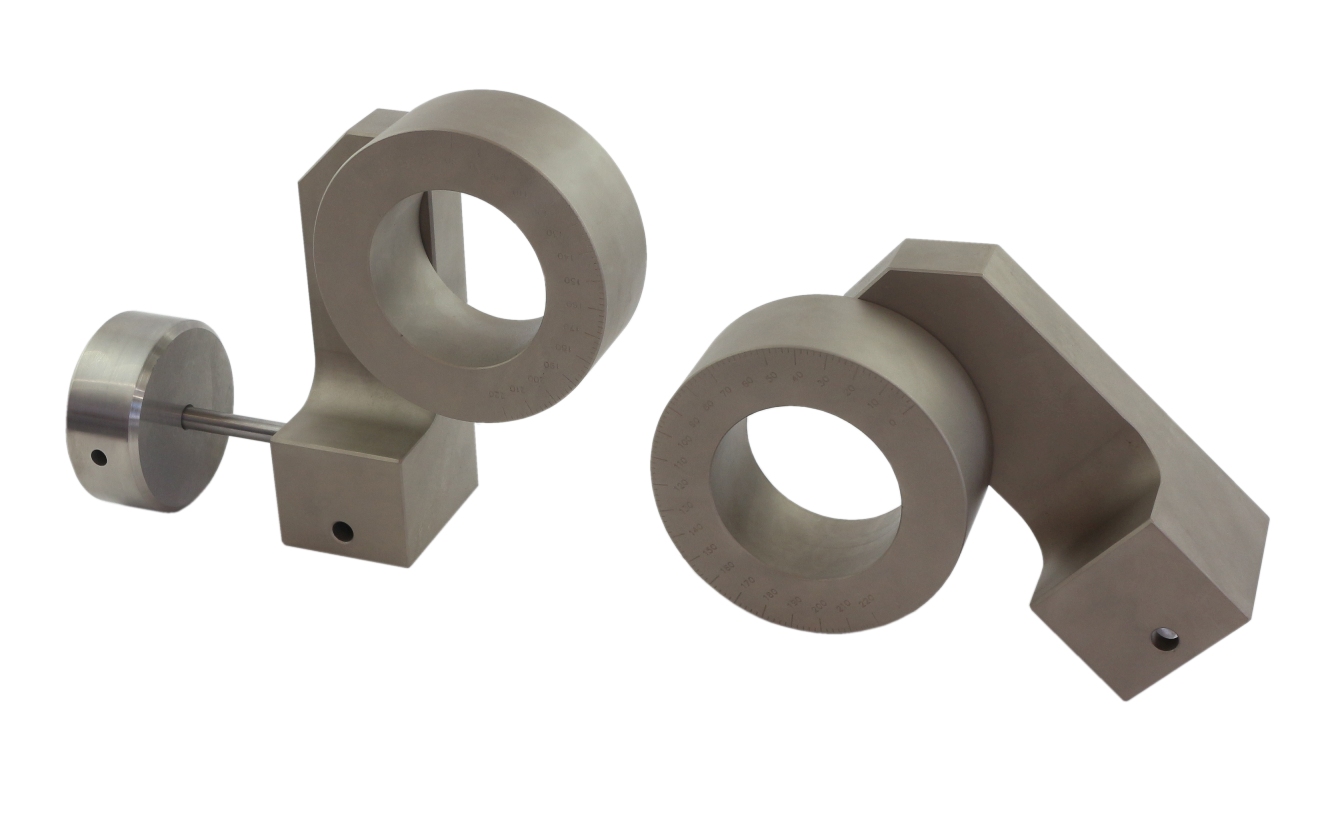

THS919-100



Special fixture to measure breaking strength and elongation at break of self adhesive tapes according to DIN EN14410, ASTM-D3759, EN ISO29864-Method-B

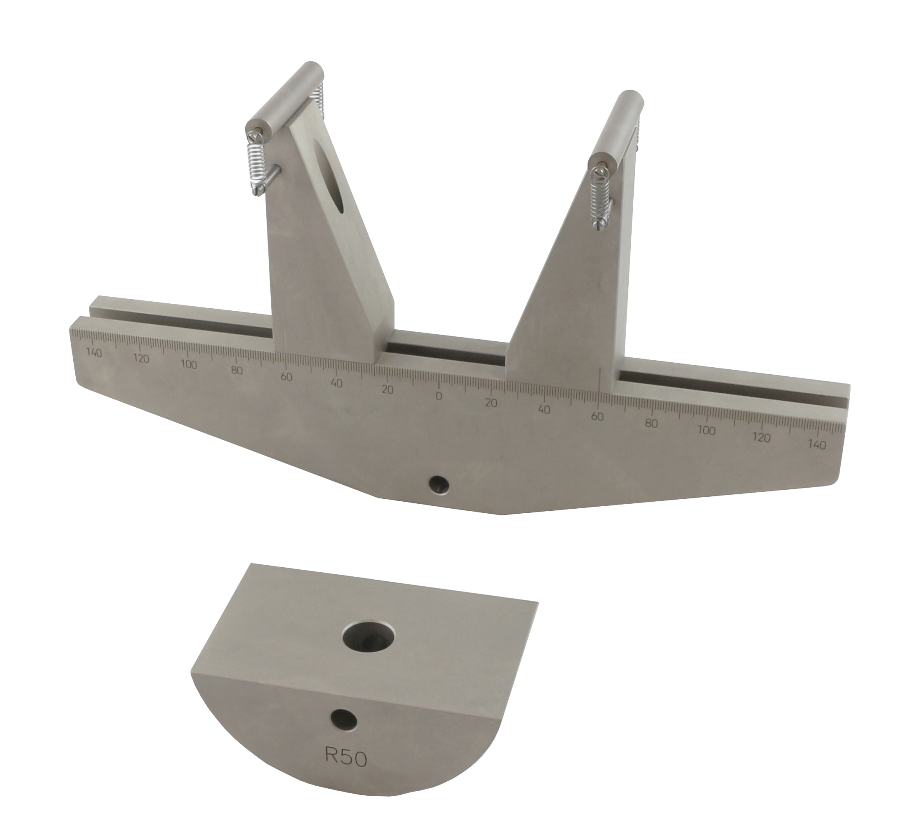

TH238-B300-CXH50D10x60-EN12002-Af159_5.25kg_cementitious-adhesives-for-tiles

TH238-B300-CXH50-D10x60-EN12002

Special bend test fixture to determine transverse deformation of cementitious adhesives for tiles according to EN12002, EN12004-2 and ISO13007-2

more

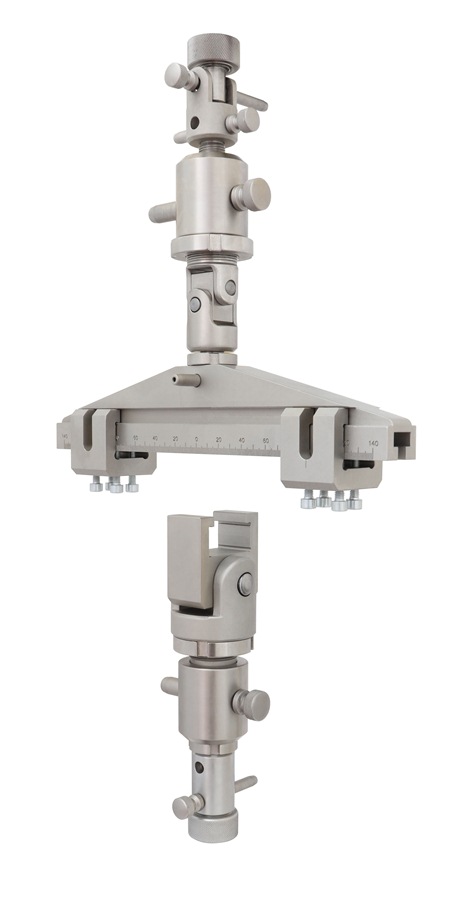

THS1440 OST 1-90016 5,6kg _05-09-2018

THS1440

Fixture to test adhesion properties according to OST1-90016

more

THS701-ASTM-D1623-A_tensile-test-cellular-rigid-plastics_4.1kg_01

THS701-ASTM-D1623-A

Tensile test fixture for rigid cellular plastics according to ASTM-D1623 Sample type A

more

THS1945-3.5x25.4 +THS626-317-317-ASTM-D3762_Aluminium_adhesive_wedge_test

THS1945-3.5x25.4
+
THS626-317-317-ASTM-D3762



Adhesion bond wedge test fixture for aluminum according to ASTM-D3762

more

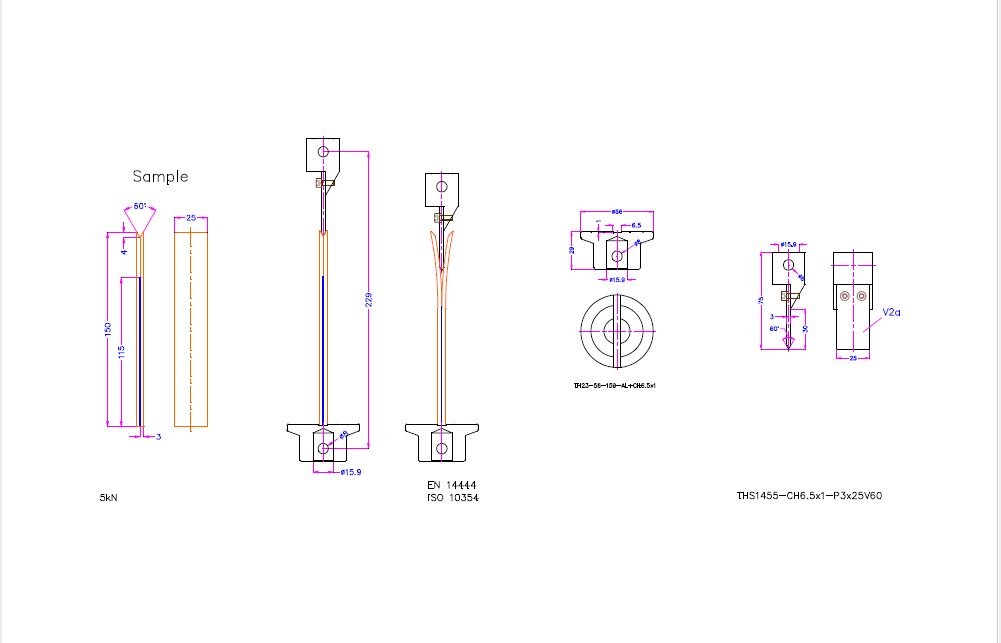

THS1455-CH6.5x1-P3x25V60 ISO10354



THS1455-CH6.5x1-P3x25V60 ISO10354 EN14444

Wedge rupture test fixture to measure durability of structural-adhesive-bonded assemblies according to DIN EN ISO10354 and DIN EN14444

Incl. special lower compression platen with an indent in the center for specimen, 56 mm diameter, aluminium

and upper punch, stainless steel
